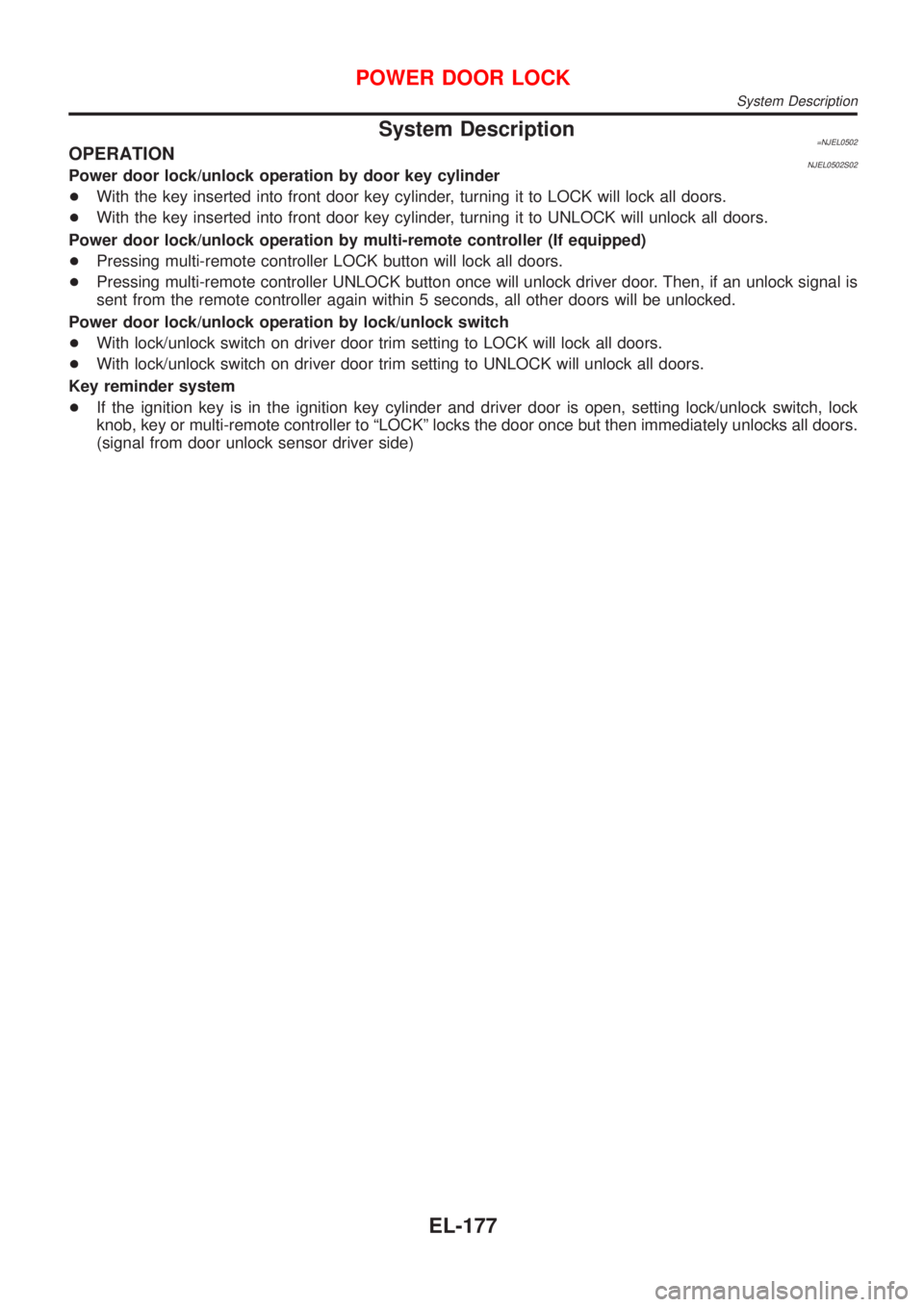

NISSAN ALMERA N16 2001 Electronic Repair Manual System Description=NJEL0502OPERATIONNJEL0502S02Power door lock/unlock operation by door key cylinder +With the key inserted into front door key cylinder, turning it to LOCK will lock all doors. +With

Page 2290 of 2493

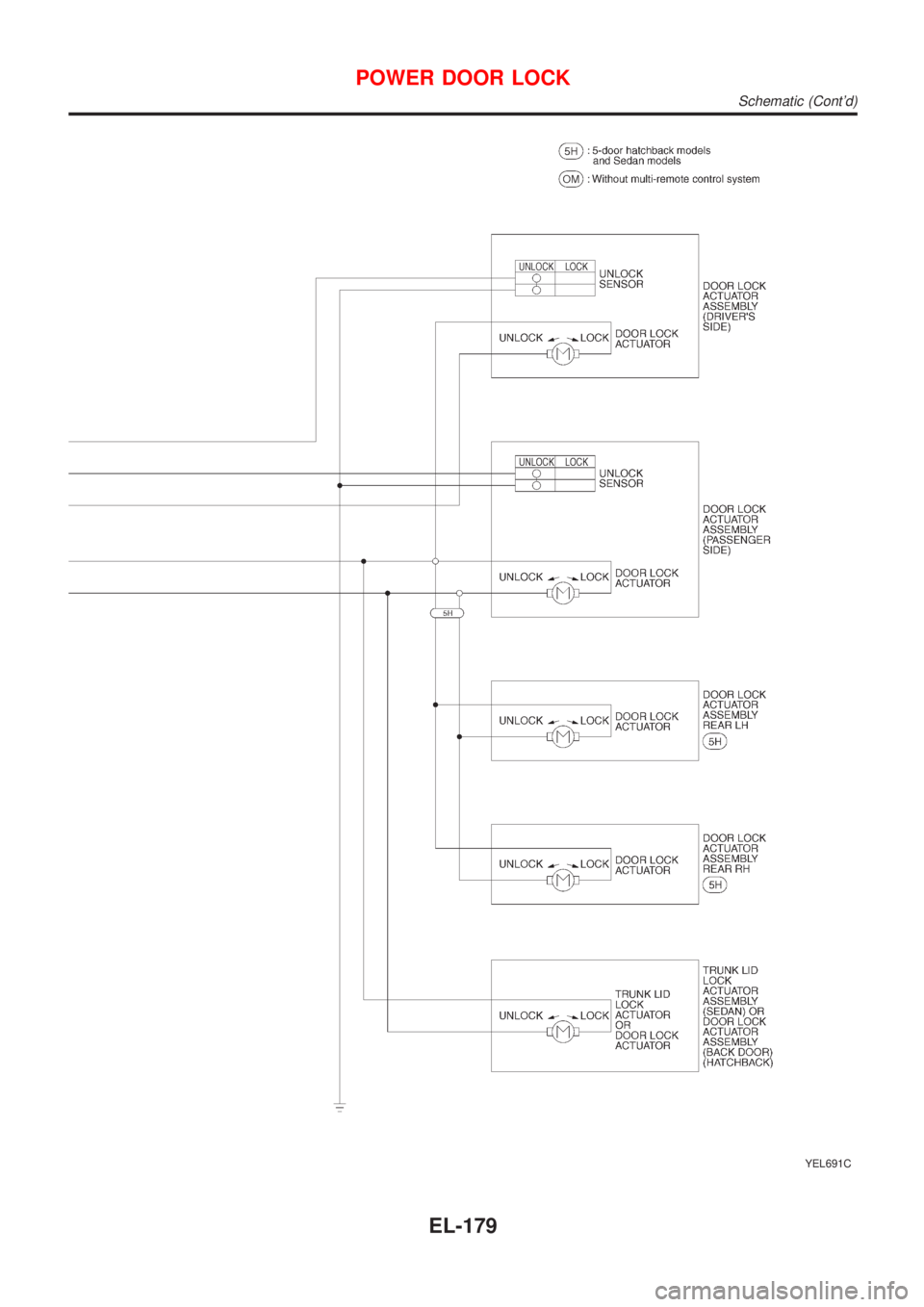

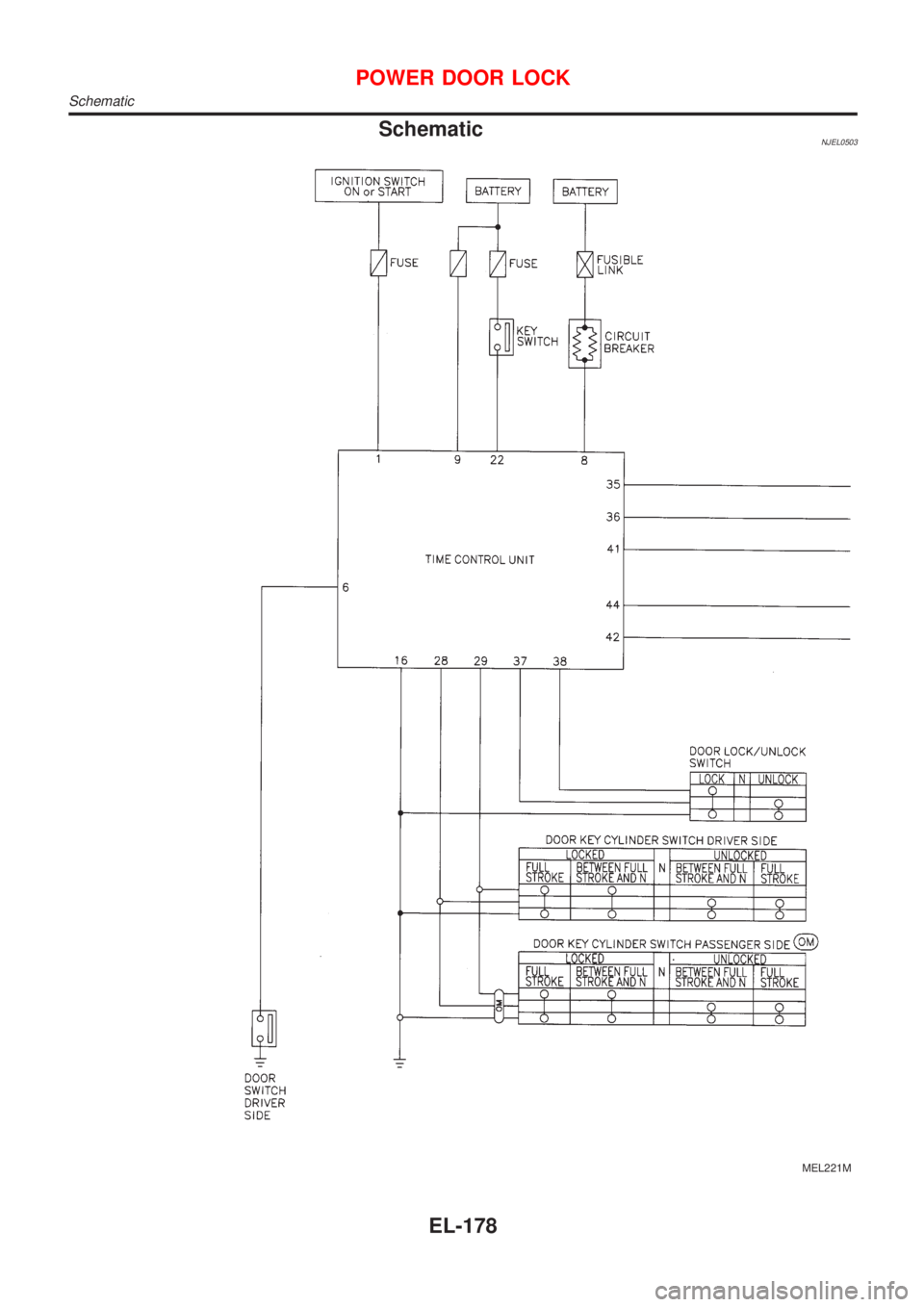

NISSAN ALMERA N16 2001 Electronic Repair Manual SchematicNJEL0503 MEL221M POWER DOOR LOCK Schematic EL-178

Page 2291 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual YEL691C POWER DOOR LOCK Schematic (Contd) EL-179

Page 2292 of 2493

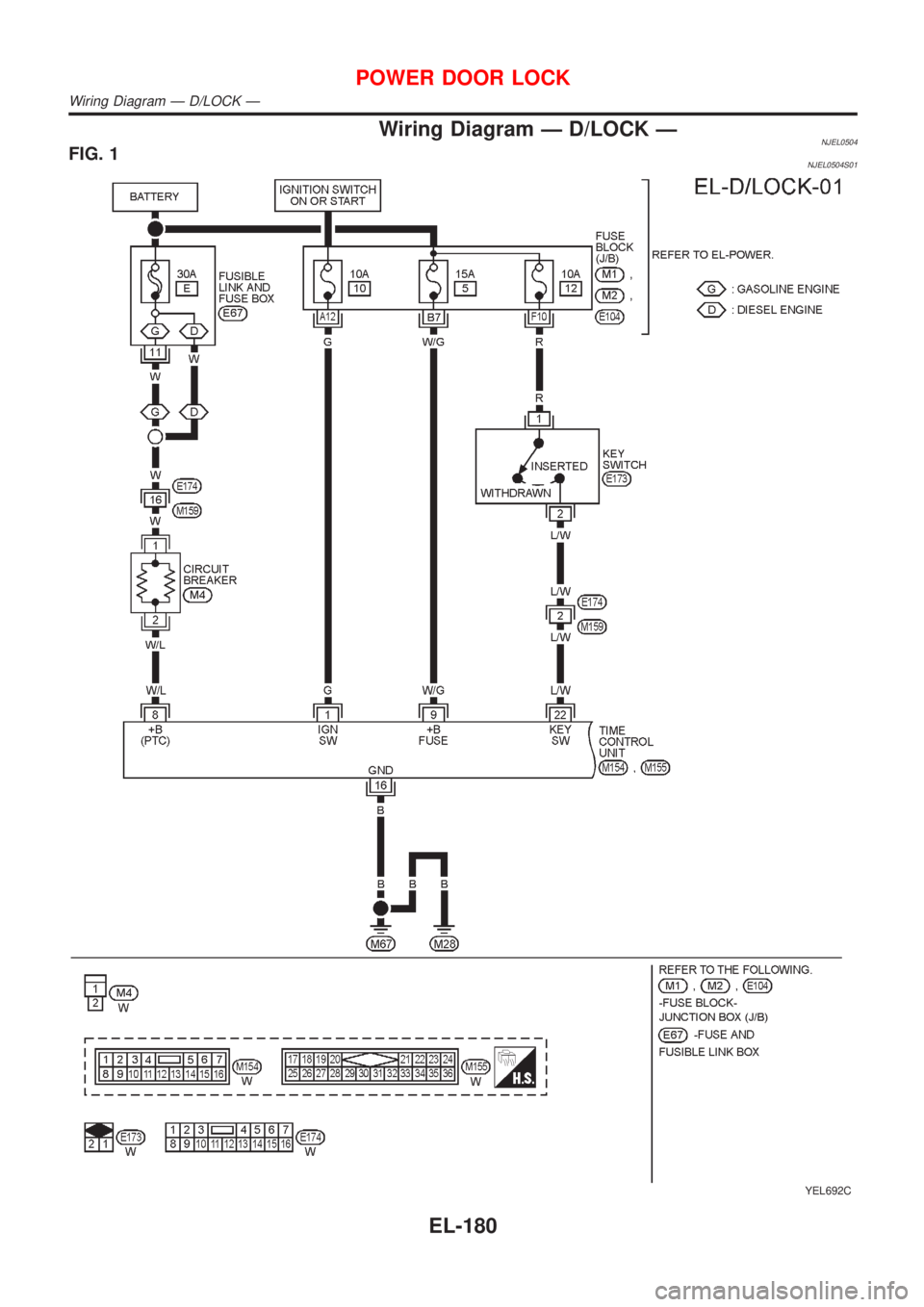

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring Diagram Ð D/LOCK ÐNJEL0504FIG. 1NJEL0504S01 YEL692C POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð EL-180

Page 2293 of 2493

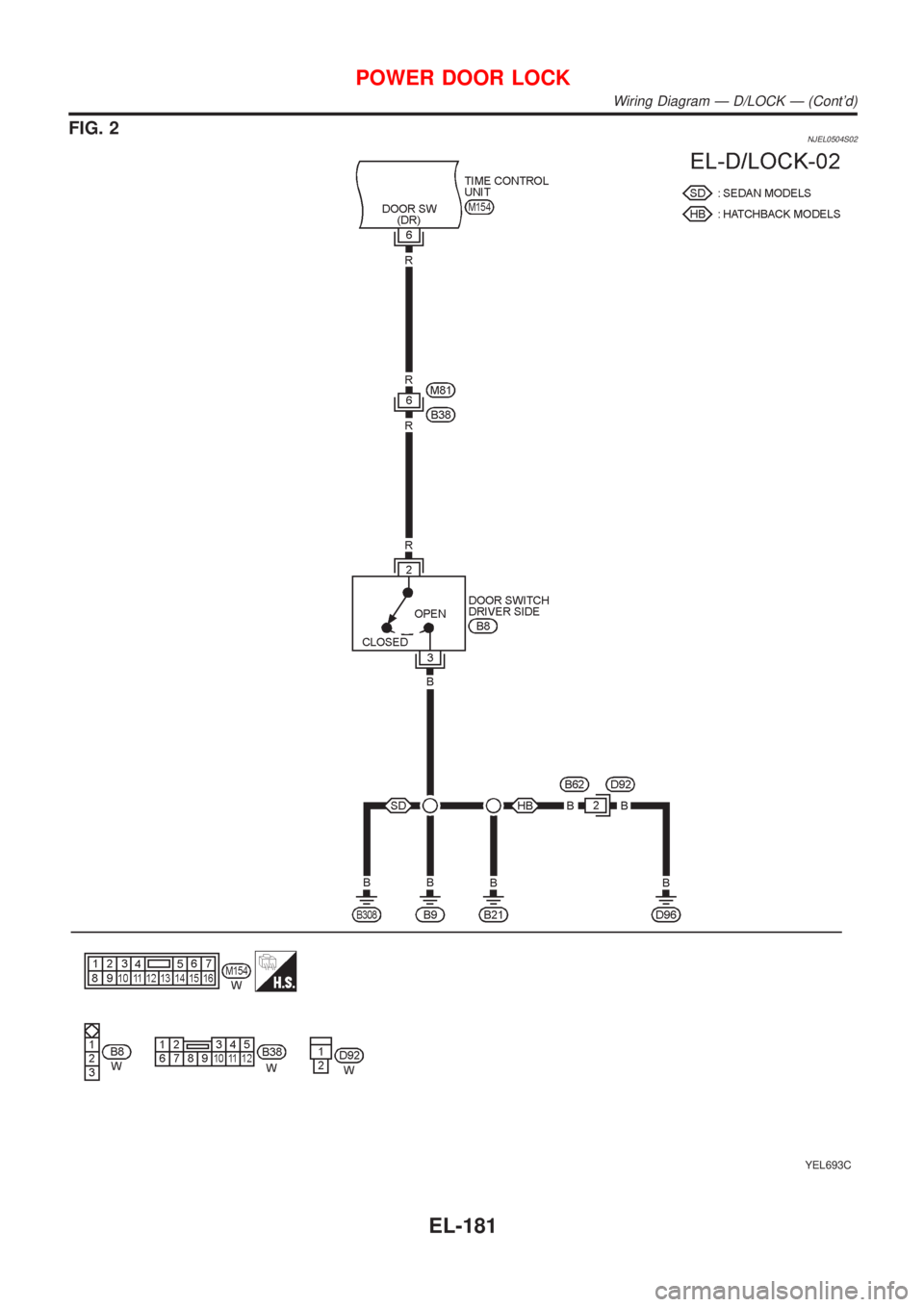

NISSAN ALMERA N16 2001 Electronic Repair Manual FIG. 2NJEL0504S02 YEL693C POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð (Contd) EL-181

Page 2294 of 2493

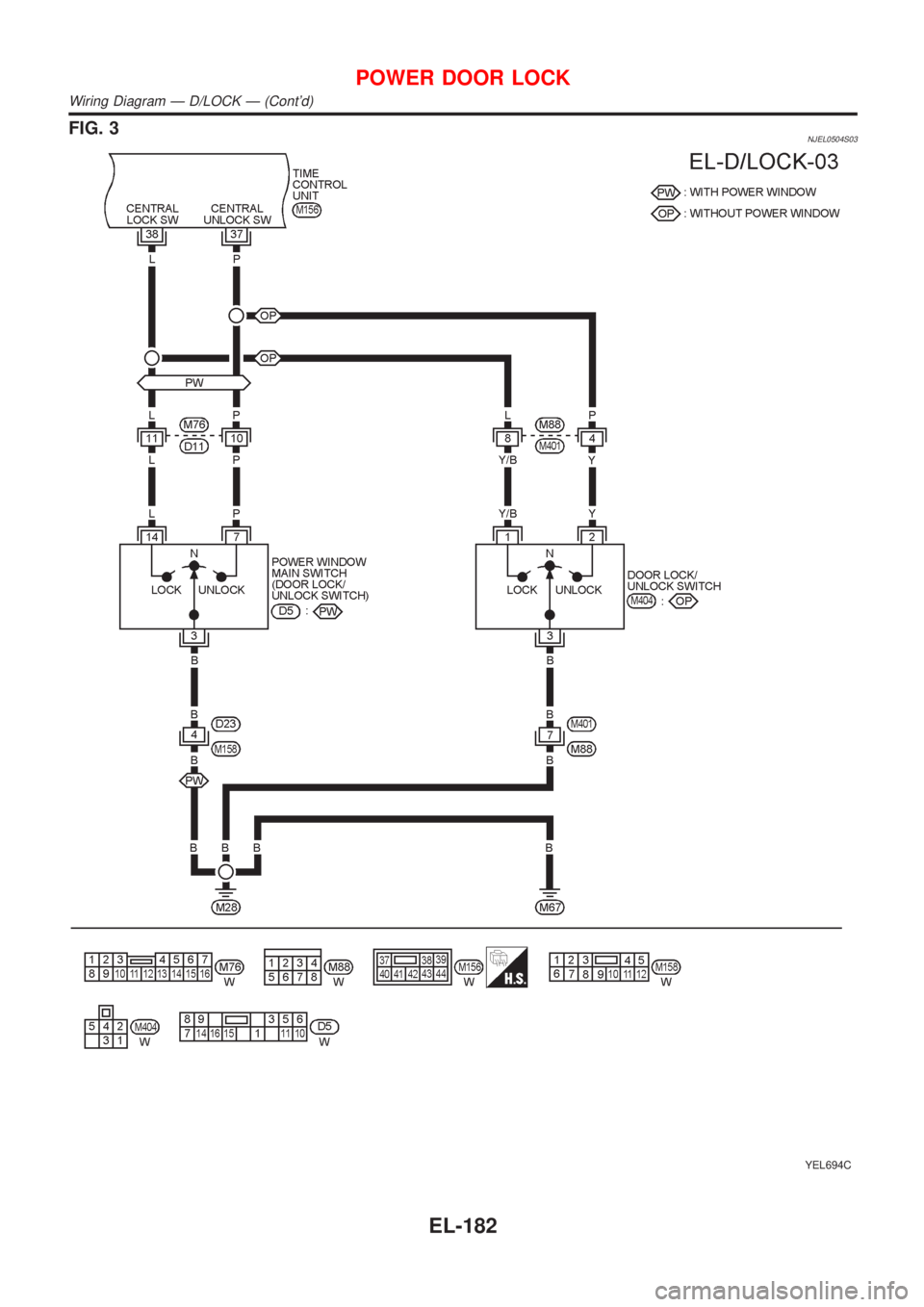

NISSAN ALMERA N16 2001 Electronic Repair Manual FIG. 3NJEL0504S03 YEL694C POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð (Contd) EL-182

Page 2295 of 2493

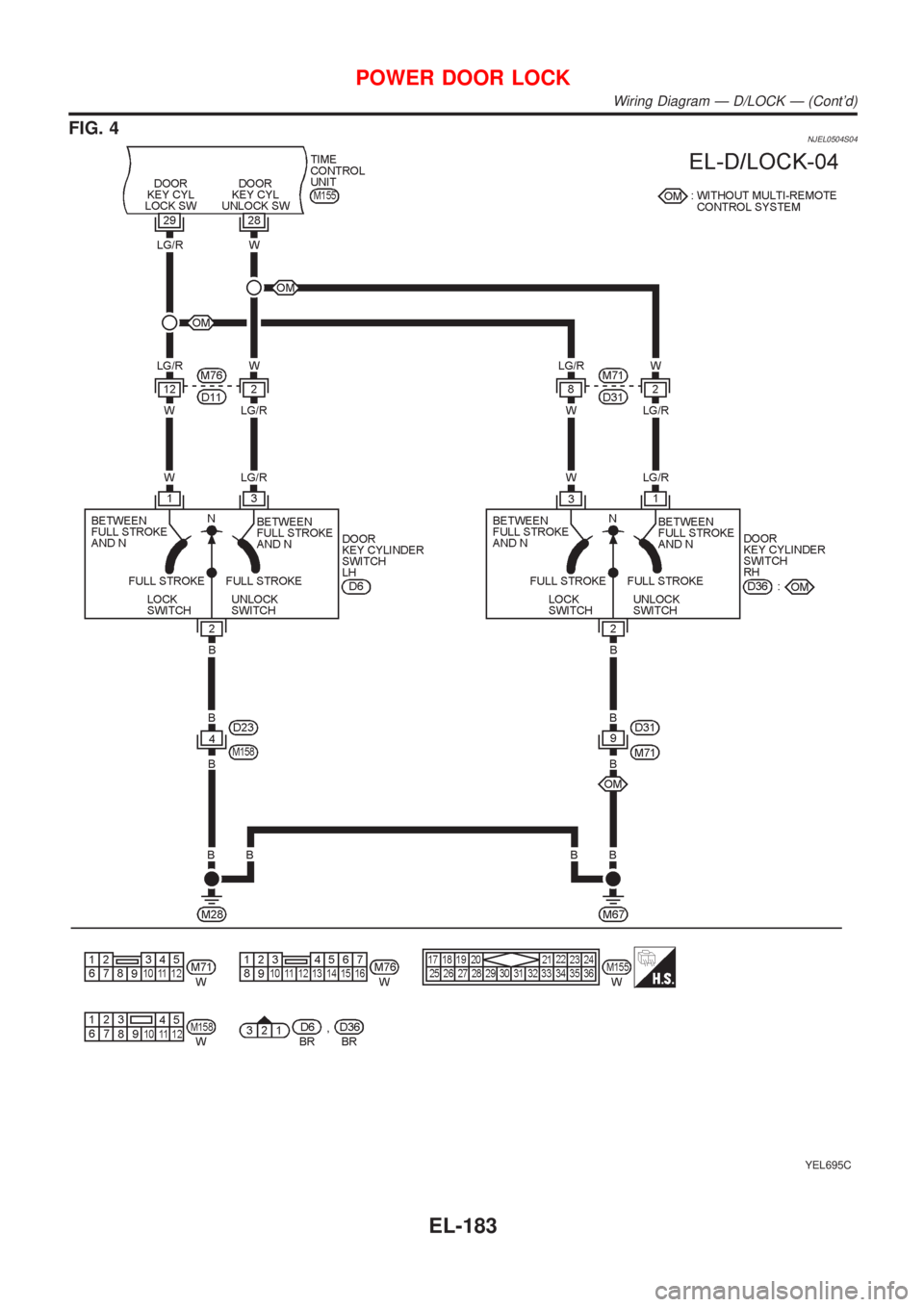

NISSAN ALMERA N16 2001 Electronic Repair Manual FIG. 4NJEL0504S04 YEL695C POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð (Contd) EL-183

Page 2296 of 2493

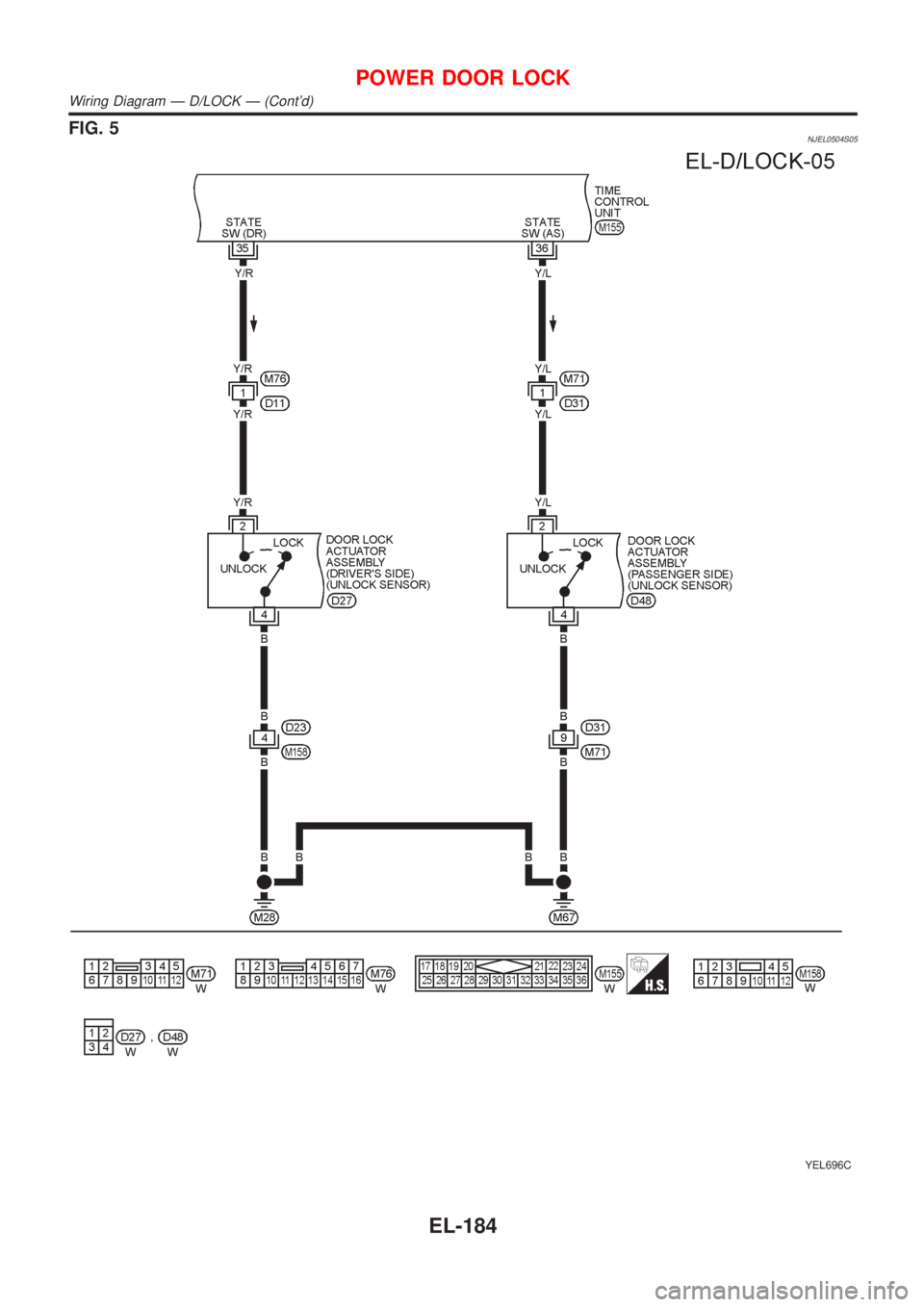

NISSAN ALMERA N16 2001 Electronic Repair Manual FIG. 5NJEL0504S05 YEL696C POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð (Contd) EL-184
