2001 NISSAN ALMERA N16 Electronic Repair Manual

Page 1953 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Removal and InstallationNJBT0019
NBT204

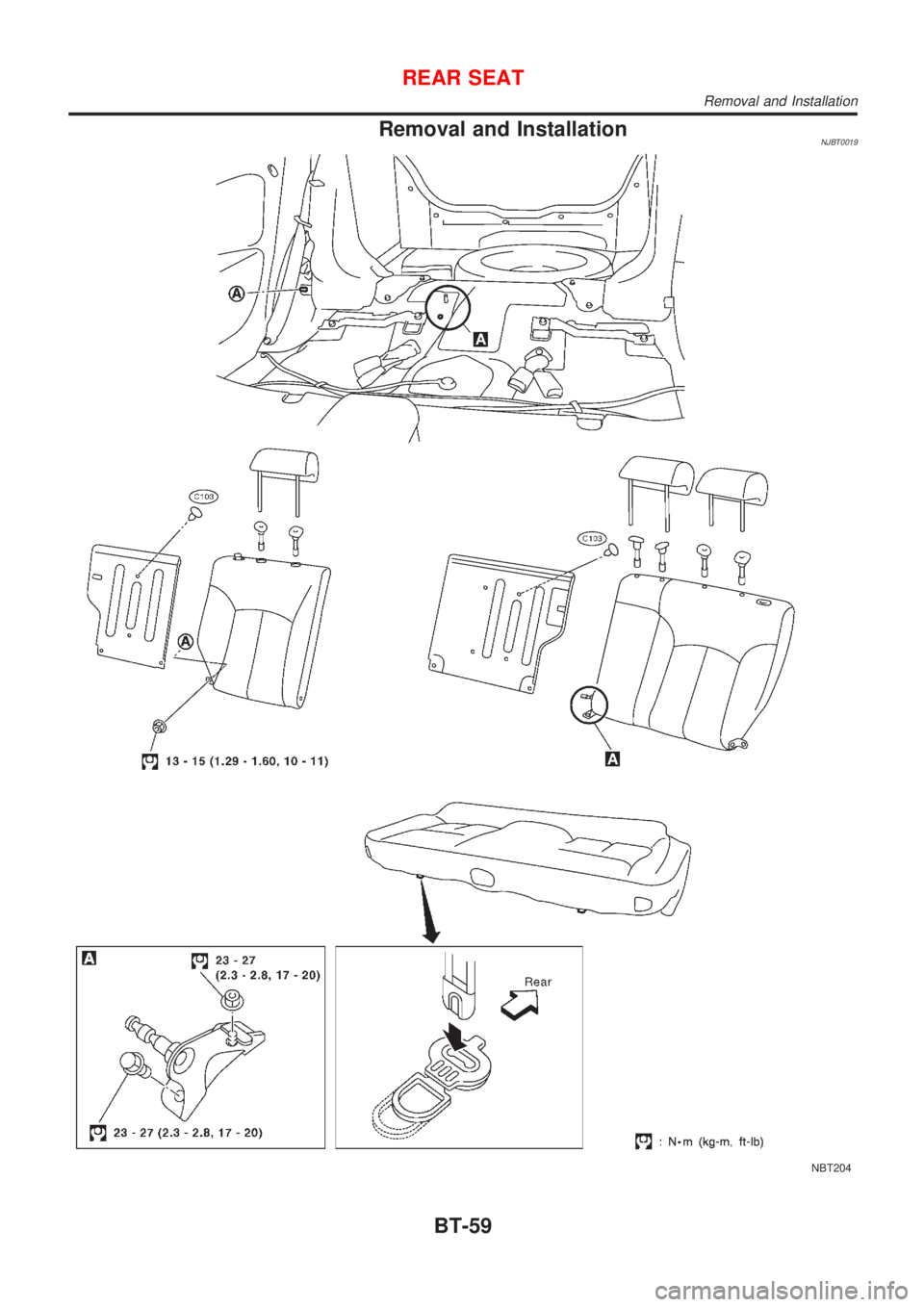

REAR SEAT
Removal and Installation
BT-59

Page 1954 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual AdjustmentNJBT0020Install motor & limit SW assembly and sunroof rail assembly in the following sequence:
1. Arrange equal lengths of link and wire assemblies on both sides of sunroof opening.
2. Conne

Page 1955 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SBT838
*1 BT-43 *2 EL-165
SUNROOF
Removal (Contd)
BT-61

Page 1956 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual NBT193
SUNROOF
Removal (Contd)
BT-62

Page 1957 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SBT826
Record the number of shims placed between glass lid assem-
bly and link and wire assembly. Remove securing nuts and glass
lid assembly.
SBT827
Remove screws from left and right sides of each wi

Page 1958 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Trouble Diagnoses=NJBT0022DIAGNOSTIC TABLENJBT0022S01NOTE:
For diagnosing electric problem, refer to ªELECTRIC SUNROOFº
in EL section.
Check items (Components)
Wind deflector Adjustment Drain hoses

Page 1959 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual ADJUSTMENTNJBT0022S03
SBT004A
If any height difference between glass lid and roof is found, check
glass lid fit and adjust as follows:
Height Difference AdjustmentNJBT0022S03021. Tilt glass lid up and

Page 1960 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual DRAIN HOSESNJBT0022S04
SBT005A
SBT333
1. Remove headlining to access drain hose connections. (Refer
to ªROOF TRIMº, BT-43, for detail.)
2. Check visually for proper connections, damage or deteriora-
