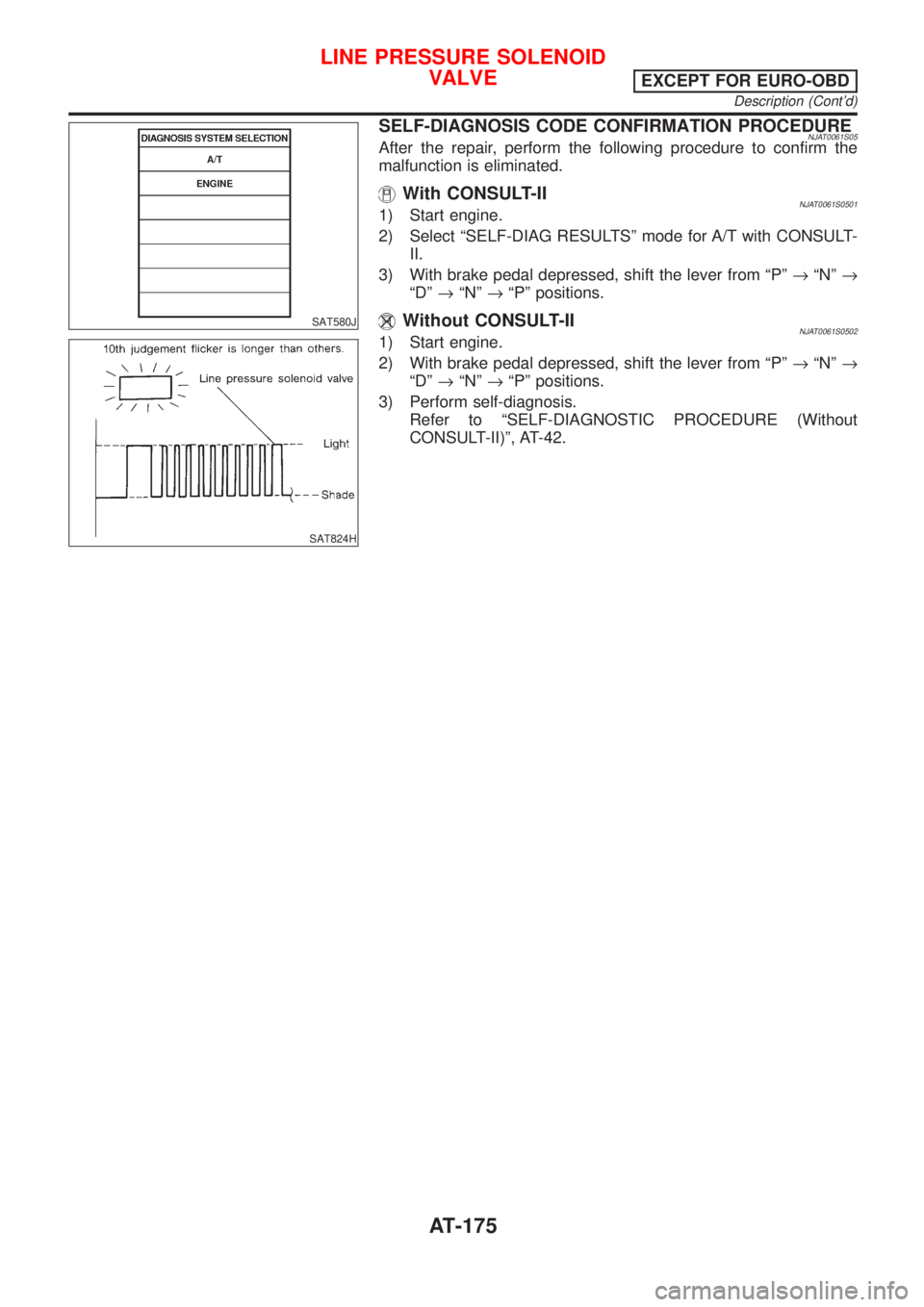

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT580J SAT824H SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENJAT0061S05After the repair, perform the following procedure to confirm the malfunction is eliminated. With CONSULT-IINJAT0061S05011) Start en

Page 1362 of 2493

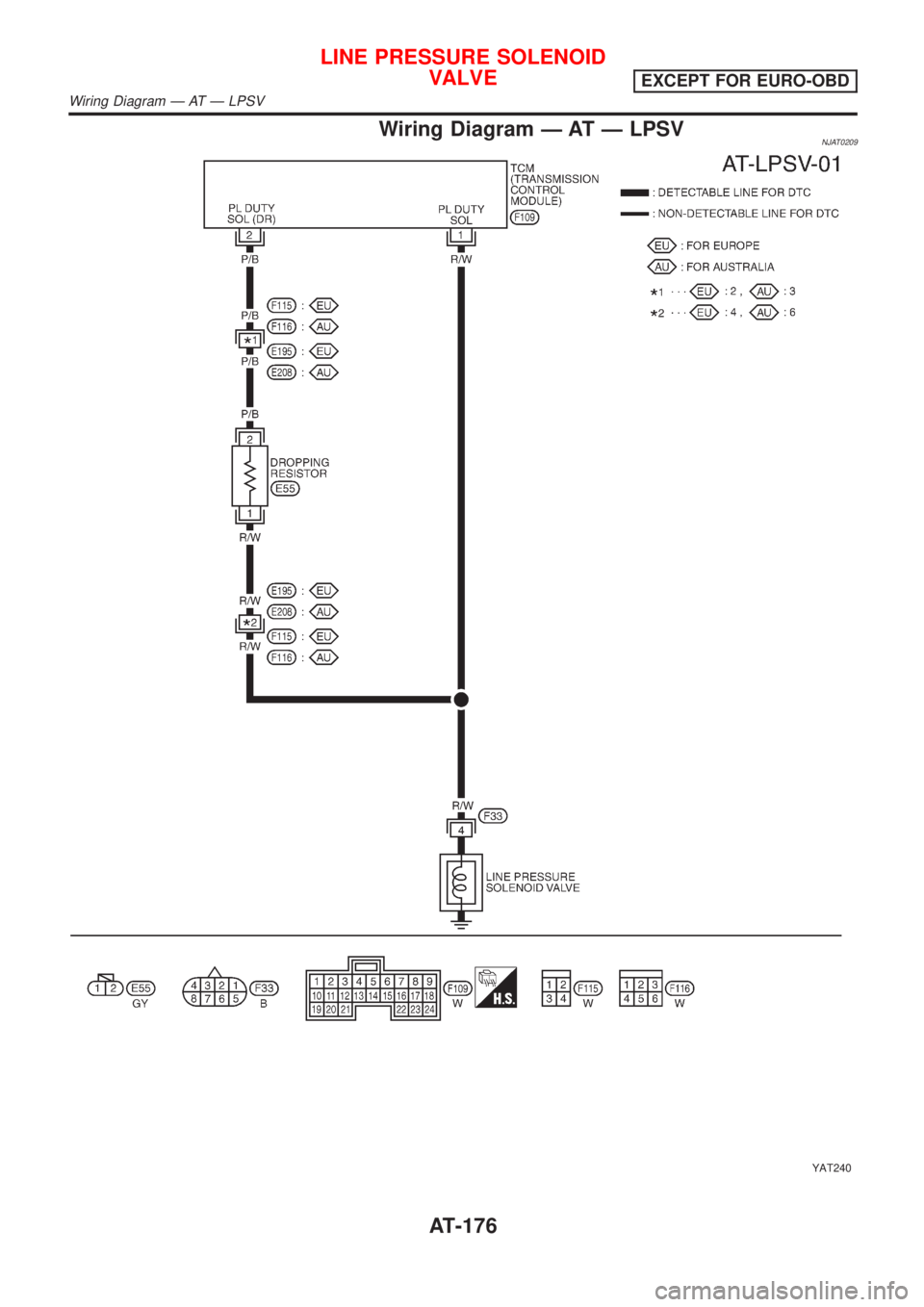

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring Diagram Ð AT Ð LPSVNJAT0209 YAT240 LINE PRESSURE SOLENOID VALVE EXCEPT FOR EURO-OBD Wiring Diagram Ð AT Ð LPSV AT-176

Page 1363 of 2493

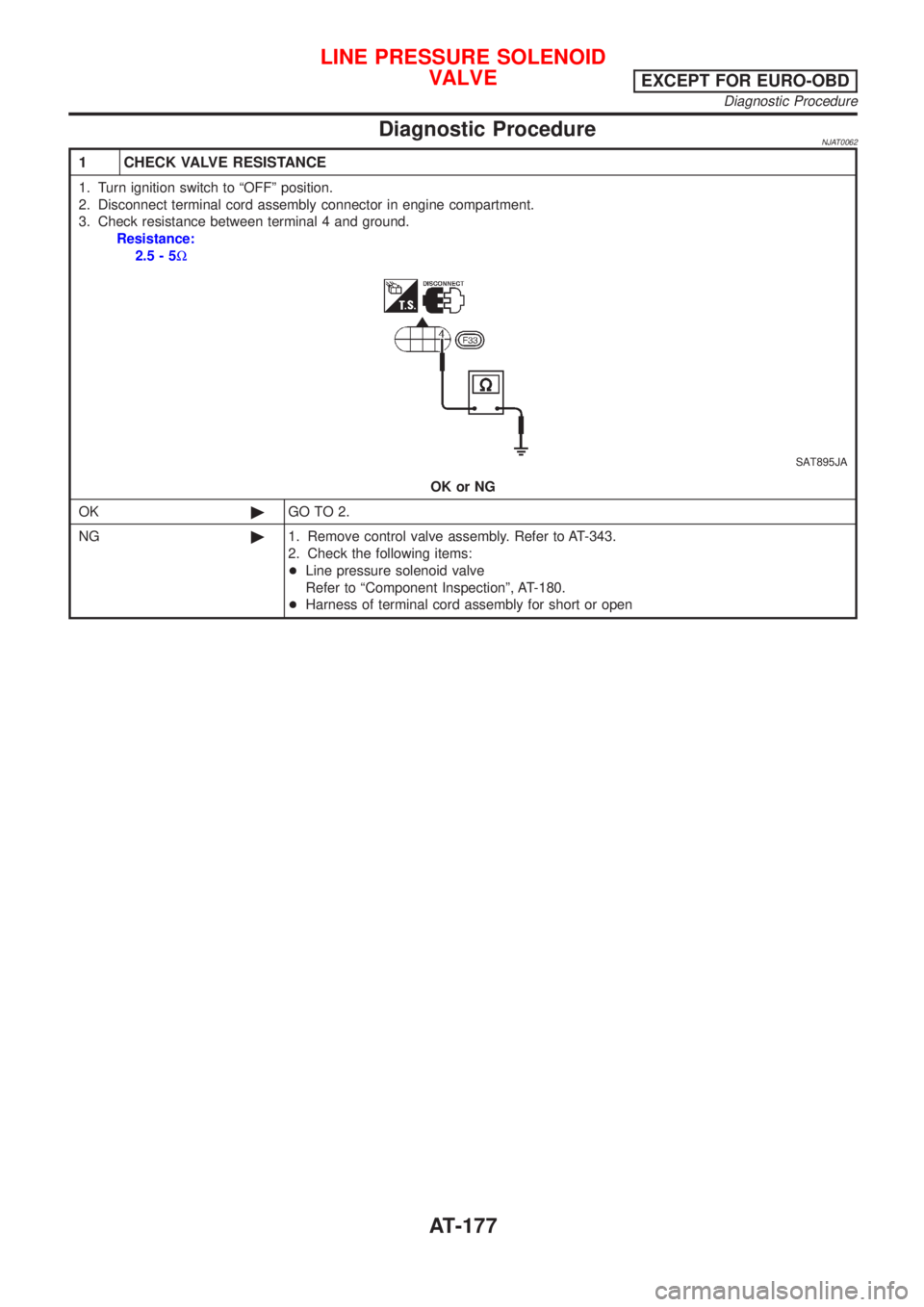

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJAT0062 1 CHECK VALVE RESISTANCE 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine compartment. 3. Check resistance between ter

Page 1364 of 2493

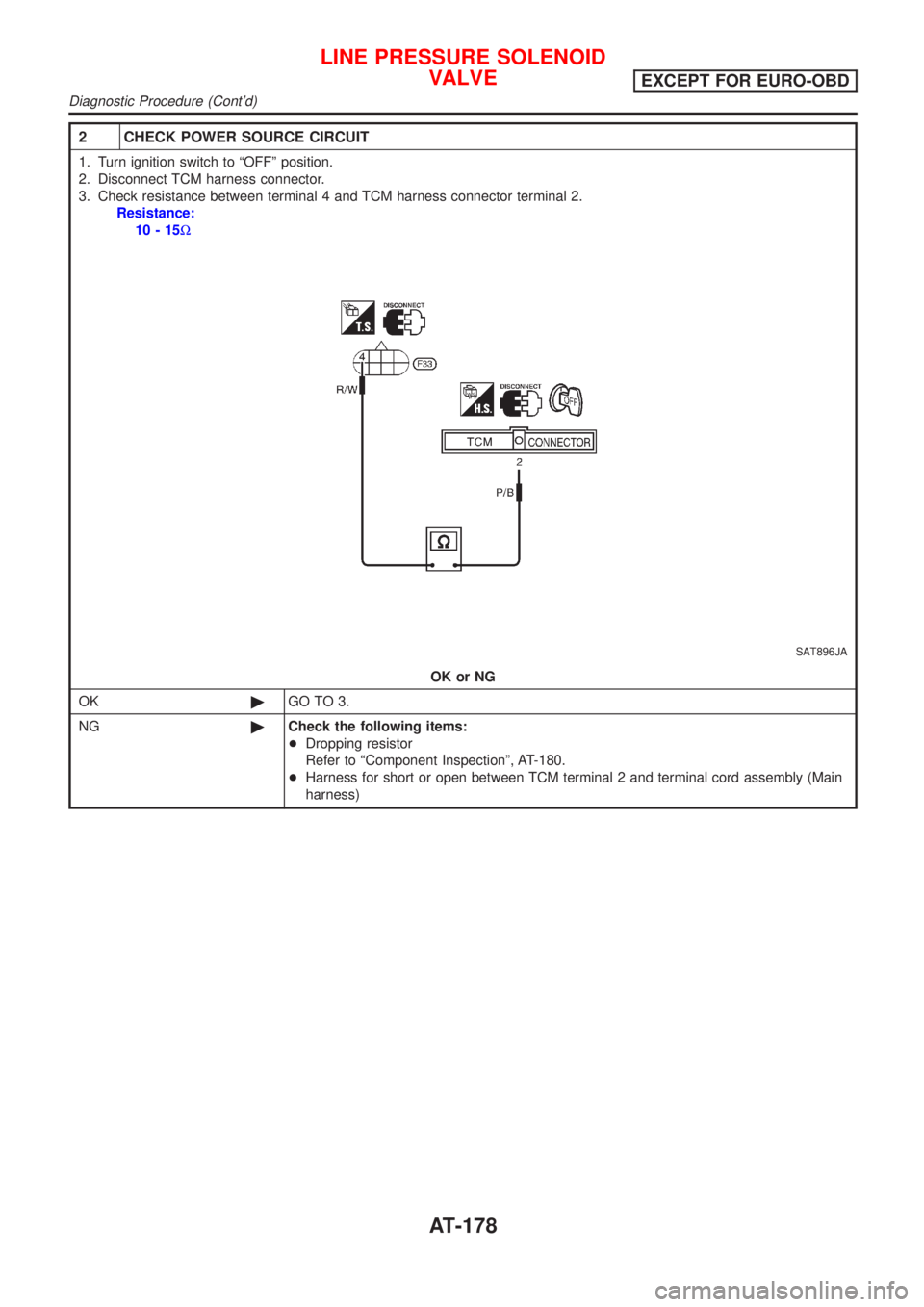

NISSAN ALMERA N16 2001 Electronic Repair Manual 2 CHECK POWER SOURCE CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Disconnect TCM harness connector. 3. Check resistance between terminal 4 and TCM harness connector terminal 2. Resistance:

Page 1365 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 3 CHECK POWER SOURCE CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Check resistance between terminal 4 and TCM harness connector terminal 1. Resistance: Approx. 0W SAT897JA If OK, check harn

Page 1366 of 2493

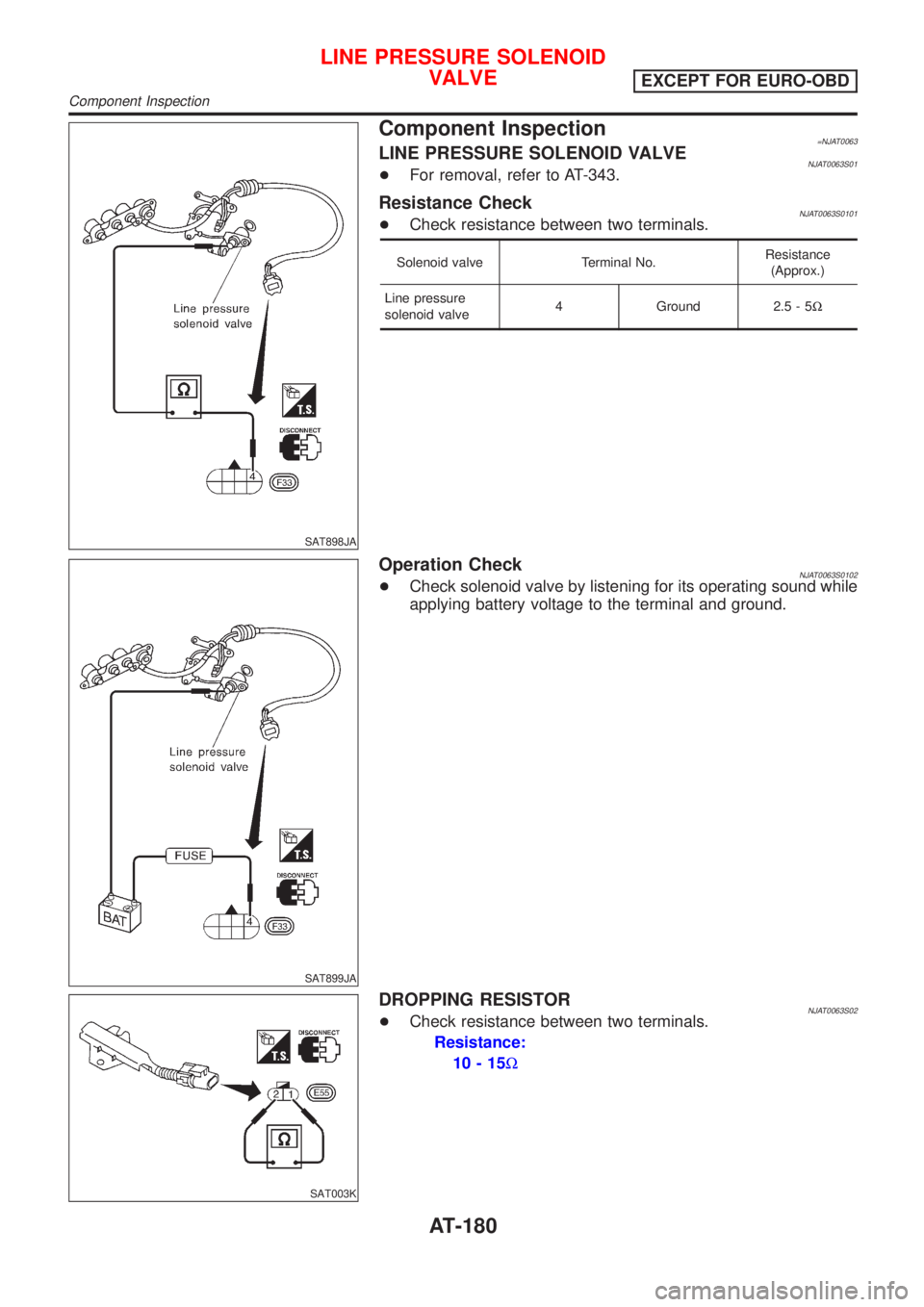

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT898JA Component Inspection=NJAT0063LINE PRESSURE SOLENOID VALVENJAT0063S01+For removal, refer to AT-343. Resistance CheckNJAT0063S0101+Check resistance between two terminals. Solenoid valve Termina

Page 1367 of 2493

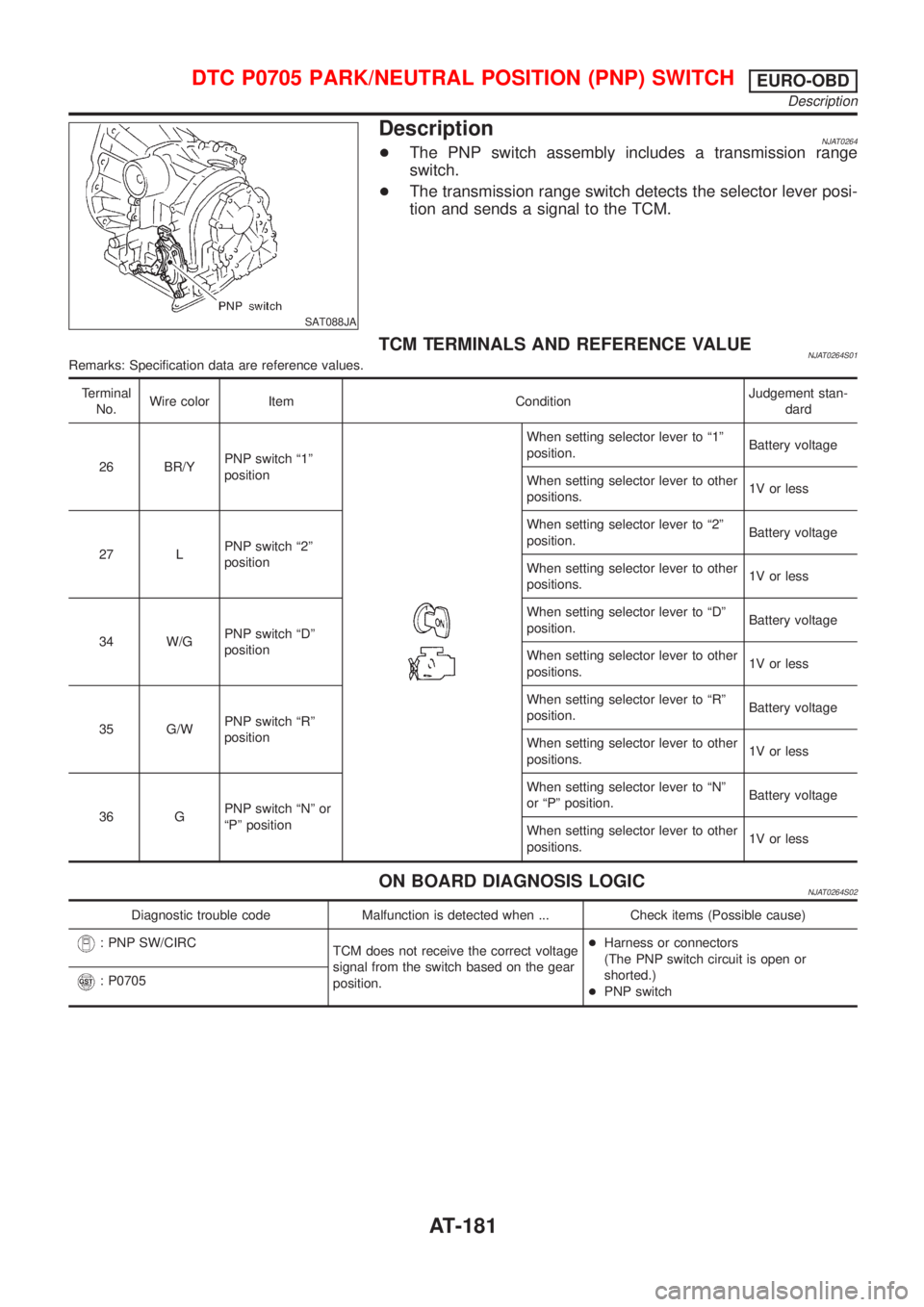

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT088JA DescriptionNJAT0264+The PNP switch assembly includes a transmission range switch. +The transmission range switch detects the selector lever posi- tion and sends a signal to the TCM. TCM TERMI

Page 1368 of 2493

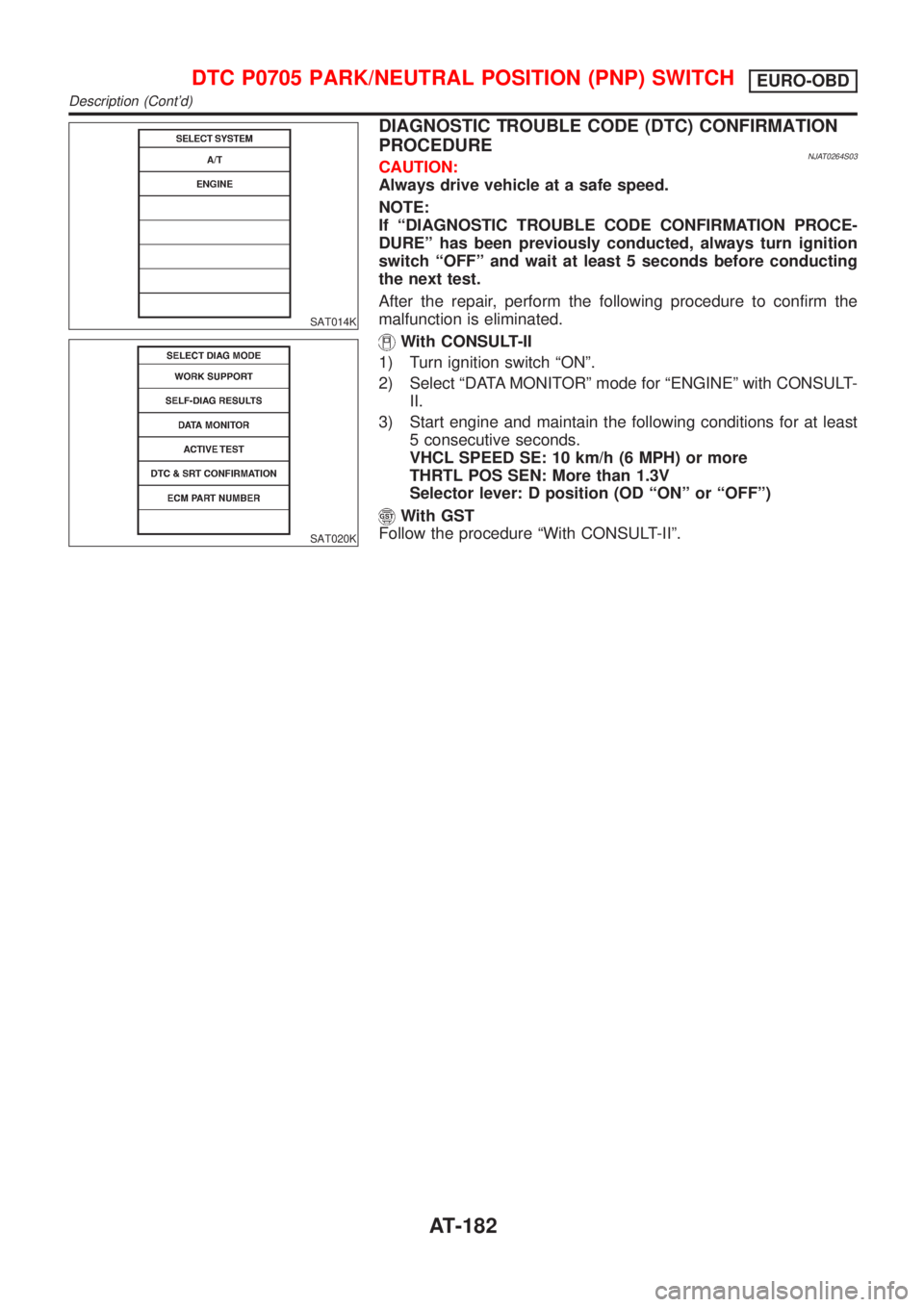

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT014K SAT020K DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE NJAT0264S03CAUTION: Always drive vehicle at a safe speed. NOTE: If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE- DUREº has been pr
