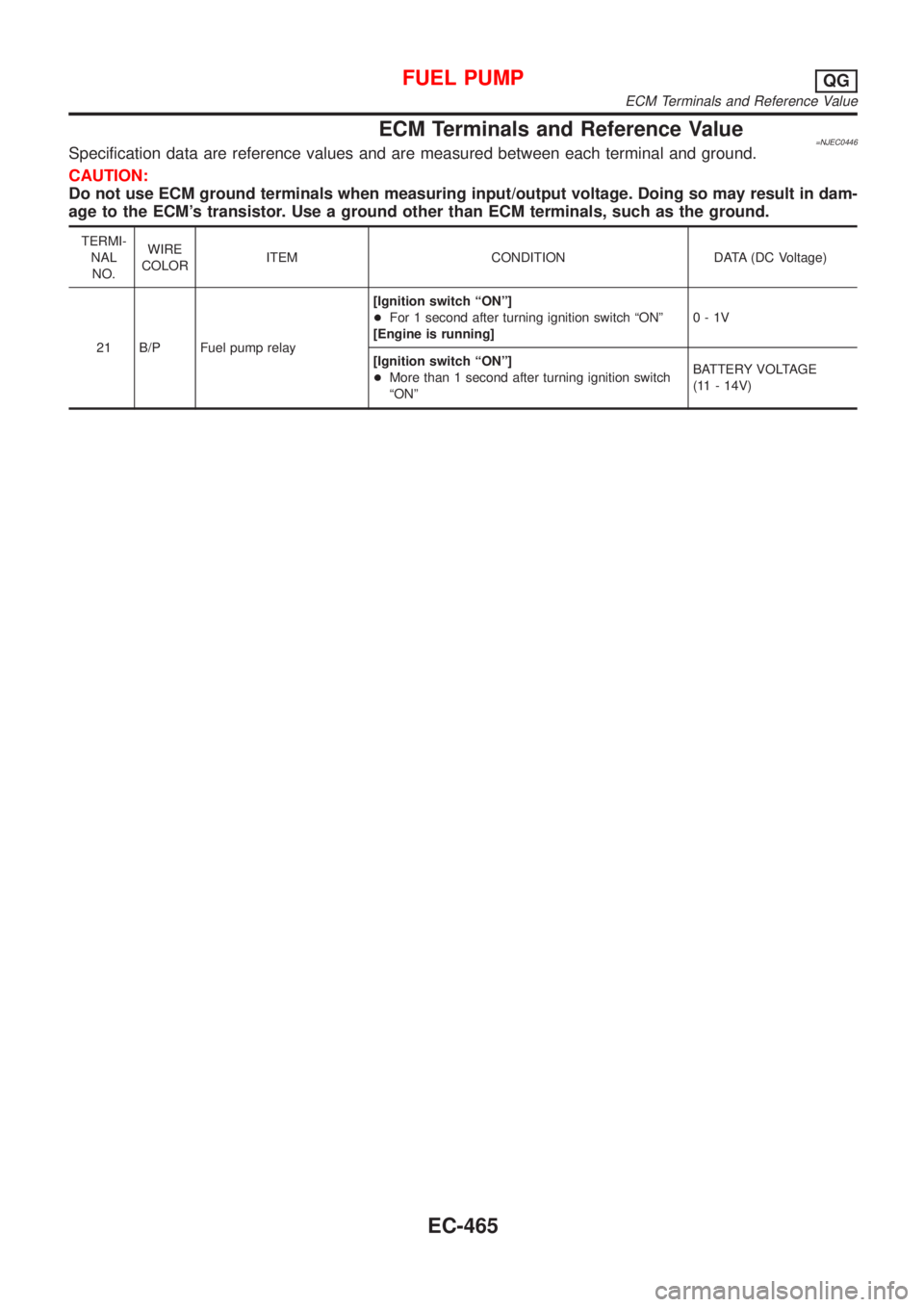

NISSAN ALMERA N16 2001 Electronic Repair Manual ECM Terminals and Reference Value=NJEC0446Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/outpu

Page 762 of 2493

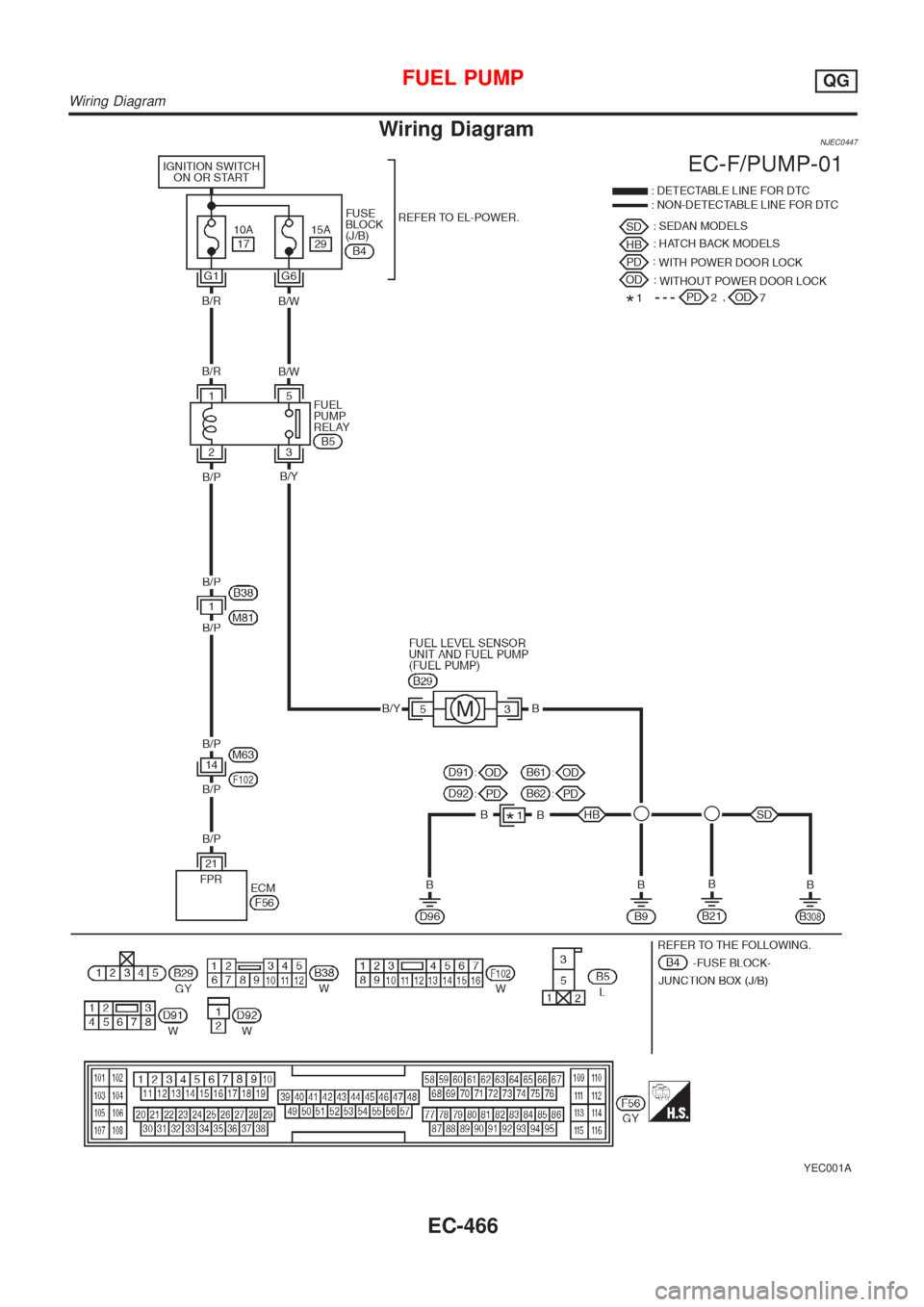

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring DiagramNJEC0447 YEC001A FUEL PUMPQG Wiring Diagram EC-466

Page 763 of 2493

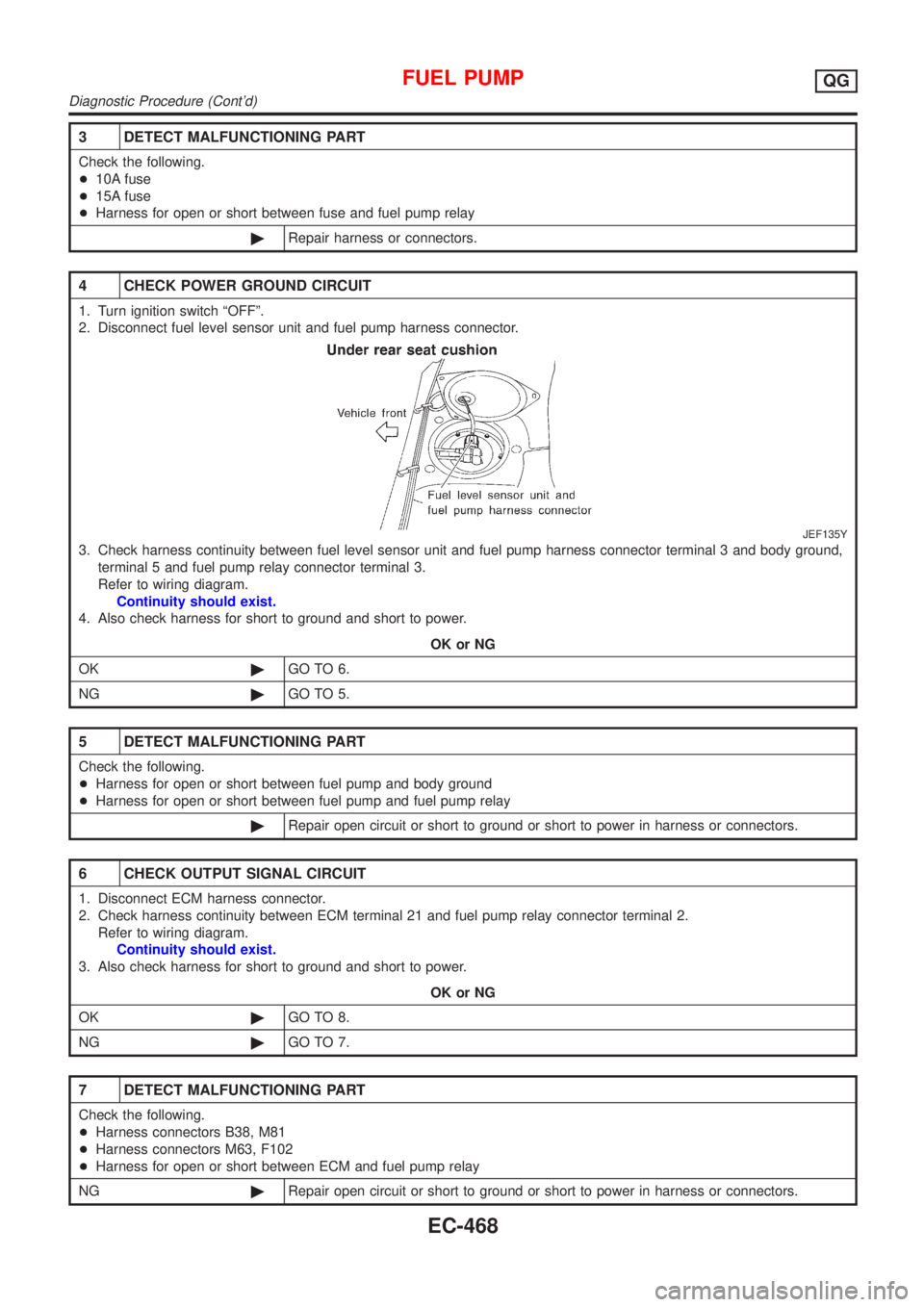

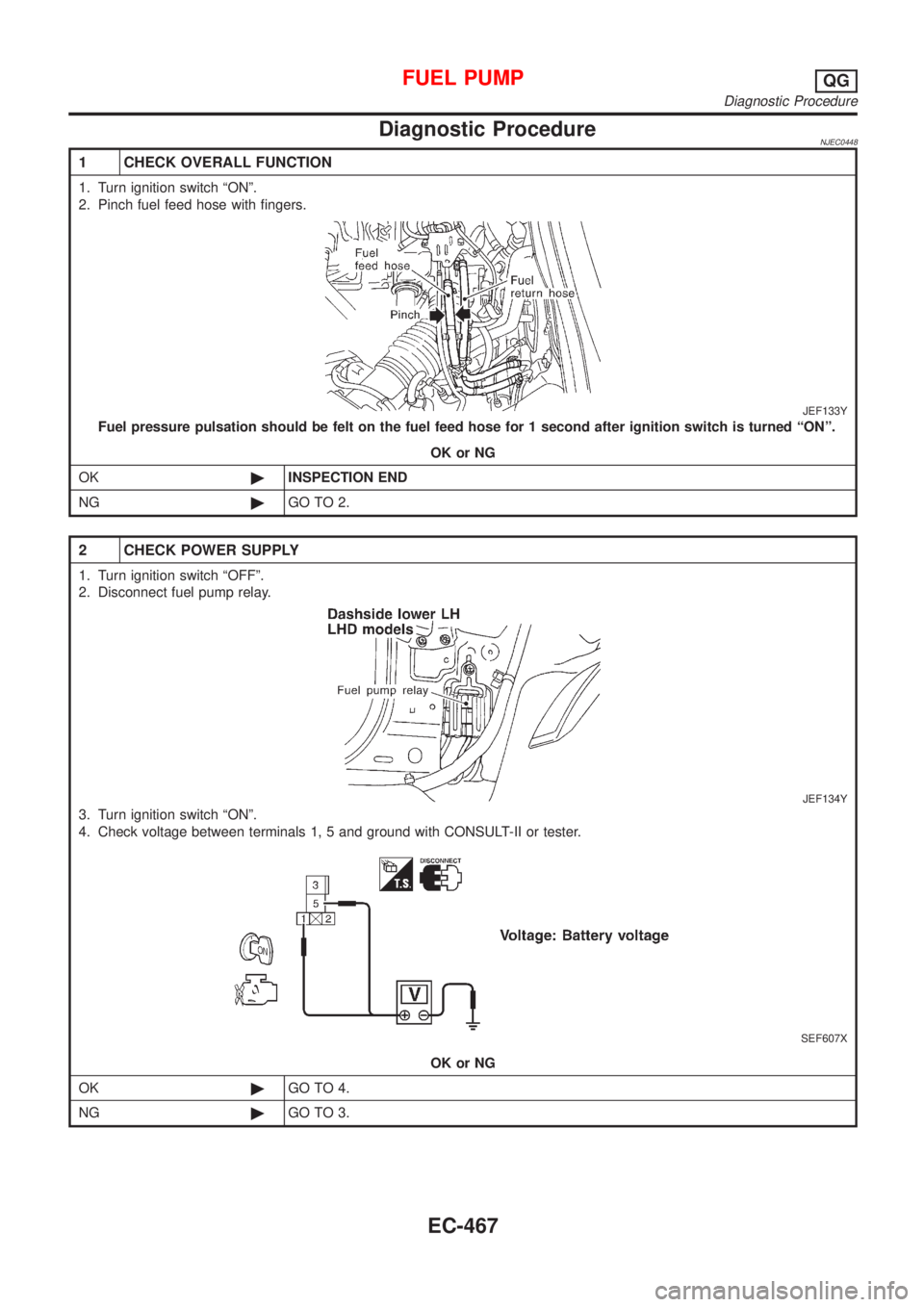

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJEC0448 1 CHECK OVERALL FUNCTION 1. Turn ignition switch ªONº. 2. Pinch fuel feed hose with fingers. JEF133Y Fuel pressure pulsation should be felt on the fuel feed hose for 1 s

Page 764 of 2493

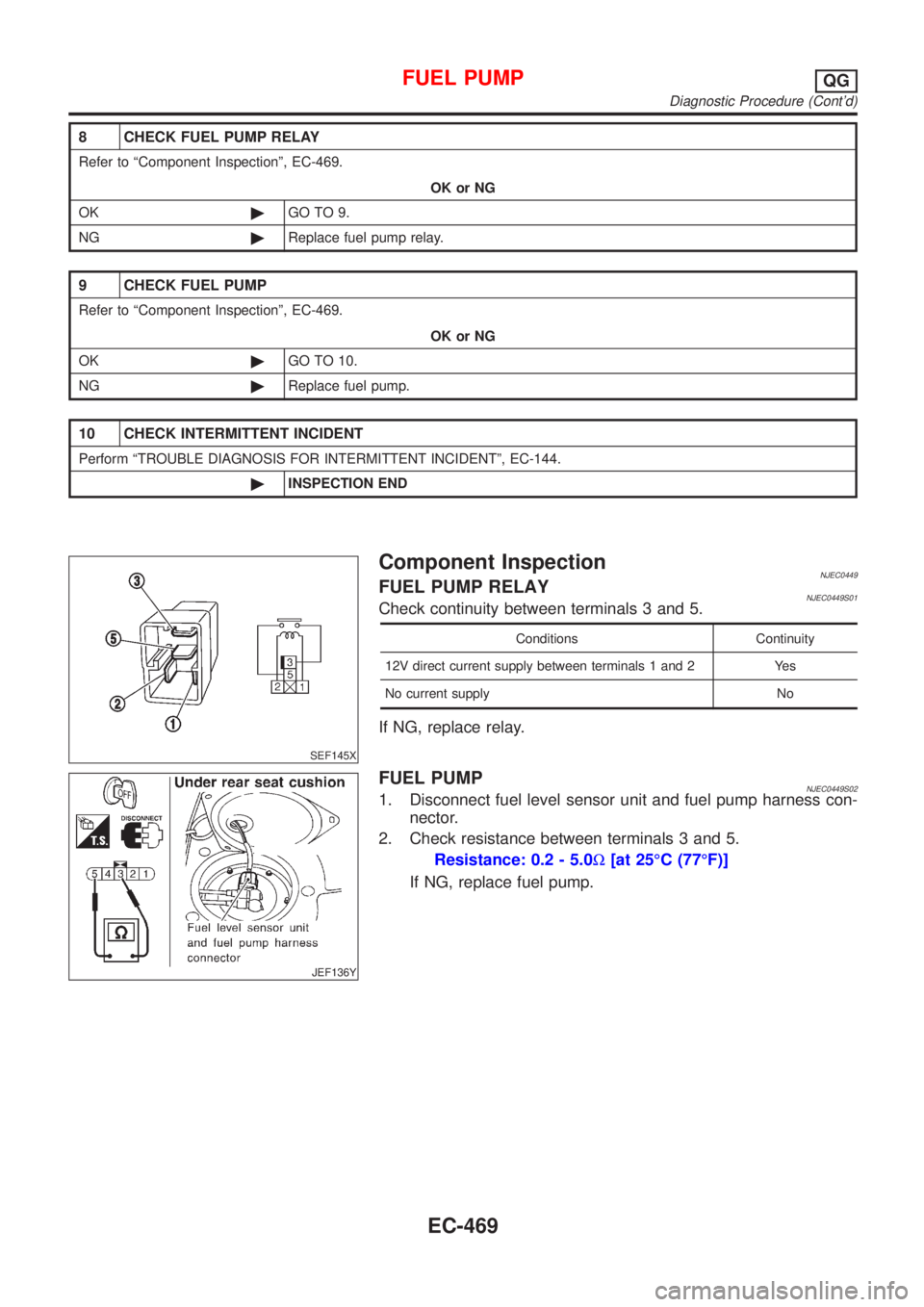

NISSAN ALMERA N16 2001 Electronic Repair Manual 3 DETECT MALFUNCTIONING PART Check the following. +10A fuse +15A fuse +Harness for open or short between fuse and fuel pump relay ©Repair harness or connectors. 4 CHECK POWER GROUND CIRCUIT 1. Turn i

Page 765 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 8 CHECK FUEL PUMP RELAY Refer to ªComponent Inspectionº, EC-469. OK or NG OK©GO TO 9. NG©Replace fuel pump relay. 9 CHECK FUEL PUMP Refer to ªComponent Inspectionº, EC-469. OK or NG OK©GO TO 10

Page 766 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual JEF137Y Component DescriptionNJEC0451The power steering oil pressure switch is attached to the power steering high-pressure tube and detects a power steering load. When a power steering load is detect

Page 767 of 2493

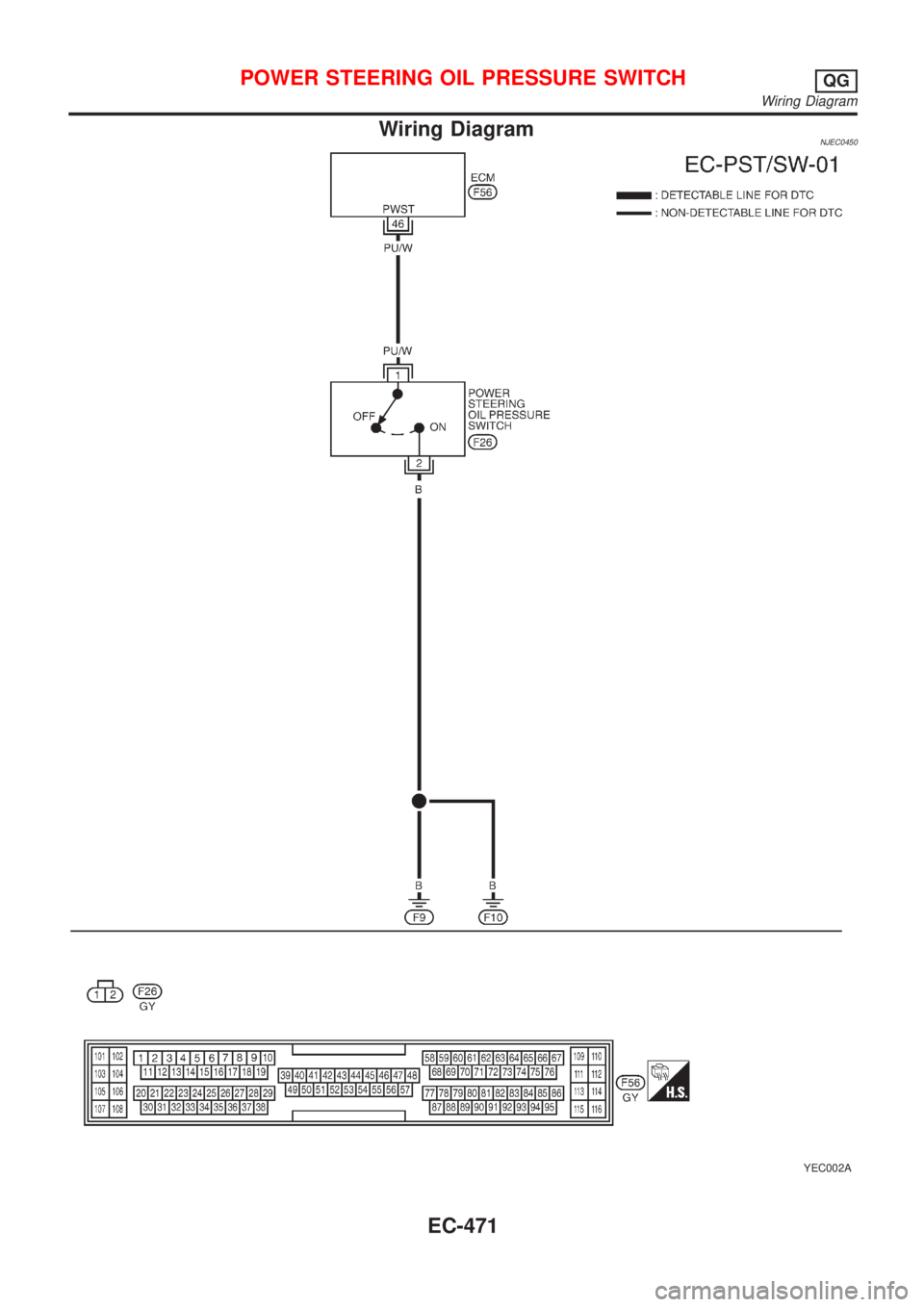

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring DiagramNJEC0450 YEC002A POWER STEERING OIL PRESSURE SWITCHQG Wiring Diagram EC-471

Page 768 of 2493

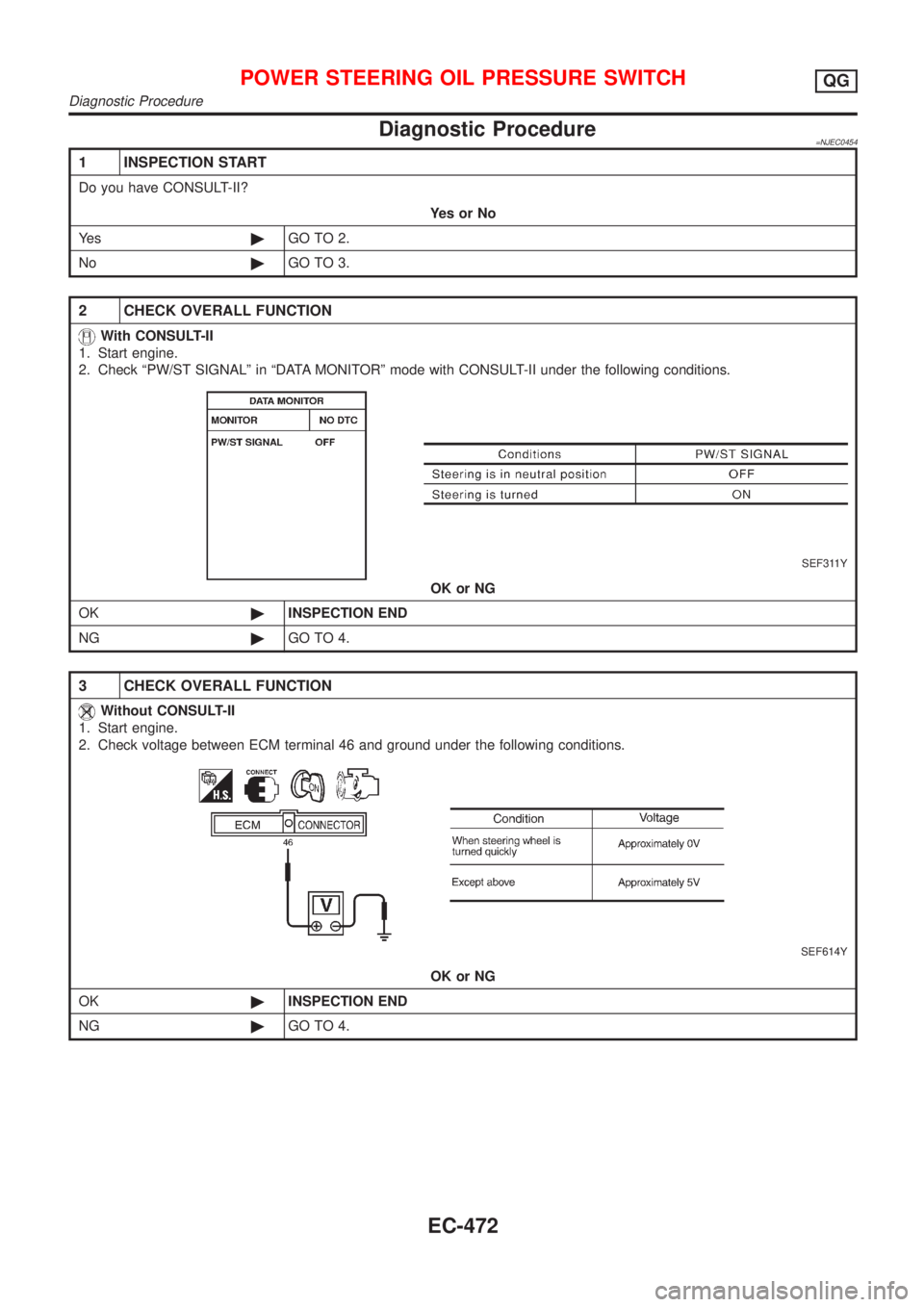

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic Procedure=NJEC0454 1 INSPECTION START Do you have CONSULT-II? YesorNo Ye s©GO TO 2. No©GO TO 3. 2 CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine. 2. Check ªPW/ST SIGNALº in ªDA
