Page 1337 of 2493

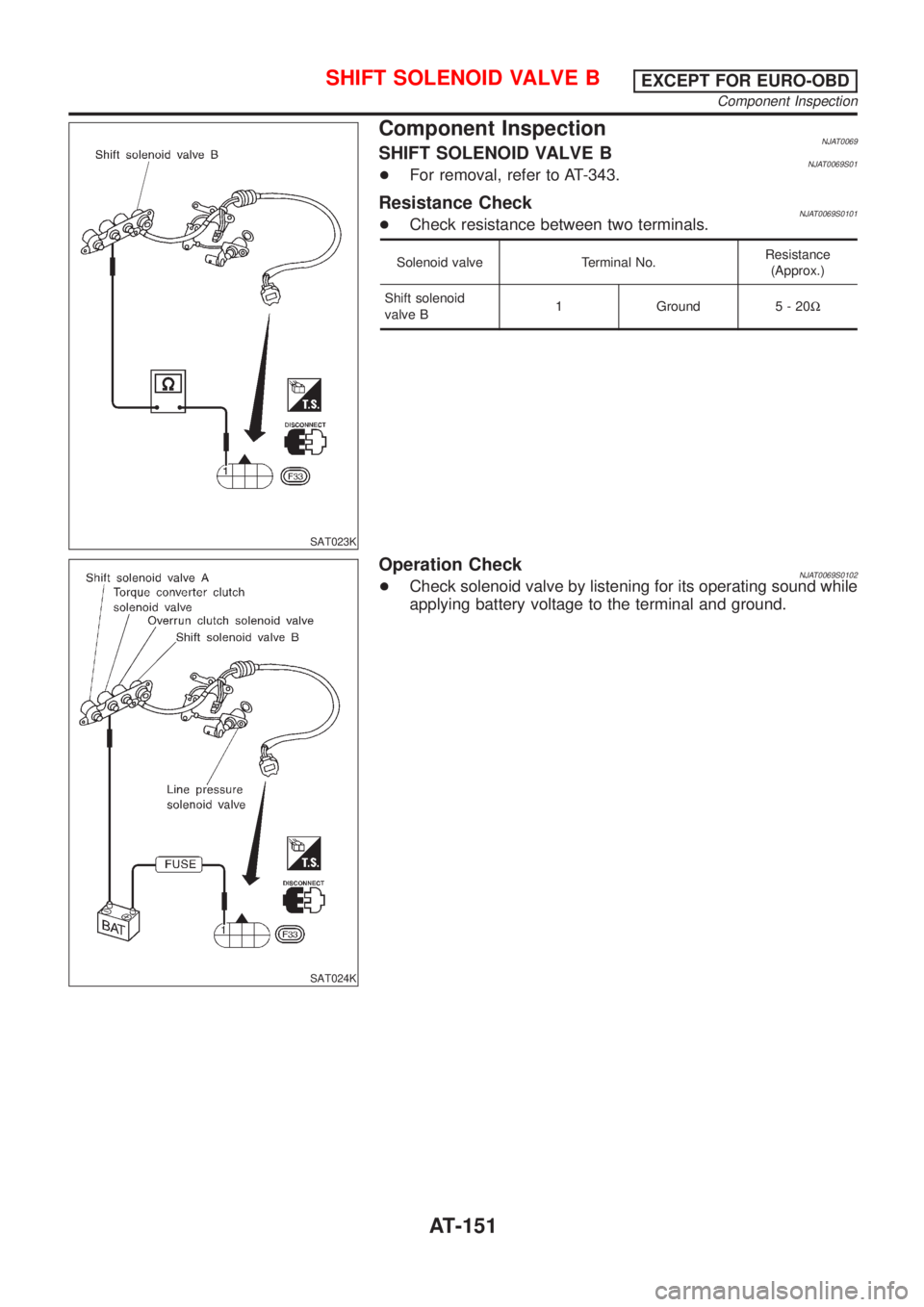

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT023K Component InspectionNJAT0069SHIFT SOLENOID VALVE BNJAT0069S01+For removal, refer to AT-343. Resistance CheckNJAT0069S0101+Check resistance between two terminals. Solenoid valve Terminal No.Res

Page 1338 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT322GC DescriptionNJAT0073The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the inhibitor switch, overdrive con- trol switch, vehicle speed and throttle posi

Page 1339 of 2493

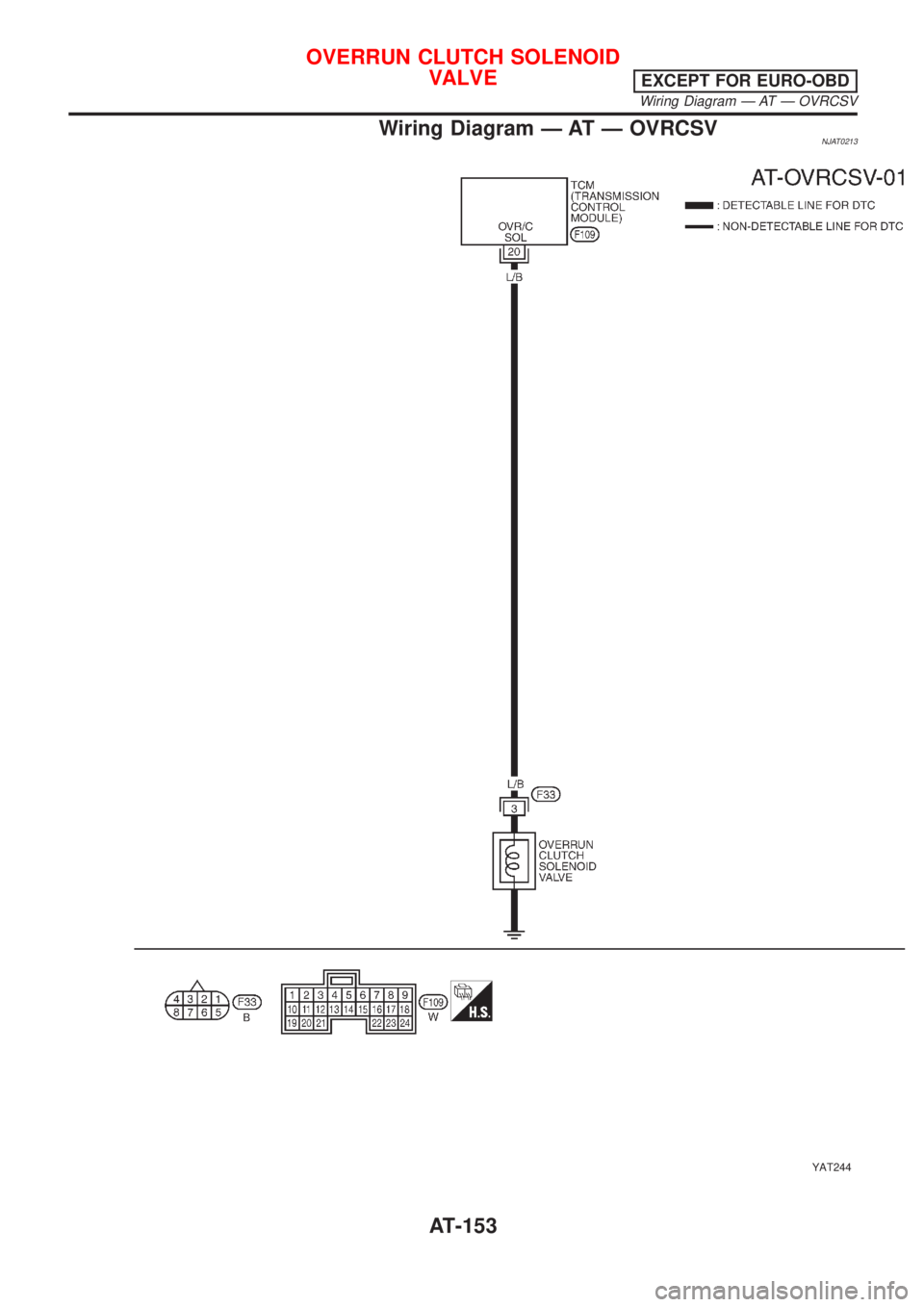

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring Diagram Ð AT Ð OVRCSVNJAT0213 YAT244 OVERRUN CLUTCH SOLENOID VALVE EXCEPT FOR EURO-OBD Wiring Diagram Ð AT Ð OVRCSV AT-153

Page 1340 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJAT0074 1 CHECK VALVE RESISTANCE 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine compartment. 3. Check resistance between ter

Page 1341 of 2493

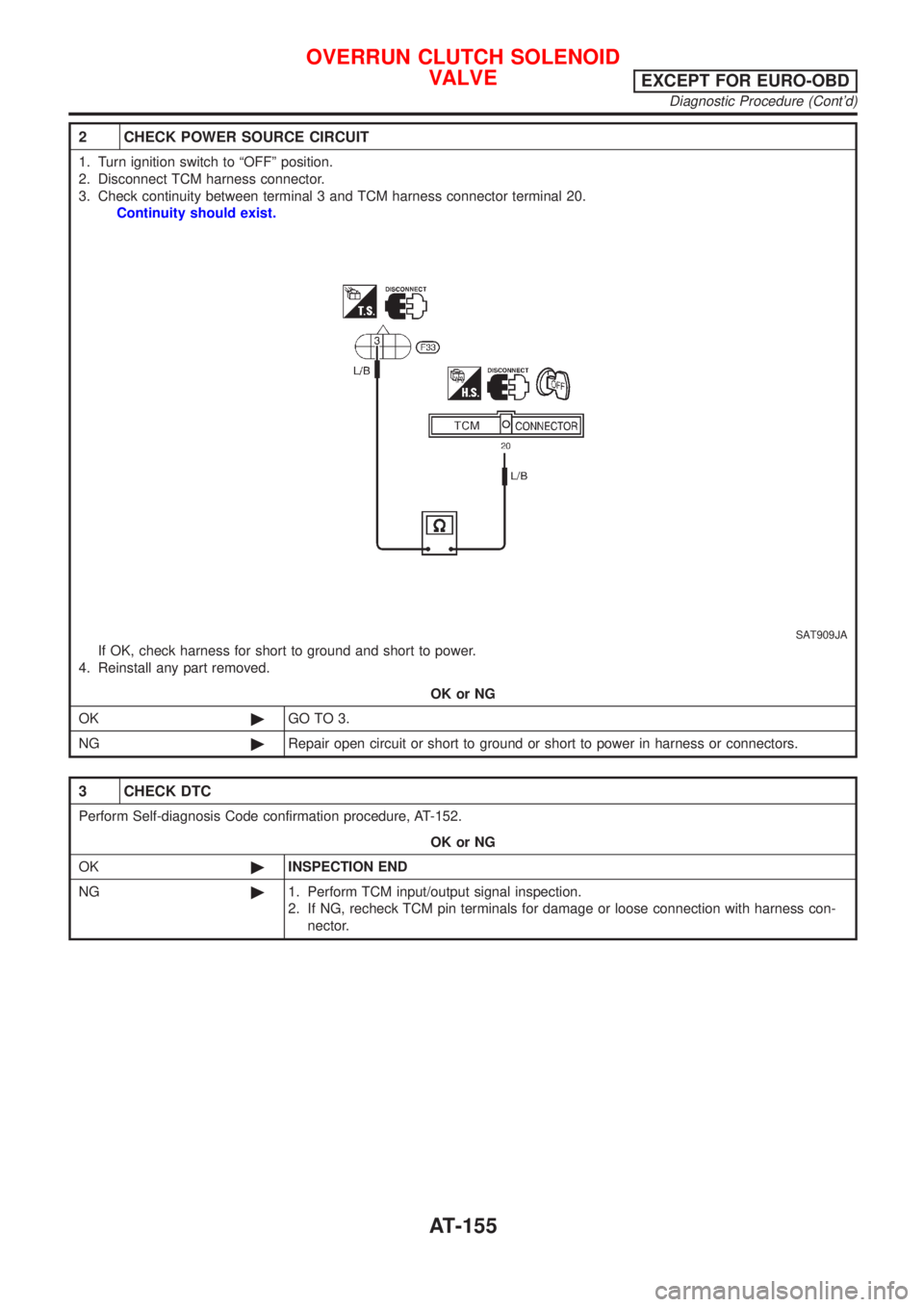

NISSAN ALMERA N16 2001 Electronic Repair Manual 2 CHECK POWER SOURCE CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Disconnect TCM harness connector. 3. Check continuity between terminal 3 and TCM harness connector terminal 20. Continuity

Page 1342 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT910JA Component InspectionNJAT0075OVERRUN CLUTCH SOLENOID VALVENJAT0075S01+For removal, refer to AT-343. Resistance CheckNJAT0075S0101+Check resistance between two terminals. Solenoid valve Termina

Page 1343 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT322GC DescriptionNJAT0055The torque converter clutch solenoid valve is activated, with the gear in ªD 4º, by the TCM in response to signals sent from the vehicle speed and throttle position senso

Page 1344 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT580J SAT818H SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENJAT0055S05After the repair, perform the following procedure to confirm the malfunction is eliminated. With CONSULT-IINJAT0055S05011) Start en
