Page 1113 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT669DB 30. Remove differential oil seal from housing. SMT670DB 31. Remove differential side outer race from housing. DISASSEMBLYRS5F70A Clutch Housing (Contd) MT-63

Page 1114 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT759D Input Shaft and Gears DISASSEMBLYNJMT00561. Before disassembly, measure the end plays of 3rd and 4th input gears. Gear end play: Refer to SDS, MT-125. +If end play is not within specification,

Page 1115 of 2493

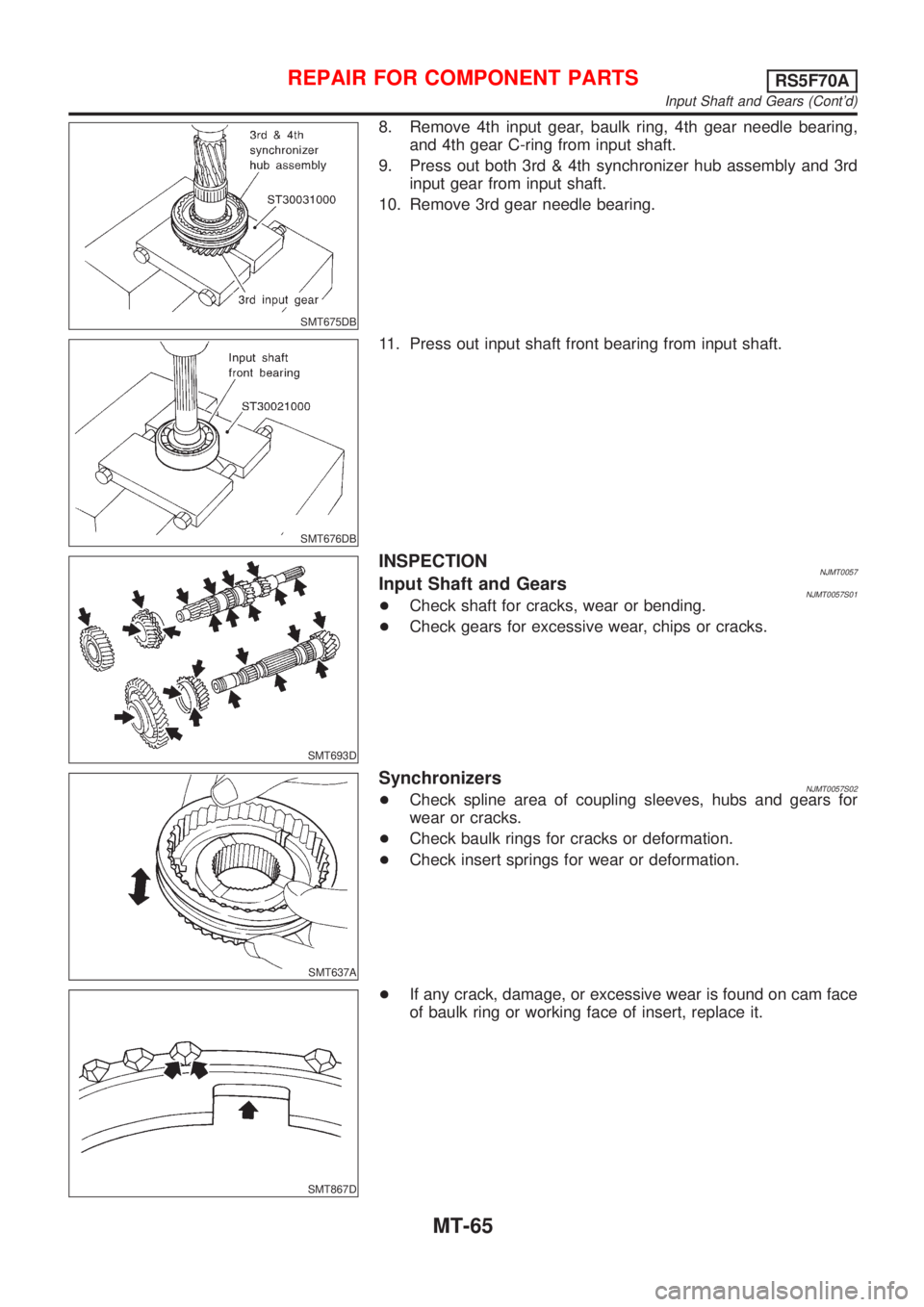

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT675DB 8. Remove 4th input gear, baulk ring, 4th gear needle bearing, and 4th gear C-ring from input shaft. 9. Press out both 3rd & 4th synchronizer hub assembly and 3rd input gear from input shaft.

Page 1116 of 2493

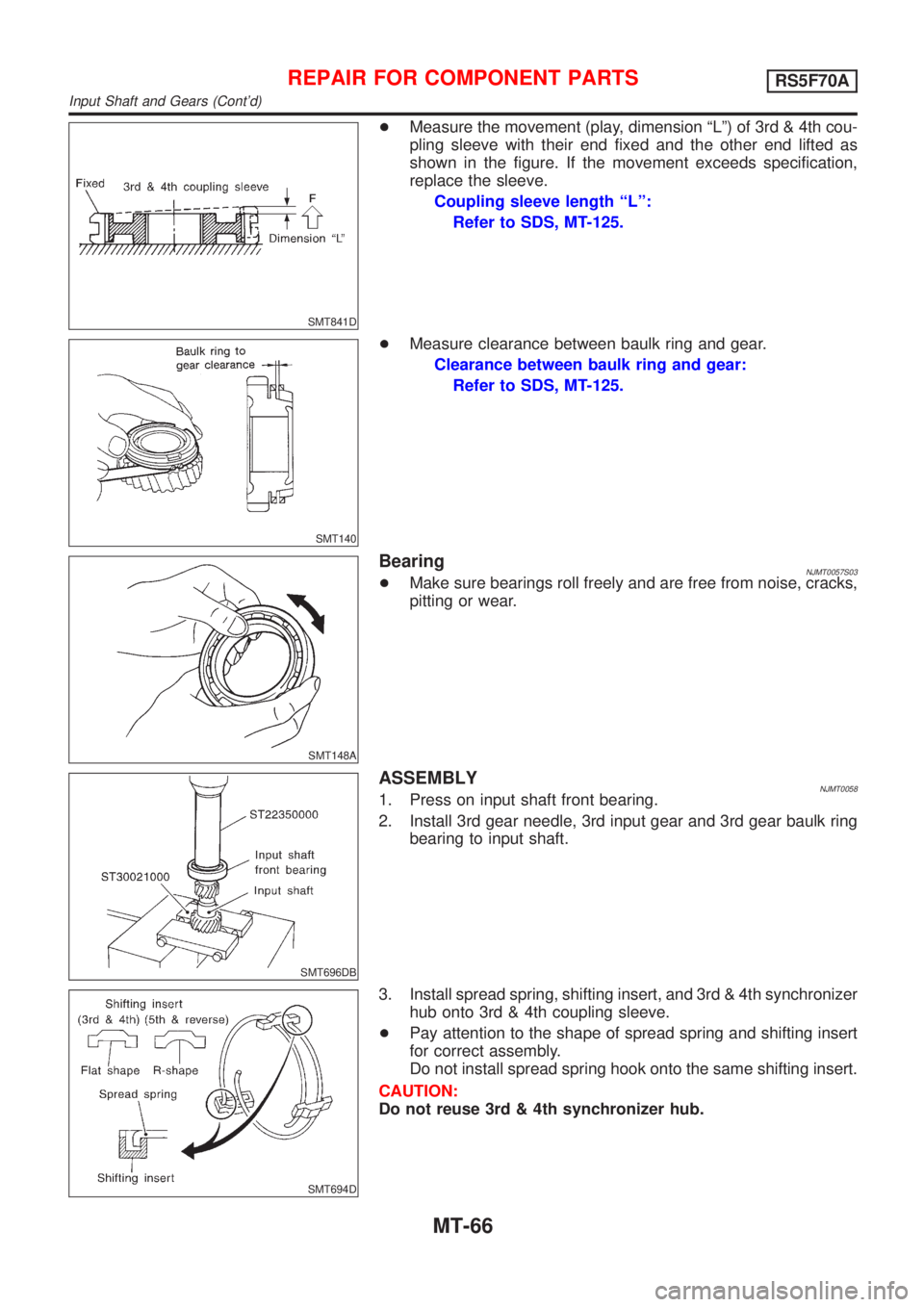

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT841D +Measure the movement (play, dimension ªLº) of 3rd & 4th cou- pling sleeve with their end fixed and the other end lifted as shown in the figure. If the movement exceeds specification, replac

Page 1117 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT695D +Install synchronizer hub with its three grooves facing the front side (3rd input gear side). SMT699D +Install 3rd & 4th coupling sleeve with its chamfered surface facing the 4th input gear si

Page 1118 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT703D 10. Position 5th input gear as shown in the figure, and install it on input shaft. SMT702DB 11. Install 5th input gear. CAUTION: Do not reuse 5th input gear. 12. Install 5th gear rear C-ring o

Page 1119 of 2493

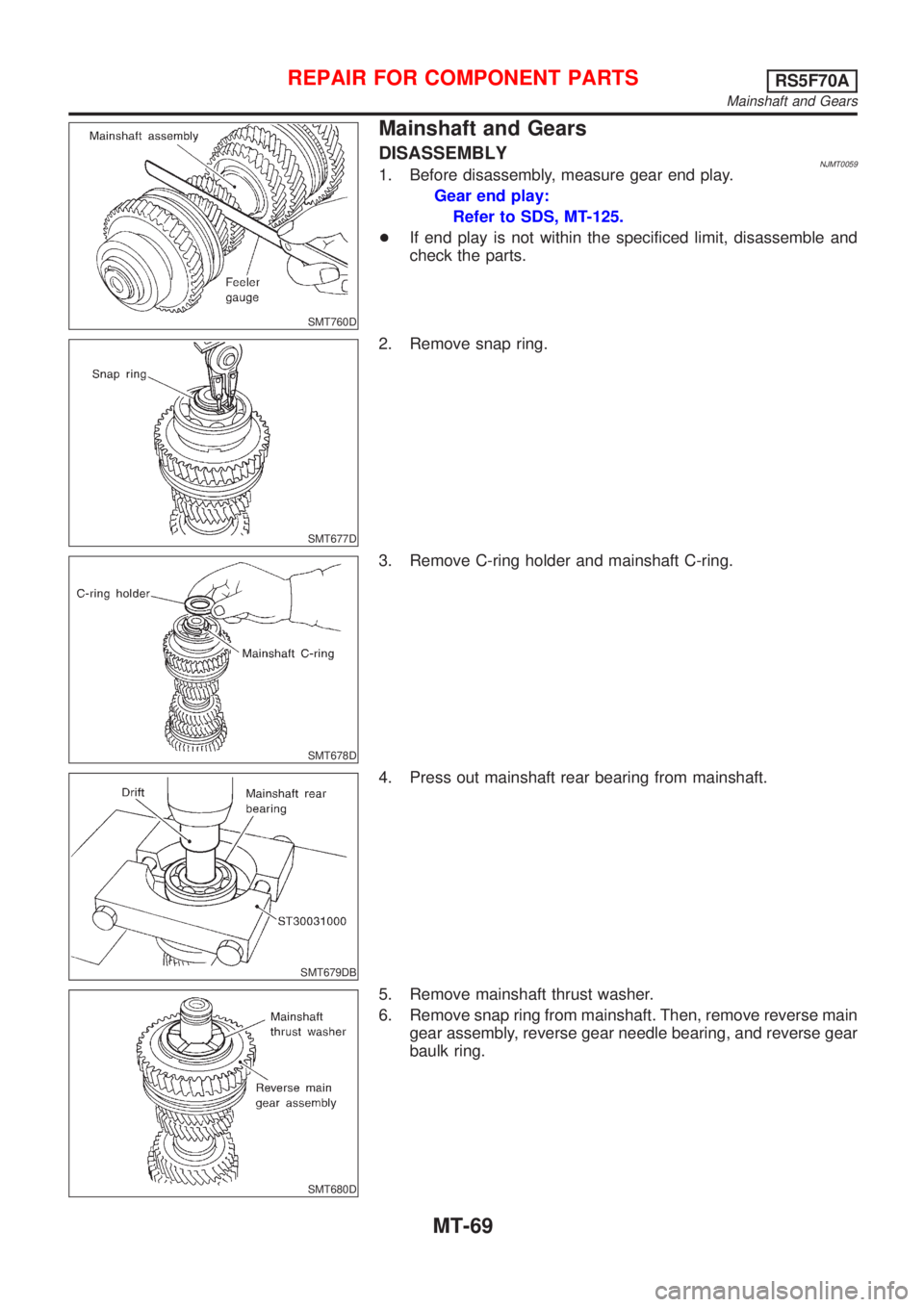

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT760D Mainshaft and Gears DISASSEMBLYNJMT00591. Before disassembly, measure gear end play. Gear end play: Refer to SDS, MT-125. +If end play is not within the specificed limit, disassemble and check

Page 1120 of 2493

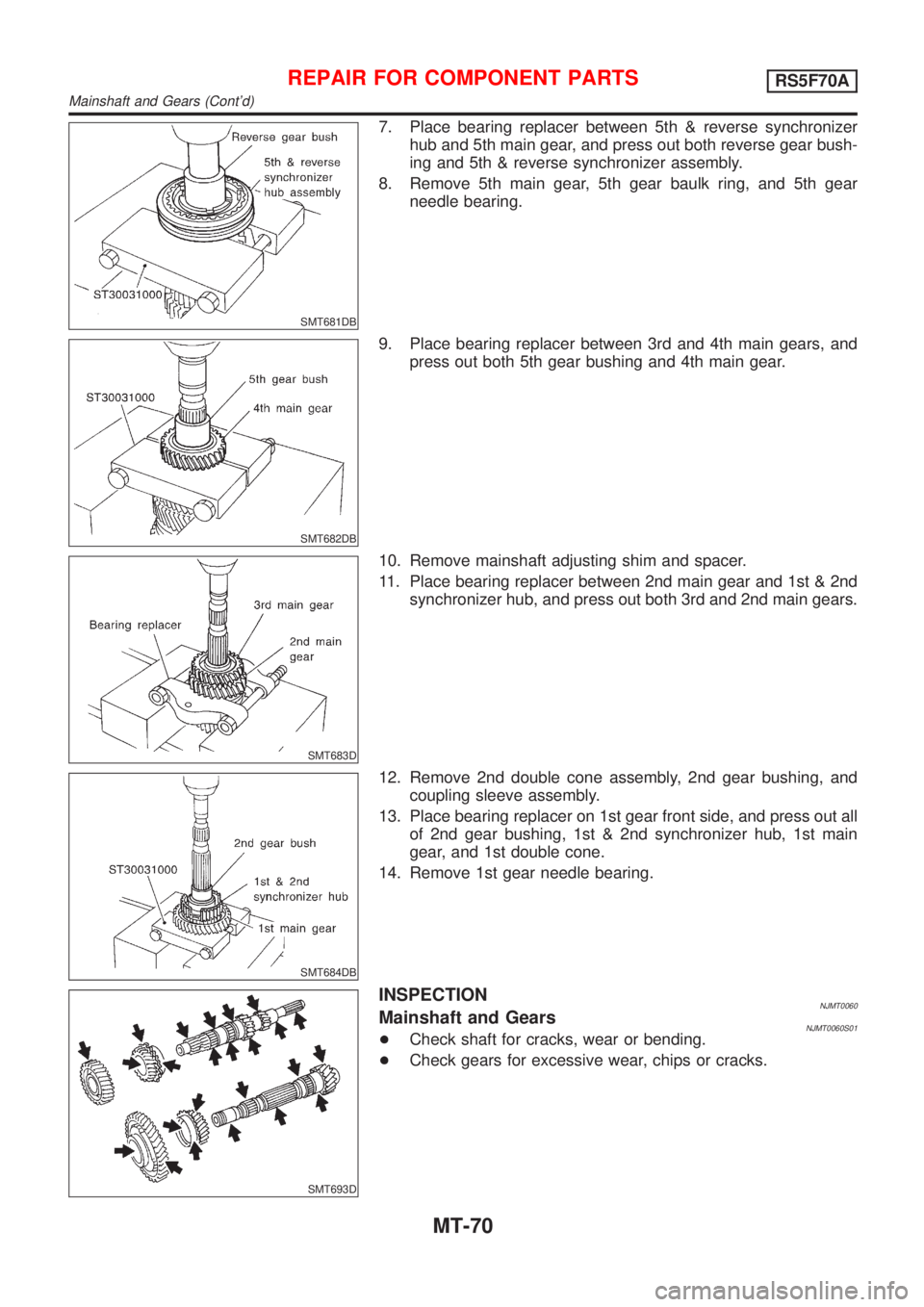

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT681DB 7. Place bearing replacer between 5th & reverse synchronizer hub and 5th main gear, and press out both reverse gear bush- ing and 5th & reverse synchronizer assembly. 8. Remove 5th main gear,
