Page 2129 of 2493

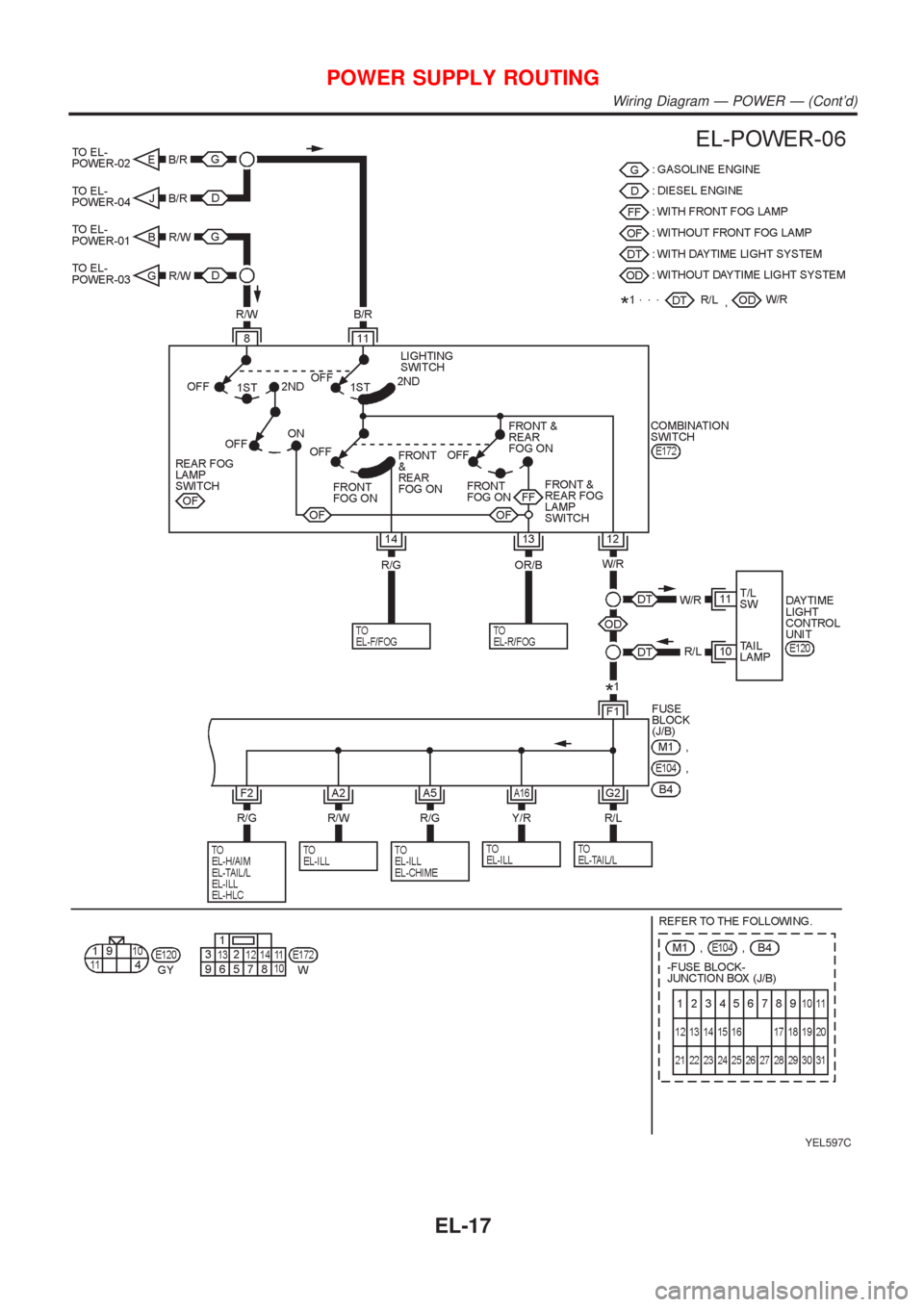

NISSAN ALMERA N16 2001 Electronic Repair Manual YEL597C POWER SUPPLY ROUTING Wiring Diagram Ð POWER Ð (Contd) EL-17

Page 2130 of 2493

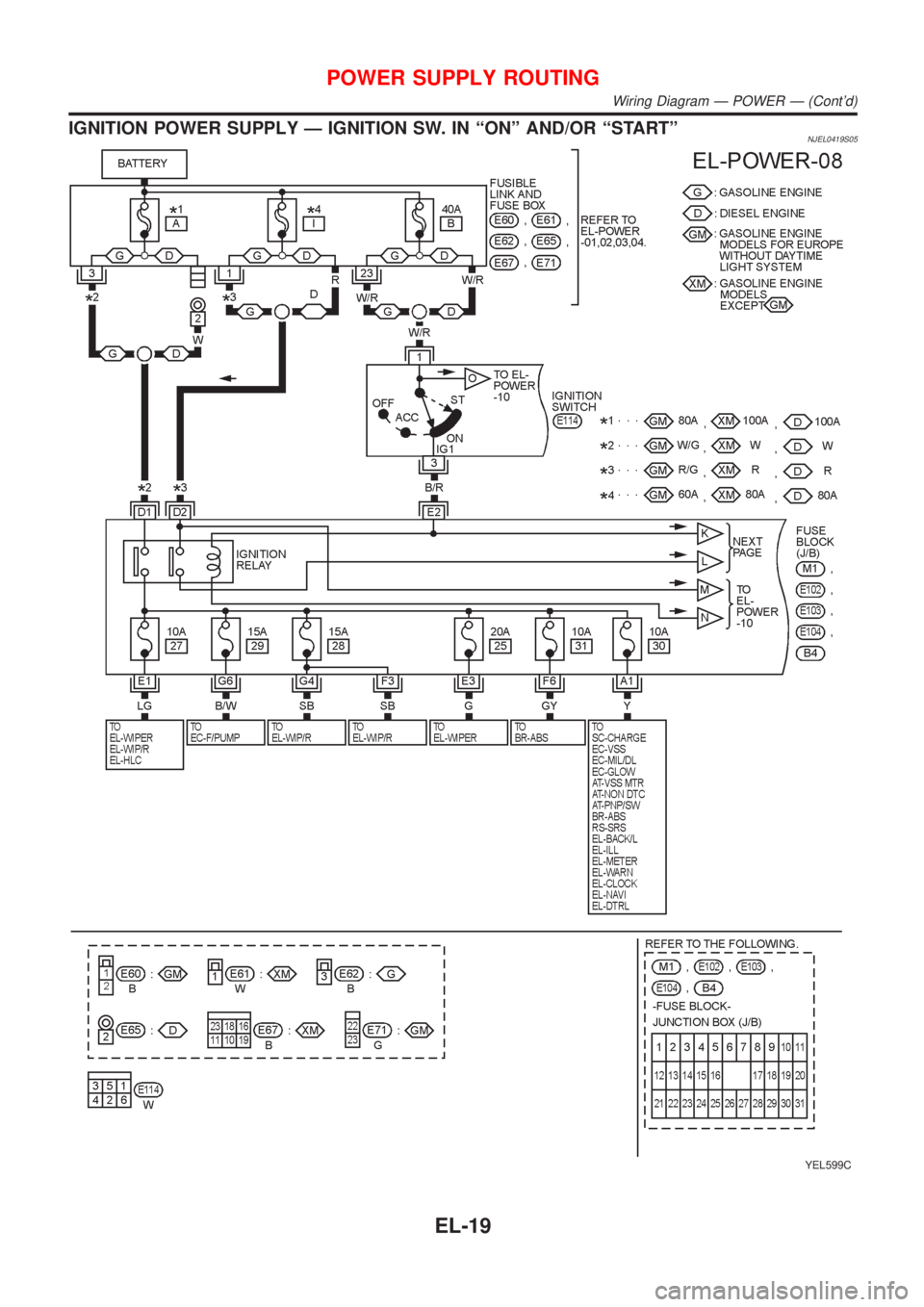

NISSAN ALMERA N16 2001 Electronic Repair Manual ACCESSORY POWER SUPPLY Ð IGNITION SWITCH IN ªACCº OR ªONºNJEL0419S04 YEL598C POWER SUPPLY ROUTING Wiring Diagram Ð POWER Ð (Contd) EL-18

Page 2131 of 2493

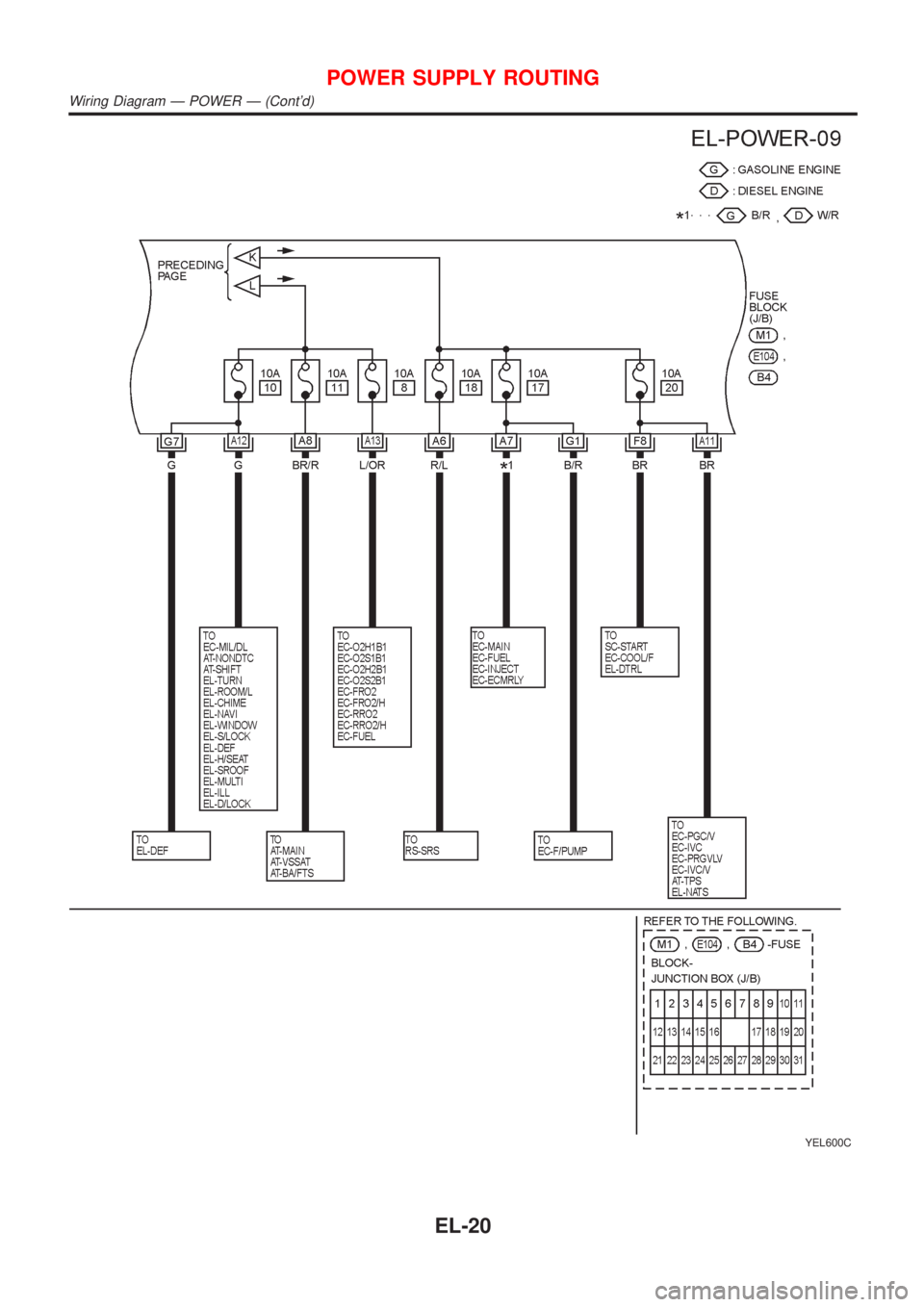

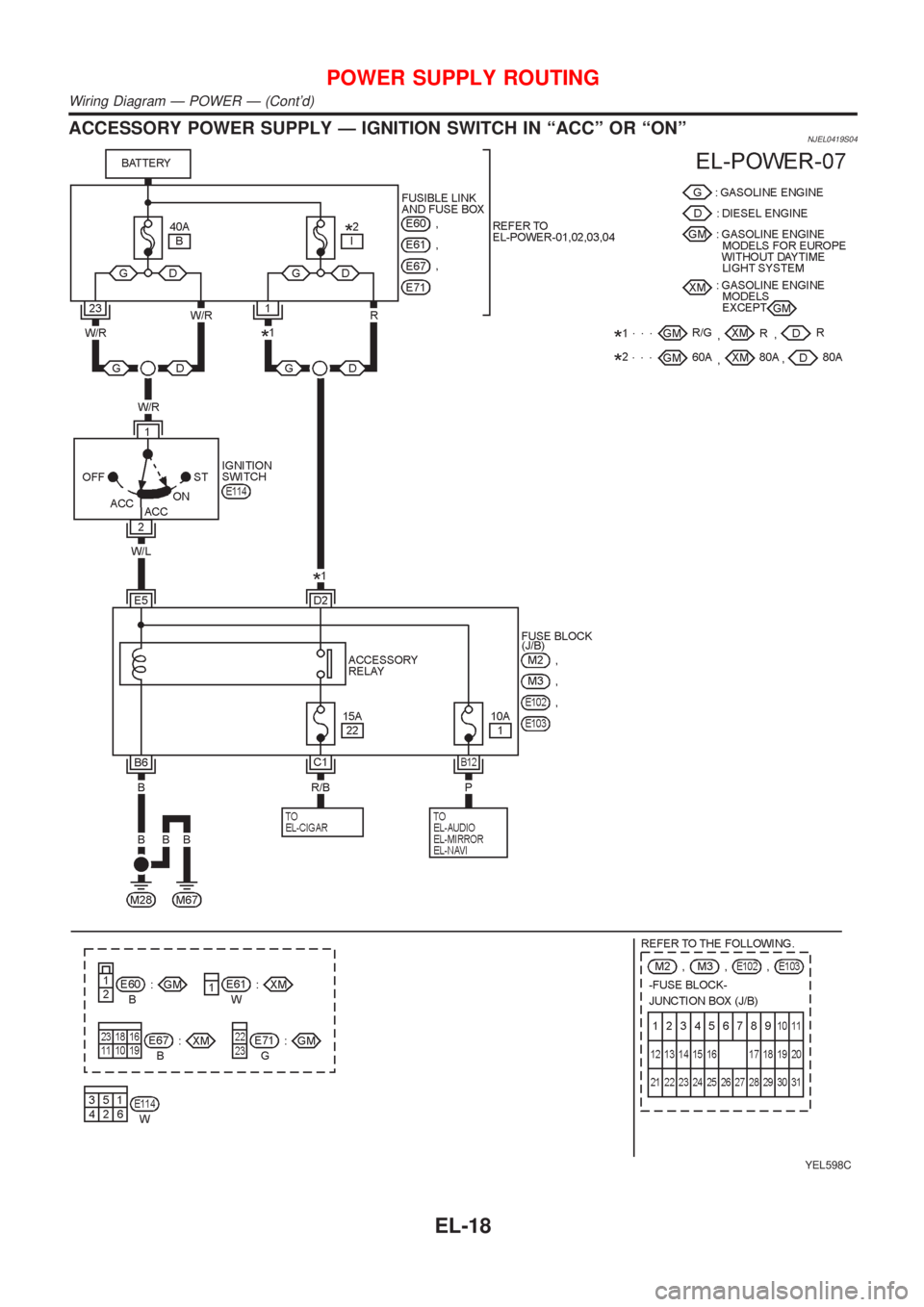

NISSAN ALMERA N16 2001 Electronic Repair Manual IGNITION POWER SUPPLY Ð IGNITION SW. IN ªONº AND/OR ªSTARTºNJEL0419S05 YEL599C POWER SUPPLY ROUTING Wiring Diagram Ð POWER Ð (Contd) EL-19

Page 2132 of 2493

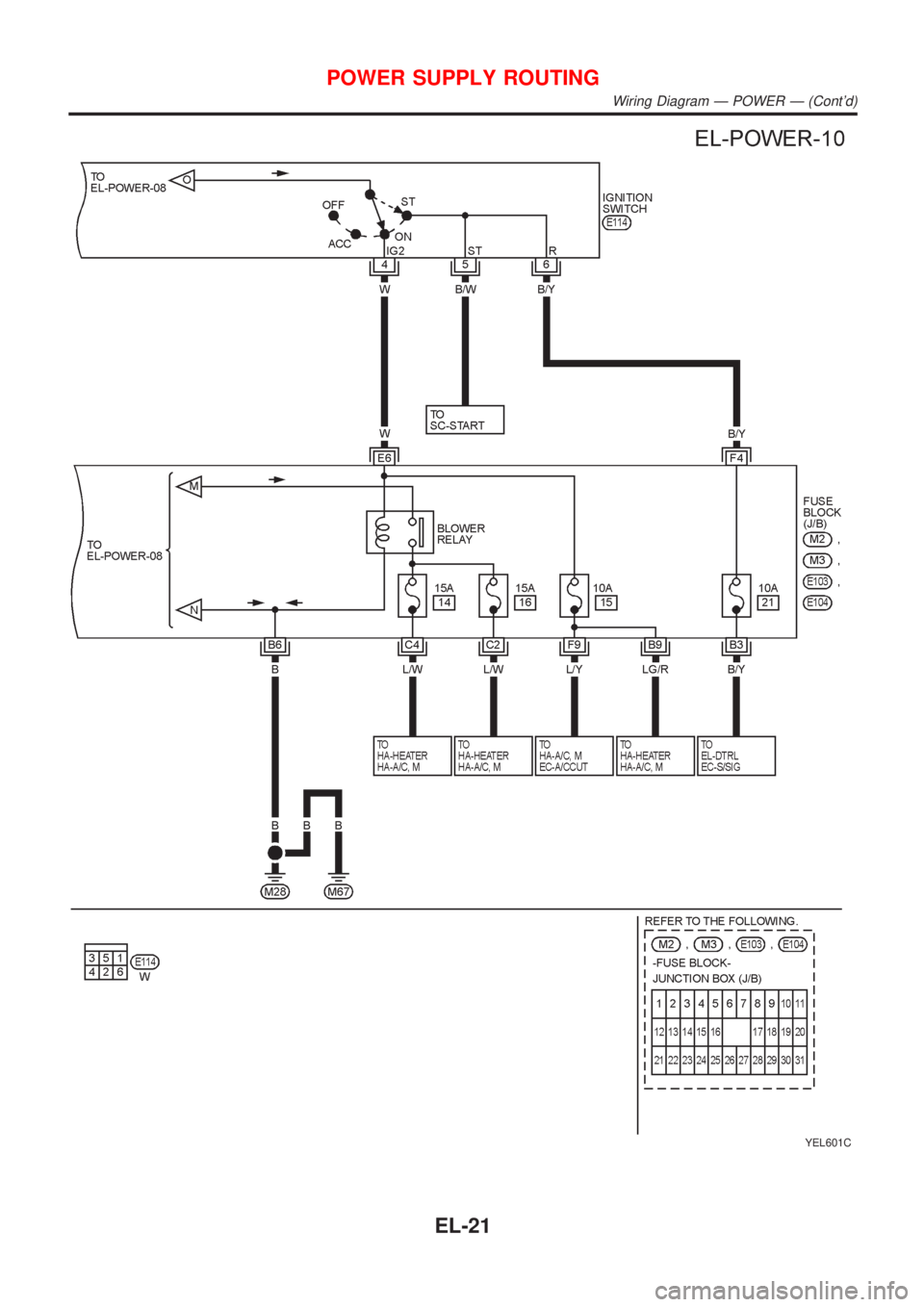

NISSAN ALMERA N16 2001 Electronic Repair Manual YEL600C POWER SUPPLY ROUTING Wiring Diagram Ð POWER Ð (Contd) EL-20

Page 2133 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual YEL601C POWER SUPPLY ROUTING Wiring Diagram Ð POWER Ð (Contd) EL-21

Page 2134 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual CEL083 InspectionNJEL0007FUSENJEL0007S01+If fuse is blown, be sure to eliminate cause of problem before installing new fuse. +Use fuse of specified rating. Never use fuse of more than specified rating

Page 2135 of 2493

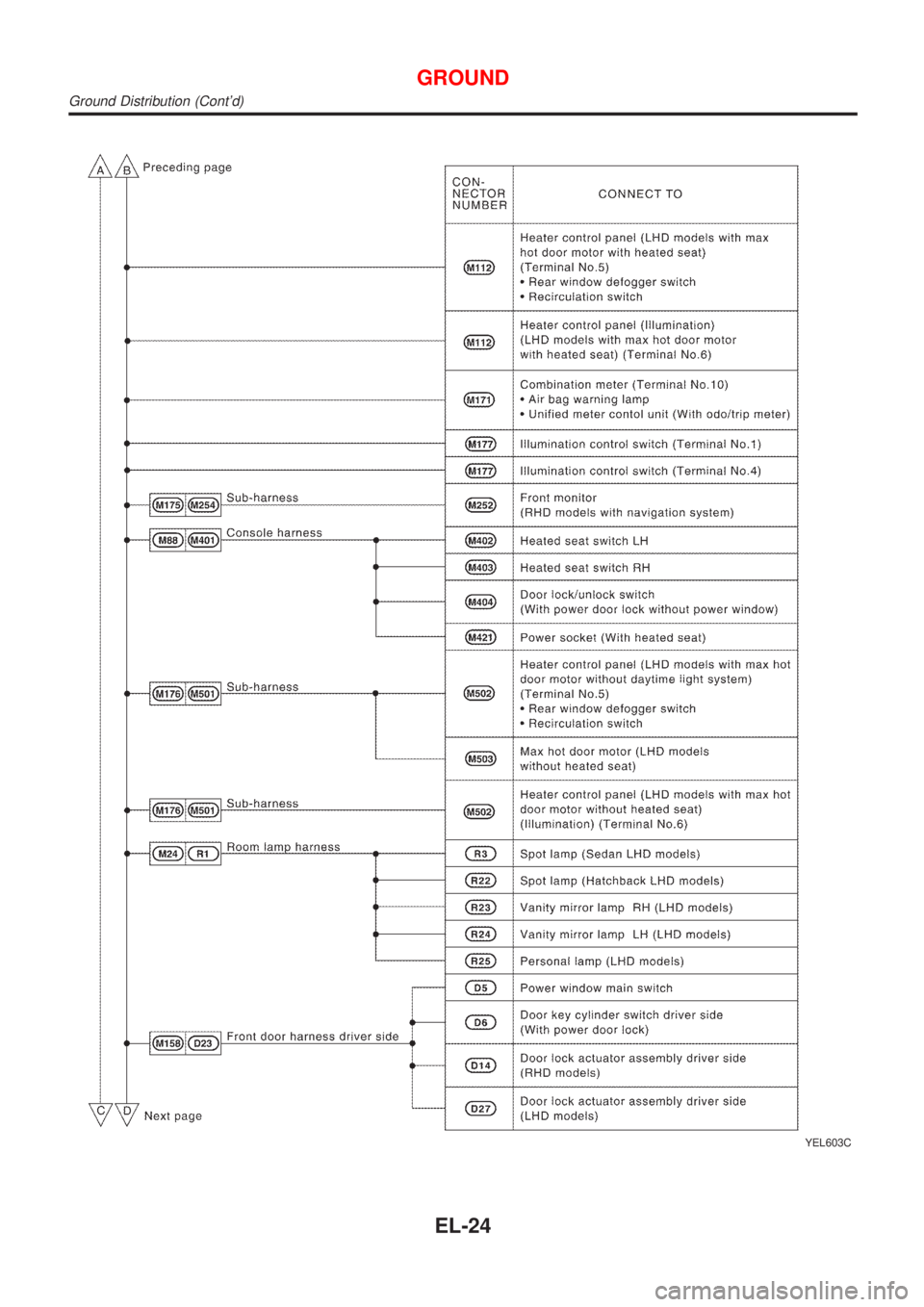

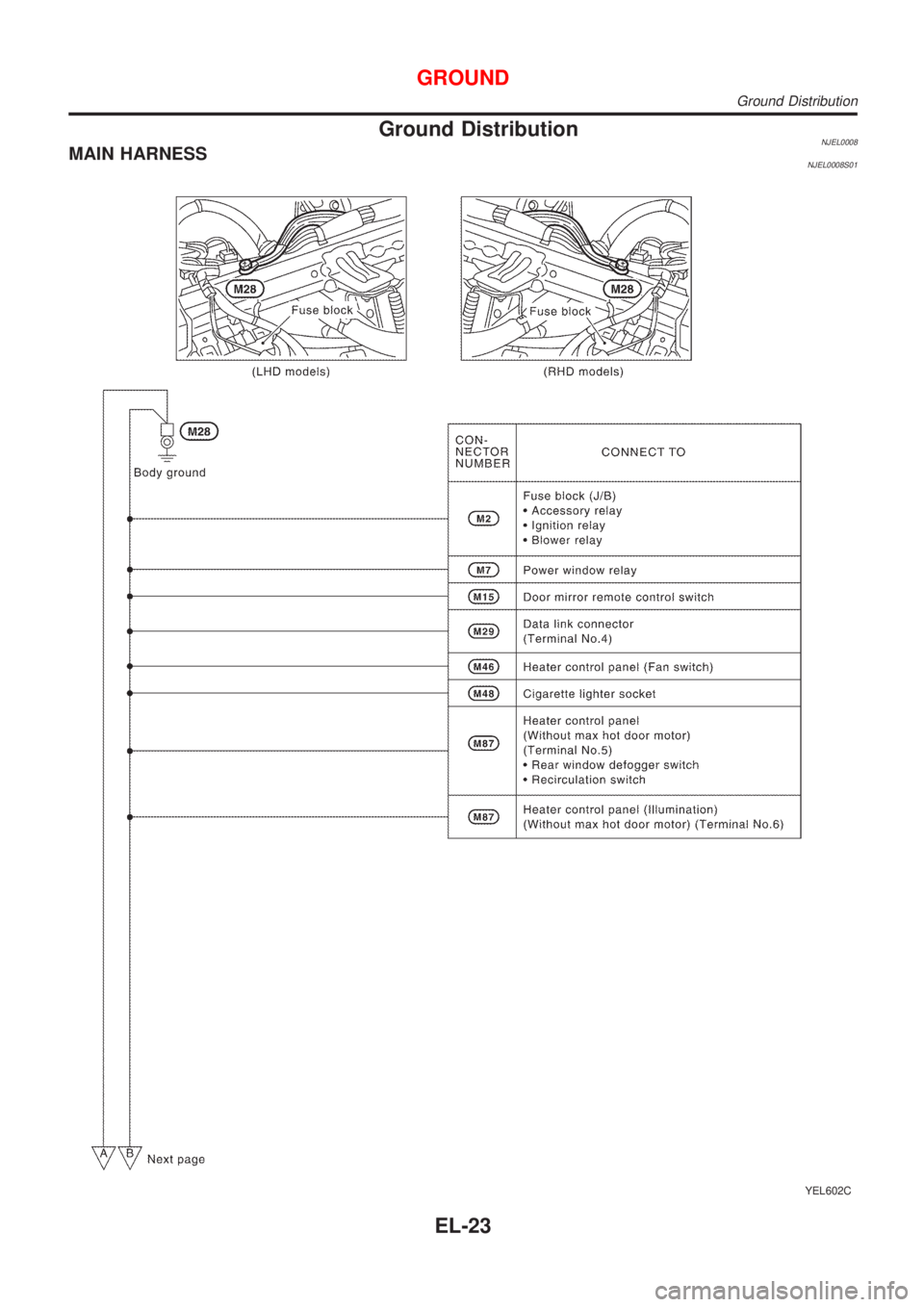

NISSAN ALMERA N16 2001 Electronic Repair Manual Ground DistributionNJEL0008MAIN HARNESSNJEL0008S01 YEL602C GROUND Ground Distribution EL-23

Page 2136 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual YEL603C GROUND Ground Distribution (Contd) EL-24
