+Using a feeler gauge, measure clearance between valve lifter
and camshaft.
+Record any valve clearance measurements which are out of
specification. They will be used later to determine the re

Page 122 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SEM144D
SEM145D

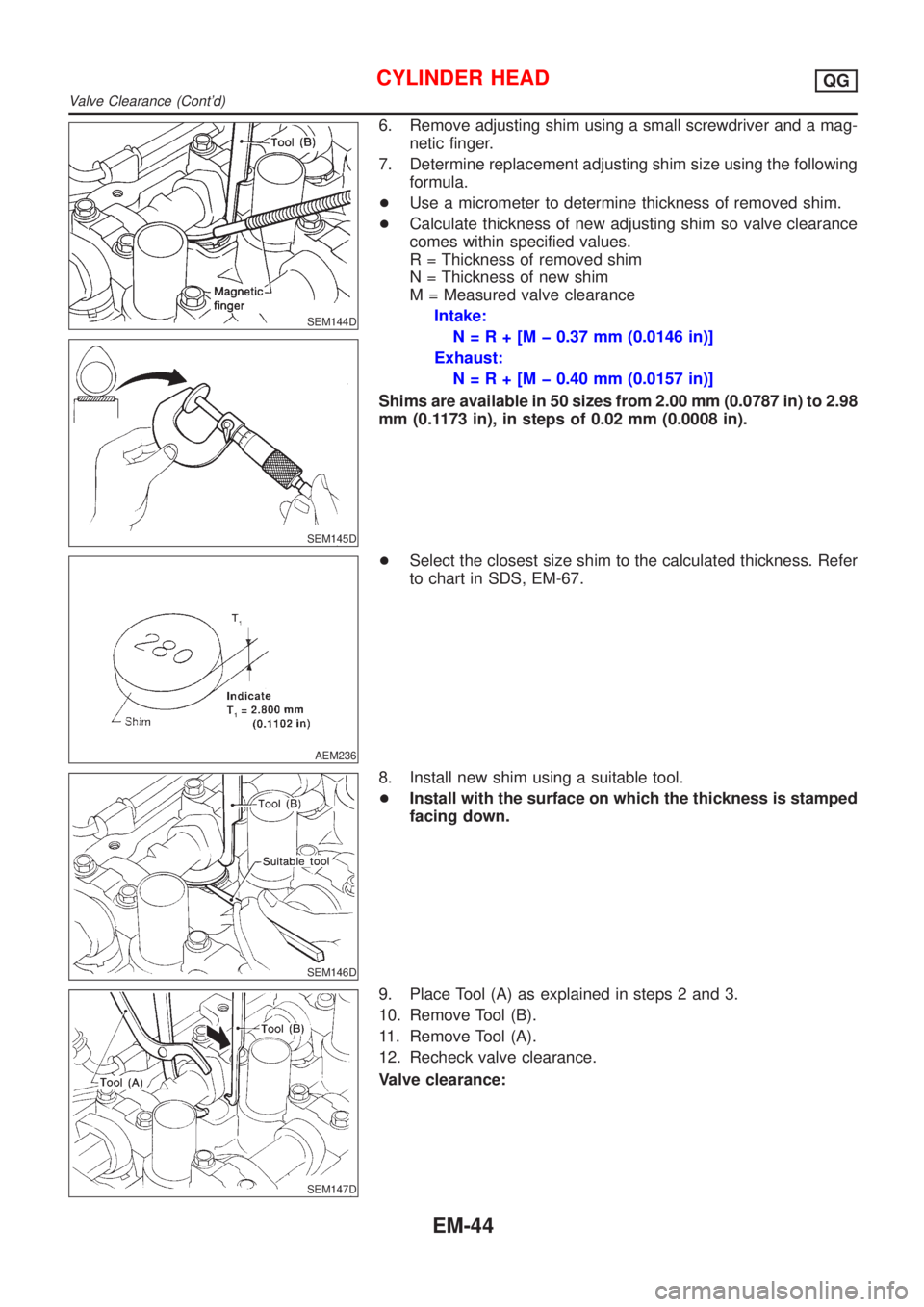

6. Remove adjusting shim using a small screwdriver and a mag-
netic finger.
7. Determine replacement adjusting shim size using the following
formula.
+Use a micrometer to determine thi

Page 123 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Unit: mm (in)
For adjusting For checking
HotCold* (reference
data)Hot
Intake0.32 - 0.40
(0.013 - 0.016)0.25 - 0.33
(0.010 - 0.013)0.21 - 0.49
(0.008 - 0.019)
Exhaust0.37 - 0.45
(0.015 - 0.018)0.32 - 0

Page 124 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SEM900F
SEM614EC
SEM901F
+Tightening procedure
a. Tighten bolts to 29 N´m (3 kg-m, 22 ft-lb).
b. Tighten bolts to 59 N´m (6 kg-m, 43 ft-lb).
c. Loosen bolts completely.
d. Tighten bolts to 29 N´m (

Page 125 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SEM904F
+Apply new engine oil to bolt threads and seat surface.
+Tighten camshaft bracket bolts in the following steps.
a. Tighten bolts9-12,then1-8.
2.0 N´m (0.204 kg-m, 17.7 in-lb)
b. Tighten bolts

Page 126 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SEM887F
10. Install cylinder head front cover.
+Apply liquid gasket to cylinder head front cover.
+Use Genuine Liquid Gasket or equivalent.
SEM889F
11. Install camshaft position sensor (PHASE).
SEM888

Page 127 of 2493

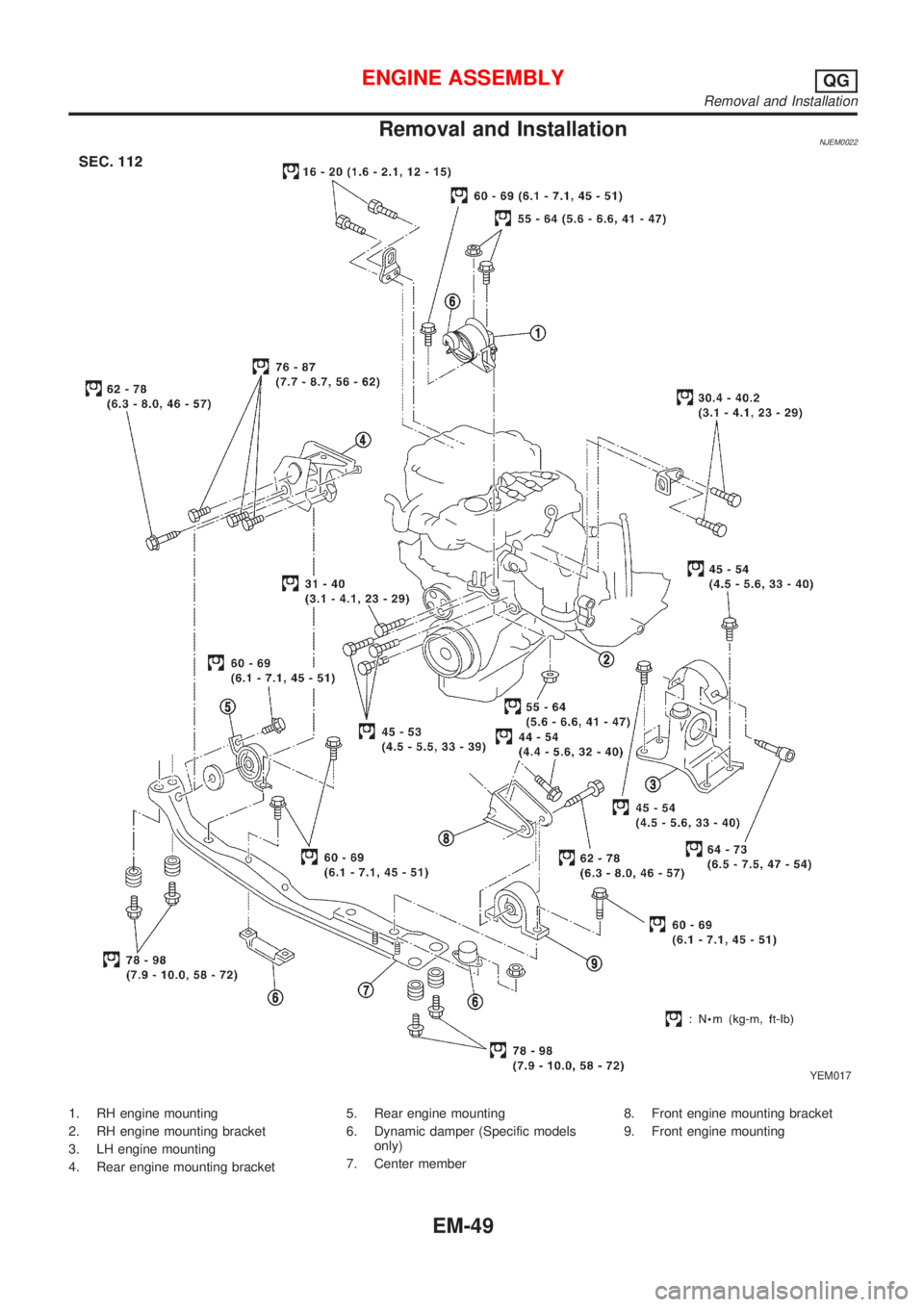

NISSAN ALMERA N16 2001  Electronic Repair Manual Removal and InstallationNJEM0022
YEM017
1. RH engine mounting
2. RH engine mounting bracket
3. LH engine mounting
4. Rear engine mounting bracket5. Rear engine mounting
6. Dynamic damper (Specific mod

Page 128 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual WARNING:
+Position vehicle on a flat and solid surface.
+Place chocks at front and back of rear wheels.
+Do not remove engine until exhaust system has com-
pletely cooled off, otherwise, you may burn
