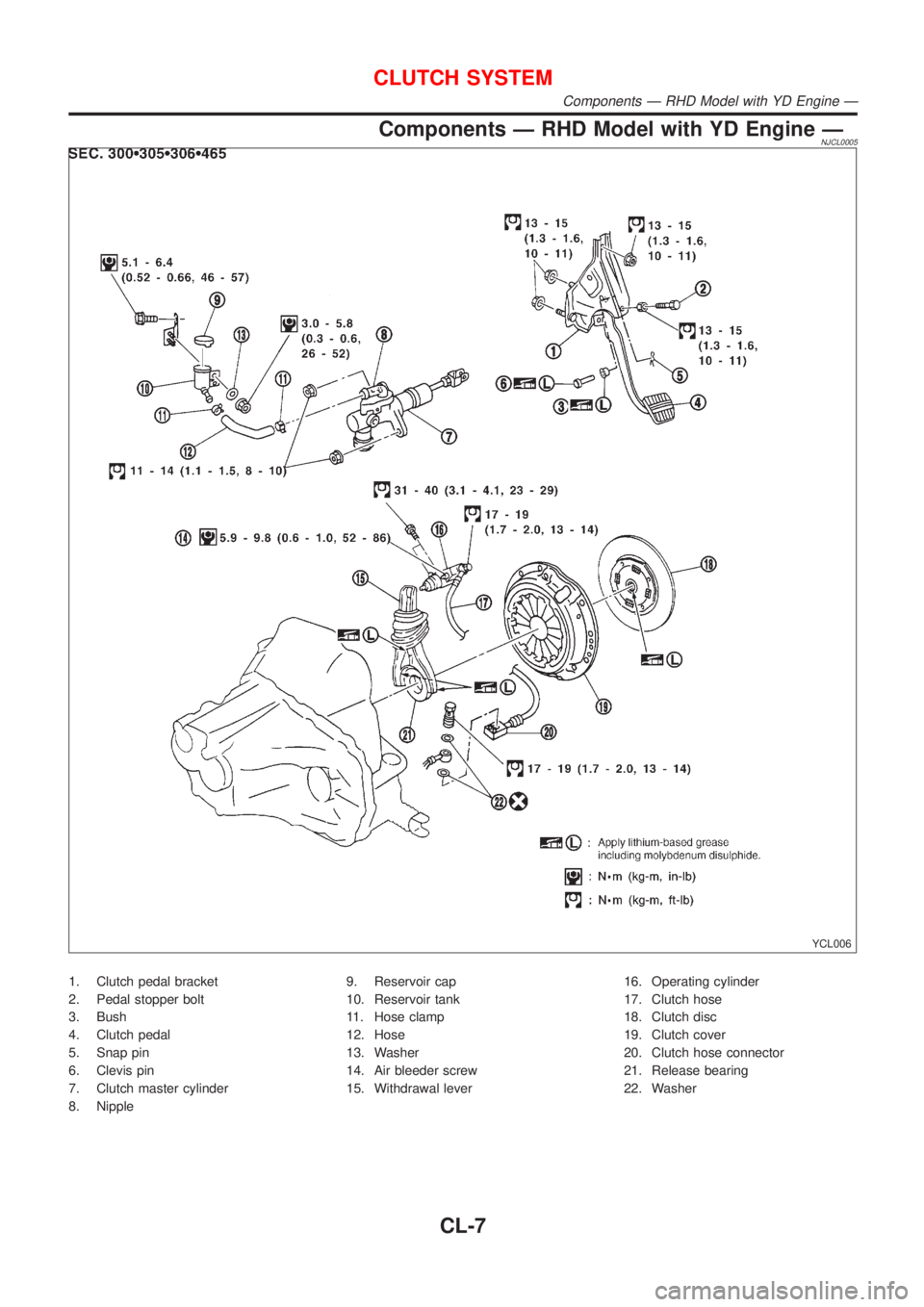

Page 1033 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Components Ð RHD Model with YD Engine ÐNJCL0005 YCL006 1. Clutch pedal bracket 2. Pedal stopper bolt 3. Bush 4. Clutch pedal 5. Snap pin 6. Clevis pin 7. Clutch master cylinder 8. Nipple9. Reservoir

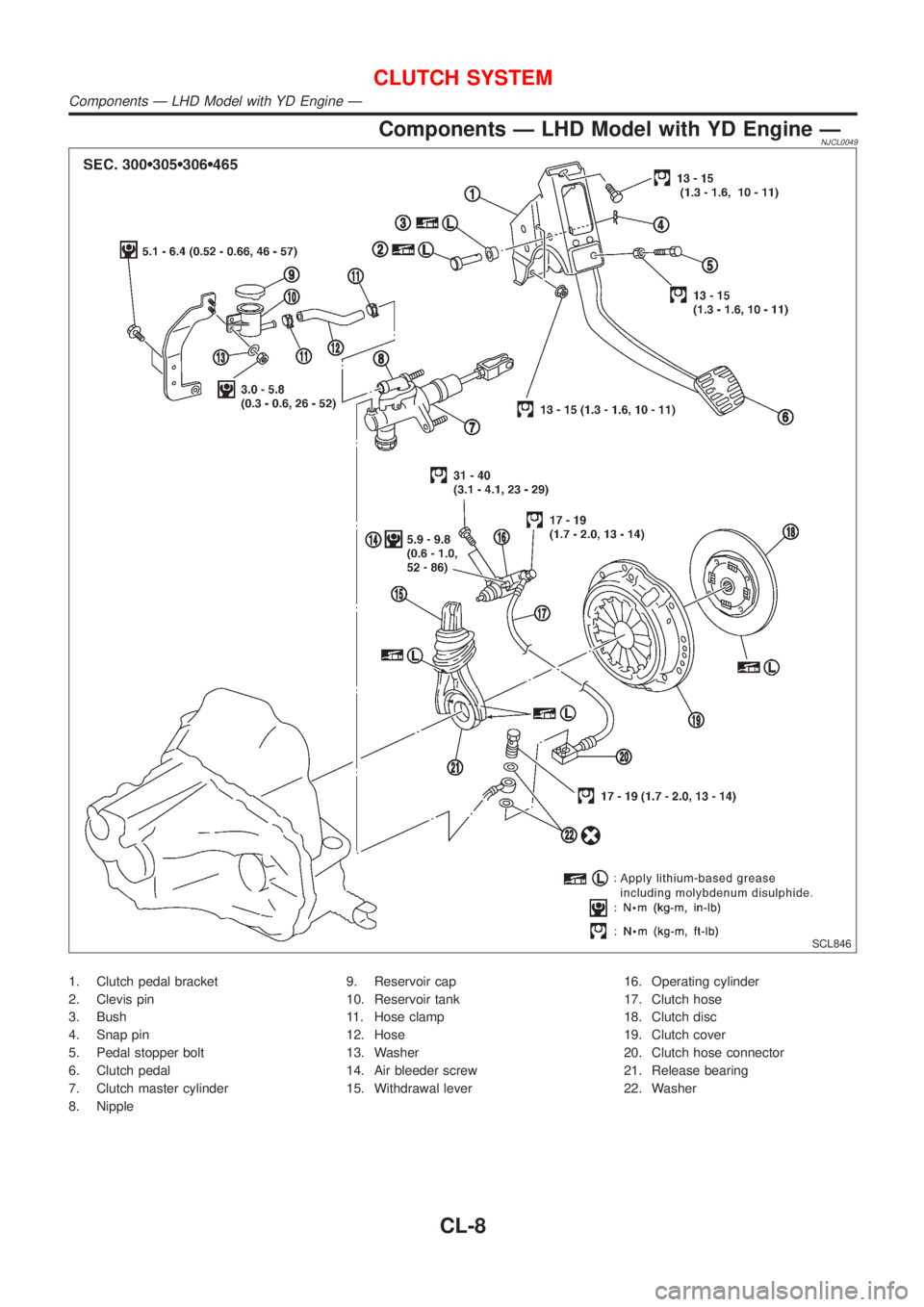

Page 1034 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Components Ð LHD Model with YD Engine ÐNJCL0049 SCL846 1. Clutch pedal bracket 2. Clevis pin 3. Bush 4. Snap pin 5. Pedal stopper bolt 6. Clutch pedal 7. Clutch master cylinder 8. Nipple9. Reservoir

Page 1035 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Inspection and AdjustmentNJCL0006CLUTCH PEDAL INSPECTIONNJCL0006S03Pedal StrokeNJCL0006S0301Check clutch pedal stroke by using a 1±meter rule to measure the total pedal stroke. Place end of rule onto

Page 1036 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual CLUTCH PEDAL ADJUSTMENTNJCL0006S04Pedal StrokeNJCL0006S04011. Loosen the pedal stopper bolt completely (so there is no con- tact between pedal and stopper bolt). 2. Adjust pedal stroke to the specifie

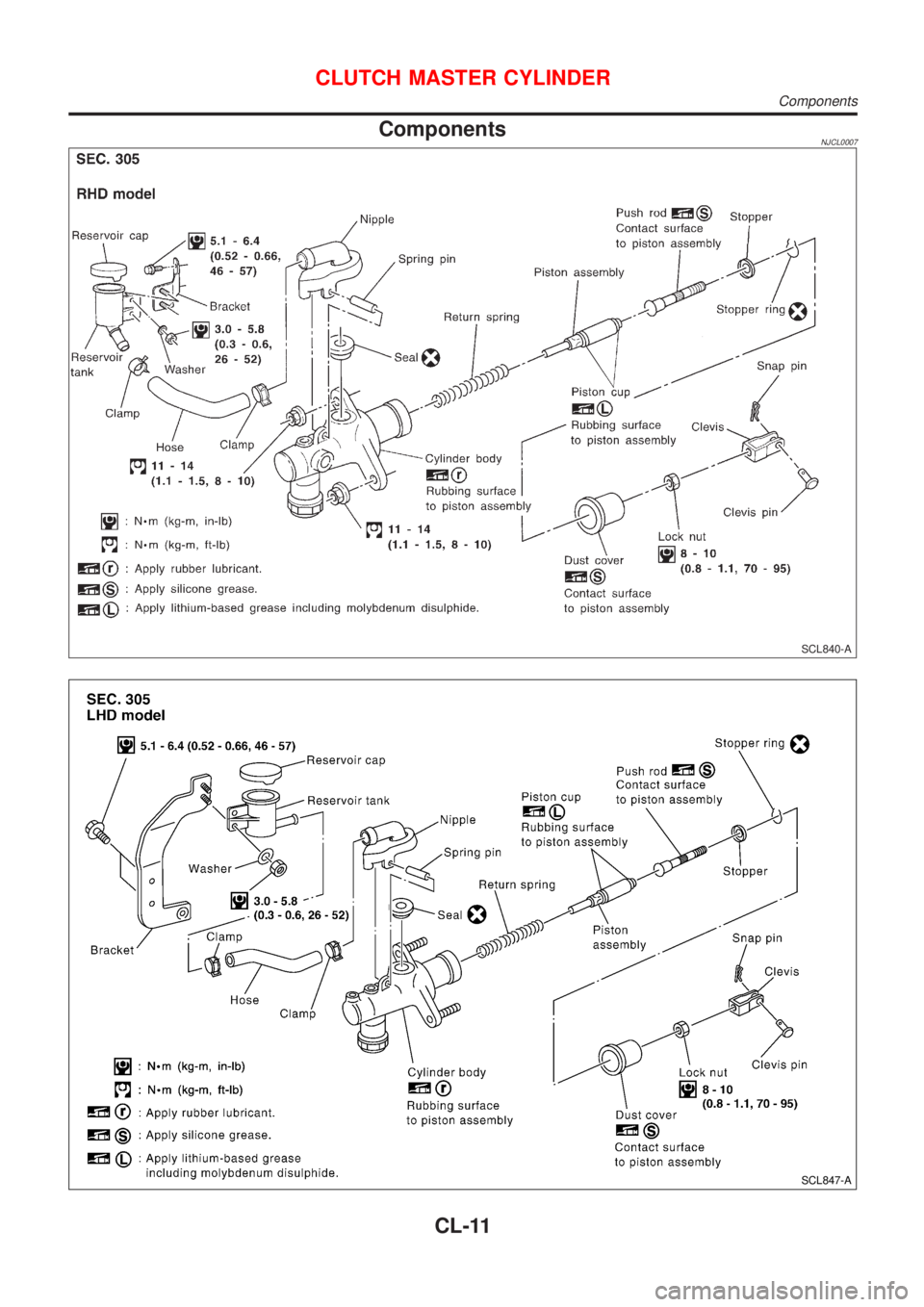

Page 1037 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual ComponentsNJCL0007 SCL840-A SCL847-A CLUTCH MASTER CYLINDER Components CL-11

Page 1038 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual RemovalNJCL00081. Drain brake fluid. CAUTION: Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water imm

Page 1039 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual AssemblyNJCL00121. Apply rubber lubricant to the sliding part of piston assembly, and insert piston assembly. 2. After installing stopper to push rod, install stopper ring while keeping piston assembl

Page 1040 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual ComponentsNJCL0019 YCL003 RemovalNJCL00201. Drain brake fluid. CAUTION: Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, w
