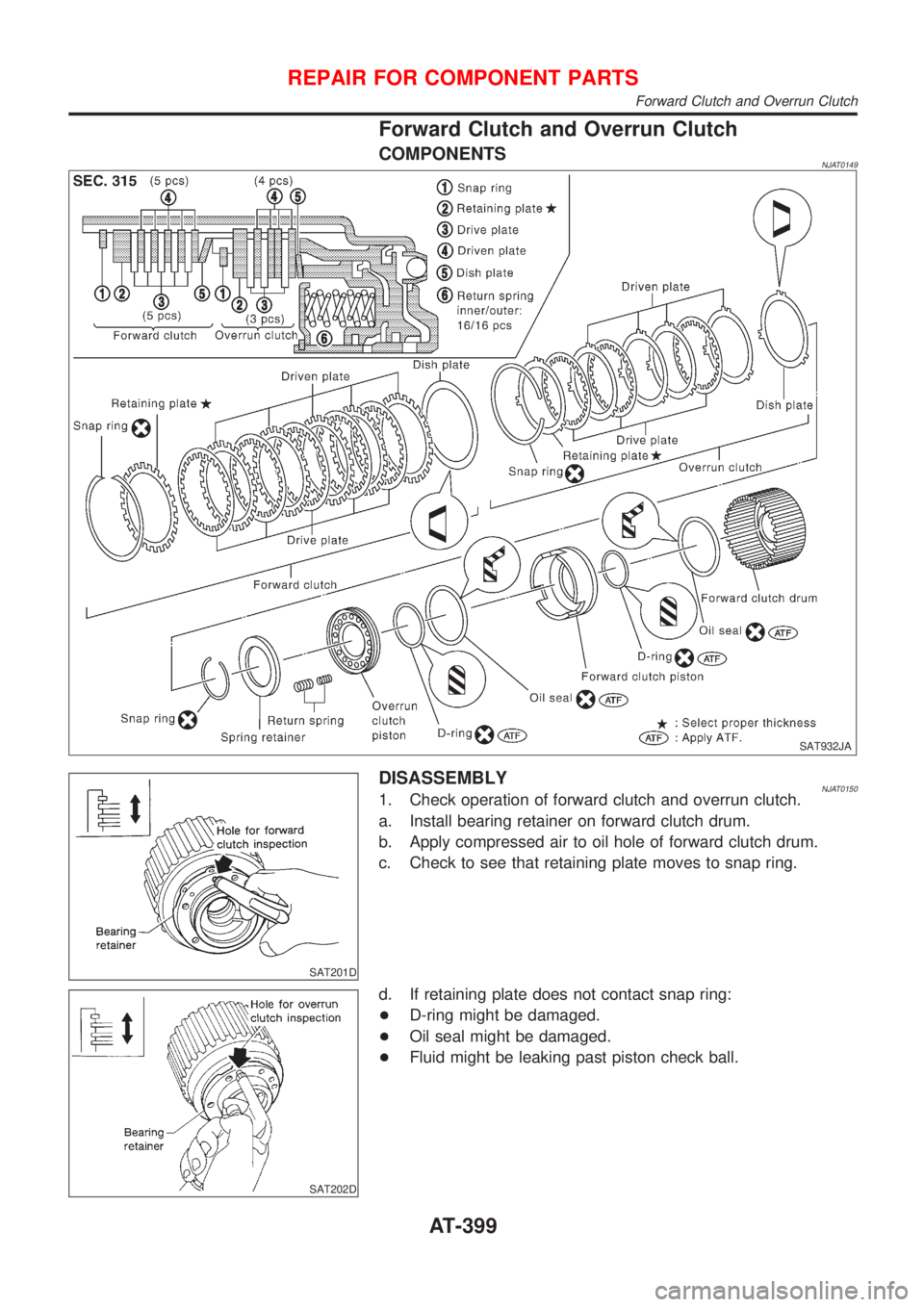

NISSAN ALMERA N16 2001 Electronic Repair Manual Forward Clutch and Overrun Clutch COMPONENTSNJAT0149 SAT932JA SAT201D DISASSEMBLYNJAT01501. Check operation of forward clutch and overrun clutch. a. Install bearing retainer on forward clutch drum. b.

Page 1586 of 2493

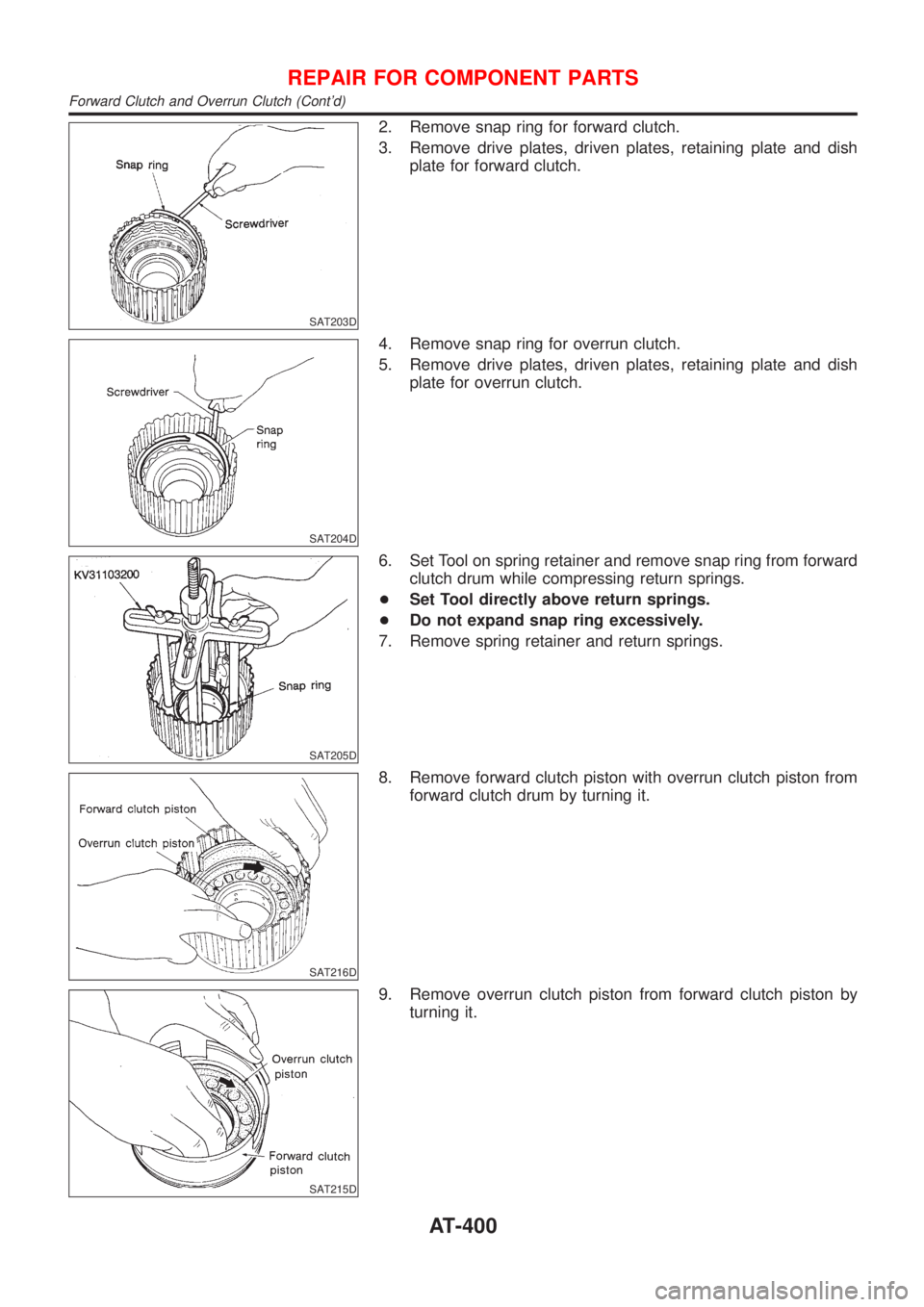

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT203D 2. Remove snap ring for forward clutch. 3. Remove drive plates, driven plates, retaining plate and dish plate for forward clutch. SAT204D 4. Remove snap ring for overrun clutch. 5. Remove driv

Page 1587 of 2493

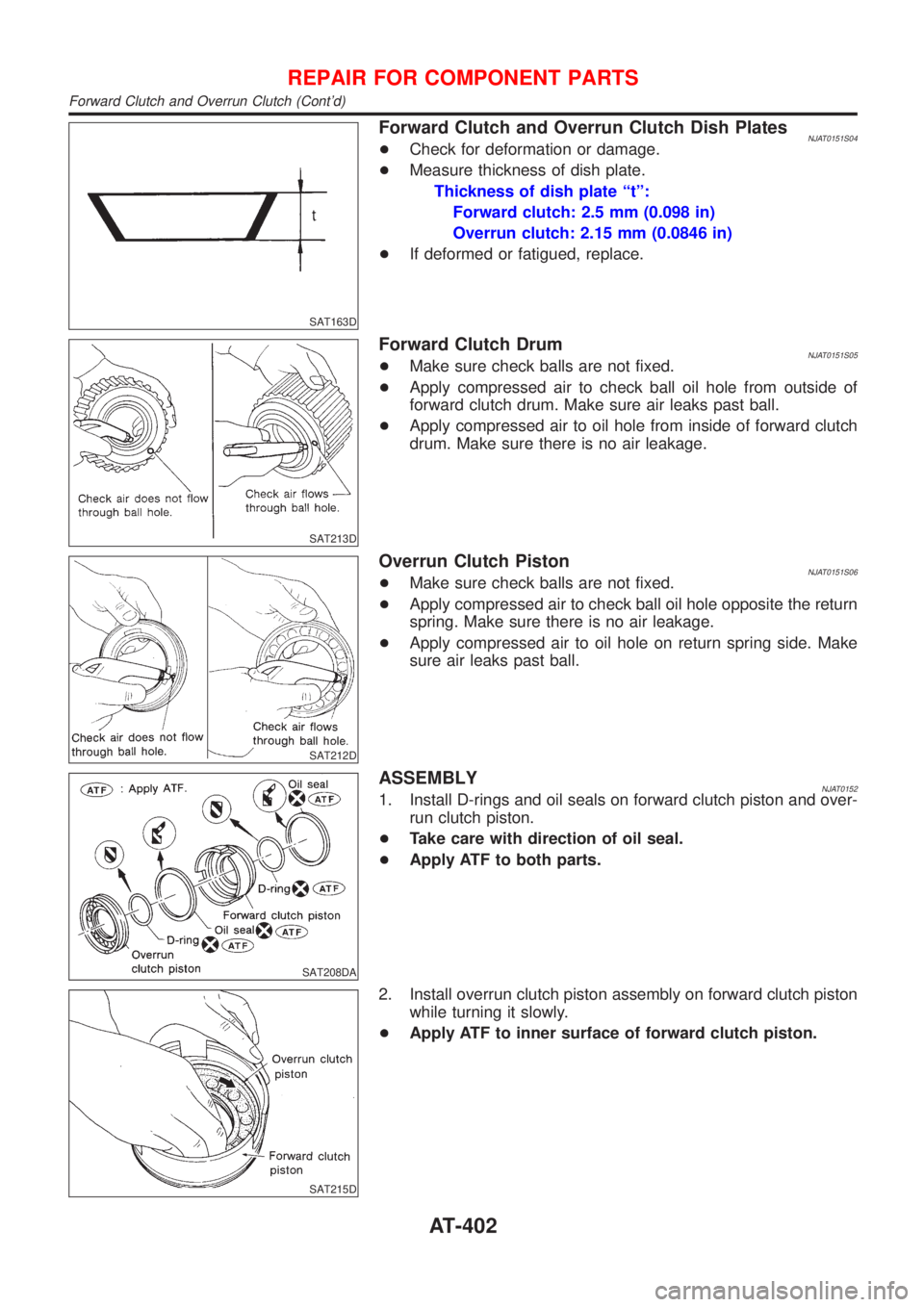

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT140E 10. Remove D-rings and oil seals from forward clutch piston and overrun clutch piston. INSPECTIONNJAT0151Snap Rings and Spring RetainerNJAT0151S01+Check for deformation, fatigue or damage. SAT

Page 1588 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT163D Forward Clutch and Overrun Clutch Dish PlatesNJAT0151S04+Check for deformation or damage. +Measure thickness of dish plate. Thickness of dish plate ªtº: Forward clutch: 2.5 mm (0.098 in) Ove

Page 1589 of 2493

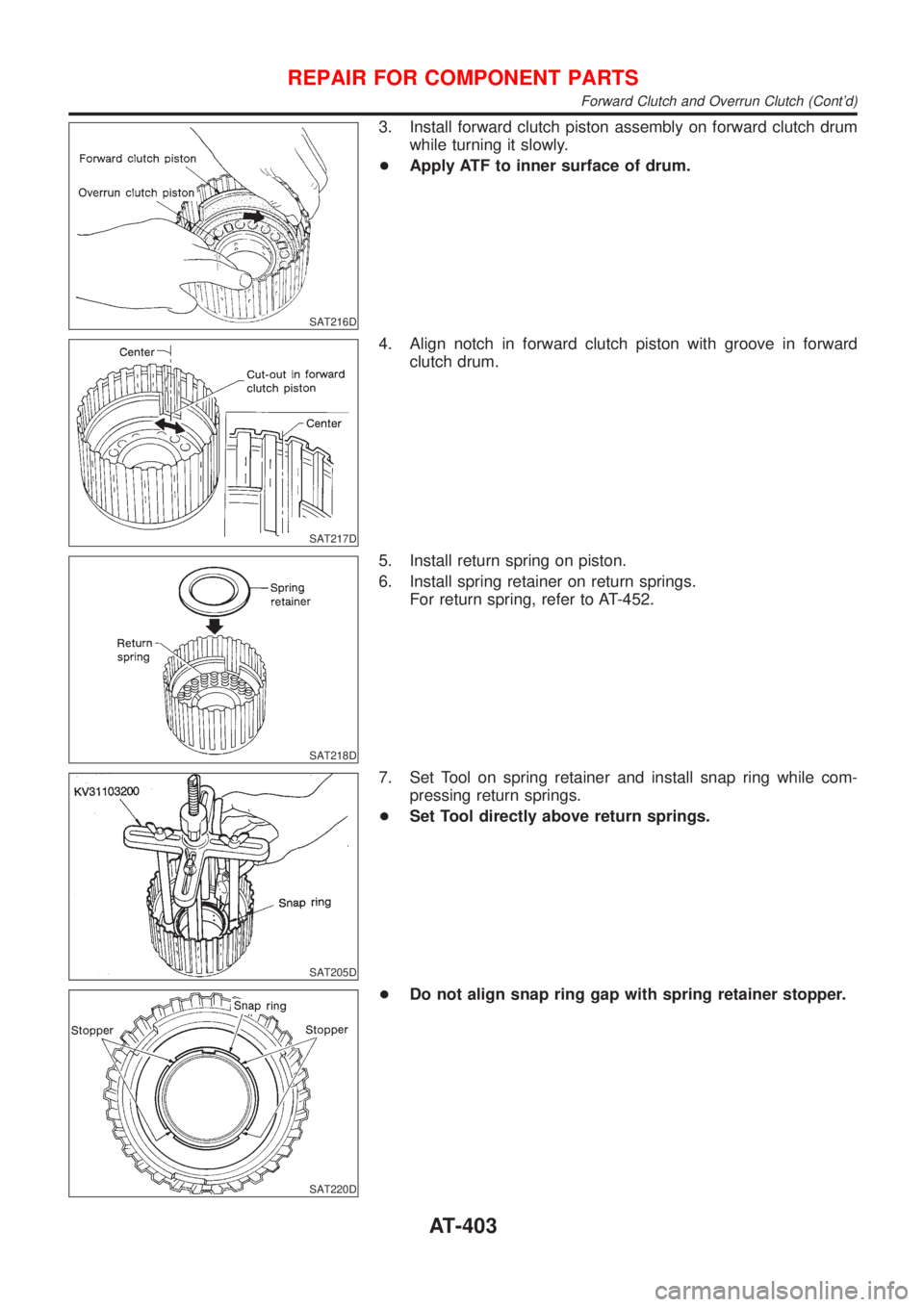

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT216D 3. Install forward clutch piston assembly on forward clutch drum while turning it slowly. +Apply ATF to inner surface of drum. SAT217D 4. Align notch in forward clutch piston with groove in fo

Page 1590 of 2493

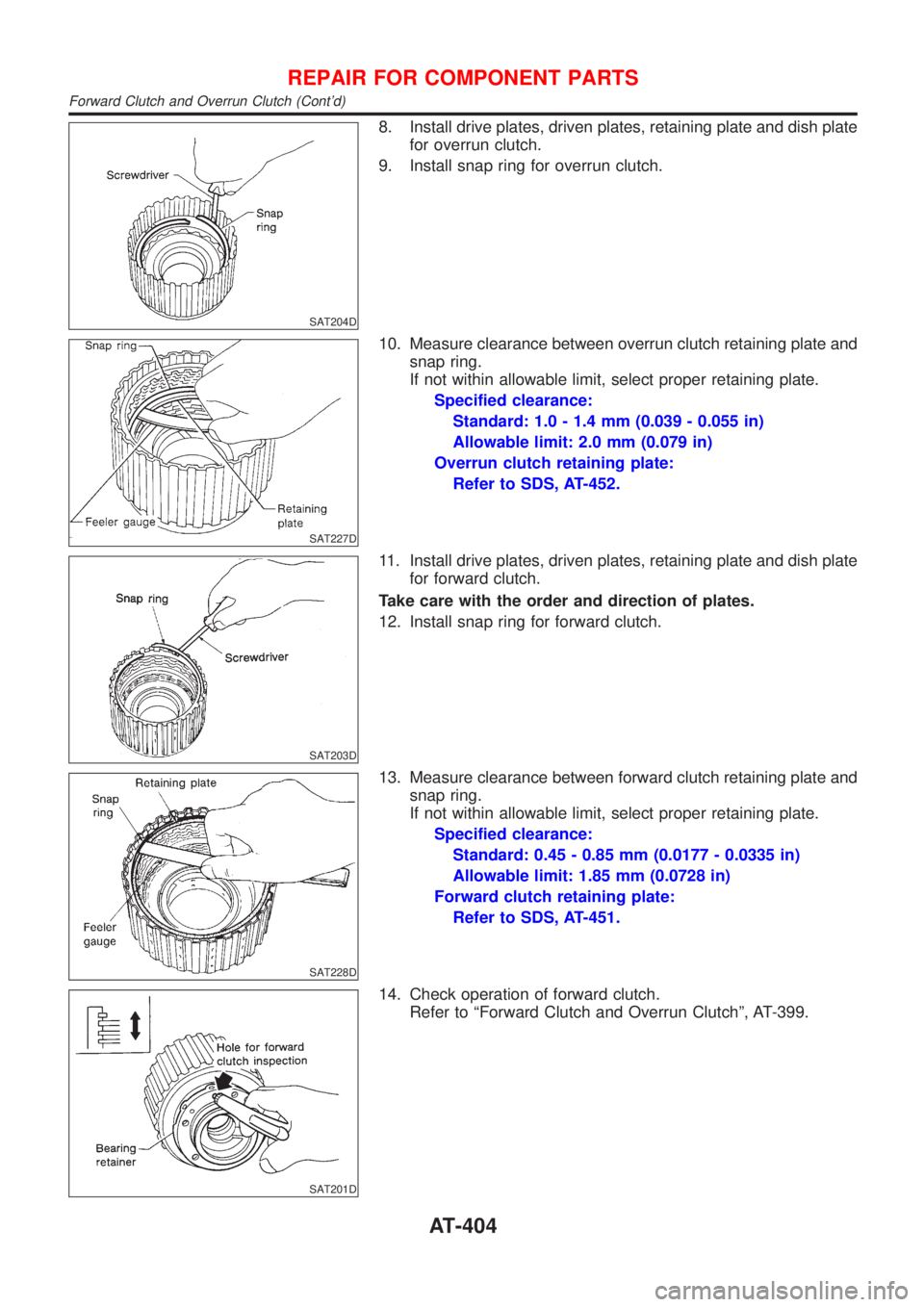

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT204D 8. Install drive plates, driven plates, retaining plate and dish plate for overrun clutch. 9. Install snap ring for overrun clutch. SAT227D 10. Measure clearance between overrun clutch retaini

Page 1591 of 2493

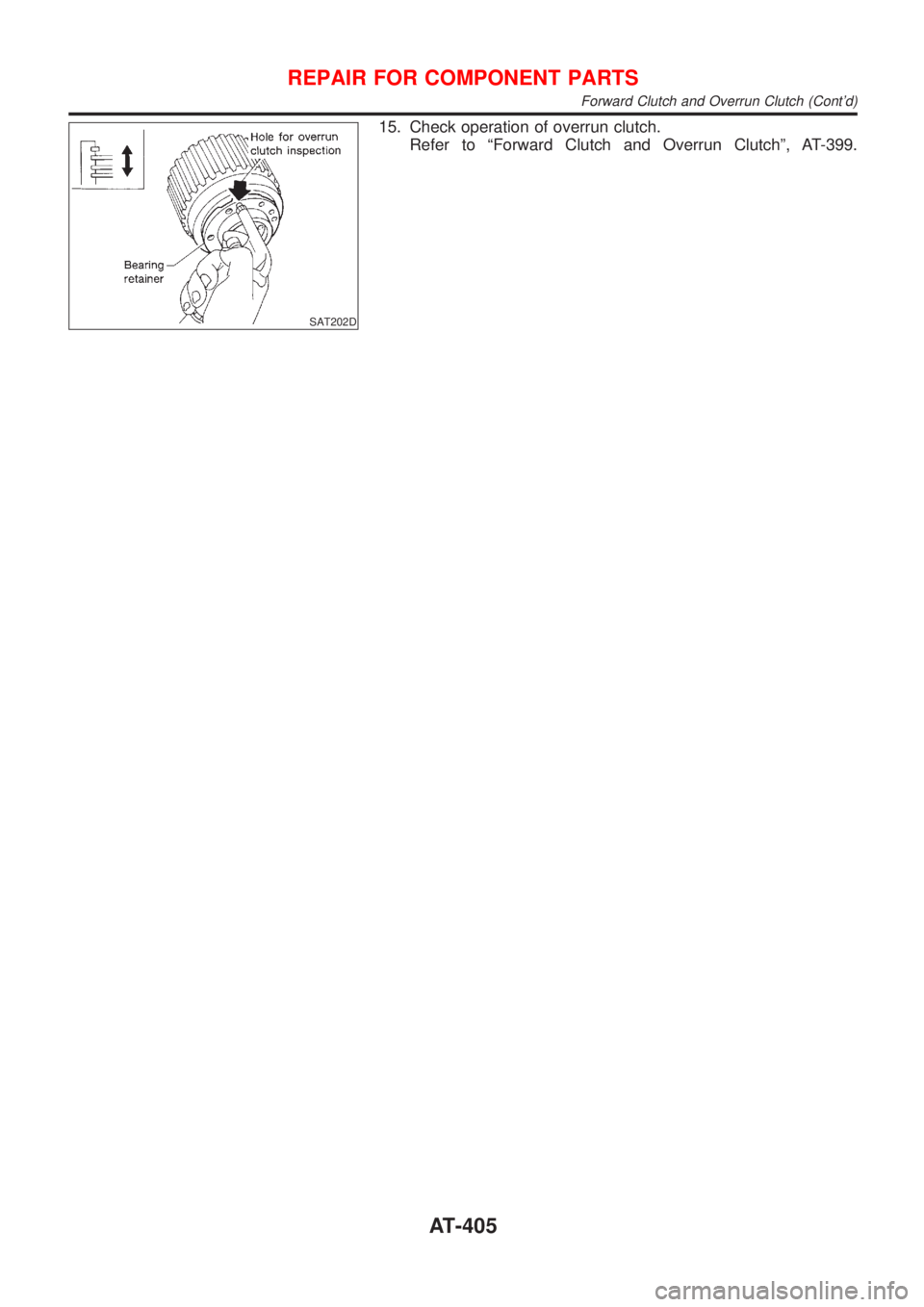

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT202D 15. Check operation of overrun clutch. Refer to ªForward Clutch and Overrun Clutchº, AT-399. REPAIR FOR COMPONENT PARTS Forward Clutch and Overrun Clutch (Contd) AT-405

Page 1592 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Low & Reverse Brake COMPONENTS=NJAT0153 SAT039K SAT230D DISASSEMBLYNJAT01541. Check operation of low & reverse brake. a. Apply compressed air to oil hole of transmission case. b. Check to see that ret
