Page 1873 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]+RH side air bag (satellite) sensor 1. Visually check the wiring
har

Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]+RH side air bag (satellite) sensor 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace the RH side air
bag (satellite) sensor.
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness.
PRE-TEN FRONT LH
[OPEN/VB-SHORT]+The circuit for the front LH pre-tensioner is open or shorted
to a power supply circuit.1. Visually check the wiring
harness connections.
2. Replace the harness if it
has visible damage.
3. Replace the front LH seat
belt.
(Before disposal, it must be
deactivated.)
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness. PRE-TEN FRONT LH
[GND-SHORT]+The circuit for the front LH pre-tensioner is shorted to
ground.
PRE-TEN FRONT RH
[OPEN/VB-SHORT]+The circuit for the front RH pre-tensioner is open or shorted
to a power supply circuit.1. Visually check the wiring
harness connections.
2. Replace the harness if it
has visible damage.
3. Replace the front RH seat
belt.
(Before disposal, it must be
deactivated.)
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness. PRE-TEN FRONT RH
[GND-SHORT]+The circuit for the front RH pre-tensioner is shorted to
ground.
CONTROL UNIT+Low battery voltage (Less than 9V)+Go to DIAGNOSTIC PRO-
CEDURE 3 (RS-54) after
charging battery.
+Diagnosis sensor unit is malfunctioning. 1. Visually check wiring har-
ness connections.
2. Replace the harness if it
has visible damage.
3. Replace diagnosis sensor
unit.
4. Replace the related har-
ness.
* Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated
using the air bag or seat belt warning lamp or CONSULT-II each time repair is finished. If malfunction is still observed, pro-
ceed to the next step. When malfunction is eliminated, further repair work is not required.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-53

Page 1874 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SRS834-A
SRS872
DIAGNOSTIC PROCEDURE 3NJRS0048S02Final checking after repairing SRS by using CONSULT-II Ð
Diagnosis mode
1. After repairing SRS, connect both battery cables.
2. Connect CONSULT-II to

Page 1875 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SRS701
7. If no malfunction is detected on ªSELF-DIAG [CURRENT]º,
repair of SRS is completed. Go to step 8.
If any malfunction is displayed on ªSELF-DIAG [CURRENT]º,
the malfunctioning part is not

Page 1876 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)
NJRS0048S03Inspecting SRS malfunctioning record
1 CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULT AFTER REPAIRING
Is it the fi

Page 1877 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SRS697
6. Touch ªSELF-DIAG [PAST]º.
SRS700
7. If diagnostic codes are displayed on ªSELF-DIAG [PAST]º, go
to step 10.
SRS702
If no malfunction is detected on ªSELF-DIAG [PAST]º, touch
ªBACKº a

Page 1878 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 10. Touch ªPRINTº.
11. Compare diagnostic codes to ªIntermittent Malfunction Diag-
nostic Code Chartº, RS-58.
12. Touch ªBACKº key of CONSULT-II until ªSELECT SYSTEMº
appears.
13. Turn ignitio

10. Touch ªPRINTº.
11. Compare diagnostic codes to ªIntermittent Malfunction Diag-
nostic Code Chartº, RS-58.
12. Touch ªBACKº key of CONSULT-II until ªSELECT SYSTEMº
appears.
13. Turn ignition switch ªOFFº, then turn off and disconnect
CONSULT-II, and disconnect both battery cables.
14. Repair the system as outlined by the ªRepair orderº in ªInter-
mittent Malfunction Diagnostic Code Chartº, that corresponds
to the self-diagnostic result. For replacement procedure of
component parts, refer to RS-26.
15. Go to DIAGNOSTIC PROCEDURE 3, page RS-54, for final
checking.
INTERMITTENT MALFUNCTION DIAGNOSTIC CODE
CHART (ªSELF-DIAG [PAST] or TROUBLE DIAG
RECORDº)
NJRS0048S0402
Diagnostic item Explanation Repair order
NO DTC IS DETECTED+No malfunction is detected.+Go to DIAGNOSTIC PROCEDURE 3
(RS-54).
AIRBAG MODULE
[OPEN]+Driver air bag module circuit is open.
(including the spiral cable)1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible
damage.
3. If the harness check is OK, replace the
spiral cable, diagnosis sensor unit and
driver air bag module. (Before dispos-
ing of the driver air bag module, it
must be deployed.) AIRBAG MODULE
[VB-SHORT]+Driver air bag module circuit is shorted
to a power supply circuit. (including the
spiral cable)
AIRBAG MODULE
[GND-SHORT]+Driver air bag module circuit is shorted
to ground. (including the spiral cable)
AIRBAG MODULE
[SHORT]+Driver air bag module circuits are
shorted to each other.
ASSIST A/B MODULE
[VB-SHORT]+Front passenger air bag module circuit
is shorted to some power supply cir-
cuit.1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible
damage.
3. If the harness check is OK, replace the
diagnosis sensor unit and passenger
air bag module. (Before disposing of
the passenger air bag module, it must
be deployed.) ASSIST A/B MODULE
[OPEN]+Front passenger air bag module circuit
is open.
ASSIST A/B MODULE
[GND-SHORT]+Front passenger air bag module circuit
is shorted to ground.
ASSIST A/B MODULE
[SHORT]+Front passenger air bag module cir-
cuits are shorted to each other.
SIDE MODULE LH
[OPEN]+Front LH side air bag module circuit is
open.1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible
damage.
3. If the harness check is OK, replace the
diagnosis sensor unit and front LH side
air bag module. (Before disposing of
the front LH side air bag module, it
must be deployed.) SIDE MODULE LH
[VB-SHORT]+Front LH side air bag module circuit is
shorted to a power supply circuit.
SIDE MODULE LH
[GND-SHORT]+Front LH side air bag module circuit is
shorted to ground.
SIDE MODULE LH
[SHORT]+Front LH side air bag module circuits
are shorted to each other.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-58

Page 1879 of 2493

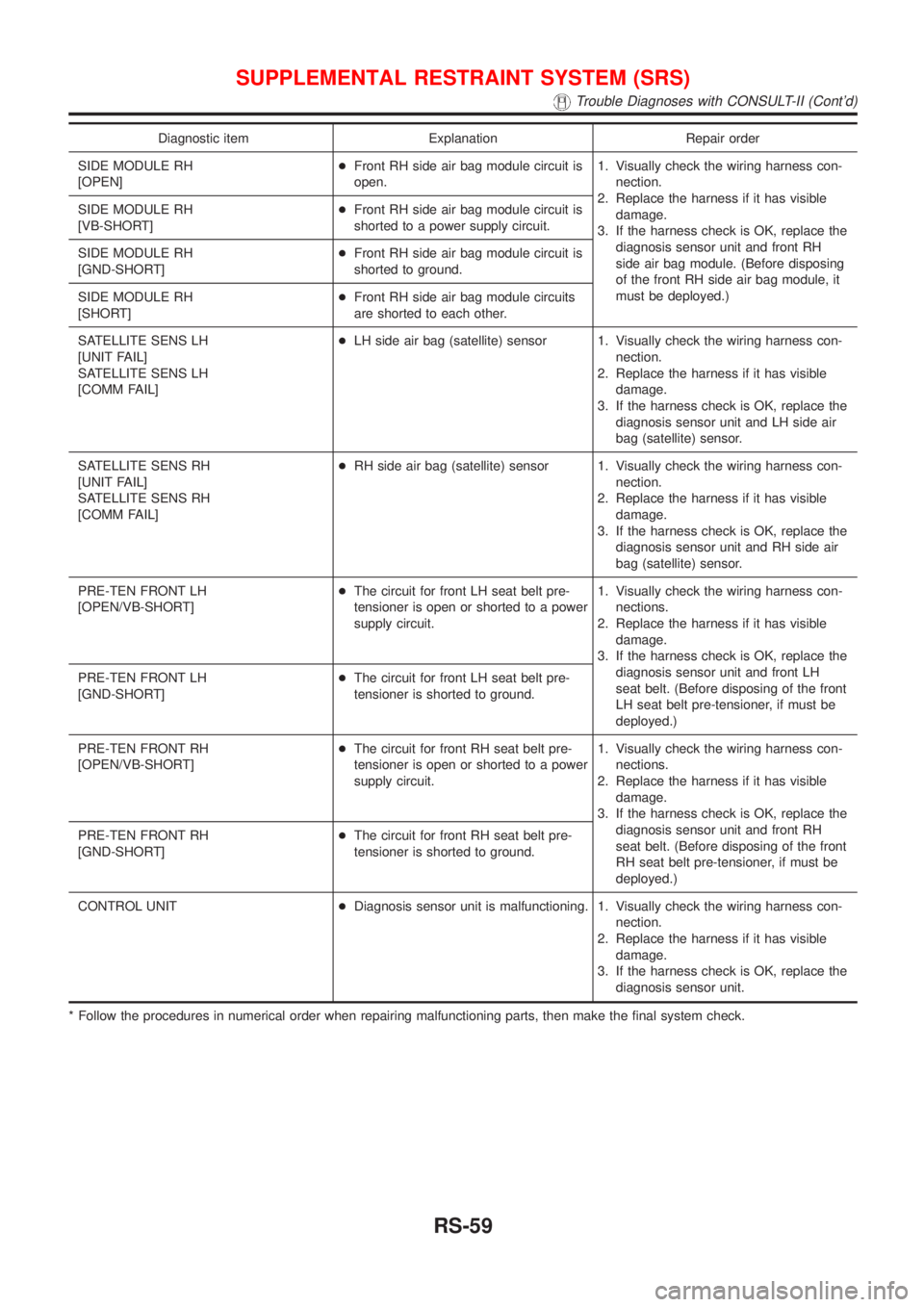

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic item Explanation Repair order
SIDE MODULE RH
[OPEN]+Front RH side air bag module circuit is
open.1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible

Diagnostic item Explanation Repair order
SIDE MODULE RH
[OPEN]+Front RH side air bag module circuit is
open.1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible
damage.
3. If the harness check is OK, replace the
diagnosis sensor unit and front RH
side air bag module. (Before disposing
of the front RH side air bag module, it
must be deployed.) SIDE MODULE RH
[VB-SHORT]+Front RH side air bag module circuit is
shorted to a power supply circuit.
SIDE MODULE RH
[GND-SHORT]+Front RH side air bag module circuit is
shorted to ground.
SIDE MODULE RH
[SHORT]+Front RH side air bag module circuits
are shorted to each other.
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]+LH side air bag (satellite) sensor 1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible
damage.
3. If the harness check is OK, replace the
diagnosis sensor unit and LH side air
bag (satellite) sensor.
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]+RH side air bag (satellite) sensor 1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible
damage.
3. If the harness check is OK, replace the
diagnosis sensor unit and RH side air
bag (satellite) sensor.
PRE-TEN FRONT LH
[OPEN/VB-SHORT]+The circuit for front LH seat belt pre-
tensioner is open or shorted to a power
supply circuit.1. Visually check the wiring harness con-
nections.
2. Replace the harness if it has visible
damage.
3. If the harness check is OK, replace the
diagnosis sensor unit and front LH
seat belt. (Before disposing of the front
LH seat belt pre-tensioner, if must be
deployed.) PRE-TEN FRONT LH
[GND-SHORT]+The circuit for front LH seat belt pre-
tensioner is shorted to ground.
PRE-TEN FRONT RH
[OPEN/VB-SHORT]+The circuit for front RH seat belt pre-
tensioner is open or shorted to a power
supply circuit.1. Visually check the wiring harness con-
nections.
2. Replace the harness if it has visible
damage.
3. If the harness check is OK, replace the
diagnosis sensor unit and front RH
seat belt. (Before disposing of the front
RH seat belt pre-tensioner, if must be
deployed.) PRE-TEN FRONT RH
[GND-SHORT]+The circuit for front RH seat belt pre-
tensioner is shorted to ground.
CONTROL UNIT+Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness con-
nection.
2. Replace the harness if it has visible
damage.
3. If the harness check is OK, replace the
diagnosis sensor unit.
* Follow the procedures in numerical order when repairing malfunctioning parts, then make the final system check.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-59

Page 1880 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SRS800
Trouble Diagnoses without CONSULT-II=NJRS0049DIAGNOSTIC PROCEDURE 6NJRS0049S01Inspecting SRS malfunctioning parts by using ªAIR BAGº
warning lamp Ð Diagnosis mode
NOTE:
SRS will not enter Di

Load next 8 pages
