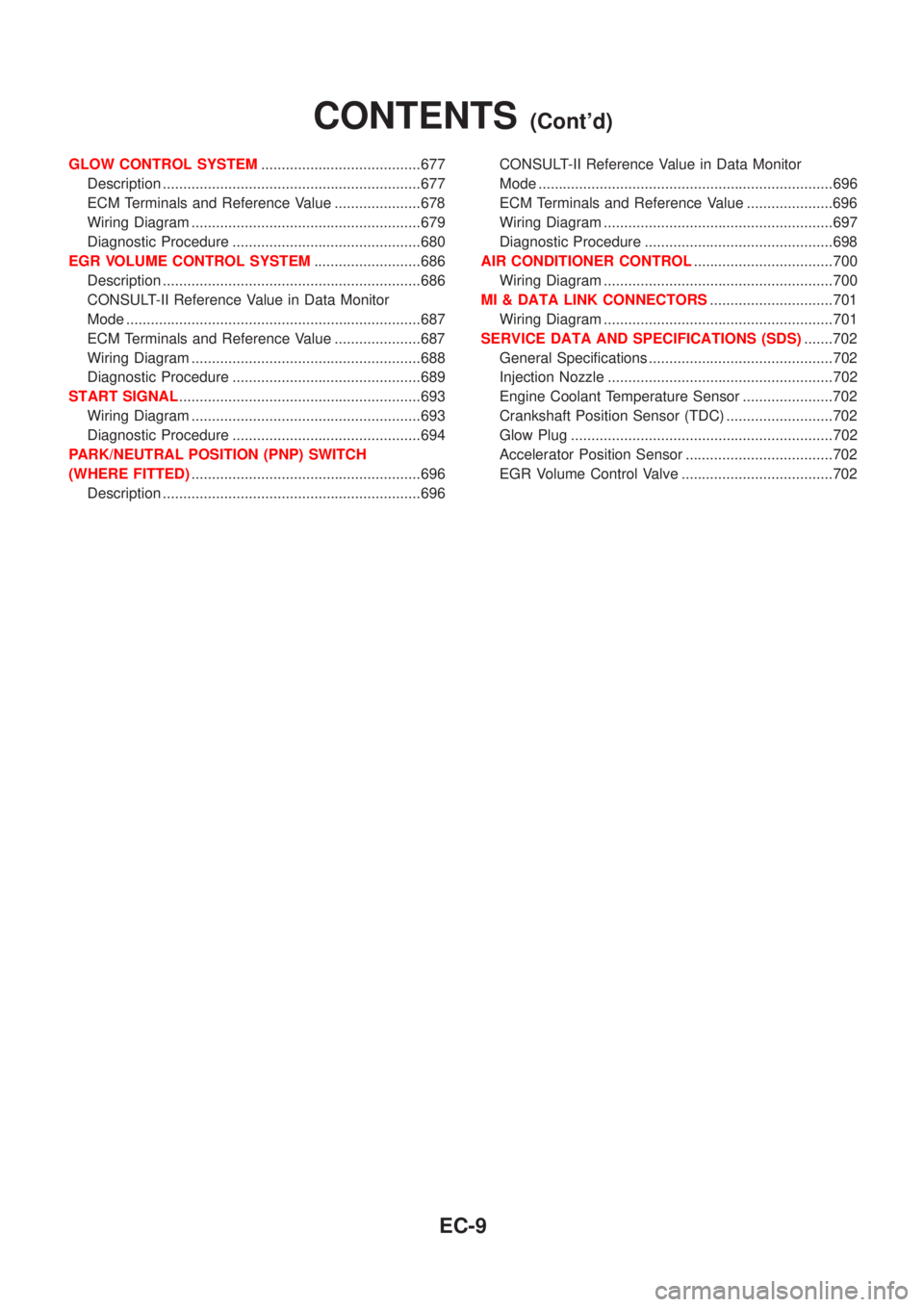

Page 305 of 2493

GLOW CONTROL SYSTEM.......................................677
Description ...............................................................677
ECM Terminals and Reference Value .....................678
Wiring Diagram ........................................................679
Diagnostic Procedure ..............................................680
EGR VOLUME CONTROL SYSTEM..........................686
Description ...............................................................686
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................687
ECM Terminals and Reference Value .....................687
Wiring Diagram ........................................................688
Diagnostic Procedure ..............................................689
START SIGNAL...........................................................693
Wiring Diagram ........................................................693
Diagnostic Procedure ..............................................694
PARK/NEUTRAL POSITION (PNP) SWITCH
(WHERE FITTED)........................................................696
Description ...............................................................696CONSULT-II Reference Value in Data Monitor
Mode ........................................................................696
ECM Terminals and Reference Value .....................696
Wiring Diagram ........................................................697
Diagnostic Procedure ..............................................698
AIR CONDITIONER CONTROL..................................700
Wiring Diagram ........................................................700
MI & DATA LINK CONNECTORS..............................701
Wiring Diagram ........................................................701
SERVICE DATA AND SPECIFICATIONS (SDS).......702
General Specifications .............................................702
Injection Nozzle .......................................................702
Engine Coolant Temperature Sensor ......................702
Crankshaft Position Sensor (TDC) ..........................702
Glow Plug ................................................................702
Accelerator Position Sensor ....................................702
EGR Volume Control Valve .....................................702
CONTENTS(Cont'd)
EC-9
Page 306 of 2493

Alphabetical & P No. Index for DTCNJEC0001Check if the vehicle is a model with the Euro-OBD (E-OBD) system or not by referring to the ªType approval
numberº on the identification plate.
Refer to GI-40, ªIDENTIFICATION PLATEº.
Type approval number Model
Available With Euro-OBD system
Not available Without Euro-OBD system
MODELS WITH EURO-OBD SYSTEMNJEC0001S03Alphabetical Index for DTCNJEC0001S0301
Items
(CONSULT-II screen terms)DTC*6
Reference page
CONSULT-II
GST*2ECM*1*7
Unable to access ECM Ð Ð EC-123
AIR TEMP SEN/CIRC P0110 0110 EC-158
A/T 1ST GR FNCTN P0731 0731 AT-202
A/T 2ND GR FNCTN P0732 0732 AT-209
A/T 3RD GR FNCTN P0733 0733 AT-215
A/T 4TH GR FNCTN P0734 0734 AT-221
A/T DIAG COMM LINE P1605 1605 EC-361
ATF TEMP SEN/CIRC P0710 0710 AT-187
CMP SEN/CIRCUIT P0340 0340 EC-278
CLOSED TP SW/CIRC*7 P0510 0510 EC-321
COOLANT T SEN/CIRC*3 P0115 0115 EC-163
CKP SEN/CIRCUIT P0335 0335 EC-272
CYL 1 MISFIRE P0301 0301 EC-262
CYL 2 MISFIRE P0302 0302 EC-262
CYL 3 MISFIRE P0303 0303 EC-262
CYL 4 MISFIRE P0304 0304 EC-262
ECM P0605 0605 EC-327
EGR SYSTEM*7 P0400 0400 EC-285
EGR SYSTEM*7 P1402 1402 EC-353
EGR TEMP SEN/CIRC*7 P1401 1401 EC-347
EGR VOL CON/V CIR*7 P0403 0403 EC-293
ENGINE SPEED SIG P0725 0725 AT-198
ENG OVER TEMP P1217 1217 EC-334
FUEL SYS-LEAN/BK1 P0171 0171 EC-248
FUEL SYS-RICH/BK1 P0172 0172 EC-255
HO2S1 HTR (B1) P0135 0135 EC-209
HO2S1 (B1) P0130 0130 EC-176
HO2S1 (B1) P0131 0131 EC-183
TROUBLE DIAGNOSIS Ð INDEXQG
Alphabetical & P No. Index for DTC
EC-10
Page 307 of 2493

Items
(CONSULT-II screen terms)DTC*6
Reference page
CONSULT-II
GST*2ECM*1*7
HO2S1 (B1) P0132 0132 EC-189
HO2S1 (B1) P0133 0133 EC-195
HO2S1 (B1) P0134 0134 EC-203
HO2S2 (B1) P0137 0137 EC-214
HO2S2 (B1) P0138 0138 EC-222
HO2S2 (B1) P0139 0139 EC-229
HO2S2 (B1) P0140 0140 EC-237
HO2S2 HTR (B1) P0141 0141 EC-243
IACV/AAC VLV/CIRC P0505 0505 EC-313
INT/V TIM V/CIR-B1 P1111 1111EC-329
KNOCK SEN/CIRC-B1 P0325 0325 EC-268
L/PRESS SOL/CIRC P0745 0745 AT-237
MAF SEN/CIRCUIT*3 P0100 0100 EC-152
MULTI CYL MISFIRE P0300 0300 EC-262
NATS MALFUNCTION P1610 - P1615 1610 - 1615 EL-239
NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIREDÐ 0000 Ð
NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIREDÐ Flashing*5 EC-73
O/R CLTCH SOL/CIRC P1760 1760 AT-265
PNP SW/CIRC P0705 0705 AT-181
P-N POS SW/CIRCUIT P1706 1706 EC-364
PURG VOLUME CONT/V P0443 0443 EC-304
SFT SOL A/CIRC P0750 0750 AT-244
SFT SOL B/CIRC P0755 0755 AT-250
TCC SOLENOID/CIRC P0740 0740 AT-231
THRTL POS SEN/CIRC*3 P0120 0120 EC-168
TP SEN/CIRC A/T P1705 1705 AT-256
TW CATALYST SYS-B1 P0420 0420 EC-299
VEH SPD SEN/CIR AT P0720 0720 AT-193
VEH SPEED SEN/CIRC*4 P0500 0500 EC-309
*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO 15031-6.
*3: When the fail-safe operation occurs, the MI illuminates.
*4: The MI illuminates when the ªRevolution sensor signalº and the ªVehicle speed sensor signalº meet the fail-safe condition at the
same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.
*7: If so equipped
TROUBLE DIAGNOSIS Ð INDEXQG
Alphabetical & P No. Index for DTC (Cont'd)
EC-11
Page 308 of 2493

P No. Index for DTCNJEC0001S0302
DTC*6
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*2ECM*1*7
Ð Ð Unable to access ECM EC-123
Ð Flashing*5NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED.EC-73
Ð 0000NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED.Ð
P0100 0100 MAF SEN/CIRCUIT*3 EC-152
P0110 0110 AIR TEMP SEN/CIRC EC-158
P0115 0115 COOLANT T SEN/CIRC*3 EC-163
P0120 0120 THRTL POS SEN/CIRC*3 EC-168
P0130 0130 HO2S1 (B1) EC-176
P0131 0131 HO2S1 (B1) EC-183
P0132 0132 HO2S1 (B1) EC-189
P0133 0133 HO2S1 (B1) EC-195
P0134 0134 HO2S1 (B1) EC-203
P0135 0135 HO2S1 HTR (B1) EC-209
P0137 0137 HO2S2 (B1) EC-214
P0138 0138 HO2S2 (B1) EC-222
P0139 0139 HO2S2 (B1) EC-229
P0140 0140 HO2S2 (B1) EC-237
P0141 0141 HO2S2 HTR (B1) EC-243
P0171 0171 FUEL SYS-LEAN/BK1 EC-248
P0172 0172 FUEL SYS-RICH/BK1 EC-255
P0300 0300 MULTI CYL MISFIRE EC-262
P0301 0301 CYL 1 MISFIRE EC-262
P0302 0302 CYL 2 MISFIRE EC-262
P0303 0303 CYL 3 MISFIRE EC-262
P0304 0304 CYL 4 MISFIRE EC-262
P0325 0325 KNOCK SEN/CIRC-B1 EC-268
P0335 0335 CKP SEN/CIRCUIT EC-272
P0340 0340 CMP SEN/CIRCUIT EC-278
P0400 0400 EGR SYSTEM*7 EC-285
P0403 0403 EGR VOL CON/V CIR*7 EC-293
P0420 0420 TW CATALYST SYS-B1 EC-299
P0443 0443 PURG VOLUME CONT/V EC-304
P0500 0500 VEH SPEED SEN/CIRC*4 EC-309
P0505 0505 IACV/AAC VLV/CIRC EC-313
TROUBLE DIAGNOSIS Ð INDEXQG
Alphabetical & P No. Index for DTC (Cont'd)
EC-12
Page 309 of 2493

DTC*6
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*2ECM*1*7
P0510 0510 CLOSED TP SW/CIRC*7 EC-321
P0605 0605 ECM EC-327
P0705 0705 PNP SW/CIRC AT-181
P0710 0710 ATF TEMP SEN/CIRC AT-187
P0720 0720 VEH SPD SEN/CIR AT AT-193
P0725 0725 ENGINE SPEED SIG AT-198
P0731 0731 A/T 1ST GR FNCTN AT-202
P0732 0732 A/T 2ND GR FNCTN AT-209
P0733 0733 A/T 3RD GR FNCTN AT-215
P0734 0734 A/T 4TH GR FNCTN AT-221
P0740 0740 TCC SOLENOID/CIRC AT-231
P0745 0745 L/PRESS SOL/CIRC AT-237
P0750 0750 SFT SOL A/CIRC AT-244
P0755 0755 SFT SOL B/CIRC AT-250
P 1111 1111INT/V TIM V/CIR-B1 EC-329
P1217 1217 ENG OVER TEMP EC-334
P1401 1401 EGR TEMP SEN/CIRC*7 EC-347
P1402 1402 EGR SYSTEM*7 EC-353
P1605 1605 A/T DIAG COMM LINE EC-361
P1610 - 1615 1610 - 1615 NATS MALFUNCTION EL-239
P1705 1705 TP SEN/CIRC A/T AT-256
P1706 1706 P-N POS SW/CIRCUIT EC-364
P1760 1760 O/R CLTCH SOL/CIRC AT-265
*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO 15031-6
*3: When the fail-safe operation occurs, the MI illuminates.
*4: The MI illuminates when the ªRevolution sensor signalº and the ªVehicle speed sensor signalº meet the fail-safe condition at the
same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.
*7: If so equipped
MODELS WITHOUT EURO-OBD SYSTEMNJEC0001S04Alphabetical Index for DTCNJEC0001S0401
Items
(CONSULT-II screen terms)DTC*6
Reference page
CONSULT-II
GST*2ECM*1
Unable to access ECM Ð Ð EC-123
CKP SEN/CIRCUIT P0335 0335 EC-272
CMP SEN/CIRCUIT P0340 0340 EC-278
TROUBLE DIAGNOSIS Ð INDEXQG
Alphabetical & P No. Index for DTC (Cont'd)
EC-13
Page 310 of 2493

Items
(CONSULT-II screen terms)DTC*6
Reference page
CONSULT-II
GST*2ECM*1
COOLANT T SEN/CIRC*3 P0115 0115 EC-163
ENG OVER TEMP P1217 1217 EC-334
HO2S1 (B1) P0130 0130 EC-176
KNOCK SEN/CIRC-B1 P0325 0325 EC-268
MAF SEN/CIRCUIT*3 P0100 0100 EC-152
NATS MALFUNCTION P1610 - P1615 1610 - 1615 EL-239
NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIREDÐ 0000 Ð
NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIREDÐ Flashing*5 EC-73
THRTL POS SEN/CIRC*3 P0120 0120 EC-168
VEH SPEED SEN/CIRC*4 P0500 0500 EC-309
*1: In Diagnostic Test Mode II (Self-diagnostic results) (If so equipped). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO 15031-6.
*3: When the fail-safe operation occurs, the MI illuminates.
*4: The MI illuminates when the ªRevolution sensor signalº and the ªVehicle speed sensor signalº meet the fail-safe condition at the
same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.
P No. Index for DTCNJEC0001S0402
DTC*6
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*2ECM*1
Ð Ð Unable to access ECM EC-123
Ð Flashing*5NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED.EC-73
Ð 0000NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED.Ð
P0100 0100 MAF SEN/CIRCUIT*3 EC-152
P0115 0115 COOLANT T SEN/CIRC*3 EC-163
P0120 0120 THRTL POS SEN/CIRC*3 EC-168
P0130 0130 HO2S1 (B1) EC-176
P0325 0325 KNOCK SEN/CIRC-B1 EC-268
P0335 0335 CKP SEN/CIRCUIT EC-272
P0340 0340 CMP SEN/CIRCUIT EC-278
P0500 0500 VEH SPEED SEN/CIRC*4 EC-309
P1217 1217 ENG OVER TEMP EC-334
P1610 - 1615 1610 - 1615 NATS MALFUNCTION EL-239
*1: In Diagnostic Test Mode II (Self-diagnostic results) (If so equipped). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO 15031-6
*3: When the fail-safe operation occurs, the MI illuminates.
TROUBLE DIAGNOSIS Ð INDEXQG
Alphabetical & P No. Index for DTC (Cont'd)
EC-14
Page 311 of 2493
*4: The MI illuminates when the ªRevolution sensor signalº and the ªVehicle speed sensor signalº meet the fail-safe condition at the
same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.
TROUBLE DIAGNOSIS Ð INDEXQG
Alphabetical & P No. Index for DTC (Cont'd)
EC-15
Page 312 of 2493

Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
NJEC0002The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL N16 is as follows (The compo-
sition varies according to the destination and optional equipment.):
+For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnoses sensor unit, warning lamp, wiring harness and spiral cable.
+For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnoses sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in theRS sectionof this Service Manual.
WARNING:
+To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
+Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.
+Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harness can be identified by yellow harness connector.
Precautions for On Board Diagnostic (OBD)
System of Engine and A/T
NJEC0003The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver
of a malfunction causing emission deterioration.
CAUTION:
+Be sure to turn the ignition switch ªOFFº and disconnect the negative battery terminal before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc.
will cause the MI to light up.
+Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
+Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector.
For description and how to disconnect, refer to EL section, ªDescriptionº, ªHARNESS CONNEC-
TORº.
+Be sure to route and secure the harnesses properly after work. The interference of the harness with
a bracket, etc. may cause the MI to light up due to the short circuit.
+Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of fuel injection system, etc.
+Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM and
TCM (Transmission Control Module) before returning the vehicle to the customer.
PRECAUTIONSQG
Supplemental Restraint System (SRS) ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº
EC-16
