NISSAN ALMERA N16 2001 Electronic Repair Manual Control Valve Assembly COMPONENTS=NJAT0129 SAT033K 1. Solenoid valve assembly 2. O-ring 3. Clip 4. Terminal body 5. Control valve lower body 6. Oil strainer 7. Support plate 8. Lower inter separating

Page 1562 of 2493

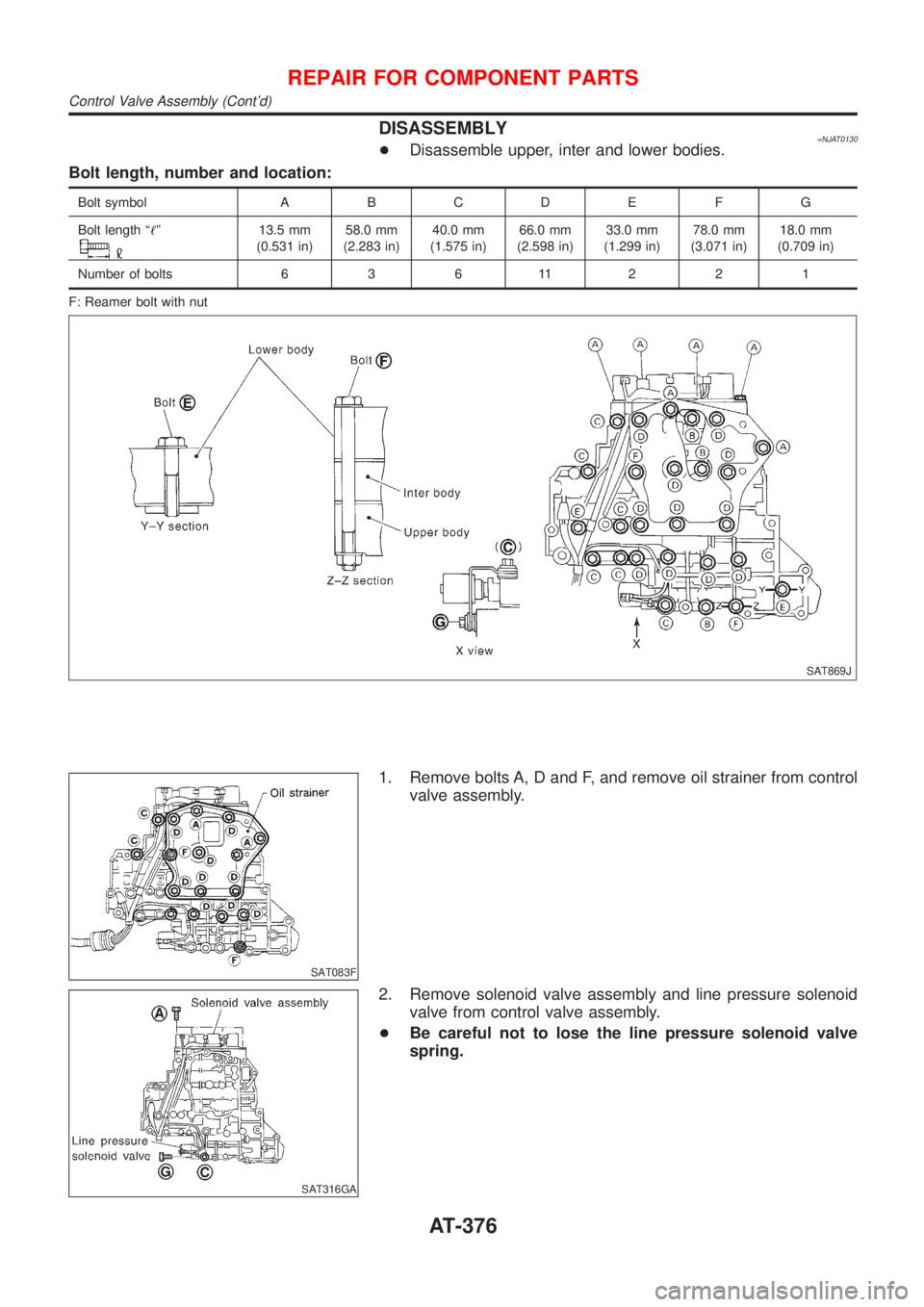

NISSAN ALMERA N16 2001 Electronic Repair Manual DISASSEMBLY=NJAT0130+Disassemble upper, inter and lower bodies. Bolt length, number and location: Bolt symbol A B C D E F G Bolt length ª!º 13.5 mm (0.531 in)58.0 mm (2.283 in)40.0 mm (1.575 in)66.0

Page 1563 of 2493

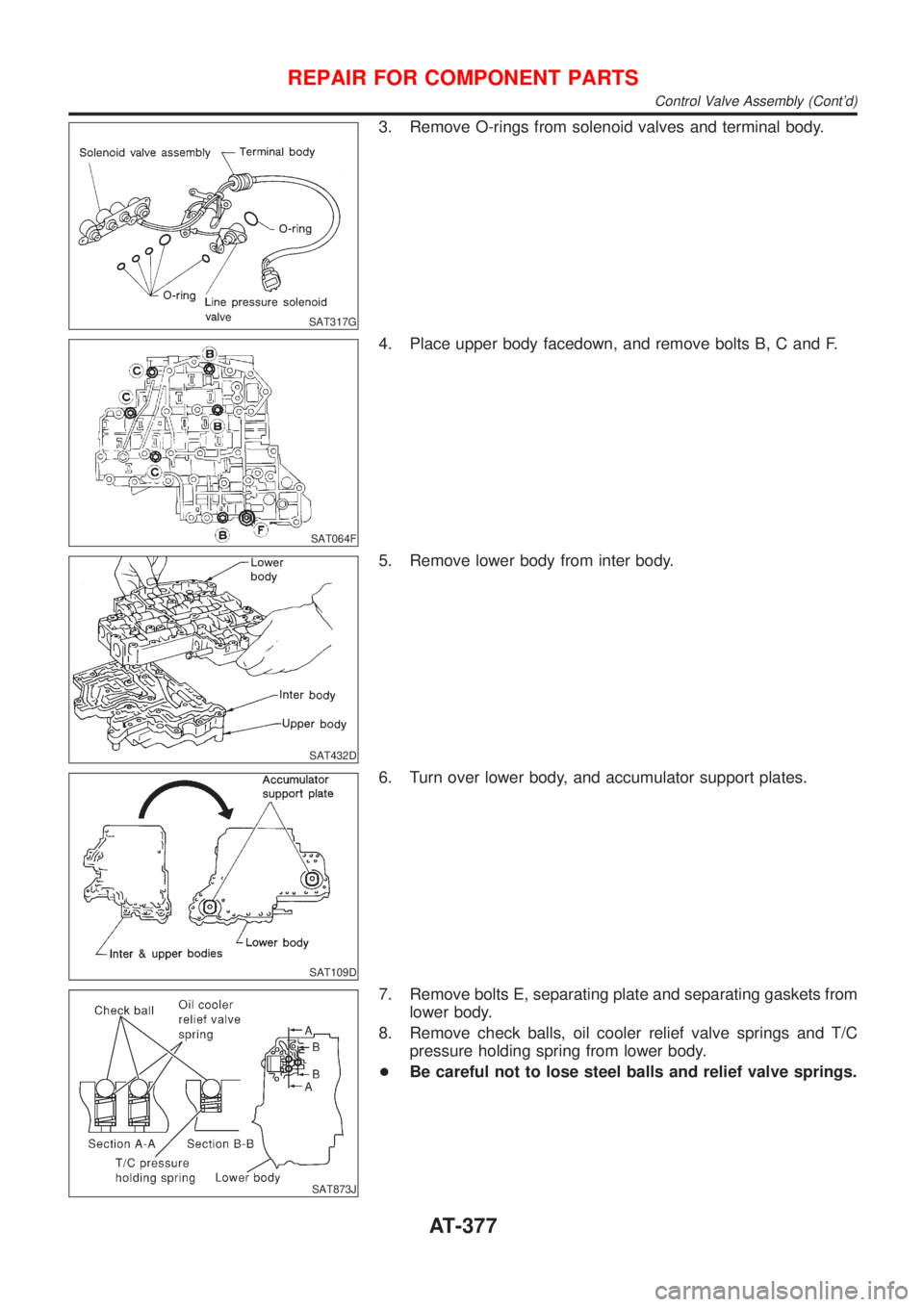

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT317G 3. Remove O-rings from solenoid valves and terminal body. SAT064F 4. Place upper body facedown, and remove bolts B, C and F. SAT432D 5. Remove lower body from inter body. SAT109D 6. Turn over

Page 1564 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT065F 9. Remove inter body from upper body. 10. Remove pilot filter, separating plate and gaskets from upper body. SAT870J 11. Check to see that steel balls are properly positioned in inter body and

Page 1565 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT115D Oil StrainerNJAT0131S02+Check wire netting of oil strainer for damage. SAT322GC Shift Solenoid Valves A and B, Line Pressure Solenoid Valve, Torque Converter Clutch Solenoid Valve and Overrun

Page 1566 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT072F b. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration. +Always use new gaskets. SAT073F c. Install reamer boltsFfrom botto

Page 1567 of 2493

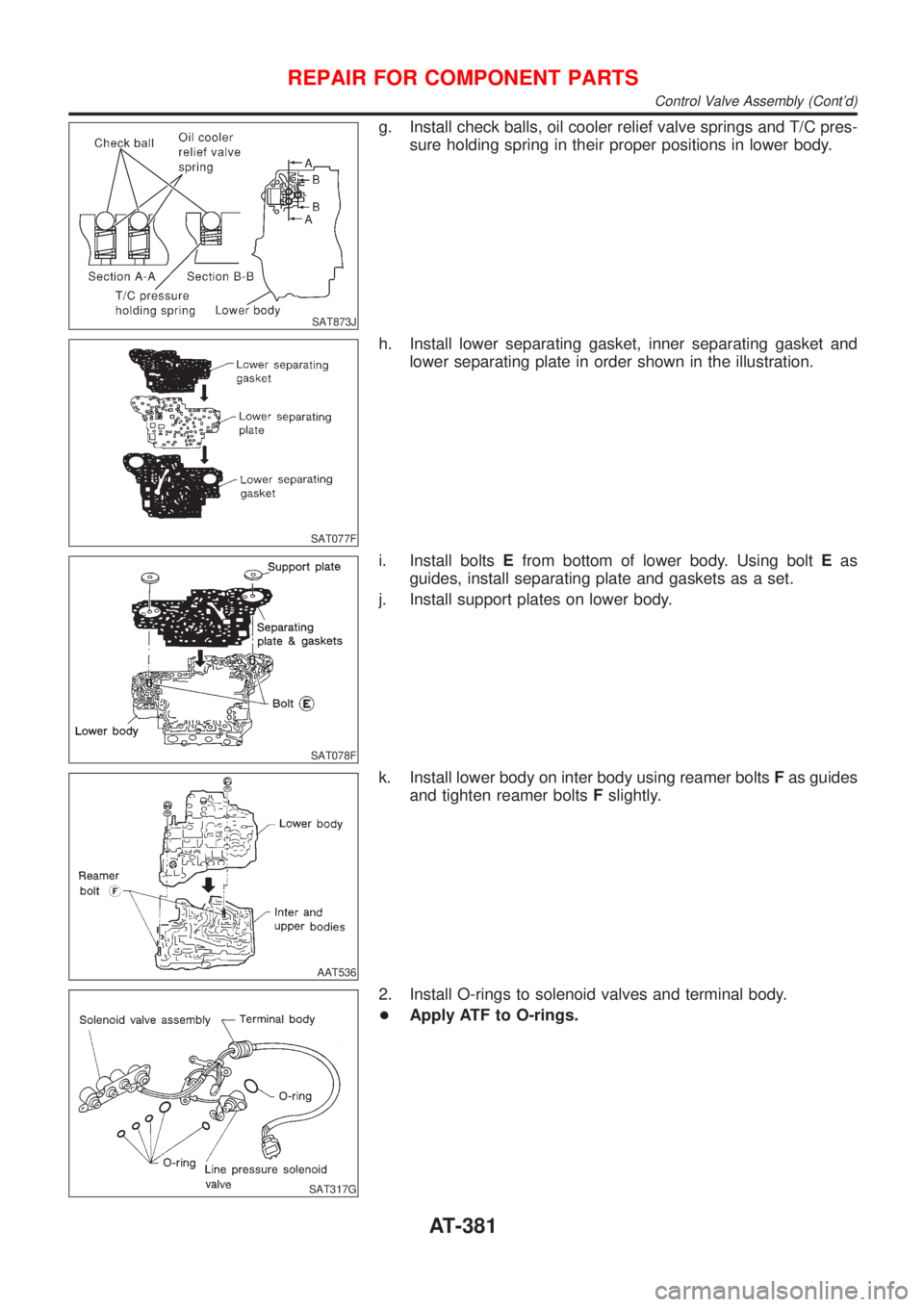

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT873J g. Install check balls, oil cooler relief valve springs and T/C pres- sure holding spring in their proper positions in lower body. SAT077F h. Install lower separating gasket, inner separating

Page 1568 of 2493

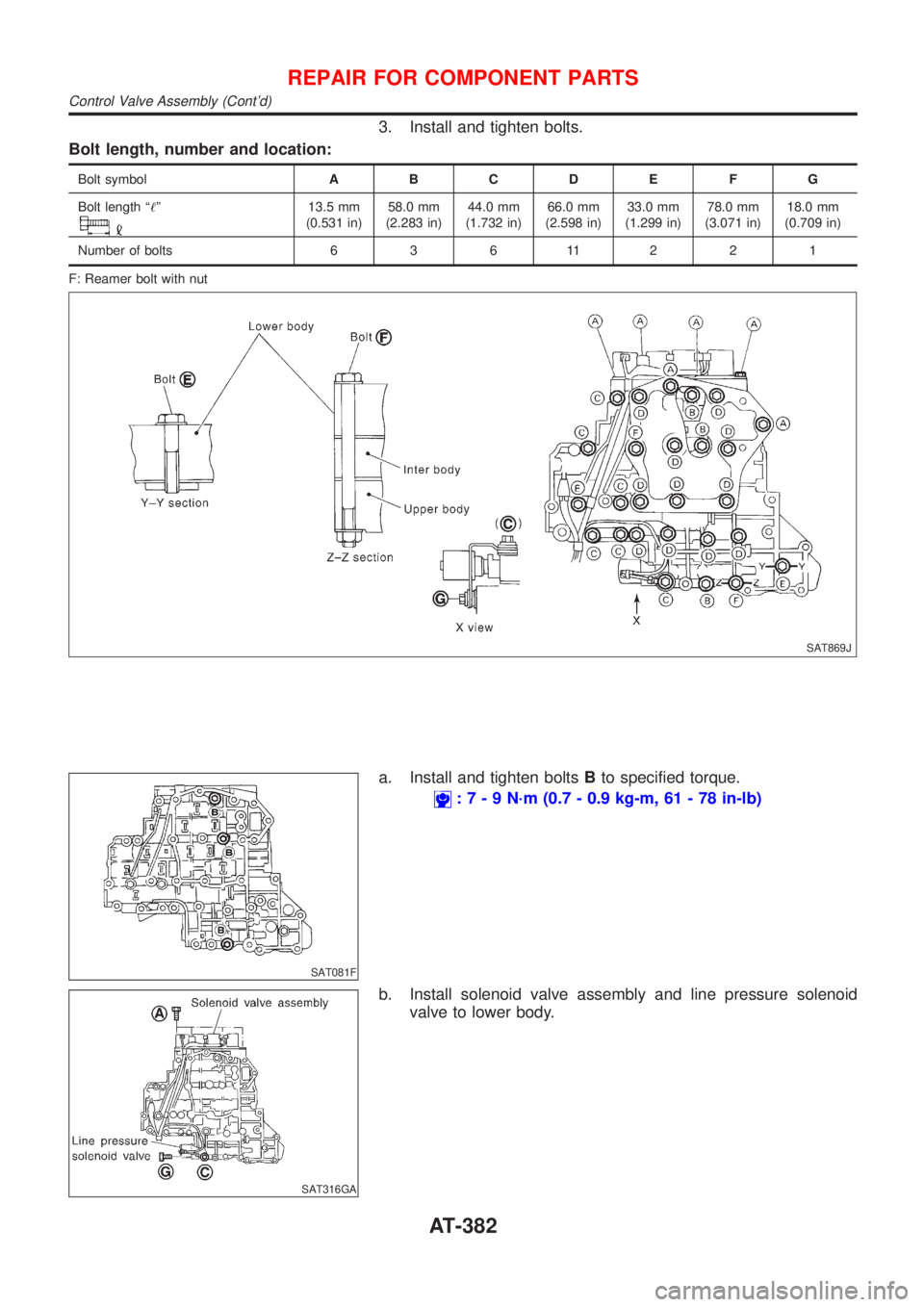

NISSAN ALMERA N16 2001 Electronic Repair Manual 3. Install and tighten bolts. Bolt length, number and location: Bolt symbolABCDE FG Bolt length ª!º 13.5 mm (0.531 in)58.0 mm (2.283 in)44.0 mm (1.732 in)66.0 mm (2.598 in)33.0 mm (1.299 in)78.0 mm
