2001 NISSAN ALMERA N16 Electronic Repair Manual

Page 2313 of 2493

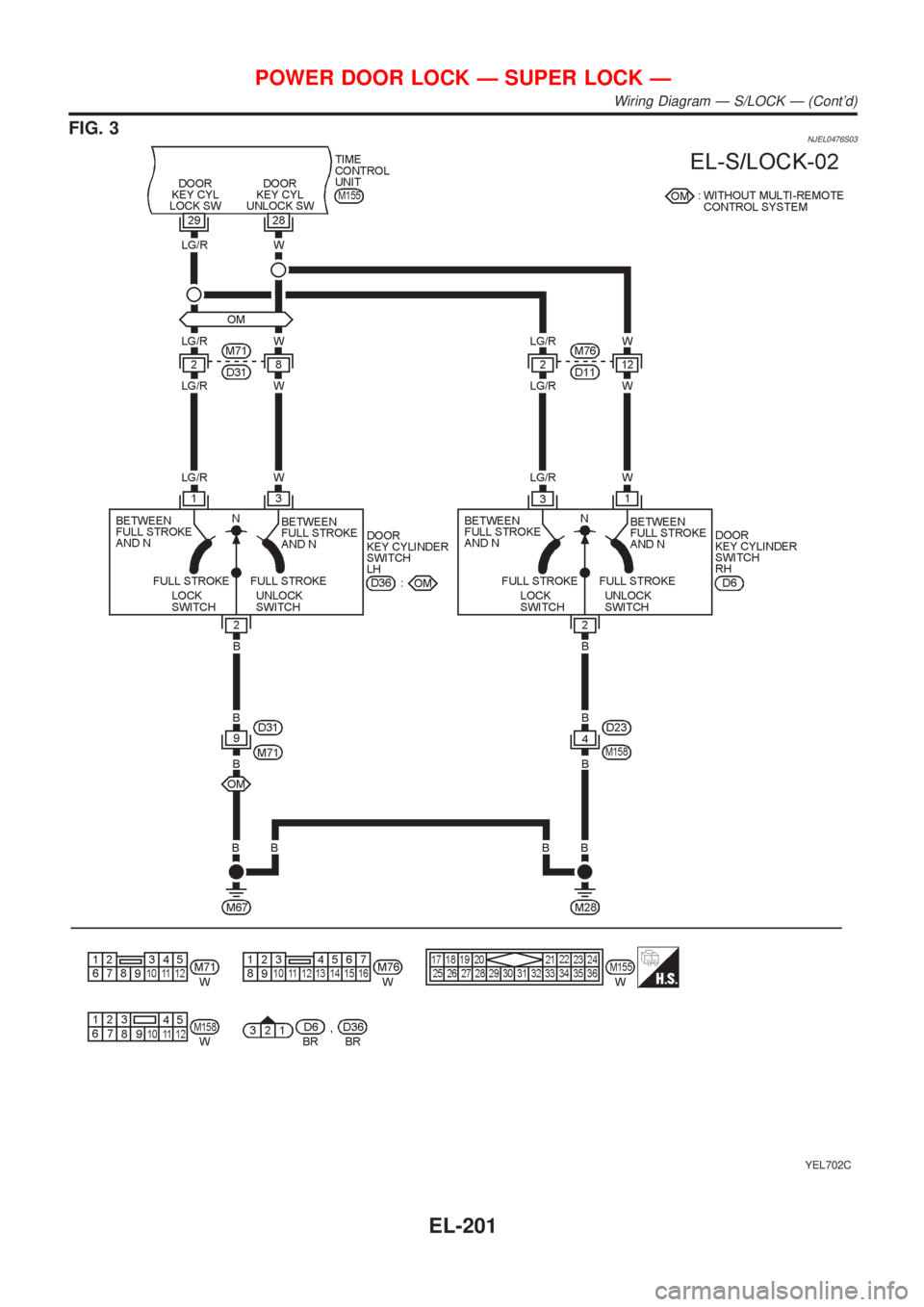

NISSAN ALMERA N16 2001  Electronic Repair Manual FIG. 3NJEL0476S03
YEL702C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Contd)
EL-201

Page 2314 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual FIG. 4NJEL0476S04
YEL703C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Contd)
EL-202

Page 2315 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual FIG. 5NJEL0476S05
YEL704C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Contd)
EL-203

Page 2316 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual FIG. 6NJEL0476S06
YEL705C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Contd)
EL-204

Page 2317 of 2493

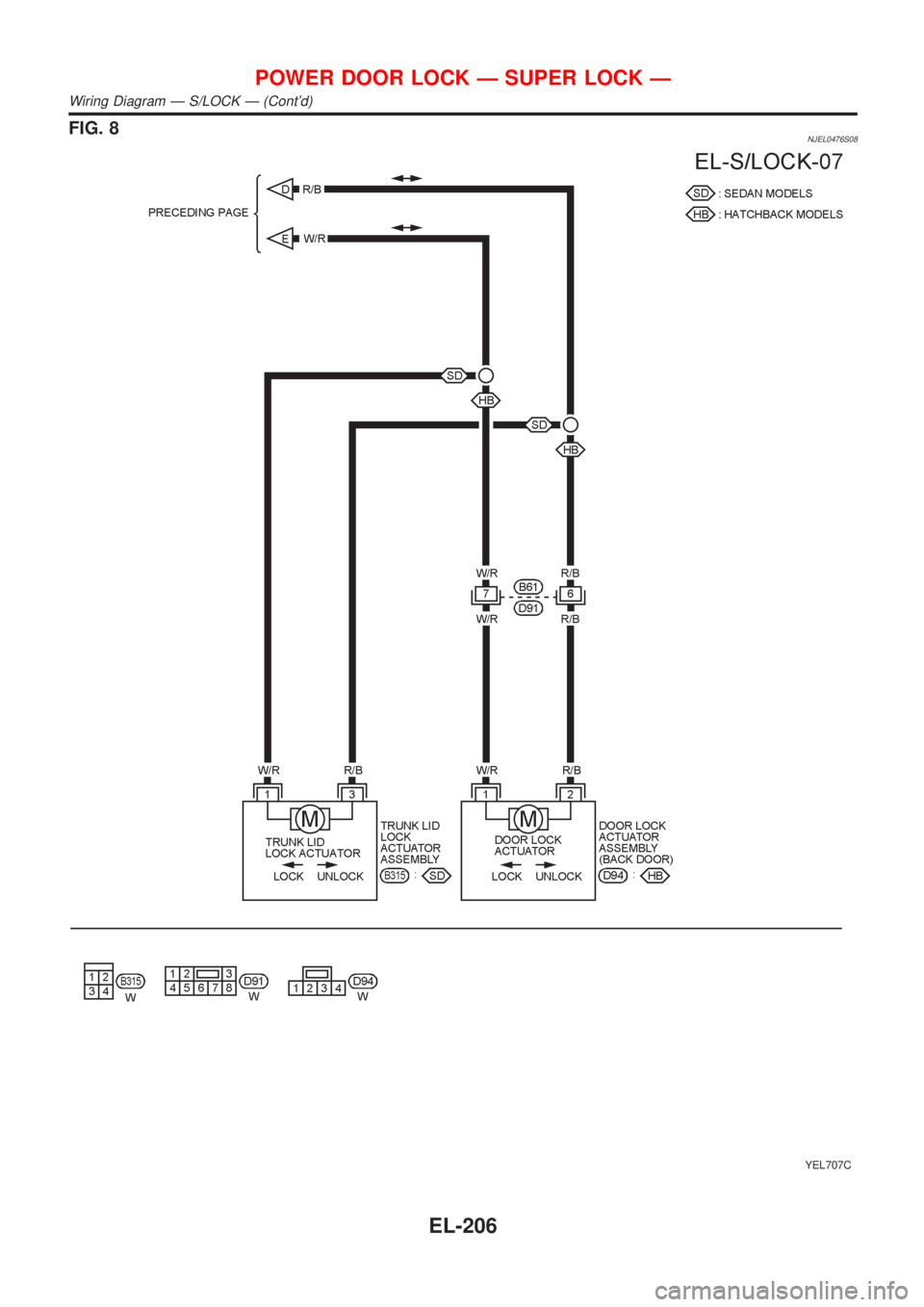

NISSAN ALMERA N16 2001  Electronic Repair Manual FIG. 7NJEL0476S07
YEL706C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Contd)
EL-205

Page 2318 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual FIG. 8NJEL0476S08
YEL707C
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Contd)
EL-206

Page 2319 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Trouble DiagnosesNJEL0477PRELIMINARY CHECKNJEL0477S01
SEL062X
After performing preliminary check, go to SYMPTOM CHART.
Before starting trouble diagnoses below, perform preliminary check, EL-207.
Sympt

Page 2320 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SYMPTOM CHARTNJEL0477S02
REFERENCE PAGE (EL- ) 209 210 211 212 214 215 216 217 218 219 219
SYMPTOM
Main power supply and ground circuit check
Door lock/unlock switch check
Door key cylinder switch che
