Page 1425 of 2493

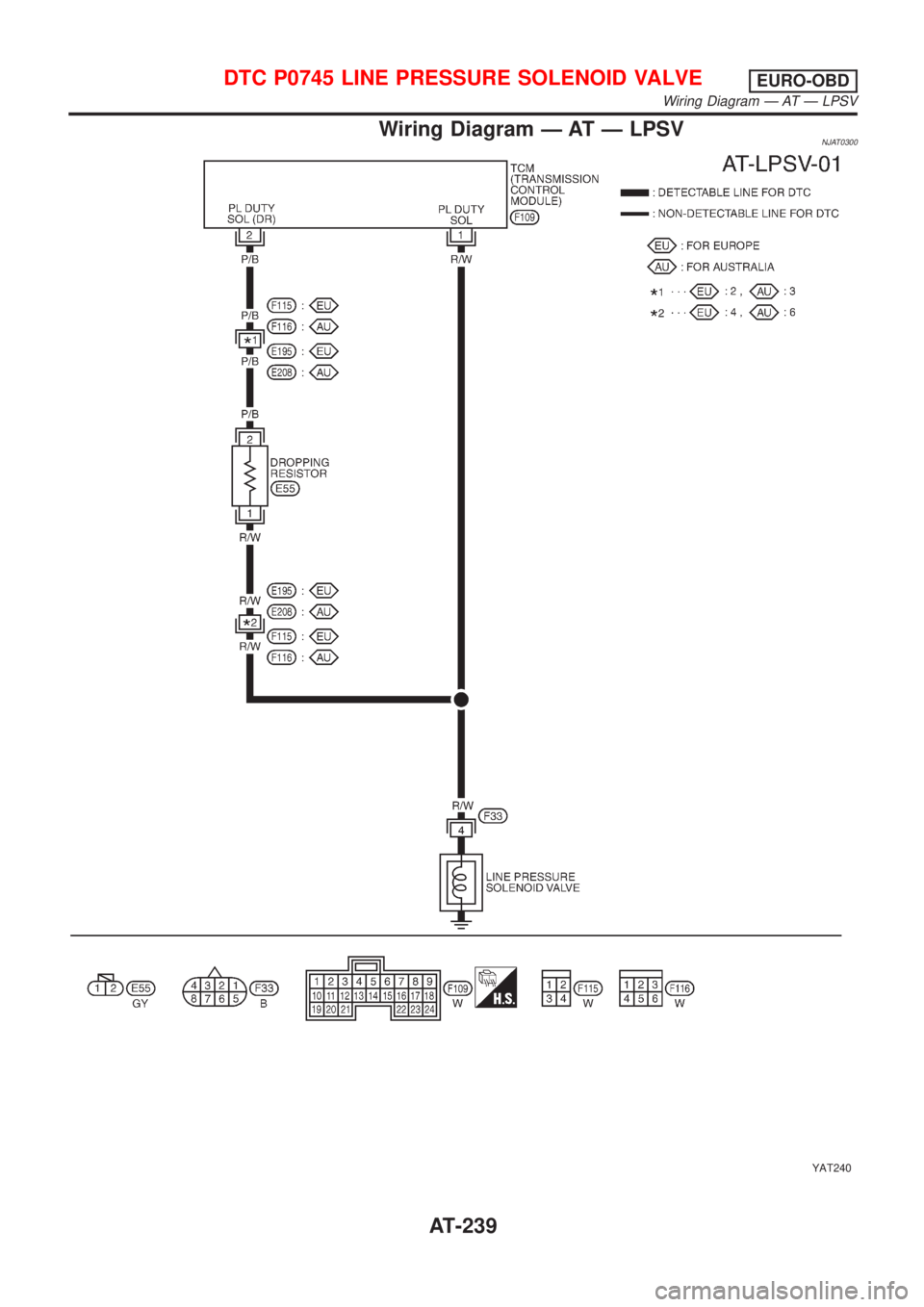

Wiring Diagram Ð AT Ð LPSVNJAT0300
YAT240
DTC P0745 LINE PRESSURE SOLENOID VALVEEURO-OBD
Wiring Diagram Ð AT Ð LPSV
AT-239
Page 1426 of 2493

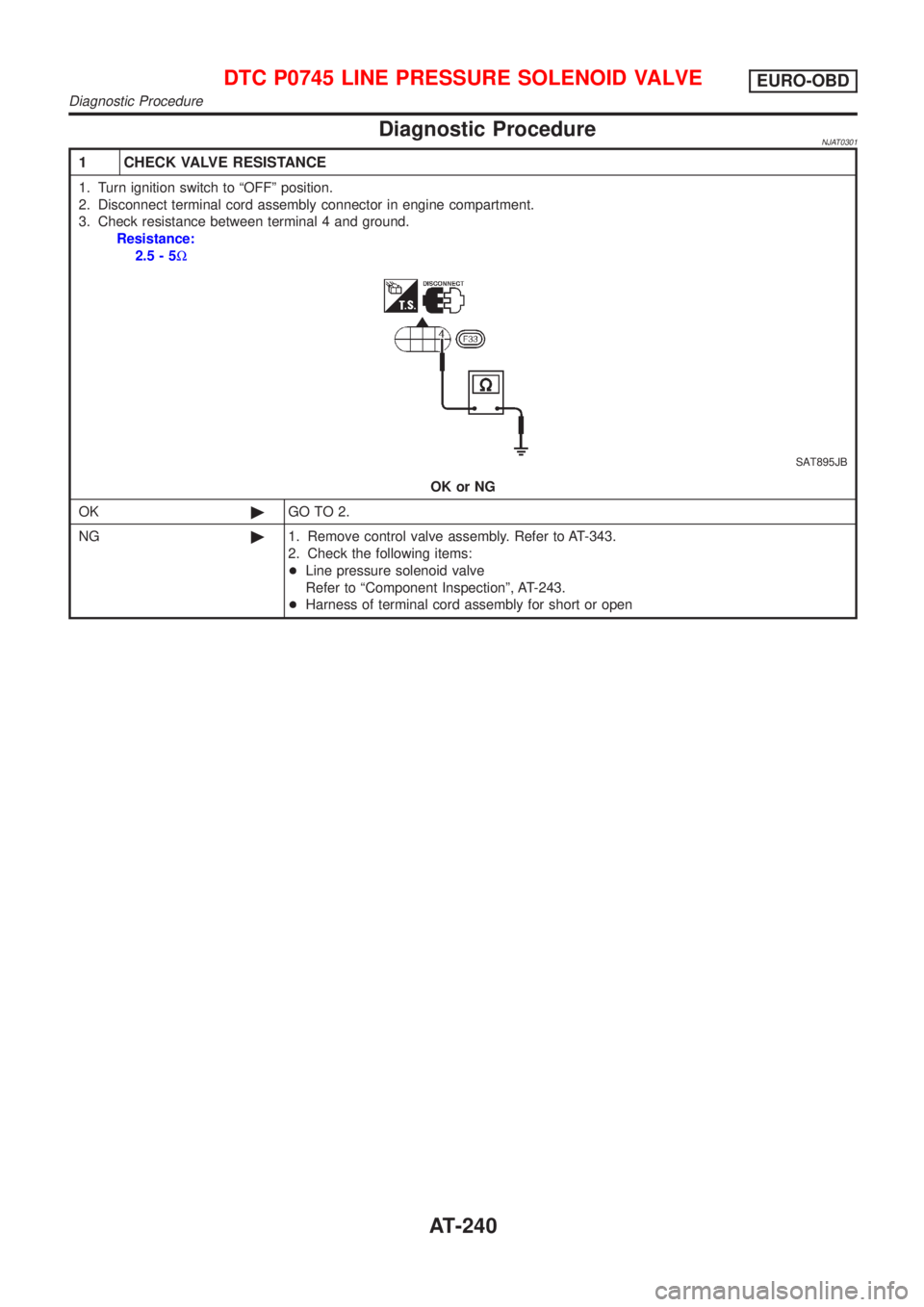

Diagnostic ProcedureNJAT0301
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 4 and ground.
Resistance:
2.5-5W
SAT895JB
OK or NG
OK©GO TO 2.
NG©1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Line pressure solenoid valve
Refer to ªComponent Inspectionº, AT-243.
+Harness of terminal cord assembly for short or open
DTC P0745 LINE PRESSURE SOLENOID VALVEEURO-OBD
Diagnostic Procedure
AT-240
Page 1427 of 2493

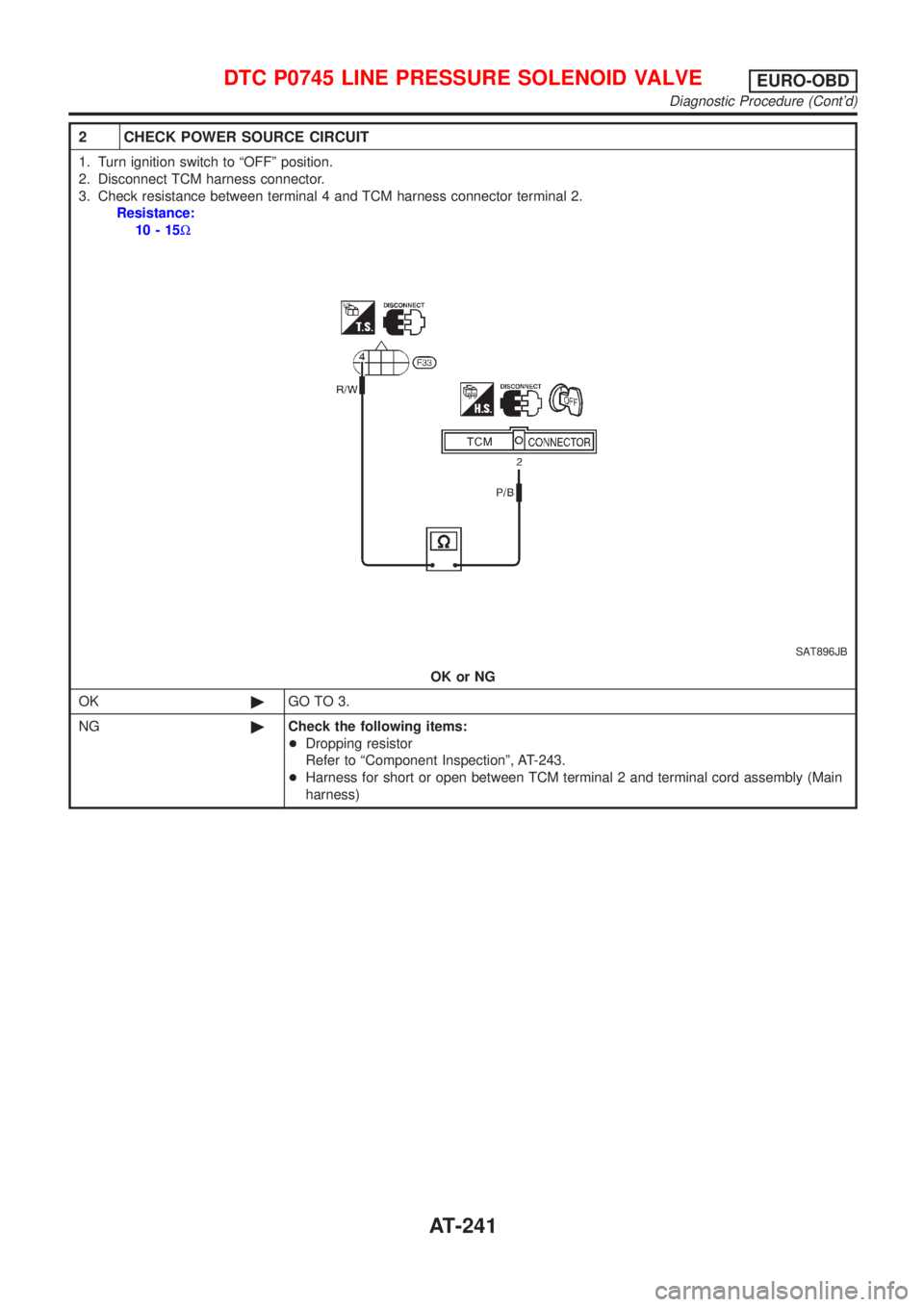

2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check resistance between terminal 4 and TCM harness connector terminal 2.
Resistance:
10-15W
SAT896JB
OK or NG
OK©GO TO 3.
NG©Check the following items:
+Dropping resistor
Refer to ªComponent Inspectionº, AT-243.
+Harness for short or open between TCM terminal 2 and terminal cord assembly (Main
harness)
DTC P0745 LINE PRESSURE SOLENOID VALVEEURO-OBD
Diagnostic Procedure (Cont'd)
AT-241
Page 1428 of 2493

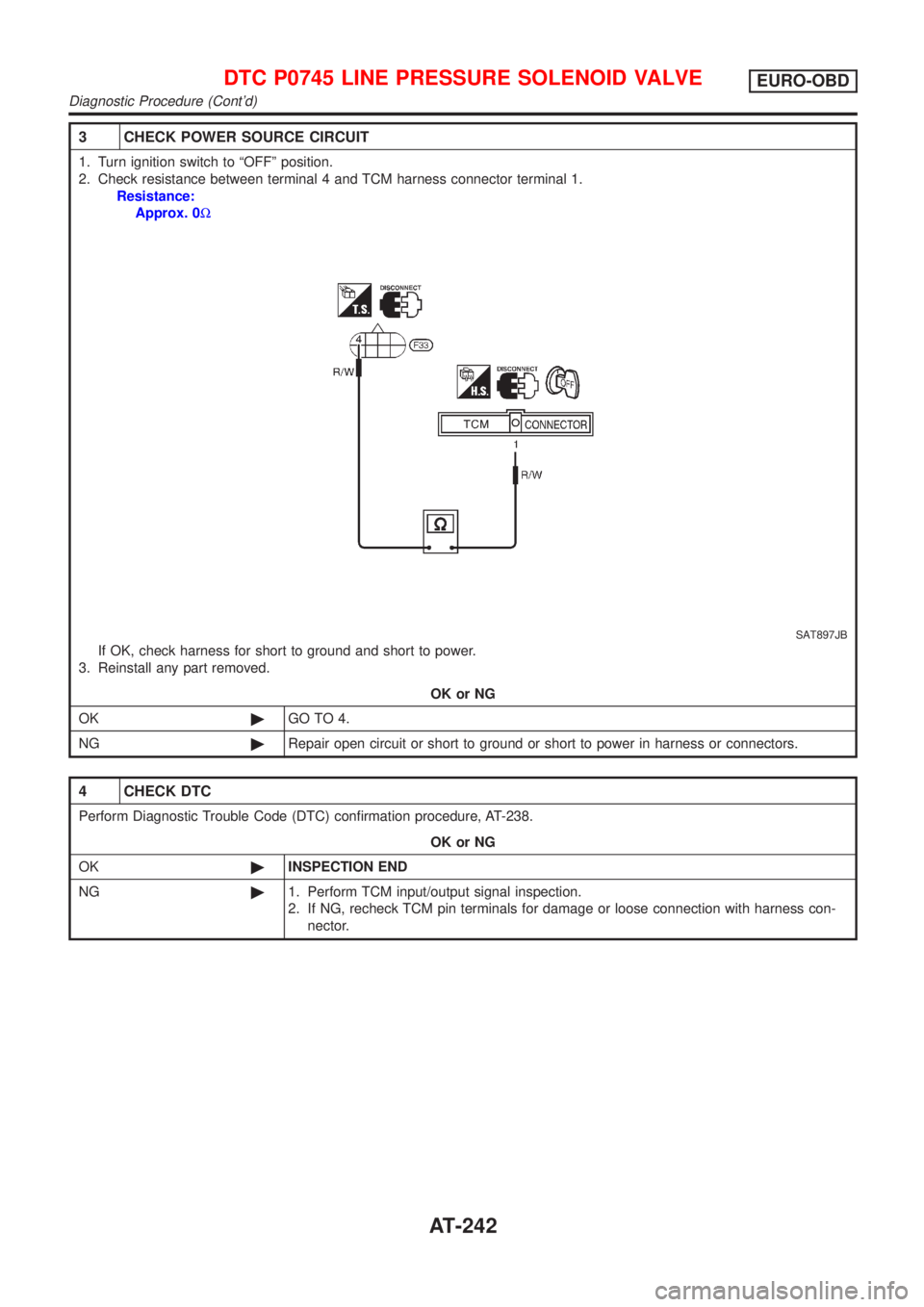

3 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Check resistance between terminal 4 and TCM harness connector terminal 1.
Resistance:
Approx. 0W
SAT897JB
If OK, check harness for short to ground and short to power.
3. Reinstall any part removed.
OK or NG
OK©GO TO 4.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
4 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-238.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
DTC P0745 LINE PRESSURE SOLENOID VALVEEURO-OBD
Diagnostic Procedure (Cont'd)
AT-242
Page 1429 of 2493
SAT898JB

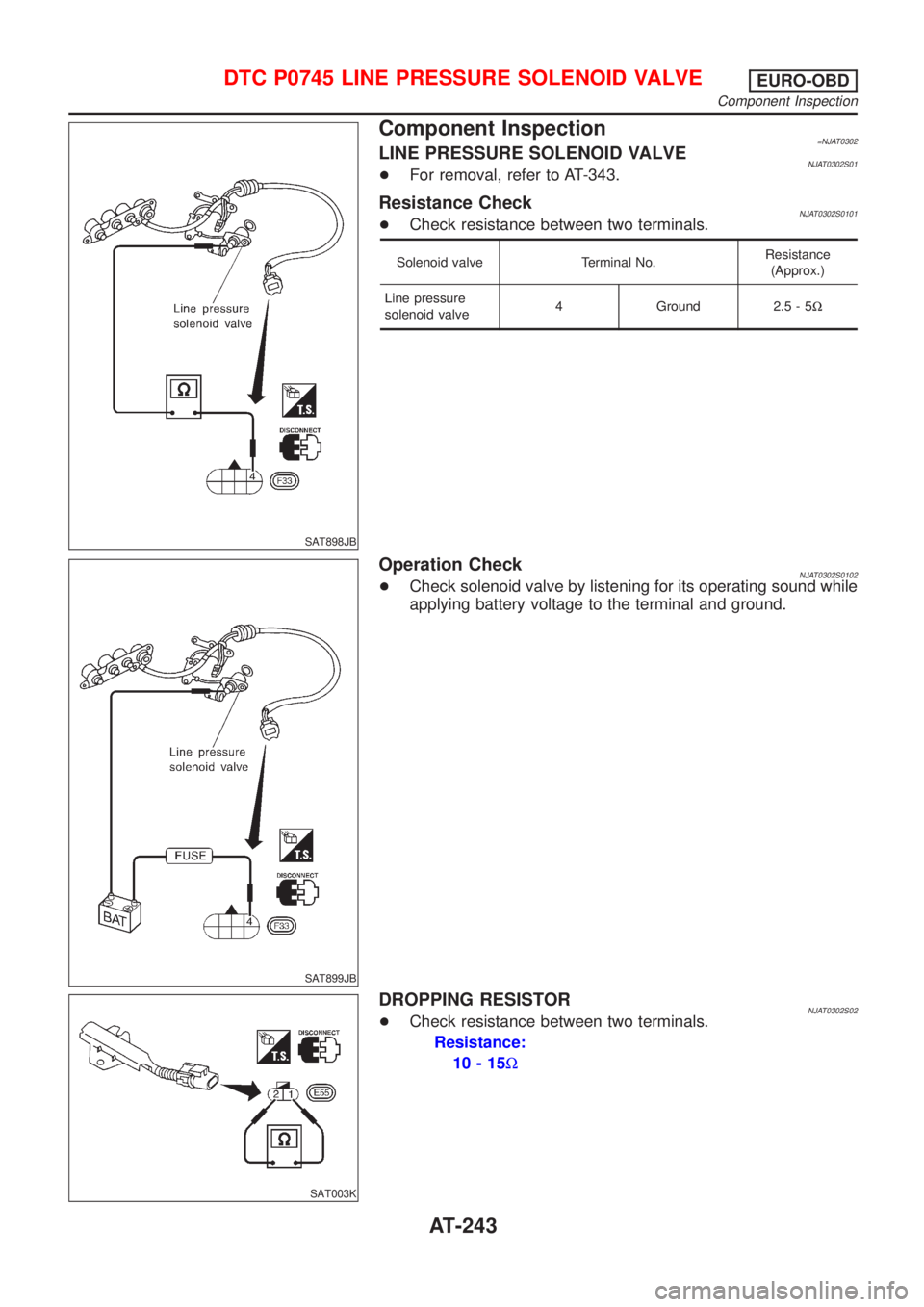

Component Inspection=NJAT0302LINE PRESSURE SOLENOID VALVENJAT0302S01+For removal, refer to AT-343.
Resistance CheckNJAT0302S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Line pressure
solenoid valve4 Ground 2.5 - 5W
SAT899JB
Operation CheckNJAT0302S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
SAT003K
DROPPING RESISTORNJAT0302S02+Check resistance between two terminals.
Resistance:
10-15W
DTC P0745 LINE PRESSURE SOLENOID VALVEEURO-OBD
Component Inspection
AT-243
Page 1430 of 2493

SAT322GC

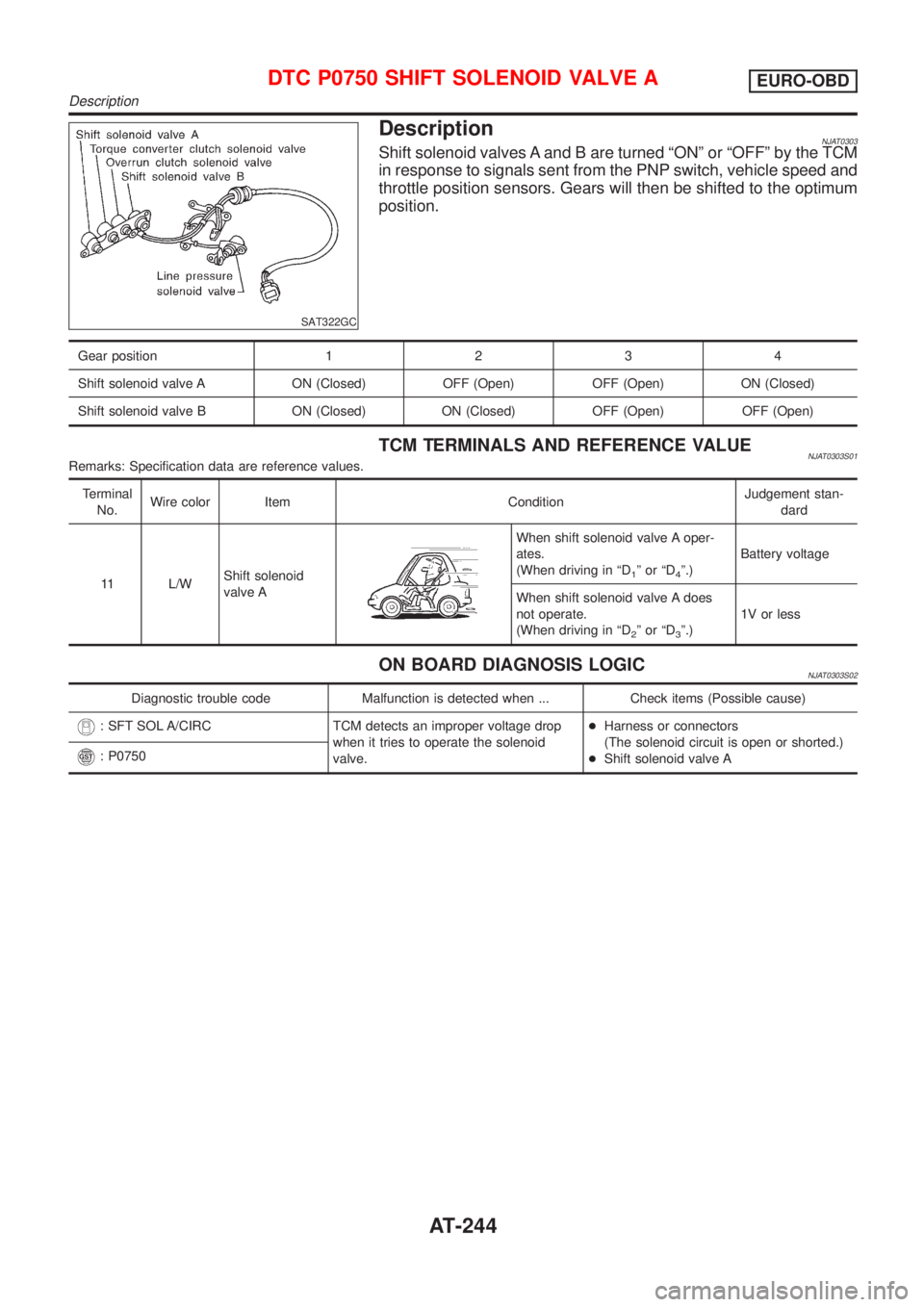

DescriptionNJAT0303Shift solenoid valves A and B are turned ªONº or ªOFFº by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0303S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
11 L/WShift solenoid
valve A
When shift solenoid valve A oper-
ates.
(When driving in ªD
1ºorªD4º.)Battery voltage
When shift solenoid valve A does
not operate.
(When driving in ªD
2ºorªD3º.)1V or less
ON BOARD DIAGNOSIS LOGICNJAT0303S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: SFT SOL A/CIRC TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+Shift solenoid valve A
: P0750
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Description
AT-244
Page 1431 of 2493
SAT014K
SAT020K
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0303S03CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªENGINEº with CONSULT-II.
2) Start engine.
3) Drive vehicle in D position and allow the transmission to shift
ª1º®ª2º (ªGEARº).
With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Description (Cont'd)
AT-245
Page 1432 of 2493

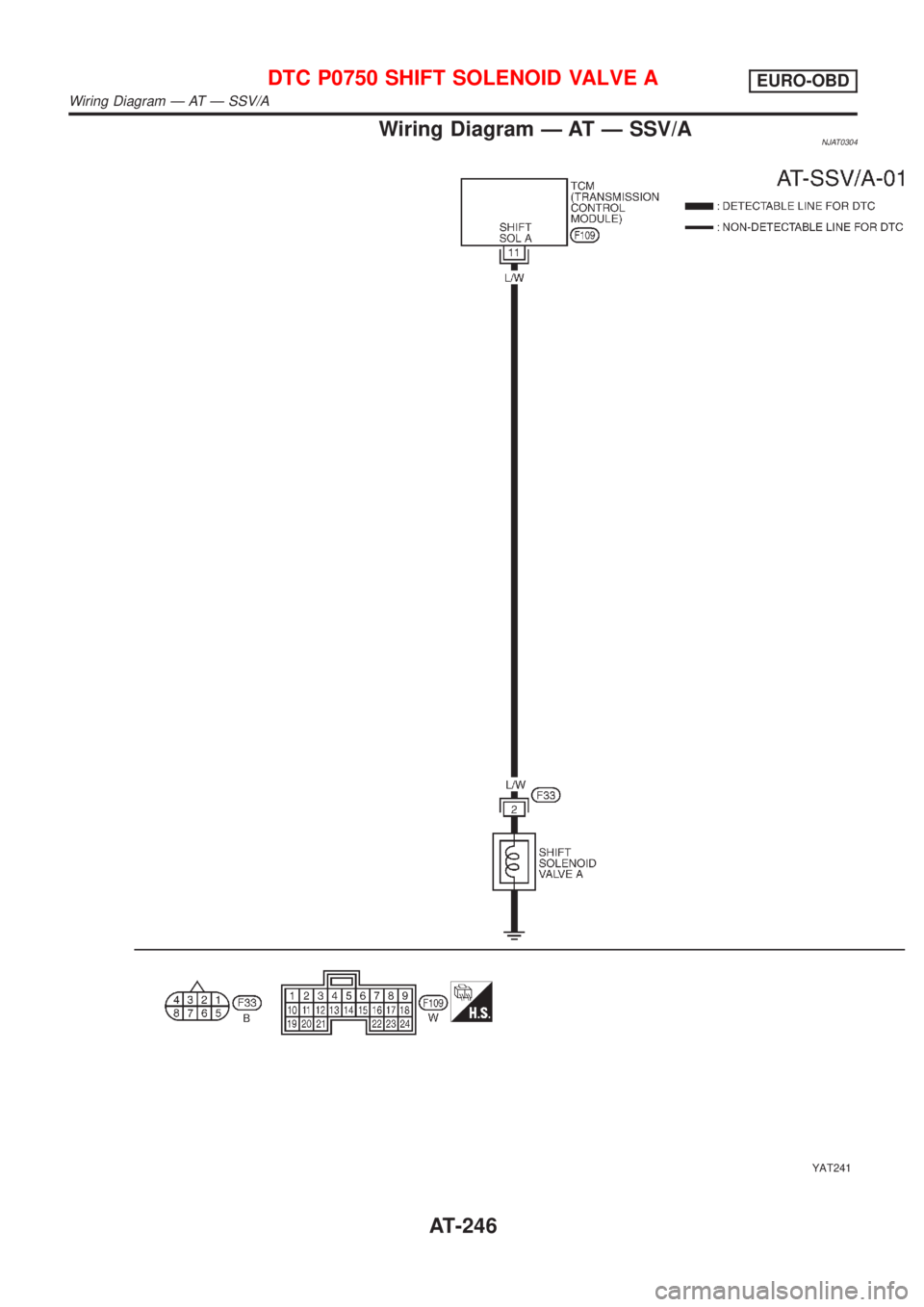

Wiring Diagram Ð AT Ð SSV/ANJAT0304
YAT241
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Wiring Diagram Ð AT Ð SSV/A
AT-246
