2001 NISSAN ALMERA N16 maintenance schedule

MAINTENANCE
SECTION
MA
CONTENTS
PRE-DELIVERY INSPECTION ITEMS............................2
GENERAL MAINTENANCE............................................3
PERIODIC MAINTENANCE (EXCEPT FOR
EUROPE).........................................................................4
Engine and Emission Control Maintenance
(Gasoline engine) ........................................................5
Chassis and Body Maintenance ..................................6
Maintenance Under Severe Driving Conditions ..........7
PERIODIC MAINTENANCE (FOR EUROPE).................8
Maintenance Schedule for Petrol Engines
(Annual Mileage < 30,000 km/year) ............................8
QG15DE/QG18DE ENGINES......................................8
CHASSIS AND BODY MAINTENANCE........................9
Maintenance Schedule for Diesel Engines
(Annual Mileage < 30,000 km/year) ..........................10
YD22DDT ENGINE..................................................10
CHASSIS AND BODY MAINTENANCE...................... 11
Maintenance Under Severe Driving Conditions
(Annual Driving Distance < 30,000 km/year) ............12Maintenance Schedule for Petrol Engines
(Annual Mileage > 30,000 km/year) ..........................14
QG15DE/QG18DE ENGINES....................................14
CHASSIS AND BODY MAINTENANCE......................15
Maintenance Schedule for Diesel Engines
(Annual Mileage > 30,000 km/year) ..........................16
YD22DDT ENGINE..................................................16
CHASSIS AND BODY MAINTENANCE......................17
Maintenance Under Severe Driving Conditions
(Annual Driving Distance > 30,000 km/year) ............18
RECOMMENDED FLUIDS AND LUBRICANTS...........20
Fluids and Lubricants ................................................20
SAE Viscosity Number ..............................................21
GASOLINE ENGINE.................................................21
DIESEL ENGINE......................................................21
Engine Coolant Mixture Ratio....................................22

NJMA0005
The following tables show the normal maintenance schedule. Depending upon weather and atmospheric
conditions, varying road surfaces, individual driving habits and vehicle usage, additional or more frequent
maintenance may be required.
Periodic maintenance beyond the last period shown on the tables requires similar maintenance.
PERIODIC MAINTENANCE (EXCEPT FOR EUROPE)
MA-4

NJMA0043
The following tables show the normal maintenance schedule. Depending upon weather and atmospheric
conditions, varying road surfaces, individual driving habits and vehicle usage, additional or more frequent
maintenance may be required.
Periodic maintenance beyond the last period shown on the tables requires similar maintenance.
Maintenance Schedule for Petrol Engines
(Annual Mileage < 30,000 km/year)
NJMA0043S01QG15DE/QG18DE ENGINESNJMA0043S0101Abbreviations: R = Replace I = Inspect: Correct or replace if necessary
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence
pages Perform on a kilometer basis, but on
an annual basis when driving less than
15,000 km (9,000 miles) per yearkm x 1,000
(miles x 1,000)
Months15
(9)
1230
(18)
2445
(27)
3660
(36)
4875
(45)
6090
(54)
72105
(63)
84120
(72)
96
Engine compartment and under vehicle
Engine oil (Use recommended oil)HRRRRRRRRLC-8
Engine oil filter (Use NISSAN genuine
part or equivalent)HRRRRRRRRLC-9
Drive beltsIIIIIIIIEM-15
Cooling systemIIIIIIIILC-12
Engine anti-freeze coolant (Use genu-
ine NISSAN Anti-Freeze Coolant (L2N)
or equivalent)See NOTE (1) I R I LC-17
Air cleaner filterHR R EM-17
Intake and exhaust valve clearance See NOTE (2) EM-42
Fuel and EVAP vapour linesIIIIFE-5/
EC-33
Spark plugsRRRREM-18
Fuel filter See NOTE (3) FE-9
Heated oxygen sensor (Exhaust gas
sensor)HSee NOTE (4)GI-40,
EC-45
NOTE:
(1) First replace at 90,000 km (54,000 miles)/60 months, then every 60,000 km (36,000 miles)/48 months. Perform ªIº (Check-
ing the mixture ratio and correcting the mixture ratio if necessary) at the middle of replacement interval.
(2) Periodic maintenance is not required. However, if valve noise increases, check valve clearance.
(3) Fuel filter is maintenance-free. For service procedures, refer to FE section.
(4) Perform only according to ªMaintenance Under Severe Driving Conditionsº for models without Euro-OBD system. For
models with Euro-OBD system, periodic maintenance is not required.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance Under Severe Driving Con-
ditionsº.
PERIODIC MAINTENANCE (FOR EUROPE)

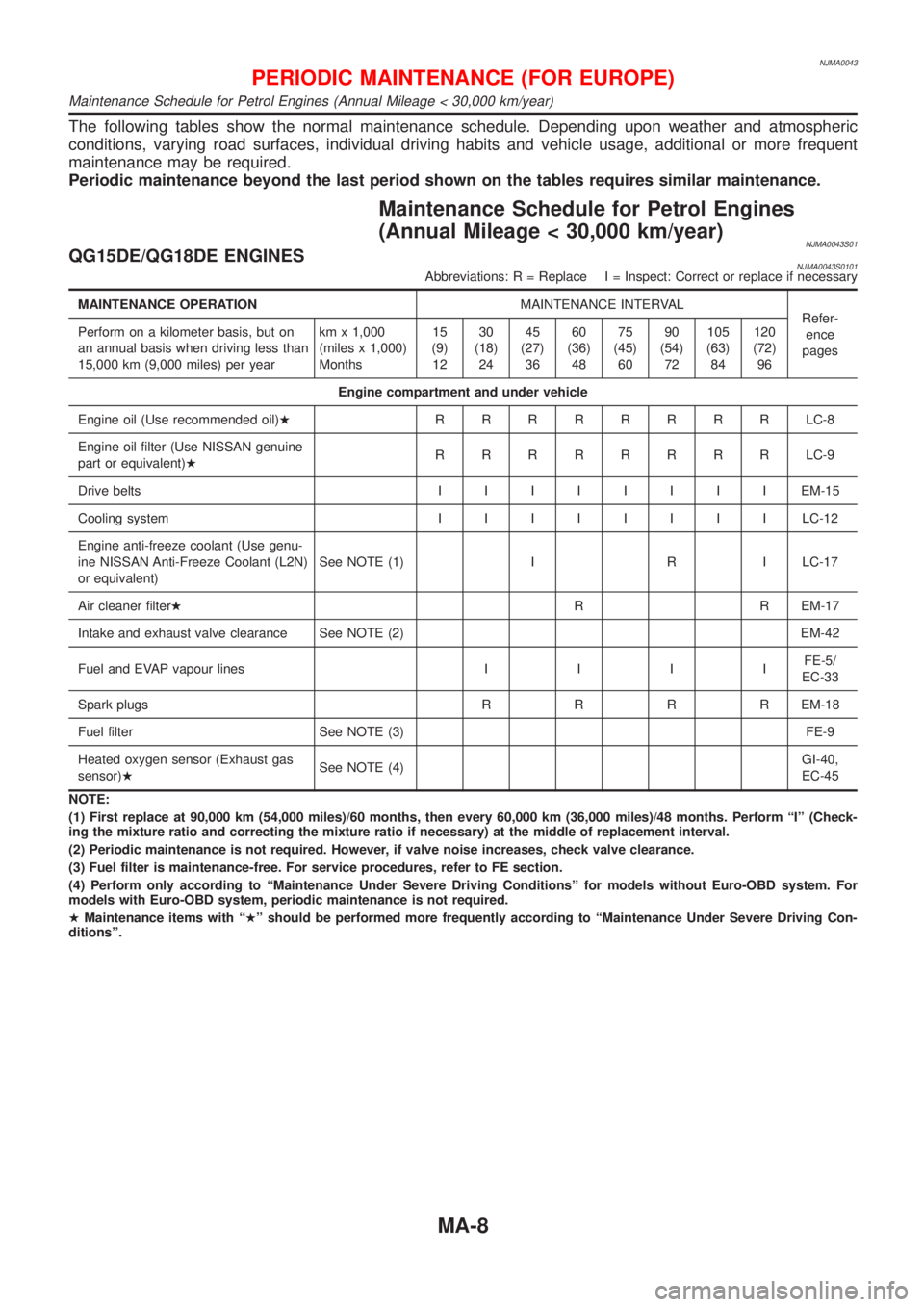

Maintenance Schedule for Petrol Engines (Annual Mileage < 30,000 km/year)
MA-8

CHASSISAN DBOD YMAINTENANCE
MAINTENANC EOPER ATION MAINTENANCEINTE RVAL
Maintenance Schedule for Petrol Engines (Annual Mileage < 30,000 km/year) (Cont'd)

Maintenance Schedule for Diesel Engines
(Annual Mileage < 30,000 km/year)
=NJMA0043S02YD22DDT ENGINENJMA0043S0201Abbreviations: R = Replace I = Inspect: Correct or replace if necessary
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference pages Perform on a kilometer basis, but
on an annual basis when driving
less than 20,000 km (12,000
miles) per year.km x 1,000
(miles x 1,000)
Months20
(12)
1240
(24)
2460
(36)
3680
(48)
48100
(60)
60120
(72)
72
Engine compartment and under vehicle
Engine oil (Use recommended
oil)HRRRRRRLC-30
Engine oil filter (Use Eco filter or
equivalent)HSee NOTE (1)RRRRRRLC-31
Drive beltsIIIIIIEM-84
Cooling systemIIIIIILC-37
Engine anti-freeze coolant (Use
genuine NISSAN Anti-freeze
Coolant (L2N) or equivalent)See NOTE (2) I I LC-43
Air cleaner filterHR R EM-87
Intake & exhaust valve clearance See NOTE (3) EM-132
Fuel lines I I I FE-16
Injection nozzles See NOTE (4) EC-509
Fuel filterHR R R FE-16
NOTE:
(1) Oil filter element assembly and O-ring seal are replacement parts.
(2) First replace at 100,000 km (60,000 miles)/60 months, then every 60,000 km (36,000 miles)/36 months. After first replacement,
perform ªIº (checking the mixture ratio and correcting the mixture ratio if necessary) at the middle of replacement interval.
(3) If valve noise increases, check valve clearance.
(4) If engine power decreases, black exhaust smoke is emitted or engine noise increases, check injection nozzles and if
necessary, replace injection nozzle assembly.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance Under Severe Driving Con-
ditionsº.
PERIODIC MAINTENANCE (FOR EUROPE)
Maintenance Schedule for Diesel Engines (Annual Mileage < 30,000 km/year)
MA-10

CHASSISAN DBOD YMAINTENANCE
MAINTENANC EOPER ATION MAINTENANCEINTE RVAL
Maintenance Schedule for Diesel Engines (Annual Mileage < 30,000 km/year) (Cont'd)

Maintenance Schedule for Petrol Engines
(Annual Mileage > 30,000 km/year)
=NJMA0043S04QG15DE/QG18DE ENGINESNJMA0043S0401Abbreviations: R = Replace I = Inspect: Correct or replace if necessary
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence
pages Perform on a kilometer basis only.km x 1,000
(miles x 1,000)15
(9)30
(18)45
(27)60
(36)75
(45)90
(54)105
(63)120
(72)
Engine compartment and under vehicle
Engine oil (Use recommended oil)HRRRRRRRRLC-8
Engine oil filter (Use NISSAN genuine
part or equivalent)HRRRRRRRRLC-9
Drive beltsIIIIIIIIEM-15
Cooling systemIIIILC-12
Engine anti-freeze coolant (Use genu-
ine NISSAN Anti-Freeze Coolant (L2N)
or equivalent)See NOTE (1) I R I LC-17
Air cleaner filterHR R EM-17
Intake & exhaust valve clearance See NOTE (2) EM-42
Fuel and EVAP vapor lines I IFE-5/
EC-36
Spark plugsRRRREM-18
Fuel filter See NOTE (3) FE-9
Heated oxygen sensorHSee NOTE (4)GI-40/
EC-45
NOTE:
(1) First replace at 90,000 km (54,000 miles), then every 60,000 km (36,000 miles). Perform ªIº (checking the mixture ratio and
correcting the mixture ratio if necessary) at the middle of replacement interval.
(2) Periodic maintenance is not required. However, if valve noise increases, check valve clearance.
(3) Fuel filter is maintenance-free. For service procedures, refer to FE section.
(4) Perform only according to ªMaintenance Under Severe Driving Conditionsº for models without Euro-OBD system. For
models with Euro-OBD system, periodic maintenance is not required.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance Under Severe Driving Con-
ditionsº.
PERIODIC MAINTENANCE (FOR EUROPE)
Maintenance Schedule for Petrol Engines (Annual Mileage > 30,000 km/year)
MA-14

CHASSISAN DBOD YMAINTENANCE
MAINTENANC EOPER ATION MAINTENANCEINTE RVAL
Maintenance Schedule for Petrol Engines (Annual Mileage > 30,000 km/year) (Cont'd)
