2001 NISSAN ALMERA N16 Electronic Repair Manual

Page 1273 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 2. CHECK AT IDLE=NJAT0028S03
1 CHECK ENGINE START
1. Park vehicle on flat surface.
2. Turn ignition switch to ªOFFº position.
3. Move selector lever to ªPº or ªNº position.
SAT769B
4. Turn ignit

Page 1274 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 3 CHECK VEHICLE MOVE
1. Turn ignition switch to ªOFFº position.
2. Move selector lever to ªPº position.
SAT768B
3. Release parking brake.
4. Push vehicle forward or backward.
5. Does vehicle move

Page 1275 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 5 CHECK SHIFT SHOCK
1. Apply foot brake.
SAT797A
2. Move selector lever to ªRº position.
SAT772B
3. Is there large shock when changing from ªNº to ªRº position?
YesorNo
Ye s©Mark the box on the

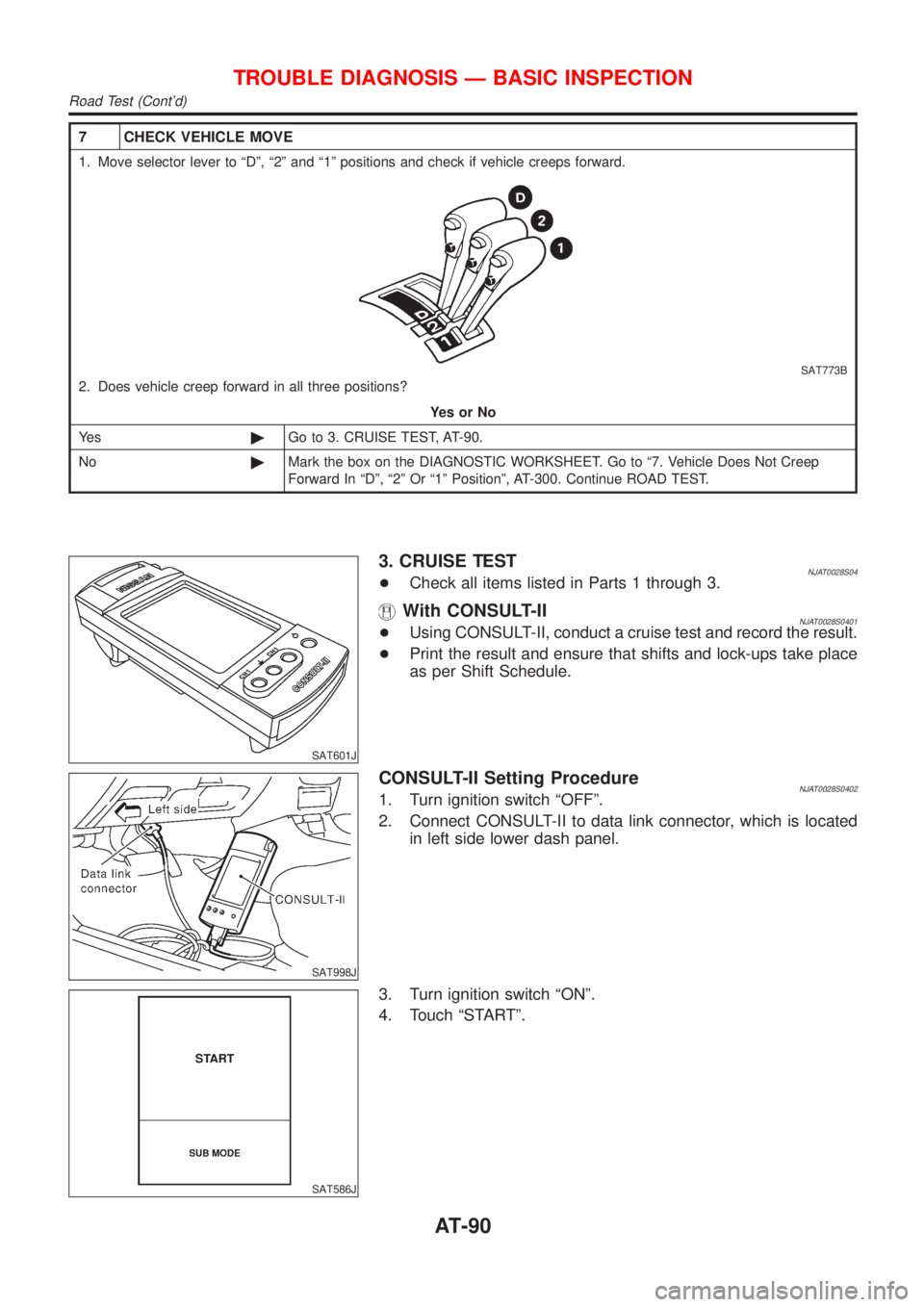

Page 1276 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 7 CHECK VEHICLE MOVE
1. Move selector lever to ªDº, ª2º and ª1º positions and check if vehicle creeps forward.
SAT773B
2. Does vehicle creep forward in all three positions?
YesorNo
Ye s©Go to 3

Page 1277 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SAT580J
5. Touch ªA/Tº.
SAT971J
6. Touch ªDATA MONITORº.
SAT972J
7. Touch ªMAIN SIGNALSº or ªECU INPUT SIGNALSº.
8. Select ªNumerical Displayº, ªBarchart Displayº or ªLine Graph
Displayº

Page 1278 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SAT986J
12. After finishing cruise test part 1, touch ªSTOPº.
SAT987J
SAT974J
13. Touch ªSTOREº and touch ªBACKº.
SAT975J
14. Touch ªDISPLAYº.
15. Touch ªPRINTº.
16. Check the monitor data p

Page 1279 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Cruise Test Ð Part 1=NJAT0028S0404
1 CHECK STARTING GEAR (D1) POSITION
1. Drive vehicle for approx. 10 minutes to warm engine oil and ATF up to operating temperature.
ATF operating temperature:
50 -

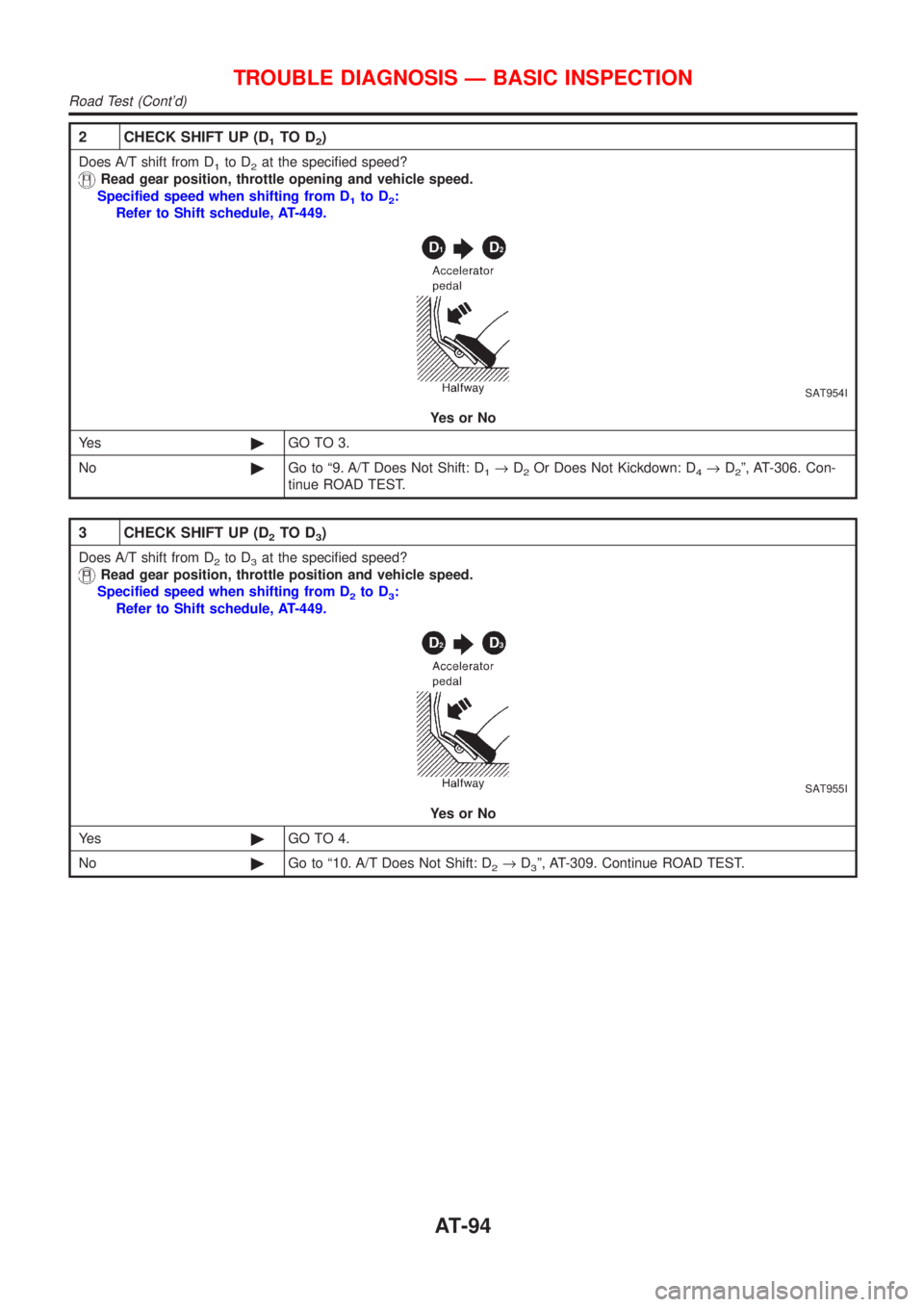

Page 1280 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 2 CHECK SHIFT UP (D1TO D2)
Does A/T shift from D1to D2at the specified speed?
Read gear position, throttle opening and vehicle speed.
Specified speed when shifting from D
1to D2:
Refer to Shift schedu
