Page 2009 of 2493
YHA374
TROUBLE DIAGNOSES

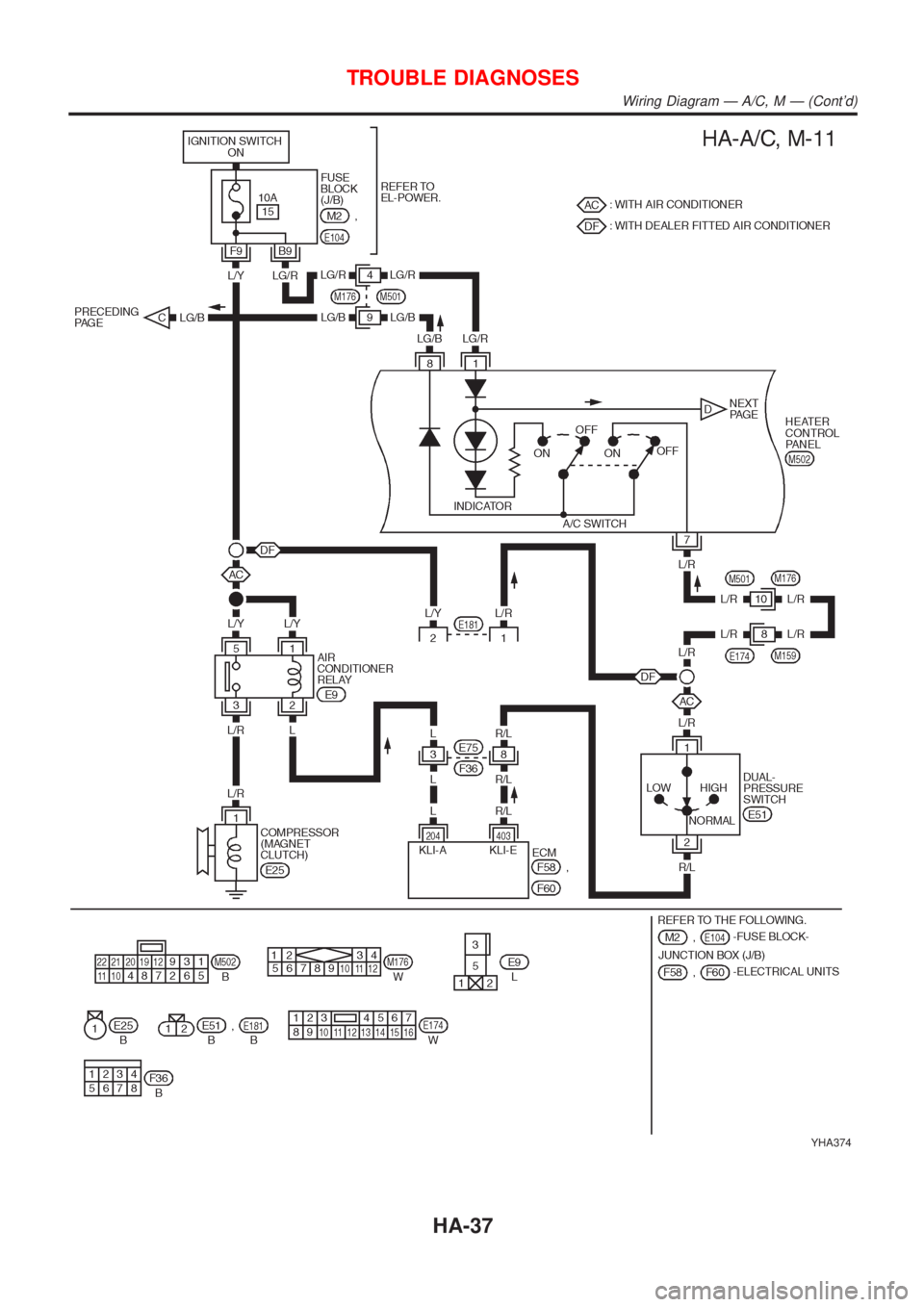

Wiring Diagram Ð A/C, M Ð (Cont'd)
HA-37
Page 2010 of 2493
YHA375
TROUBLE DIAGNOSES

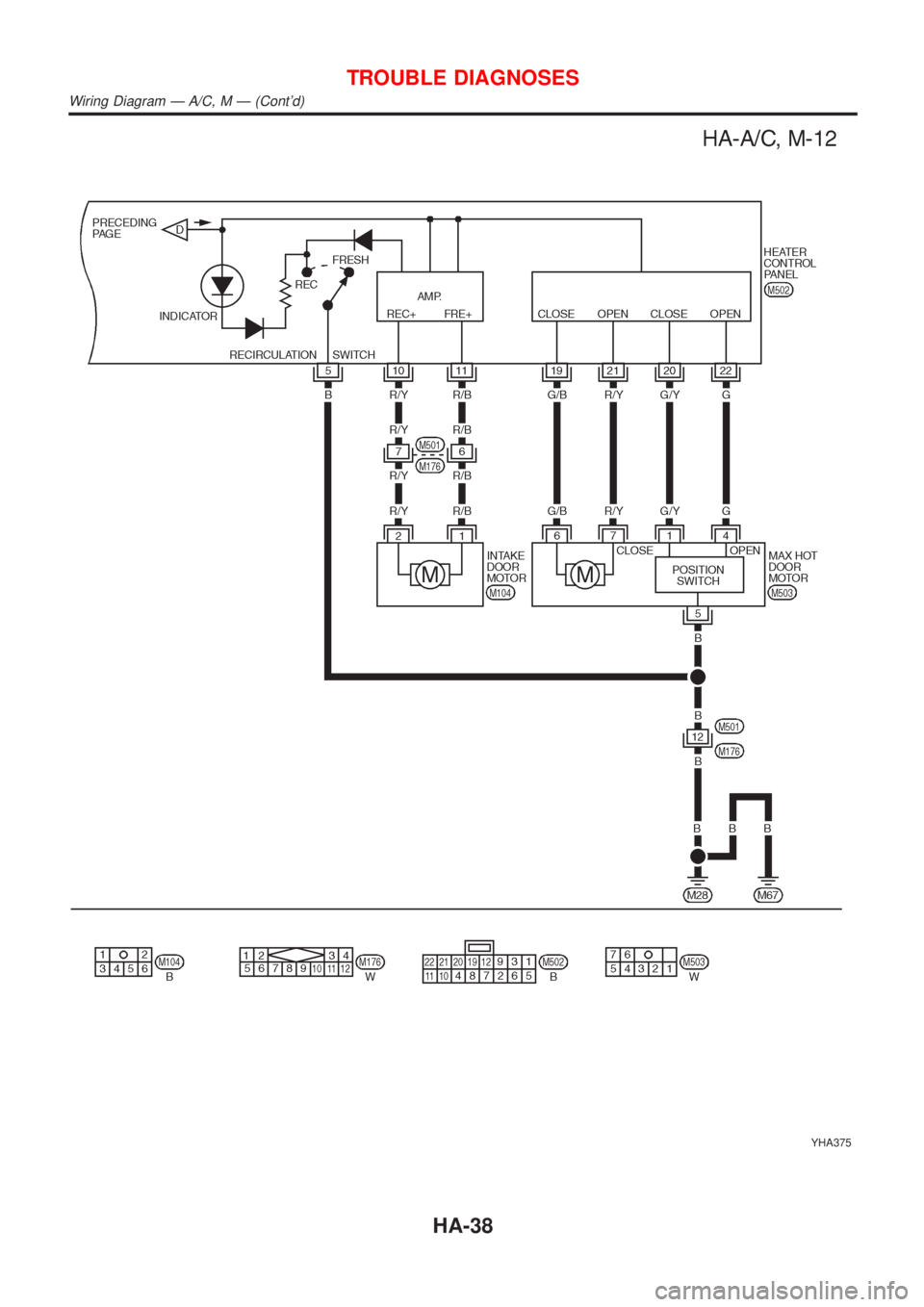

Wiring Diagram Ð A/C, M Ð (Cont'd)
HA-38
Page 2011 of 2493

How to Perform Trouble Diagnoses for Quick
and Accurate Repair
NJHA0129WORK FLOWNJHA0129S01
SHA900E
*1: HA-40
SYMPTOM TABLENJHA0129S02
Symptom Reference page
+Intake door does not change.+Go to Trouble Diagnosis Procedure for Intake Door. HA-42
+Air outlet does not change.+Go to Trouble Diagnosis Procedure for mode door. HA-46
+Air mix door does not change.+Go to Trouble Diagnosis Procedure for Air mix door. HA-48
+Max hot door does not change.+Go to Trouble Diagnosis Procedure for Max Hot Door. HA-50
+Blower motor does not rotate at all.+Go to Trouble Diagnosis Procedure for Blower Motor. HA-54
+Magnet clutch does not engage when A/C switch and
fan switch are ON.+Go to Trouble Diagnosis Procedure for Magnet Clutch. HA-61
+Insufficient cooling.+Go to Trouble Diagnosis Procedure for Insufficient cool-
ing.HA-74
+Insufficient heating.+Go to Trouble Diagnosis Procedure for Insufficient
heating.HA-82
+Noise+Go to Trouble Diagnosis Procedure for Noise. HA-83
TROUBLE DIAGNOSES
How to Perform Trouble Diagnoses for Quick and Accurate Repair
HA-39
Page 2012 of 2493

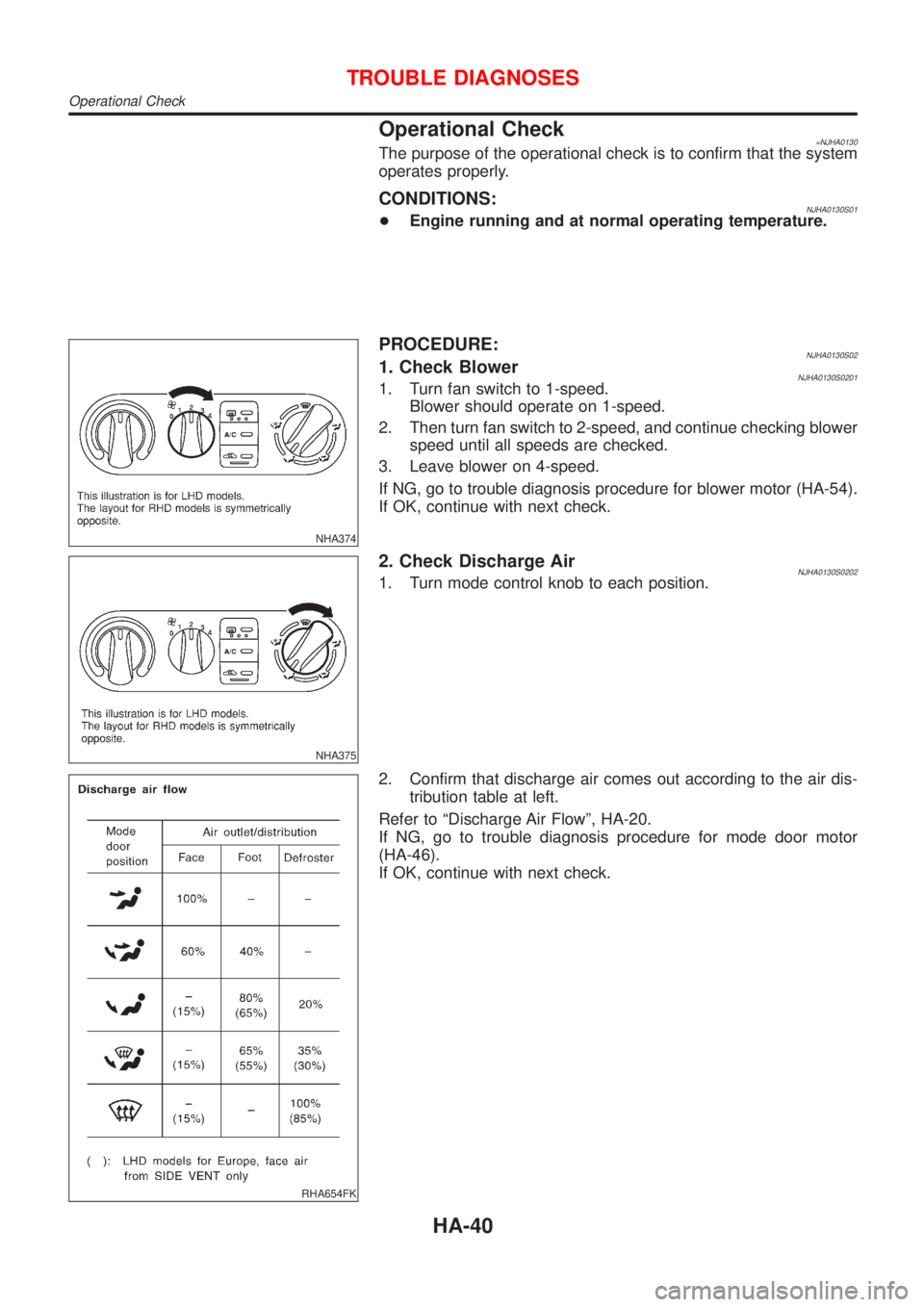

Operational Check=NJHA0130The purpose of the operational check is to confirm that the system
operates properly.
CONDITIONS:NJHA0130S01+Engine running and at normal operating temperature.
NHA374
PROCEDURE:NJHA0130S021. Check BlowerNJHA0130S02011. Turn fan switch to 1-speed.
Blower should operate on 1-speed.
2. Then turn fan switch to 2-speed, and continue checking blower
speed until all speeds are checked.
3. Leave blower on 4-speed.
If NG, go to trouble diagnosis procedure for blower motor (HA-54).
If OK, continue with next check.
NHA375
2. Check Discharge AirNJHA0130S02021. Turn mode control knob to each position.
RHA654FK
2. Confirm that discharge air comes out according to the air dis-
tribution table at left.
Refer to ªDischarge Air Flowº, HA-20.
If NG, go to trouble diagnosis procedure for mode door motor
(HA-46).
If OK, continue with next check.
TROUBLE DIAGNOSES
Operational Check
HA-40
Page 2013 of 2493

NHA377

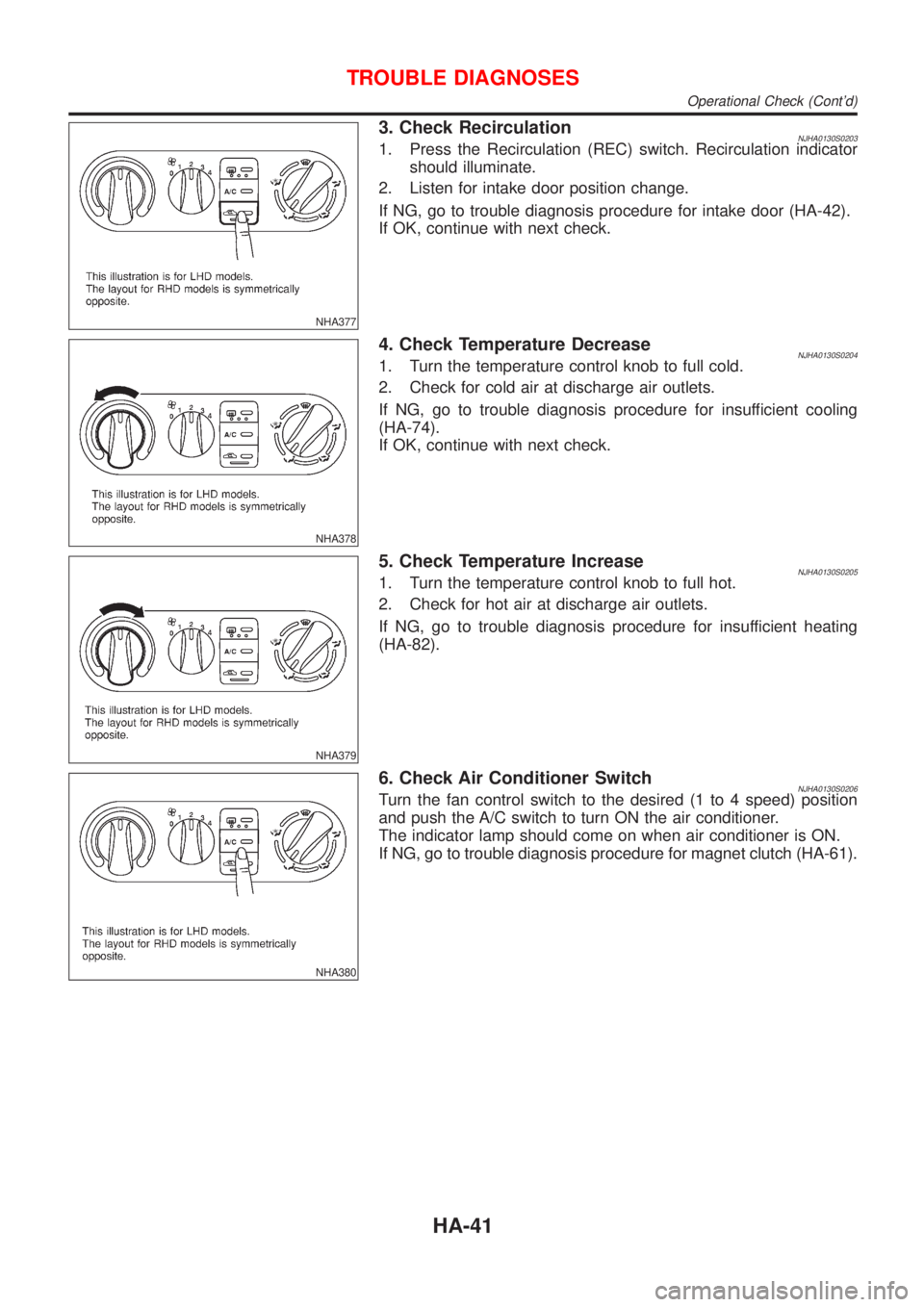

3. Check RecirculationNJHA0130S02031. Press the Recirculation (REC) switch. Recirculation indicator
should illuminate.
2. Listen for intake door position change.
If NG, go to trouble diagnosis procedure for intake door (HA-42).
If OK, continue with next check.
NHA378
4. Check Temperature DecreaseNJHA0130S02041. Turn the temperature control knob to full cold.
2. Check for cold air at discharge air outlets.
If NG, go to trouble diagnosis procedure for insufficient cooling
(HA-74).
If OK, continue with next check.
NHA379
5. Check Temperature IncreaseNJHA0130S02051. Turn the temperature control knob to full hot.
2. Check for hot air at discharge air outlets.
If NG, go to trouble diagnosis procedure for insufficient heating
(HA-82).
NHA380
6. Check Air Conditioner SwitchNJHA0130S0206Turn the fan control switch to the desired (1 to 4 speed) position
and push the A/C switch to turn ON the air conditioner.
The indicator lamp should come on when air conditioner is ON.
If NG, go to trouble diagnosis procedure for magnet clutch (HA-61).
TROUBLE DIAGNOSES
Operational Check (Cont'd)
HA-41
Page 2014 of 2493

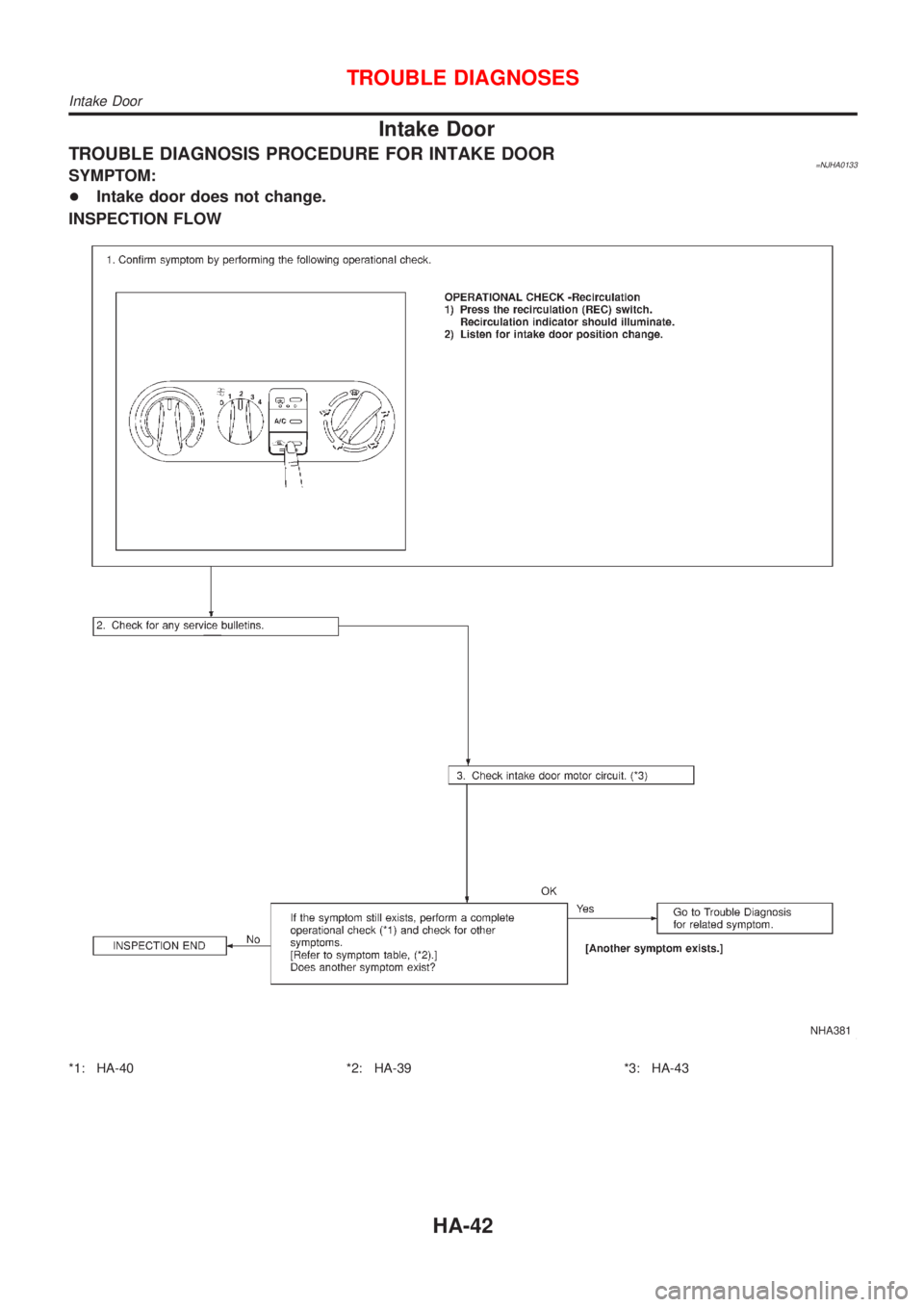

Intake Door
TROUBLE DIAGNOSIS PROCEDURE FOR INTAKE DOOR=NJHA0133SYMPTOM:
+Intake door does not change.
INSPECTION FLOW
NHA381
*1: HA-40 *2: HA-39 *3: HA-43
TROUBLE DIAGNOSES
Intake Door
HA-42
Page 2015 of 2493
RHA623H
COMPONENT DESCRIPTIONNJHA0209Intake Door MotorNJHA0209S01The intake door motor is attached to the intake unit. It rotates so
that air is drawn from inlets set by the heater control panel. Motor
rotation is conveyed to a lever which activates the intake door.
DIAGNOSTIC PROCEDURE FOR INTAKE DOOR
MOTOR CIRCUIT
NJHA0210
1 CHECK POWER SUPPLY FOR HEATER CONTROL PANEL
Do approx. 12 volts exist between heater control panel harness terminal No. 1 and body ground?
NHA495
YesorNo
Ye s©GO TO 2.
No©Check 10A (No. 15) fuse at fuse block. Refer to Sedan: EL-23 (QG), EL-0 (YD), Hatch-
back: EL-12, ªWiring Diagram Ð POWER к.
2 CHECK RECIRCULATION (REC) SWITCH
Refer to HA-45.
OK or NG
OK©GO TO 3.
NG©Replace recirculation (REC) switch.
TROUBLE DIAGNOSES
Intake Door (Cont'd)
HA-43
Page 2016 of 2493
3 CHECK GROUND CIRCUIT FOR RECIRCULATION (REC) SWITCH
Check circuit continuity between heater control panel harness terminal No. 5 and body ground.
NHA496
Continuity should exist.
If OK, check harness for short.
OK or NG
OK©GO TO 4.
Ng©Repair harness or connector.
4 CHECK POWER SUPPLY FOR INTAKE DOOR MOTOR
Do approx. 12 volts exist between intake door motor harness terminal No. 1, 2 and body ground?
NHA497
YesorNo
Ye s©Replace intake door motor.
No©GO TO 5.
TROUBLE DIAGNOSES
Intake Door (Cont'd)
HA-44
