Page 1201 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SMA827CA Checking A/T FluidNJAT02281. Warm up engine. 2. Check for fluid leakage. 3. Before driving, fluid level can be checked at fluid temperatures of 30 to 50ÉC (86 to 122ÉF) using ªCOLDº range

Page 1202 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual A/T Electrical Parts LocationNJAT0008 NAT351 OVERALL SYSTEM A/T Electrical Parts Location AT-16

Page 1203 of 2493

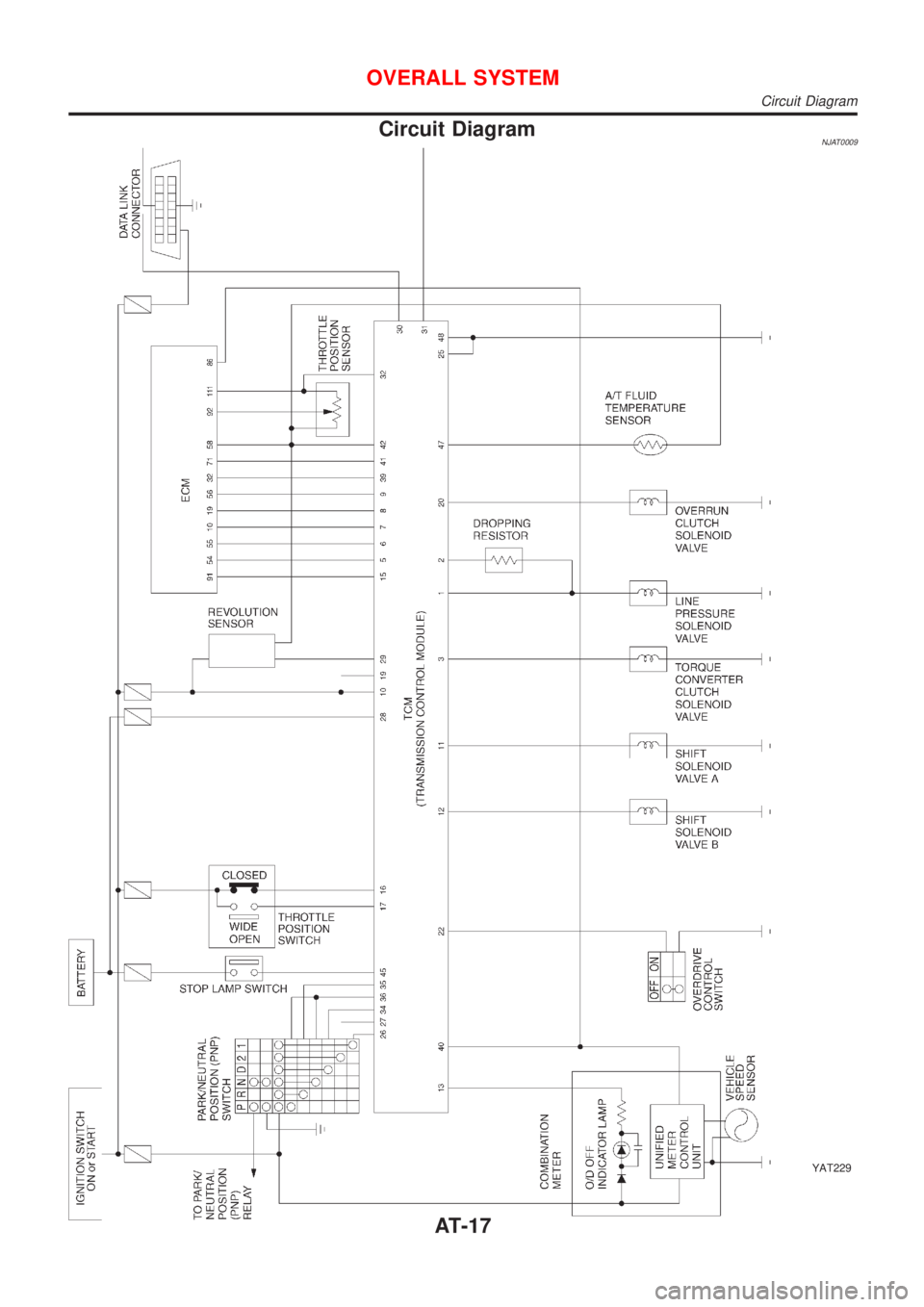

NISSAN ALMERA N16 2001 Electronic Repair Manual Circuit DiagramNJAT0009 YAT229 OVERALL SYSTEM Circuit Diagram AT-17

Page 1204 of 2493

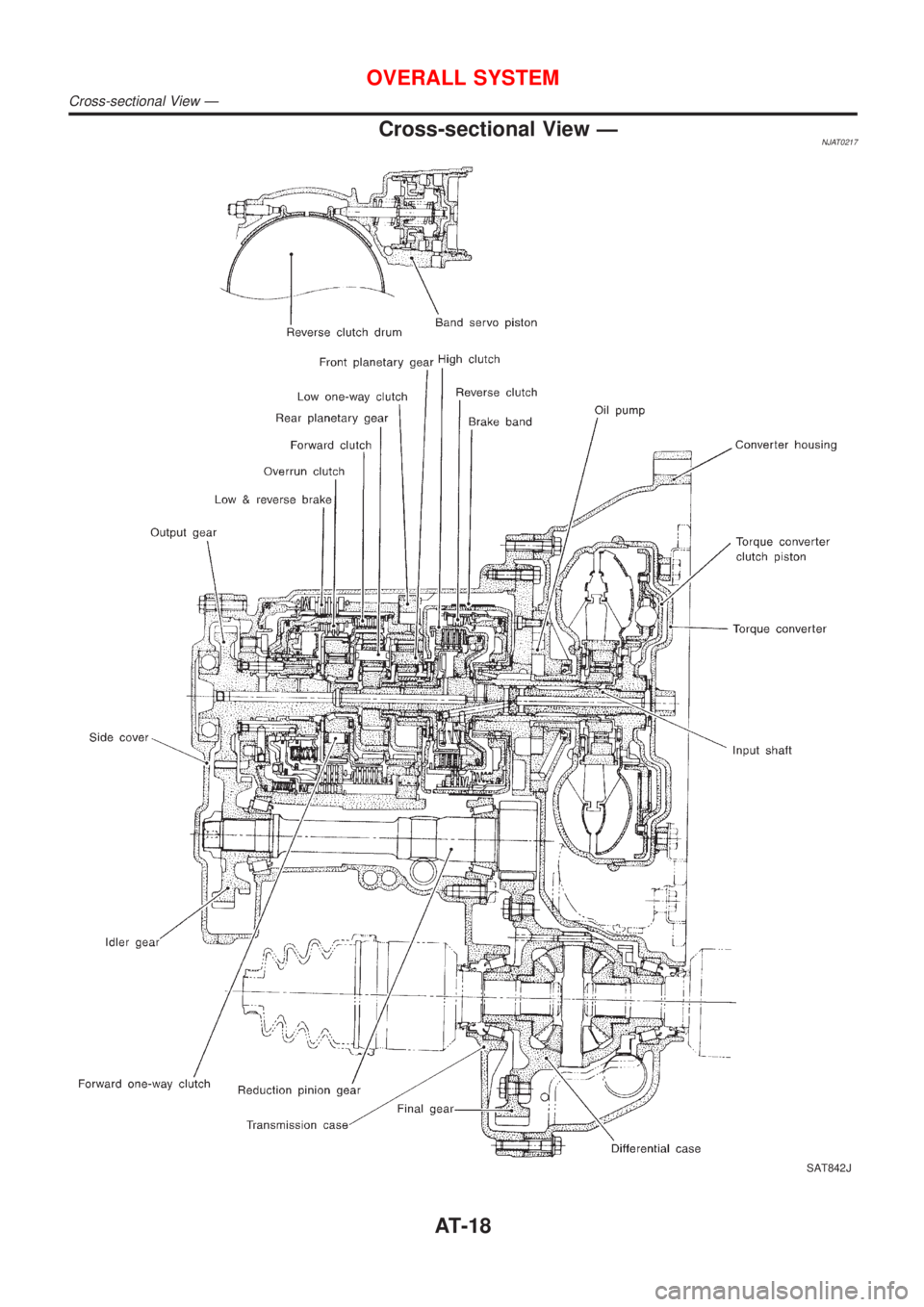

NISSAN ALMERA N16 2001 Electronic Repair Manual Cross-sectional View ÐNJAT0217 SAT842J OVERALL SYSTEM Cross-sectional View Ð AT-18

Page 1205 of 2493

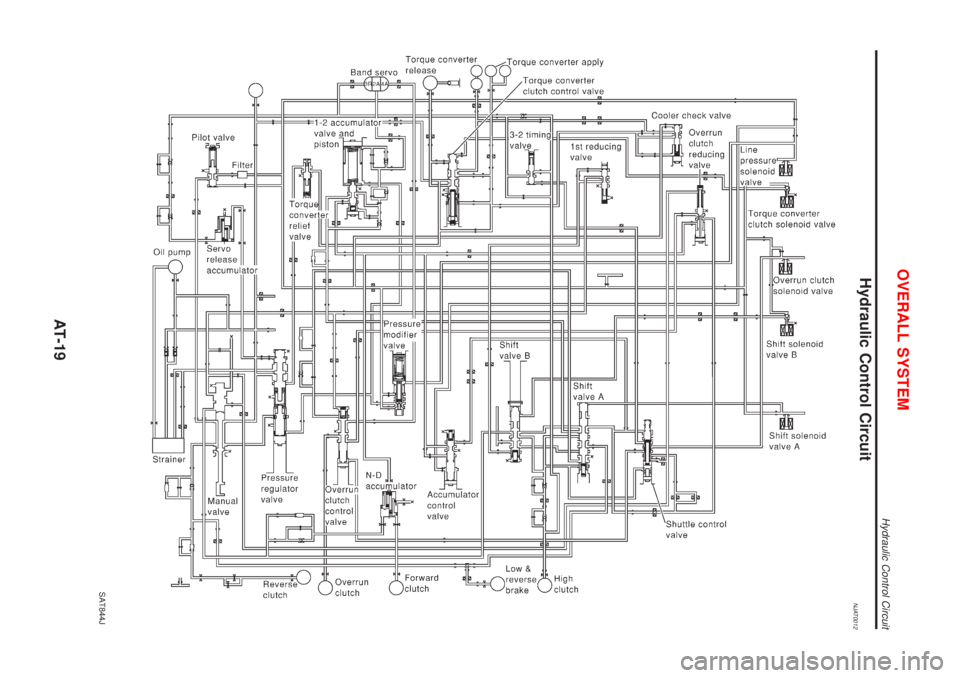

NISSAN ALMERA N16 2001 Electronic Repair Manual Hydraulic Control CircuitNJAT0012 SAT844J OVERALL SYSTEM Hydraulic Control Circuit AT-19

Page 1206 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Shift MechanismNJAT0013CONSTRUCTIONNJAT0013S01 SAT998I 1. Torque converter 2. Oil pump 3. Input shaft 4. Brake band 5. Reverse clutch 6. High clutch 7. Front sun gear 8. Front pinion gear9. Front inte

Page 1207 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual CLUTCH AND BAND CHARTNJAT0013S04 Shift positionReverse clutch 5High clutch 6For- ward clutch 15Over- run clutch 17Band servo Forward one-way clutch 16Low one- way clutch 18Low & reverse brake 19Lock-u

Page 1208 of 2493

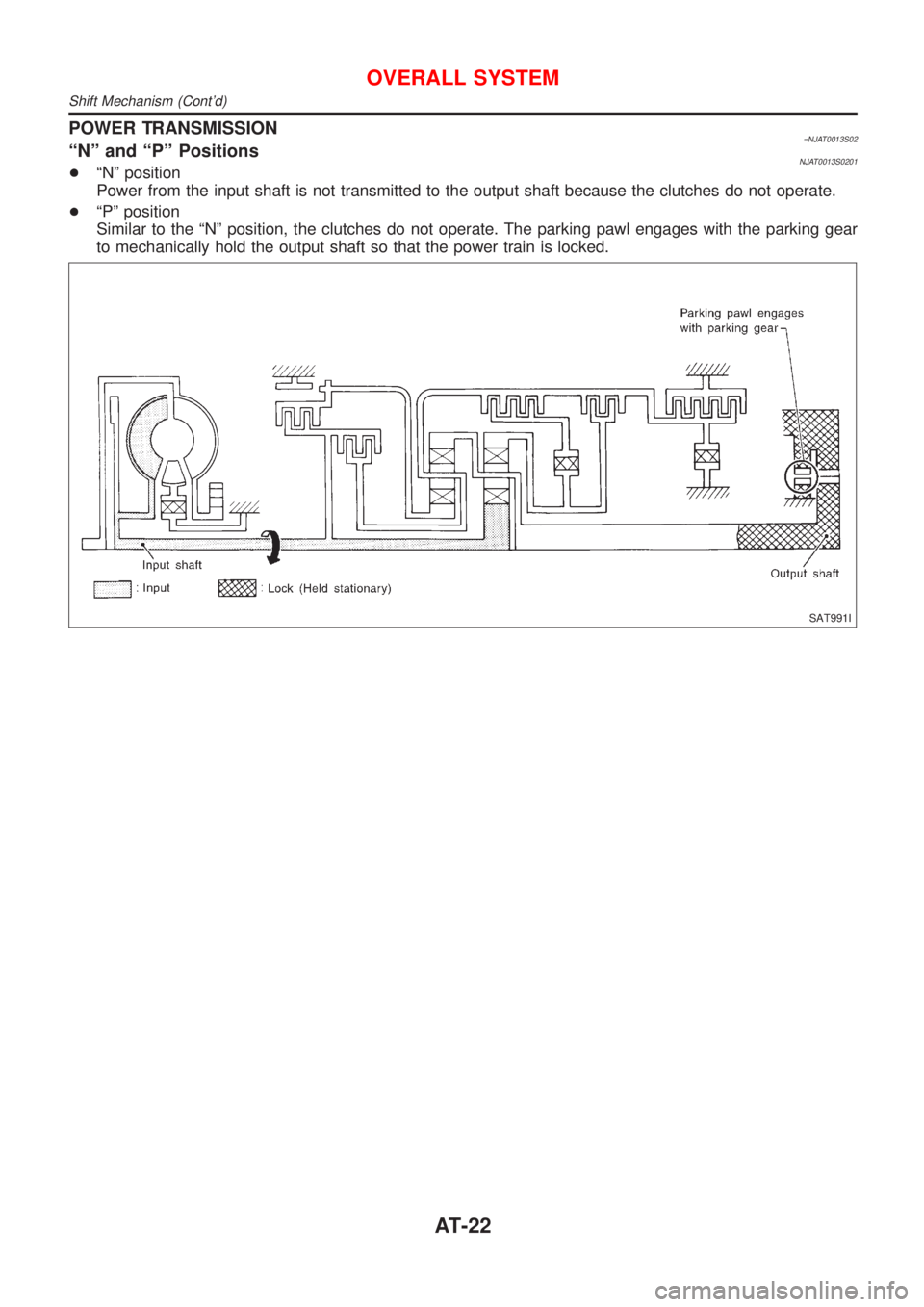

NISSAN ALMERA N16 2001 Electronic Repair Manual POWER TRANSMISSION=NJAT0013S02ªNº and ªPº PositionsNJAT0013S0201+ªNº position Power from the input shaft is not transmitted to the output shaft because the clutches do not operate. +ªPº positi
