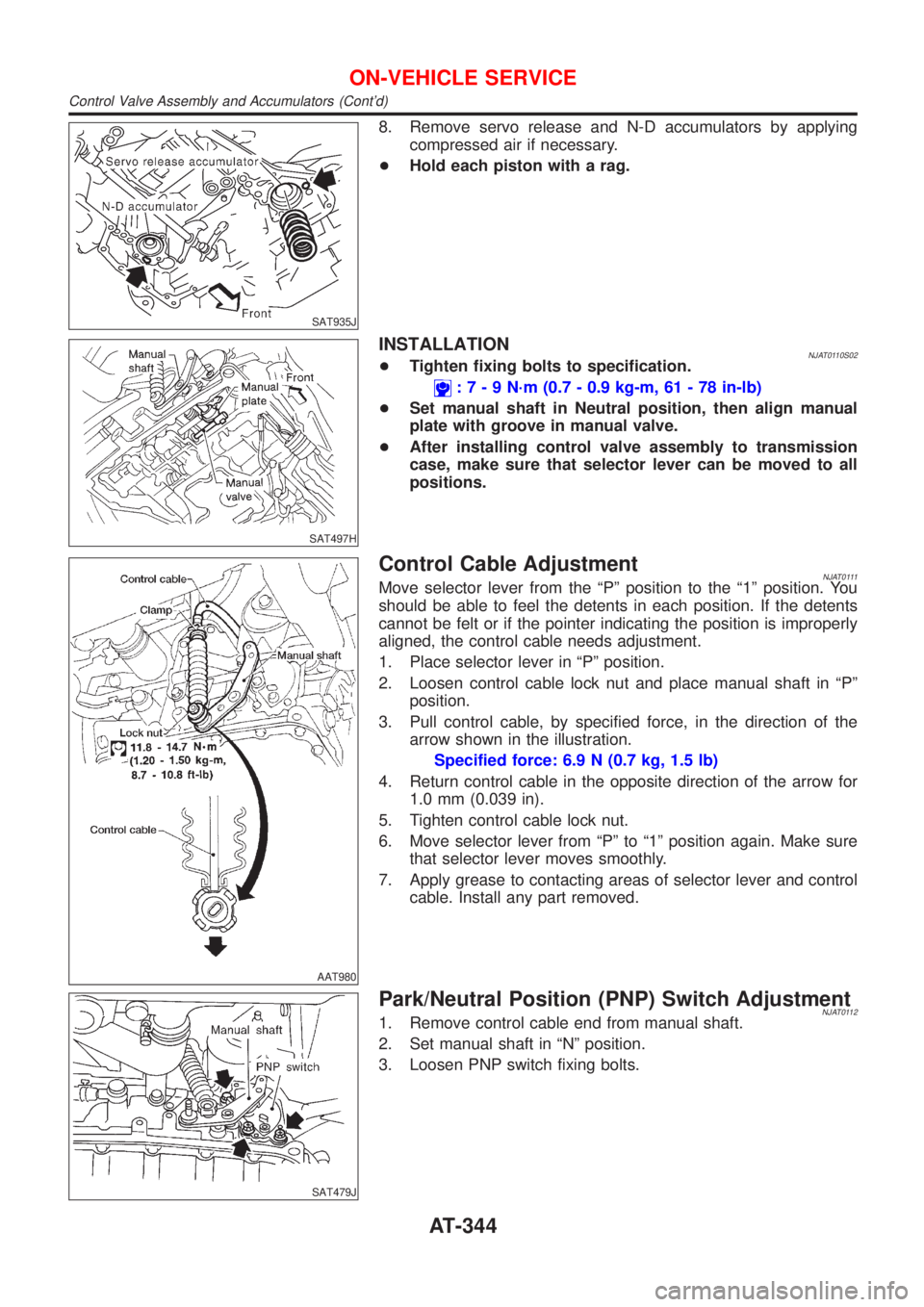

Control Valve Assembly and AccumulatorsNJAT0110REMOVALNJAT0110S011. Drain ATF from transaxle.
2. Remove oil pan and gasket.
SAT064K
3. Disconnect A/T solenoid valve harness connector.
AAT265A

Page 1530 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SAT935J
8. Remove servo release and N-D accumulators by applying
compressed air if necessary.
+Hold each piston with a rag.
SAT497H
INSTALLATIONNJAT0110S02+Tighten fixing bolts to specification.
:7-9N

Page 1531 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SAT480J
4. Usea4mm(0.157 in) pin for this adjustment.
a. Insert the pin straight into the manual shaft adjustment hole.
b. Rotate PNP switch until the pin can also be inserted straight
into hole in PN

Page 1532 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SAT065K
RemovalNJAT0115CAUTION:
Before separating transaxle from engine, remove the crank-
shaft position sensor (Euro-OBD) from transaxle. Be careful
not to damage sensor.
1. Remove battery and brack

Page 1533 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual AAT259A
14. Remove rear plate cover.
15. Remove torque converter bolts.
Rotate crankshaft to gain access to securing bolts.
16. Remove rear transaxle to engine bracket. Refer to EM-49,
ªREMOVAL AND I

Page 1534 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SAT058K
*1: With gusset to A/T
*2: With gusset to cylinder block
SAT638A
5. Reinstall any part removed.
6. Adjust control cable. Refer to AT-344.
7. Check continuity of PNP switch. Refer to AT-326.
8.

Page 1535 of 2493

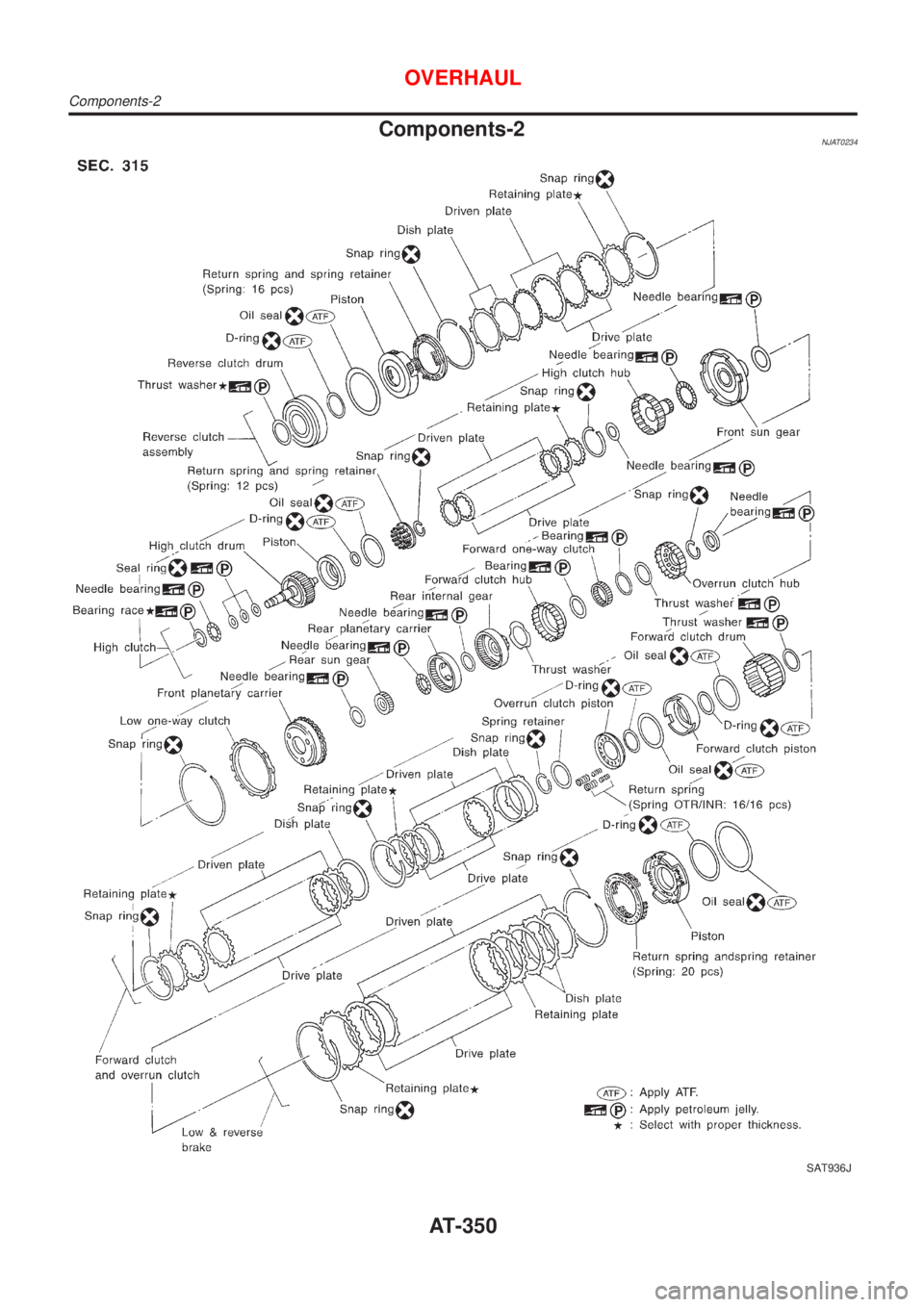

NISSAN ALMERA N16 2001  Electronic Repair Manual Components-1NJAT0232
SAT030K
OVERHAUL
Components-1
AT-349

Page 1536 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Components-2NJAT0234
SAT936J
OVERHAUL
Components-2
AT-350
