Page 1521 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual DescriptionNJAT0102+The mechanical key interlock mechanism also operates as a shift lock: With the key switch turned to ON, the selector lever cannot be shifted from ªPº (parking) to any other posit

Page 1522 of 2493

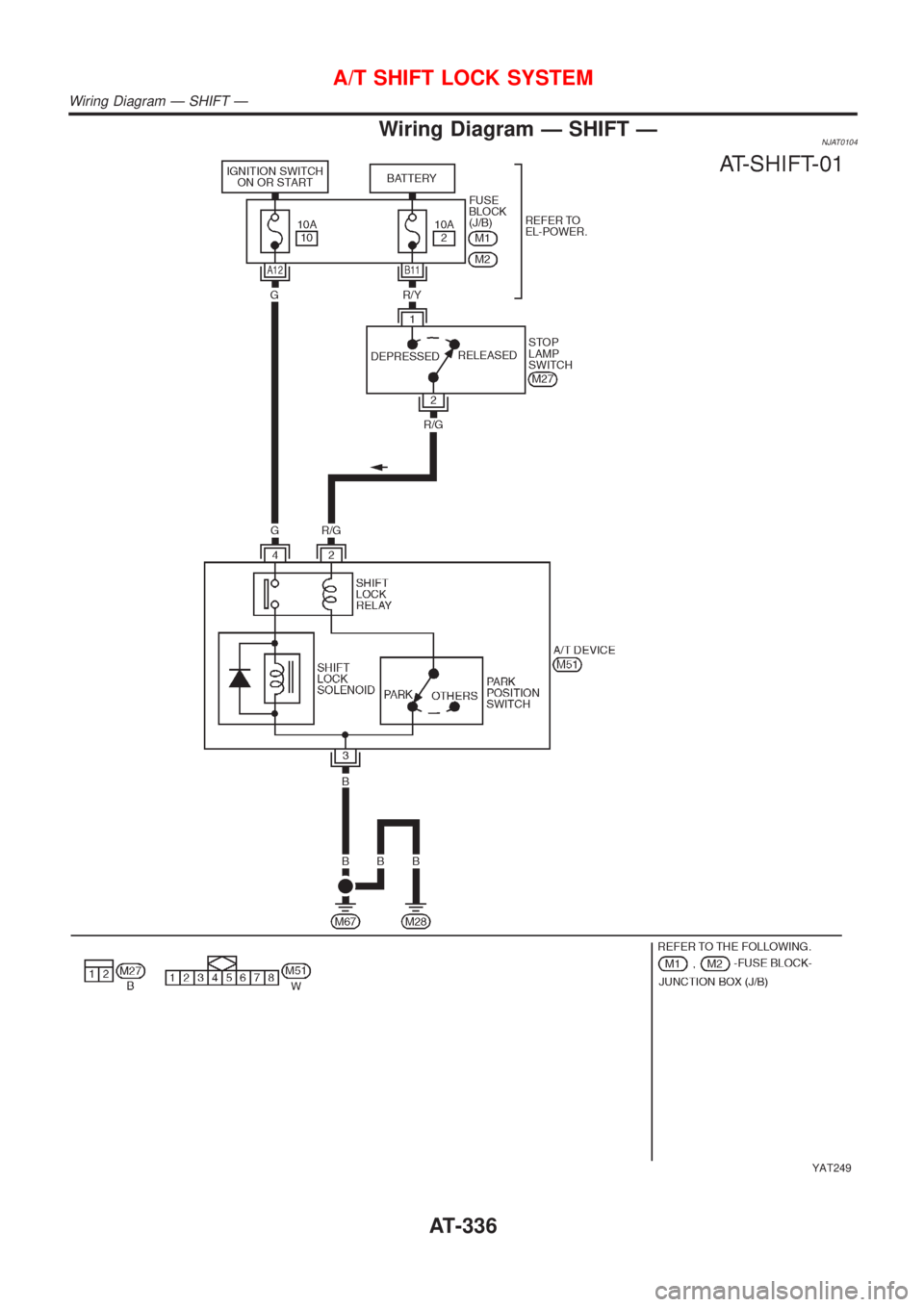

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring Diagram Ð SHIFT ÐNJAT0104 YAT249 A/T SHIFT LOCK SYSTEM Wiring Diagram Ð SHIFT Ð AT-336

Page 1523 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJAT0105SYMPTOM 1: +Selector lever cannot be moved from ªPº position with key in ON position and brake pedal applied. +Selector lever can be moved from ªPº position with key in

Page 1524 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 4 CHECK INPUT SIGNAL (A/T DEVICE) Turn ignition switch to ªONº position. (Do not start engine.) +Check voltage between A/T device harness terminal 2 and ground. Voltage: Brake pedal depressed: Batte

Page 1525 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 6 CHECK RELAY CIRCUIT 1. Turn ignition switch to ON. +Check voltage between terminal4-3and2-3. SAT010K OK or NG OK©GO TO 7. NG©Replace A/T device. 7 CHECK PARK POSITION SWITCH Refer to ªA/T device

Page 1526 of 2493

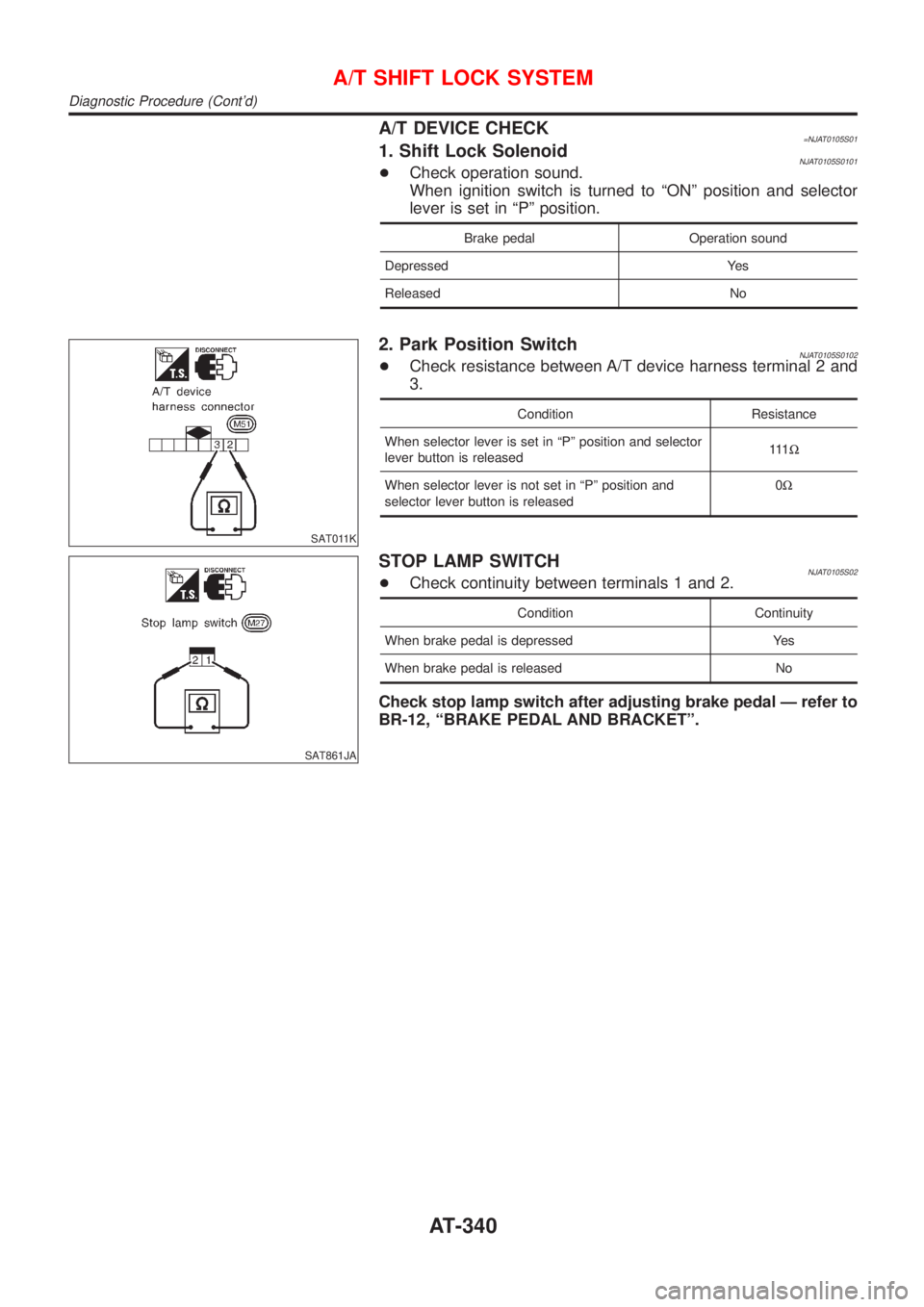

NISSAN ALMERA N16 2001 Electronic Repair Manual A/T DEVICE CHECK=NJAT0105S011. Shift Lock SolenoidNJAT0105S0101+Check operation sound. When ignition switch is turned to ªONº position and selector lever is set in ªPº position. Brake pedal Operat

Page 1527 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual ComponentsNJAT0107 SAT996J CAUTION: +Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interference with adja- cent parts. +After installing key interlock

Page 1528 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT854J 2. Remove lock plate from steering lock assembly and remove key interlock cable. SAT854J InstallationNJAT01091. Turn ignition key to lock position. 2. Set A/T selector lever to P position. 3.
