NISSAN ALMERA N16 2001  Electronic Repair Manual Trouble Diagnosis of Turbocharger=NJEM0104S0206Preliminary check:
+Check that the engine oil level is between MIN and MAX of the
dipstick. (When the engine oil amount is more than MAX, the
oil flows i

Page 194 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Removal and InstallationNJEM0099
YEM014
PREPARATIVE WORKNJEM0099S01Remove engine cover.
YEM015
ROCKER COVERNJEM0099S02RemovalNJEM0099S0201Loosen holding bolts in the reverse order of that shown in the

Page 195 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual JEM248G
+Apply 3.0 mm (0.118 in) dia. of specified liquid gasket (Refer
to EM-76, ªLiquid Gasket Application Procedureº.) on locac-
tions shown in the figure.
ROCKER COVERYD
Removal and Installation

Page 196 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual ComponentsNJEM0062

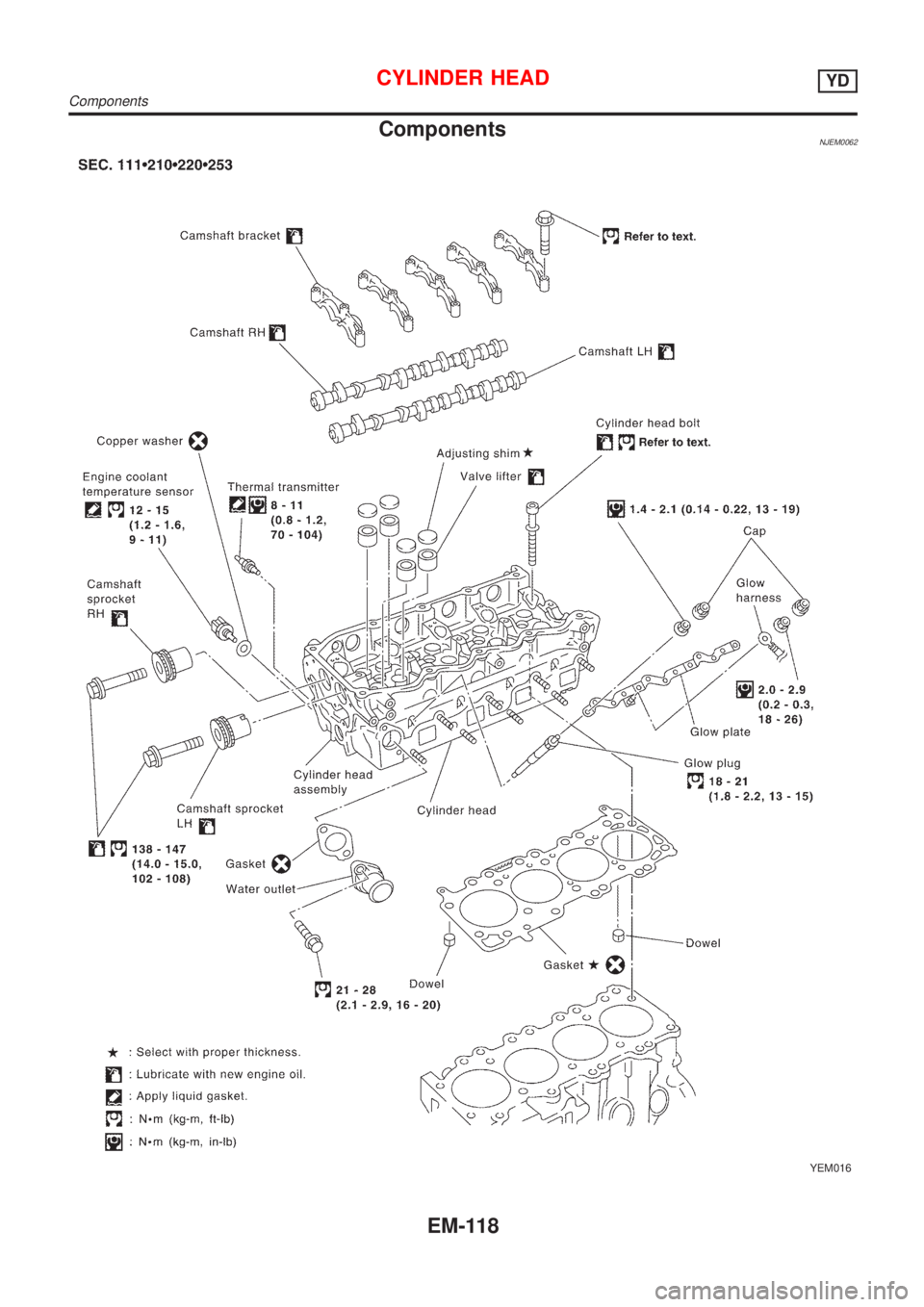

YEM016
CYLINDER HEADYD
Components
EM-118

Page 197 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual CAUTION:
+When installing camshafts, chain tensioners, oil seals, or
other sliding parts, lubricate contacting surfaces with new
engine oil.
+Apply new engine oil to threads and seat surfaces when
ins

Page 198 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual JEM149G

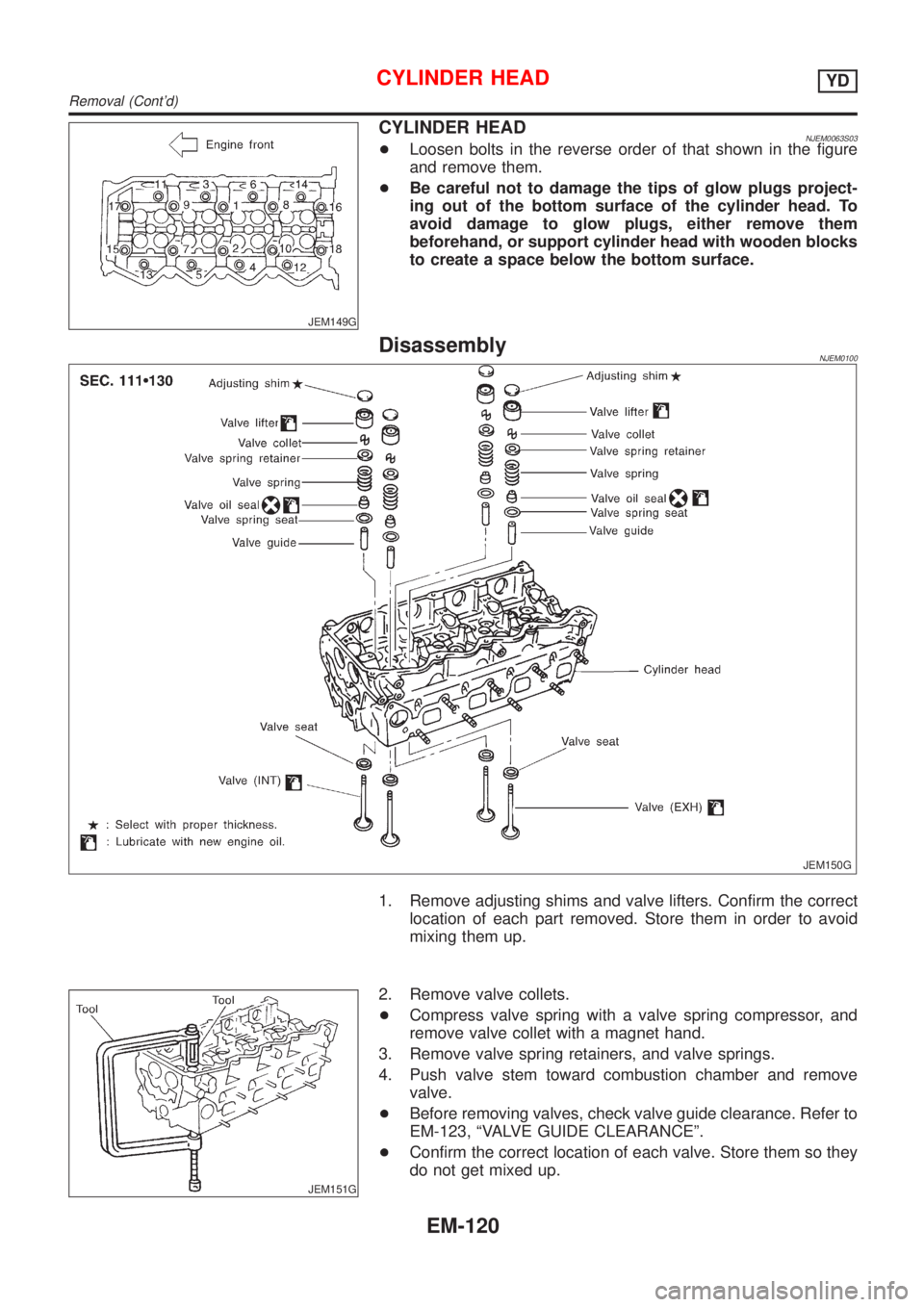

CYLINDER HEADNJEM0063S03+Loosen bolts in the reverse order of that shown in the figure
and remove them.
+Be careful not to damage the tips of glow plugs project-
ing out of the bottom surface

Page 199 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual JEM152G
+For the locations and arrangement of intake and exhaust
valves, refer to the figure.
JEM153G
5. Remove valve oil seals.
+Use a valve oil seal puller (SST) for removal.
6. Remove valve spring

Page 200 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual CAMSHAFT VISUAL CHECKNJEM0065S02Check camshaft for scratches, seizure and wear.
JEM161G
CAMSHAFT RUNOUTNJEM0065S031. Place V-blocks on a work bench and support camshaft at No.
1 and No. 5 journal.
2.
