Page 1017 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SFE638A FUEL SYSTEMYD Fuel Tank (Contd) FE-19

Page 1018 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual JFE613A SFE600A SFE601A REMOVALNJFE0016S01For SedanNJFE0016S01011. Disconnect battery ground cable. 2. Open fuel filler lid and filler cap. 3. Drain fuel from fuel tank. 4. Remove rear seat cushion. R

Page 1019 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SFE602A 8. Remove exhaust center tube. 9. From rear left area of fuel tank, remove filler hose, vent hose, and EVAP hose. CAUTION: To prevent fuel from flowing out, install a blind cap immedi- ately a

Page 1020 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual JFE613A SFE639A SFE640A For HatchbackNJFE0016S01021. Disconnect battery ground cable. 2. Open fuel filler lid and filler cap. 3. Drain fuel from fuel tank. 4. Remove rear seat cushion. Refer to BT-59,

Page 1021 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SFE642A 9. Remove exhaust center tube. SFE643A 10. Remove heat insulators from fuel tank side. SFE644A 11. Set a suitable transmission jack under fuel tank. 12. Remove fuel tank mounting band bolts wh

Page 1022 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SFE561AB SFE658AA After connecting quick connector, make sure the connection is firmly made using the following method. +Pull on the fuel tube and connector to make sure they are firmly connected. +St

Page 1023 of 2493

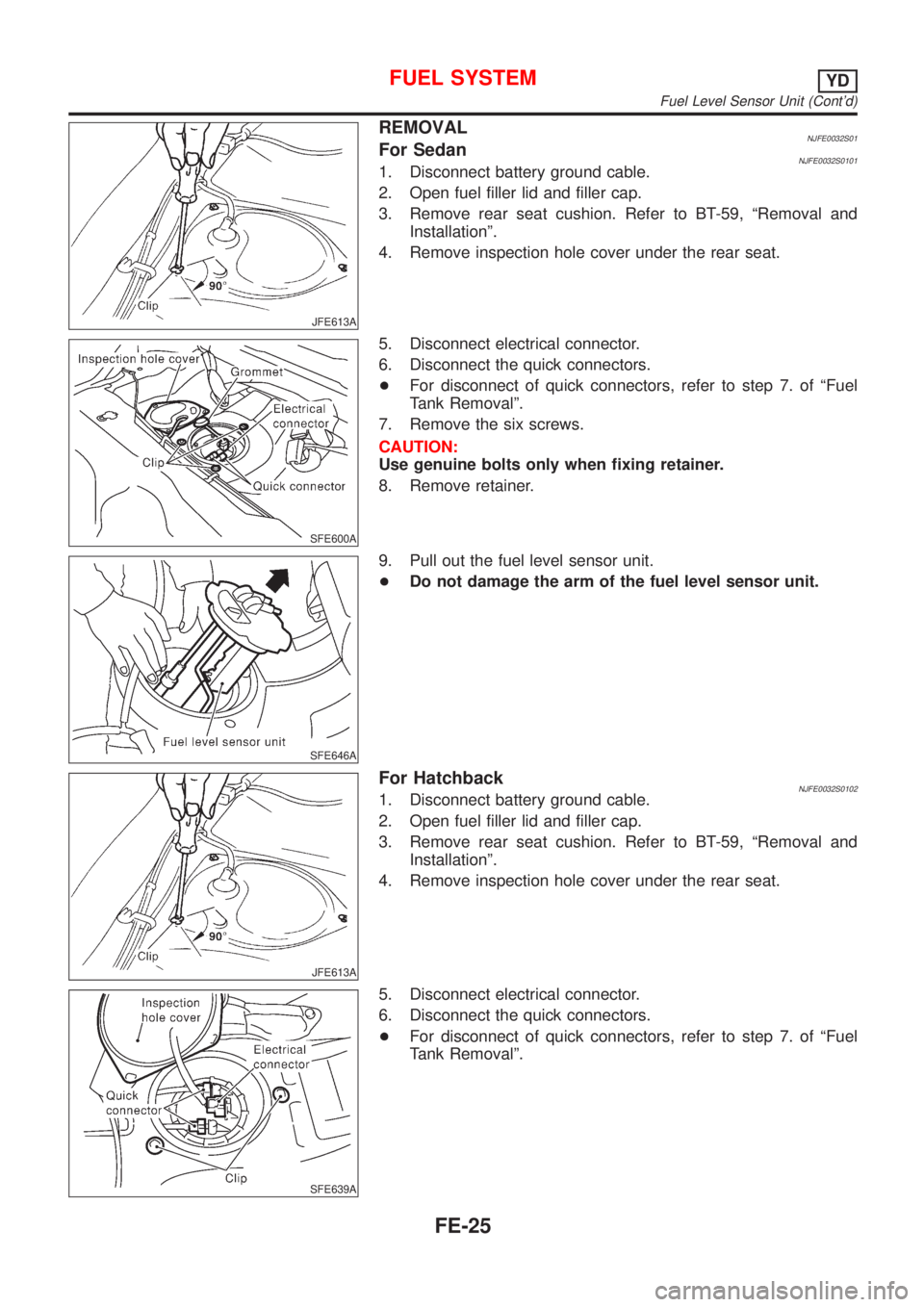

NISSAN ALMERA N16 2001 Electronic Repair Manual JFE613A REMOVALNJFE0032S01For SedanNJFE0032S01011. Disconnect battery ground cable. 2. Open fuel filler lid and filler cap. 3. Remove rear seat cushion. Refer to BT-59, ªRemoval and Installationº. 4

Page 1024 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SFE376A 7. Remove lock ring using a lock ring socket (SST). SFE648AA 8. Pull out the fuel level sensor unit and fuel pump. +Do not damage the arm of the fuel level sensor unit. INSTALLATIONNJFE0032S02
