Page 169 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual JEM116G d. Install upper oil pan. +Tighten bolts in numerical order. +Bolt dimensions vary depending on the installation location. Refer to the following and use appropriate bolts. M6 x 30 mm: Bolt No

Page 170 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM494G +Be sure liquid gasket is 3.5 to 4.5 mm (0.138 to 0.177 in) wide. +Attaching should be done within 5 minutes after coating. JEM114G c. Install lower oil pan. +Tighten in numerical order shown

Page 171 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Secondary Timing ChainNJEM0093CAUTION: +After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike piston heads. +When installing camshafts, chain tensioners, o

Page 172 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual JEM121G 3. Remove front chain case. +Move power steering fluid reservoir tank from the bracket. +Loosen fixing bolts in the reverse order of that shown in the figure and remove them. +Remove No. 6, 10

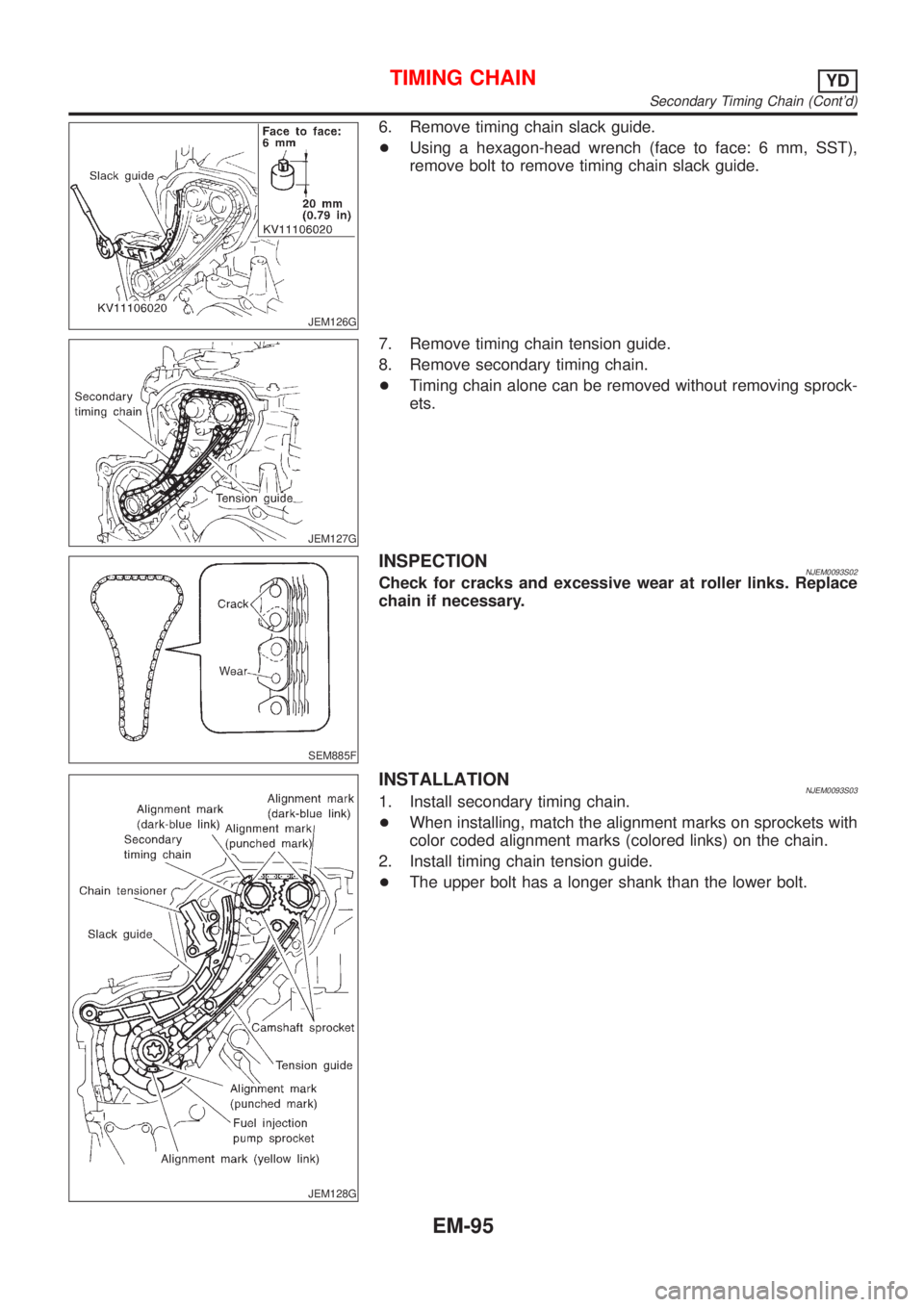

Page 173 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual JEM126G 6. Remove timing chain slack guide. +Using a hexagon-head wrench (face to face: 6 mm, SST), remove bolt to remove timing chain slack guide. JEM127G 7. Remove timing chain tension guide. 8. Rem

Page 174 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual JEM126G 3. Using a hexagon-head wrench (face to face: 6 mm, SST), install timing chain slack guide. JEM125G 4. Install chain tensioner. a. Push the plunger of the chain tensioner. While holding it wit

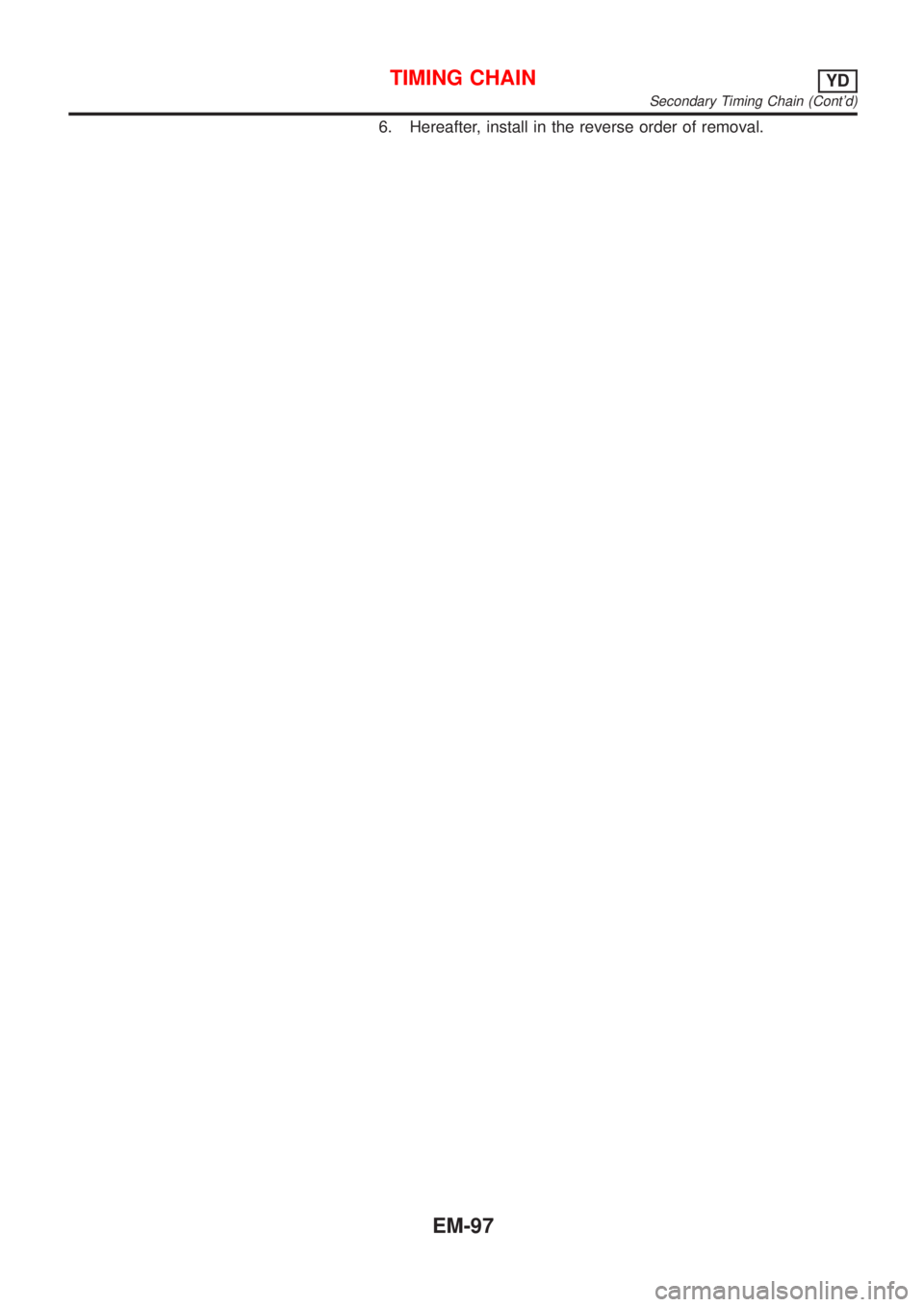

Page 175 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 6. Hereafter, install in the reverse order of removal. TIMING CHAINYD Secondary Timing Chain (Contd) EM-97

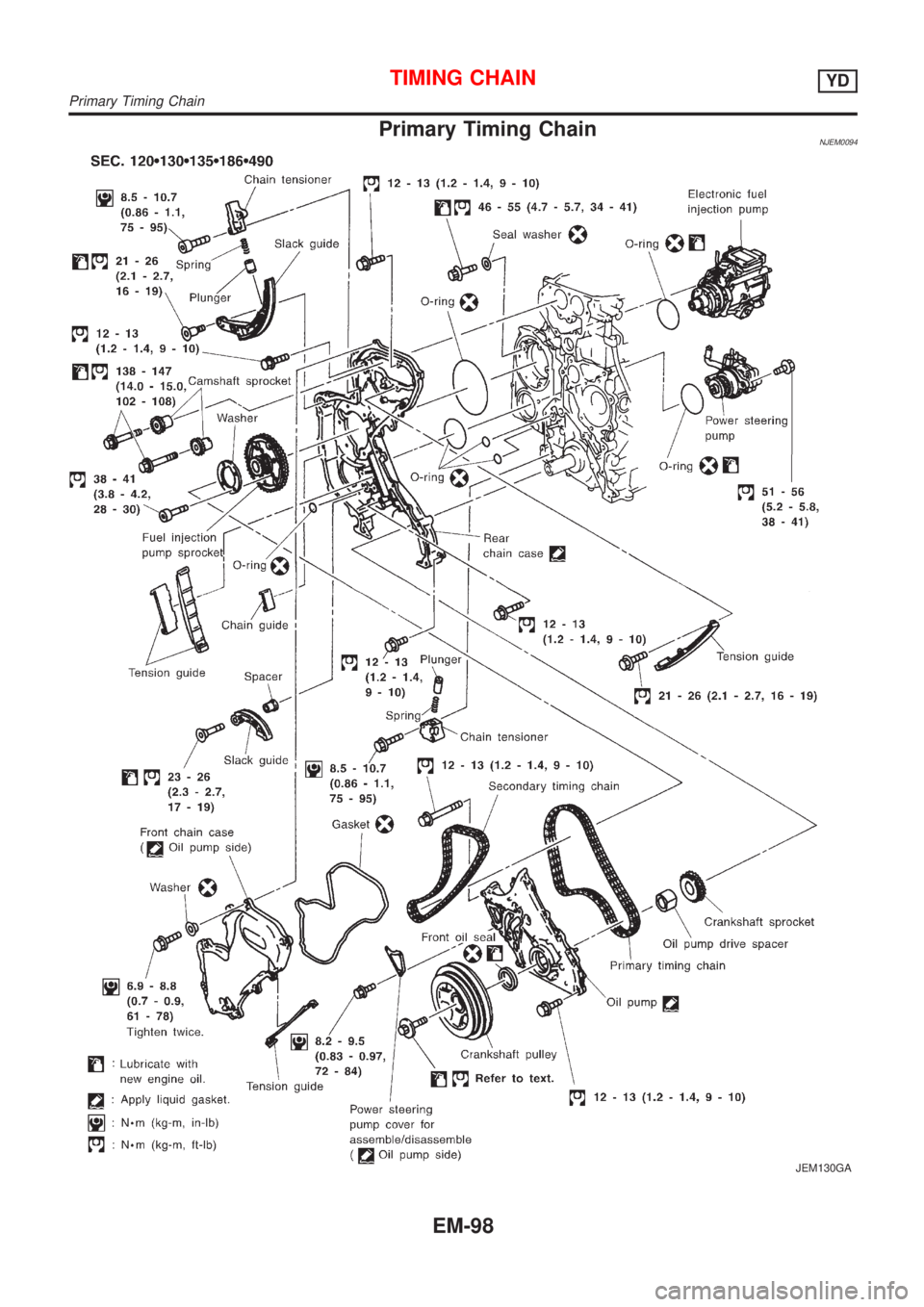

Page 176 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Primary Timing ChainNJEM0094 JEM130GA TIMING CHAINYD Primary Timing Chain EM-98
