2001 NISSAN ALMERA N16 Electronic Repair Manual

Page 1481 of 2493

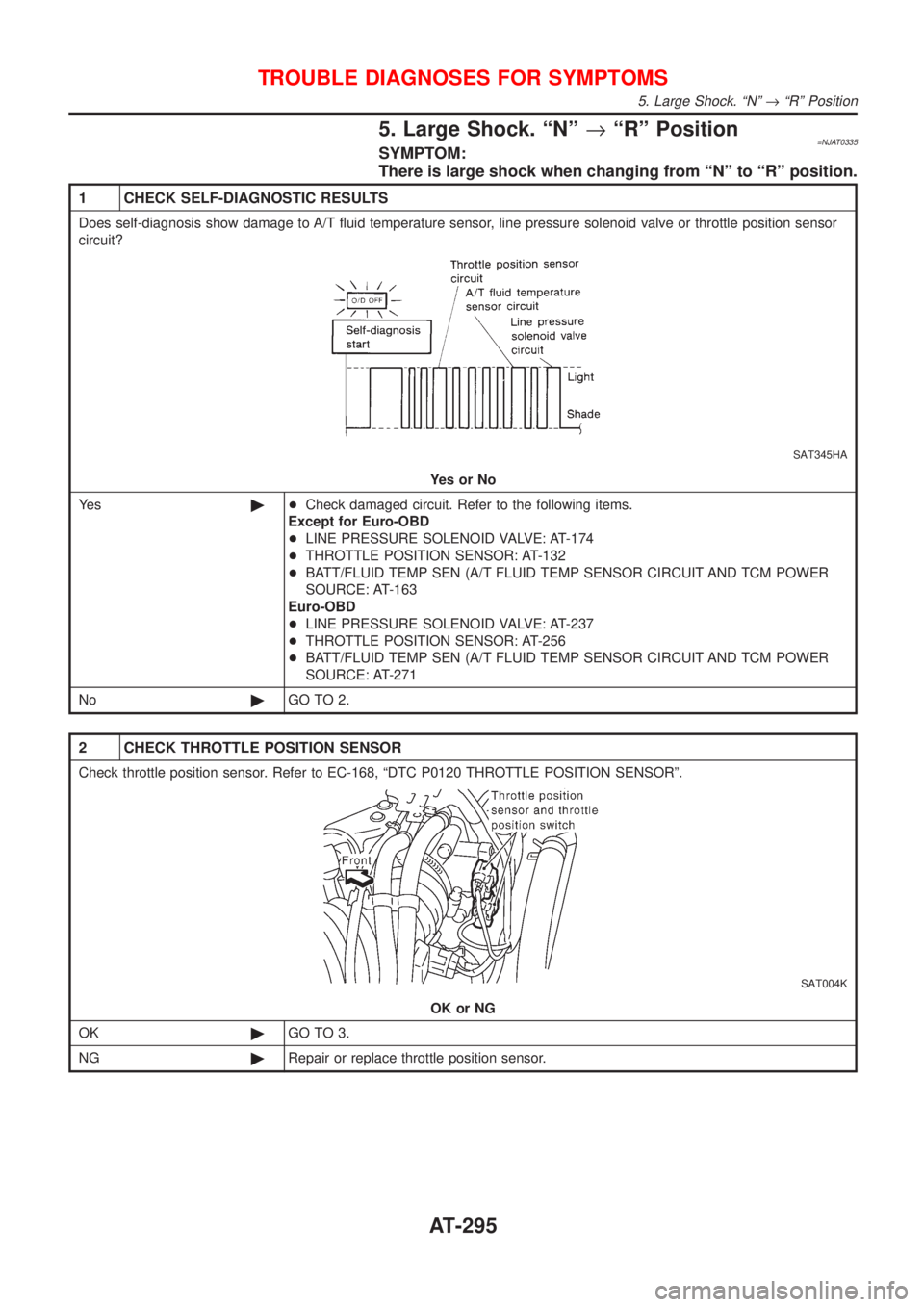

NISSAN ALMERA N16 2001  Electronic Repair Manual 5. Large Shock. ªNº®ªRº Position=NJAT0335SYMPTOM:
There is large shock when changing from ªNº to ªRº position.
1 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid tem

Page 1482 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 3 CHECK LINE PRESSURE
Check line pressure at idle with selector lever in ªDº position. Refer to ªLine Pressure Testº, AT-82.
SAT494G
OK or NG
OK©GO TO 4.
NG©1. Remove control valve assembly. Ref

Page 1483 of 2493

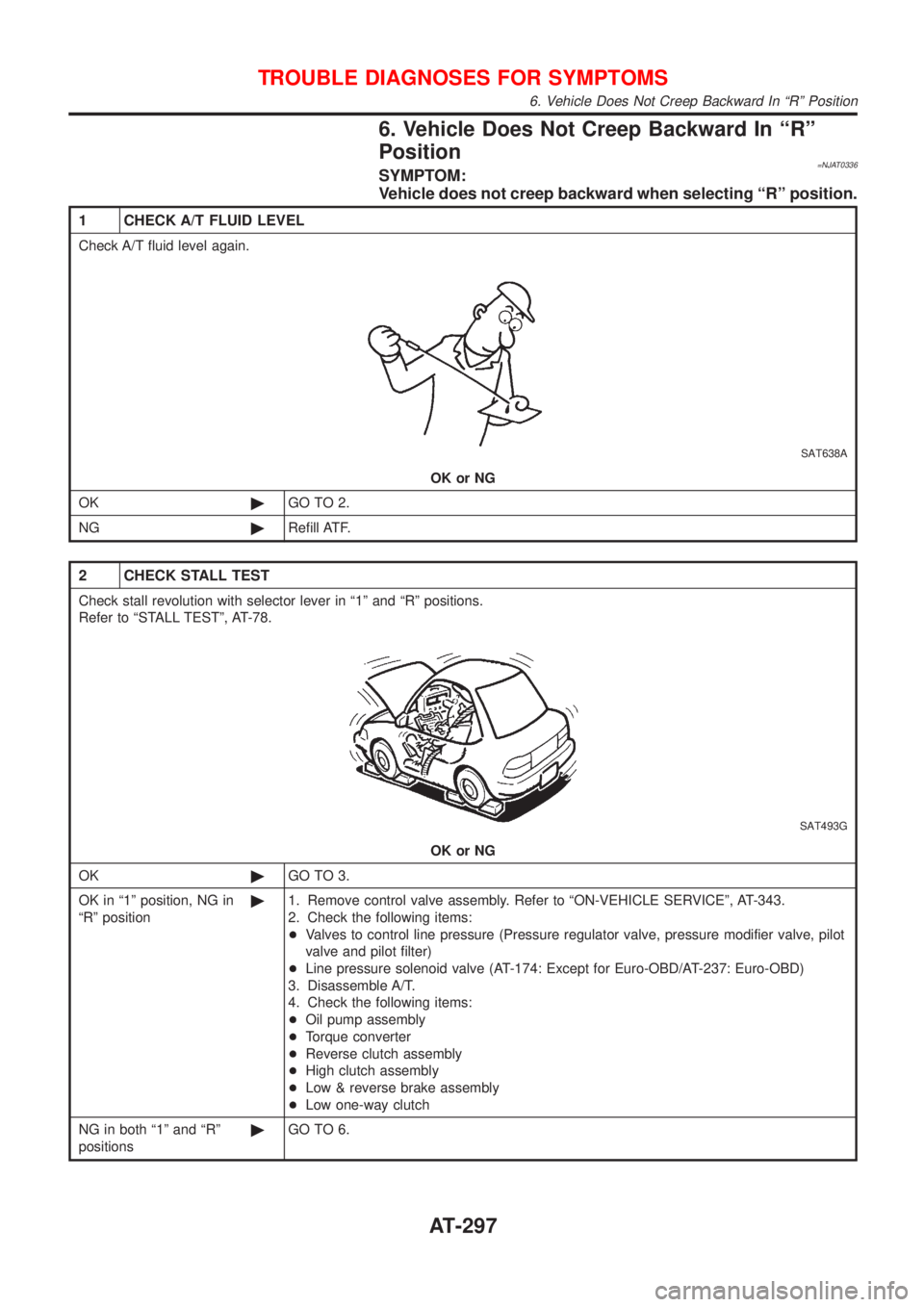

NISSAN ALMERA N16 2001  Electronic Repair Manual 6. Vehicle Does Not Creep Backward In ªRº
Position
=NJAT0336SYMPTOM:
Vehicle does not creep backward when selecting ªRº position.
1 CHECK A/T FLUID LEVEL
Check A/T fluid level again.
SAT638A
OK or

Page 1484 of 2493

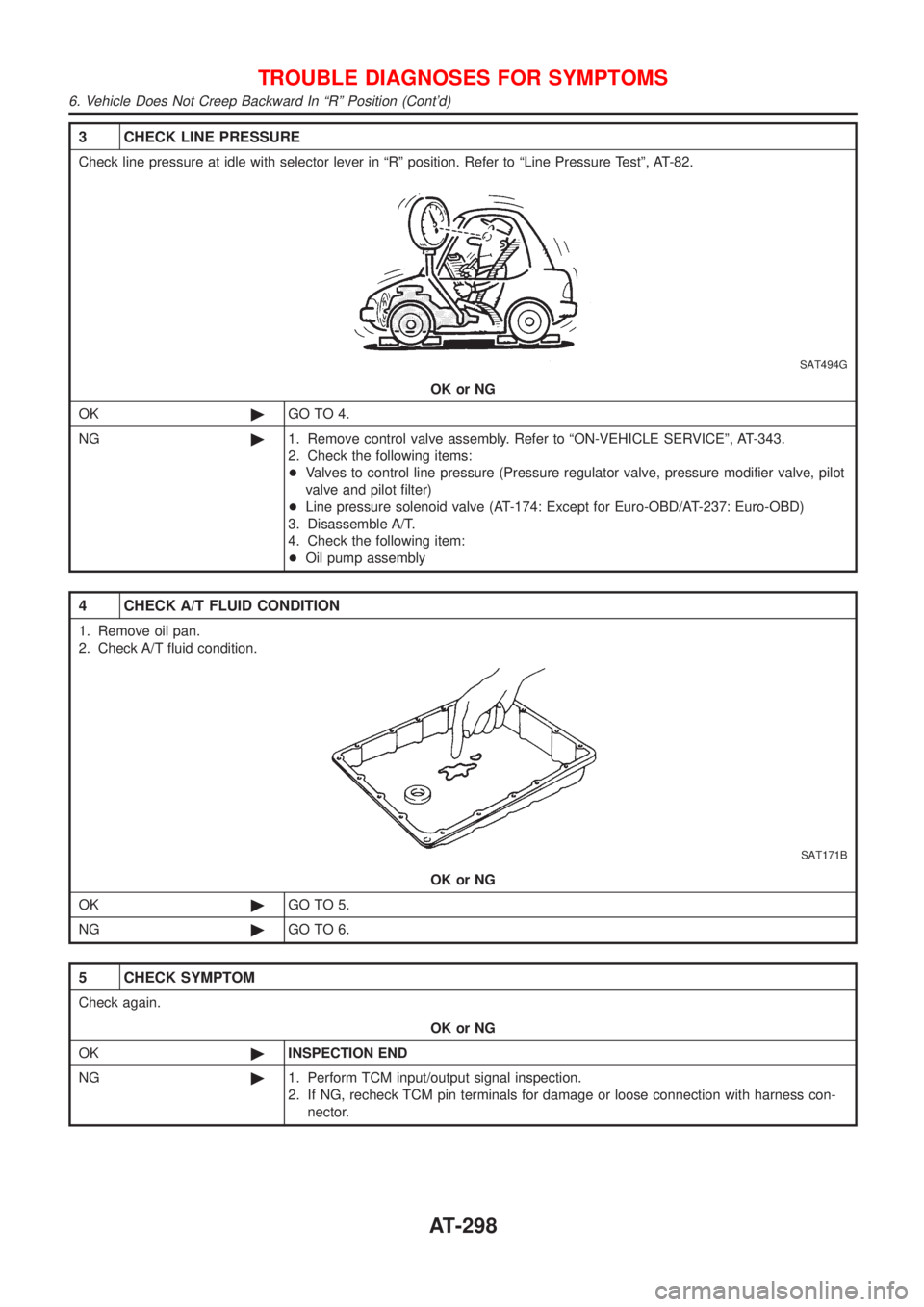

NISSAN ALMERA N16 2001  Electronic Repair Manual 3 CHECK LINE PRESSURE
Check line pressure at idle with selector lever in ªRº position. Refer to ªLine Pressure Testº, AT-82.
SAT494G
OK or NG
OK©GO TO 4.
NG©1. Remove control valve assembly. Ref

Page 1485 of 2493

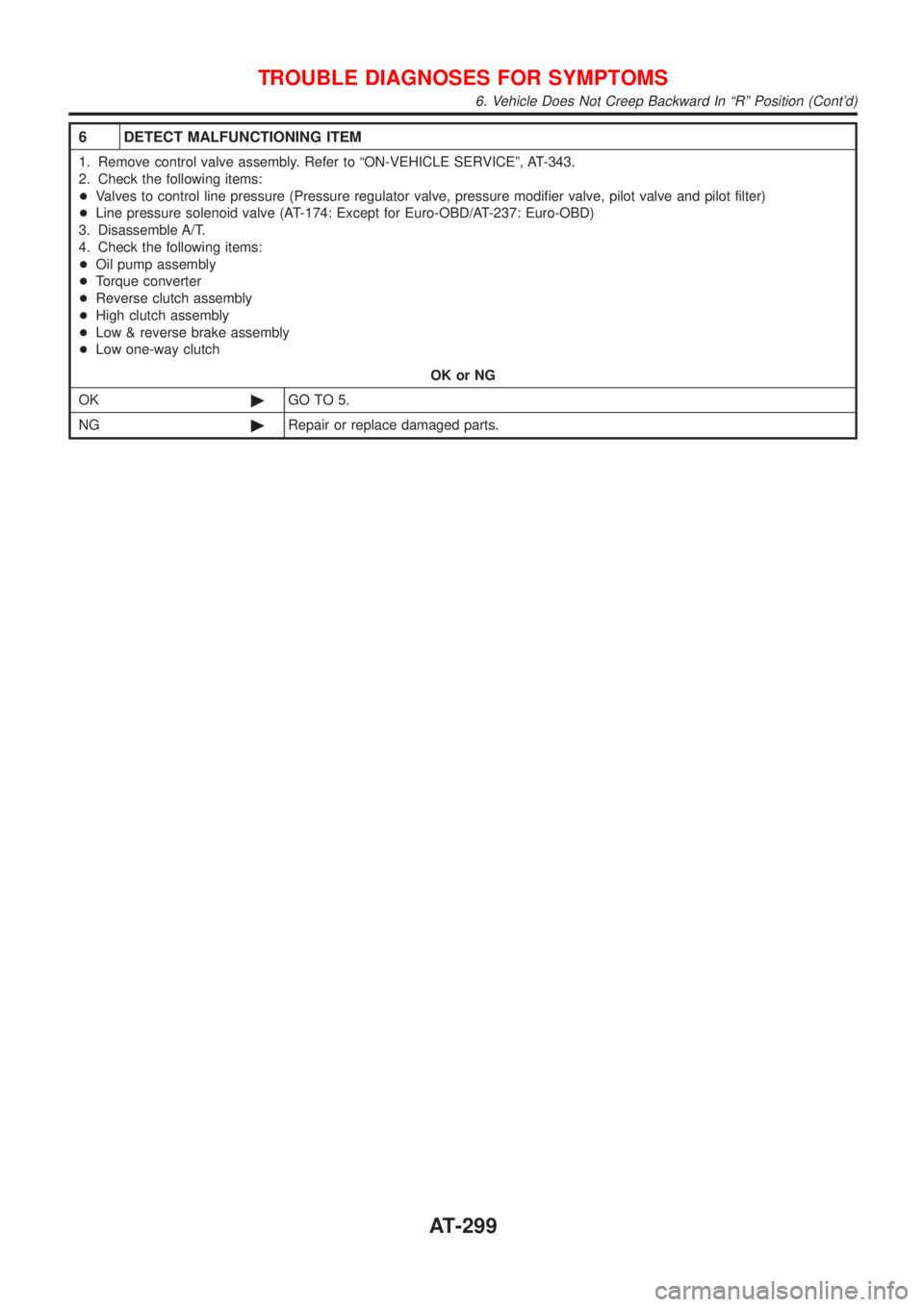

NISSAN ALMERA N16 2001  Electronic Repair Manual 6 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to ªON-VEHICLE SERVICEº, AT-343.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressu

Page 1486 of 2493

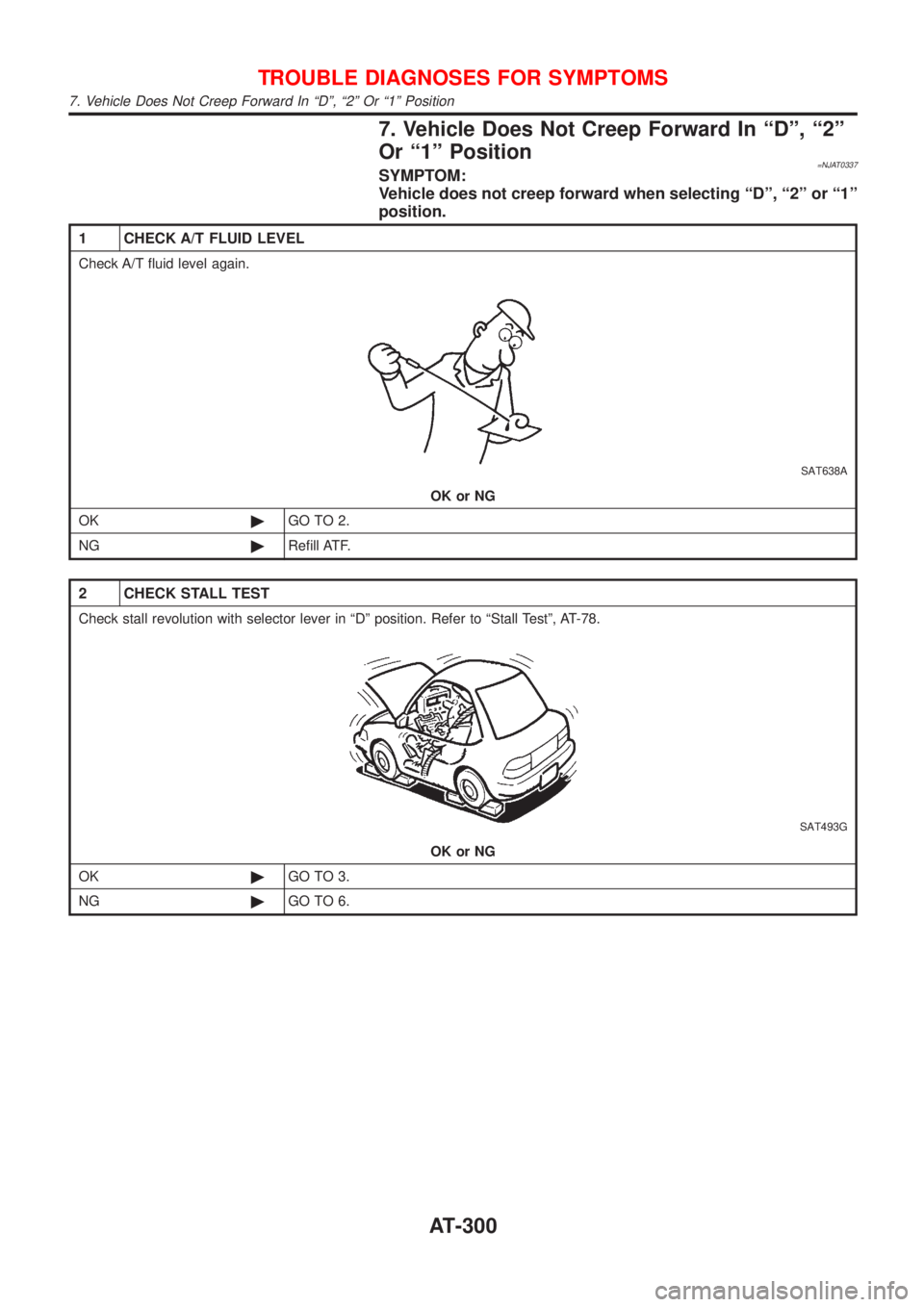

NISSAN ALMERA N16 2001  Electronic Repair Manual 7. Vehicle Does Not Creep Forward In ªDº, ª2º
Or ª1º Position
=NJAT0337SYMPTOM:
Vehicle does not creep forward when selecting ªDº, ª2º or ª1º
position.
1 CHECK A/T FLUID LEVEL
Check A/T fl

Page 1487 of 2493

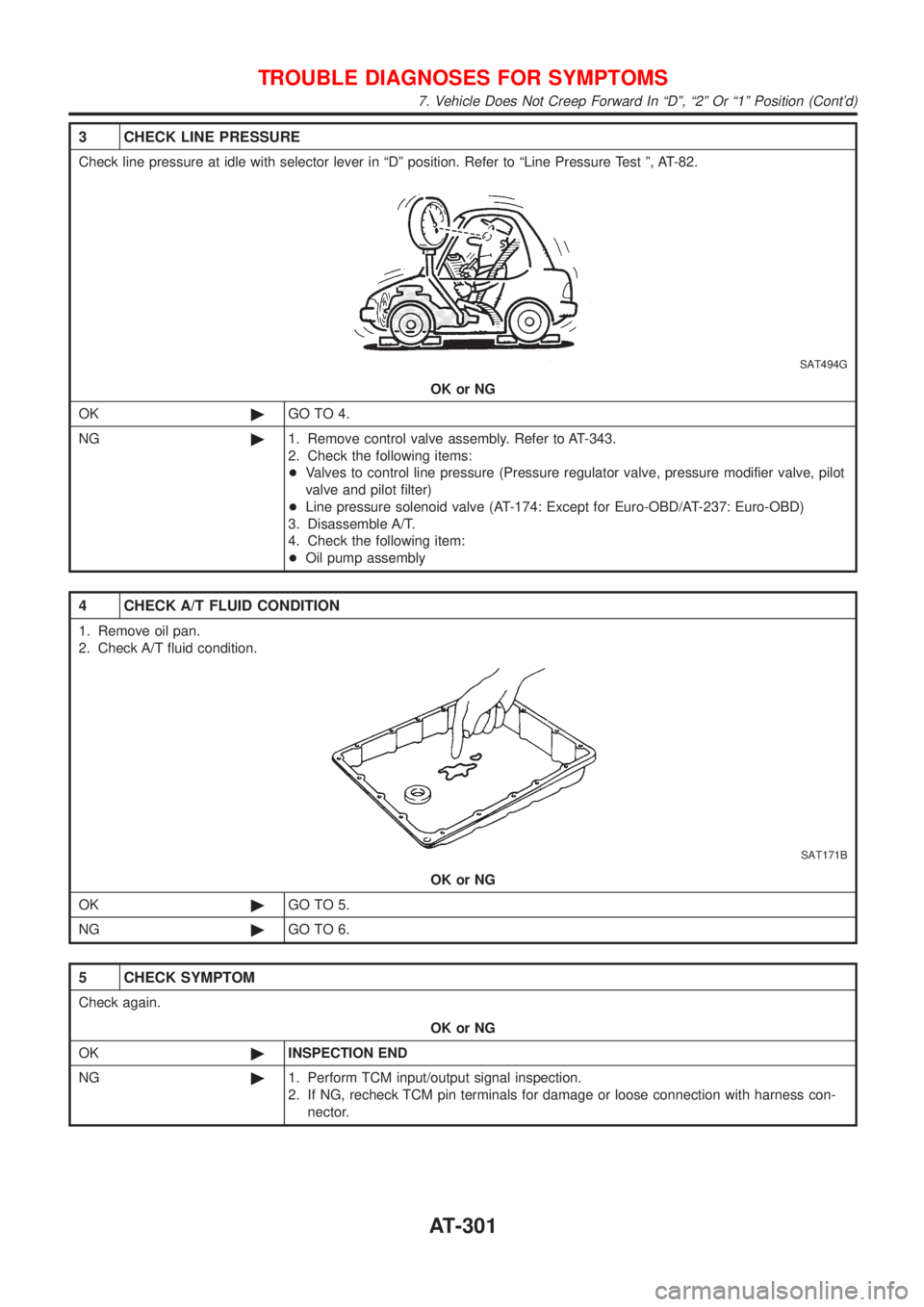

NISSAN ALMERA N16 2001  Electronic Repair Manual 3 CHECK LINE PRESSURE
Check line pressure at idle with selector lever in ªDº position. Refer to ªLine Pressure Test º, AT-82.
SAT494G
OK or NG
OK©GO TO 4.
NG©1. Remove control valve assembly. Re

Page 1488 of 2493

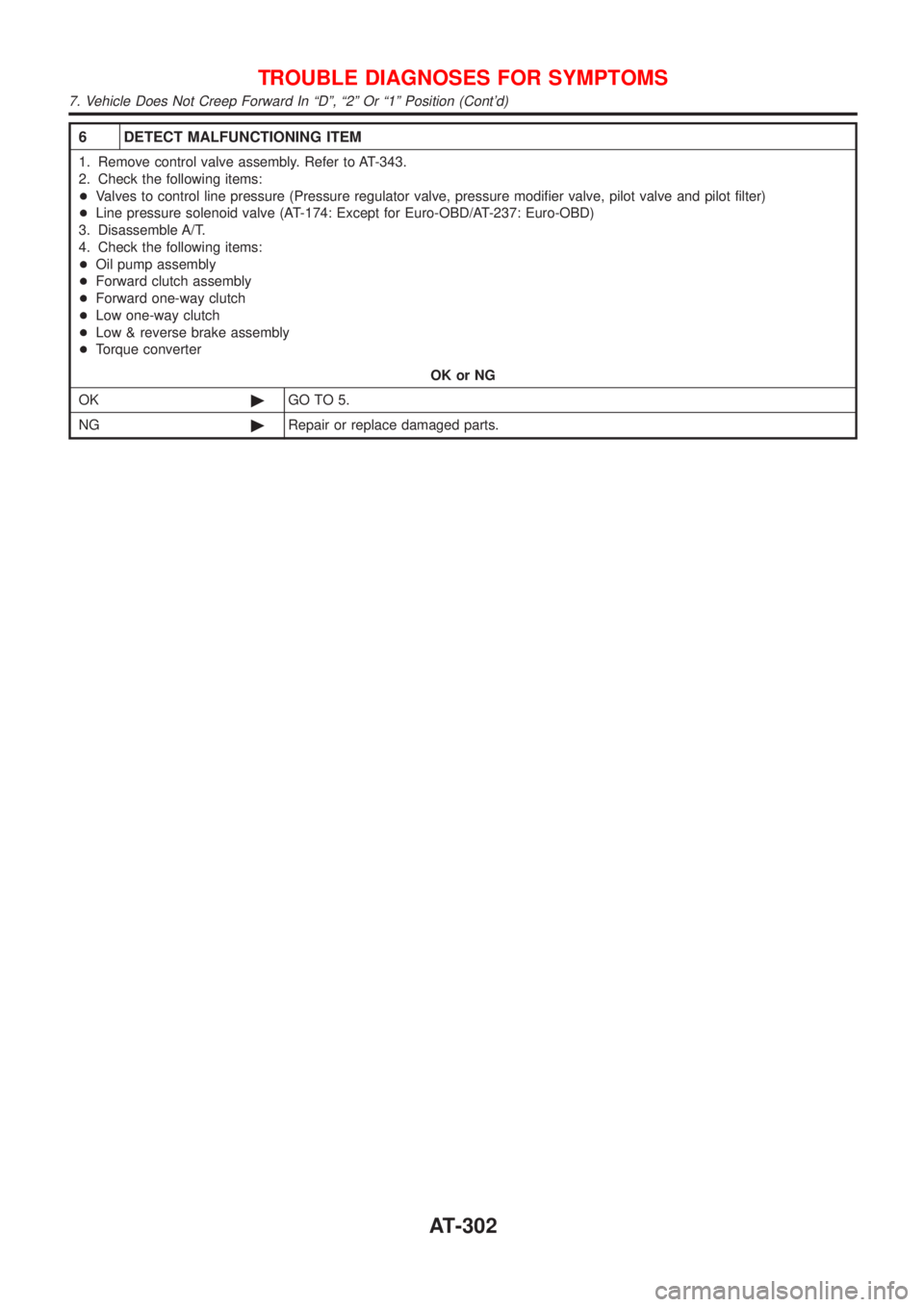

NISSAN ALMERA N16 2001  Electronic Repair Manual 6 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
