Page 2169 of 2493

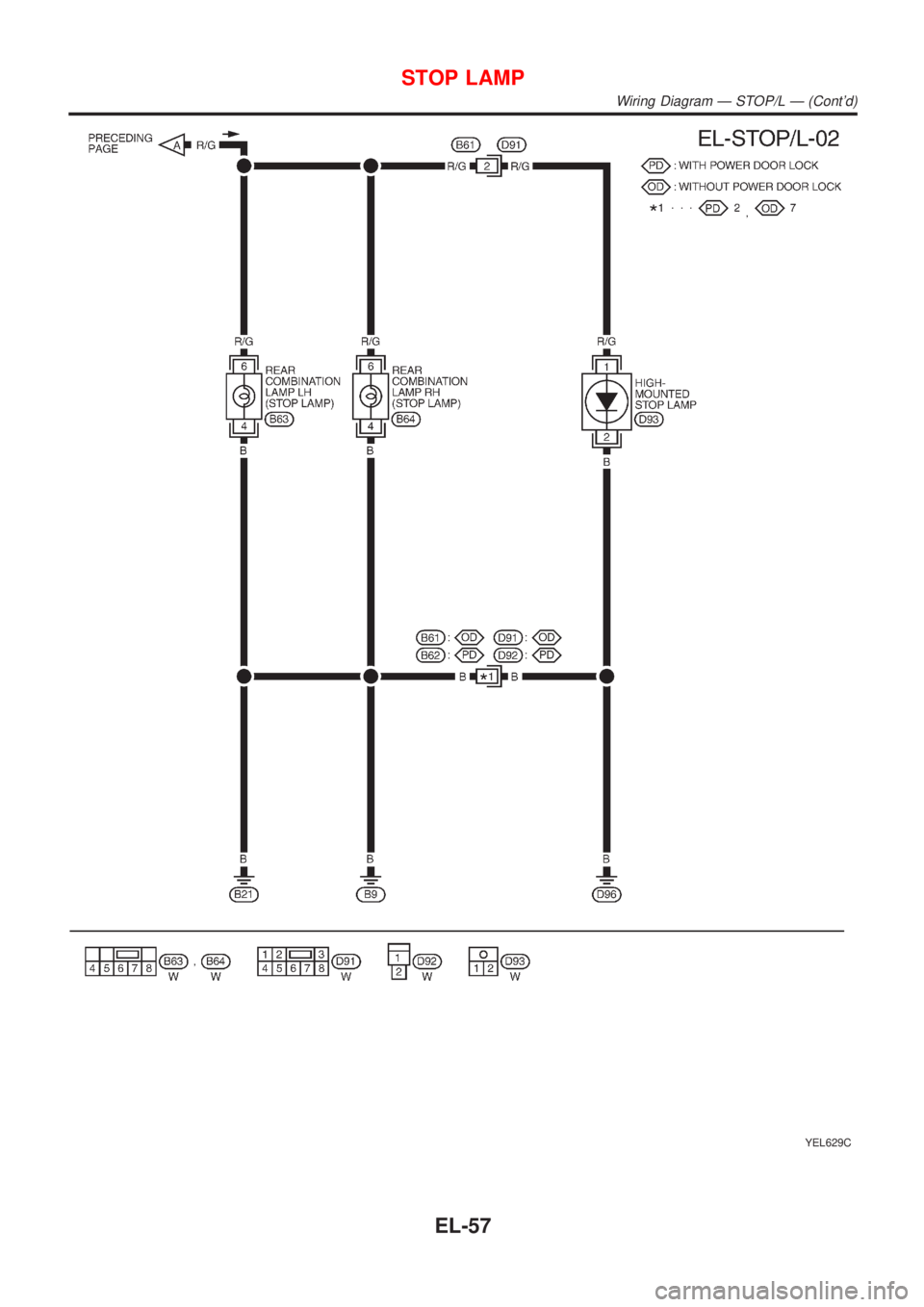

YEL629C
STOP LAMP
Wiring Diagram Ð STOP/L Ð (Cont'd)
EL-57
Page 2170 of 2493
Wiring Diagram Ð BACK/L ÐNJEL0427
YEL630C
BACK-UP LAMP
Wiring Diagram Ð BACK/L Ð
EL-58
Page 2171 of 2493

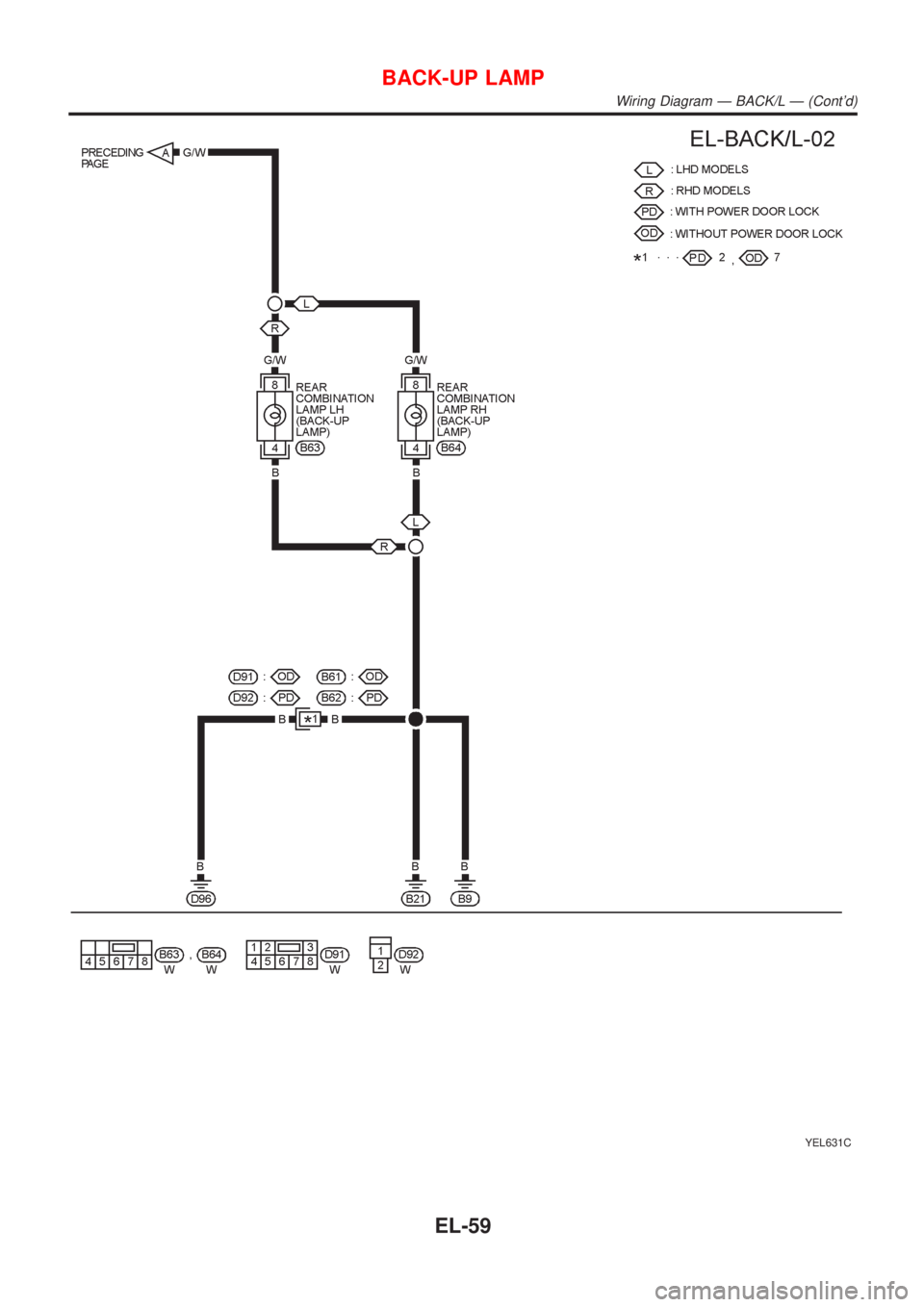

YEL631C
BACK-UP LAMP
Wiring Diagram Ð BACK/L Ð (Cont'd)
EL-59
Page 2172 of 2493

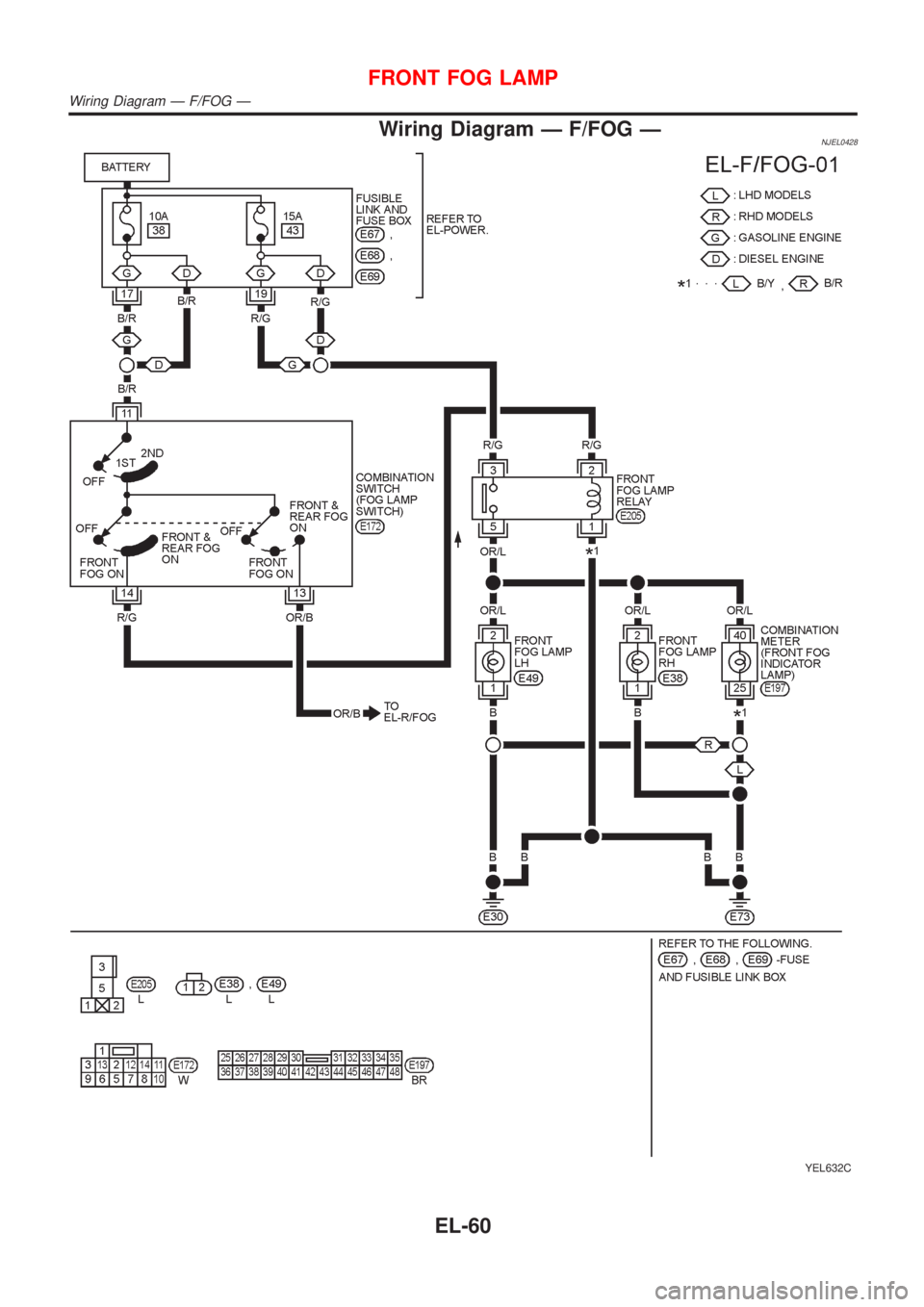

Wiring Diagram Ð F/FOG ÐNJEL0428
YEL632C
FRONT FOG LAMP
Wiring Diagram Ð F/FOG Ð
EL-60
Page 2173 of 2493
SEL975W
Bulb ReplacementNJEL0314The front fog lamp is a semi-sealed beam type which uses a
replaceable halogen bulb.
+Grasp only the plastic base when handling the bulb. Never
touch the glass envelope.
1. Disconnect the battery cable.
2. Disconnect the harness connector from the back side of the
bulb.
3. Pull off the bulb cover.
4. Remove the front fog lamp bulb carefully. Do not shake or
rotate the bulb when removing it.
5. Install in the reverse order of removal.
CAUTION:
+Do not leave front fog lamp reflector without bulb for a
long period of time. Dust, moisture, smoke, etc. entering
front fog lamp body may affect the performance of the
front fog lamp. Remove front fog lamp bulb from the front
fog lamp reflector just before a replacement bulb is
installed.
FRONT FOG LAMP
Bulb Replacement
EL-61
Page 2174 of 2493

SEL976W
SEL480X
Aiming Adjustment=NJEL0029Before performing aiming adjustment, make sure of the following.
1) Keep all tires inflated to correct pressure.
2) Place vehicle on level ground.
3) See that vehicle is unloaded (except for full levels of coolant,
engine oil and fuel, and spare tire, jack, and tools). Have the
driver or equivalent weight placed in driver's seat.
Adjust aiming in the vertical direction by turning the adjusting
screw.
MEL327G
1. Set the distance between the screen and the center of the fog
lamp lens as shown at left.
2. Remove front fog lamp rim. For detail, refer to ªBODY ENDº in
BT section.
3. Turn front fog lamps ON.
NEL794
4. Adjust front fog lamps so that the top edge of the high inten-
sity zone is 152 mm (6.0 in) (Sedan) or 91 to 136 mm (3.58 to
5.35 in) (Hatchback) below the height of the fog lamp centers
as shown at left.
+When performing adjustment, if necessary, cover the head-
lamps and opposite fog lamp.
FRONT FOG LAMP
Aiming Adjustment
EL-62
Page 2175 of 2493

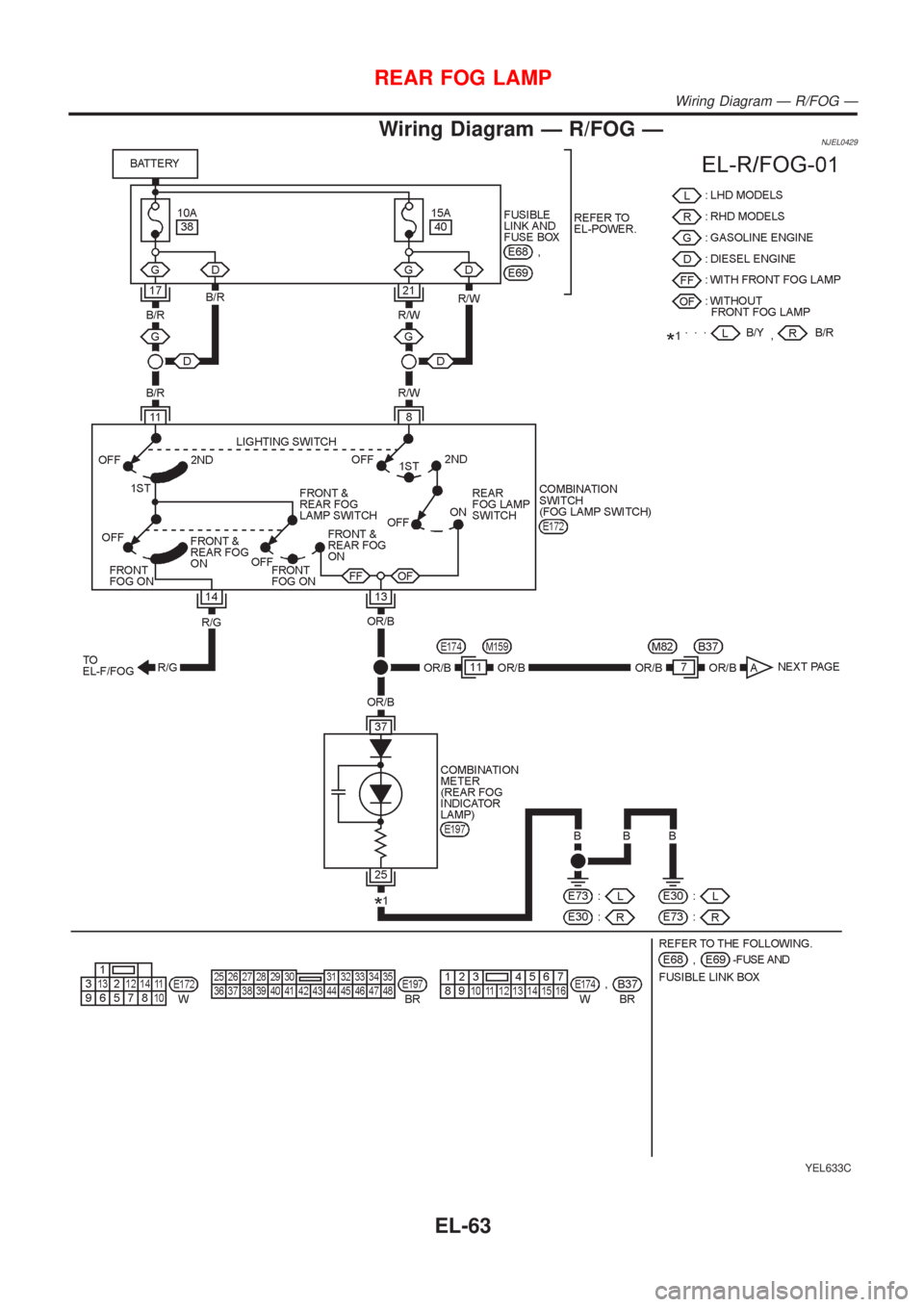

Wiring Diagram Ð R/FOG ÐNJEL0429
YEL633C
REAR FOG LAMP
Wiring Diagram Ð R/FOG Ð
EL-63
Page 2176 of 2493

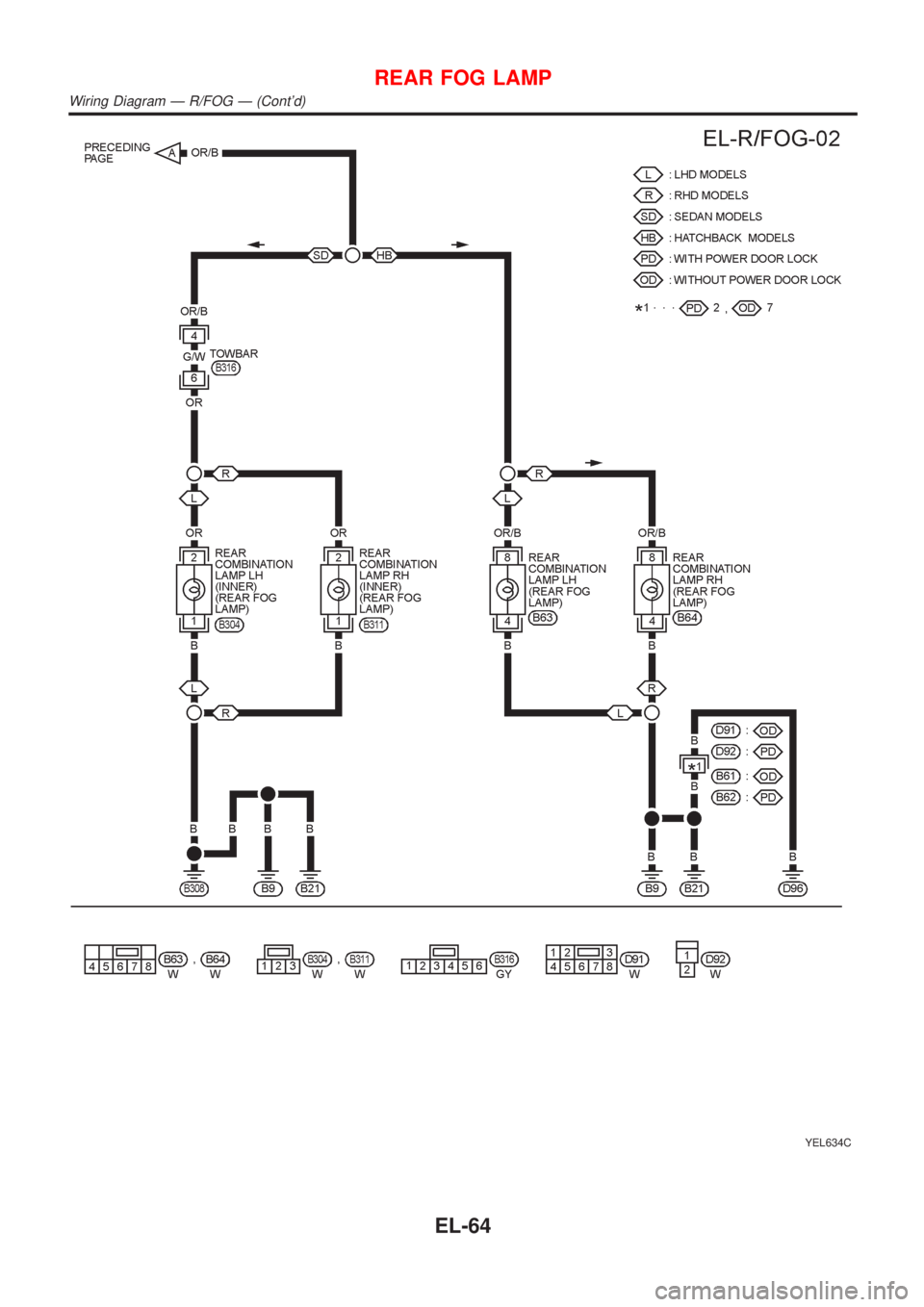

YEL634C
REAR FOG LAMP
Wiring Diagram Ð R/FOG Ð (Cont'd)
EL-64
