NISSAN ALMERA N16 2001 Electronic Repair Manual ComponentsNJEM0070 SEM510GA CYLINDER BLOCKYD Components EM-139

Page 218 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Removal and InstallationNJEM0071CAUTION: +When installing bearings, pistons, or other sliding parts, lubricate contacting surfaces with new engine oil. +Place removed parts such as bearings and bearin

Page 219 of 2493

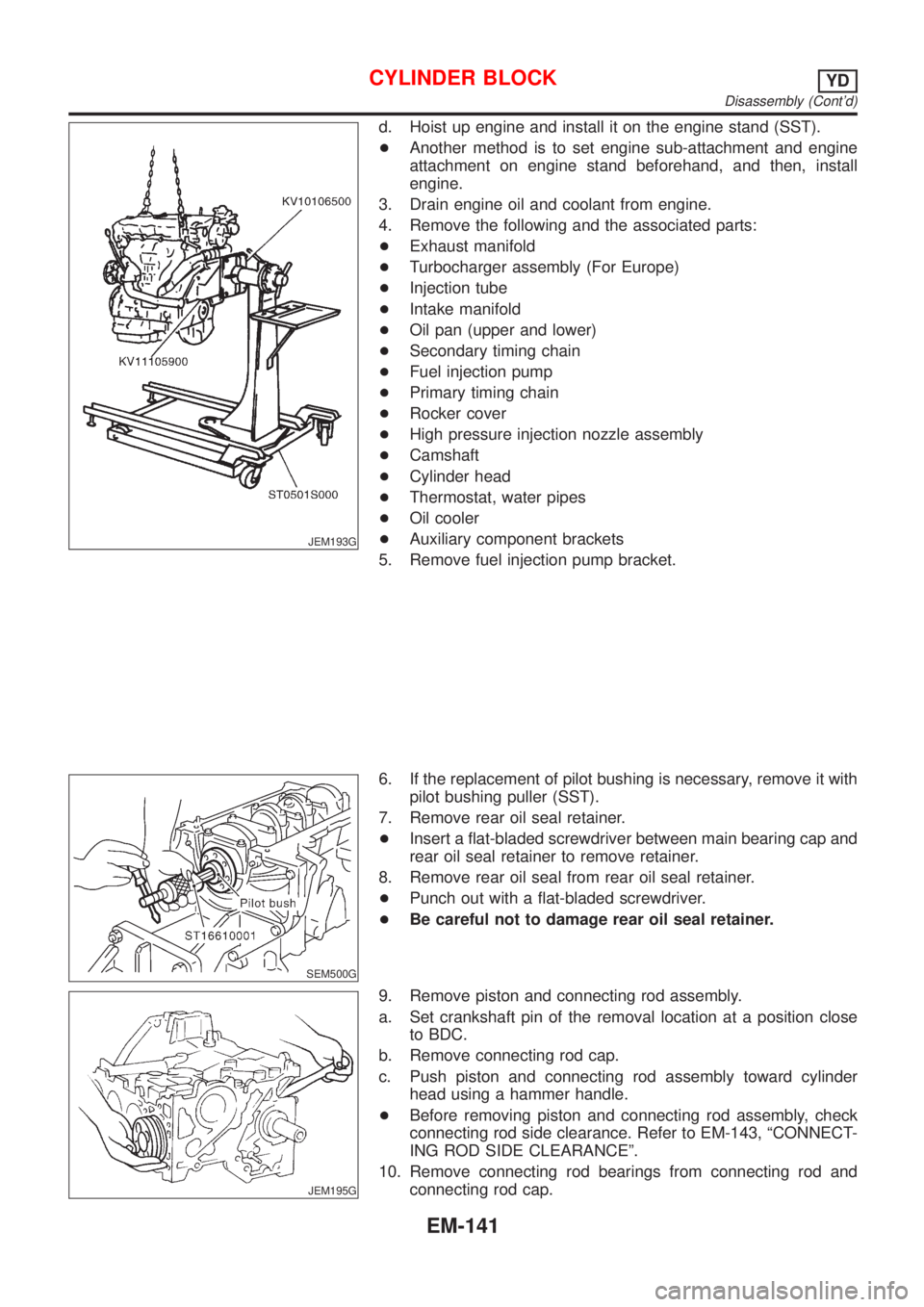

NISSAN ALMERA N16 2001 Electronic Repair Manual JEM193G d. Hoist up engine and install it on the engine stand (SST). +Another method is to set engine sub-attachment and engine attachment on engine stand beforehand, and then, install engine. 3. Drai

Page 220 of 2493

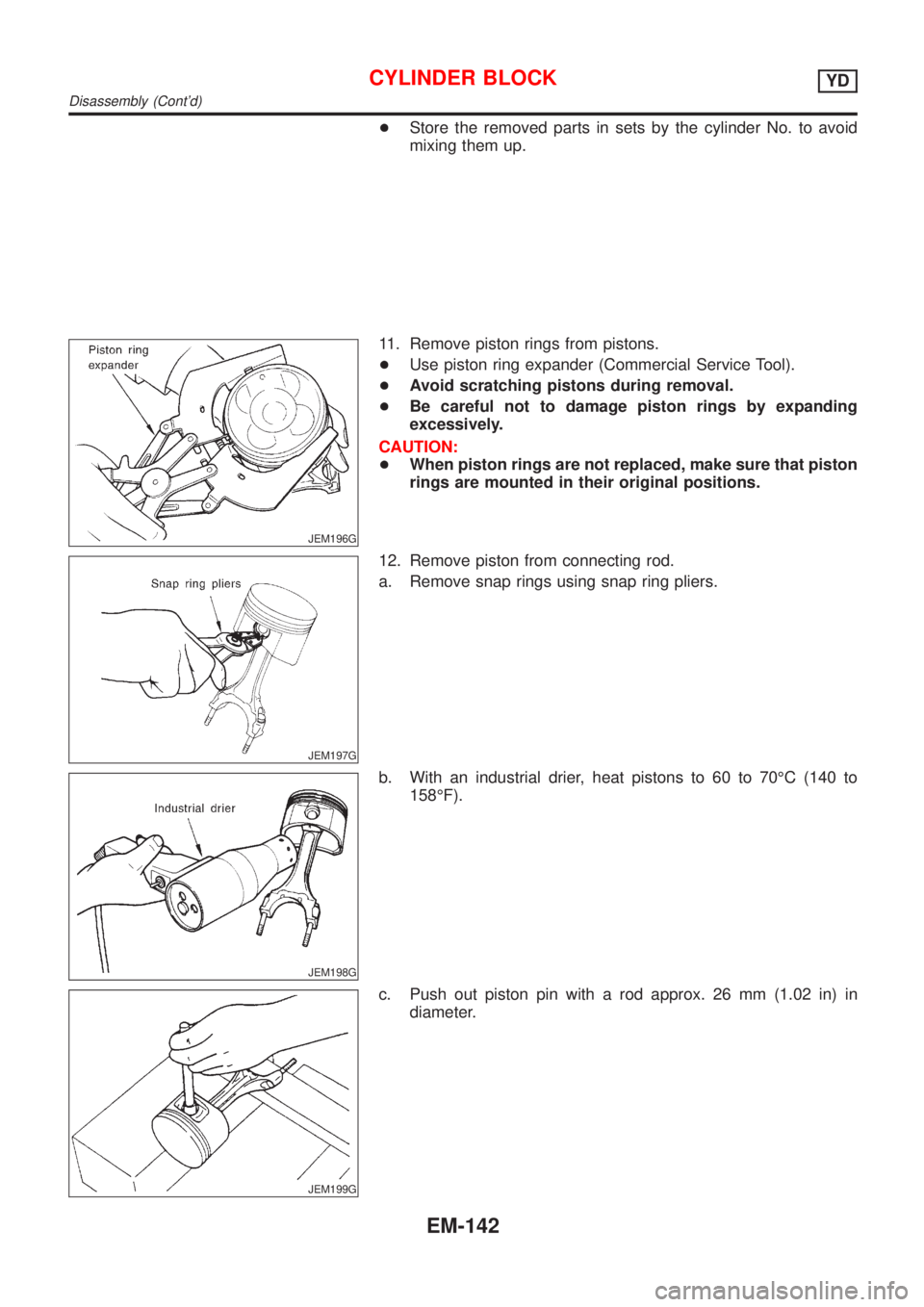

NISSAN ALMERA N16 2001 Electronic Repair Manual +Store the removed parts in sets by the cylinder No. to avoid mixing them up. JEM196G 11. Remove piston rings from pistons. +Use piston ring expander (Commercial Service Tool). +Avoid scratching pisto

Page 221 of 2493

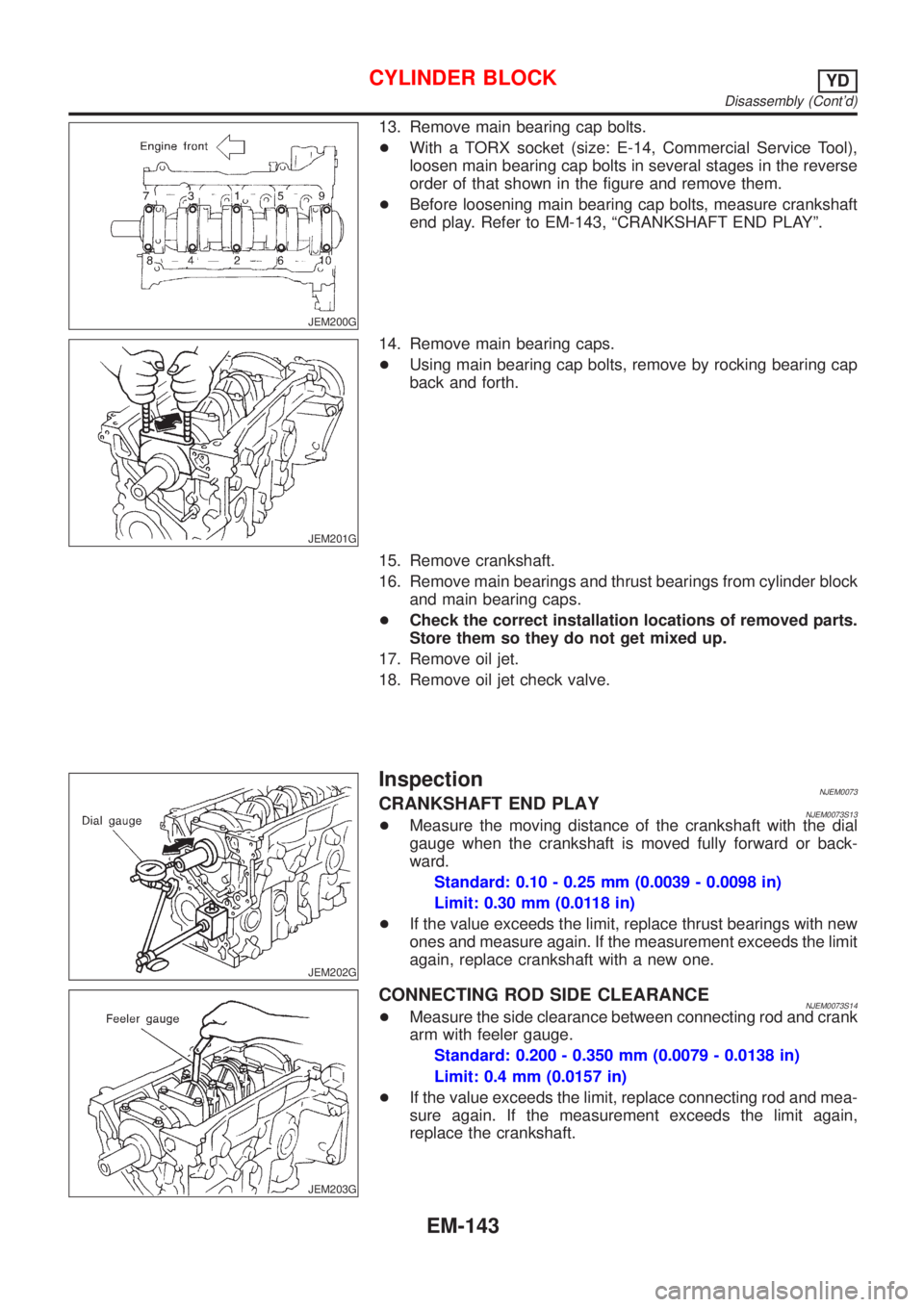

NISSAN ALMERA N16 2001 Electronic Repair Manual JEM200G 13. Remove main bearing cap bolts. +With a TORX socket (size: E-14, Commercial Service Tool), loosen main bearing cap bolts in several stages in the reverse order of that shown in the figure a

Page 222 of 2493

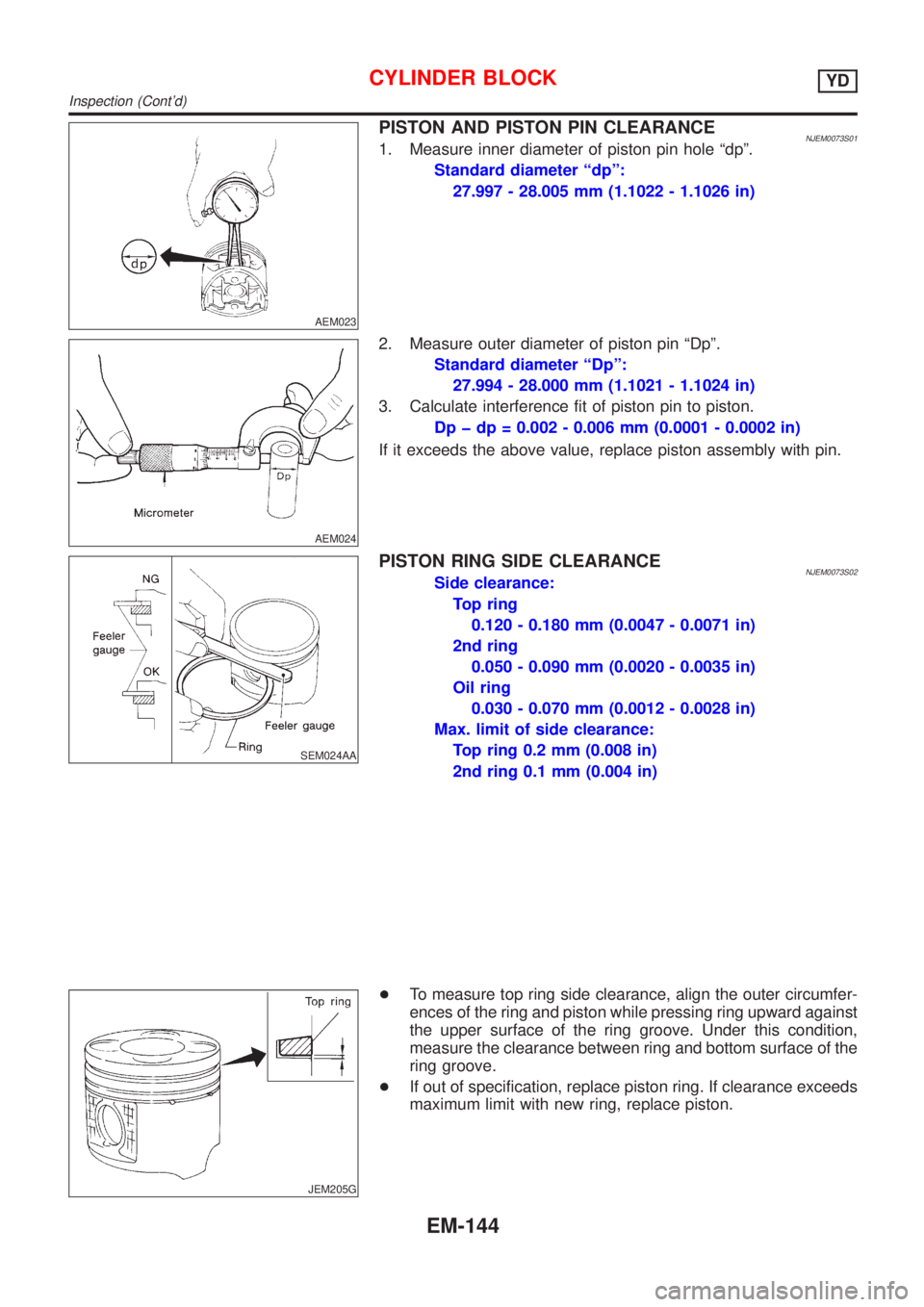

NISSAN ALMERA N16 2001 Electronic Repair Manual AEM023 PISTON AND PISTON PIN CLEARANCENJEM0073S011. Measure inner diameter of piston pin hole ªdpº. Standard diameter ªdpº: 27.997 - 28.005 mm (1.1022 - 1.1026 in) AEM024 2. Measure outer diameter

Page 223 of 2493

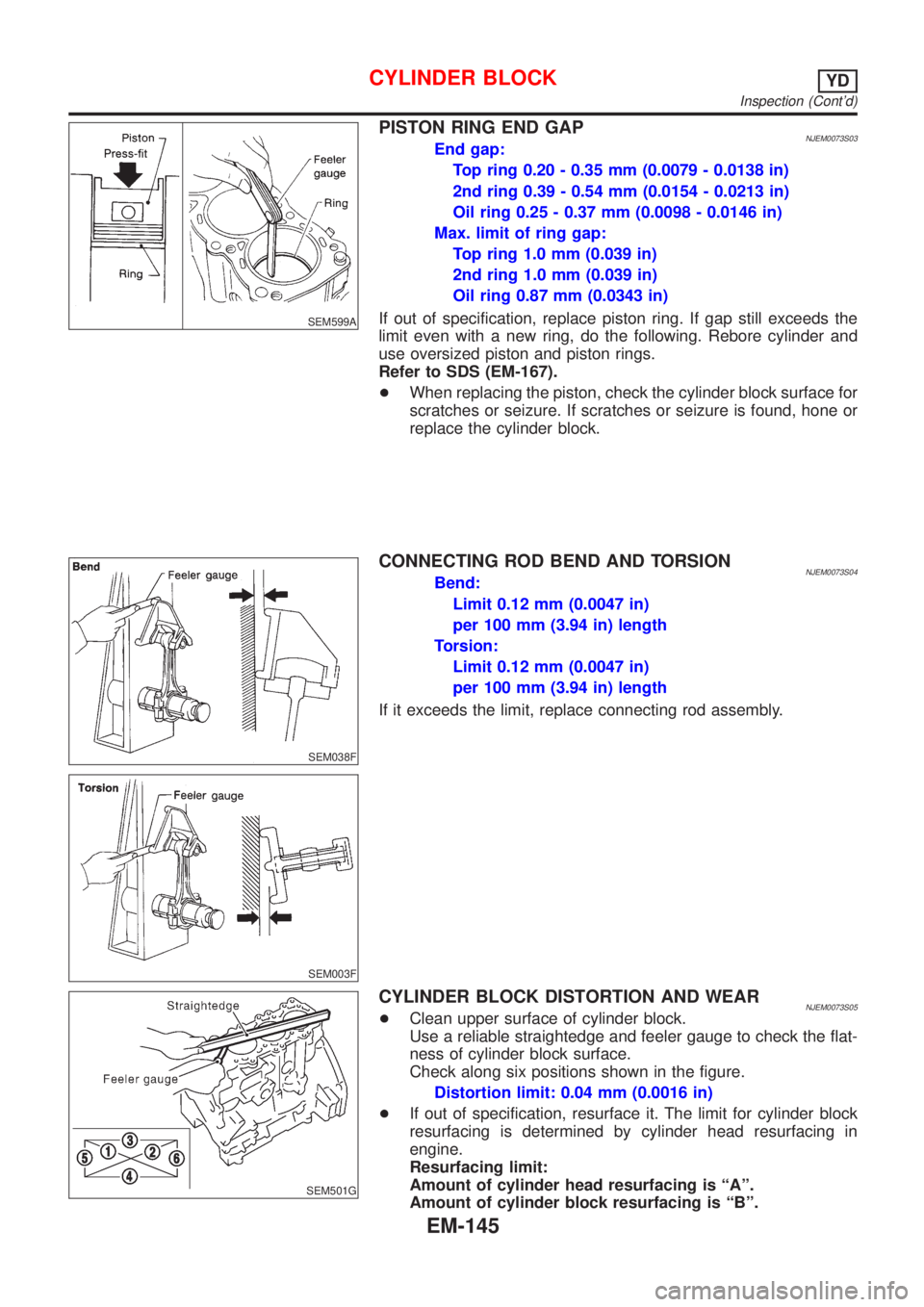

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM599A PISTON RING END GAPNJEM0073S03End gap: Top ring 0.20 - 0.35 mm (0.0079 - 0.0138 in) 2nd ring 0.39 - 0.54 mm (0.0154 - 0.0213 in) Oil ring 0.25 - 0.37 mm (0.0098 - 0.0146 in) Max. limit of ring

Page 224 of 2493

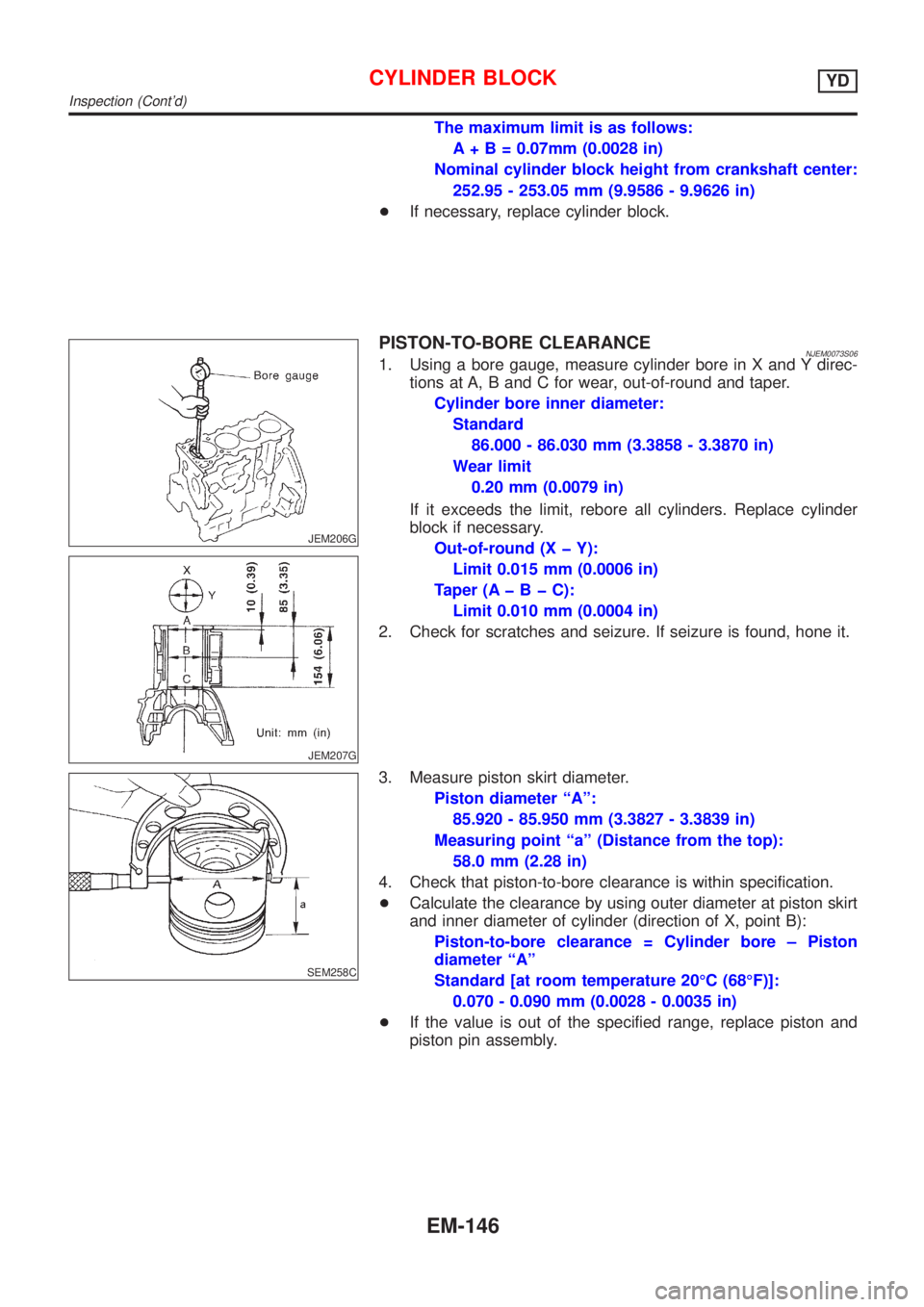

NISSAN ALMERA N16 2001 Electronic Repair Manual The maximum limit is as follows: A + B = 0.07mm (0.0028 in) Nominal cylinder block height from crankshaft center: 252.95 - 253.05 mm (9.9586 - 9.9626 in) +If necessary, replace cylinder block. JEM206G
