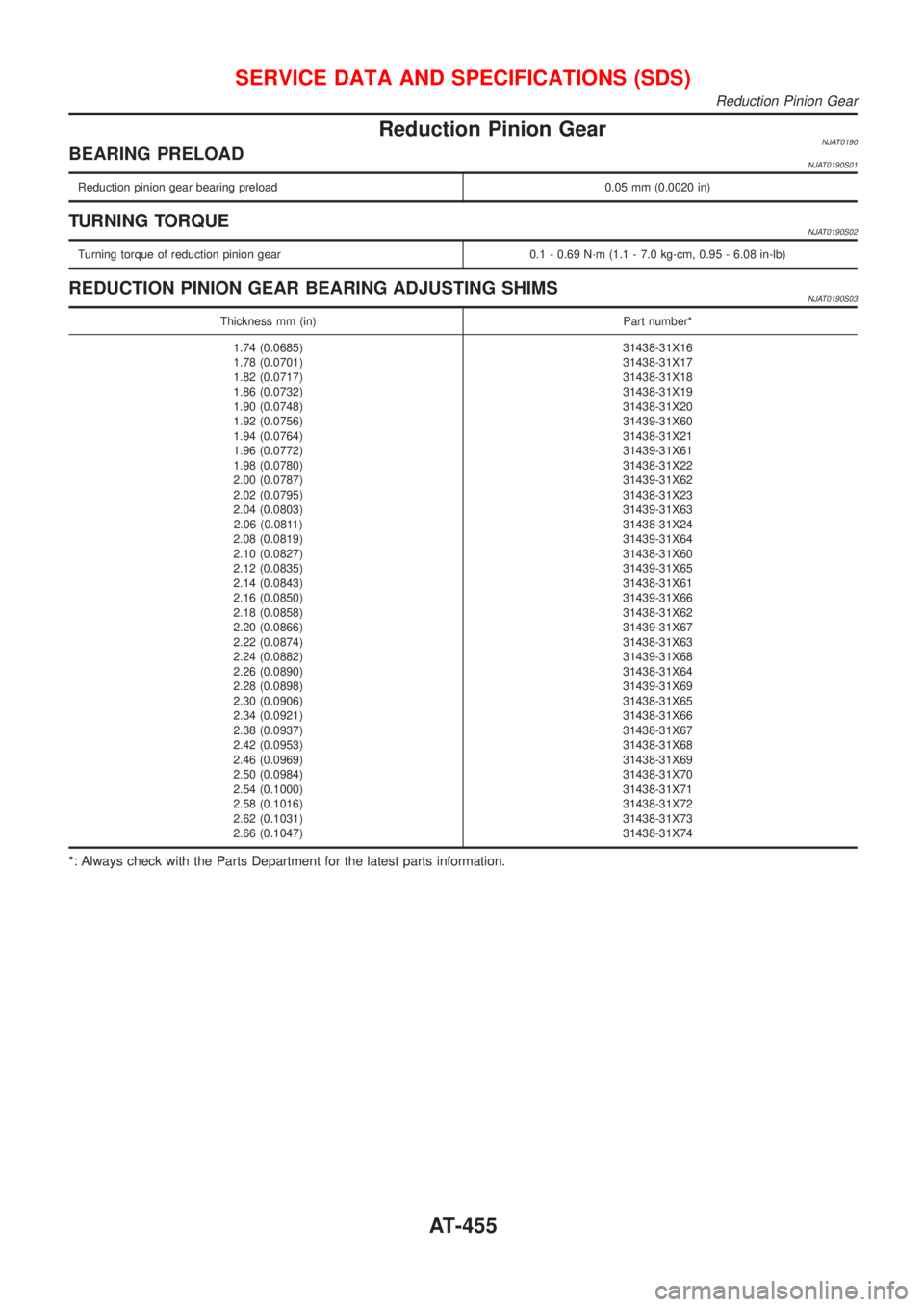

NISSAN ALMERA N16 2001 Electronic Repair Manual Reduction Pinion GearNJAT0190BEARING PRELOADNJAT0190S01
Reduction pinion gear bearing preload 0.05 mm (0.0020 in)
TURNING TORQUENJAT0190S02
Turning torque of reduction pinion gear 0.1 - 0.69 N´m (1.1

Page 1642 of 2493

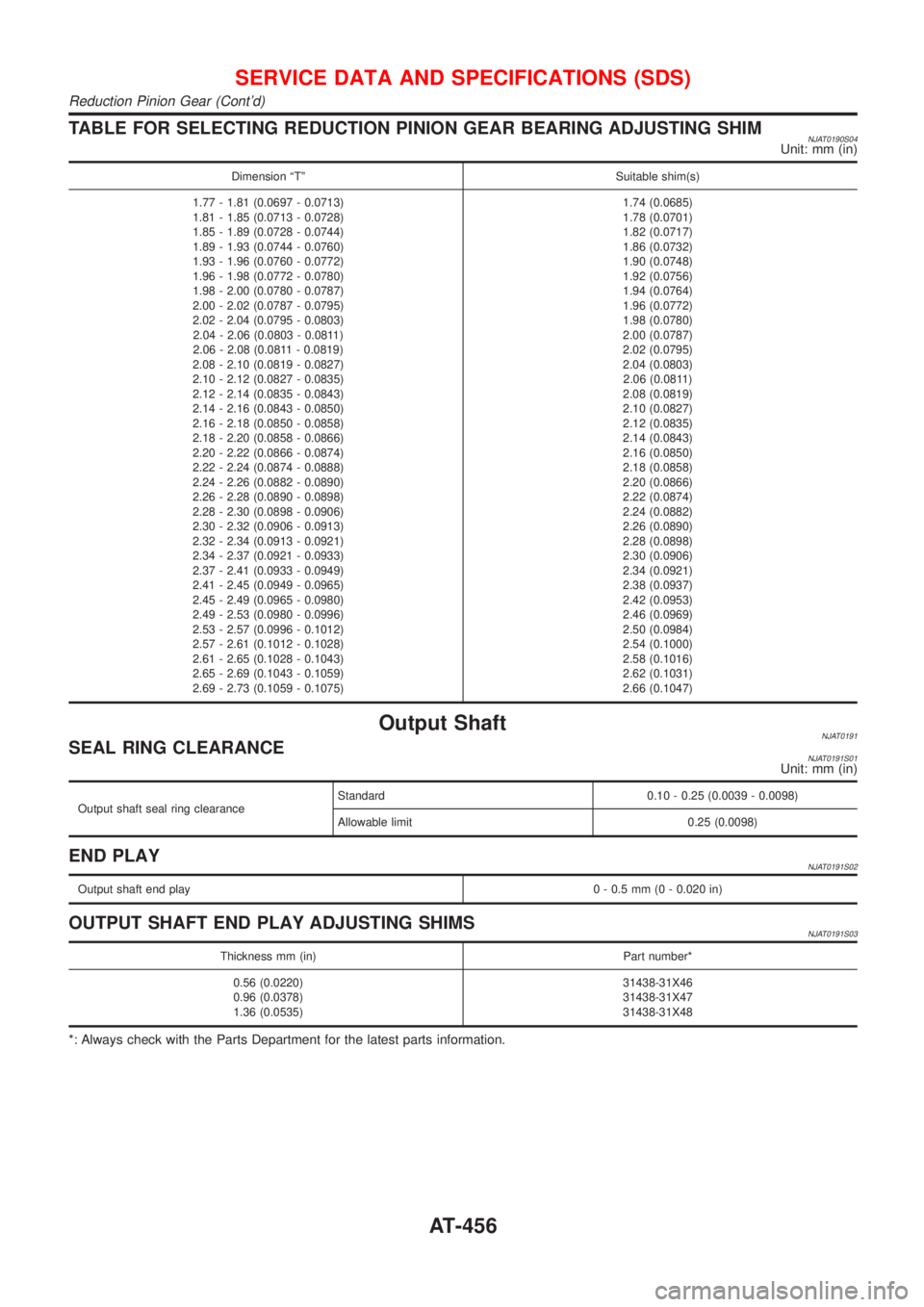

NISSAN ALMERA N16 2001 Electronic Repair Manual TABLE FOR SELECTING REDUCTION PINION GEAR BEARING ADJUSTING SHIMNJAT0190S04Unit: mm (in)
Dimension ªTº Suitable shim(s)
1.77 - 1.81 (0.0697 - 0.0713)
1.81 - 1.85 (0.0713 - 0.0728)
1.85 - 1.89 (0.072

TABLE FOR SELECTING REDUCTION PINION GEAR BEARING ADJUSTING SHIMNJAT0190S04Unit: mm (in)
Dimension ªTº Suitable shim(s)
1.77 - 1.81 (0.0697 - 0.0713)
1.81 - 1.85 (0.0713 - 0.0728)
1.85 - 1.89 (0.0728 - 0.0744)
1.89 - 1.93 (0.0744 - 0.0760)
1.93 - 1.96 (0.0760 - 0.0772)
1.96 - 1.98 (0.0772 - 0.0780)
1.98 - 2.00 (0.0780 - 0.0787)
2.00 - 2.02 (0.0787 - 0.0795)
2.02 - 2.04 (0.0795 - 0.0803)
2.04 - 2.06 (0.0803 - 0.0811)
2.06 - 2.08 (0.0811 - 0.0819)
2.08 - 2.10 (0.0819 - 0.0827)
2.10 - 2.12 (0.0827 - 0.0835)
2.12 - 2.14 (0.0835 - 0.0843)
2.14 - 2.16 (0.0843 - 0.0850)
2.16 - 2.18 (0.0850 - 0.0858)
2.18 - 2.20 (0.0858 - 0.0866)
2.20 - 2.22 (0.0866 - 0.0874)
2.22 - 2.24 (0.0874 - 0.0888)
2.24 - 2.26 (0.0882 - 0.0890)
2.26 - 2.28 (0.0890 - 0.0898)
2.28 - 2.30 (0.0898 - 0.0906)
2.30 - 2.32 (0.0906 - 0.0913)
2.32 - 2.34 (0.0913 - 0.0921)
2.34 - 2.37 (0.0921 - 0.0933)
2.37 - 2.41 (0.0933 - 0.0949)
2.41 - 2.45 (0.0949 - 0.0965)
2.45 - 2.49 (0.0965 - 0.0980)
2.49 - 2.53 (0.0980 - 0.0996)
2.53 - 2.57 (0.0996 - 0.1012)
2.57 - 2.61 (0.1012 - 0.1028)
2.61 - 2.65 (0.1028 - 0.1043)
2.65 - 2.69 (0.1043 - 0.1059)
2.69 - 2.73 (0.1059 - 0.1075)1.74 (0.0685)
1.78 (0.0701)
1.82 (0.0717)
1.86 (0.0732)
1.90 (0.0748)
1.92 (0.0756)
1.94 (0.0764)
1.96 (0.0772)
1.98 (0.0780)
2.00 (0.0787)
2.02 (0.0795)
2.04 (0.0803)
2.06 (0.0811)
2.08 (0.0819)
2.10 (0.0827)
2.12 (0.0835)
2.14 (0.0843)
2.16 (0.0850)
2.18 (0.0858)
2.20 (0.0866)
2.22 (0.0874)
2.24 (0.0882)
2.26 (0.0890)
2.28 (0.0898)
2.30 (0.0906)
2.34 (0.0921)
2.38 (0.0937)
2.42 (0.0953)
2.46 (0.0969)
2.50 (0.0984)
2.54 (0.1000)
2.58 (0.1016)
2.62 (0.1031)
2.66 (0.1047)
Output ShaftNJAT0191SEAL RING CLEARANCENJAT0191S01Unit: mm (in)
Output shaft seal ring clearanceStandard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
END PLAYNJAT0191S02
Output shaft end play0 - 0.5 mm (0 - 0.020 in)
OUTPUT SHAFT END PLAY ADJUSTING SHIMSNJAT0191S03
Thickness mm (in) Part number*
0.56 (0.0220)
0.96 (0.0378)
1.36 (0.0535)31438-31X46
31438-31X47
31438-31X48
*: Always check with the Parts Department for the latest parts information.
SERVICE DATA AND SPECIFICATIONS (SDS)
Reduction Pinion Gear (Cont'd)
AT-456

Page 1643 of 2493

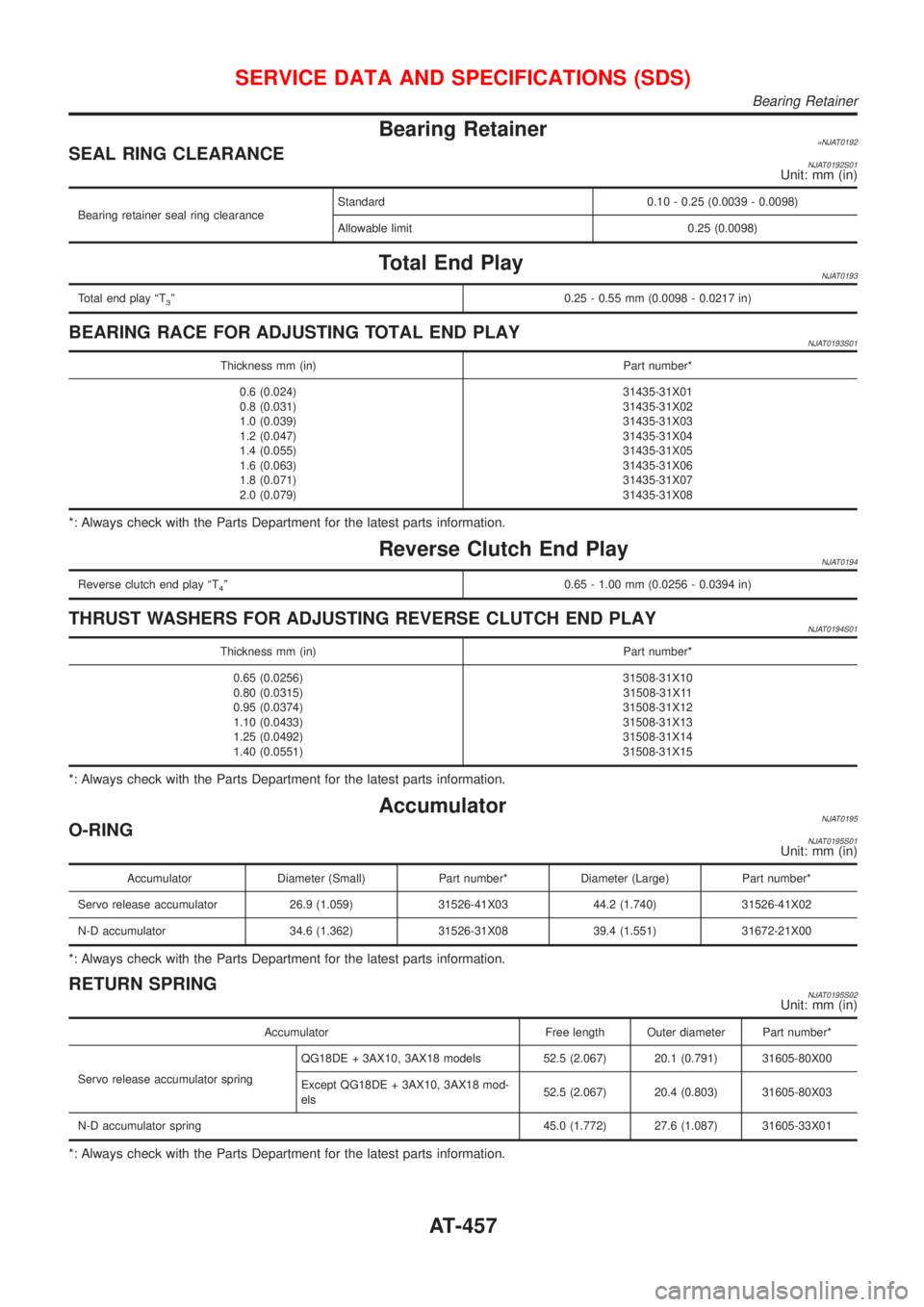

NISSAN ALMERA N16 2001 Electronic Repair Manual Bearing Retainer=NJAT0192SEAL RING CLEARANCENJAT0192S01Unit: mm (in)
Bearing retainer seal ring clearanceStandard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
Total End PlayNJAT0193
Tot

Page 1644 of 2493

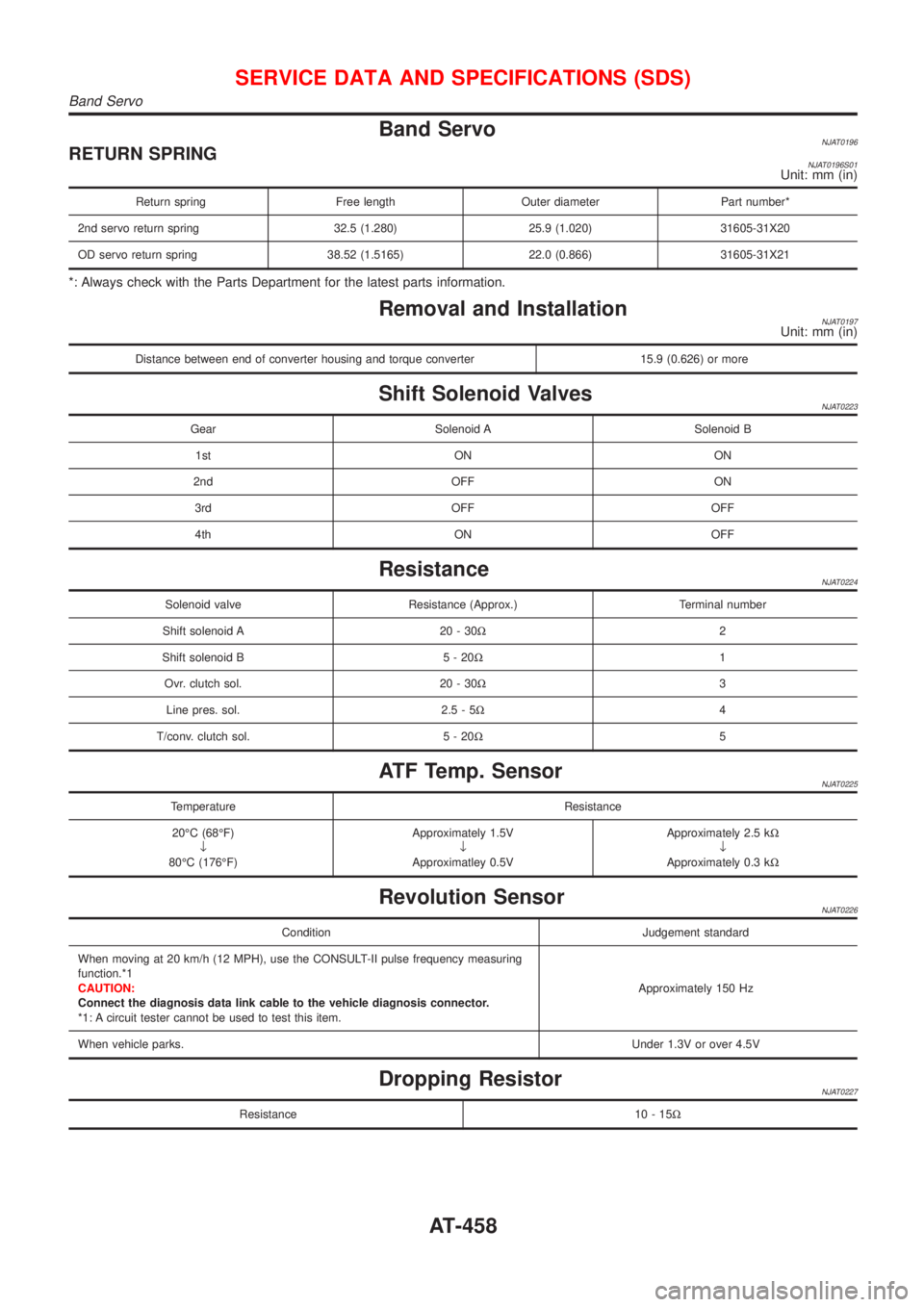

NISSAN ALMERA N16 2001 Electronic Repair Manual Band ServoNJAT0196RETURN SPRINGNJAT0196S01Unit: mm (in)
Return spring Free length Outer diameter Part number*
2nd servo return spring 32.5 (1.280) 25.9 (1.020) 31605-31X20
OD servo return spring 38.52

Page 1645 of 2493

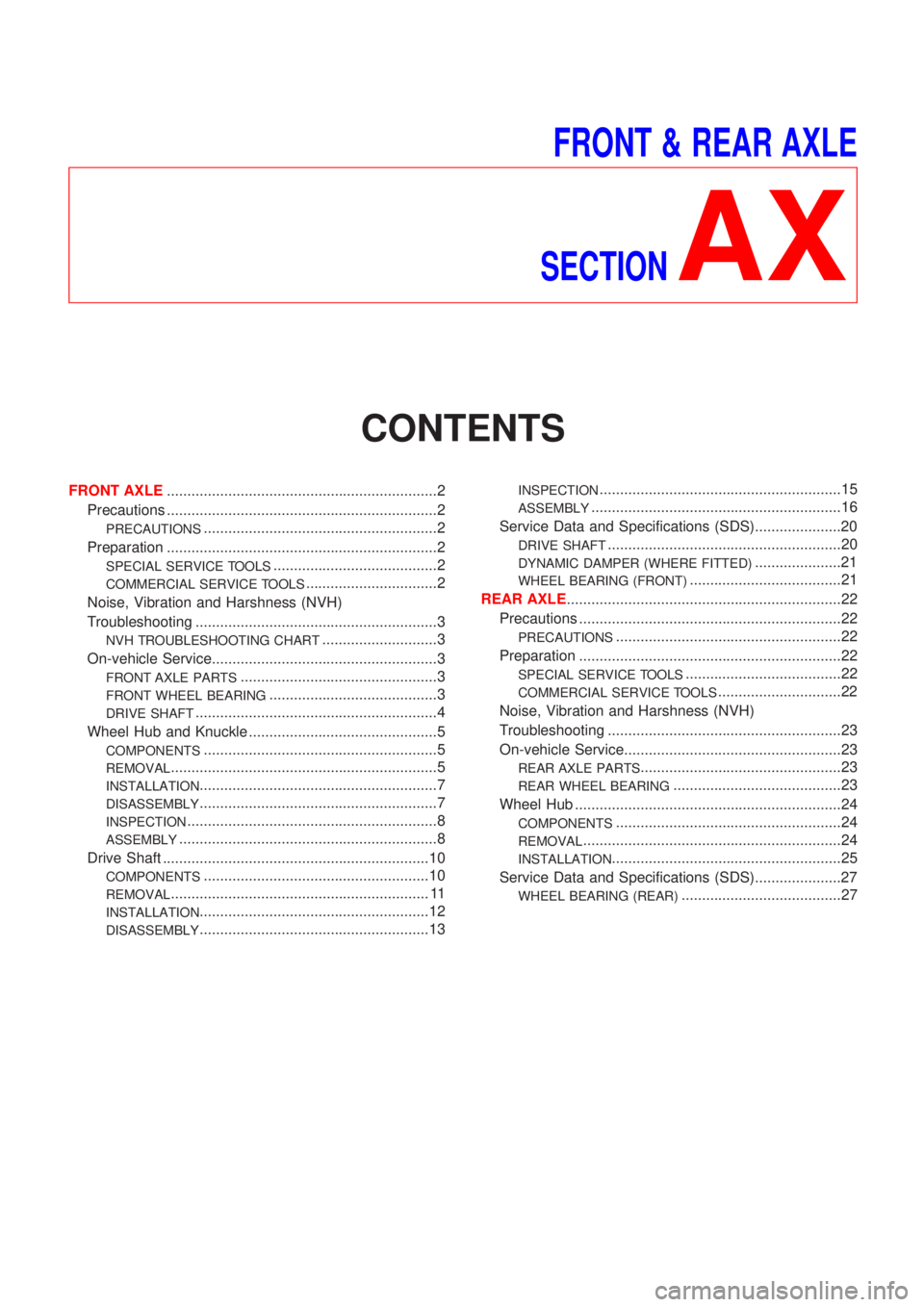

NISSAN ALMERA N16 2001 Electronic Repair Manual FRONT & REAR AXLE
SECTION
AX
CONTENTS
FRONT AXLE..................................................................2
Precautions ..................................................................2
PREC

FRONT & REAR AXLE
SECTION
AX
CONTENTS
FRONT AXLE..................................................................2
Precautions ..................................................................2
PRECAUTIONS.........................................................2
Preparation ..................................................................2
SPECIAL SERVICE TOOLS........................................2
COMMERCIAL SERVICE TOOLS................................2
Noise, Vibration and Harshness (NVH)
Troubleshooting ...........................................................3
NVH TROUBLESHOOTING CHART............................3
On-vehicle Service.......................................................3
FRONT AXLE PARTS................................................3
FRONT WHEEL BEARING.........................................3
DRIVE SHAFT...........................................................4
Wheel Hub and Knuckle ..............................................5
COMPONENTS.........................................................5
REMOVAL.................................................................5
INSTALLATION..........................................................7
DISASSEMBLY..........................................................7
INSPECTION.............................................................8
ASSEMBLY...............................................................8
Drive Shaft .................................................................10
COMPONENTS.......................................................10
REMOVAL............................................................... 11
INSTALLATION........................................................12
DISASSEMBLY........................................................13
INSPECTION...........................................................15
ASSEMBLY.............................................................16
Service Data and Specifications (SDS).....................20
DRIVE SHAFT.........................................................20
DYNAMIC DAMPER (WHERE FITTED).....................21
WHEEL BEARING (FRONT).....................................21
REAR AXLE...................................................................22
Precautions ................................................................22
PRECAUTIONS.......................................................22
Preparation ................................................................22
SPECIAL SERVICE TOOLS......................................22
COMMERCIAL SERVICE TOOLS..............................22
Noise, Vibration and Harshness (NVH)
Troubleshooting .........................................................23
On-vehicle Service.....................................................23
REAR AXLE PARTS.................................................23
REAR WHEEL BEARING.........................................23
Wheel Hub .................................................................24
COMPONENTS.......................................................24
REMOVAL...............................................................24
INSTALLATION........................................................25
Service Data and Specifications (SDS).....................27
WHEEL BEARING (REAR).......................................27

Page 1646 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SBR686C
Precautions
PRECAUTIONSNJAX0001+When installing rubber parts, final tightening must be car-
ried out under unladen condition* with tires on ground.
*: Fuel, radiator coolant and engine oil ful

Page 1647 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Noise, Vibration and Harshness (NVH)
Troubleshooting
=NJAX0004NVH TROUBLESHOOTING CHARTNJAX0004S01Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these p

Page 1648 of 2493

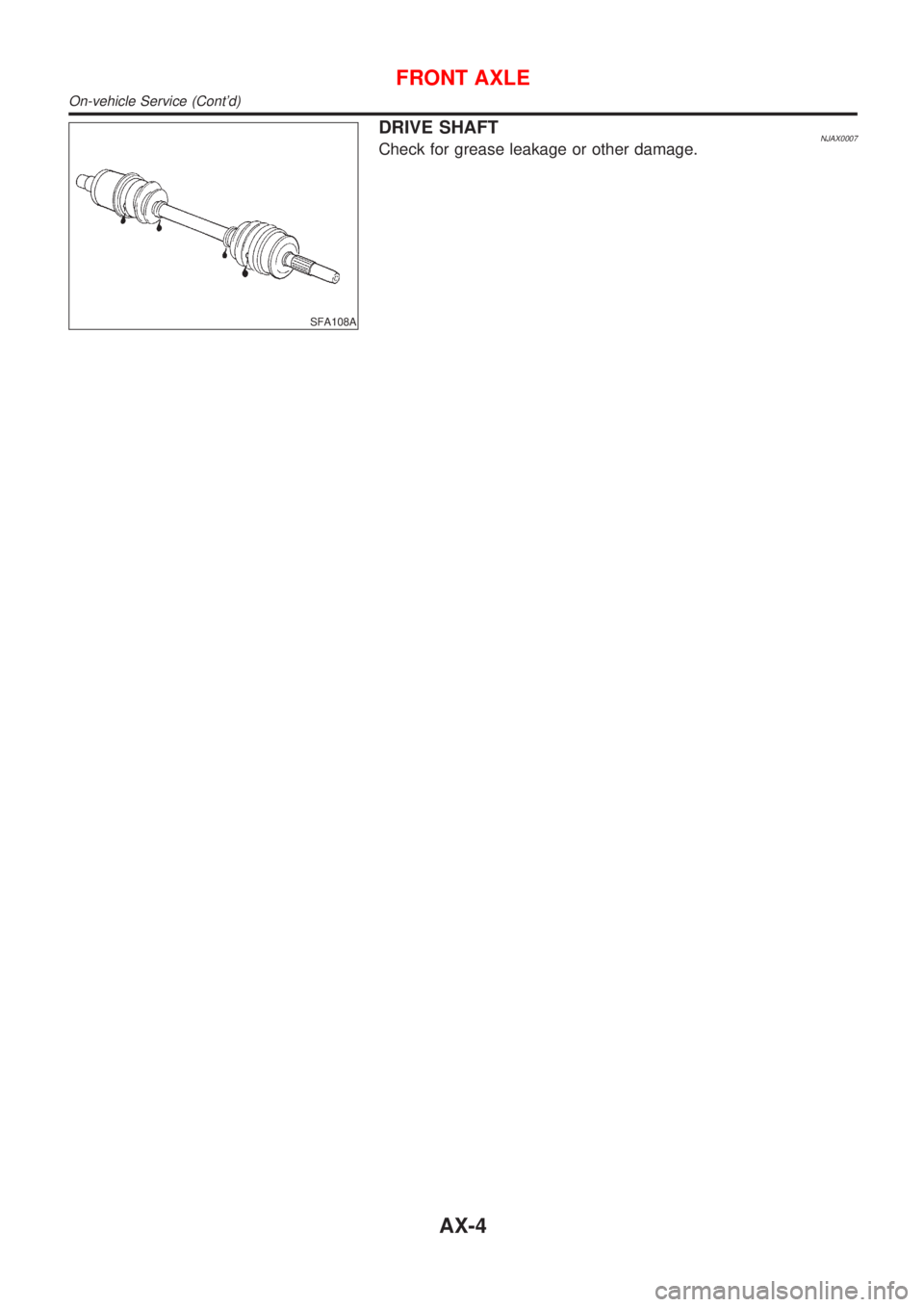

NISSAN ALMERA N16 2001 Electronic Repair Manual SFA108A
DRIVE SHAFTNJAX0007Check for grease leakage or other damage.
FRONT AXLE
On-vehicle Service (Contd)
AX-4
