Checking Brake Fluid LevelNJBR0006+Check fluid level in reservoir tank. It should be between Max
and Min lines on reservoir tank.
+If fluid level is extremely low, check brake system for leaks

Page 1706 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual pressure such that vehicle stopping time equals 3 to 5 sec-
onds.
3. To cool the brake system, drive the vehicle at 50 km/h (31
MPH) for 1 minute without stopping.
4. Repeat steps 1 to 3, 10 times or

Page 1707 of 2493

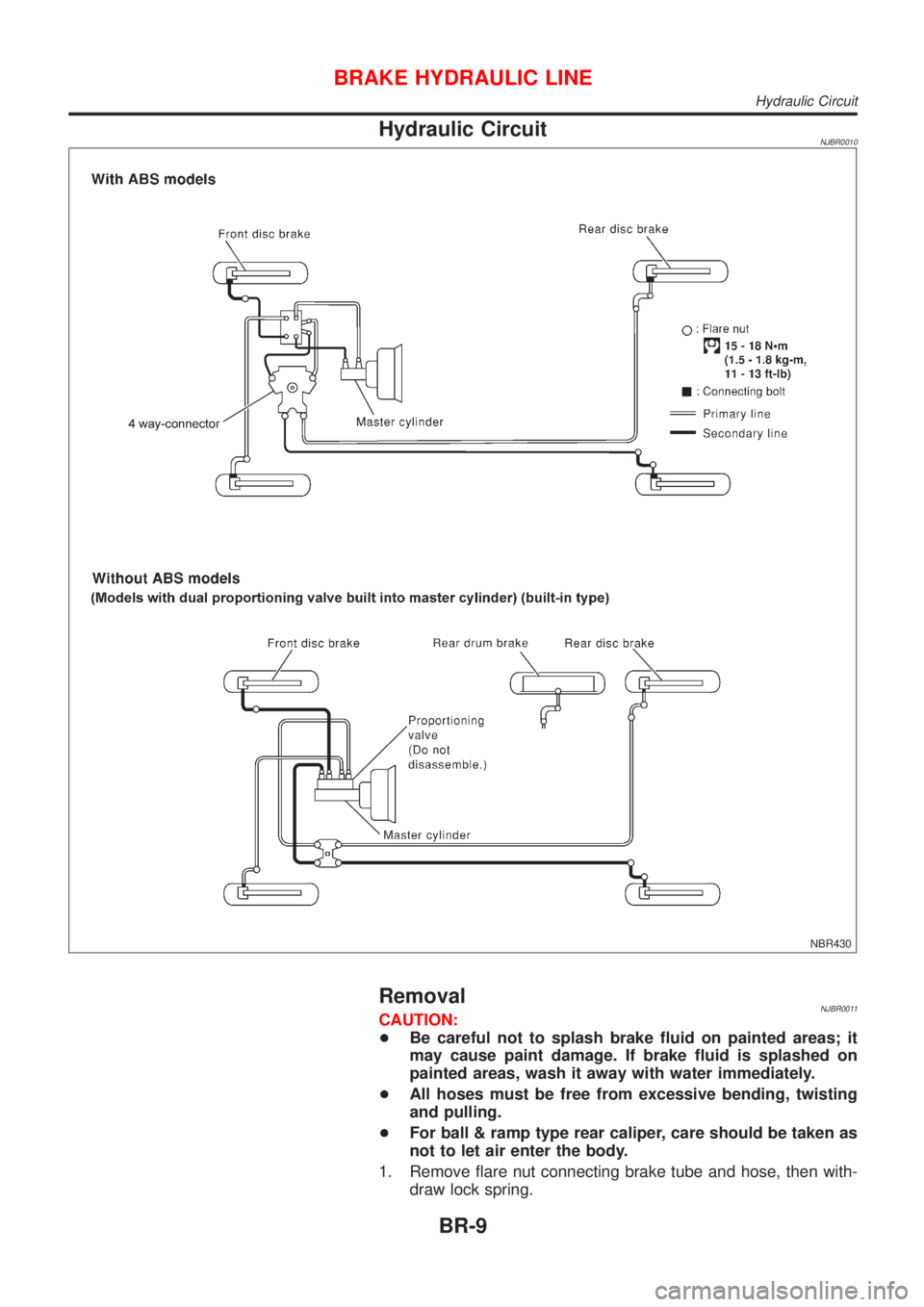

NISSAN ALMERA N16 2001  Electronic Repair Manual Hydraulic CircuitNJBR0010
NBR430
RemovalNJBR0011CAUTION:
+Be careful not to splash brake fluid on painted areas; it
may cause paint damage. If brake fluid is splashed on
painted areas, wash it away wi

Page 1708 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 2. Cover openings to prevent entrance of air and dirt whenever
disconnecting brake line.
InspectionNJBR0012Check brake lines (tubes and hoses) for cracks, deterioration or
other damage. Replace any da

Page 1709 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SBR822BA
SBR823BA
Appliedpressur e(Fron tbrake)

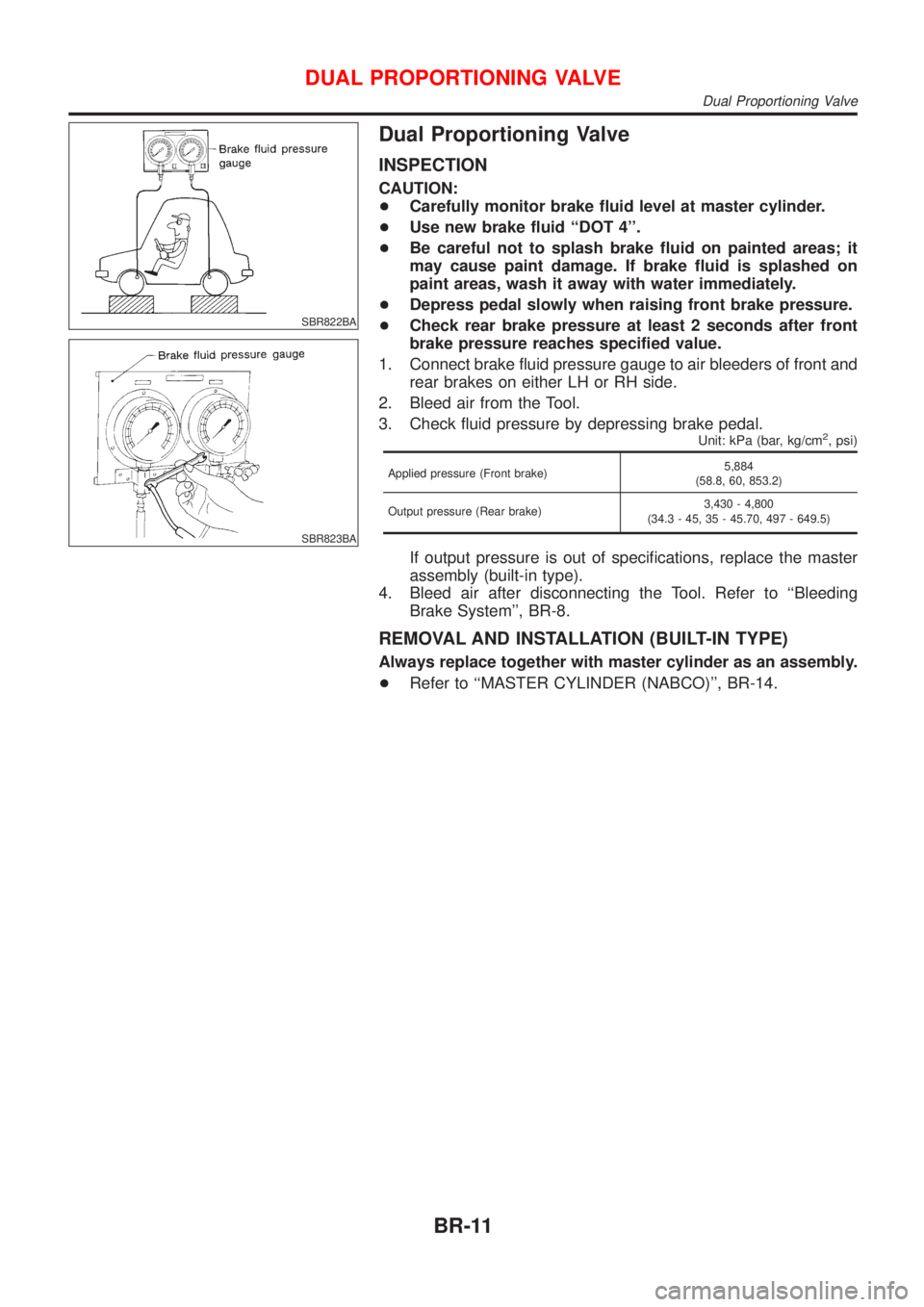

Dual Proportioning Valve

Page 1710 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Removal and InstallationNJBR0015
JBR752E
SBR997
InspectionNJBR0016Check brake pedal for following items.
+Brake pedal bend
+Clevis pin deformation
+Crack of any welded portion
+Crack or deformation of

Page 1711 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SBR229E
1. Loosen lock nut and adjust pedal free height by turning brake
booster input rod. Then tighten lock nut.
2. Check pedal free play.
Make sure that stop lamps go off when pedal is released.
3.

Page 1712 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual RemovalNJBR0139
NBR351
1. Reservoir cap
2. Oil filter
3. Reservoir tank4. Seal
5. Cylinder body
6. Secondary piston assembly7. Primary piston assembly
8. Stopper cap
CAUTION:
Be careful not to splash
