Page 1073 of 2493

NJMT0008
SMT928D

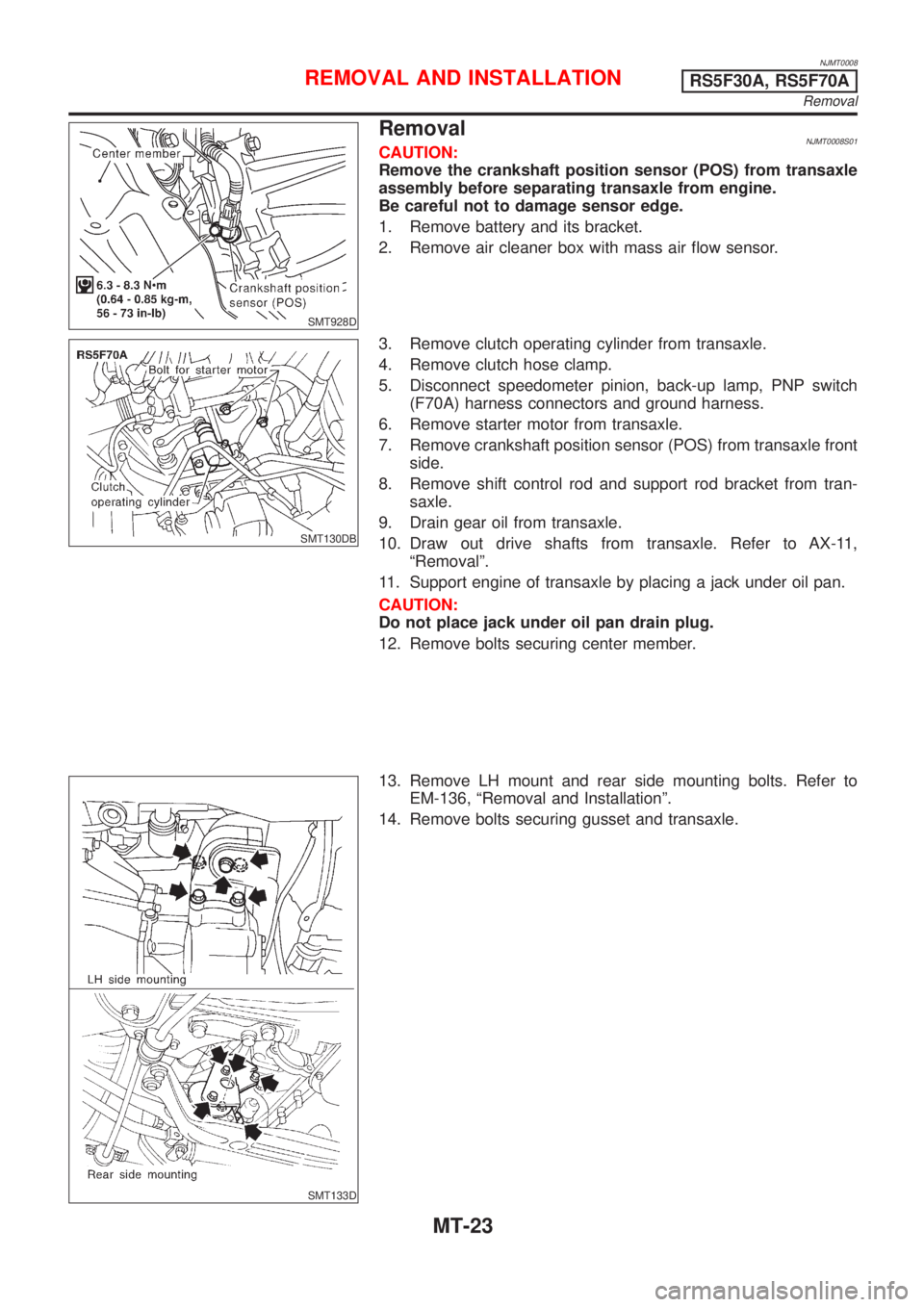

RemovalNJMT0008S01CAUTION:
Remove the crankshaft position sensor (POS) from transaxle
assembly before separating transaxle from engine.
Be careful not to damage sensor edge.
1. Remove battery and its bracket.
2. Remove air cleaner box with mass air flow sensor.
SMT130DB
3. Remove clutch operating cylinder from transaxle.
4. Remove clutch hose clamp.
5. Disconnect speedometer pinion, back-up lamp, PNP switch
(F70A) harness connectors and ground harness.
6. Remove starter motor from transaxle.
7. Remove crankshaft position sensor (POS) from transaxle front
side.
8. Remove shift control rod and support rod bracket from tran-
saxle.
9. Drain gear oil from transaxle.
10. Draw out drive shafts from transaxle. Refer to AX-11,
ªRemovalº.
11. Support engine of transaxle by placing a jack under oil pan.
CAUTION:
Do not place jack under oil pan drain plug.
12. Remove bolts securing center member.
SMT133D
13. Remove LH mount and rear side mounting bolts. Refer to
EM-136, ªRemoval and Installationº.
14. Remove bolts securing gusset and transaxle.
REMOVAL AND INSTALLATIONRS5F30A, RS5F70A
Removal
MT-23
Page 1074 of 2493
SMT652C

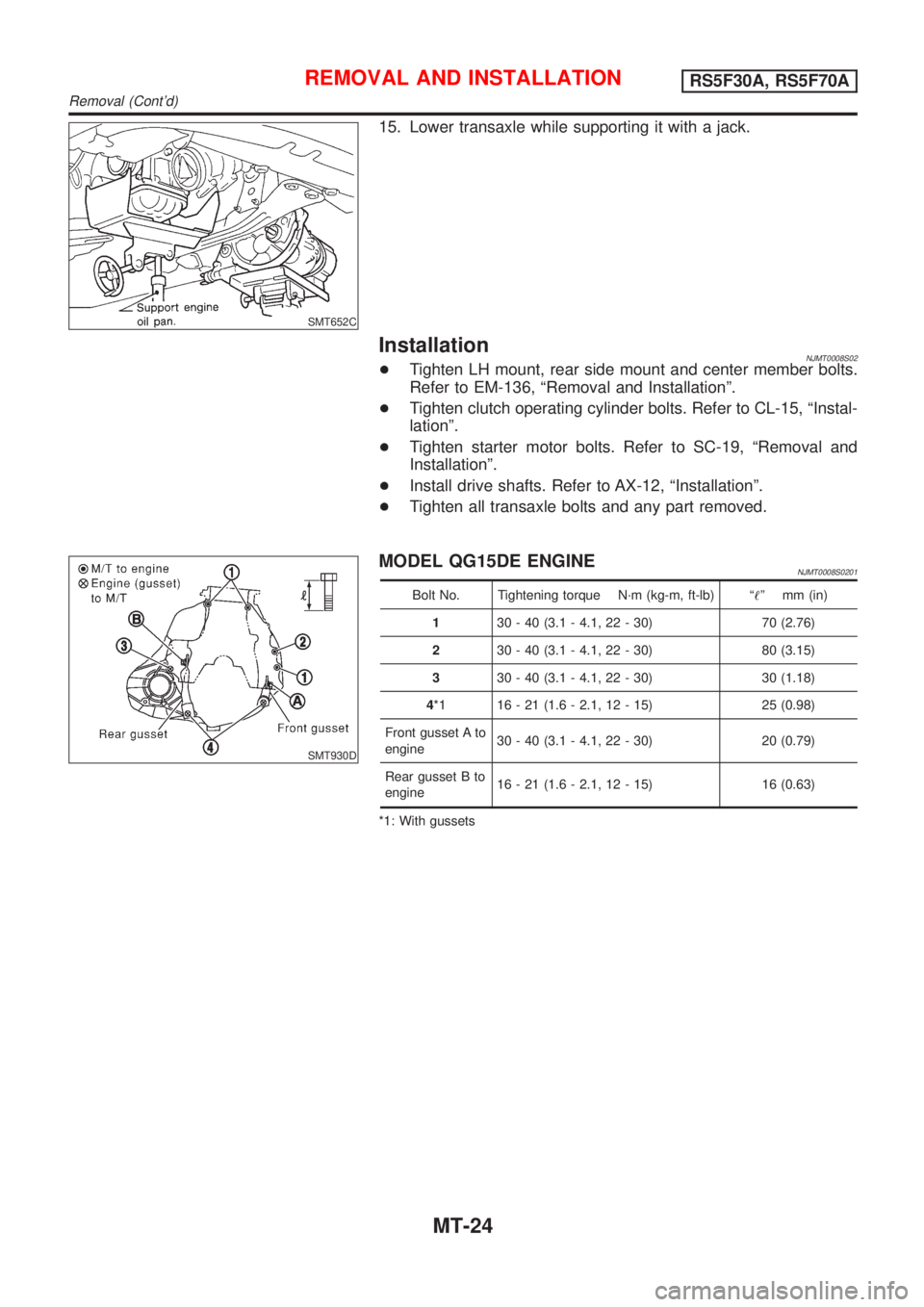

15. Lower transaxle while supporting it with a jack.
InstallationNJMT0008S02+Tighten LH mount, rear side mount and center member bolts.
Refer to EM-136, ªRemoval and Installationº.
+Tighten clutch operating cylinder bolts. Refer to CL-15, ªInstal-
lationº.
+Tighten starter motor bolts. Refer to SC-19, ªRemoval and
Installationº.
+Install drive shafts. Refer to AX-12, ªInstallationº.
+Tighten all transaxle bolts and any part removed.
SMT930D
MODEL QG15DE ENGINENJMT0008S0201
Bolt No. Tightening torque N´m (kg-m, ft-lb) ª!º mm (in)
130 - 40 (3.1 - 4.1, 22 - 30) 70 (2.76)
230 - 40 (3.1 - 4.1, 22 - 30) 80 (3.15)
330 - 40 (3.1 - 4.1, 22 - 30) 30 (1.18)
4*1 16 - 21 (1.6 - 2.1, 12 - 15) 25 (0.98)
Front gusset A to
engine30 - 40 (3.1 - 4.1, 22 - 30) 20 (0.79)
Rear gusset B to
engine16 - 21 (1.6 - 2.1, 12 - 15) 16 (0.63)
*1: With gussets
REMOVAL AND INSTALLATIONRS5F30A, RS5F70A
Removal (Cont'd)
MT-24
Page 1075 of 2493
SMT931D

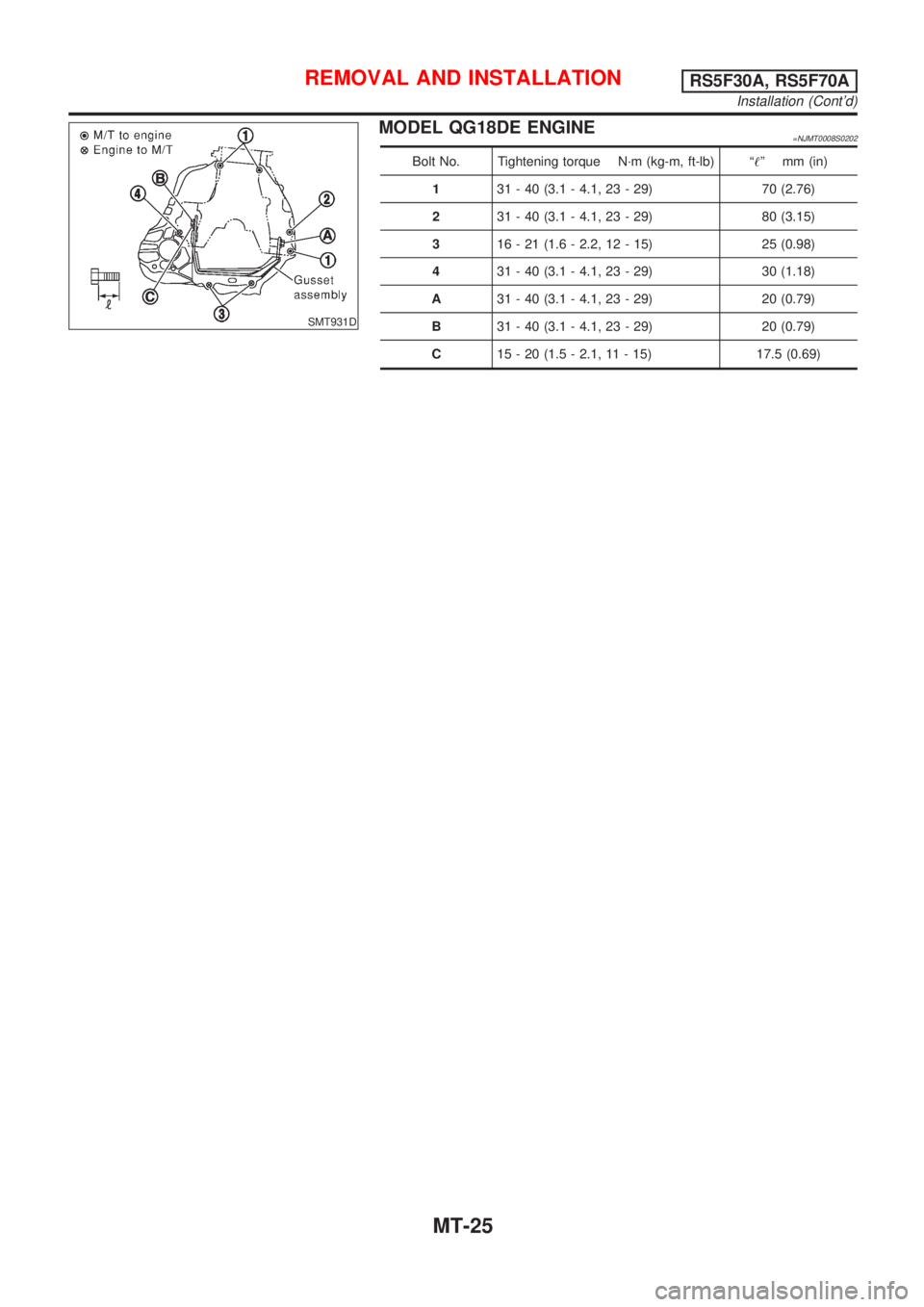

MODEL QG18DE ENGINE=NJMT0008S0202
Bolt No. Tightening torque N´m (kg-m, ft-lb) ª!º mm (in)
131 - 40 (3.1 - 4.1, 23 - 29) 70 (2.76)
231 - 40 (3.1 - 4.1, 23 - 29) 80 (3.15)
316 - 21 (1.6 - 2.2, 12 - 15) 25 (0.98)
431 - 40 (3.1 - 4.1, 23 - 29) 30 (1.18)
A31 - 40 (3.1 - 4.1, 23 - 29) 20 (0.79)
B31 - 40 (3.1 - 4.1, 23 - 29) 20 (0.79)
C15 - 20 (1.5 - 2.1, 11 - 15) 17.5 (0.69)
REMOVAL AND INSTALLATIONRS5F30A, RS5F70A
Installation (Cont'd)
MT-25
Page 1076 of 2493

NJMT0090
SMT928D
RemovalNJMT0090S01CAUTION:
Remove the crankshaft position sensor (POS) from transaxle
assembly before separating transaxle from engine.
Be careful not to damage sensor edge.
1. Remove battery and its bracket.
2. Remove fuse box from battery bracket.
3. Remove air cleaner box with mass air flow sensor.
4. Remove air breather hose and vacuum pump hose.
SMT650CB
5. Remove terminal and connector from starter motor.
6. Remove starter motor from transaxle.
7. Remove clutch hose clamp.
8. Remove clutch operating cylinder from transaxle.
9. Disconnect speedometer pinion, PNP switch harness connec-
tors and ground harness.
10. Remove crankshaft position sensor (POS) from transaxle front
side.
11. Remove front exhaust tube.
SMT929D
12. Remove shift control rod and support rod bracket from tran-
saxle.
13. Drain gear oil from transaxle.
14. Draw out drive shafts from transaxle. Refer to AX-11,
ªRemovalº.
15. Support engine and transaxle by placing a jack under the tran-
saxle.
16. Remove bolts securing center member.
SMT950D
17. Take out engine mounting bracket and transaxle installation
bolts. Refer to EM-136, ªRemoval and Installationº.
18. Remove bolts securing transaxle under side.
19. Temporarily tighten center member.
20. Lower the lift.
REMOVAL AND INSTALLATIONRS5F50A
Removal
MT-26
Page 1077 of 2493
SMT940D
SMT951D
21. Pick up EGI harness clamp and install engine slinger. Next, set
chain block.
22. Jack up the air compressor engine bracket.
23. Remove engine front mounting.
24. Remove LH side mounting. Refer to EM-136, ªRemoval and
Installationº.
SMT952D
25. Jack up until engine oil filter bracket bolts are just about to
touch the side frame.
SMT941D
26. Remove bolts securing transaxle.
27. While the transaxle is suspended, withdraw the transaxle case
from the engine without hitting suspension member.
+Open the front of the transaxle when the clutch cover
appears. Then, lower the transaxle pulling it toward the
right front.
+The spacer between the engine and transaxle should be
left at the engine side.
28. Remove spacer.
REMOVAL AND INSTALLATIONRS5F50A
Removal (Cont'd)
MT-27
Page 1078 of 2493
SMT941D

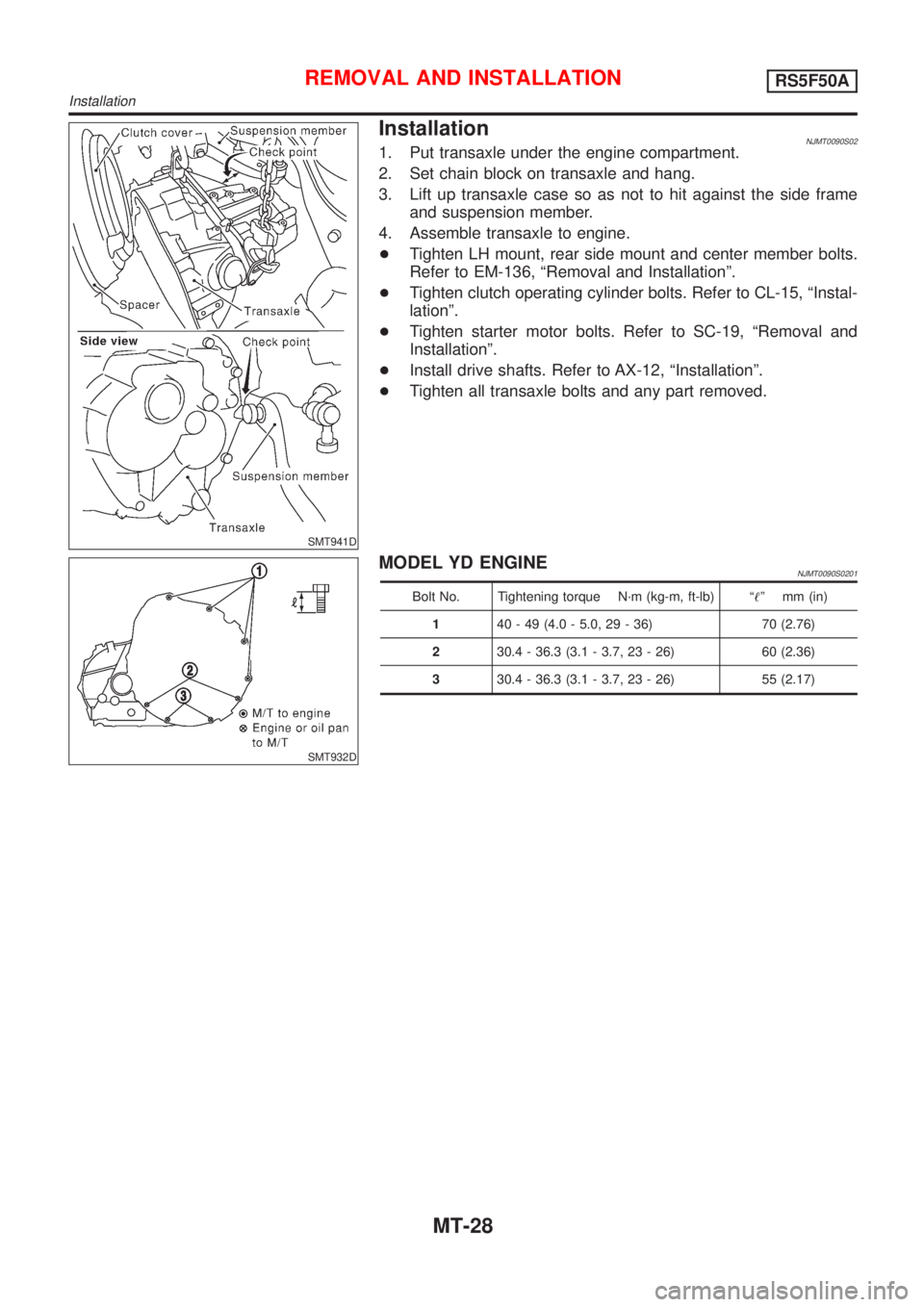

InstallationNJMT0090S021. Put transaxle under the engine compartment.
2. Set chain block on transaxle and hang.
3. Lift up transaxle case so as not to hit against the side frame
and suspension member.
4. Assemble transaxle to engine.
+Tighten LH mount, rear side mount and center member bolts.
Refer to EM-136, ªRemoval and Installationº.
+Tighten clutch operating cylinder bolts. Refer to CL-15, ªInstal-
lationº.
+Tighten starter motor bolts. Refer to SC-19, ªRemoval and
Installationº.
+Install drive shafts. Refer to AX-12, ªInstallationº.
+Tighten all transaxle bolts and any part removed.
SMT932D
MODEL YD ENGINENJMT0090S0201
Bolt No. Tightening torque N´m (kg-m, ft-lb) ª!º mm (in)
140 - 49 (4.0 - 5.0, 29 - 36) 70 (2.76)
230.4 - 36.3 (3.1 - 3.7, 23 - 26) 60 (2.36)
330.4 - 36.3 (3.1 - 3.7, 23 - 26) 55 (2.17)
REMOVAL AND INSTALLATIONRS5F50A
Installation
MT-28
Page 1079 of 2493
NJMT0038

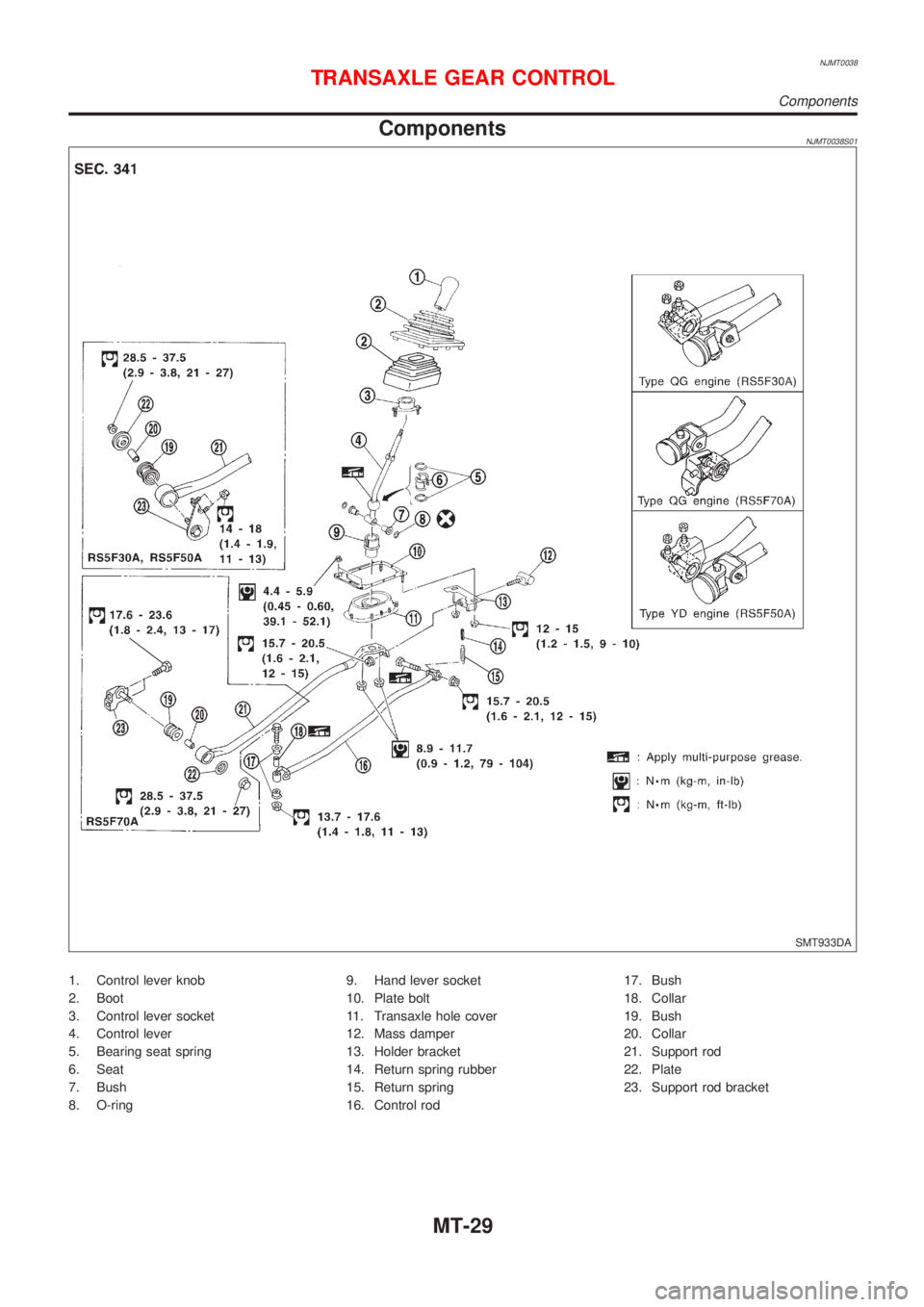

ComponentsNJMT0038S01
SMT933DA
1. Control lever knob
2. Boot
3. Control lever socket
4. Control lever
5. Bearing seat spring
6. Seat
7. Bush
8. O-ring9. Hand lever socket
10. Plate bolt
11. Transaxle hole cover
12. Mass damper
13. Holder bracket
14. Return spring rubber
15. Return spring
16. Control rod17. Bush
18. Collar
19. Bush
20. Collar
21. Support rod
22. Plate
23. Support rod bracket
TRANSAXLE GEAR CONTROL
Components
MT-29
Page 1080 of 2493
NJMT0039

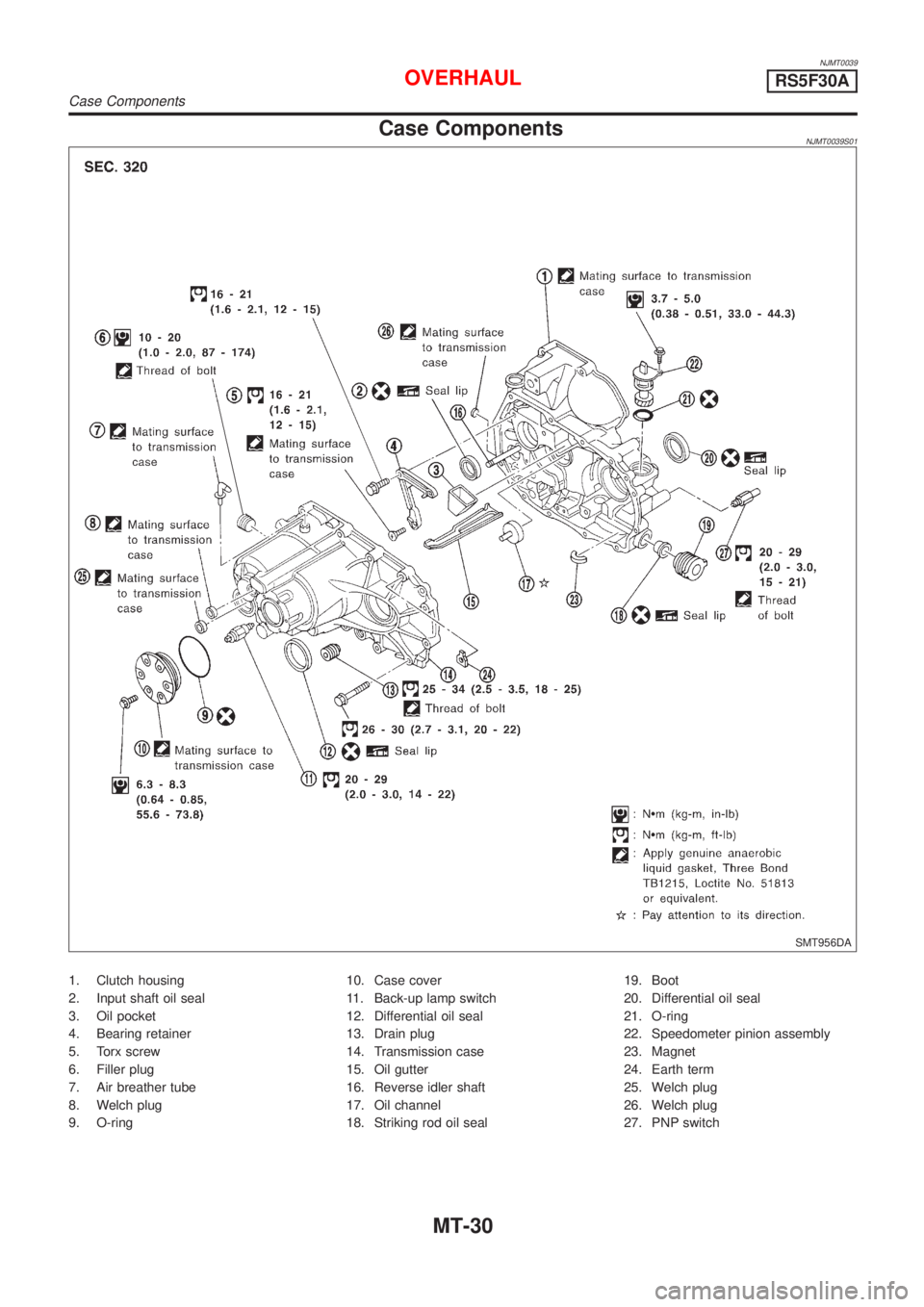

Case ComponentsNJMT0039S01
SMT956DA
1. Clutch housing
2. Input shaft oil seal
3. Oil pocket
4. Bearing retainer
5. Torx screw
6. Filler plug
7. Air breather tube
8. Welch plug
9. O-ring10. Case cover
11. Back-up lamp switch
12. Differential oil seal
13. Drain plug
14. Transmission case
15. Oil gutter
16. Reverse idler shaft
17. Oil channel
18. Striking rod oil seal19. Boot
20. Differential oil seal
21. O-ring
22. Speedometer pinion assembly
23. Magnet
24. Earth term
25. Welch plug
26. Welch plug
27. PNP switch
OVERHAULRS5F30A
Case Components
MT-30
