NISSAN ALMERA N16 2001 Electronic Repair Manual SAT057KA
Component InspectionNJAT0310SHIFT SOLENOID VALVE BNJAT0310S01+For removal, refer to AT-343.
Resistance CheckNJAT0310S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Re

Page 1442 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT004K

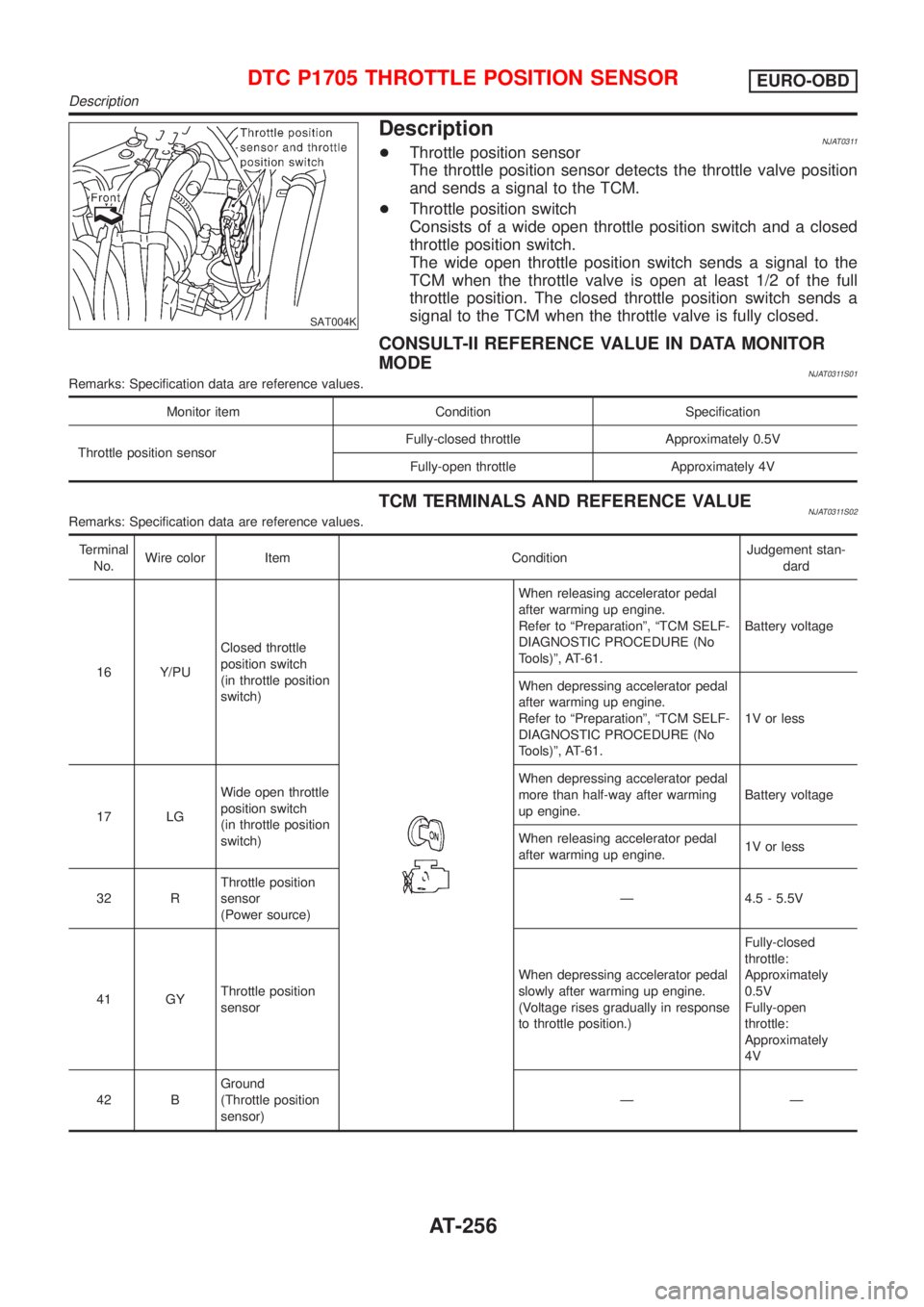

DescriptionNJAT0311+Throttle position sensor
The throttle position sensor detects the throttle valve position
and sends a signal to the TCM.
+Throttle position switch
Consists of a wide open t

Page 1443 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual ON BOARD DIAGNOSIS LOGICNJAT0311S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: TP SEN/CIRC A/T
TCM receives an excessively low or high
voltage from the sen

ON BOARD DIAGNOSIS LOGICNJAT0311S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: TP SEN/CIRC A/T
TCM receives an excessively low or high
voltage from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+Throttle position sensor
+Throttle position switch
: P1705
SAT014K
SAT971J
SAT014K
SAT020K
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0311S04CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Apply vacuum to the throttle opener, then check the following.
Refer to steps from 1 to 5 of ªPreparationº, ªTCM SELF-DIAG-
NOSTIC PROCEDURE (No Tools)º, AT-61.
2) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªA/Tº with CONSULT-II.
3) Check the following.
Accelerator pedal
conditionTHRTL POS SEN CLOSED THL/SW W/O THRL/P´SW
Fully released Less than 4.7V ON OFF
Partially
depressed0.1 - 4.6V OFF OFF
Fully depressed 1.9 - 4.6V OFF ON
If the check result is NG, go to ªDIAGNOSTIC PROCEDUREº,
AT-260.
If the check result is OK, go to following step.
4) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªENGINEº with CONSULT-II.
5) Start engine and maintain the following conditions for at least
3 consecutive seconds. Then release accelerator pedal com-
pletely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: Approximately 3V or less
Selector lever: D position (OD ªONº)
If the check result is NG, go to ªDIAGNOSTIC PROCEDUREº,
AT-260.
If the check result is OK, go to following step.
6) Maintain the following conditions for at least 3 consecutive
seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
Accelerator pedal: Wide open throttle
Selector lever: D position (OD ªONº)
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Description (Cont'd)
AT-257

Page 1444 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual With GST

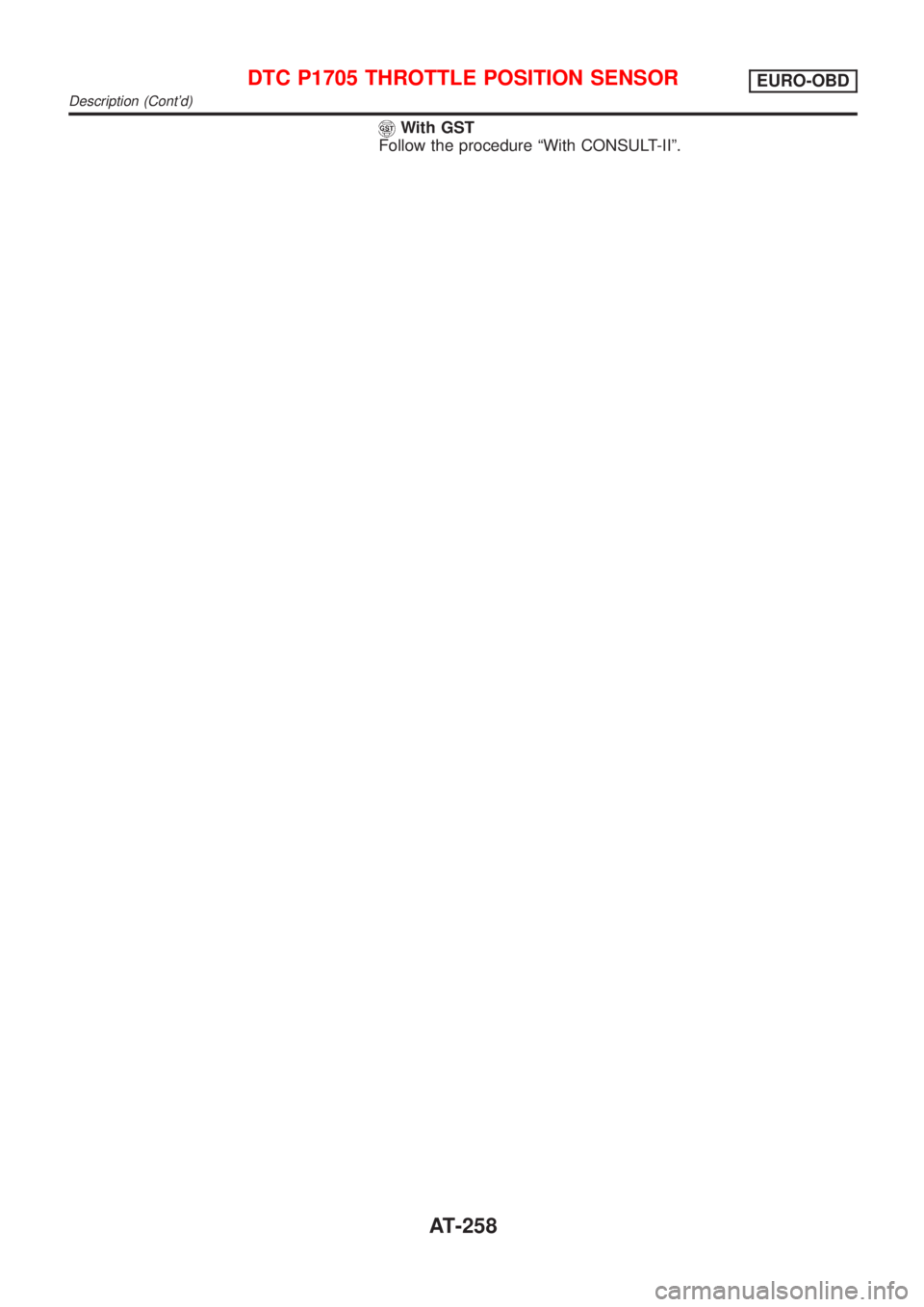

Follow the procedure ªWith CONSULT-IIº.
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Description (Contd)
AT-258

Page 1445 of 2493

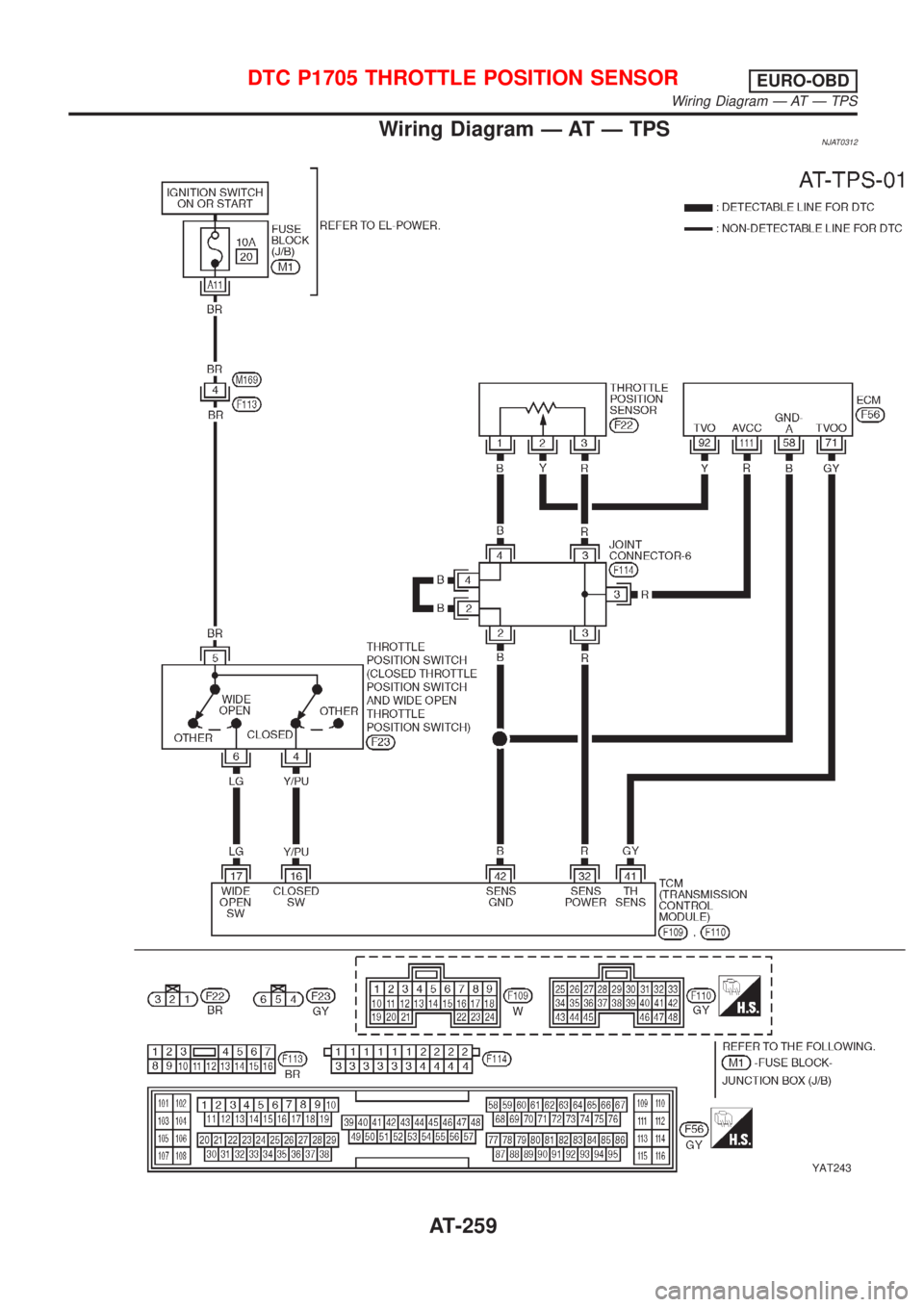

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring Diagram Ð AT Ð TPSNJAT0312
YAT243
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Wiring Diagram Ð AT Ð TPS
AT-259

Page 1446 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJAT0313
1 CHECK DTC WITH ECM
Perform diagnostic test mode II (self-diagnostic results) for engine control.
Refer to EC-72, ªMalfunction Indicator (MI)º.
OK or NG
OK (With CONSUL

Page 1447 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 3 CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Apply vacuum to the throttle opener then check the following. Refer to steps 1 to 5 of ªPreparationº, ªTCM SELF-DIAG-
NOSTIC PROCEDUR

Page 1448 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 4 CHECK THROTTLE POSITION SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Apply vacuum to the throttle opener, then check the following. Refer to steps 1 to 5 of ªPreparationº, ªTCM SELF-DIAG-
