2001 NISSAN ALMERA N16 Electronic Repair Manual

Page 1281 of 2493

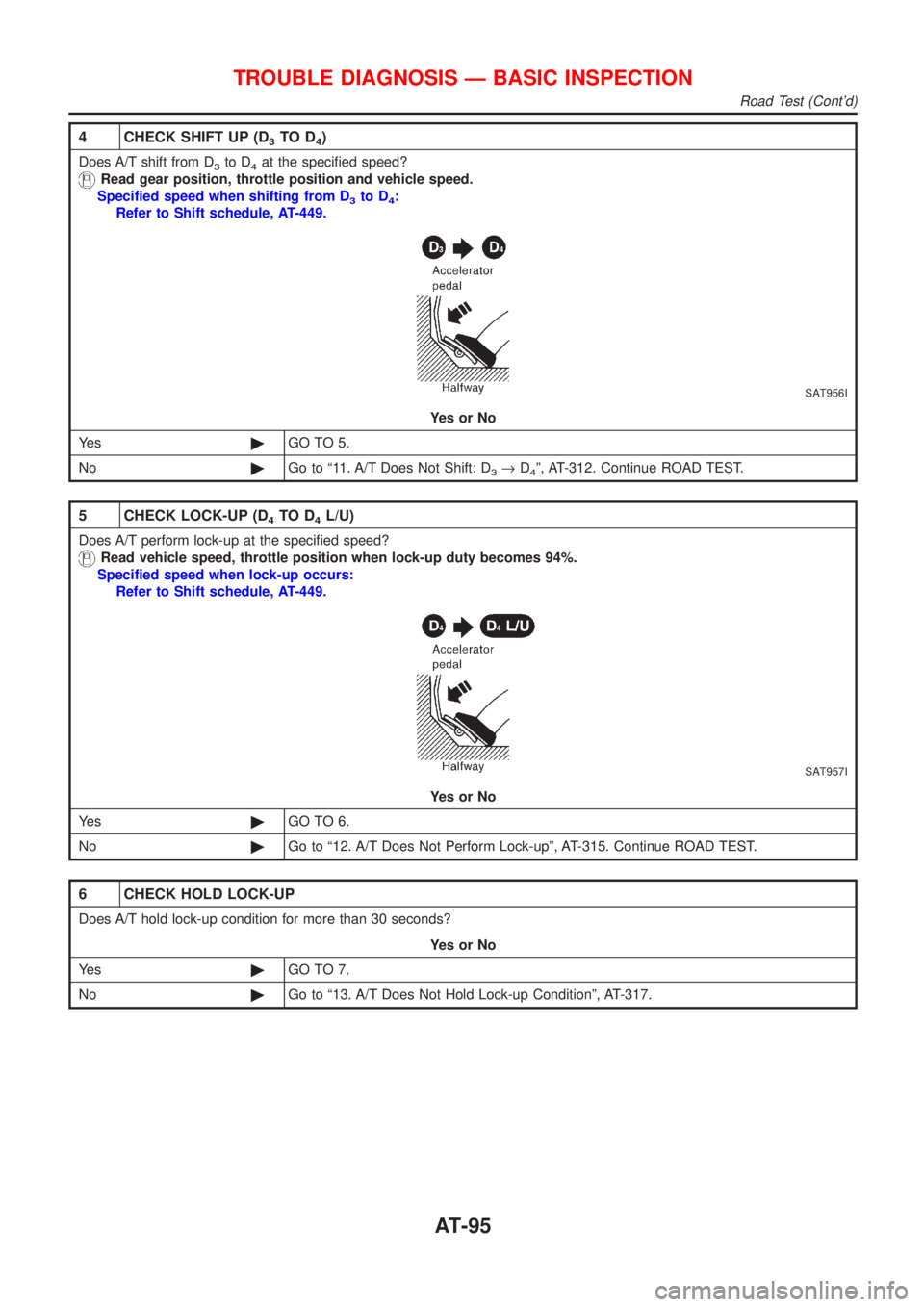

NISSAN ALMERA N16 2001  Electronic Repair Manual 4 CHECK SHIFT UP (D3TO D4)
Does A/T shift from D3to D4at the specified speed?
Read gear position, throttle position and vehicle speed.
Specified speed when shifting from D
3to D4:
Refer to Shift sched

Page 1282 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 7 CHECK SHIFT DOWN (D4L/U TO D4)
1. Release accelerator pedal.
2. Is lock-up released when accelerator pedal is released?
SAT958I
YesorNo
Ye s©GO TO 8.
No©Go to ª14. Lock-up Is Not Releasedº, AT-3

Page 1283 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Cruise Test Ð Part 2=NJAT0028S0405
1 CHECK STARTING GEAR (D1) POSITION
1. Confirm overdrive control switch is in ªONº position.
2. Confirm selector lever is in ªDº position.
3. Accelerate vehicle

Page 1284 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 3 CHECK SHIFT UP (D2TO D3)
Does A/T shift from D2to D3at the specified speed?
Read gear position, throttle position and vehicle speed.
Specified speed when shifting from D
2to D3:
Refer to Shift sched

Page 1285 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Cruise Test Ð Part 3=NJAT0028S0406
1 CHECK SHIFT DOWN (D4TO D3)
1. Confirm overdrive control switch is in ªONº position.
2. Confirm selector lever is in ªDº position.
3. Accelerate vehicle using

Page 1286 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 2 CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
SAT776BA
YesorNo
Ye s©GO TO 3.
No©Go to ª15. Engine Speed Does Not Return To Idle (Light Braking D
4®D3)º, AT-320.
Continue ROAD TEST

Page 1287 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 4 CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
SAT791GA
YesorNo
Ye s©GO TO 5.
No©Go to ª15. Engine Speed Does Not Return To Idle (Light Braking D
4®D3)º, AT-320.
Continue ROAD TEST

Page 1288 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 6 CHECK ENGINE BRAKE
Does vehicle decelerate by engine brake?
SAT778B
YesorNo
Ye s©1. Stop vehicle.
2. Perform self-diagnosis. Except for Euro-OBD: Refer to ªSELF-DIAGNOSTIC PROCE-
DURE (Without CON
