Page 2433 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual YEL724C ELECTRICAL UNITS LOCATION Passenger Compartment/LHD Models (Contd) EL-321

Page 2434 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Passenger Compartment/RHD ModelsNJEL0345 YEL725C ELECTRICAL UNITS LOCATION Passenger Compartment/RHD Models EL-322

Page 2435 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual YEL726C ELECTRICAL UNITS LOCATION Passenger Compartment/RHD Models (Contd) EL-323

Page 2436 of 2493

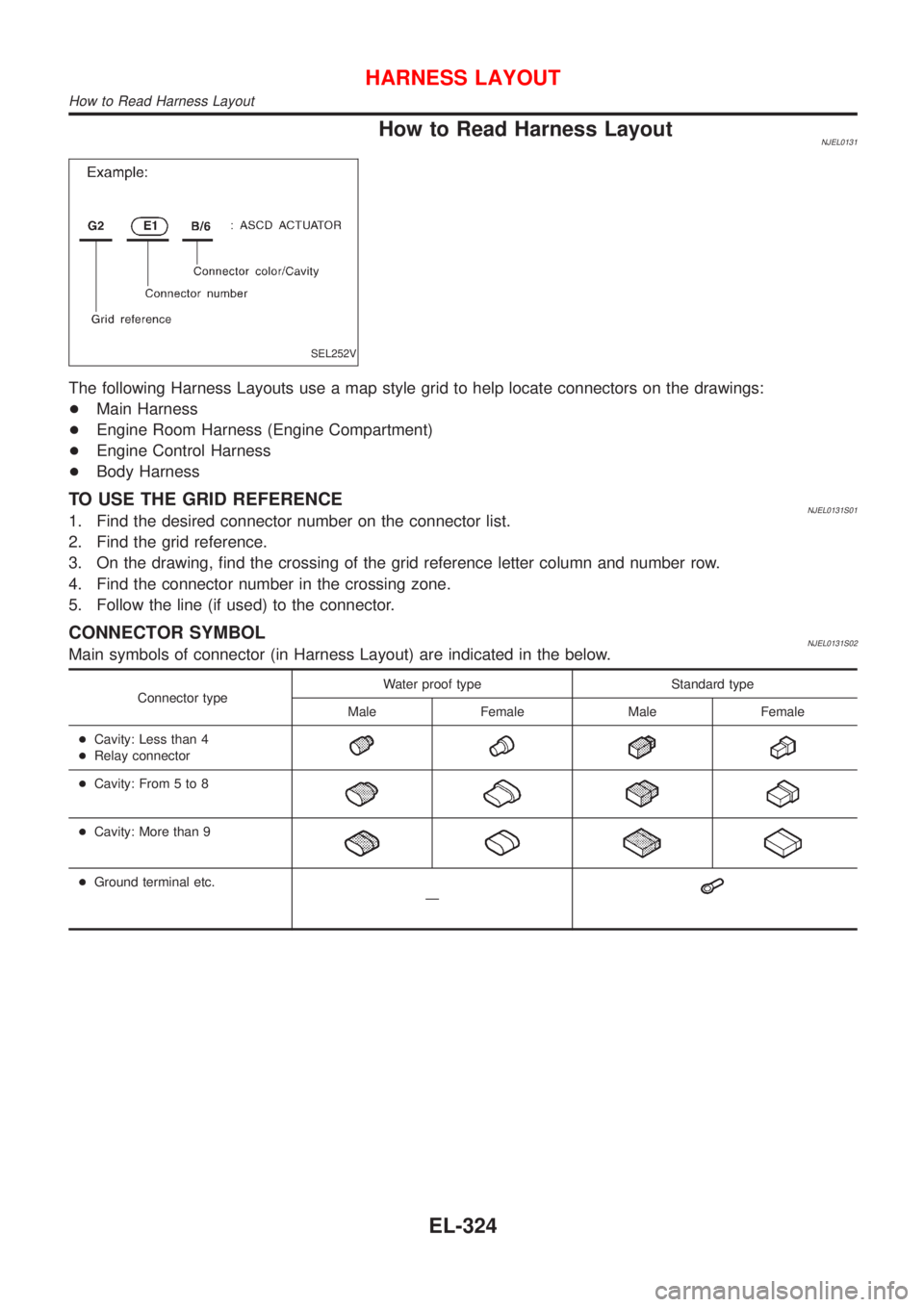

NISSAN ALMERA N16 2001 Electronic Repair Manual How to Read Harness LayoutNJEL0131 SEL252V The following Harness Layouts use a map style grid to help locate connectors on the drawings: +Main Harness +Engine Room Harness (Engine Compartment) +Engine

Page 2437 of 2493

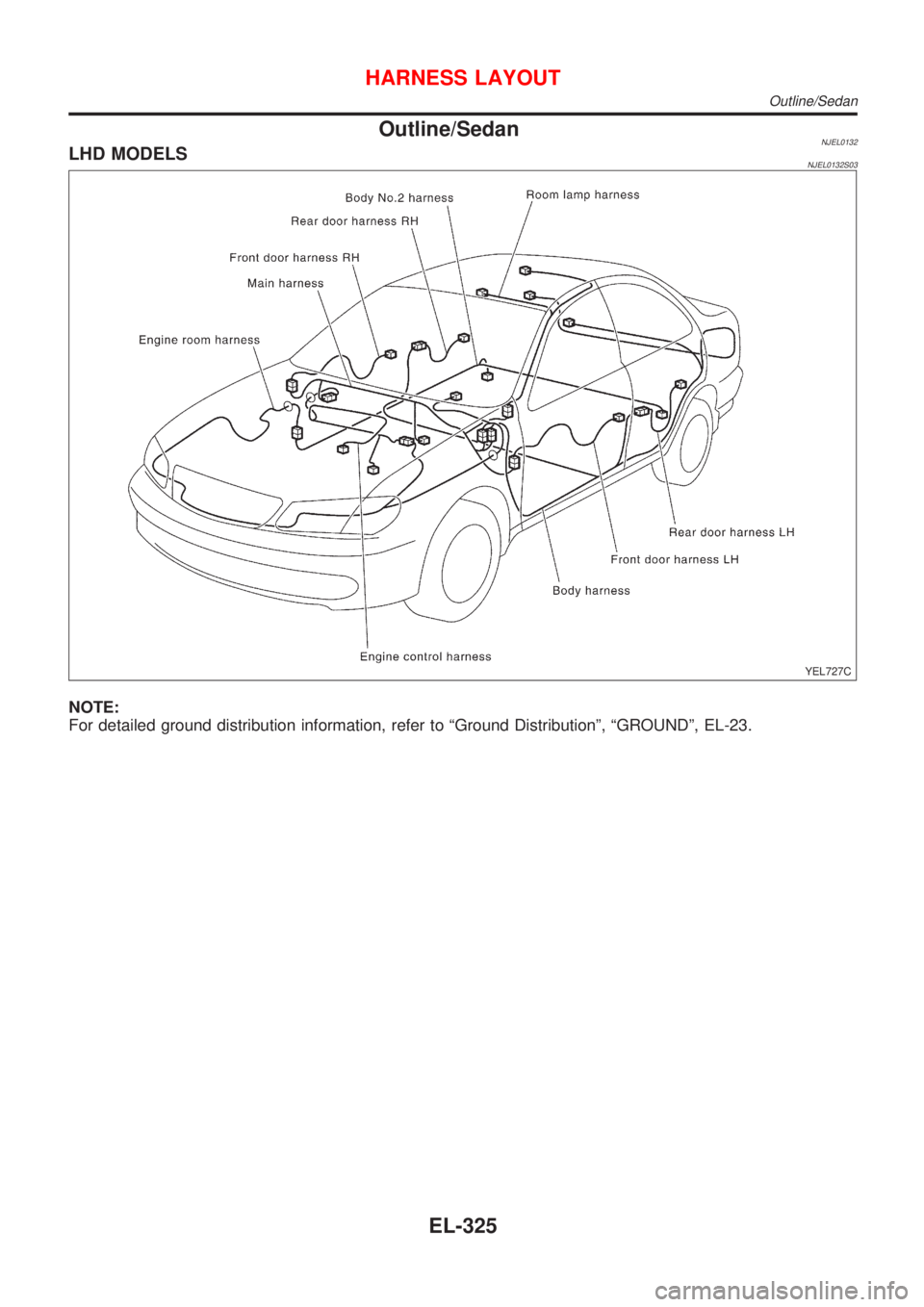

NISSAN ALMERA N16 2001 Electronic Repair Manual Outline/SedanNJEL0132LHD MODELSNJEL0132S03 YEL727C NOTE: For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-23. HARNESS LAYOUT Outline/Sedan EL-325

Page 2438 of 2493

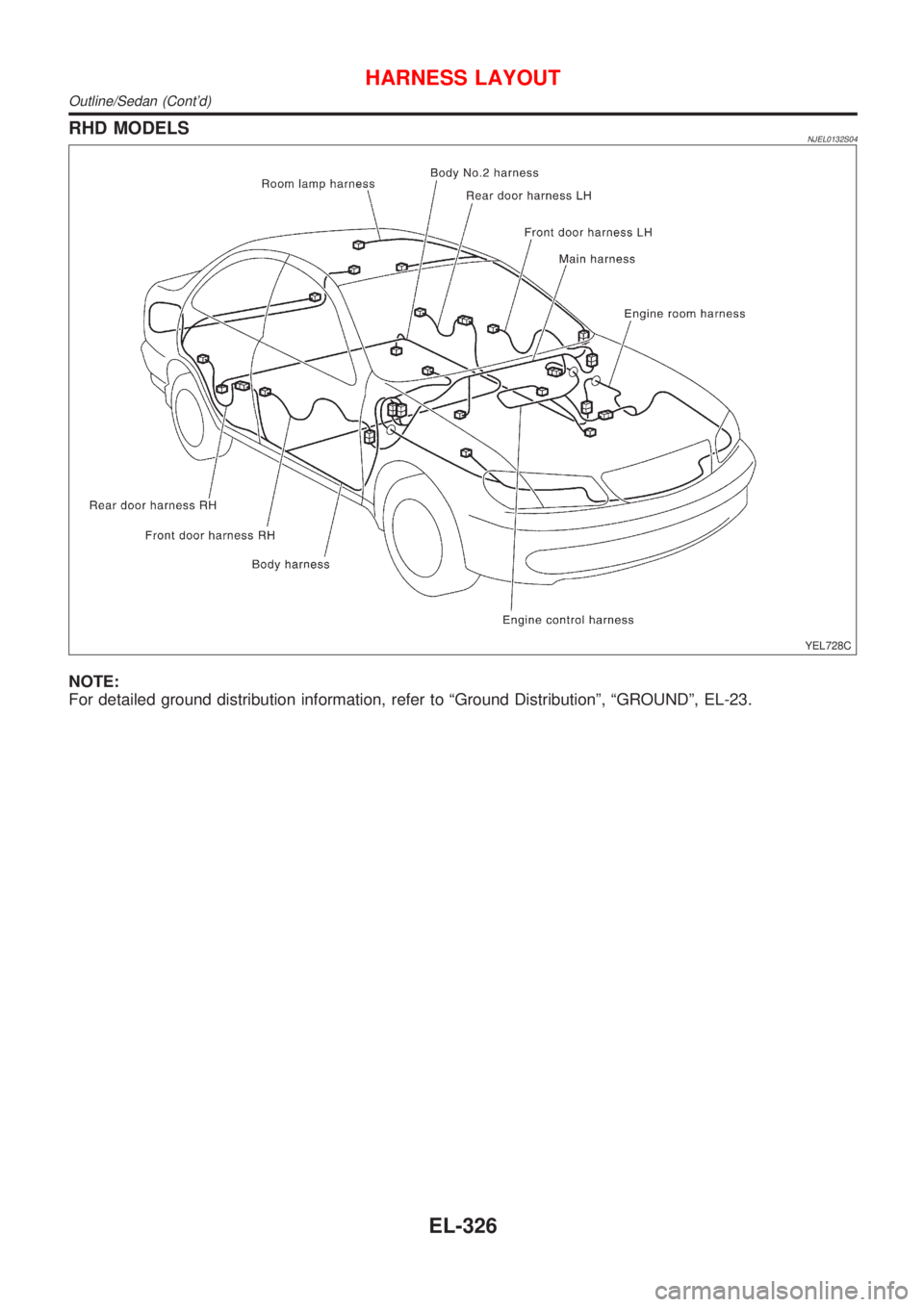

NISSAN ALMERA N16 2001 Electronic Repair Manual RHD MODELSNJEL0132S04 YEL728C NOTE: For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-23. HARNESS LAYOUT Outline/Sedan (Contd) EL-326

Page 2439 of 2493

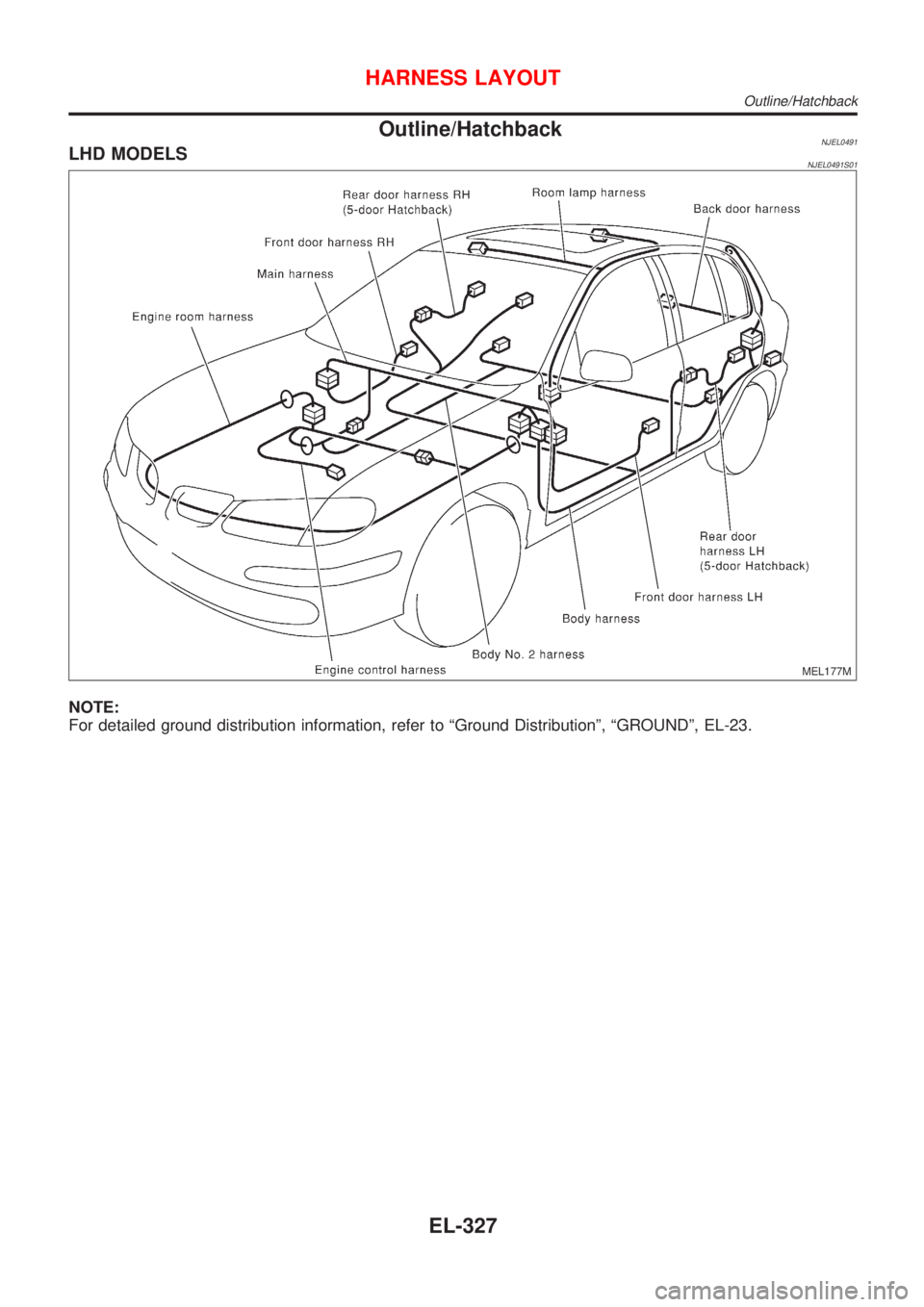

NISSAN ALMERA N16 2001 Electronic Repair Manual Outline/HatchbackNJEL0491LHD MODELSNJEL0491S01 MEL177M NOTE: For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-23. HARNESS LAYOUT Outline/Hatchback EL-327

Page 2440 of 2493

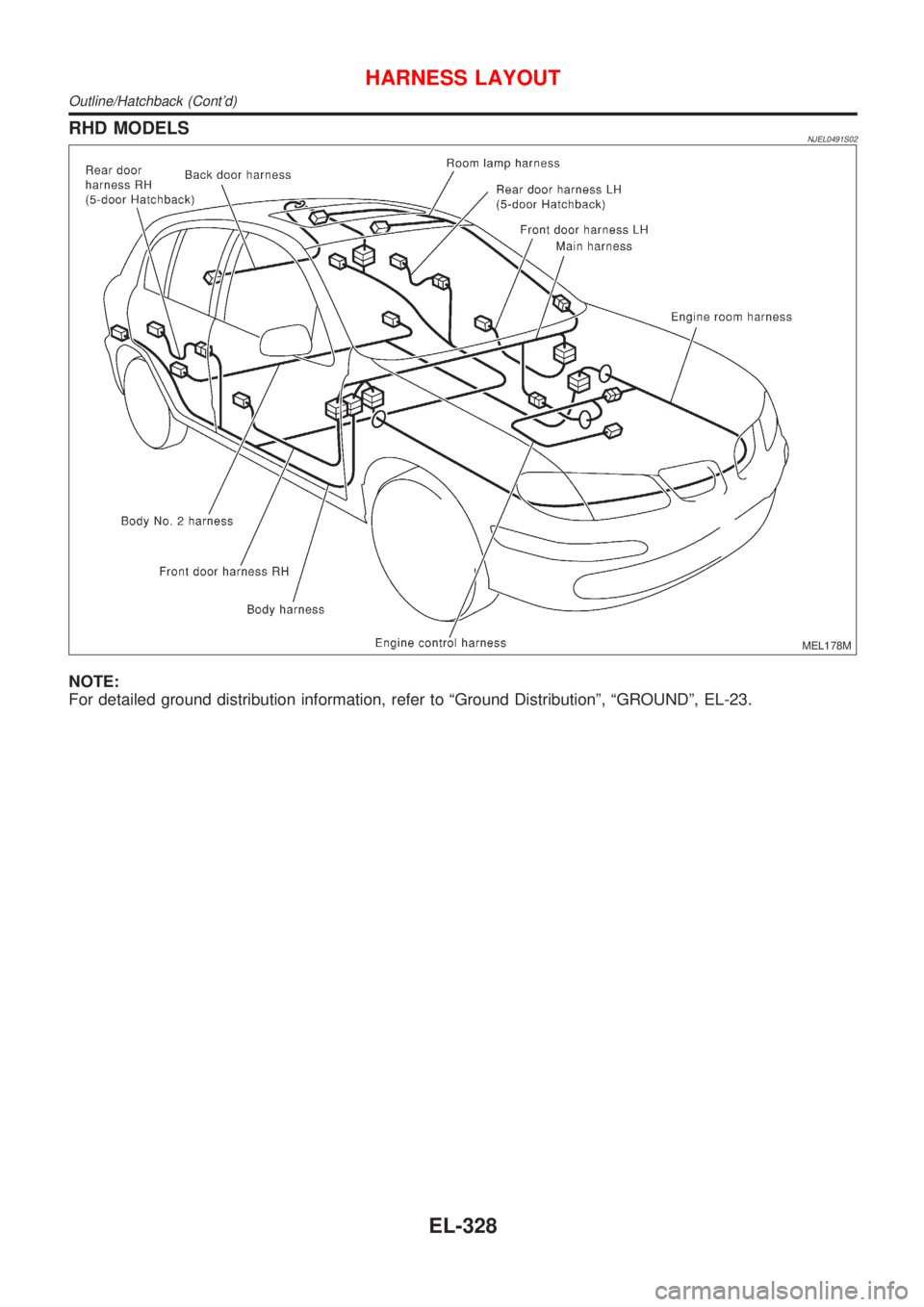

NISSAN ALMERA N16 2001 Electronic Repair Manual RHD MODELSNJEL0491S02 MEL178M NOTE: For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-23. HARNESS LAYOUT Outline/Hatchback (Contd) EL-328
