Page 993 of 2493

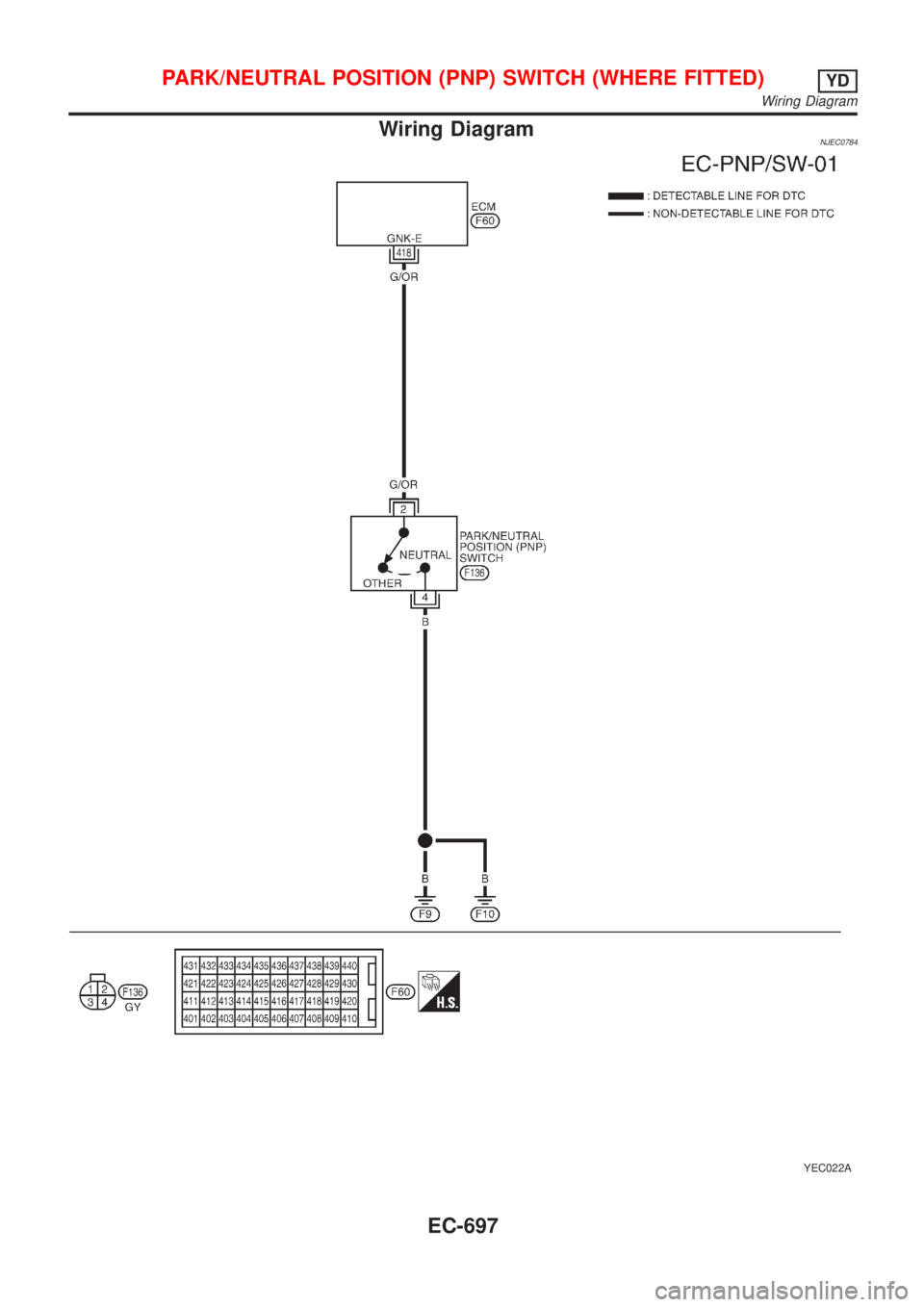

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring DiagramNJEC0784
YEC022A
PARK/NEUTRAL POSITION (PNP) SWITCH (WHERE FITTED)YD
Wiring Diagram
EC-697

Page 994 of 2493

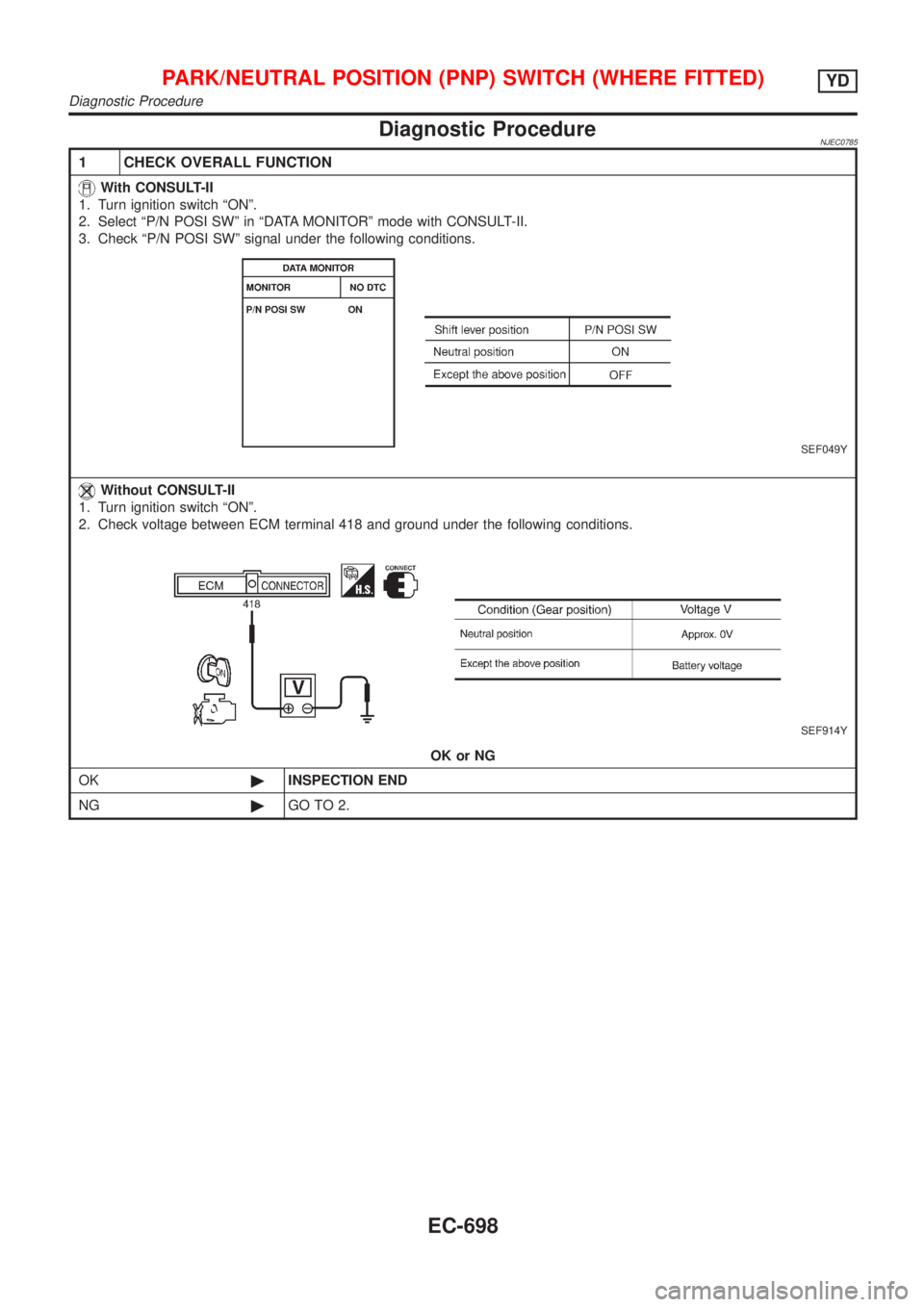

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJEC0785
1 CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ªONº.
2. Select ªP/N POSI SWº in ªDATA MONITORº mode with CONSULT-II.
3. Check ªP/N POSI SWº signa

Page 995 of 2493

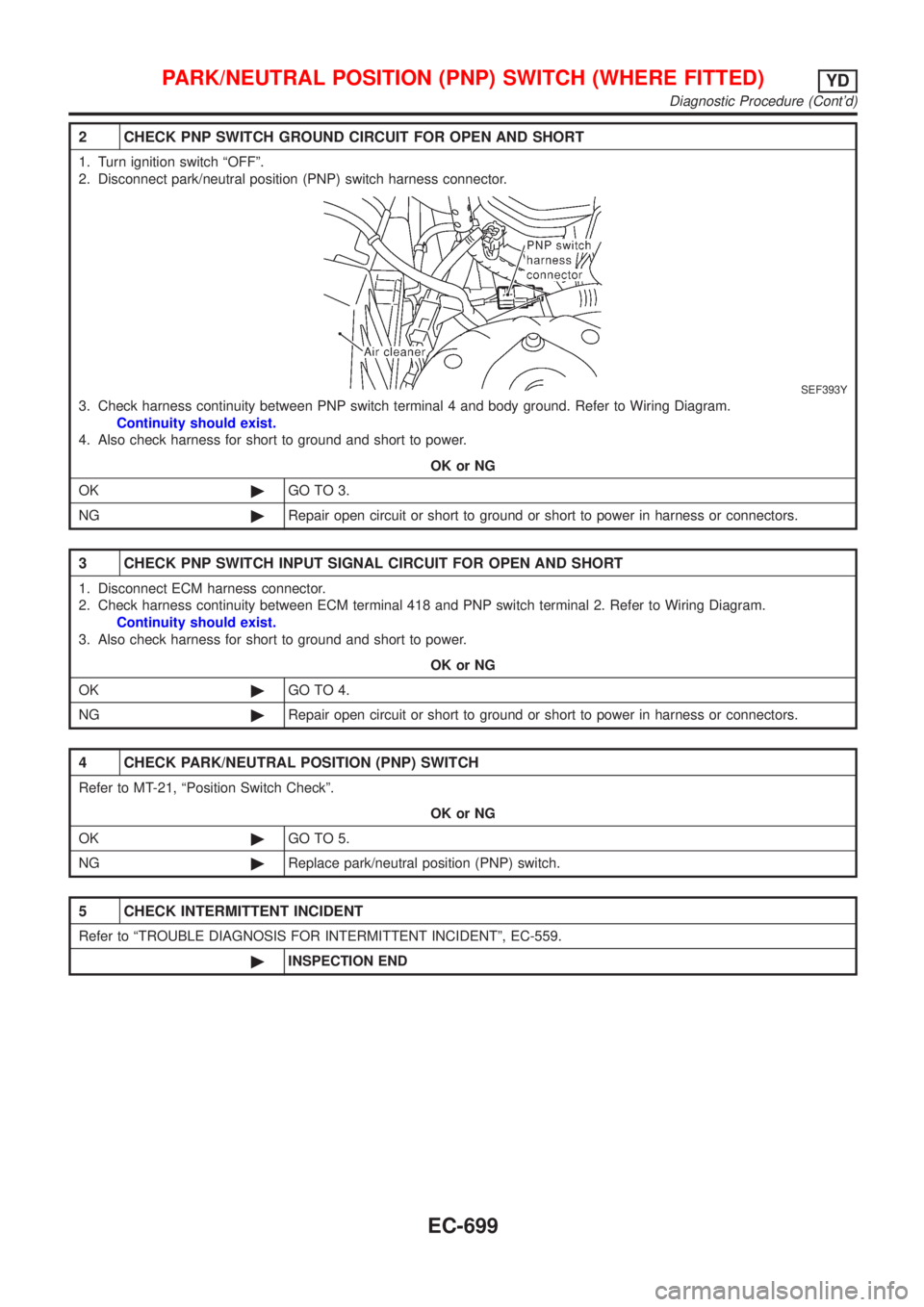

NISSAN ALMERA N16 2001 Electronic Repair Manual 2 CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch ªOFFº.
2. Disconnect park/neutral position (PNP) switch harness connector.
SEF393Y
3. Check harness continuity between PN

Page 996 of 2493

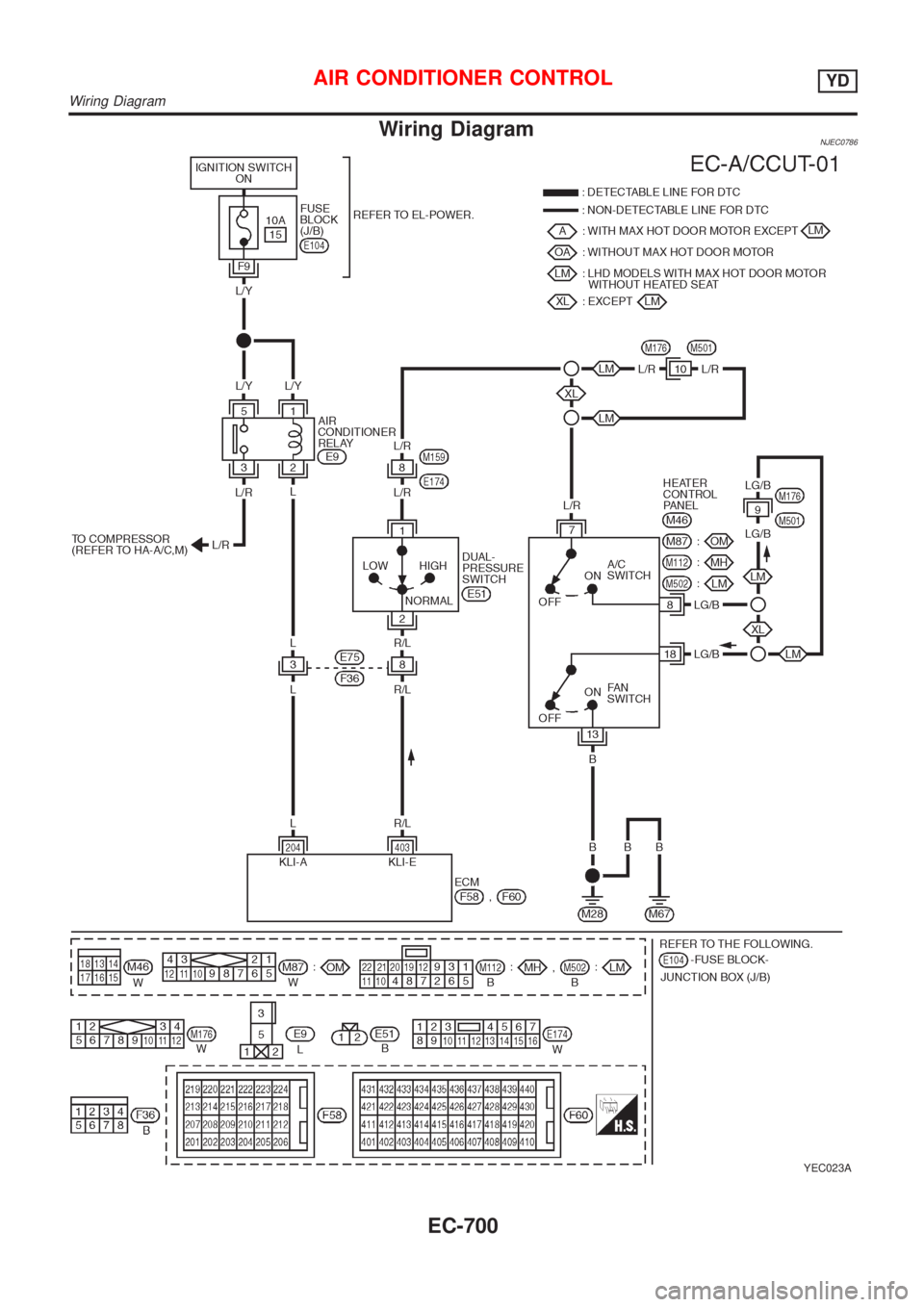

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring DiagramNJEC0786
YEC023A
AIR CONDITIONER CONTROLYD
Wiring Diagram
EC-700

Page 997 of 2493

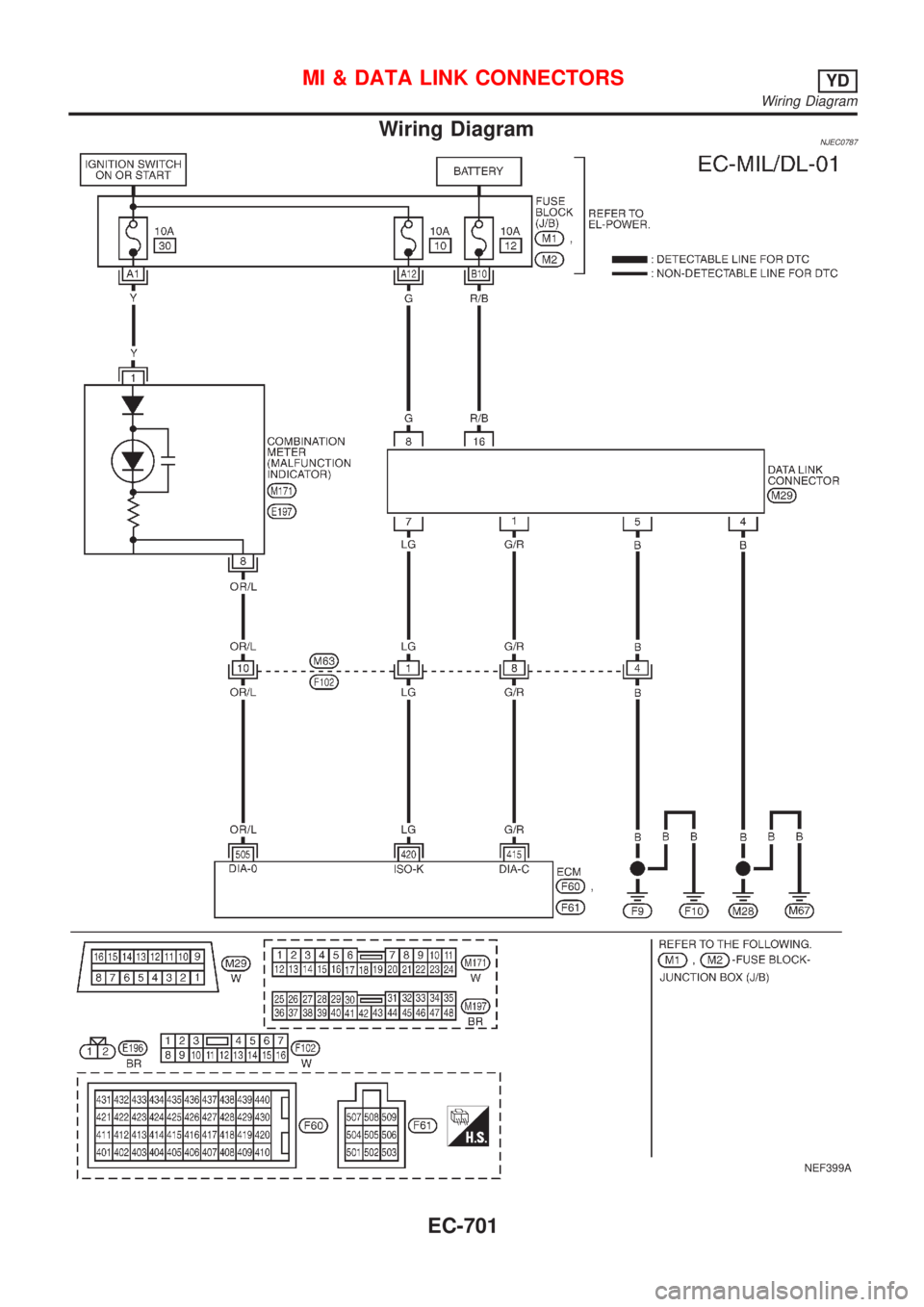

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring DiagramNJEC0787
NEF399A
MI & DATA LINK CONNECTORSYD
Wiring Diagram
EC-701

Page 998 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual General SpecificationsNJEC0788Unit: rpm
Engine YD22DDT
Idle speed 725±25
Maximum engine speed 4,900
Injection NozzleNJEC0790Unit: kPa (bar, kg/cm2, psi)
Initial injection pressureNew 21,476 - 22,457

Page 999 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual ACCELERATOR CONTROL, FUEL &
EXHAUST SYSTEMS
SECTION
FE
CONTENTS
QG
PREPARATION...............................................................2
Special Service Tools ...................................

ACCELERATOR CONTROL, FUEL &
EXHAUST SYSTEMS
SECTION
FE
CONTENTS
QG
PREPARATION...............................................................2
Special Service Tools ..................................................2
Commercial Service Tools ...........................................2
ACCELERATOR CONTROL SYSTEM...........................3
Removal and Installation .............................................3
Adjusting Accelerator Wire ..........................................3
FUEL SYSTEM................................................................5
Checking Fuel Lines ....................................................5
Removal and Installation .............................................5
Fuel Tank .....................................................................6
REMOVAL.................................................................6
INSTALLATION..........................................................8
Fuel Pump, Fuel Level Sensor Unit and Fuel
Filter .............................................................................9
REMOVAL.................................................................9
INSTALLATION........................................................10
EXHAUST SYSTEM...................................................... 11
Checking Exhaust System......................................... 11
Removal and Installation ........................................... 11
YD
PREPARATION.............................................................14
Special Service Tool ..................................................14Commercial Service Tool ...........................................14
ACCELERATOR CONTROL SYSTEM.........................15
Removal and Installation ...........................................15
Inspection...................................................................15
FUEL SYSTEM..............................................................16
Checking Fuel Lines ..................................................16
Water Draining from Fuel Filter .................................16
DRAINING WATER..................................................16
FUEL FILTER CHECK..............................................16
Changing Fuel Filter ..................................................16
REMOVAL...............................................................16
INSTALLATION........................................................16
Bleeding Fuel Filter....................................................17
Checking Priming Pump ............................................17
Removal and Installation ...........................................17
Fuel Tank ...................................................................18
REMOVAL...............................................................20
INSTALLATION........................................................23
Fuel Level Sensor Unit ..............................................24
REMOVAL...............................................................25
INSTALLATION........................................................26
EXHAUST SYSTEM......................................................27
Checking Exhaust System.........................................27
Removal and Installation ...........................................27

Page 1000 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Special Service ToolsNJFE0029
Tool number
Tool nameDescription
KV10114400
Heated oxygen sensor
wrench
NT636
Loosening or tightening front and rear
heated oxygen sensors
a: 22 mm (0.87 in)
KV999G0010
F
