Page 1417 of 2493

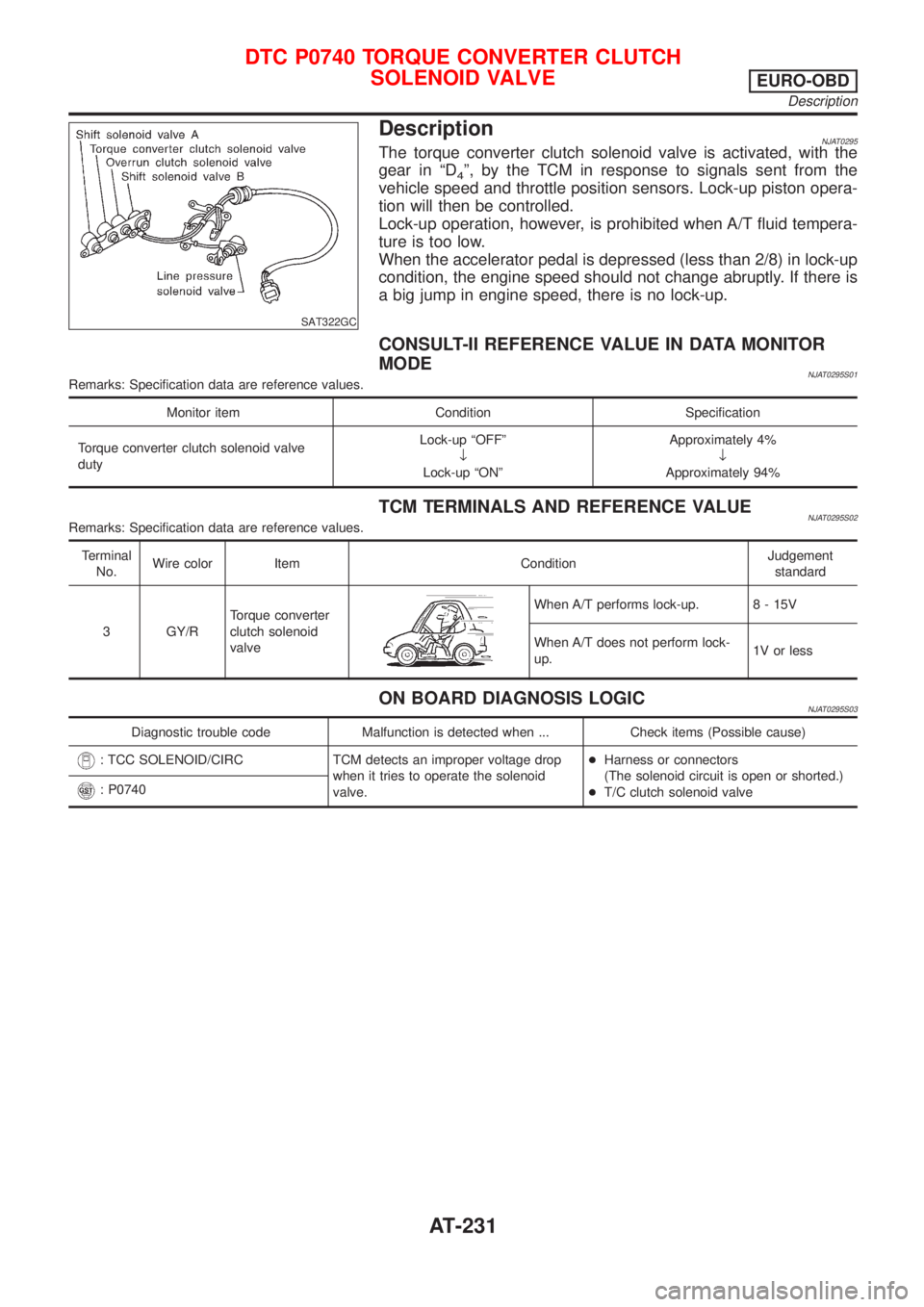

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT322GC DescriptionNJAT0295The torque converter clutch solenoid valve is activated, with the gear in ªD 4º, by the TCM in response to signals sent from the vehicle speed and throttle position senso

Page 1418 of 2493

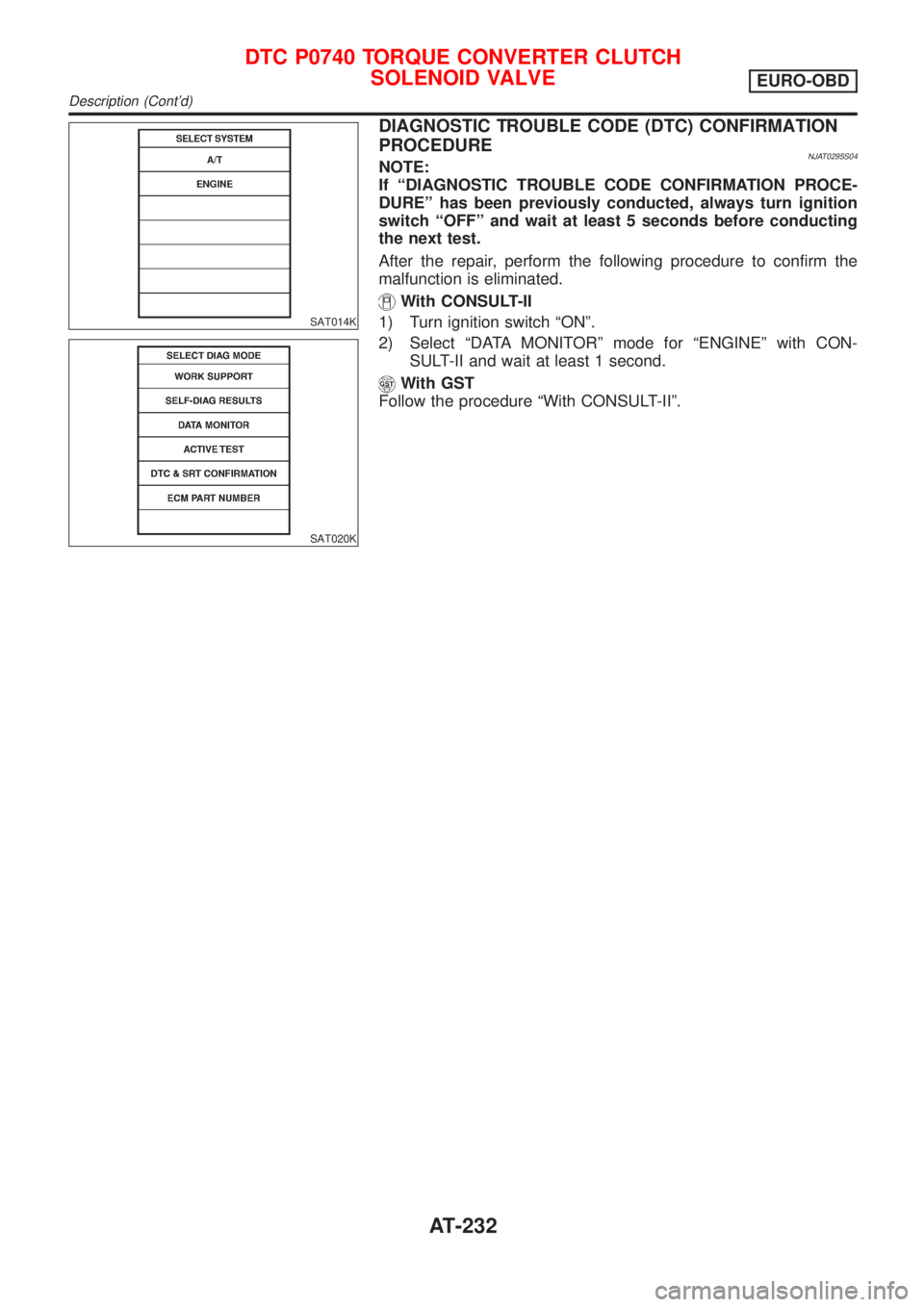

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT014K SAT020K DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE NJAT0295S04NOTE: If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE- DUREº has been previously conducted, always turn ignition switch

Page 1419 of 2493

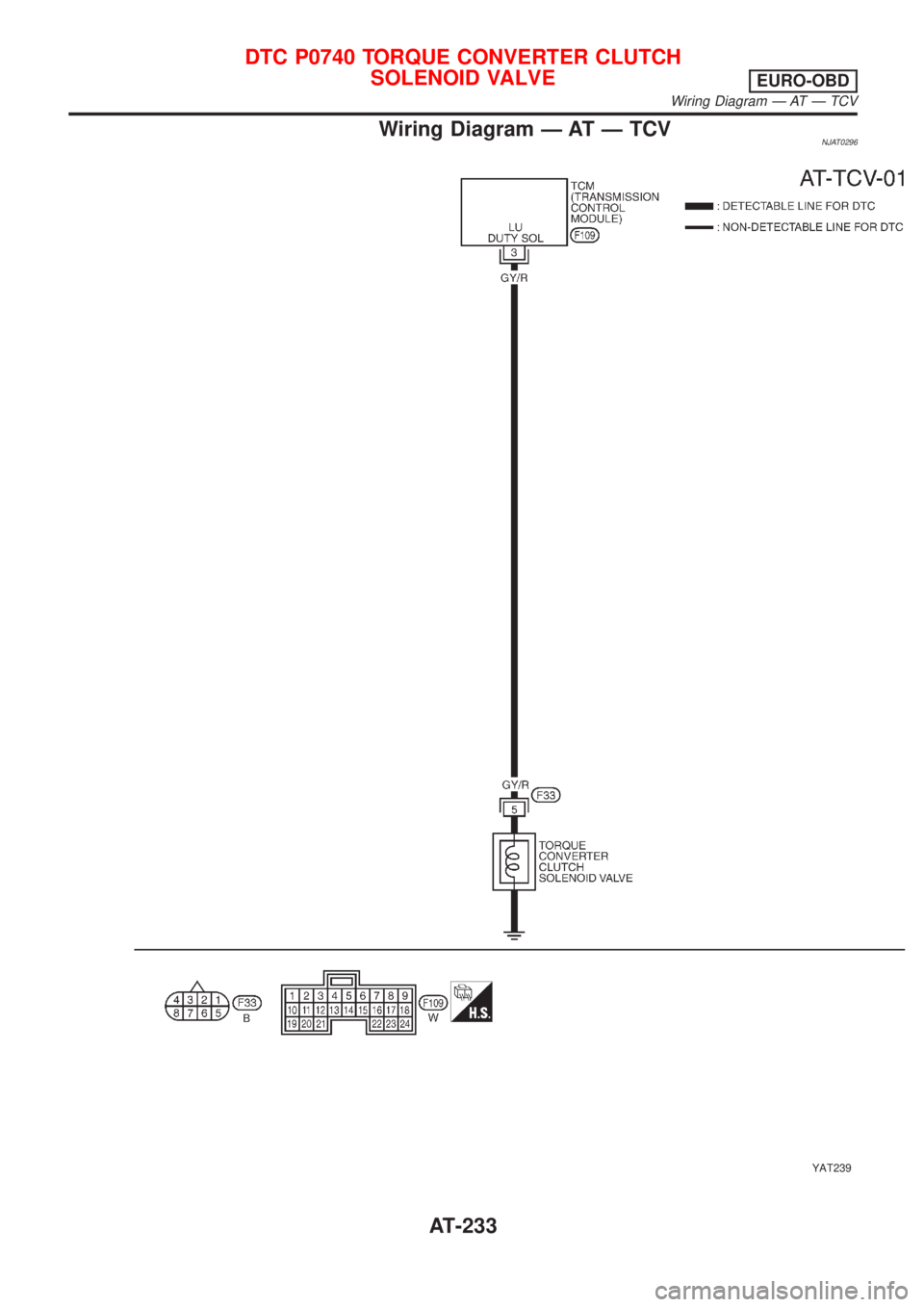

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring Diagram Ð AT Ð TCVNJAT0296 YAT239 DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE EURO-OBD Wiring Diagram Ð AT Ð TCV AT-233

Page 1420 of 2493

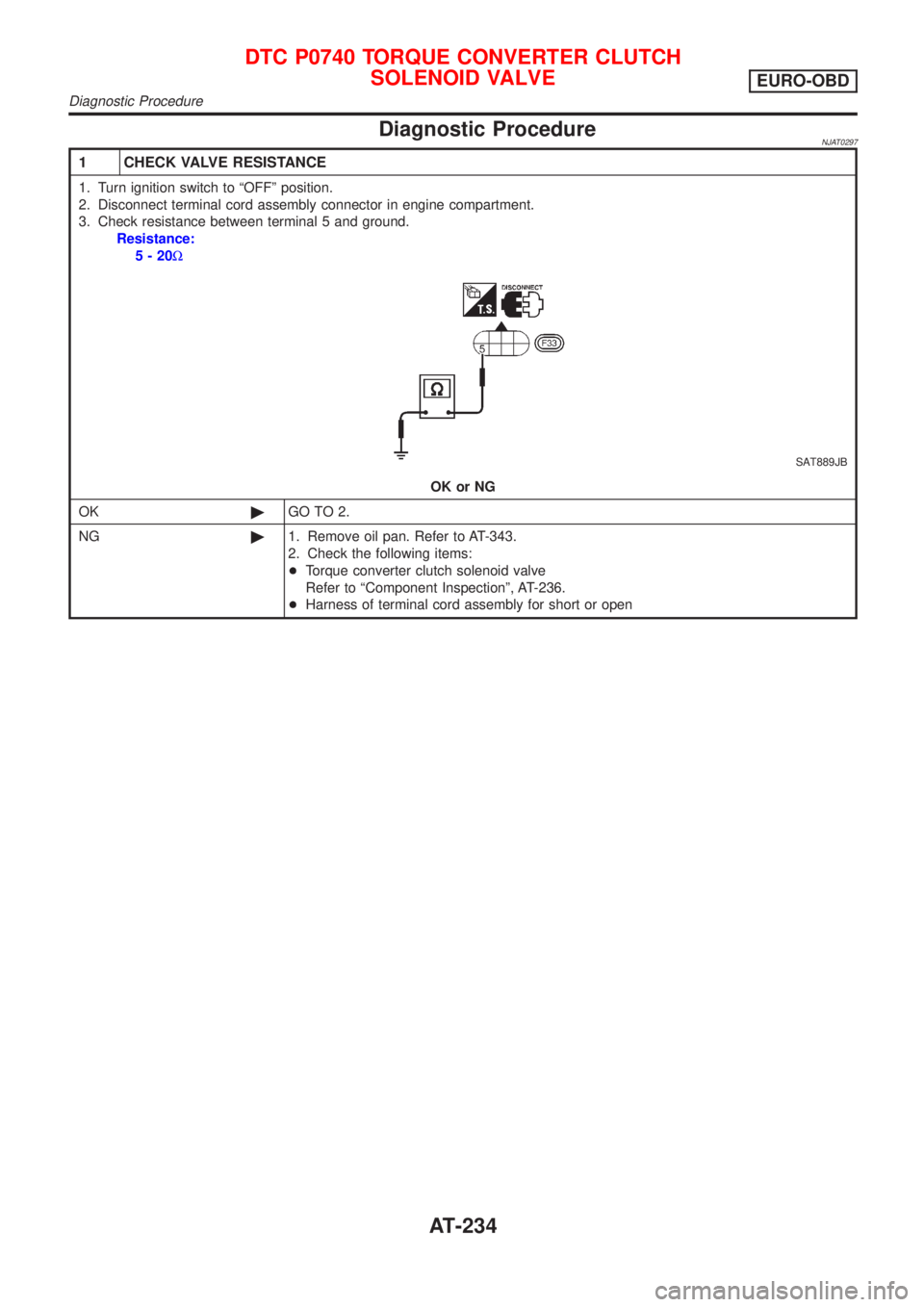

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJAT0297 1 CHECK VALVE RESISTANCE 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine compartment. 3. Check resistance between ter

Page 1421 of 2493

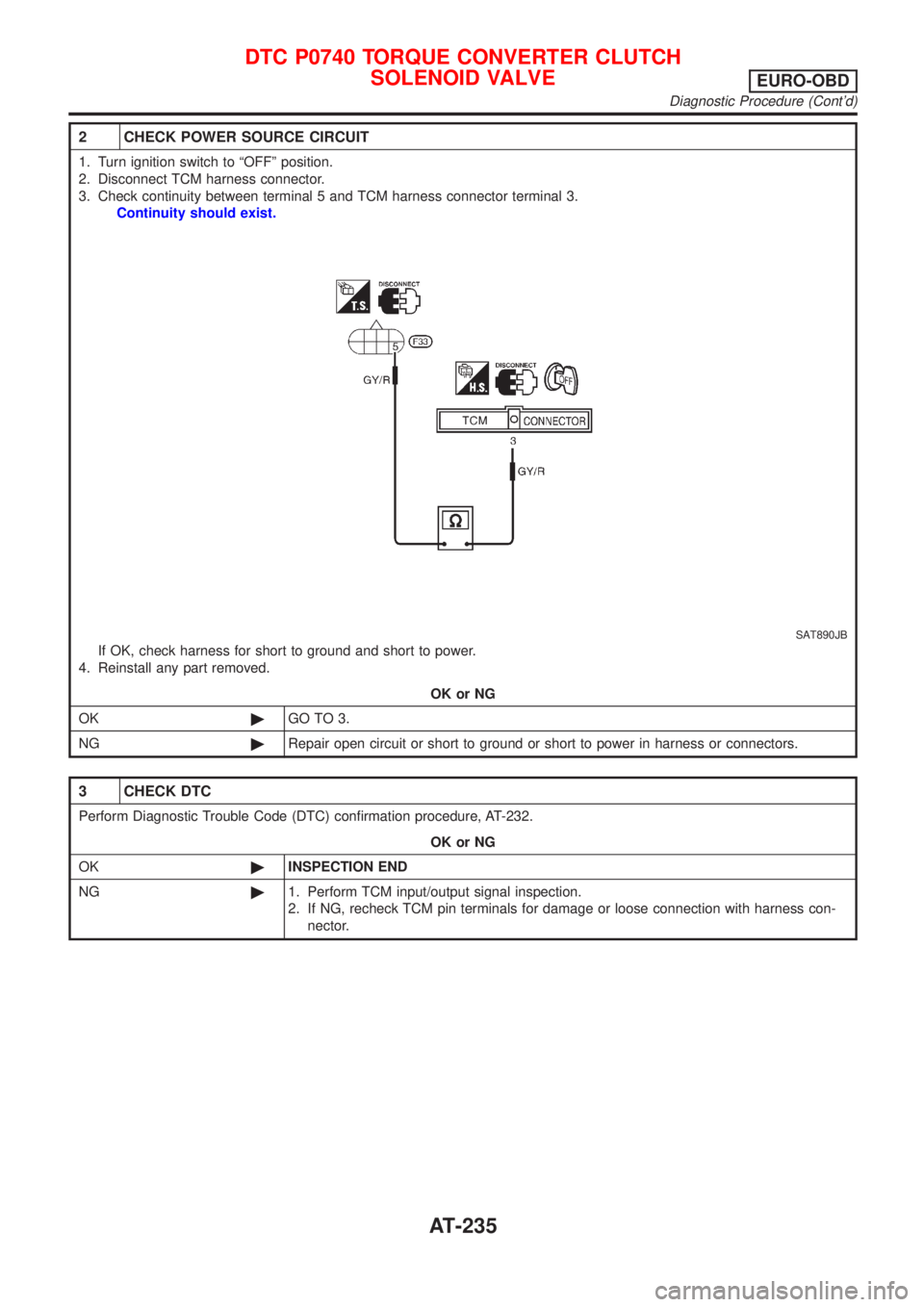

NISSAN ALMERA N16 2001 Electronic Repair Manual 2 CHECK POWER SOURCE CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Disconnect TCM harness connector. 3. Check continuity between terminal 5 and TCM harness connector terminal 3. Continuity s

Page 1422 of 2493

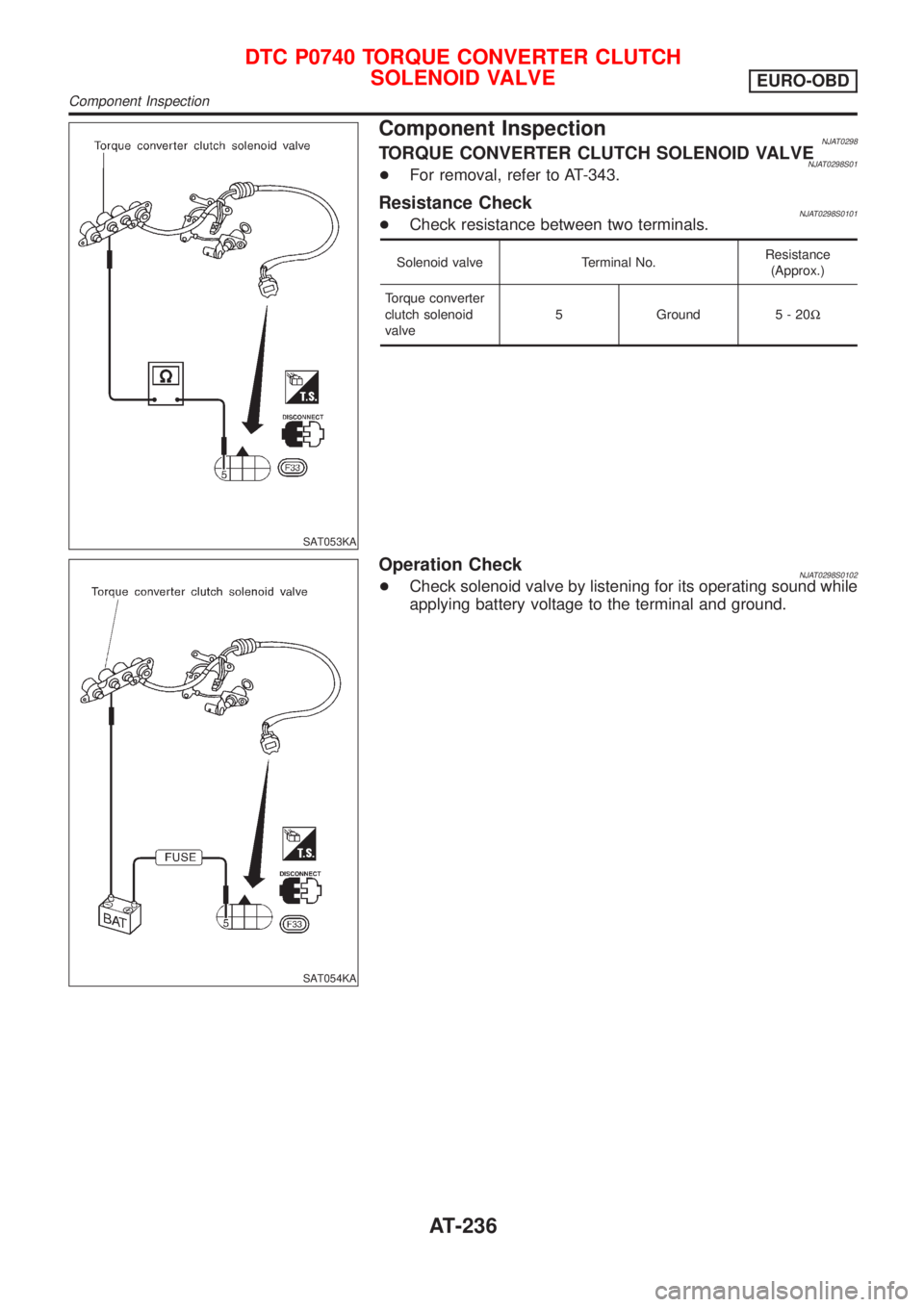

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT053KA Component InspectionNJAT0298TORQUE CONVERTER CLUTCH SOLENOID VALVENJAT0298S01+For removal, refer to AT-343. Resistance CheckNJAT0298S0101+Check resistance between two terminals. Solenoid valv

Page 1423 of 2493

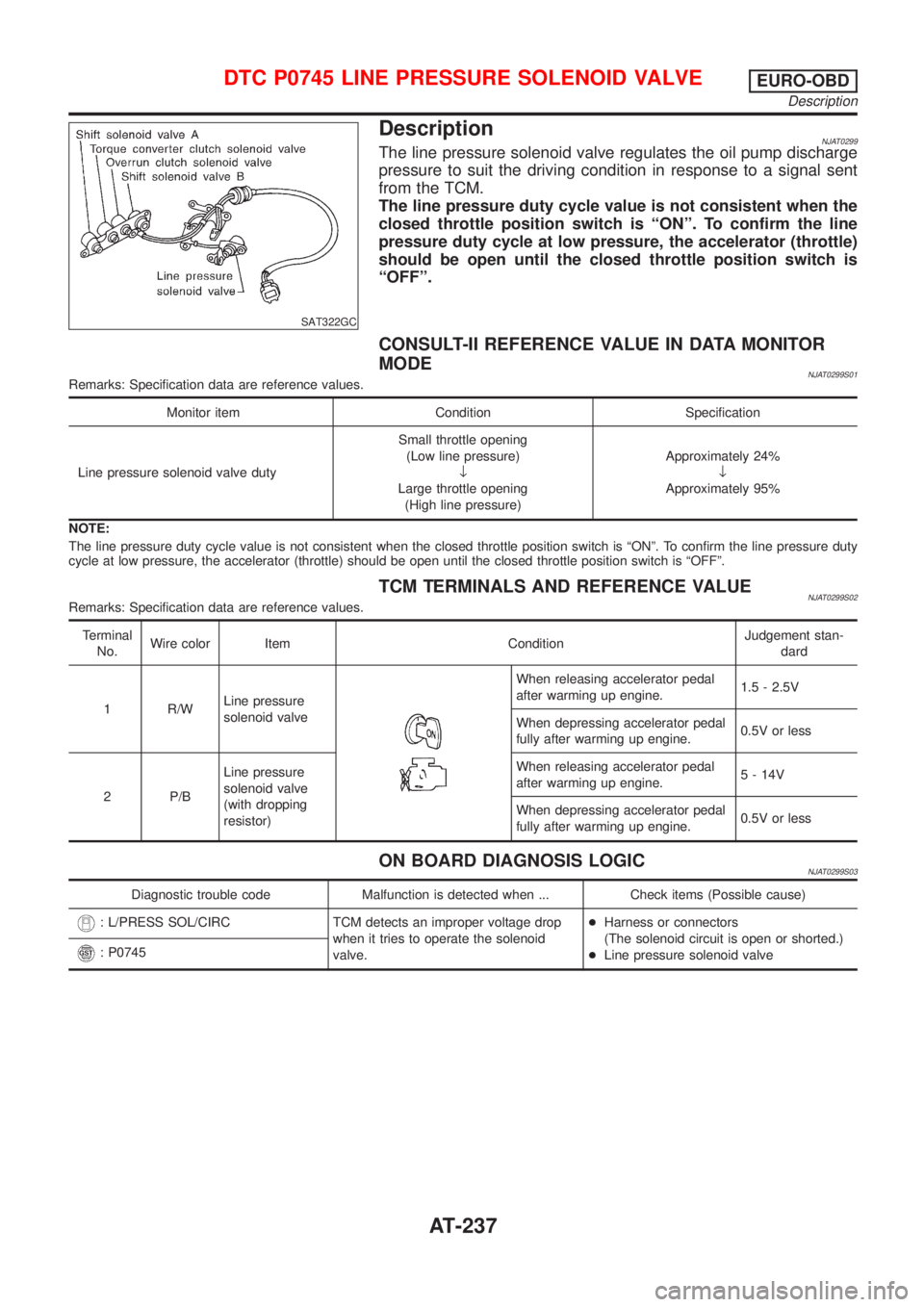

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT322GC DescriptionNJAT0299The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in response to a signal sent from the TCM. The line pressure duty c

Page 1424 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT014K SAT020K DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE NJAT0299S04NOTE: If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE- DUREº has been previously conducted, always turn ignition switch
