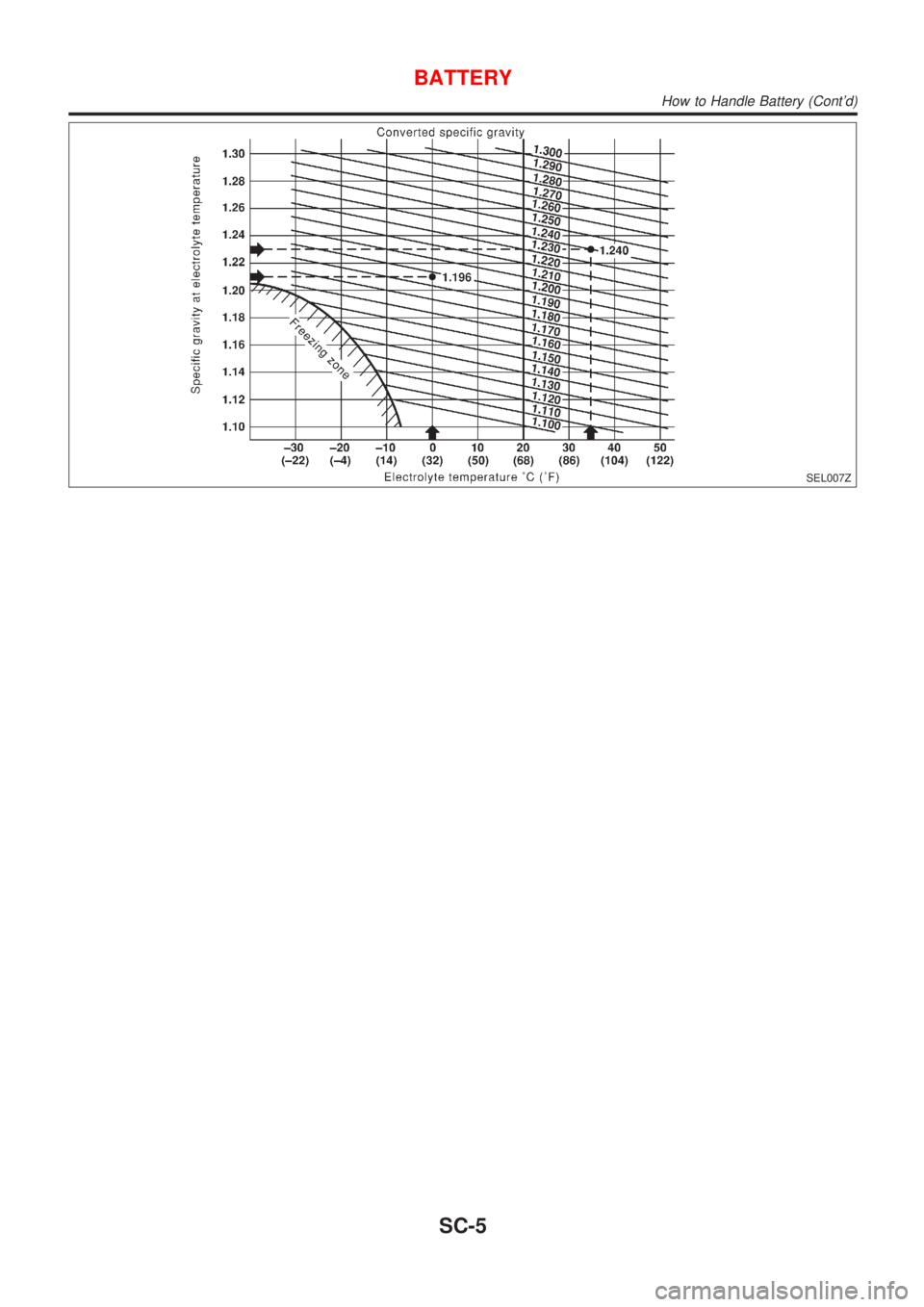

Page 2081 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEL007Z BATTERY How to Handle Battery (Contd) SC-5

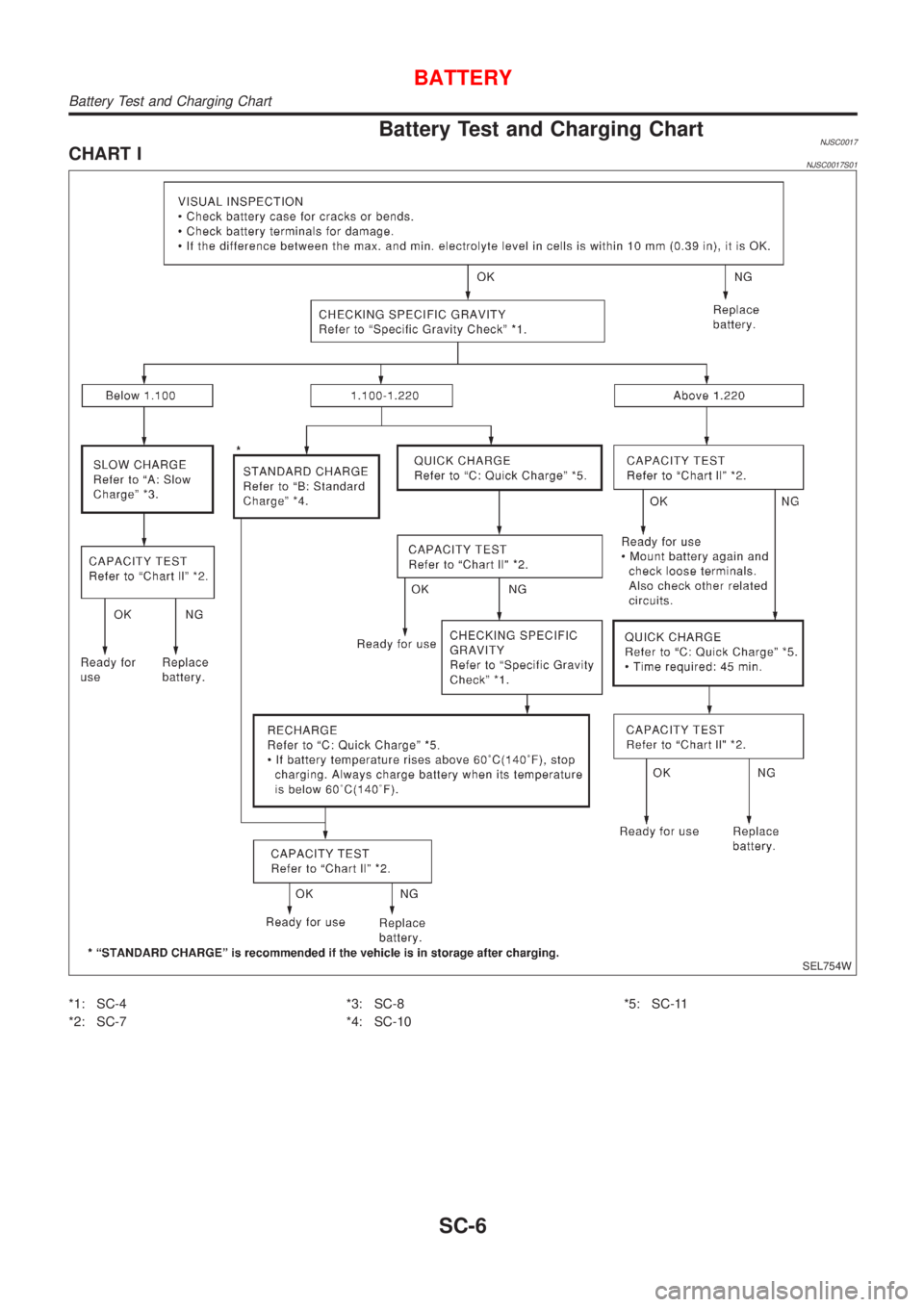

Page 2082 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Battery Test and Charging ChartNJSC0017CHART INJSC0017S01 SEL754W *1: SC-4 *2: SC-7*3: SC-8 *4: SC-10*5: SC-11 BATTERY Battery Test and Charging Chart SC-6

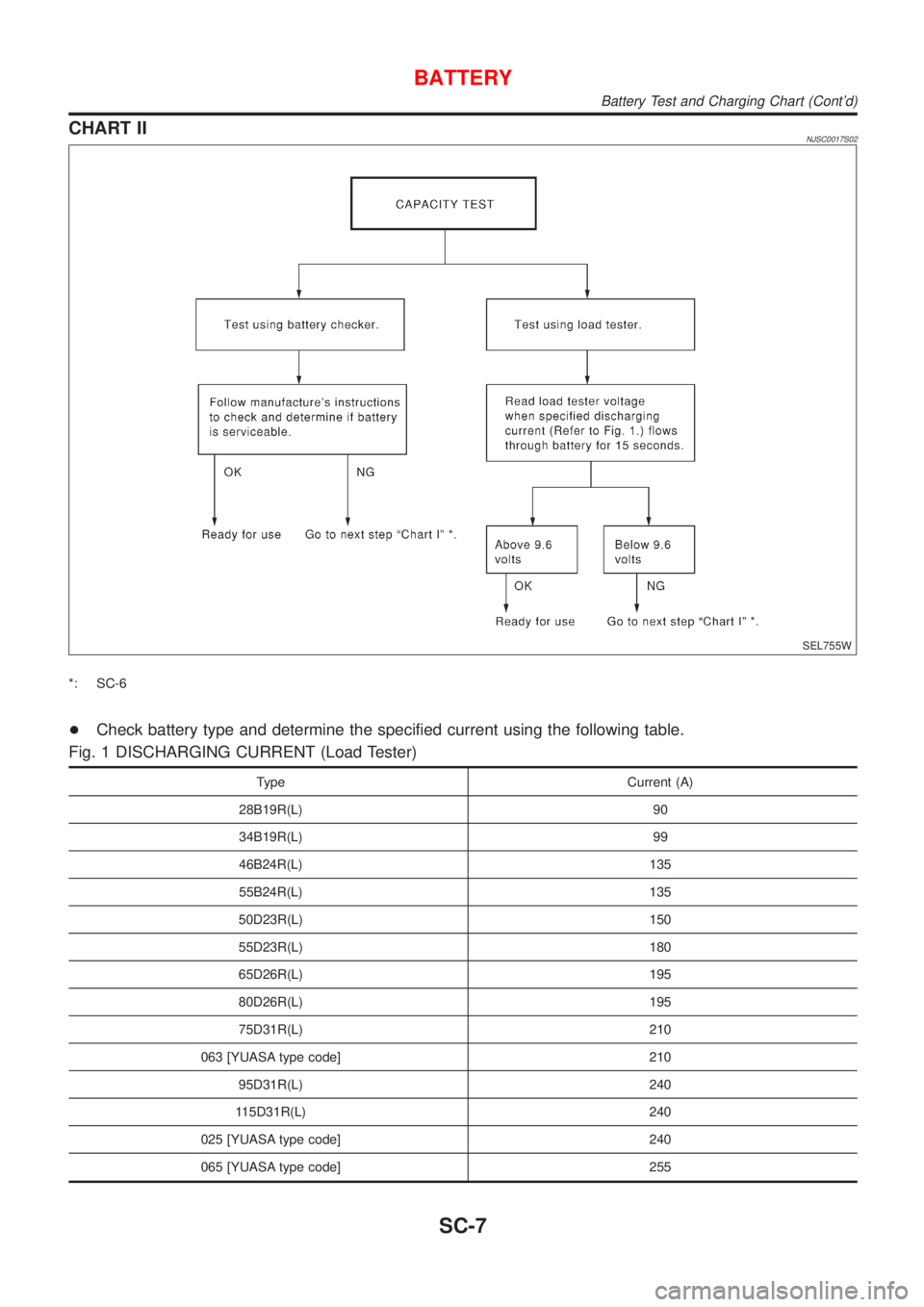

Page 2083 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual CHART IINJSC0017S02 SEL755W *: SC-6 +Check battery type and determine the specified current using the following table. Fig. 1 DISCHARGING CURRENT (Load Tester) Type Current (A) 28B19R(L) 90 34B19R(L)

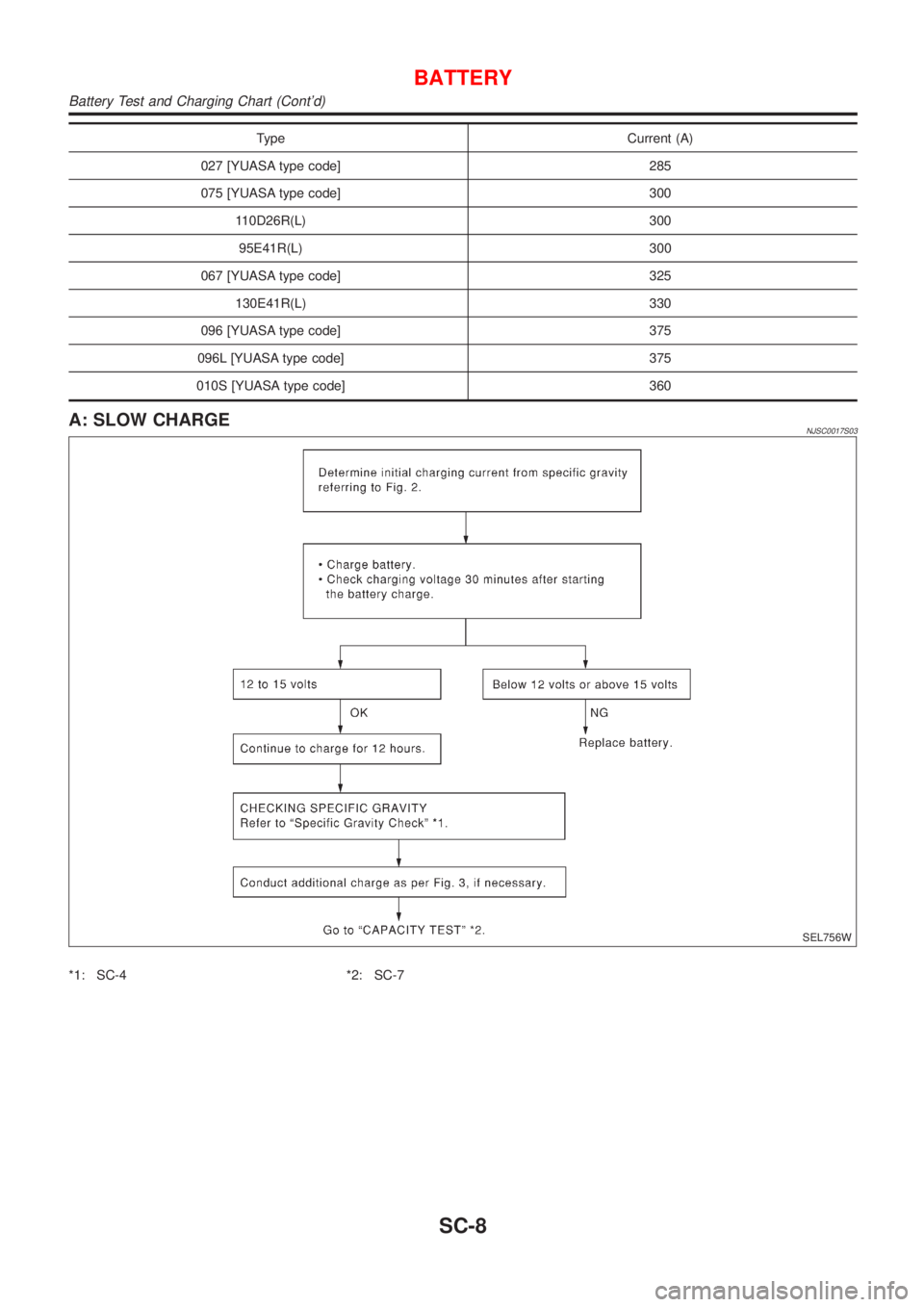

Page 2084 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Type Current (A) 027 [YUASA type code] 285 075 [YUASA type code] 300 110D26R(L) 300 95E41R(L) 300 067 [YUASA type code] 325 130E41R(L) 330 096 [YUASA type code] 375 096L [YUASA type code] 375 010S [YU

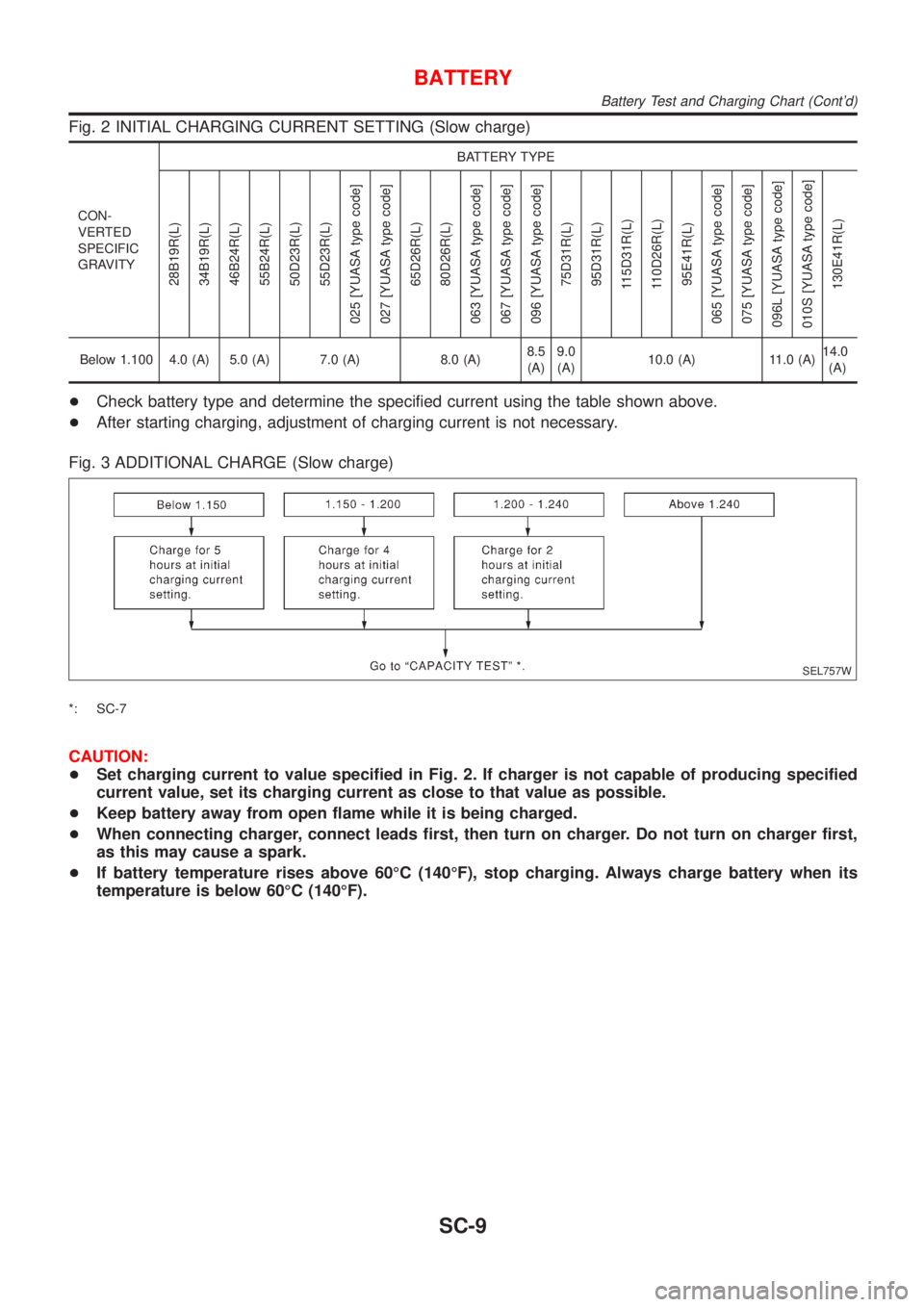

Page 2085 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Fig. 2 INITIAL CHARGING CURRENT SETTING (Slow charge) CON- VERTED SPECIFIC GRAVITYBATTERY TYPE 28B19R(L) 34B19R(L) 46B24R(L) 55B24R(L) 50D23R(L) 55D23R(L) 025 [YUASA type code] 027 [YUASA type code] 6

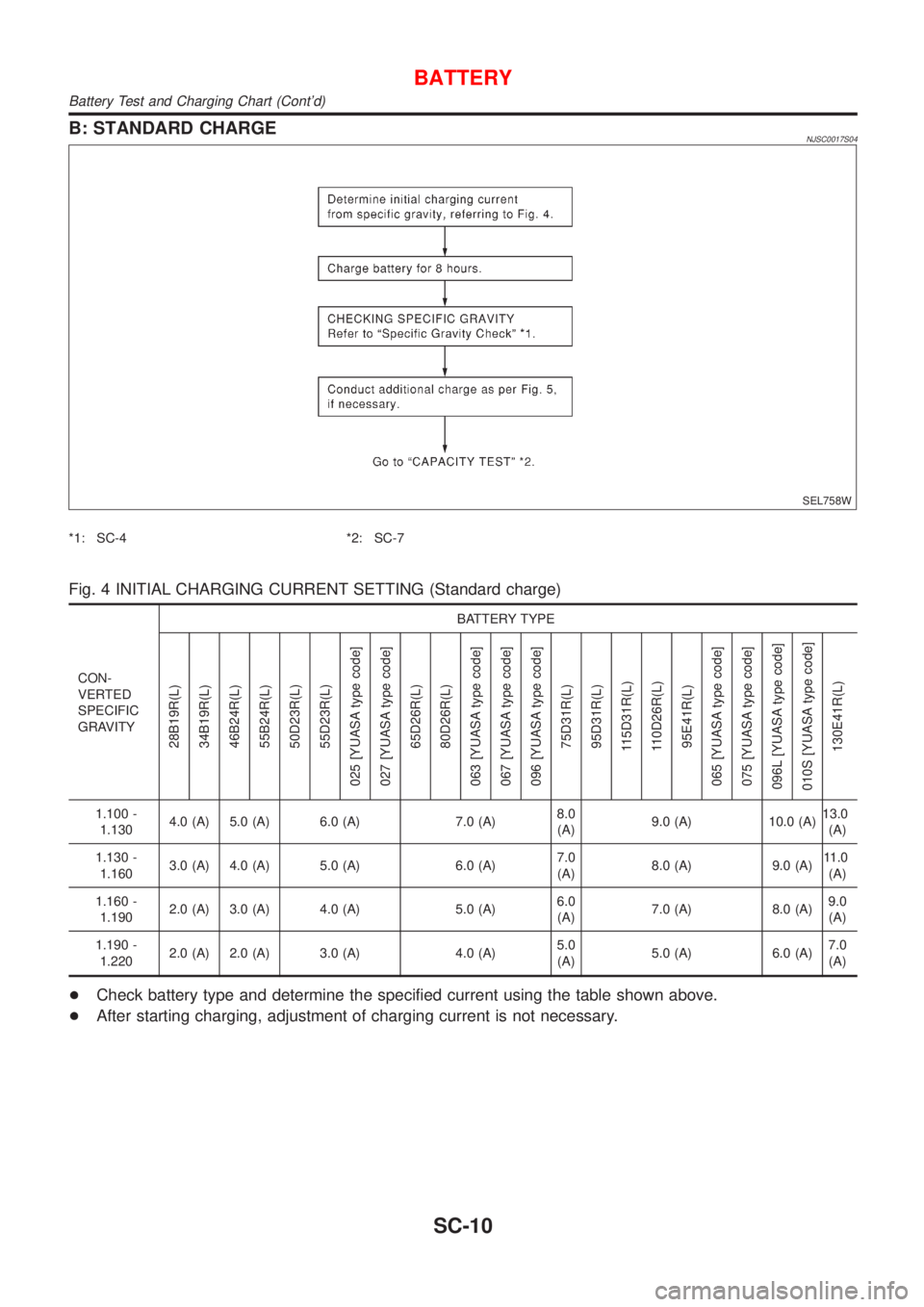

Page 2086 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual B: STANDARD CHARGENJSC0017S04 SEL758W *1: SC-4 *2: SC-7 Fig. 4 INITIAL CHARGING CURRENT SETTING (Standard charge) CON- VERTED SPECIFIC GRAVITYBATTERY TYPE 28B19R(L) 34B19R(L) 46B24R(L) 55B24R(L) 50D23

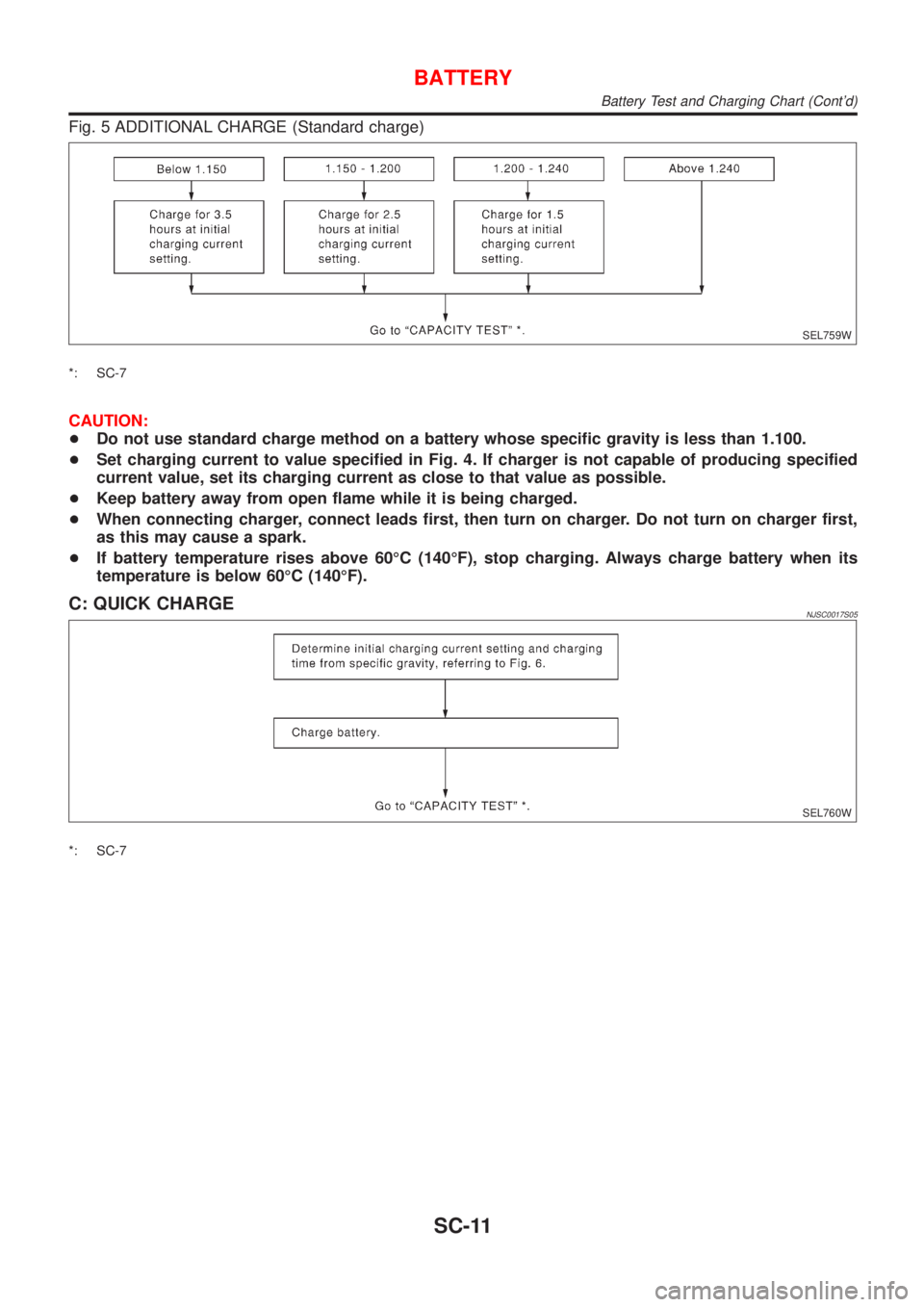

Page 2087 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Fig. 5 ADDITIONAL CHARGE (Standard charge) SEL759W *: SC-7 CAUTION: +Do not use standard charge method on a battery whose specific gravity is less than 1.100. +Set charging current to value specified

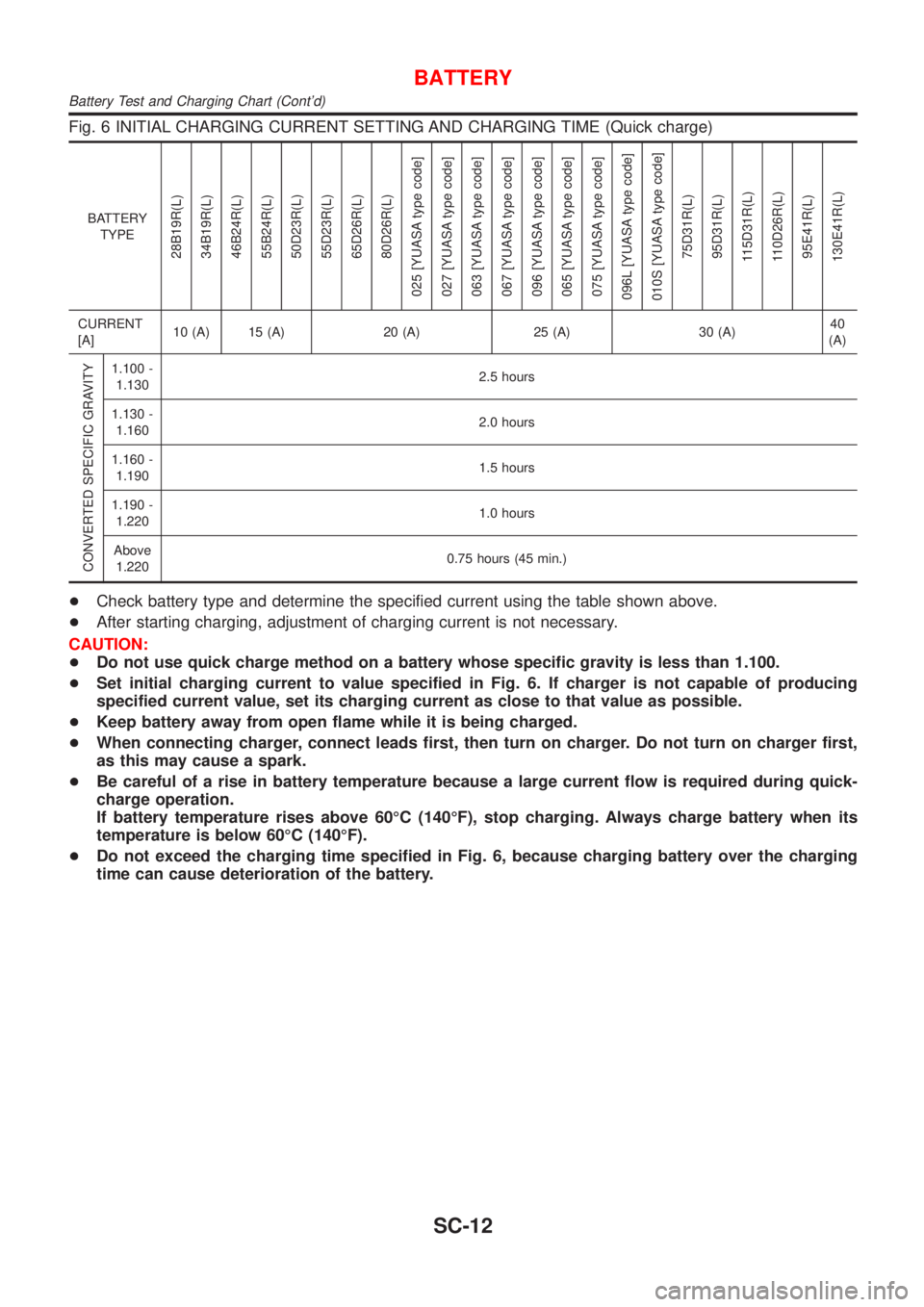

Page 2088 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Fig. 6 INITIAL CHARGING CURRENT SETTING AND CHARGING TIME (Quick charge) BATTERY TYPE 28B19R(L) 34B19R(L) 46B24R(L) 55B24R(L) 50D23R(L) 55D23R(L) 65D26R(L) 80D26R(L) 025 [YUASA type code] 027 [YUASA t
