Page 1593 of 2493

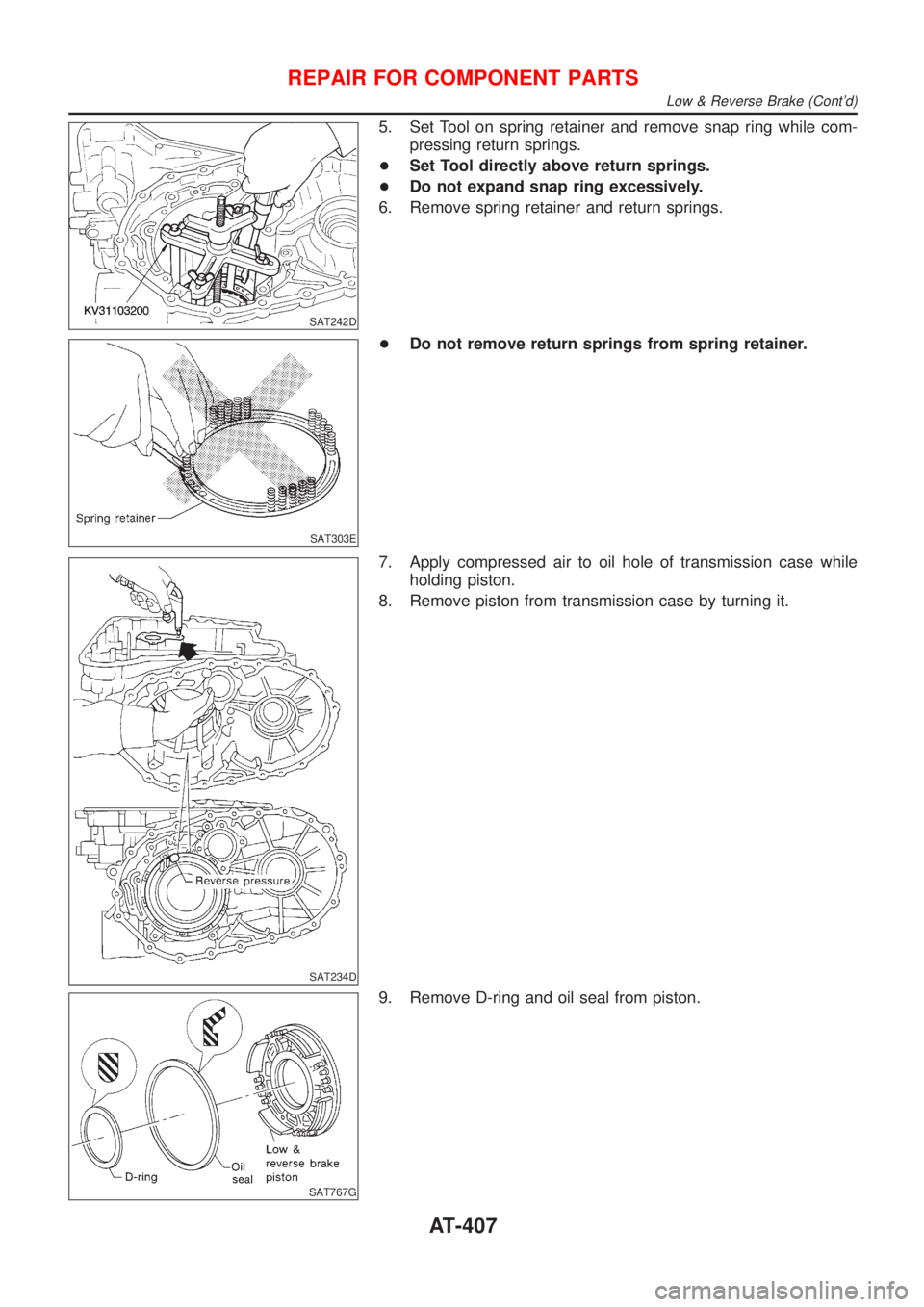

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT242D 5. Set Tool on spring retainer and remove snap ring while com- pressing return springs. +Set Tool directly above return springs. +Do not expand snap ring excessively. 6. Remove spring retainer

Page 1594 of 2493

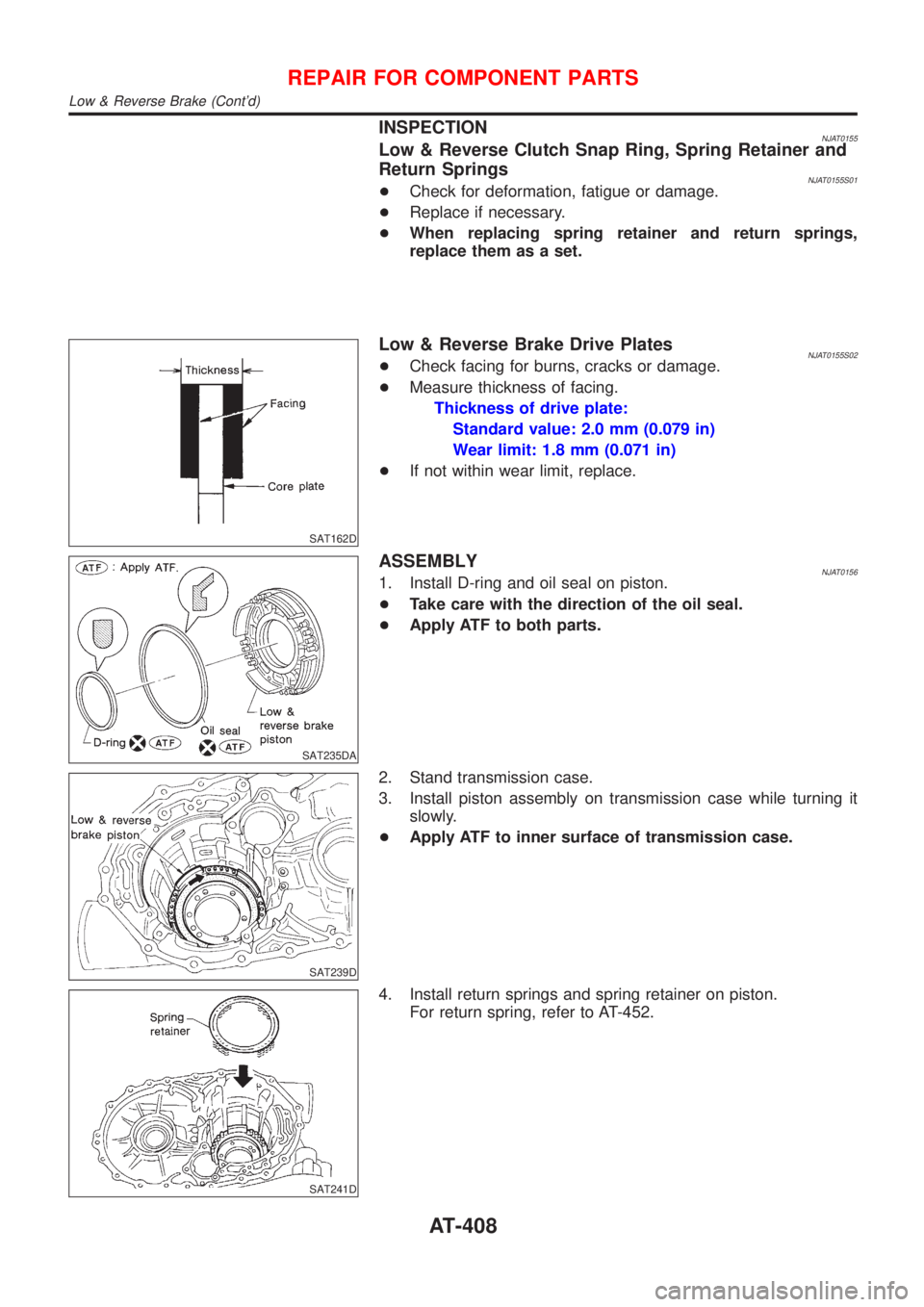

NISSAN ALMERA N16 2001 Electronic Repair Manual INSPECTIONNJAT0155Low & Reverse Clutch Snap Ring, Spring Retainer and Return Springs NJAT0155S01+Check for deformation, fatigue or damage. +Replace if necessary. +When replacing spring retainer and re

Page 1595 of 2493

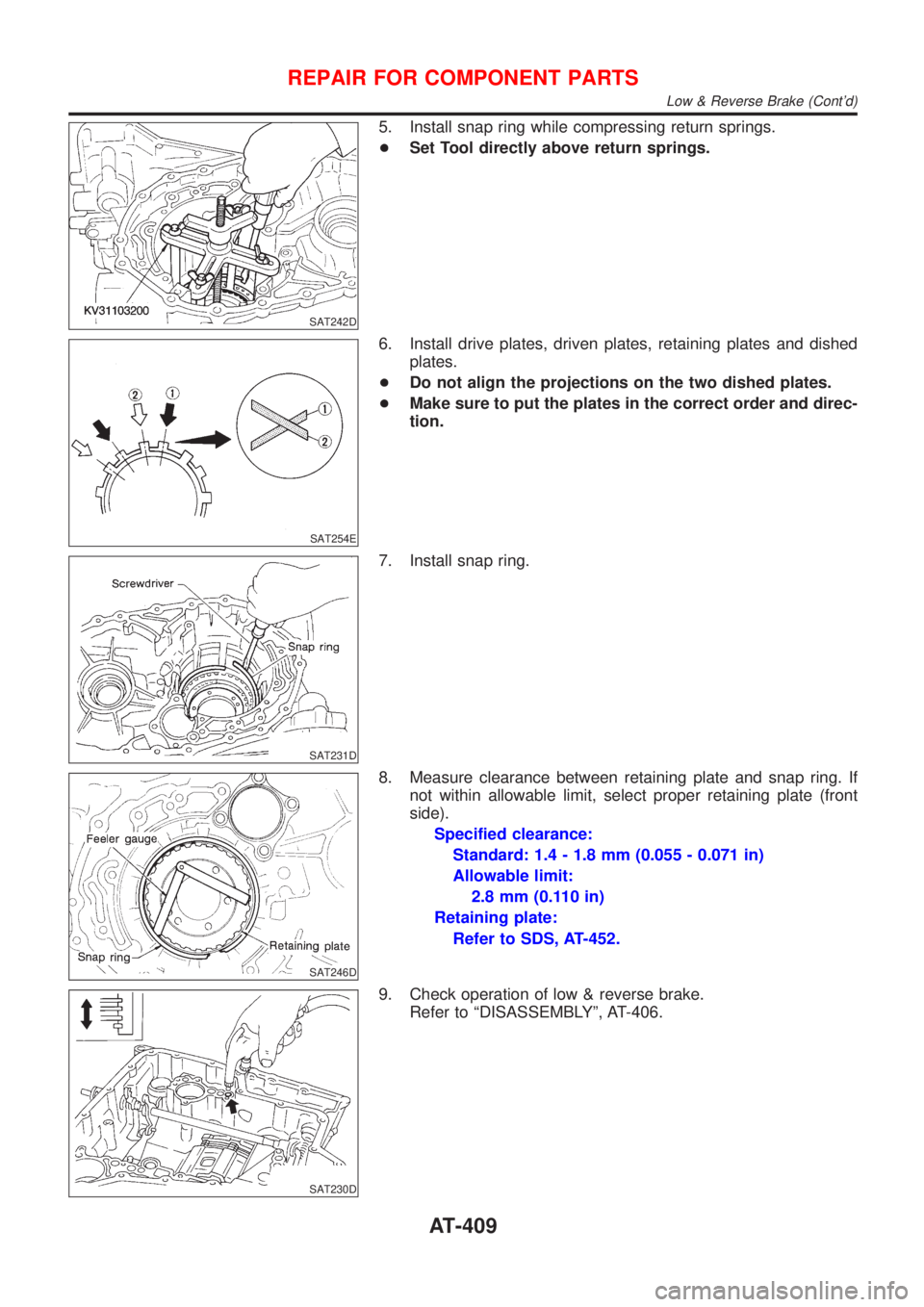

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT242D 5. Install snap ring while compressing return springs. +Set Tool directly above return springs. SAT254E 6. Install drive plates, driven plates, retaining plates and dished plates. +Do not alig

Page 1596 of 2493

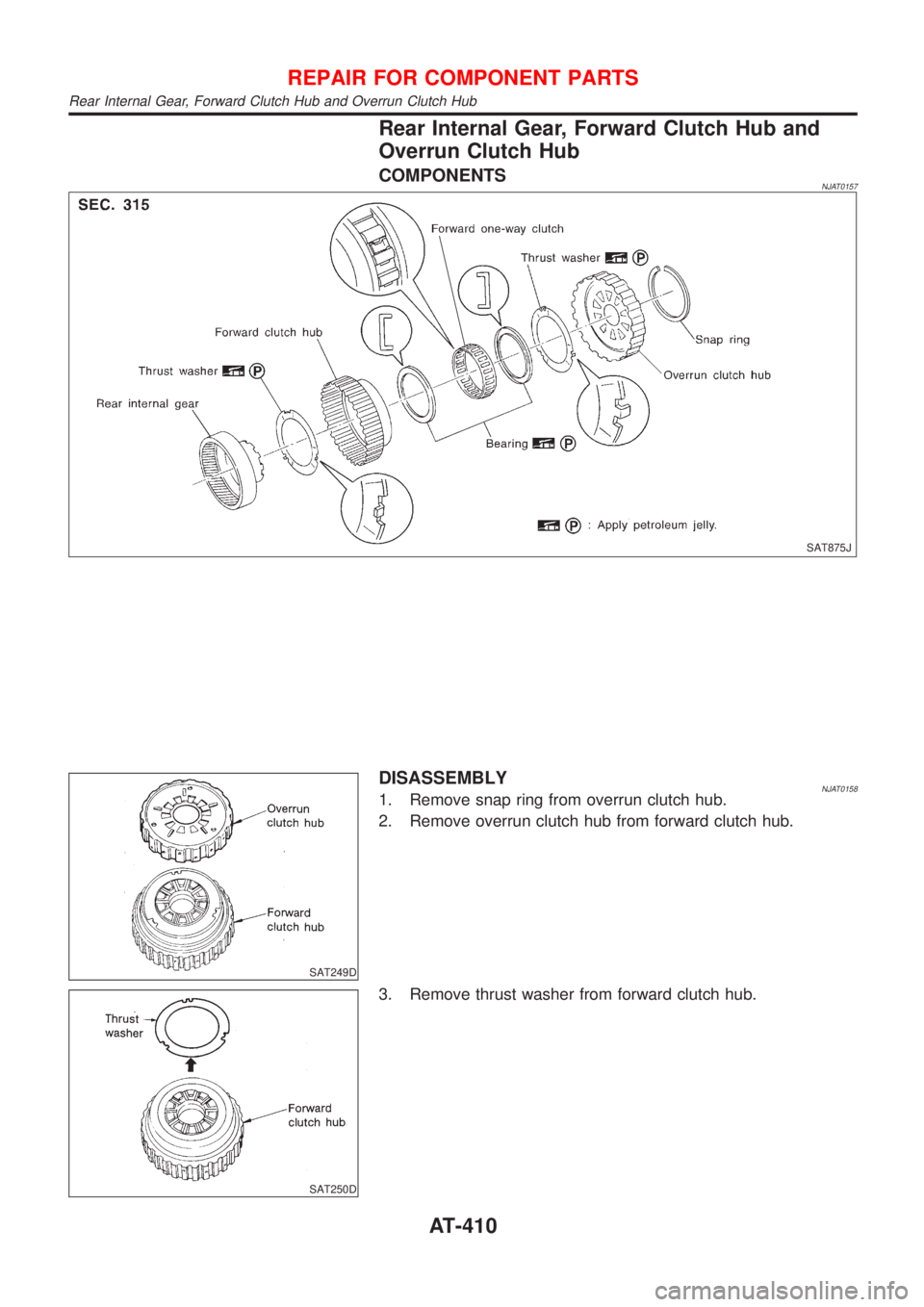

NISSAN ALMERA N16 2001 Electronic Repair Manual Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub COMPONENTSNJAT0157 SAT875J SAT249D DISASSEMBLYNJAT01581. Remove snap ring from overrun clutch hub. 2. Remove overrun clutch hub from forwa

Page 1597 of 2493

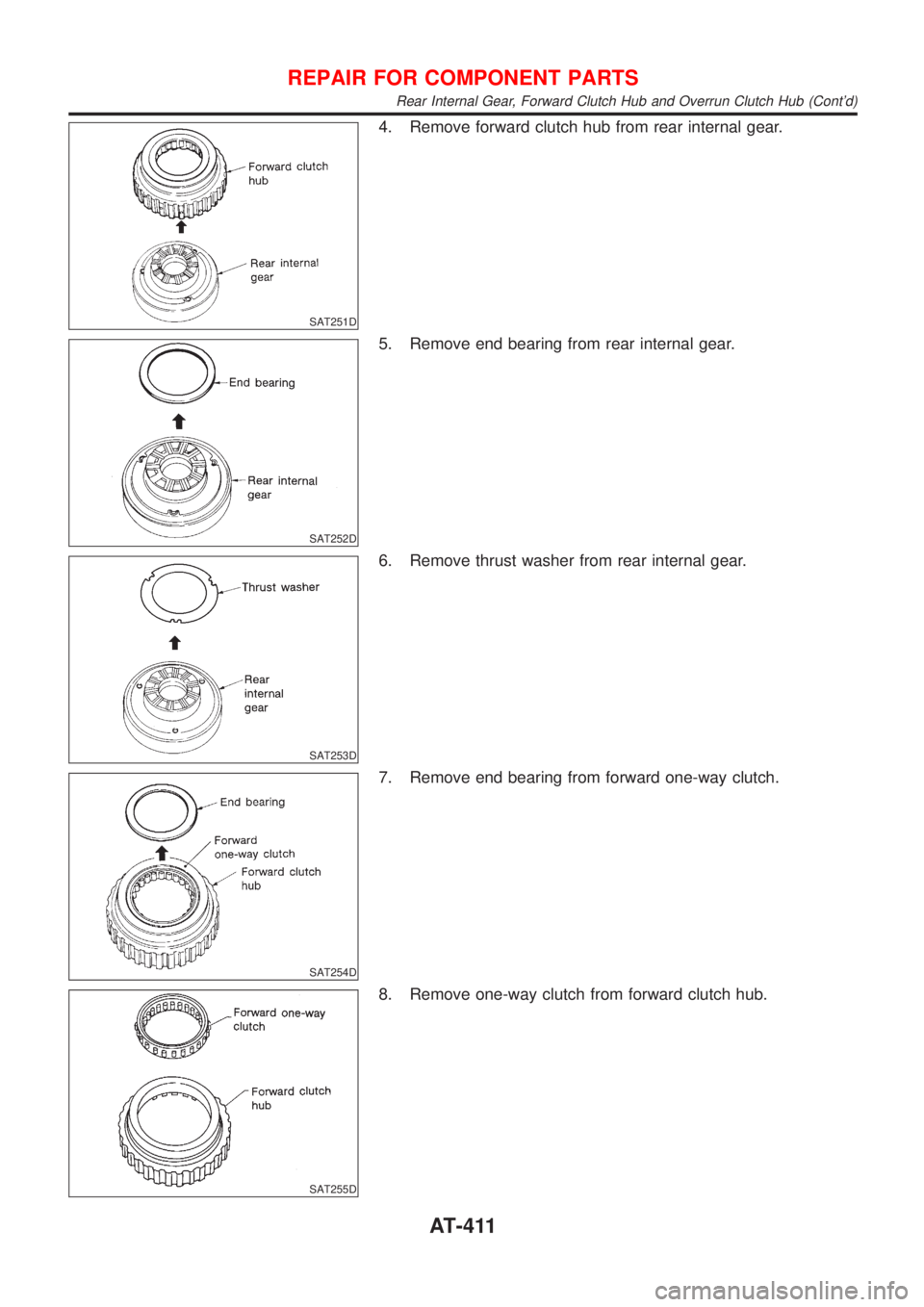

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT251D 4. Remove forward clutch hub from rear internal gear. SAT252D 5. Remove end bearing from rear internal gear. SAT253D 6. Remove thrust washer from rear internal gear. SAT254D 7. Remove end bear

Page 1598 of 2493

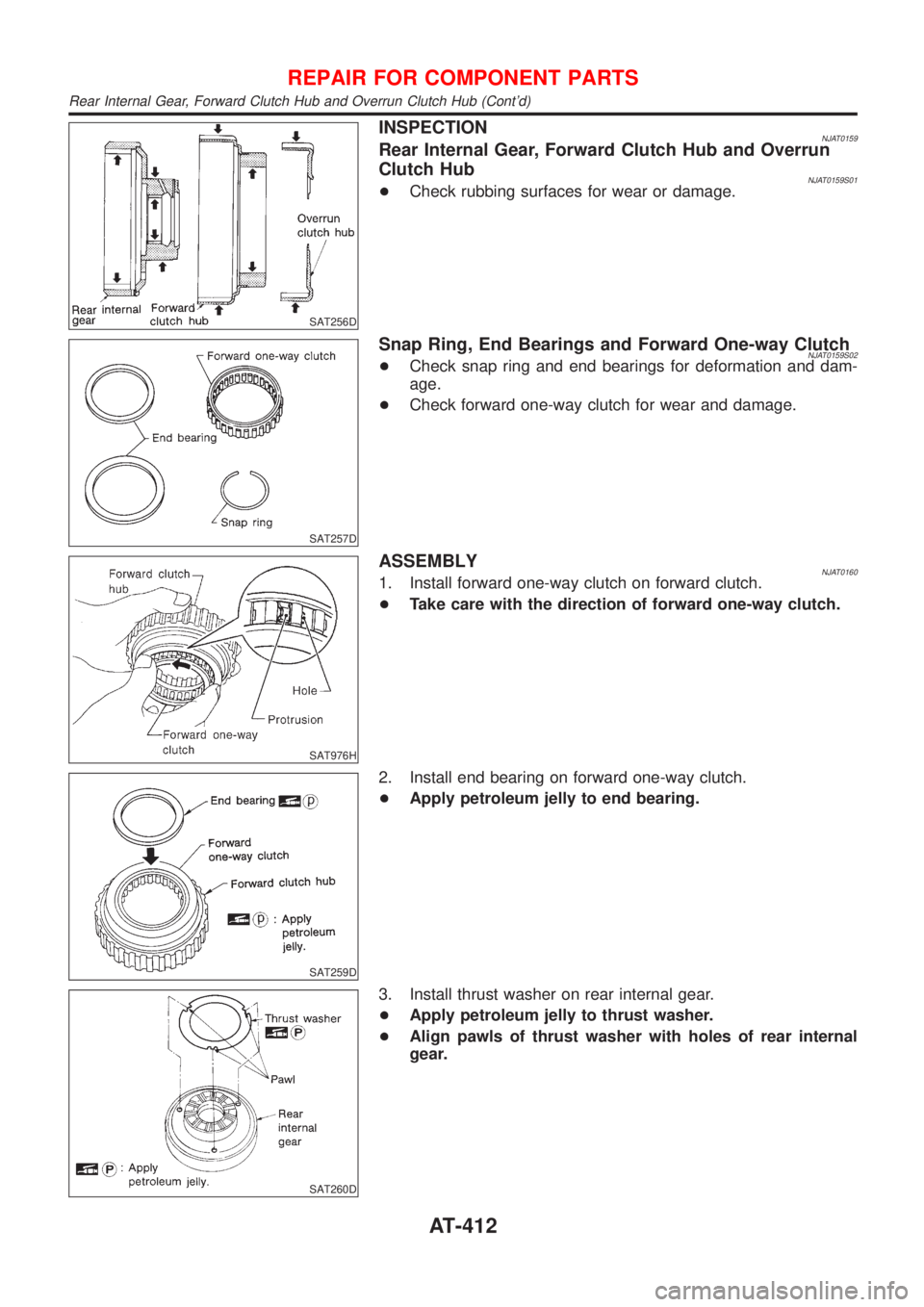

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT256D INSPECTIONNJAT0159Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub NJAT0159S01+Check rubbing surfaces for wear or damage. SAT257D Snap Ring, End Bearings and Forward One-way Clutc

Page 1599 of 2493

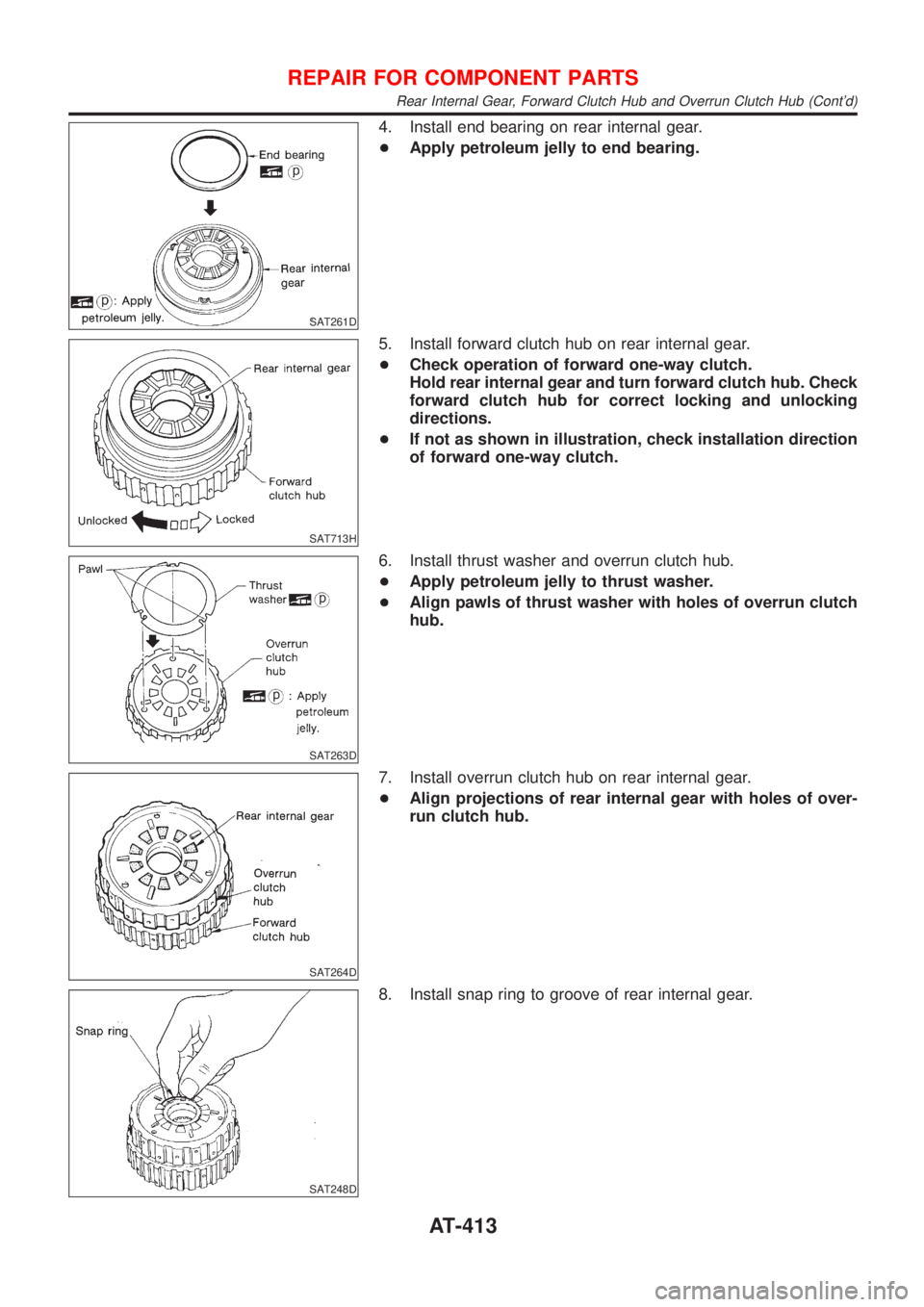

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT261D 4. Install end bearing on rear internal gear. +Apply petroleum jelly to end bearing. SAT713H 5. Install forward clutch hub on rear internal gear. +Check operation of forward one-way clutch. Ho

Page 1600 of 2493

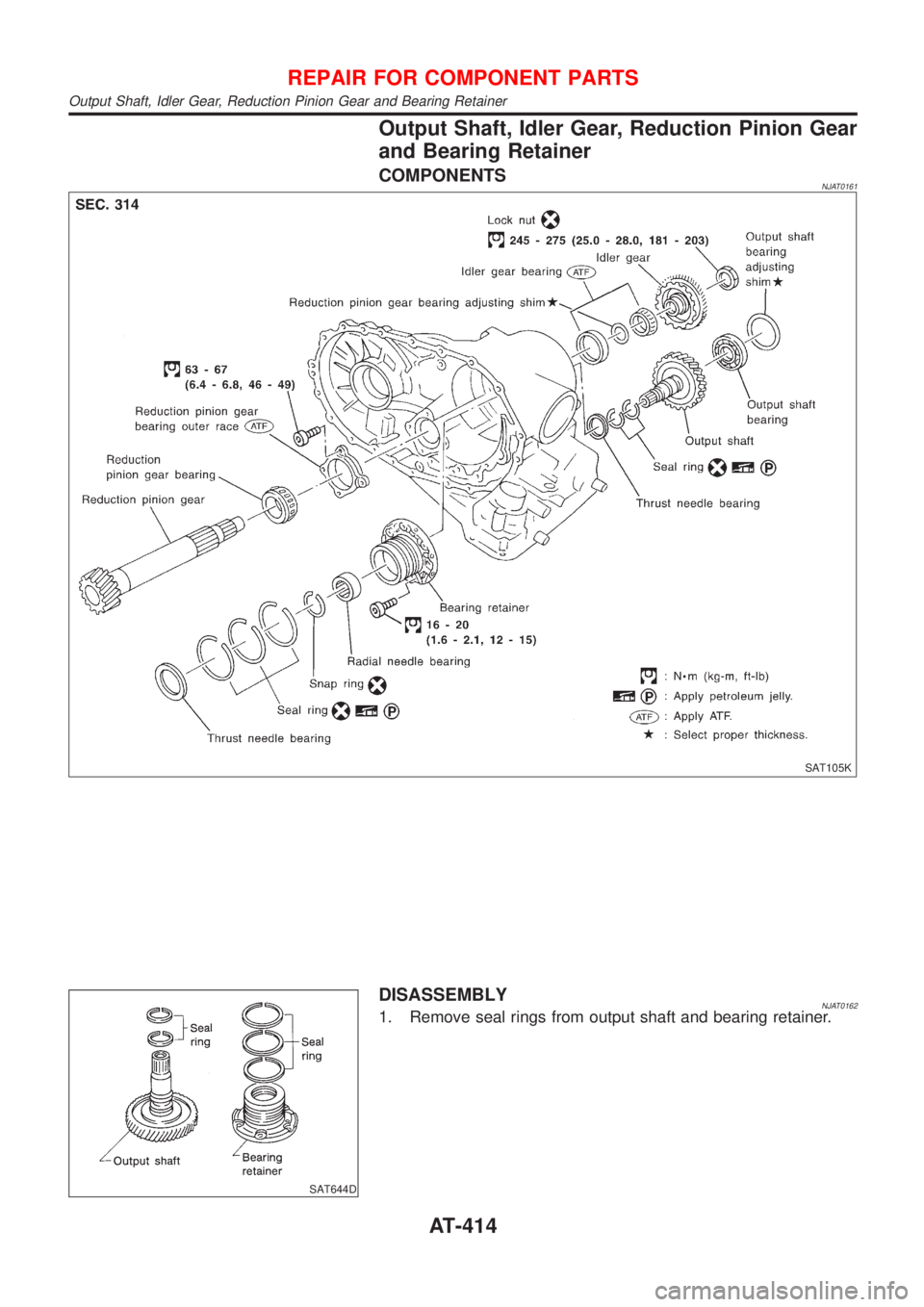

NISSAN ALMERA N16 2001 Electronic Repair Manual Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer COMPONENTSNJAT0161 SAT105K SAT644D DISASSEMBLYNJAT01621. Remove seal rings from output shaft and bearing retainer. REPAIR FOR COMPO
