Page 49 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SGI805 SGI987 Tow Truck TowingNJGI0009S05CAUTION: +All applicable local laws regarding the towing operation must be obeyed. +It is necessary to use proper towing equipment to avoid possible damage to

Page 50 of 2493

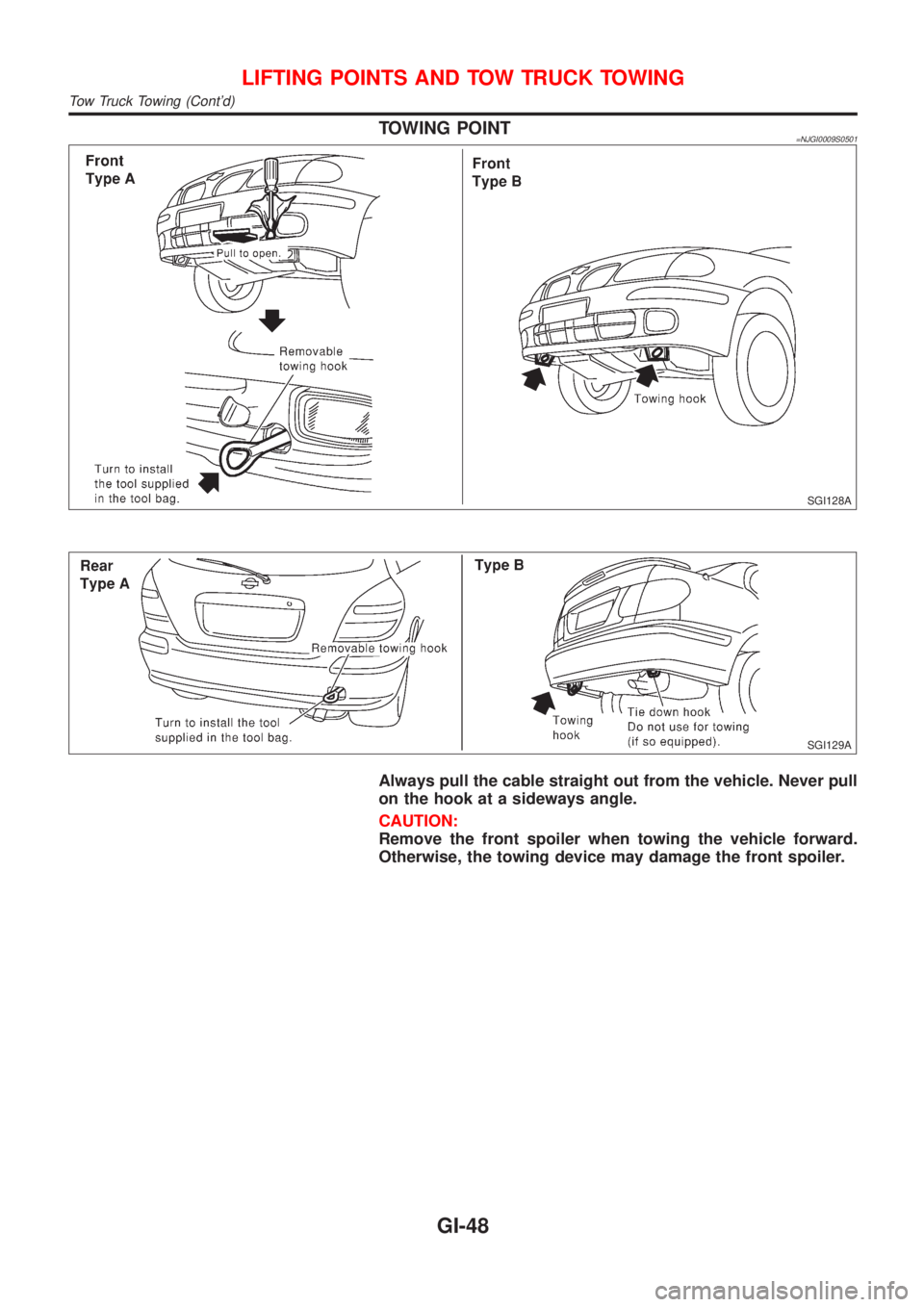

NISSAN ALMERA N16 2001 Electronic Repair Manual TOWING POINT=NJGI0009S0501 SGI128A SGI129A Always pull the cable straight out from the vehicle. Never pull on the hook at a sideways angle. CAUTION: Remove the front spoiler when towing the vehicle fo

Page 51 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual NJGI0010 Grade Bolt sizeBolt diam- eter * mmPitch mmTightening torque (Without lubricant) Hexagon head bolt Hexagon flange bolt N´m kg-m ft-lb in-lb N´m kg-m ft-lb in-lb 4TM6 6.0 1.0 5.1 0.52 3.8 45

Page 52 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual NJGI0011 ISO 15031-2NJGI0011S01All emission related terms used in this publication in accordance with ISO 15031-2 are listed. Accordingly, new terms, new acronyms/abbreviations and old terms are liste

Page 53 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual NEW TERMNEW ACRONYM / ABBREVIATIONOLD TERM Erasable programmable read only memoryEPROM *** Evaporative emission canister EVAP canister Canister Evaporative emission system EVAP system Evaporative emis

Page 54 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual NEW TERMNEW ACRONYM / ABBREVIATIONOLD TERM Malfunction indicator lamp MIL Check engine light Manifold absolute pressure MAP *** Manifold absolute pressure sensor MAPS *** Manifold differential pressur

Page 55 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual NEW TERMNEW ACRONYM / ABBREVIATIONOLD TERM Simultaneous multiport fuel injection sys- tem*** Simultaneous fuel injection Smoke puff limiter system SPL system *** Supercharger SC *** Supercharger bypas

Page 56 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual ISO 15031-2 TERMINOLOGY LIST ISO 15031-2 (Contd) GI-54
