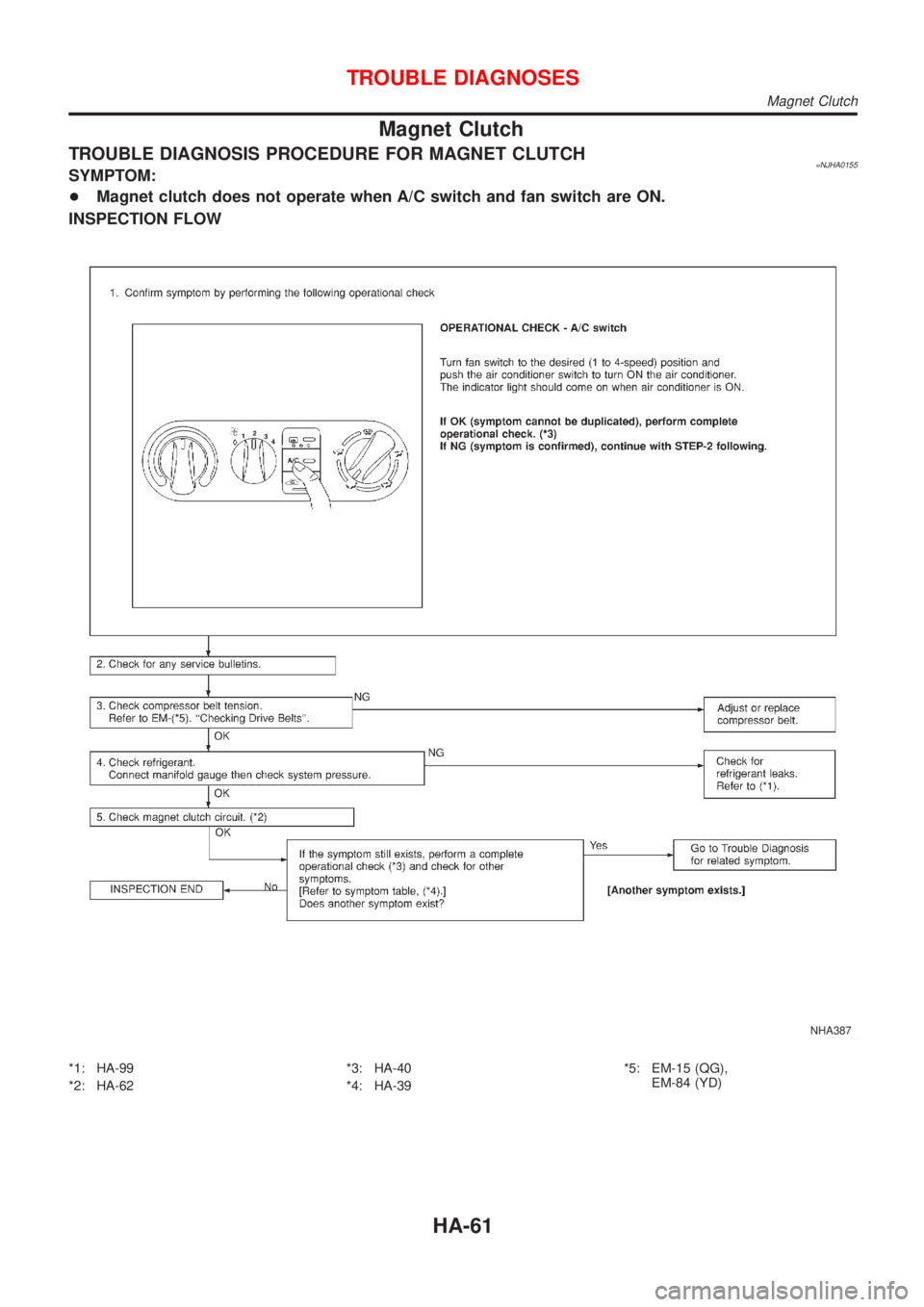

NISSAN ALMERA N16 2001 Electronic Repair Manual Magnet Clutch TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH=NJHA0155SYMPTOM: +Magnet clutch does not operate when A/C switch and fan switch are ON. INSPECTION FLOW NHA387 *1: HA-99 *2: HA-62*3: HA-40

Page 2034 of 2493

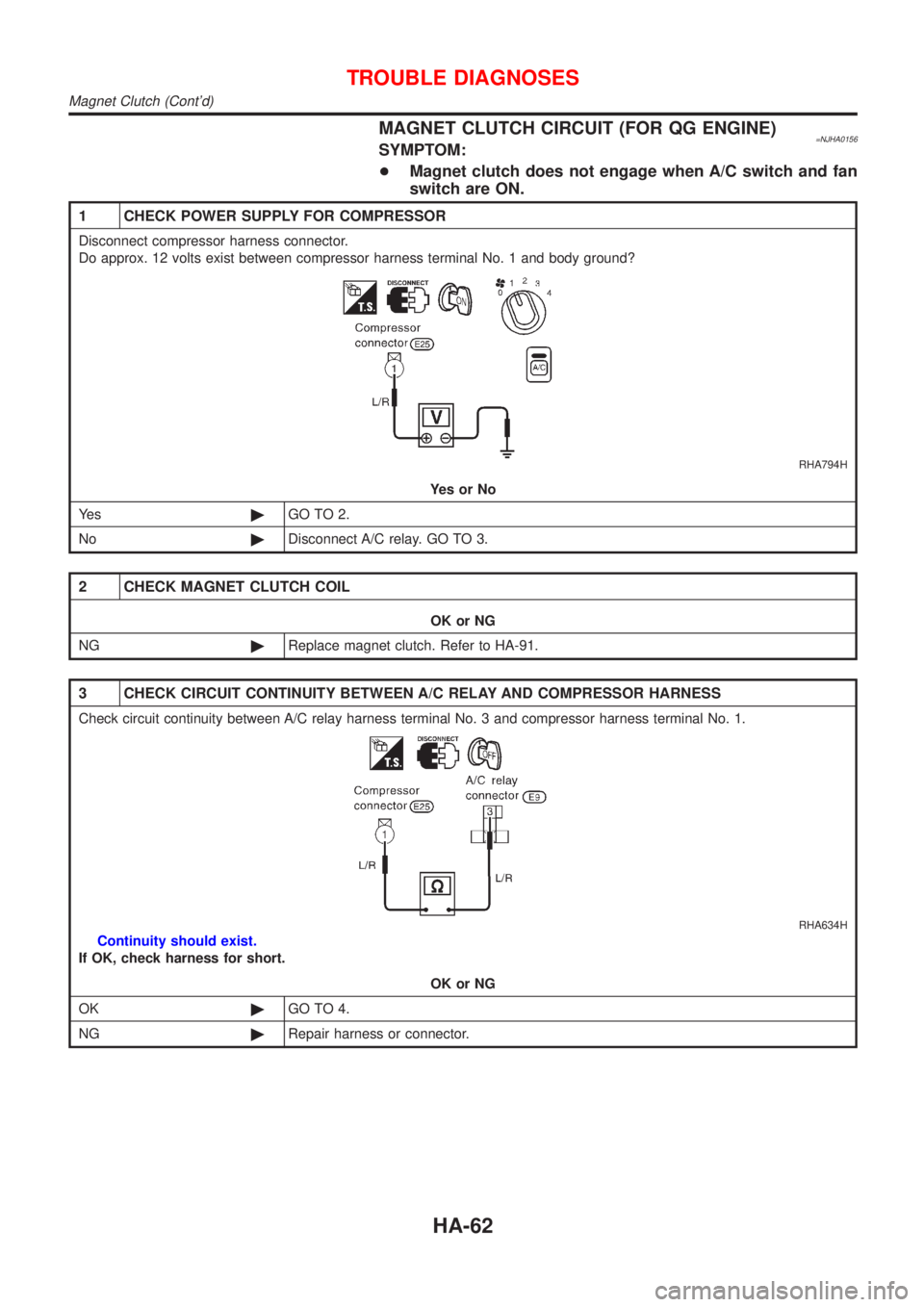

NISSAN ALMERA N16 2001 Electronic Repair Manual MAGNET CLUTCH CIRCUIT (FOR QG ENGINE)=NJHA0156SYMPTOM: +Magnet clutch does not engage when A/C switch and fan switch are ON. 1 CHECK POWER SUPPLY FOR COMPRESSOR Disconnect compressor harness connector

Page 2035 of 2493

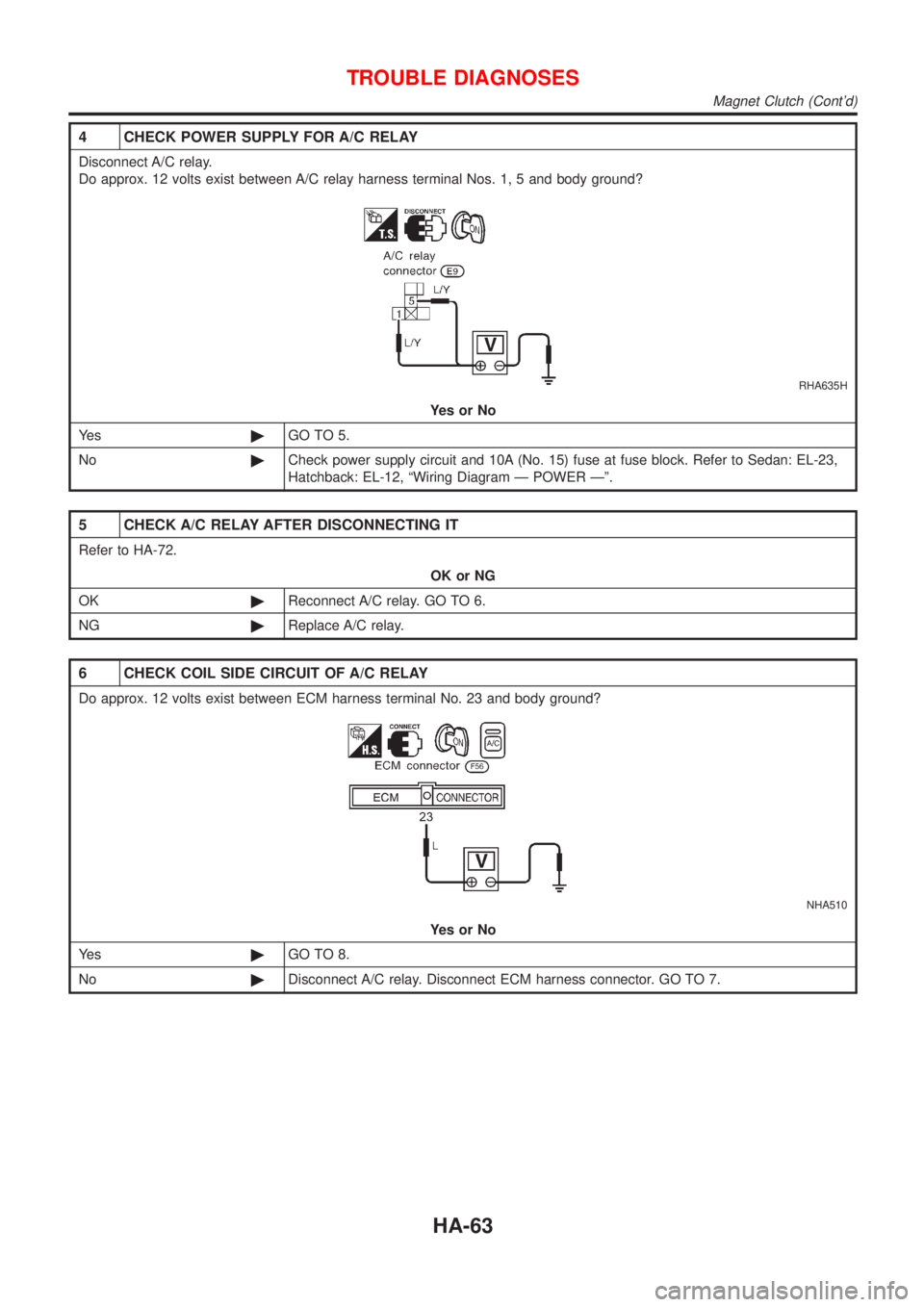

NISSAN ALMERA N16 2001 Electronic Repair Manual 4 CHECK POWER SUPPLY FOR A/C RELAY Disconnect A/C relay. Do approx. 12 volts exist between A/C relay harness terminal Nos. 1, 5 and body ground? RHA635H YesorNo Ye s©GO TO 5. No©Check power supply c

Page 2036 of 2493

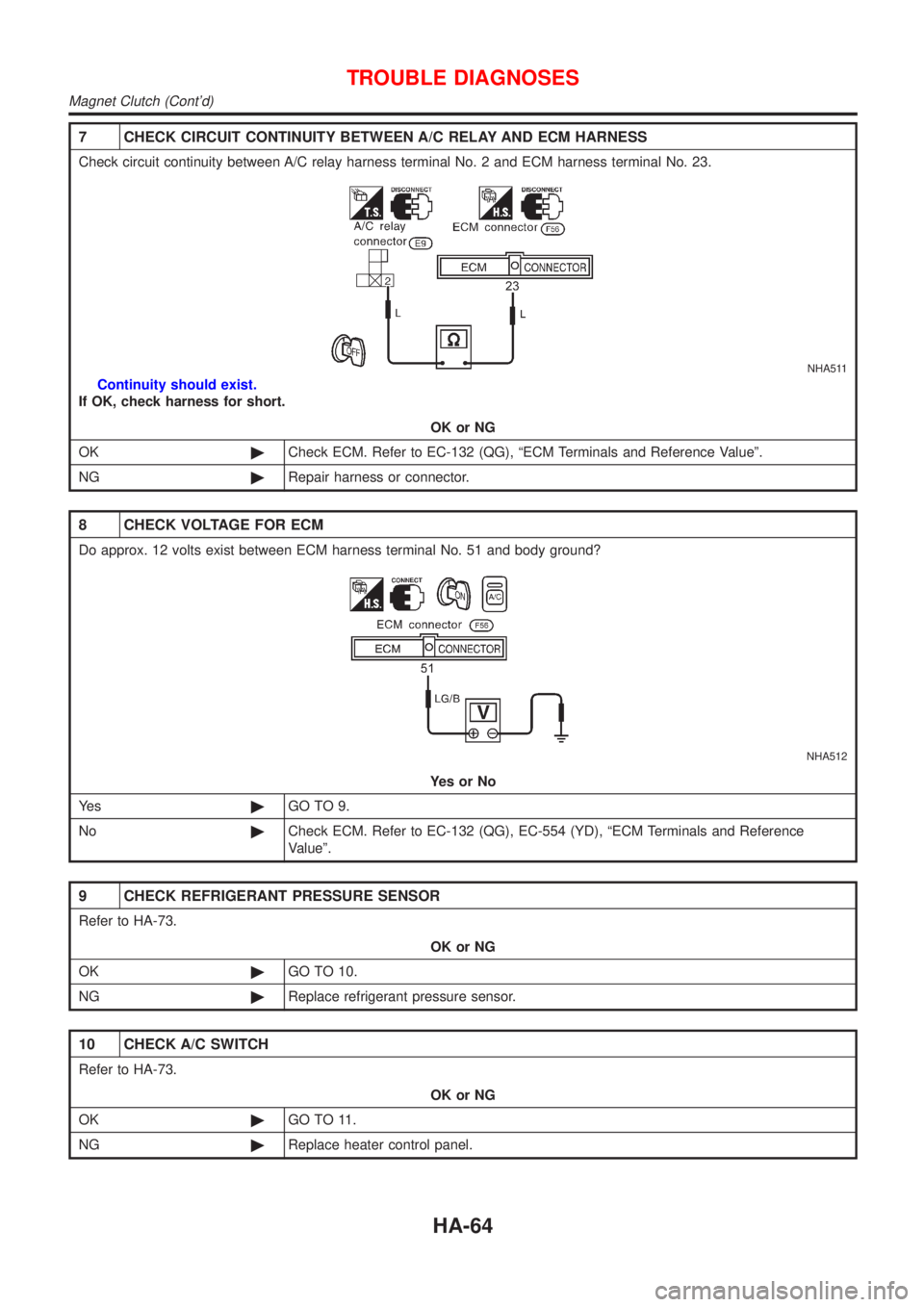

NISSAN ALMERA N16 2001 Electronic Repair Manual 7 CHECK CIRCUIT CONTINUITY BETWEEN A/C RELAY AND ECM HARNESS Check circuit continuity between A/C relay harness terminal No. 2 and ECM harness terminal No. 23. NHA511 Continuity should exist. If OK, c

Page 2037 of 2493

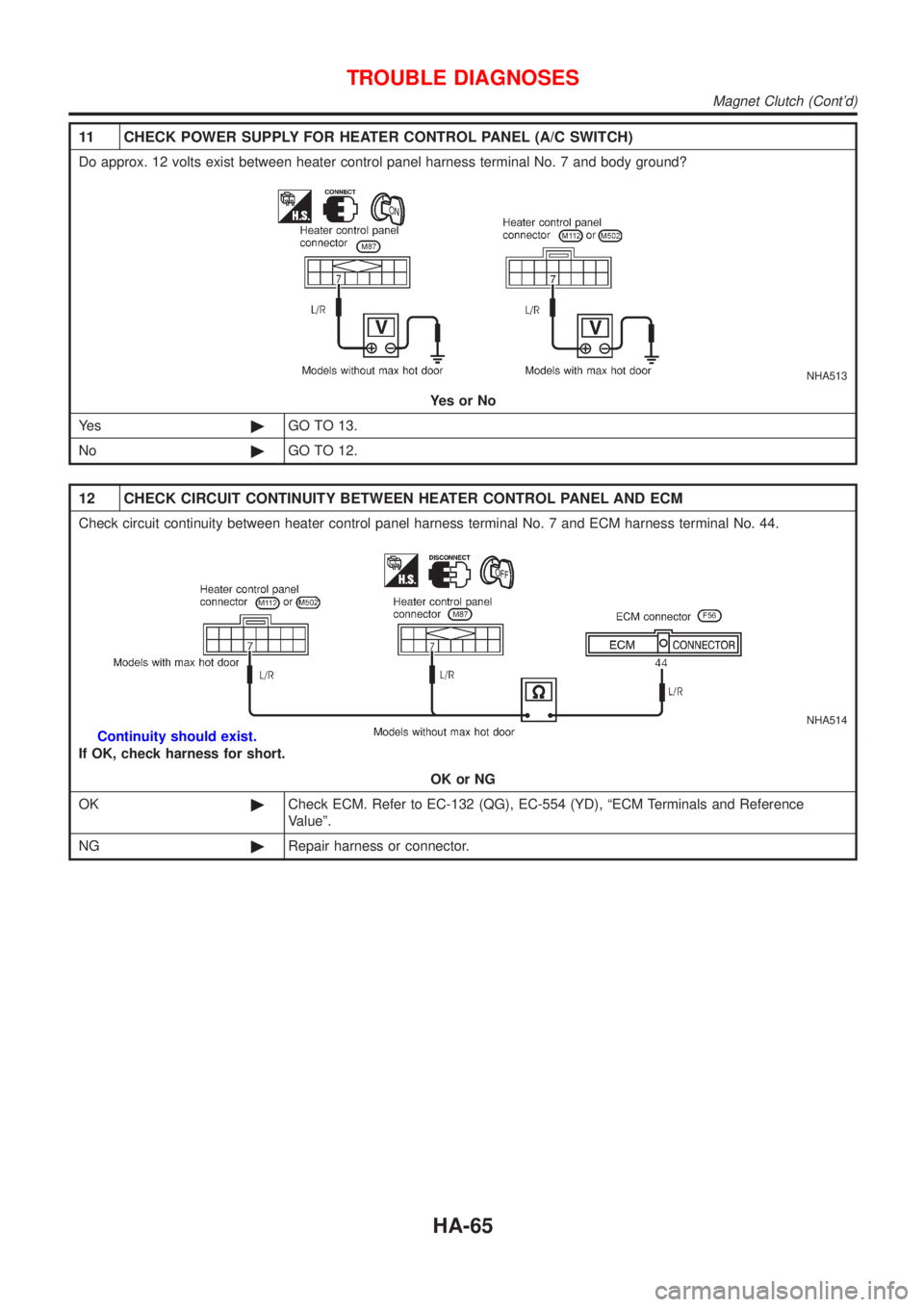

NISSAN ALMERA N16 2001 Electronic Repair Manual 11 CHECK POWER SUPPLY FOR HEATER CONTROL PANEL (A/C SWITCH) Do approx. 12 volts exist between heater control panel harness terminal No. 7 and body ground? NHA513 YesorNo Ye s©GO TO 13. No©GO TO 12.

Page 2038 of 2493

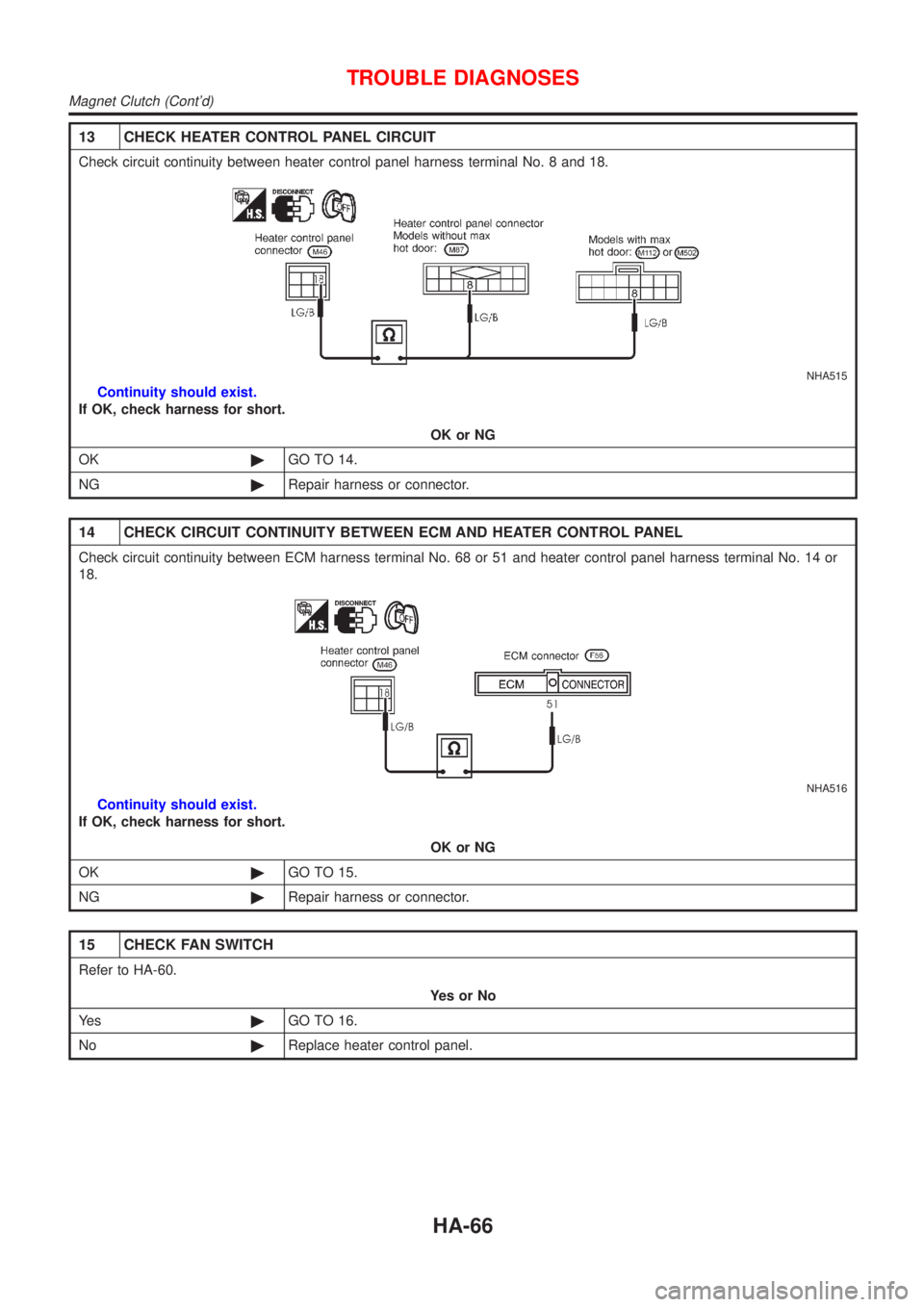

NISSAN ALMERA N16 2001 Electronic Repair Manual 13 CHECK HEATER CONTROL PANEL CIRCUIT Check circuit continuity between heater control panel harness terminal No. 8 and 18. NHA515 Continuity should exist. If OK, check harness for short. OK or NG OK©

Page 2039 of 2493

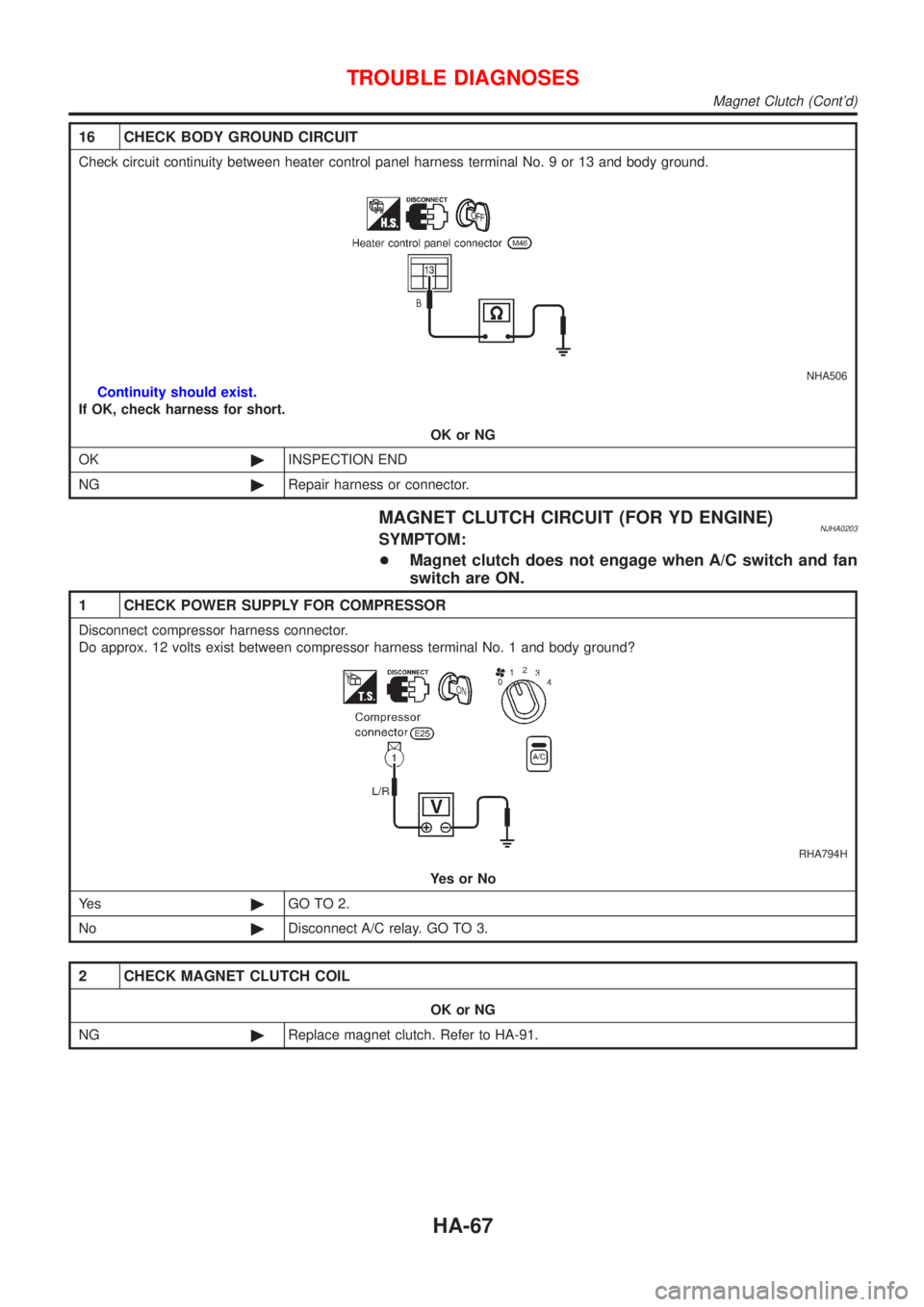

NISSAN ALMERA N16 2001 Electronic Repair Manual 16 CHECK BODY GROUND CIRCUIT Check circuit continuity between heater control panel harness terminal No. 9 or 13 and body ground. NHA506 Continuity should exist. If OK, check harness for short. OK or N

Page 2040 of 2493

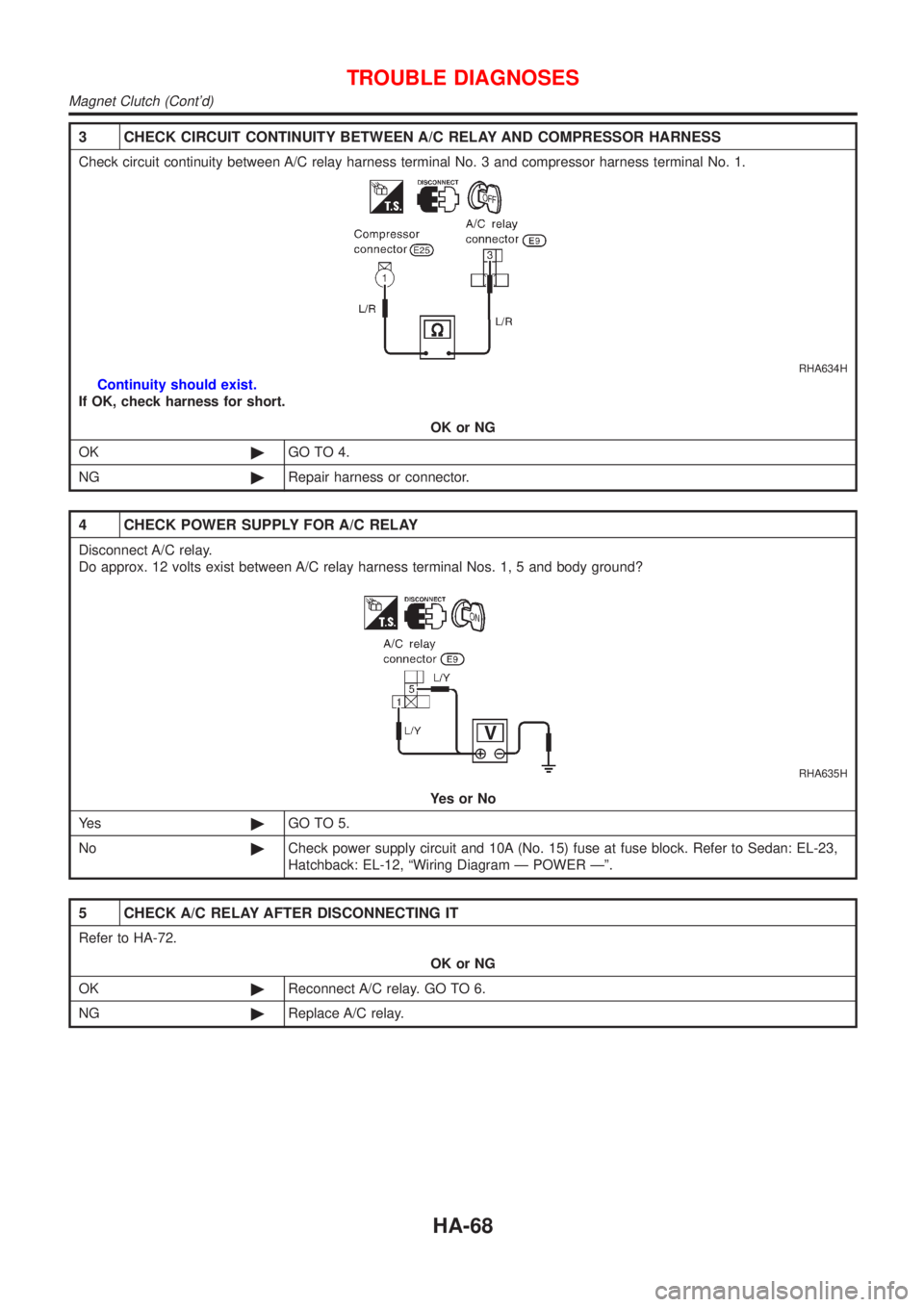

NISSAN ALMERA N16 2001 Electronic Repair Manual 3 CHECK CIRCUIT CONTINUITY BETWEEN A/C RELAY AND COMPRESSOR HARNESS Check circuit continuity between A/C relay harness terminal No. 3 and compressor harness terminal No. 1. RHA634H Continuity should e
