2001 NISSAN ALMERA N16 Electronic Repair Manual

Page 1497 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 7 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Shift valve B
+Shift solenoid valve B (AT-146: Except for Euro-OBD/AT-250: Euro-OBD)
+Pil

Page 1498 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 11. A/T Does Not Shift: D3®D4=NJAT0341SYMPTOM:
+A/T does not shift from D
3to D4at the specified speed.
+A/T must be warm before D
3to D4shift will occur.
1 CHECK SYMPTOM

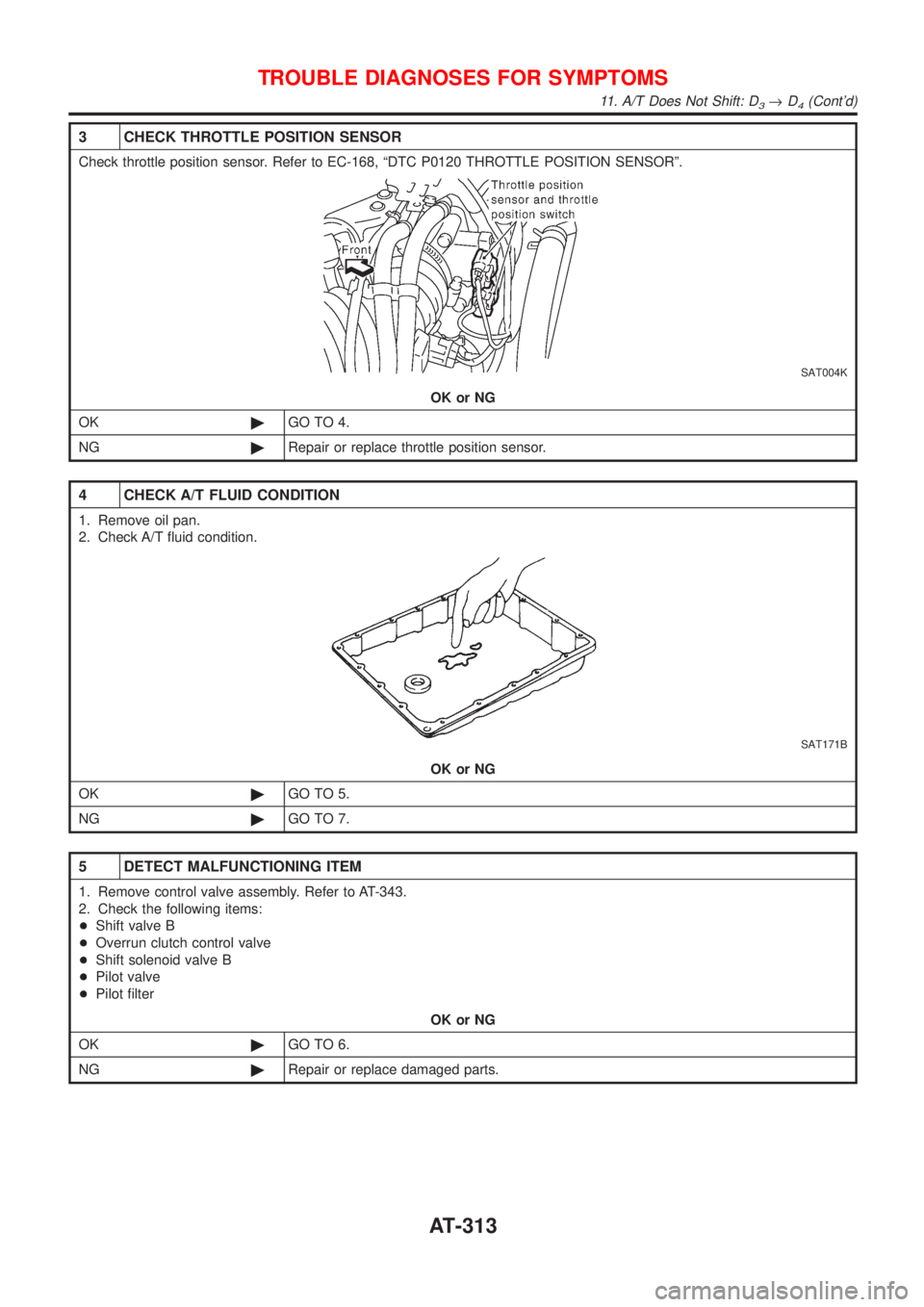

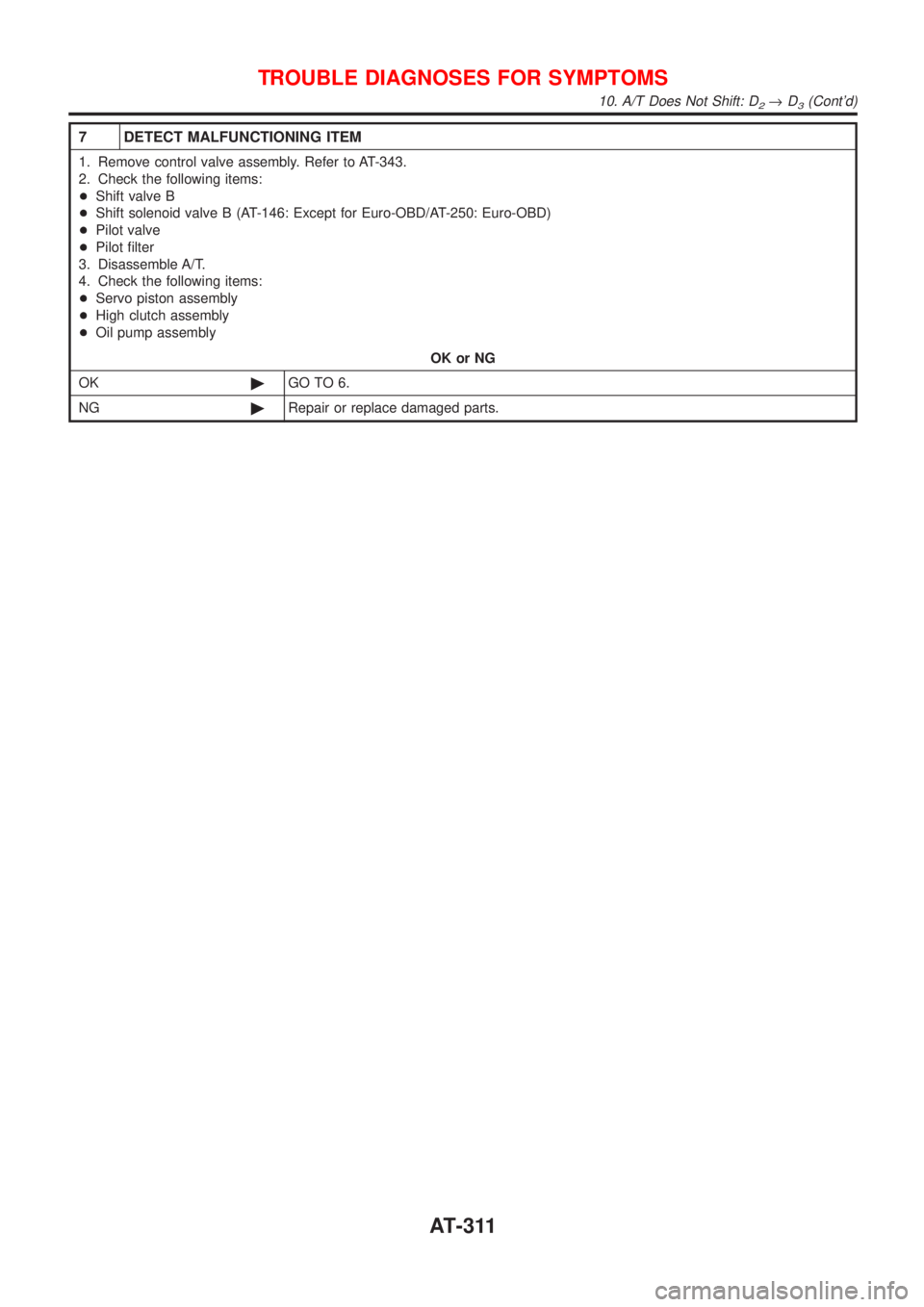

Are 7. Vehicle Does Not Cree

Page 1499 of 2493

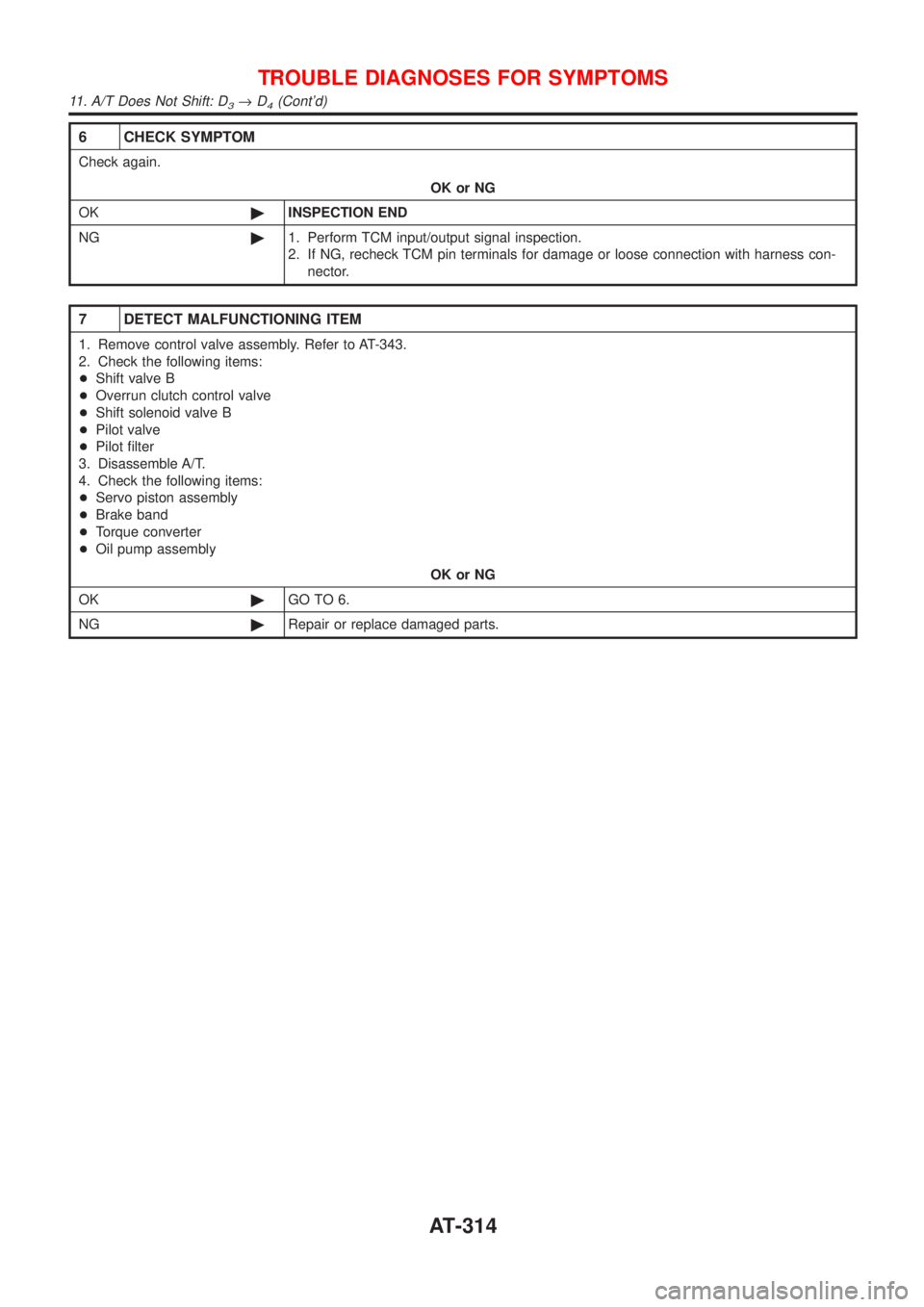

NISSAN ALMERA N16 2001  Electronic Repair Manual 3 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-168, ªDTC P0120 THROTTLE POSITION SENSORº.
SAT004K
OK or NG
OK©GO TO 4.
NG©Repair or replace throttle position sensor.

Page 1500 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 6 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.

Page 1501 of 2493

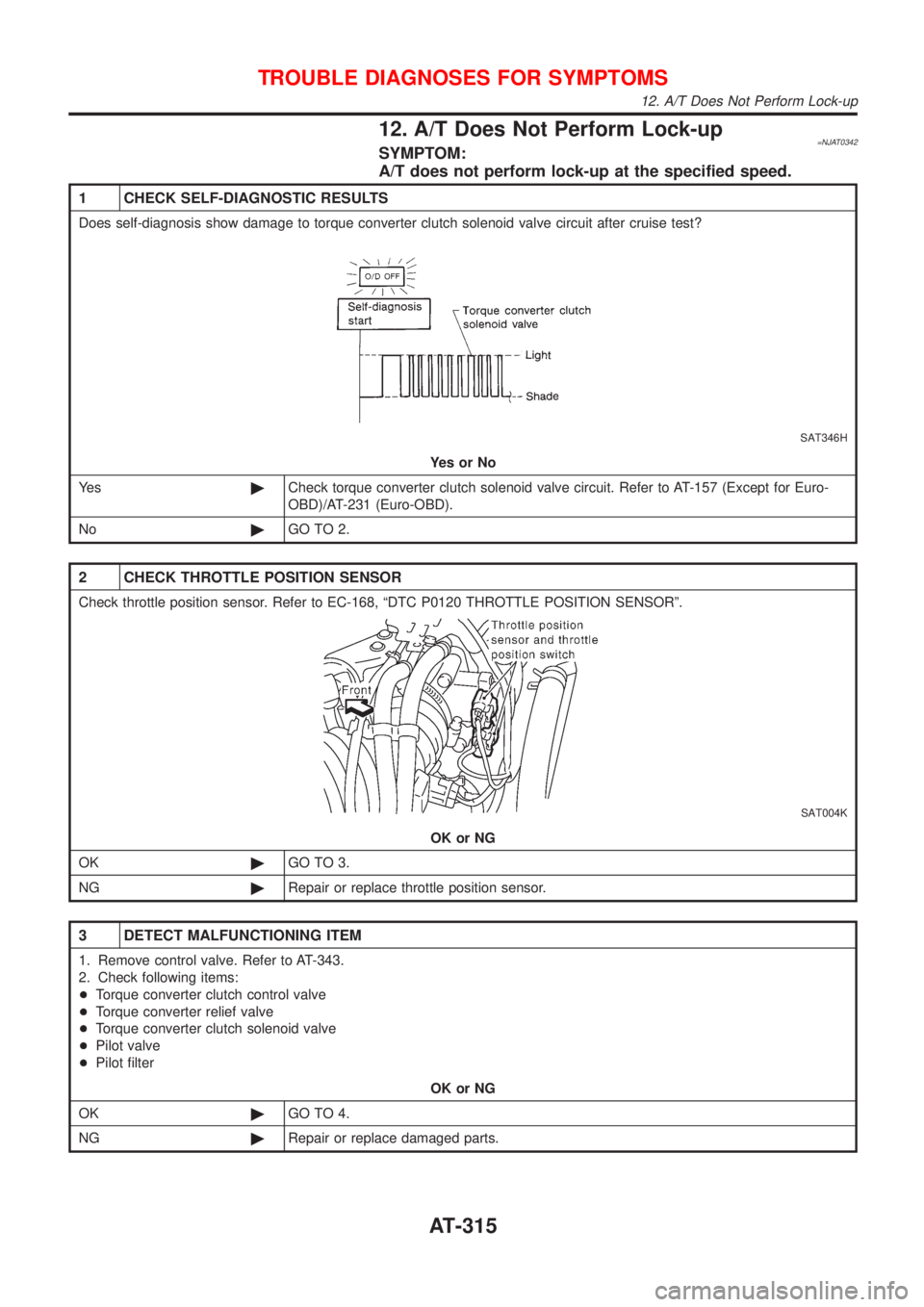

NISSAN ALMERA N16 2001  Electronic Repair Manual 12. A/T Does Not Perform Lock-up=NJAT0342SYMPTOM:
A/T does not perform lock-up at the specified speed.
1 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to torque converter clutch soleno

Page 1502 of 2493

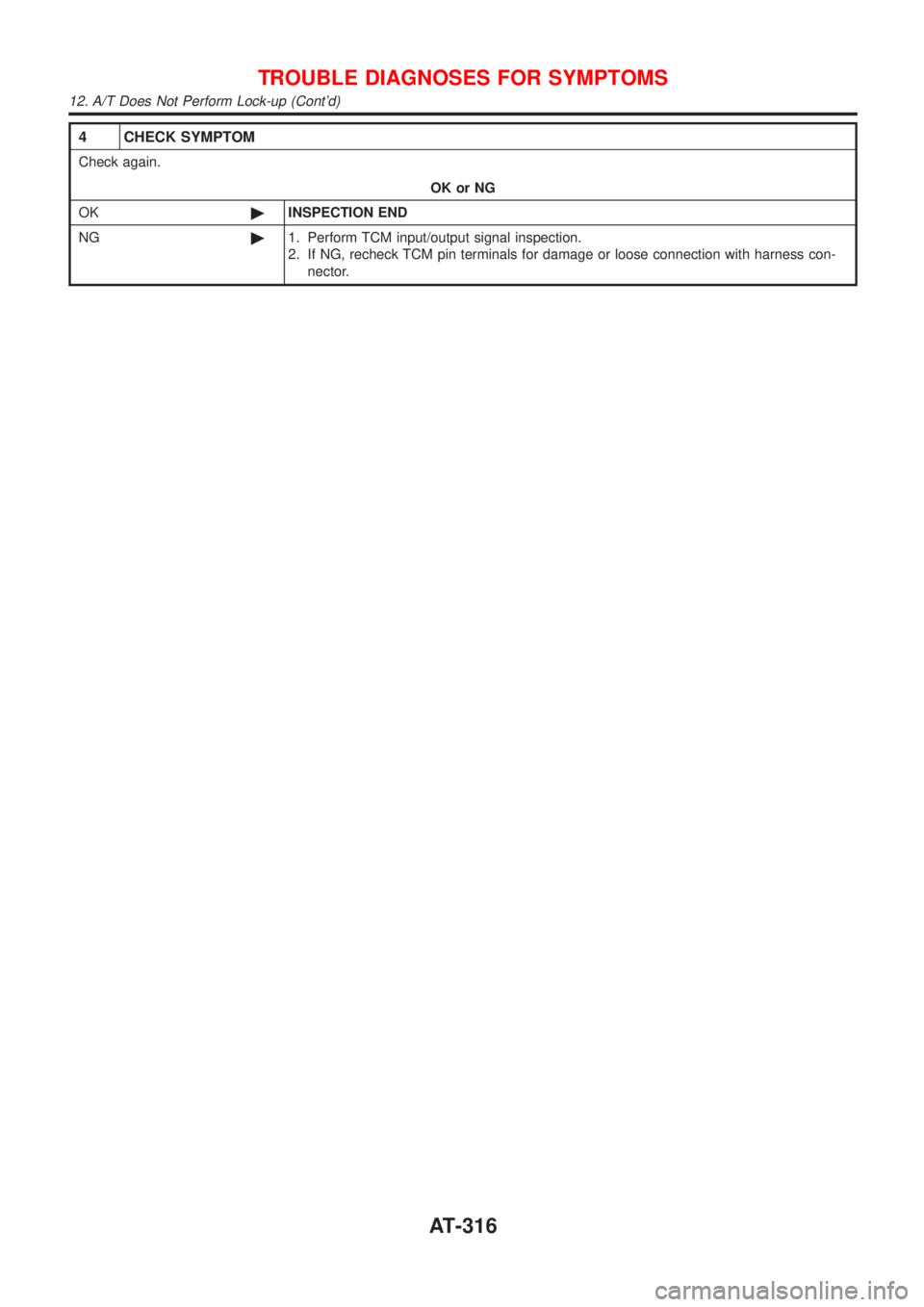

NISSAN ALMERA N16 2001  Electronic Repair Manual 4 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.

Page 1503 of 2493

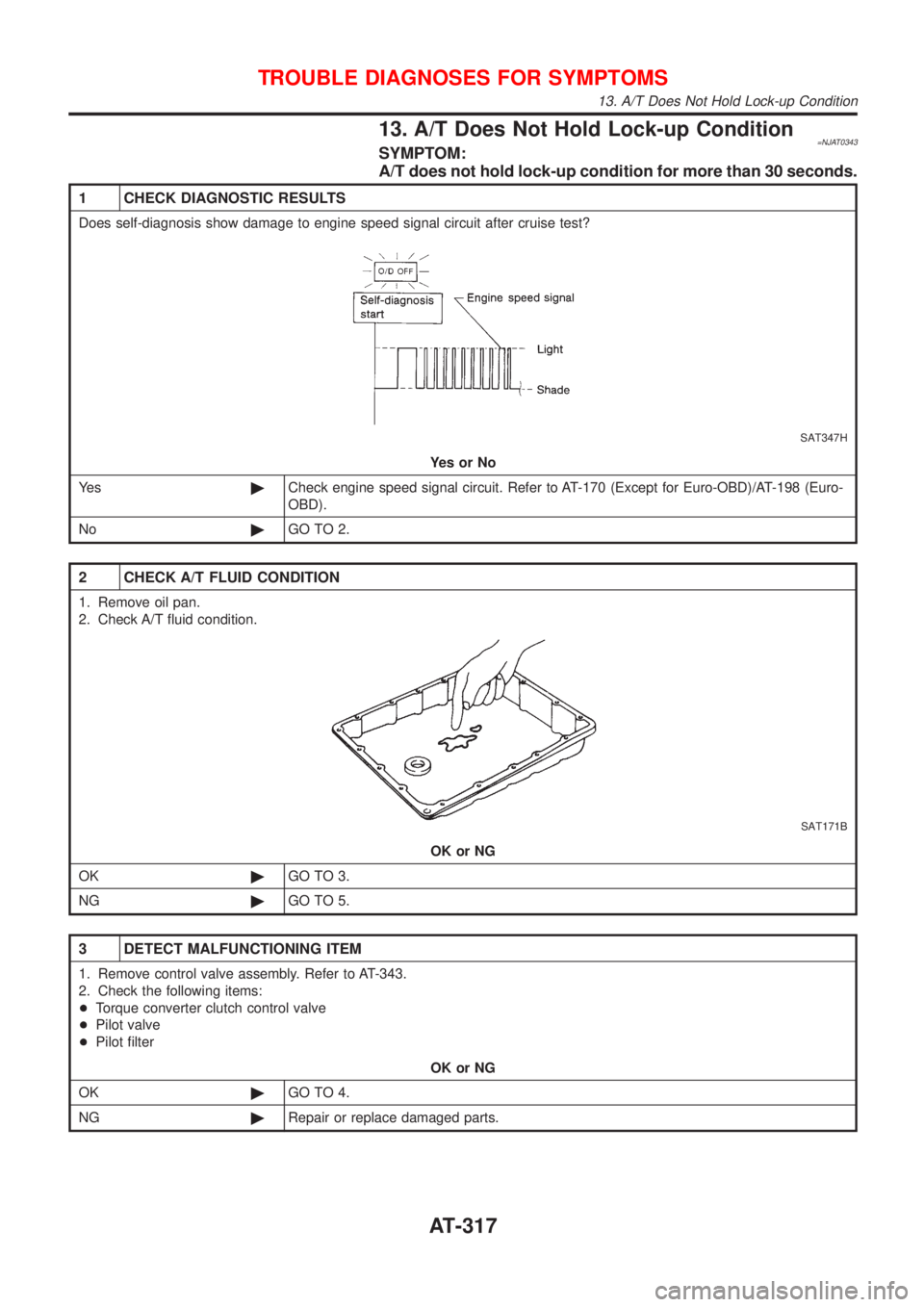

NISSAN ALMERA N16 2001  Electronic Repair Manual 13. A/T Does Not Hold Lock-up Condition=NJAT0343SYMPTOM:
A/T does not hold lock-up condition for more than 30 seconds.
1 CHECK DIAGNOSTIC RESULTS
Does self-diagnosis show damage to engine speed signal

Page 1504 of 2493

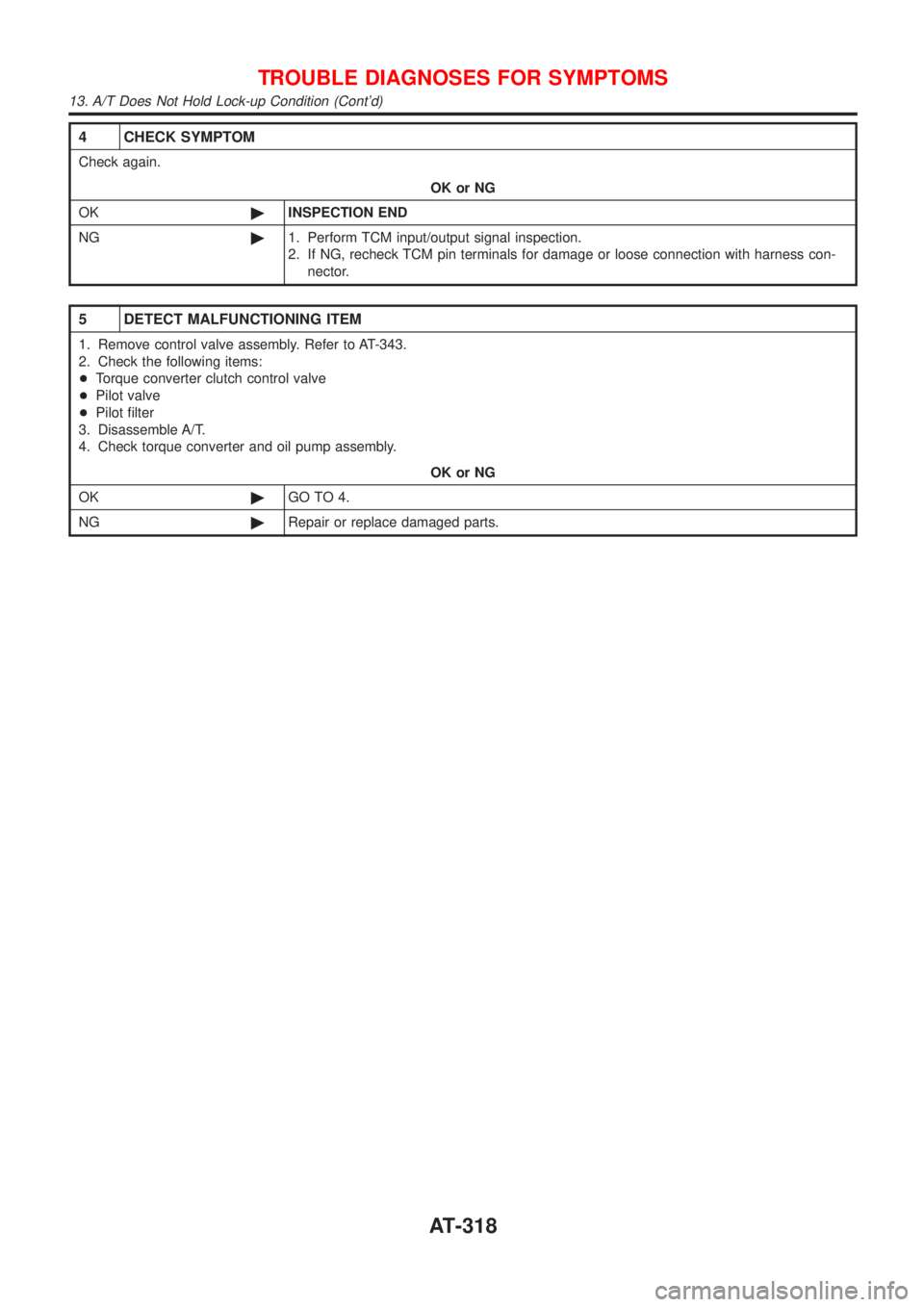

NISSAN ALMERA N16 2001  Electronic Repair Manual 4 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
