NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring Diagram Ð AT Ð TCVNJAT0207 YAT239 TORQUE CONVERTER CLUTCH SOLENOID VALVE EXCEPT FOR EURO-OBD Wiring Diagram Ð AT Ð TCV AT-159

Page 1346 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJAT0056 1 CHECK VALVE RESISTANCE 1. Turn ignition switch to ªOFFº position. 2. Disconnect terminal cord assembly connector in engine compartment. 3. Check resistance between ter

Page 1347 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 2 CHECK POWER SOURCE CIRCUIT 1. Turn ignition switch to ªOFFº position. 2. Disconnect TCM harness connector. 3. Check continuity between terminal 5 and TCM harness connector terminal 3. Continuity s

Page 1348 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT025K Component InspectionNJAT0057TORQUE CONVERTER CLUTCH SOLENOID VALVENJAT0057S01+For removal, refer to AT-343. Resistance CheckNJAT0057S0101+Check resistance between two terminals. Solenoid valve

Page 1349 of 2493

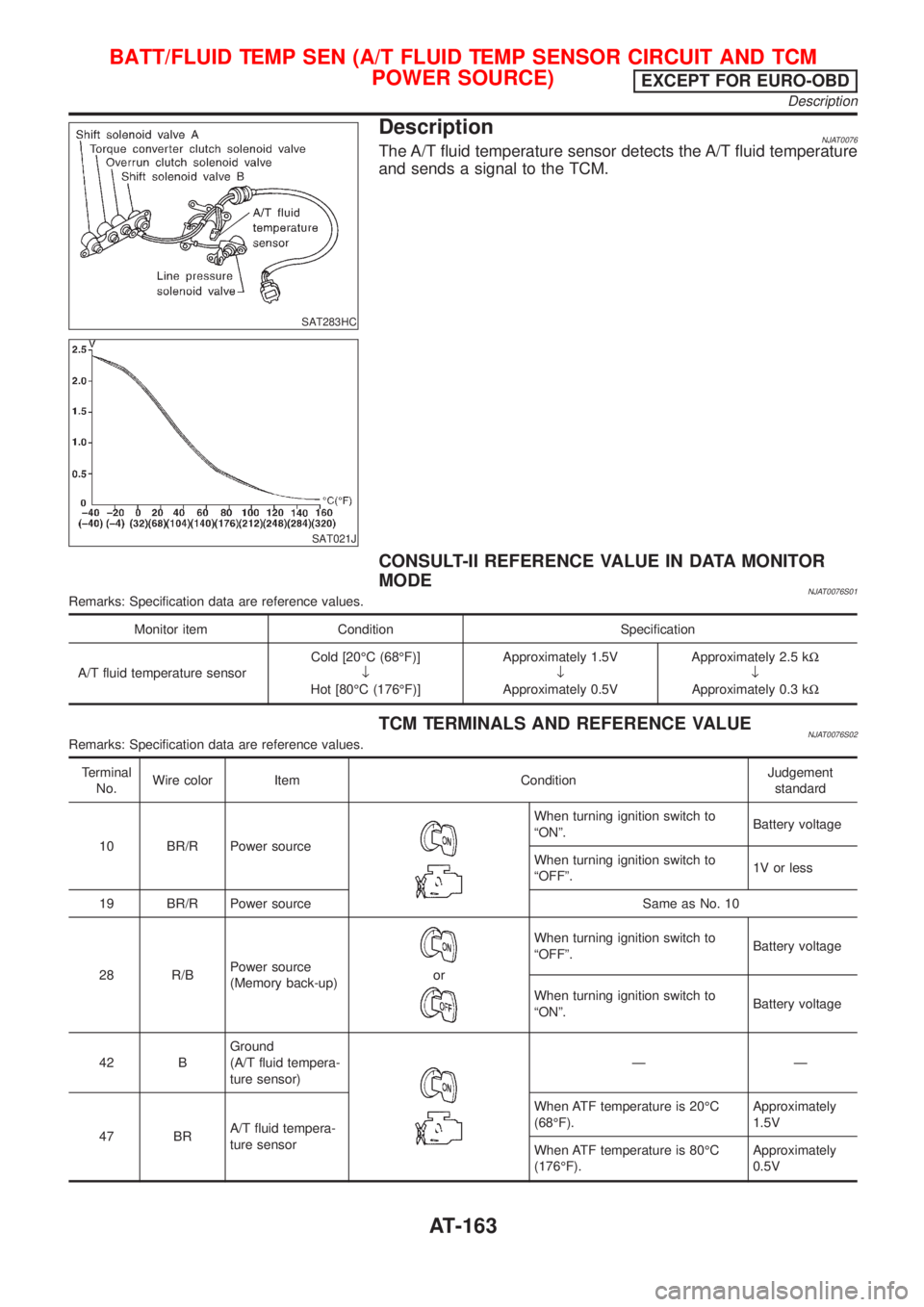

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT283HC SAT021J DescriptionNJAT0076The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM. CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE NJAT0076S01Remarks

Page 1350 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual ON BOARD DIAGNOSIS LOGICNJAT0076S03 Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause) : BATT/FLUID TEMP SEN TCM receives an excessively low or high voltage from the

Page 1351 of 2493

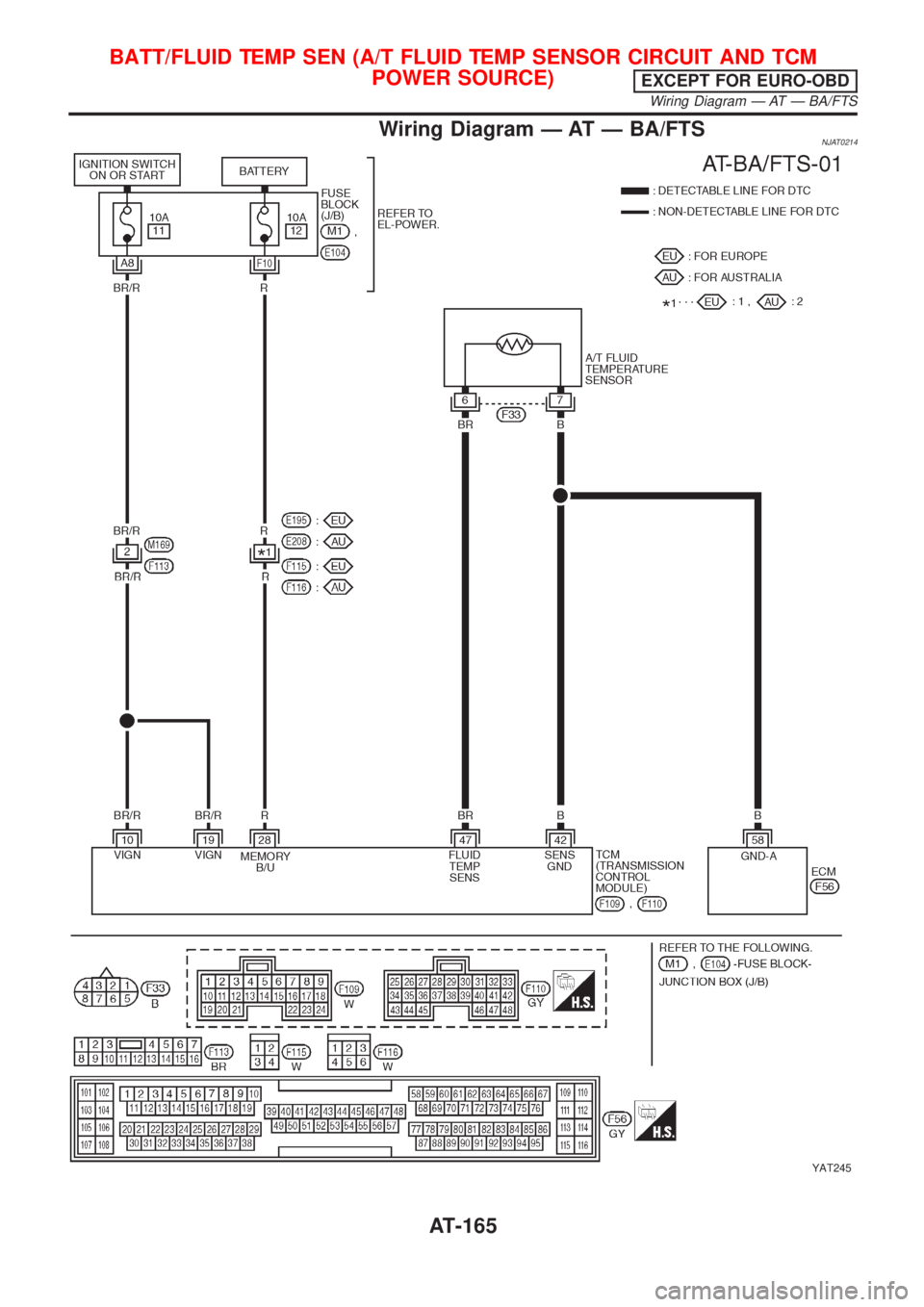

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring Diagram Ð AT Ð BA/FTSNJAT0214 YAT245 BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER SOURCE) EXCEPT FOR EURO-OBD Wiring Diagram Ð AT Ð BA/FTS AT-165

Page 1352 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJAT0077 1 CHECK TCM POWER SOURCE 1. Turn ignition switch to ªONº position. (Do not start engine.) 2. Check voltage between TCM terminals 10, 19, 28 and ground. Voltage: Battery
