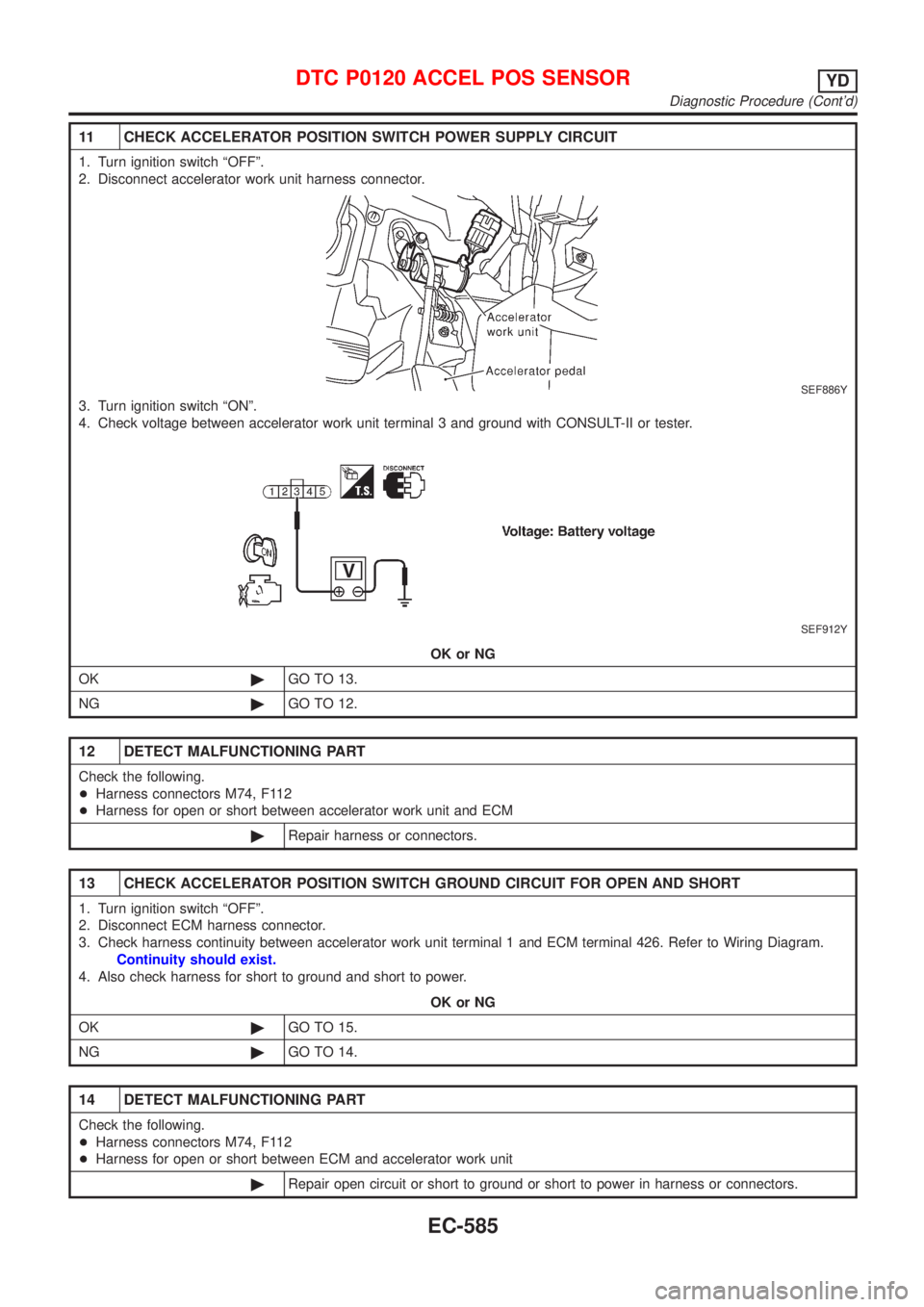

NISSAN ALMERA N16 2001 Electronic Repair Manual 11 CHECK ACCELERATOR POSITION SWITCH POWER SUPPLY CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect accelerator work unit harness connector. SEF886Y 3. Turn ignition switch ªONº. 4. Check volta

Page 882 of 2493

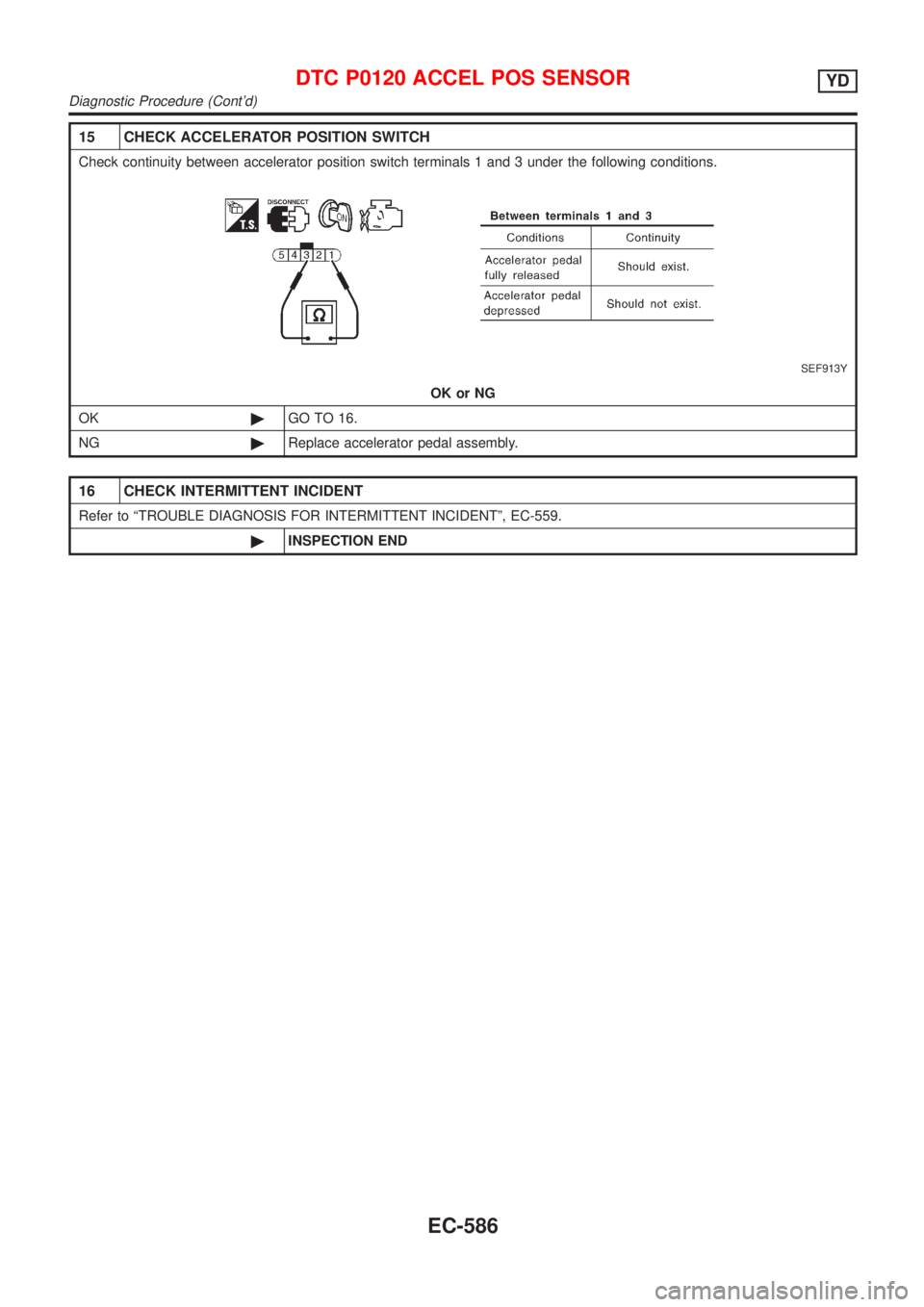

NISSAN ALMERA N16 2001 Electronic Repair Manual 15 CHECK ACCELERATOR POSITION SWITCH Check continuity between accelerator position switch terminals 1 and 3 under the following conditions. SEF913Y OK or NG OK©GO TO 16. NG©Replace accelerator pedal

Page 883 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEF420Z DescriptionNJEC0686The crankshaft position sensor (TDC) monitors engine speed by means of signals from the sensing plate (with three protrusions) installed to the crankshaft pulley. The datum

Page 884 of 2493

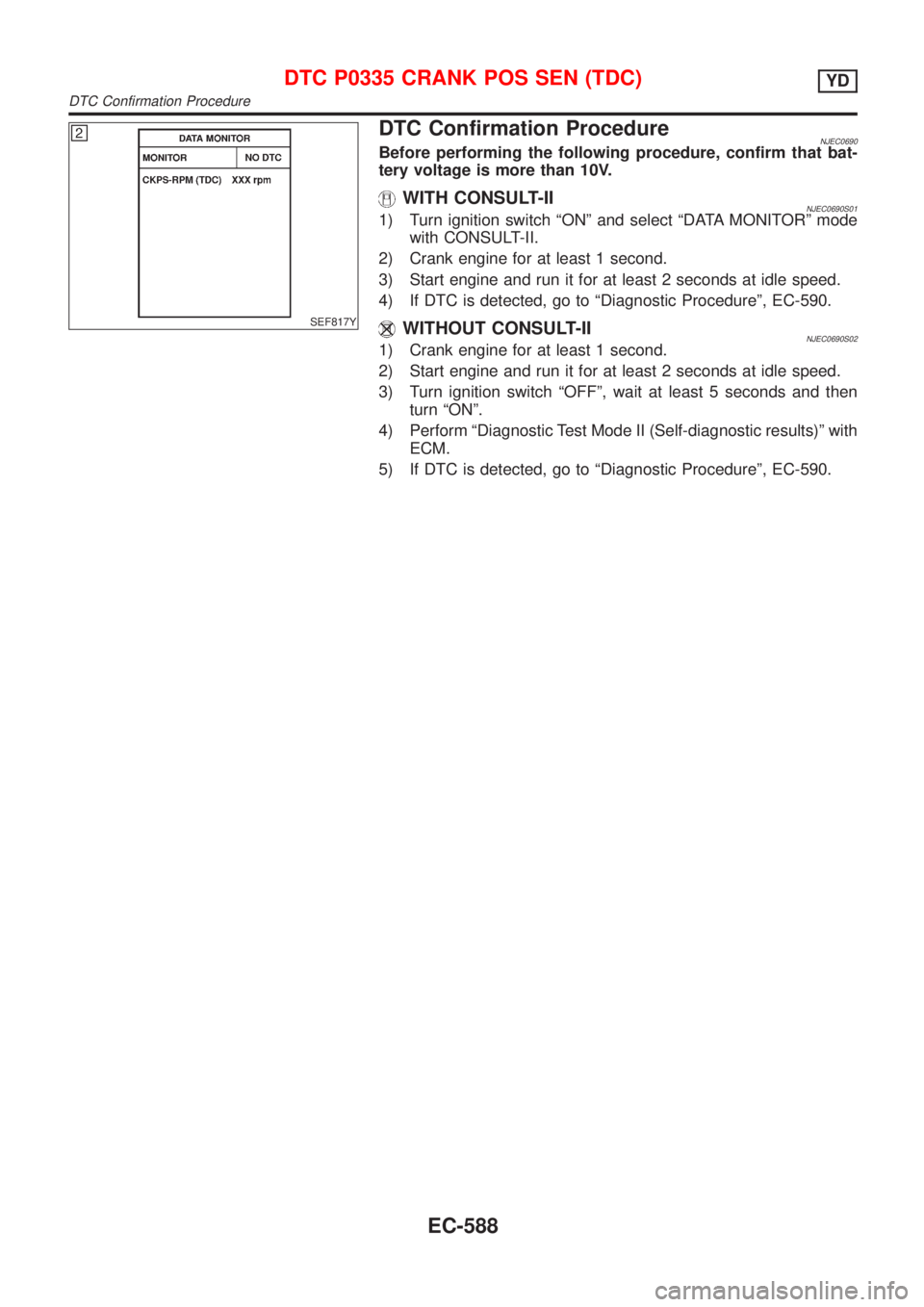

NISSAN ALMERA N16 2001 Electronic Repair Manual SEF817Y DTC Confirmation ProcedureNJEC0690Before performing the following procedure, confirm that bat- tery voltage is more than 10V. WITH CONSULT-IINJEC0690S011) Turn ignition switch ªONº and selec

Page 885 of 2493

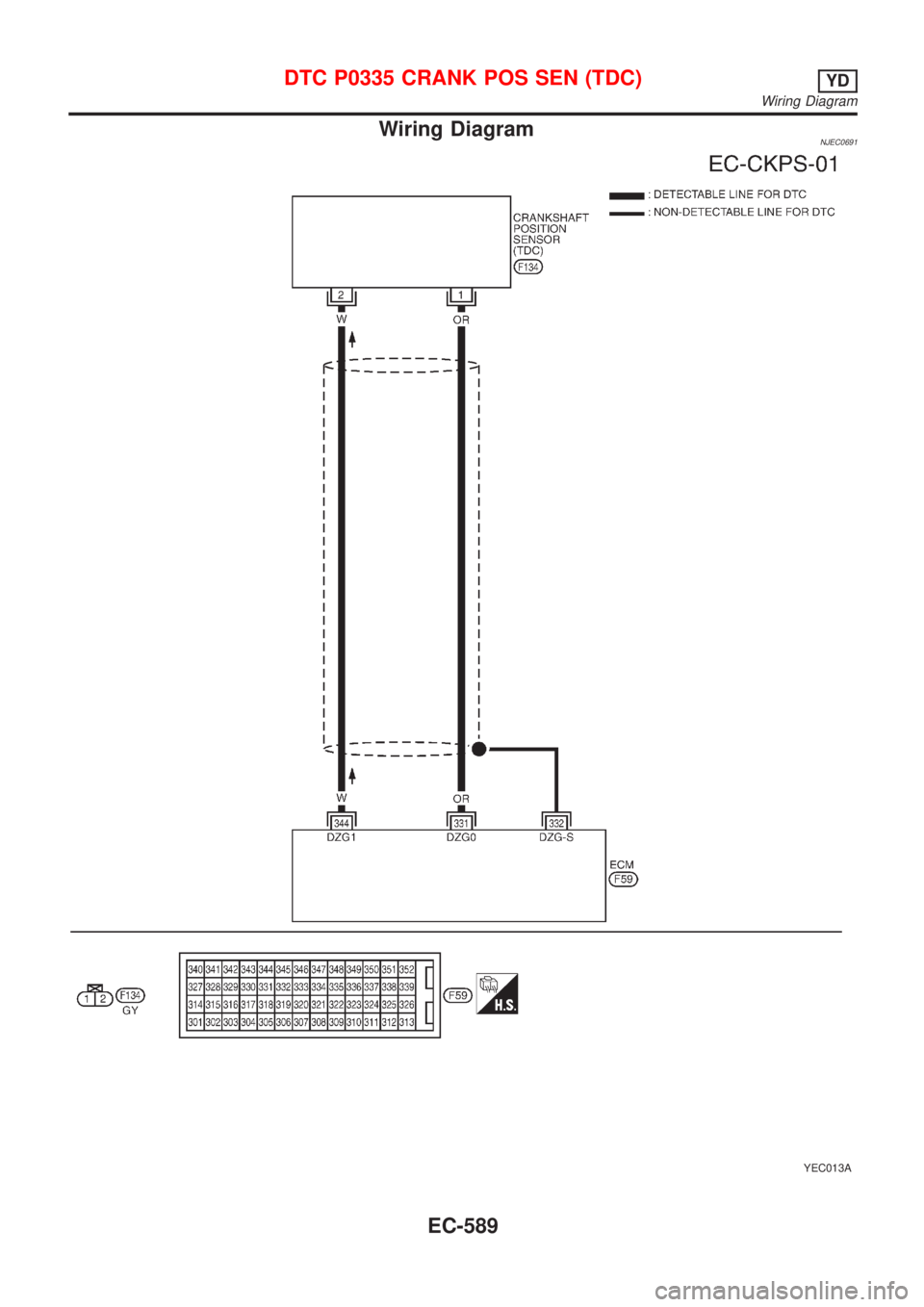

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring DiagramNJEC0691 YEC013A DTC P0335 CRANK POS SEN (TDC)YD Wiring Diagram EC-589

Page 886 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJEC0692 1 CHECK CRANKSHAFT POSITION SENSOR (TDC) GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. SEF380Y 3. Discon

Page 887 of 2493

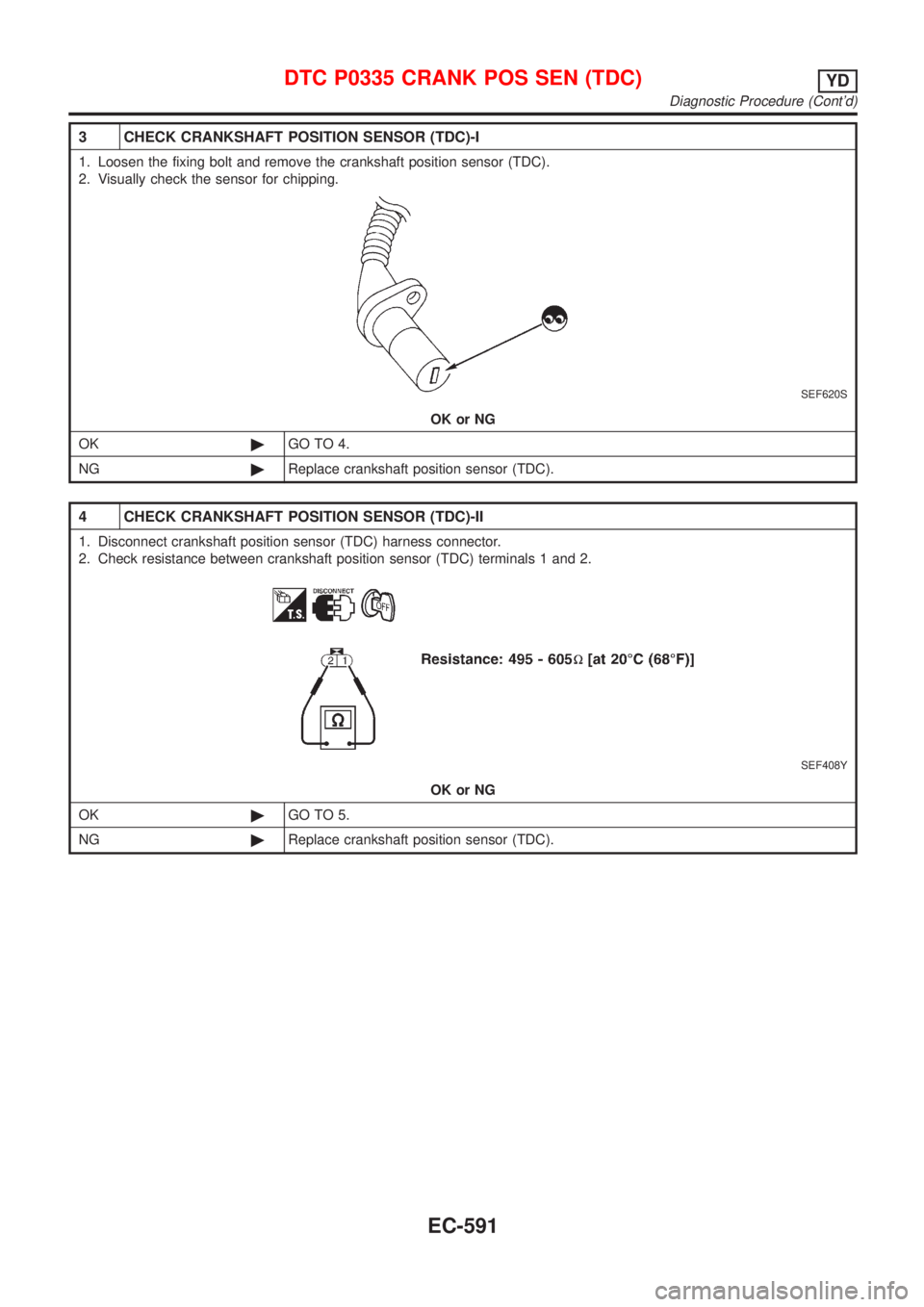

NISSAN ALMERA N16 2001 Electronic Repair Manual 3 CHECK CRANKSHAFT POSITION SENSOR (TDC)-I 1. Loosen the fixing bolt and remove the crankshaft position sensor (TDC). 2. Visually check the sensor for chipping. SEF620S OK or NG OK©GO TO 4. NG©Repla

Page 888 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 5 INSTALL CRANKSHAFT POSITION SENSOR (TDC) 1. Install crankshaft position sensor (TDC) and temporarily tighten the fixing bolt. 2. Turn crankshaft position sensor (TDC) clockwise until it stops. 3. Ti
