2001 NISSAN ALMERA N16 Electronic Repair Manual

Page 409 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 35 CHECK IGNITION TIMING AGAIN
Check ignition timing again. Refer to Test No. 31.
OK or NG
OK©GO TO 37.
NG©GO TO 36.
36 CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-2

Page 410 of 2493

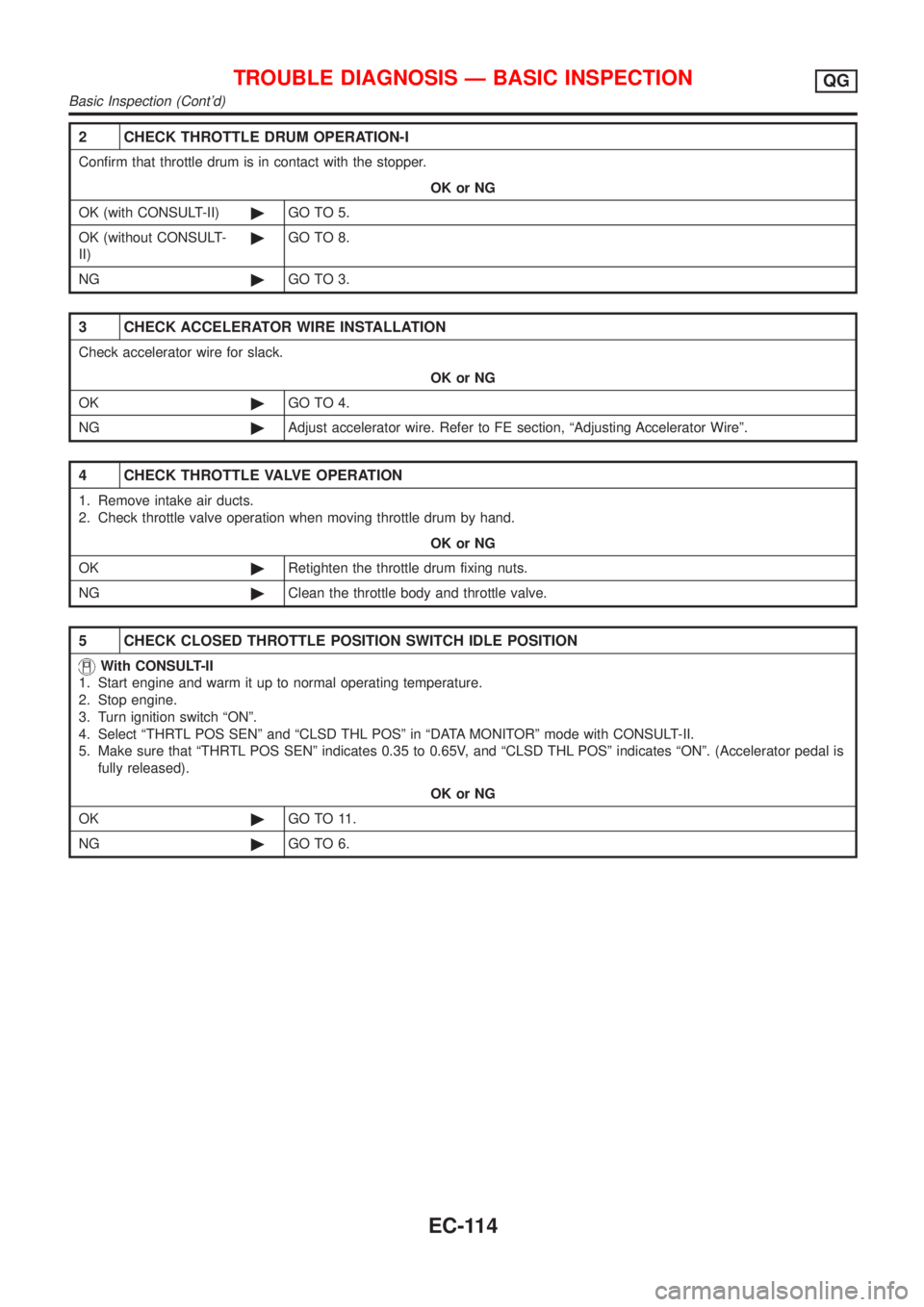

NISSAN ALMERA N16 2001  Electronic Repair Manual 2 CHECK THROTTLE DRUM OPERATION-I
Confirm that throttle drum is in contact with the stopper.
OK or NG
OK (with CONSULT-II)©GO TO 5.
OK (without CONSULT-
II)©GO TO 8.
NG©GO TO 3.
3 CHECK ACCELERATOR

Page 411 of 2493

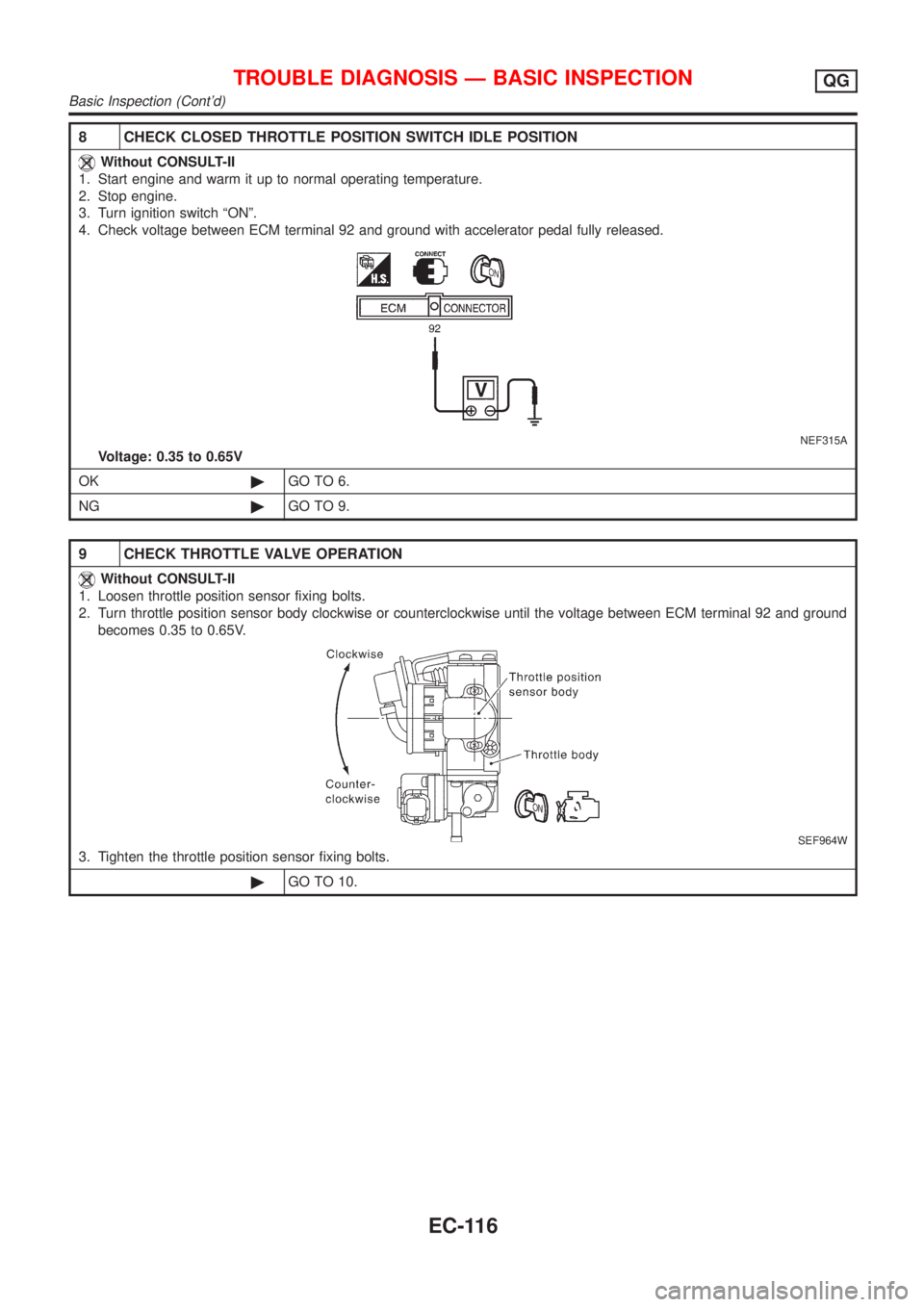

NISSAN ALMERA N16 2001  Electronic Repair Manual 6 ADJUST THROTTLE POSITION SENSOR IDLE POSITION
With CONSULT-II
1. Loosen throttle position sensor fixing bolts.
2. Turn throttle position sensor body clockwise or counterclockwise until ªTHRTL POS S

Page 412 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 8 CHECK CLOSED THROTTLE POSITION SWITCH IDLE POSITION
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Stop engine.
3. Turn ignition switch ªONº.
4. Check voltag

Page 413 of 2493

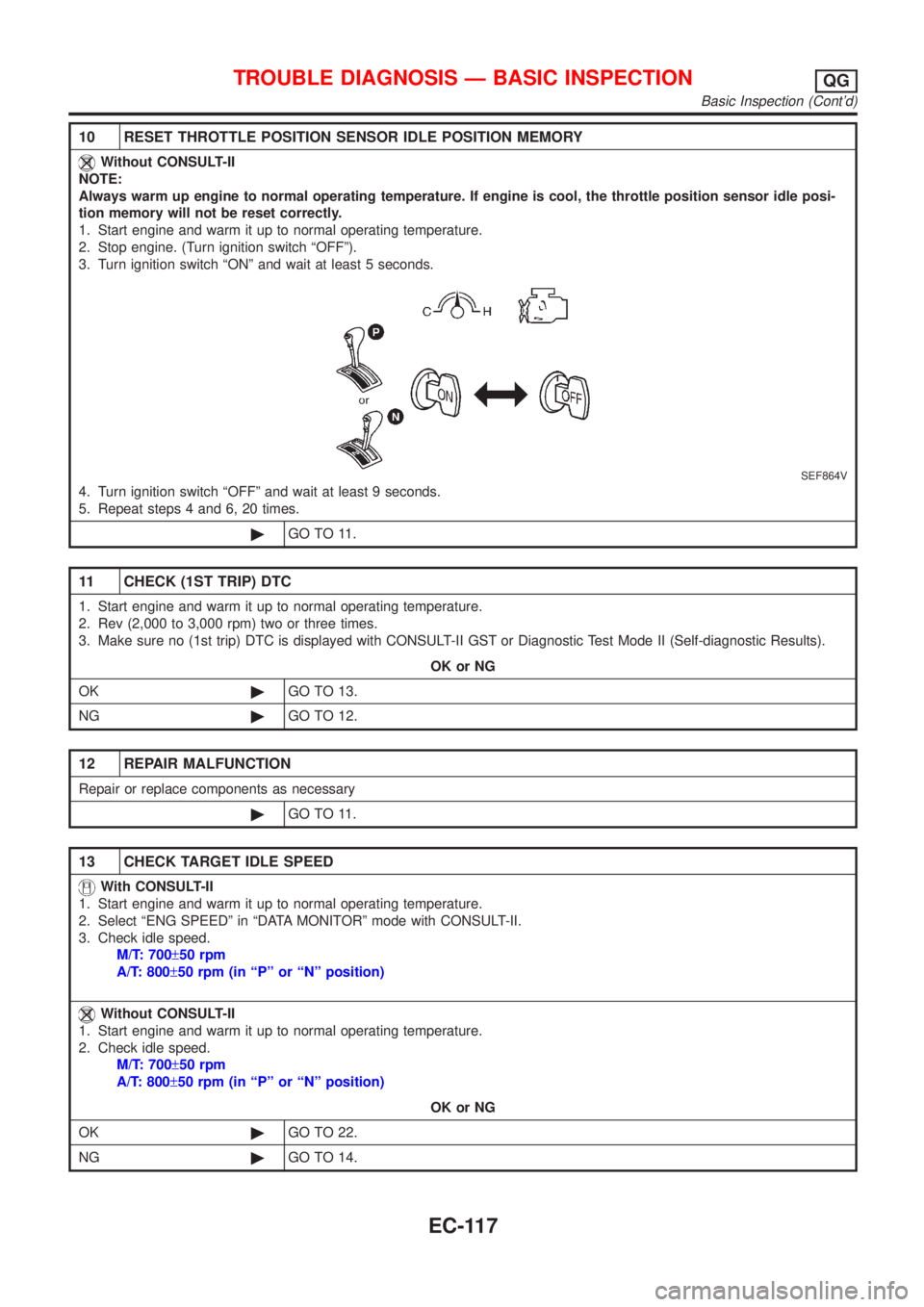

NISSAN ALMERA N16 2001  Electronic Repair Manual 10 RESET THROTTLE POSITION SENSOR IDLE POSITION MEMORY
Without CONSULT-II
NOTE:
Always warm up engine to normal operating temperature. If engine is cool, the throttle position sensor idle posi-
tion m

Page 414 of 2493

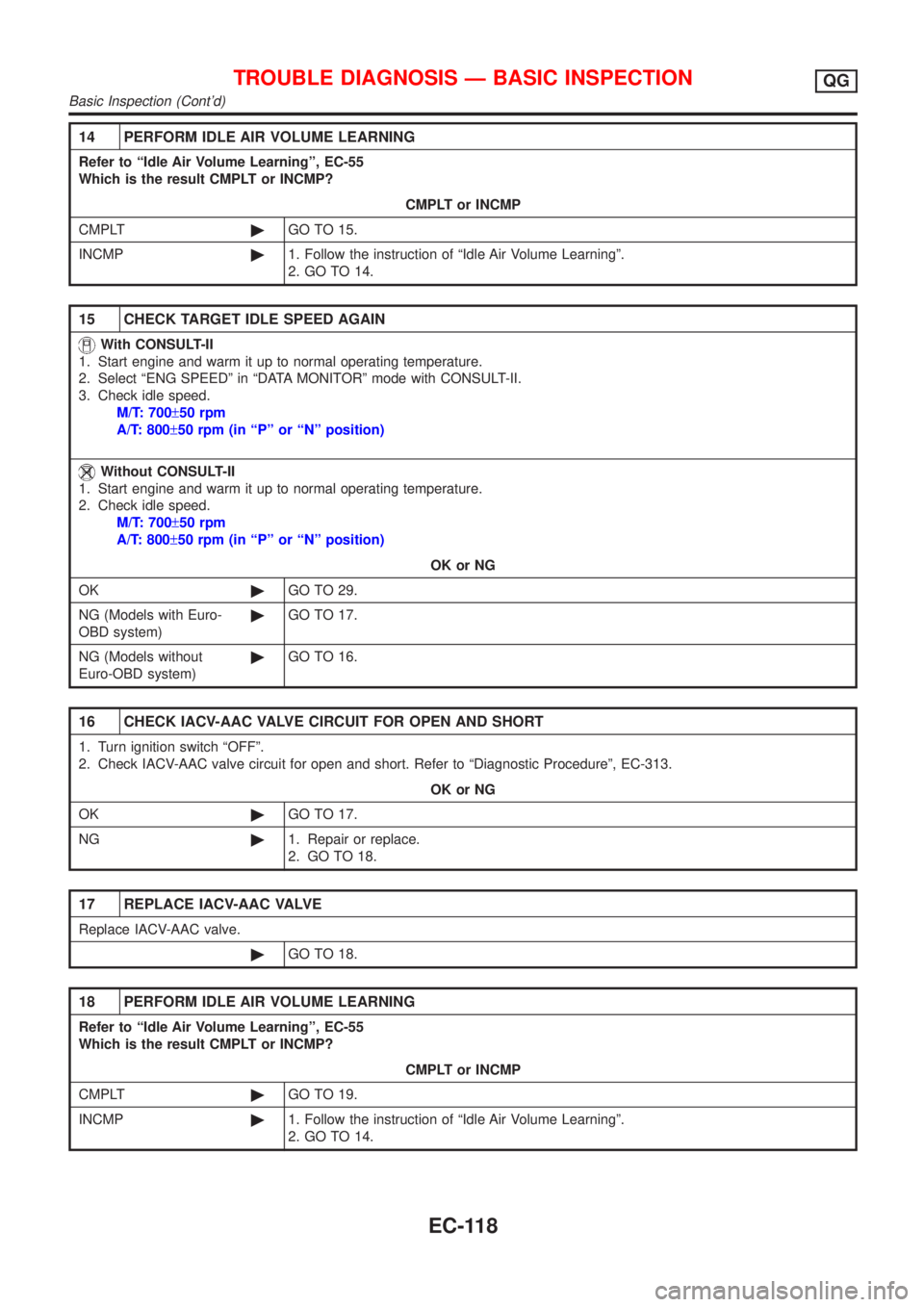

NISSAN ALMERA N16 2001  Electronic Repair Manual 14 PERFORM IDLE AIR VOLUME LEARNING
Refer to ªIdle Air Volume Learningº, EC-55
Which is the result CMPLT or INCMP?
CMPLT or INCMP
CMPLT©GO TO 15.
INCMP©1. Follow the instruction of ªIdle Air Volu

Page 415 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual 19 CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select ªENG SPEEDº in ªDATA MONITORº mode with CONSULT-II.
3. Check idle speed.

Page 416 of 2493

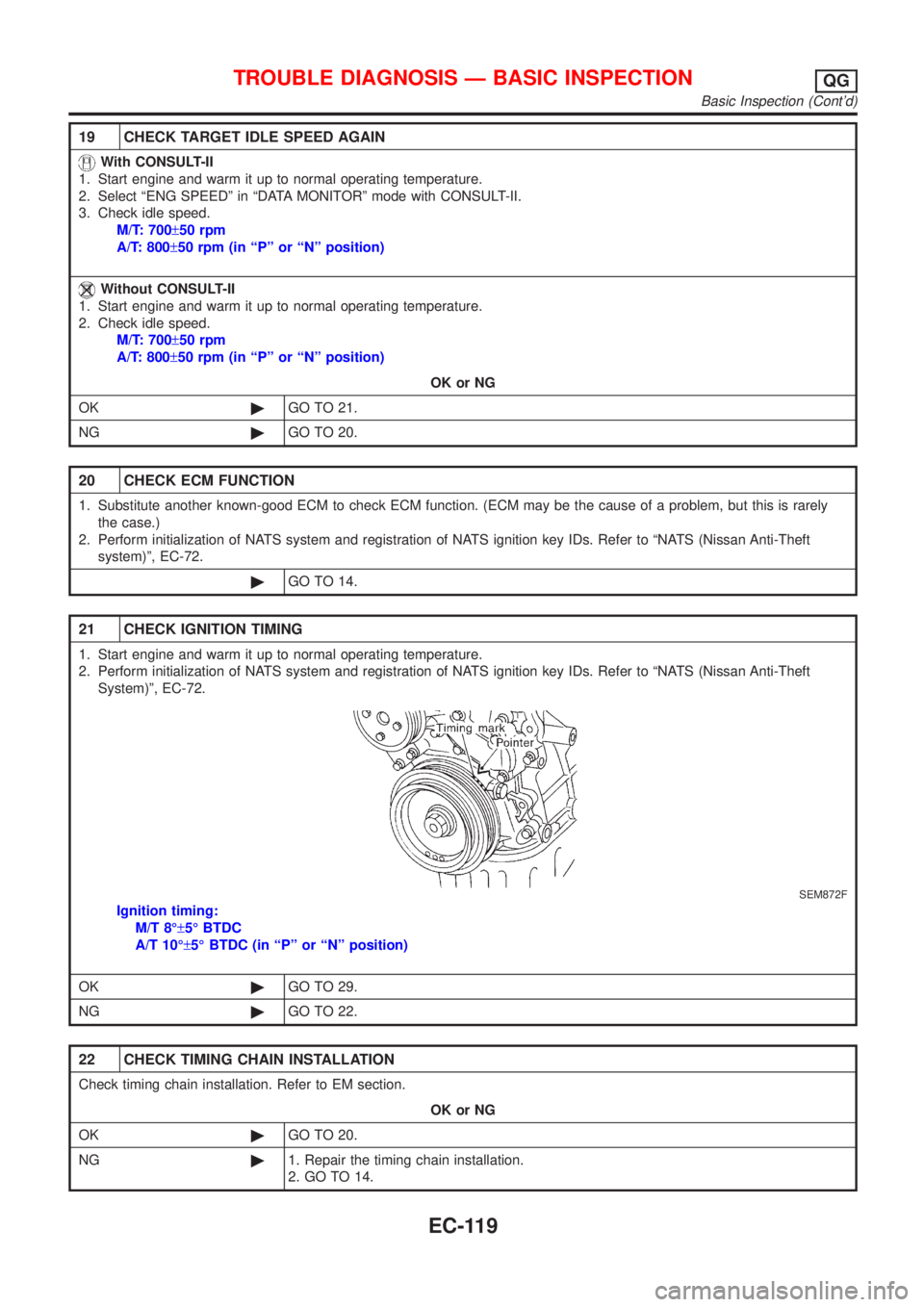

NISSAN ALMERA N16 2001  Electronic Repair Manual 23 CHECK IGNITION TIMING
1. Start engine and let it idle.
2. Check ignition timing at idle using a timing light.
SEM872F
Ignition timing:
M/T 8ɱ5É BTDC
A/T 10ɱ5É BTDC (in ªPº or ªNº positi
