Page 1937 of 2493

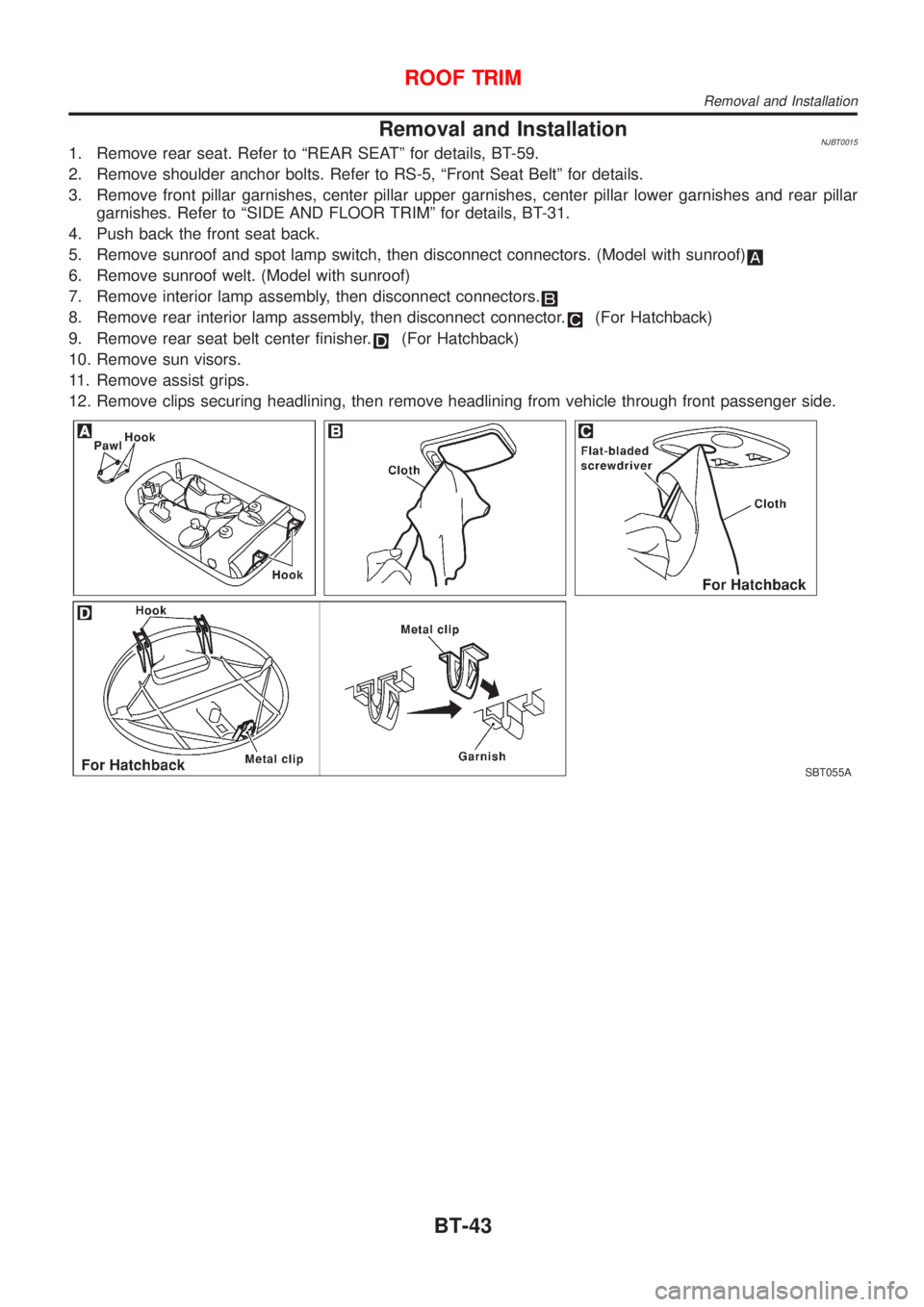

Removal and InstallationNJBT00151. Remove rear seat. Refer to ªREAR SEATº for details, BT-59.
2. Remove shoulder anchor bolts. Refer to RS-5, ªFront Seat Beltº for details.
3. Remove front pillar garnishes, center pillar upper garnishes, center pillar lower garnishes and rear pillar
garnishes. Refer to ªSIDE AND FLOOR TRIMº for details, BT-31.
4. Push back the front seat back.
5. Remove sunroof and spot lamp switch, then disconnect connectors. (Model with sunroof)
6. Remove sunroof welt. (Model with sunroof)
7. Remove interior lamp assembly, then disconnect connectors.
8. Remove rear interior lamp assembly, then disconnect connector.(For Hatchback)
9. Remove rear seat belt center finisher.
(For Hatchback)
10. Remove sun visors.
11. Remove assist grips.
12. Remove clips securing headlining, then remove headlining from vehicle through front passenger side.
SBT055A
ROOF TRIM
Removal and Installation
BT-43
Page 1938 of 2493
SBT056A
ROOF TRIM
Removal and Installation (Cont'd)
BT-44
Page 1939 of 2493
Removal and InstallationNJBT0016SEDANNJBT0016S01
NBT199
TRUNK ROOM TRIM
Removal and Installation
BT-45
Page 1940 of 2493

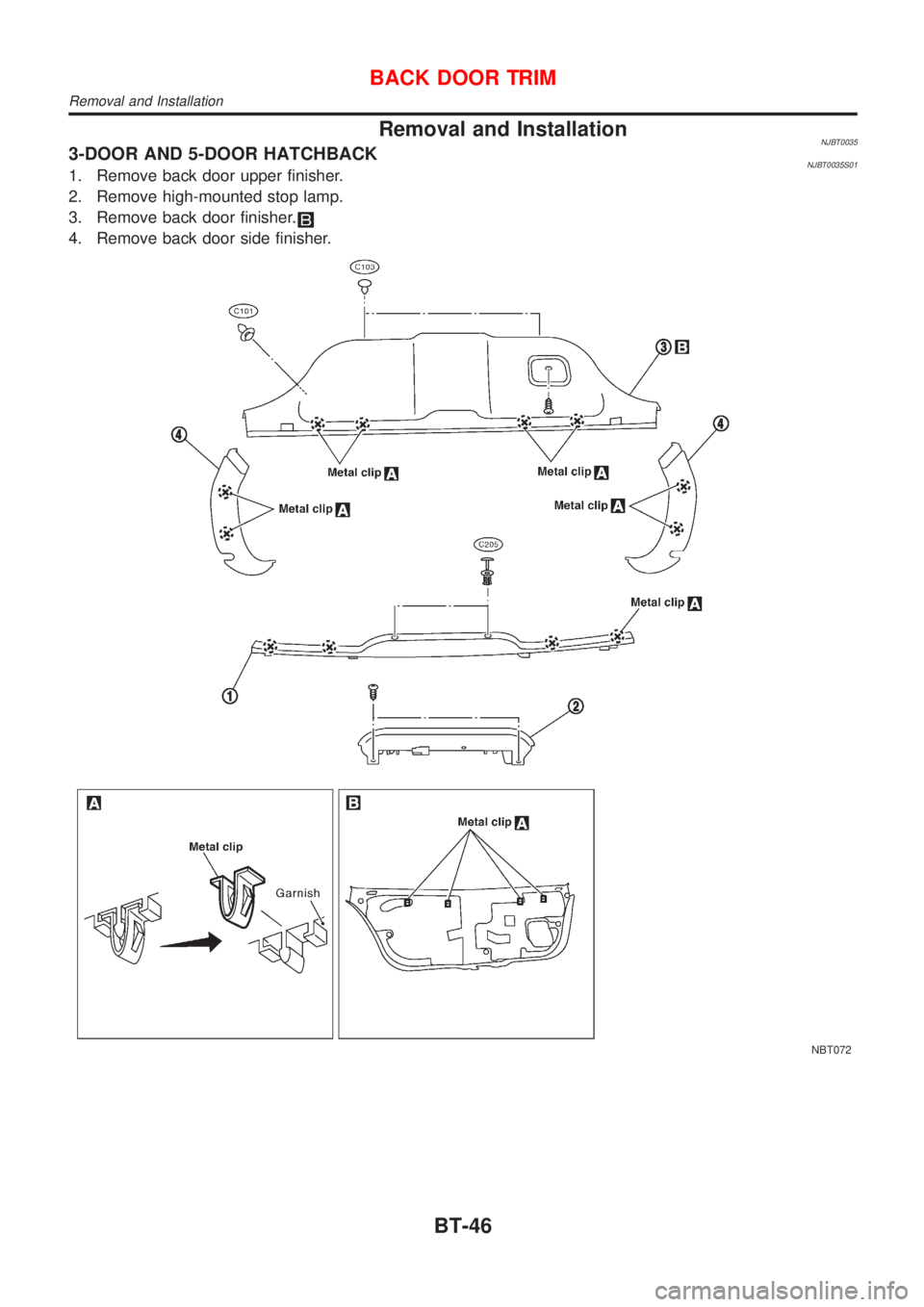

Removal and InstallationNJBT00353-DOOR AND 5-DOOR HATCHBACKNJBT0035S011. Remove back door upper finisher.
2. Remove high-mounted stop lamp.
3. Remove back door finisher.
4. Remove back door side finisher.
NBT072
BACK DOOR TRIM
Removal and Installation
BT-46
Page 1941 of 2493

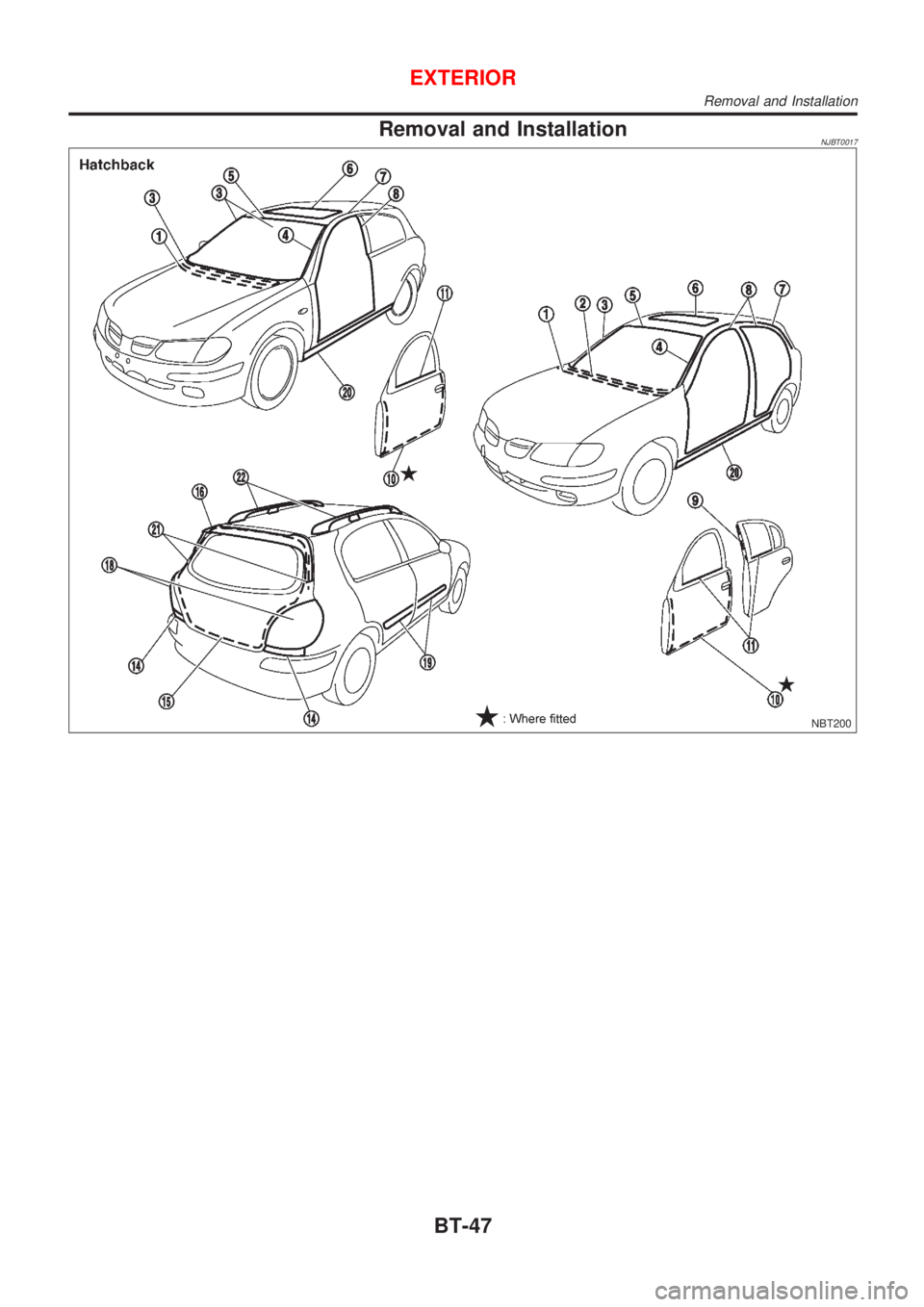

Removal and InstallationNJBT0017
NBT200
EXTERIOR
Removal and Installation
BT-47
Page 1942 of 2493

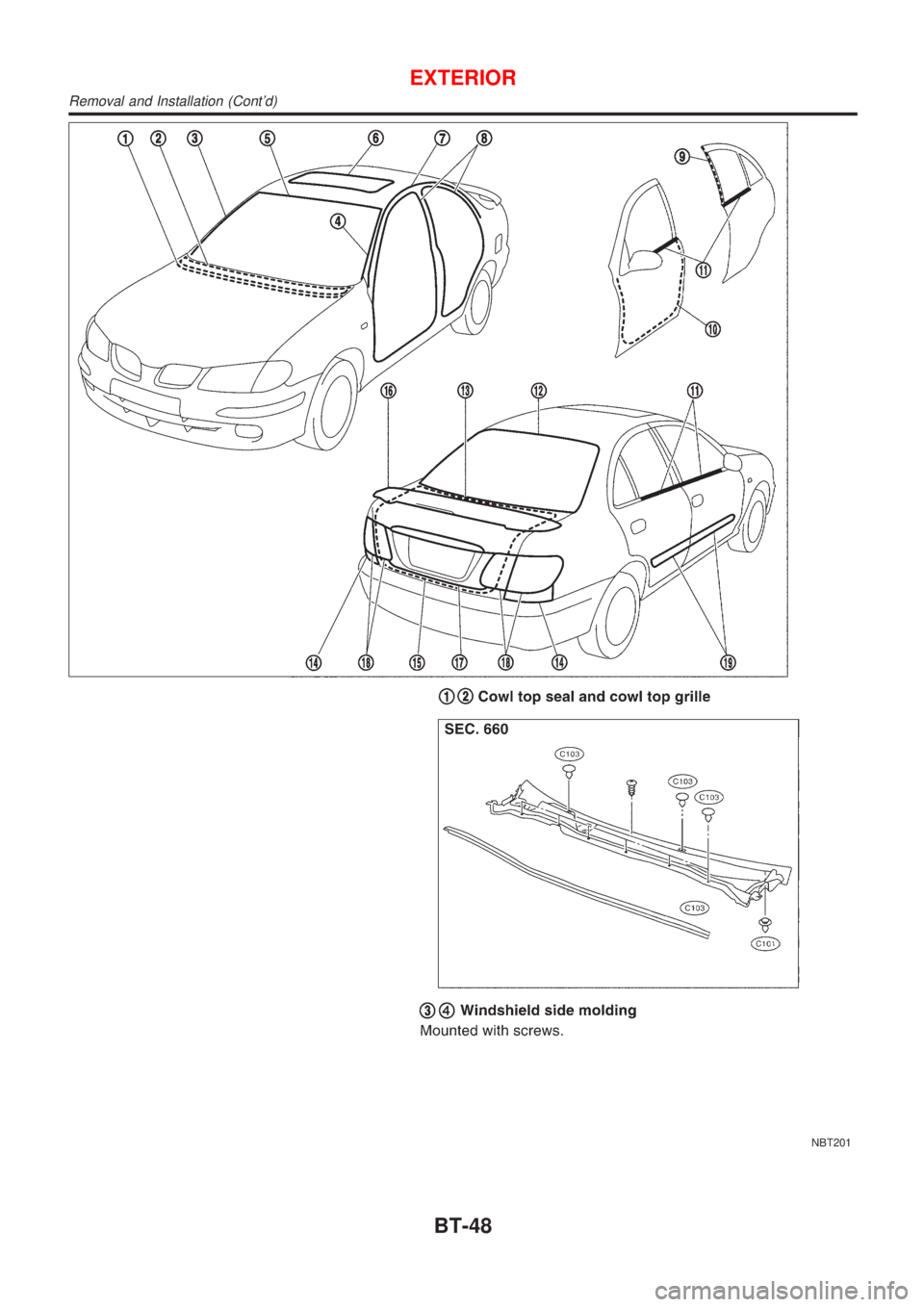

NBT201
EXTERIOR
Removal and Installation (Cont'd)
BT-48
Page 1943 of 2493

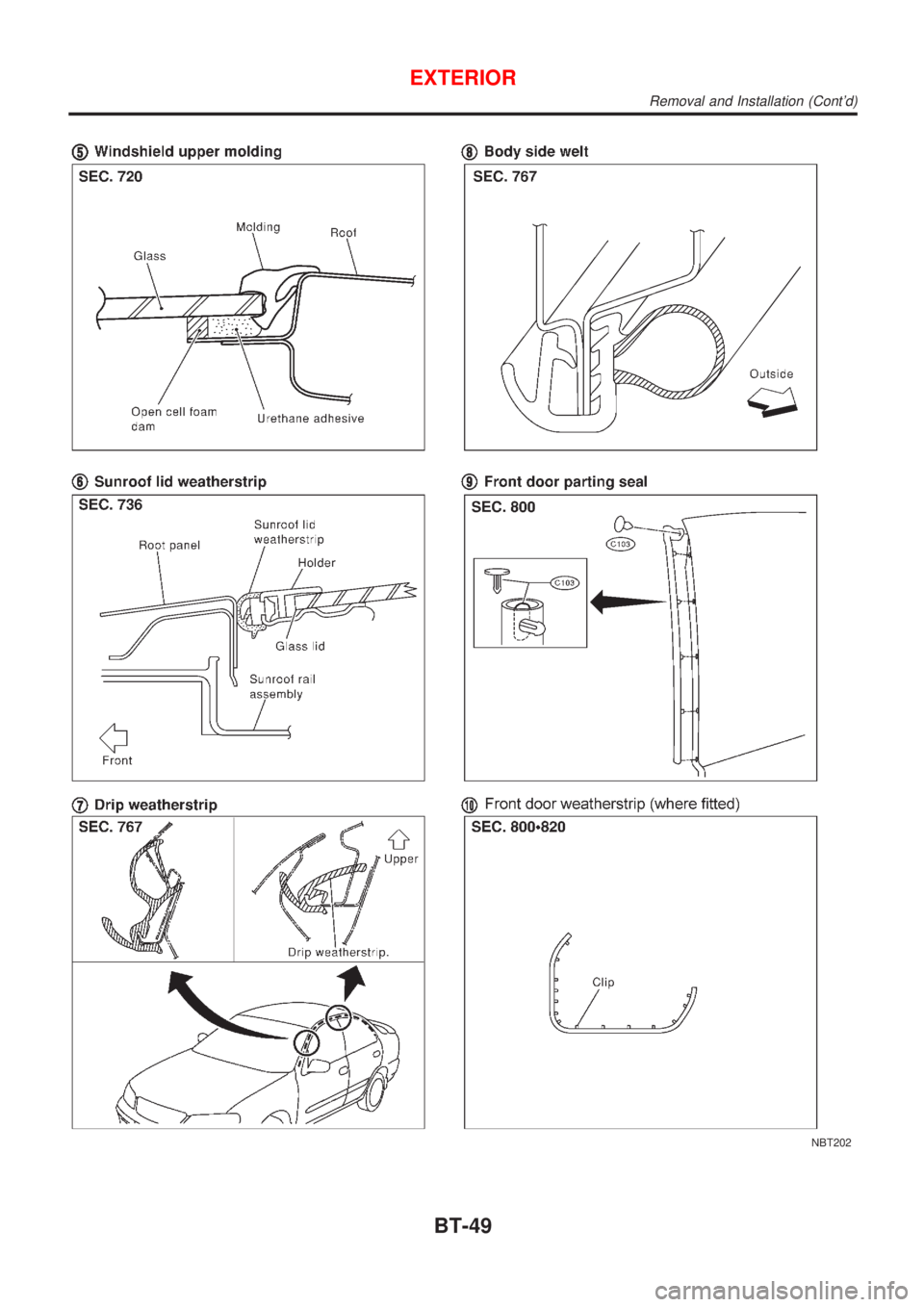

NBT202
EXTERIOR
Removal and Installation (Cont'd)
BT-49
Page 1944 of 2493

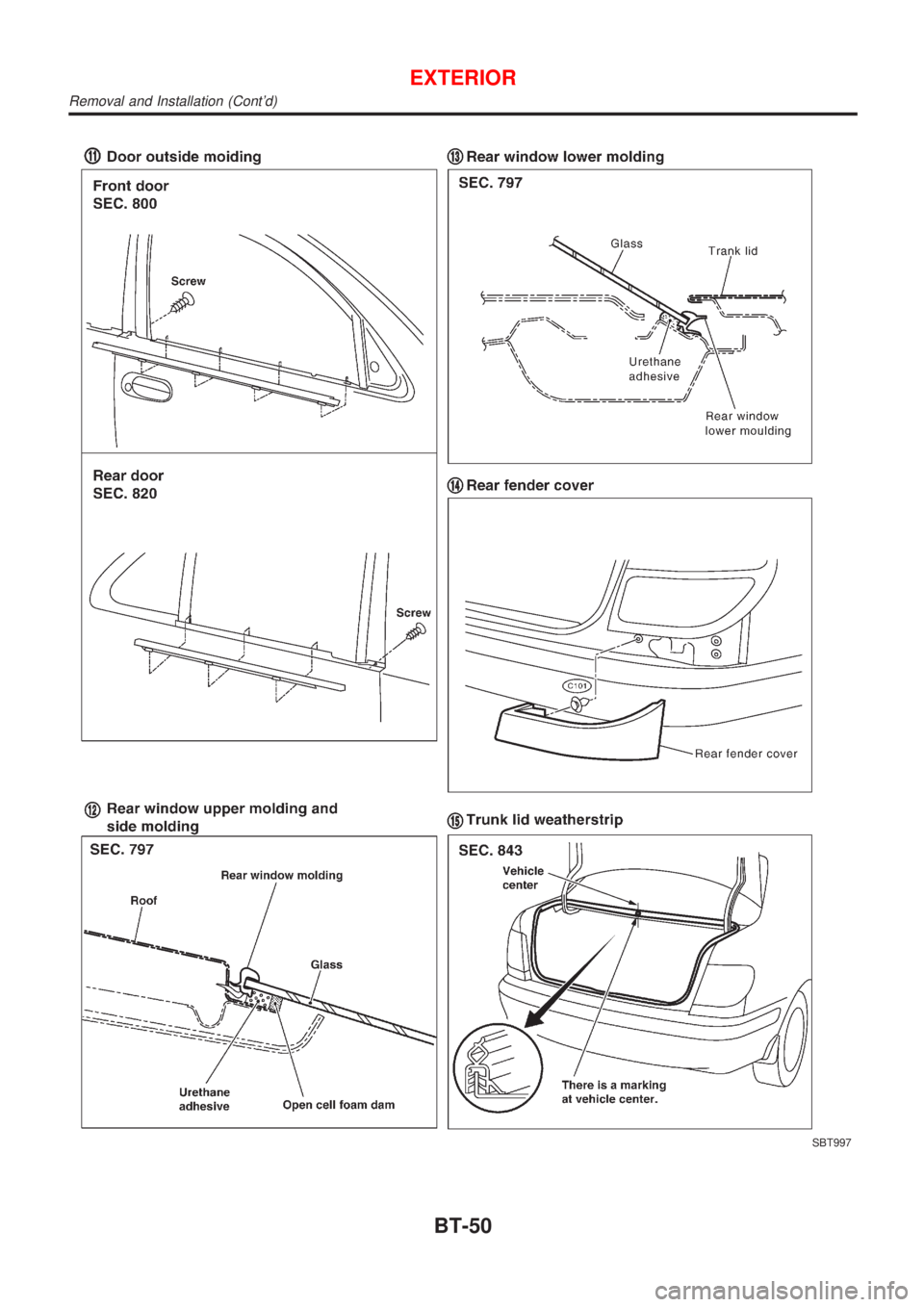

SBT997
EXTERIOR
Removal and Installation (Cont'd)
BT-50
