NISSAN ALMERA N16 2001  Electronic Repair Manual REMOVALNJEM0094S011. Remove engine and transaxle assembly. Refer to EM-136,
ªENGINE ASSEMBLYº.
2. Remove transaxle from engine. Place engine onto engine
stand (SST). Refer to EM-140, ªCYLINDER BLOC

Page 178 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual JEM134G

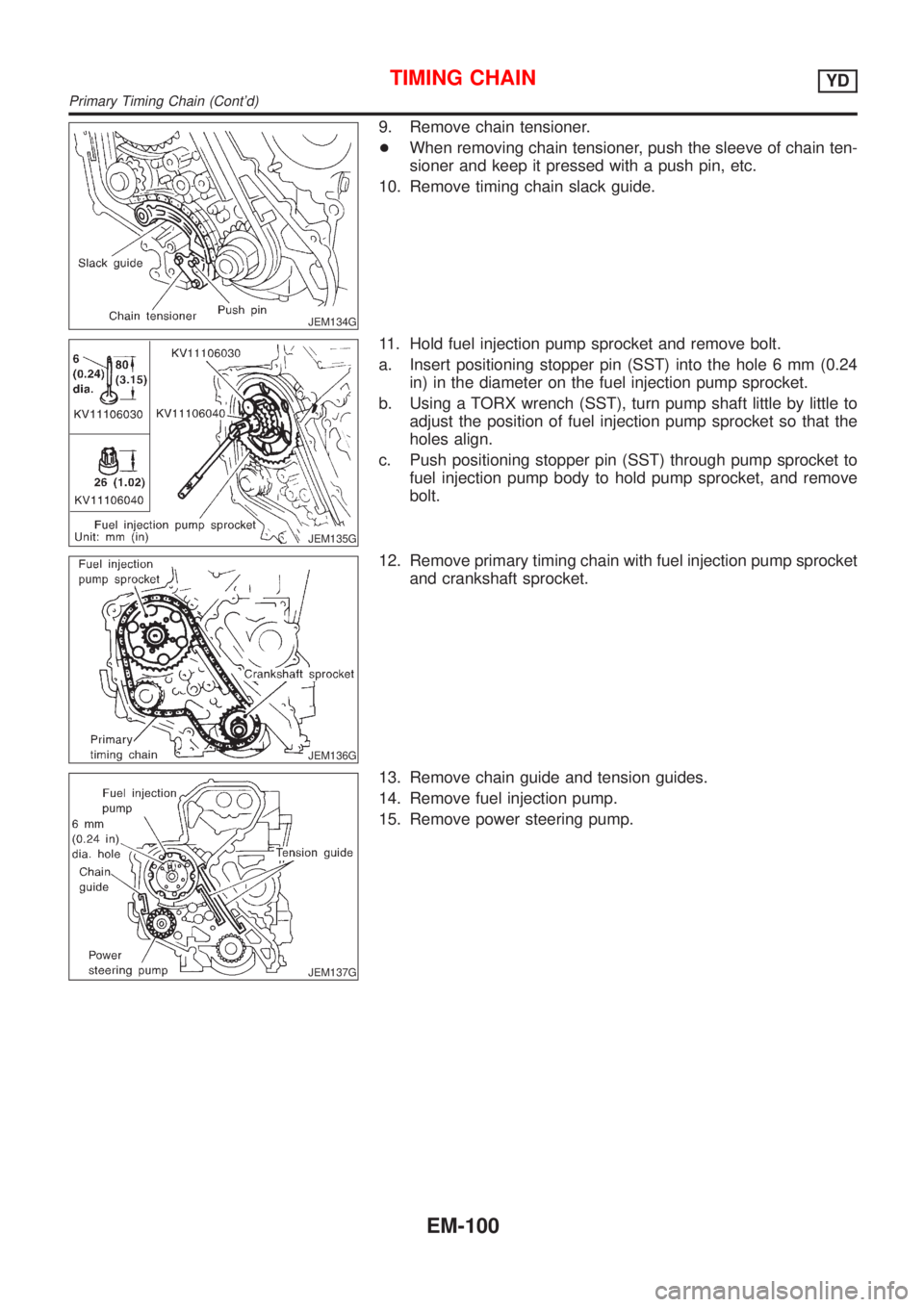

9. Remove chain tensioner.
+When removing chain tensioner, push the sleeve of chain ten-
sioner and keep it pressed with a push pin, etc.
10. Remove timing chain slack guide.
JEM135G
11. Hold

Page 179 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual JEM138G

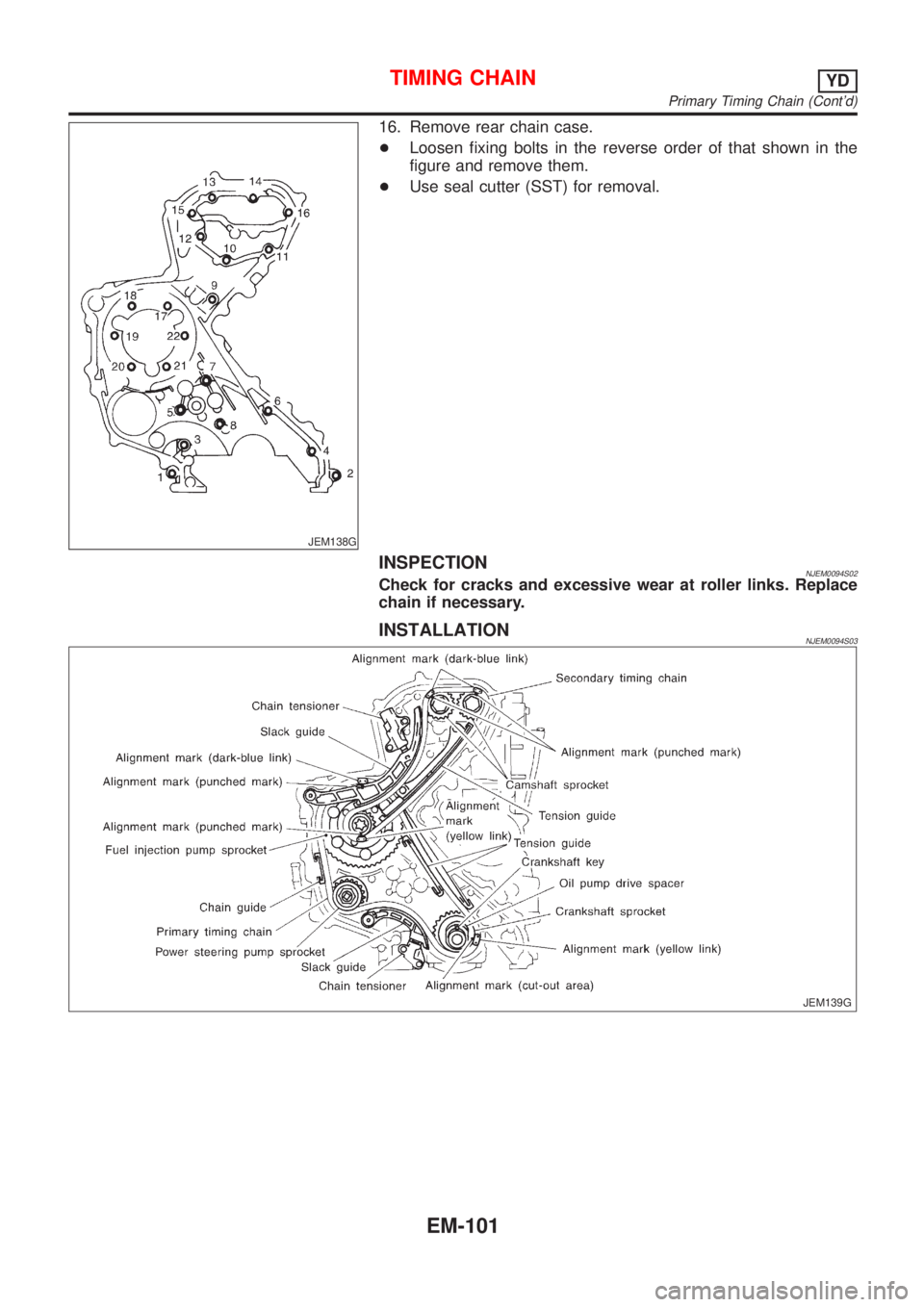

16. Remove rear chain case.
+Loosen fixing bolts in the reverse order of that shown in the
figure and remove them.
+Use seal cutter (SST) for removal.
INSPECTIONNJEM0094S02Check for cracks and

Page 180 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual JEM140G
1. Install rear chain case.
a. Apply a continuous bead of specified liquid gasket (Refer to
EM-76, ªLiquid Gasket Application Procedureº.) on locations
shown in the figure.
A: Apply bead so

Page 181 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual JEM137G

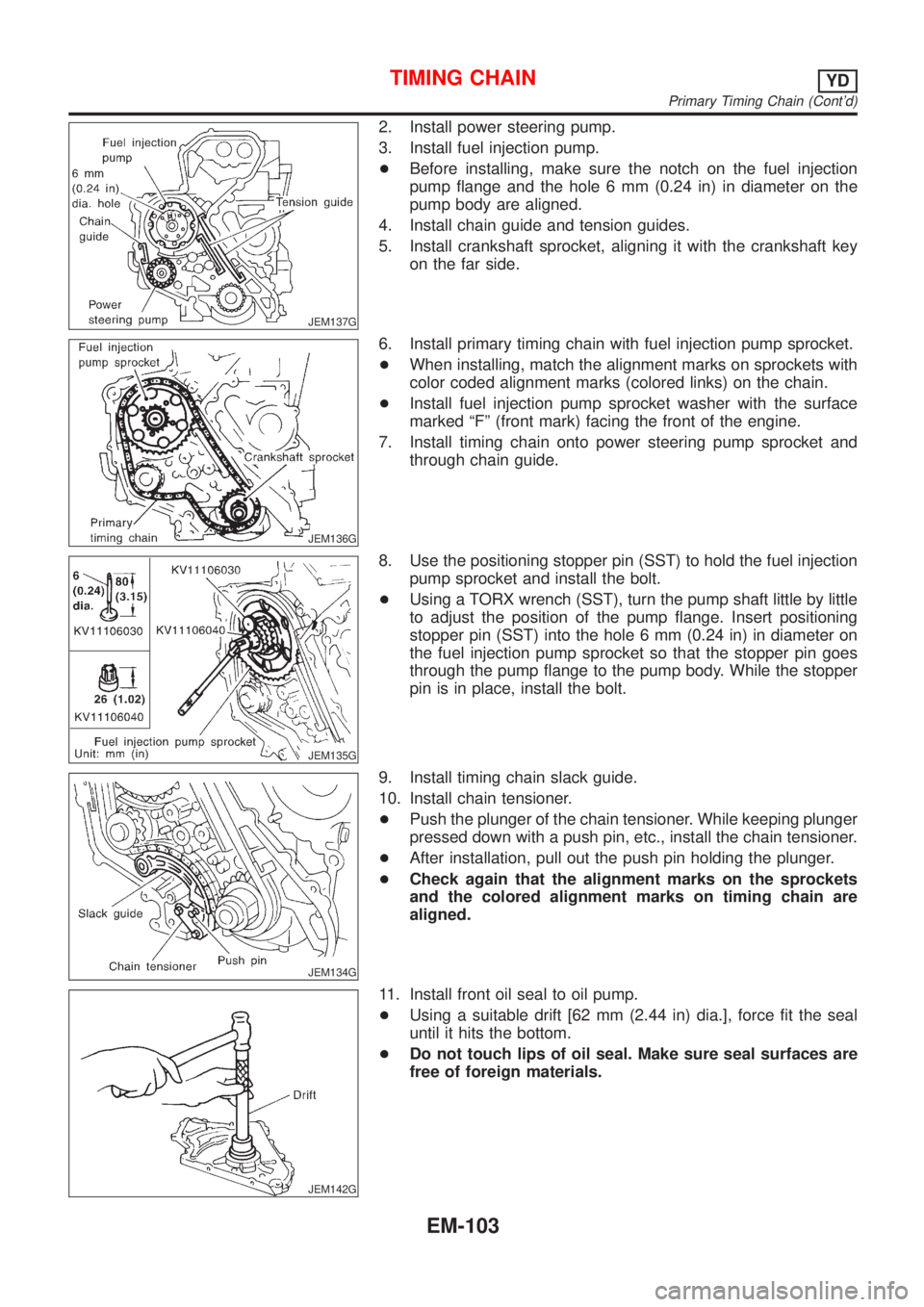

2. Install power steering pump.
3. Install fuel injection pump.
+Before installing, make sure the notch on the fuel injection
pump flange and the hole 6 mm (0.24 in) in diameter on the
pump bo

Page 182 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual JEM143G
12. Install chain case cover (for opening for power steering pump
removal/installation) to oil pump.
+Apply a continuous bead of specified liquid gasket (Refer to
EM-76, ªLiquid Gasket Applic

Page 183 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual JEM147G

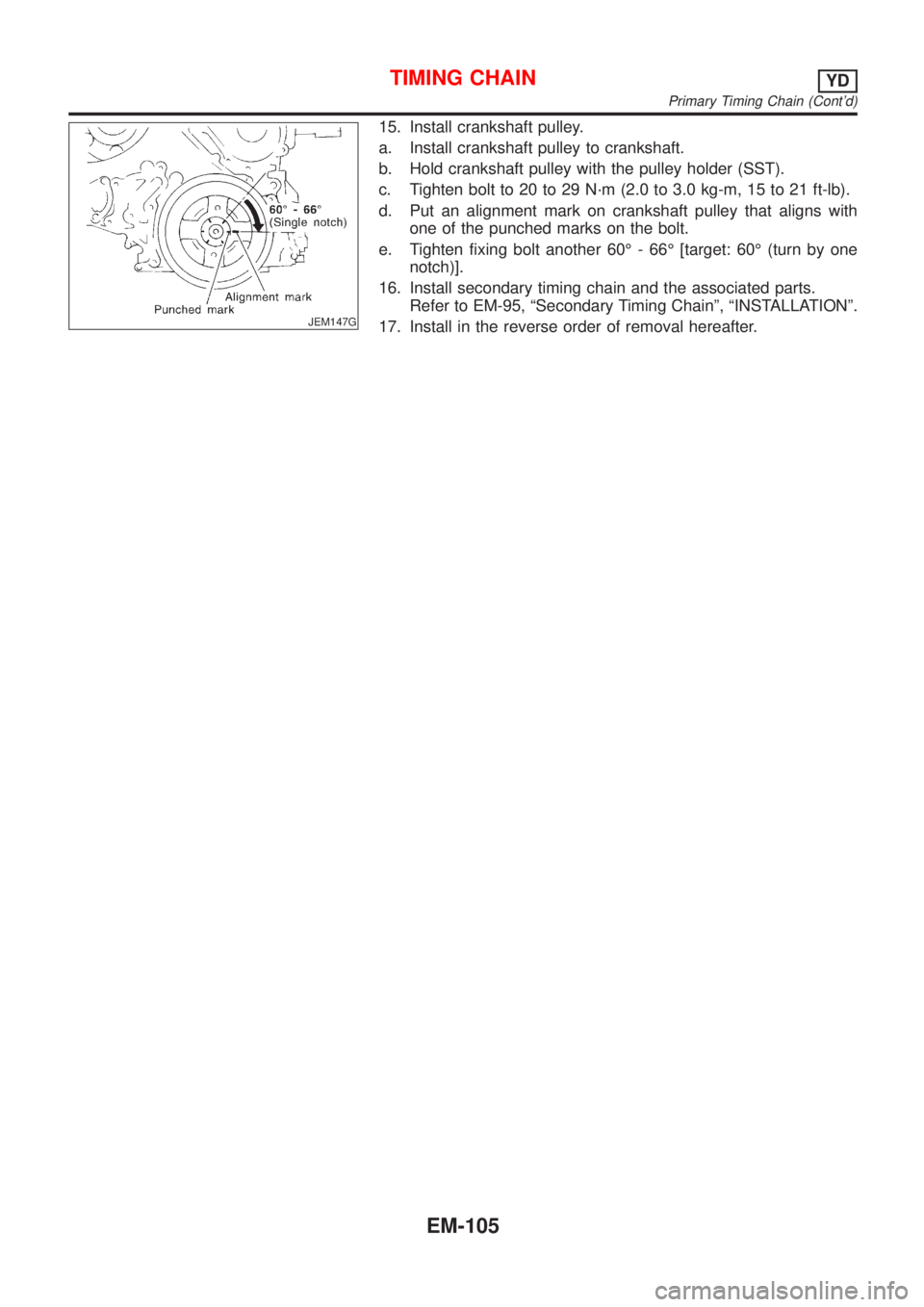

15. Install crankshaft pulley.
a. Install crankshaft pulley to crankshaft.
b. Hold crankshaft pulley with the pulley holder (SST).
c. Tighten bolt to 20 to 29 N´m (2.0 to 3.0 kg-m, 15 to 21 f

Page 184 of 2493

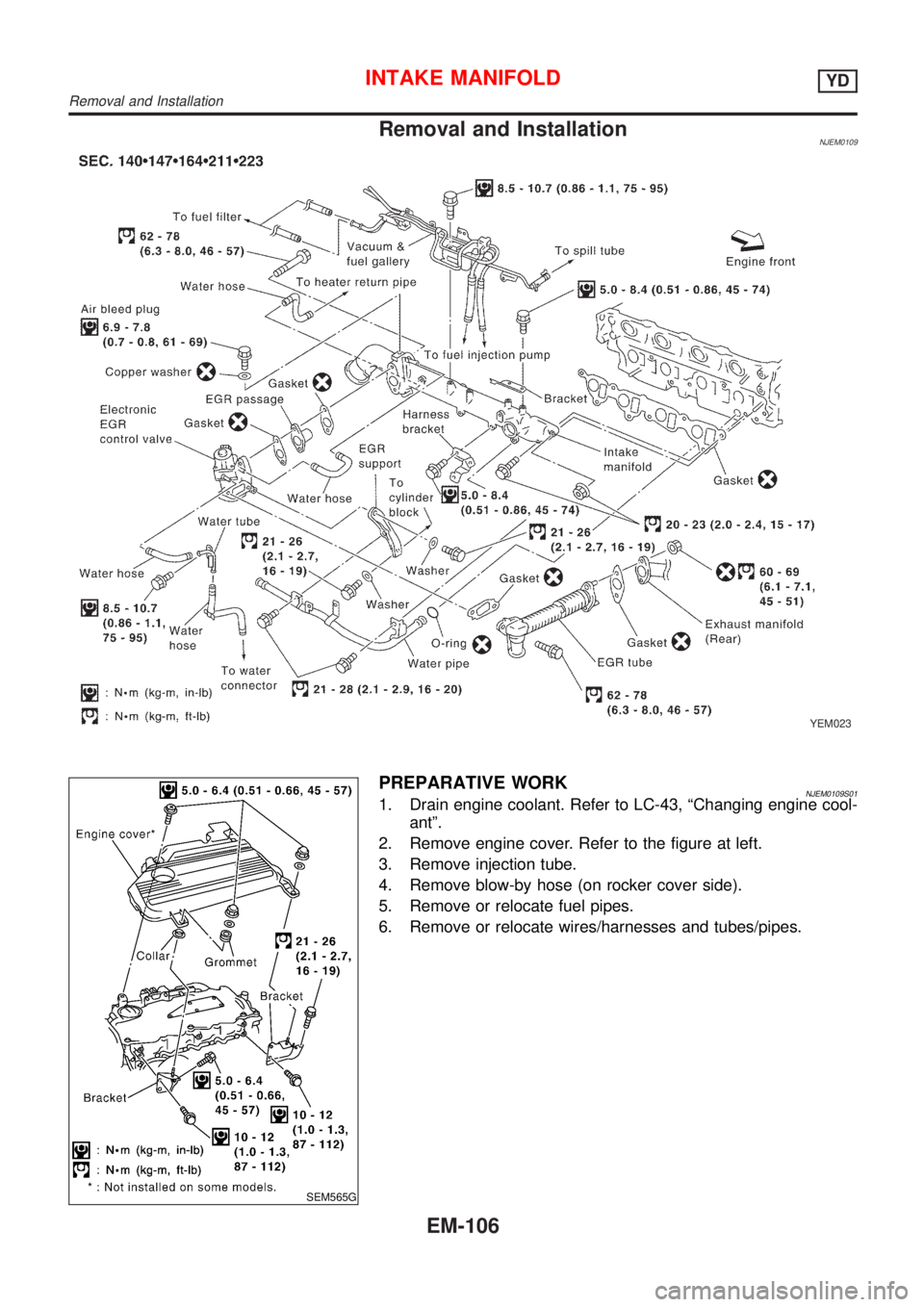

NISSAN ALMERA N16 2001  Electronic Repair Manual Removal and InstallationNJEM0109
YEM023
SEM565G
PREPARATIVE WORKNJEM0109S011. Drain engine coolant. Refer to LC-43, ªChanging engine cool-
antº.
2. Remove engine cover. Refer to the figure at left.
