2001 NISSAN ALMERA N16 Electronic Repair Manual

Page 1161 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual NJMT0022

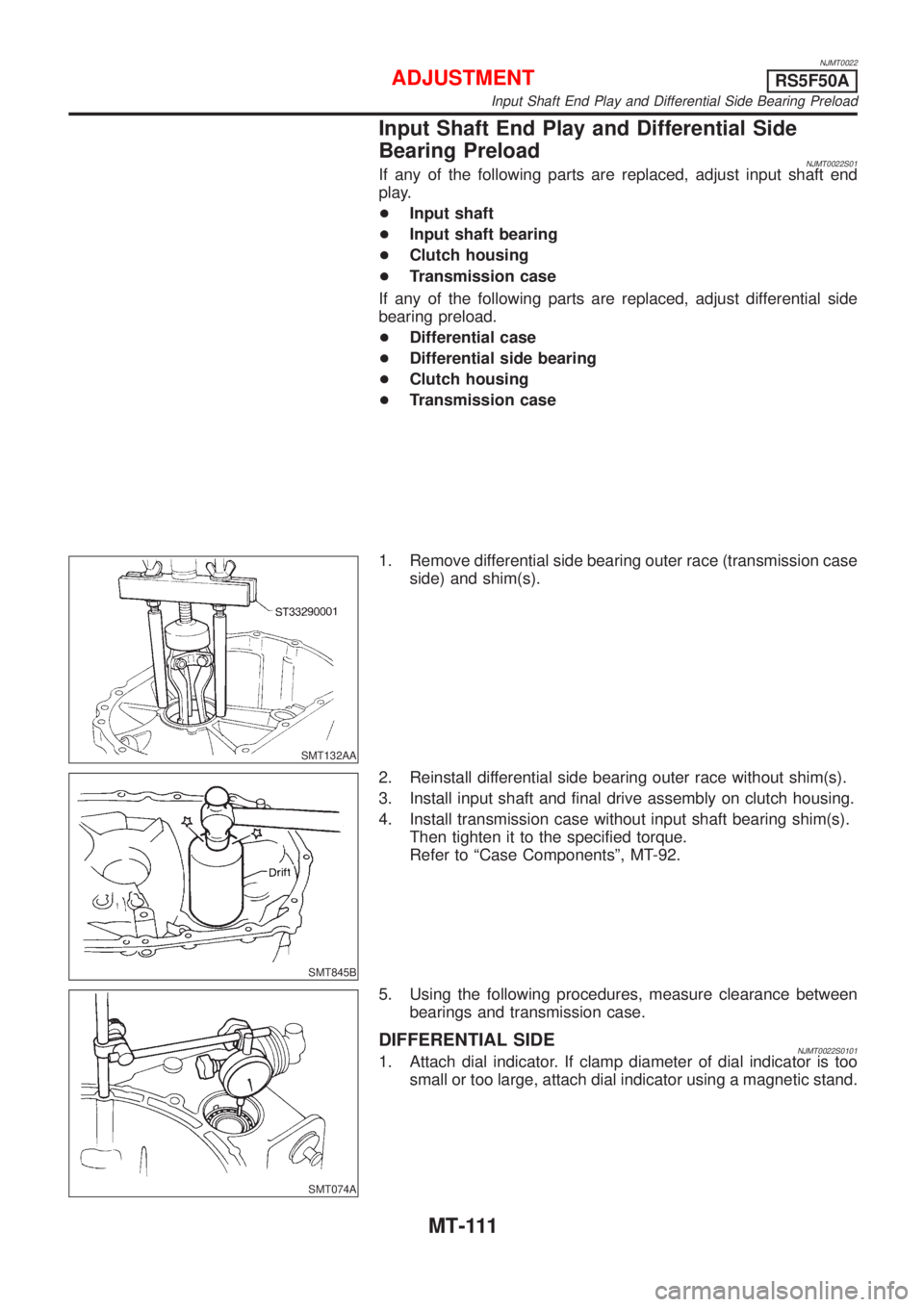

Input Shaft End Play and Differential Side
Bearing Preload
NJMT0022S01If any of the following parts are replaced, adjust input shaft end
play.
+Input shaft
+Input shaft bearing
+Clutch housin

Page 1162 of 2493

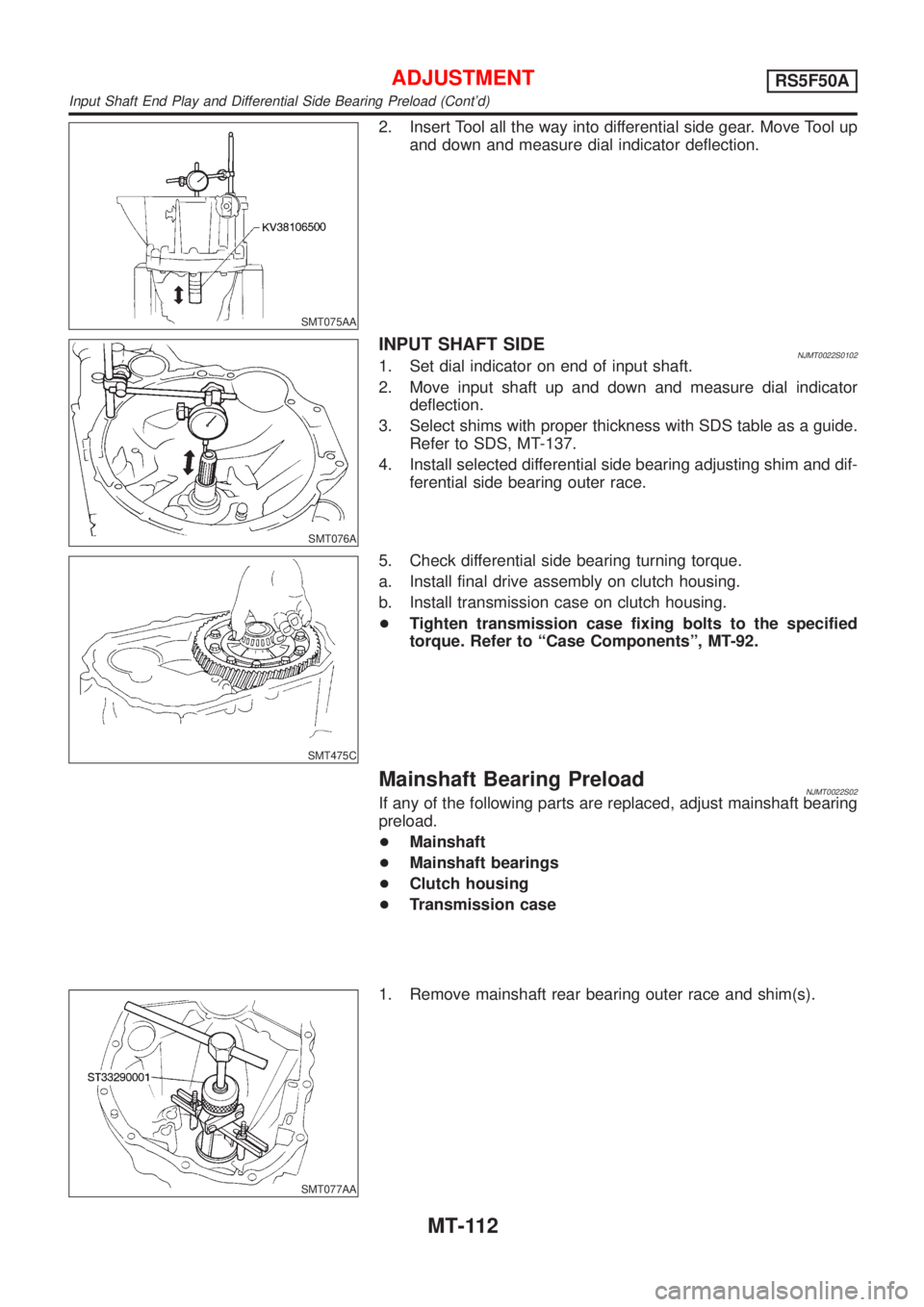

NISSAN ALMERA N16 2001  Electronic Repair Manual SMT075AA
2. Insert Tool all the way into differential side gear. Move Tool up
and down and measure dial indicator deflection.
SMT076A
INPUT SHAFT SIDENJMT0022S01021. Set dial indicator on end of input

Page 1163 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual SMT644AA
2. Reinstall mainshaft rear bearing outer race without shims.
3. Clean mating surfaces of clutch housing and transmission
case with solvent.
4. Install mainshaft and mainshaft front bearing o

Page 1164 of 2493

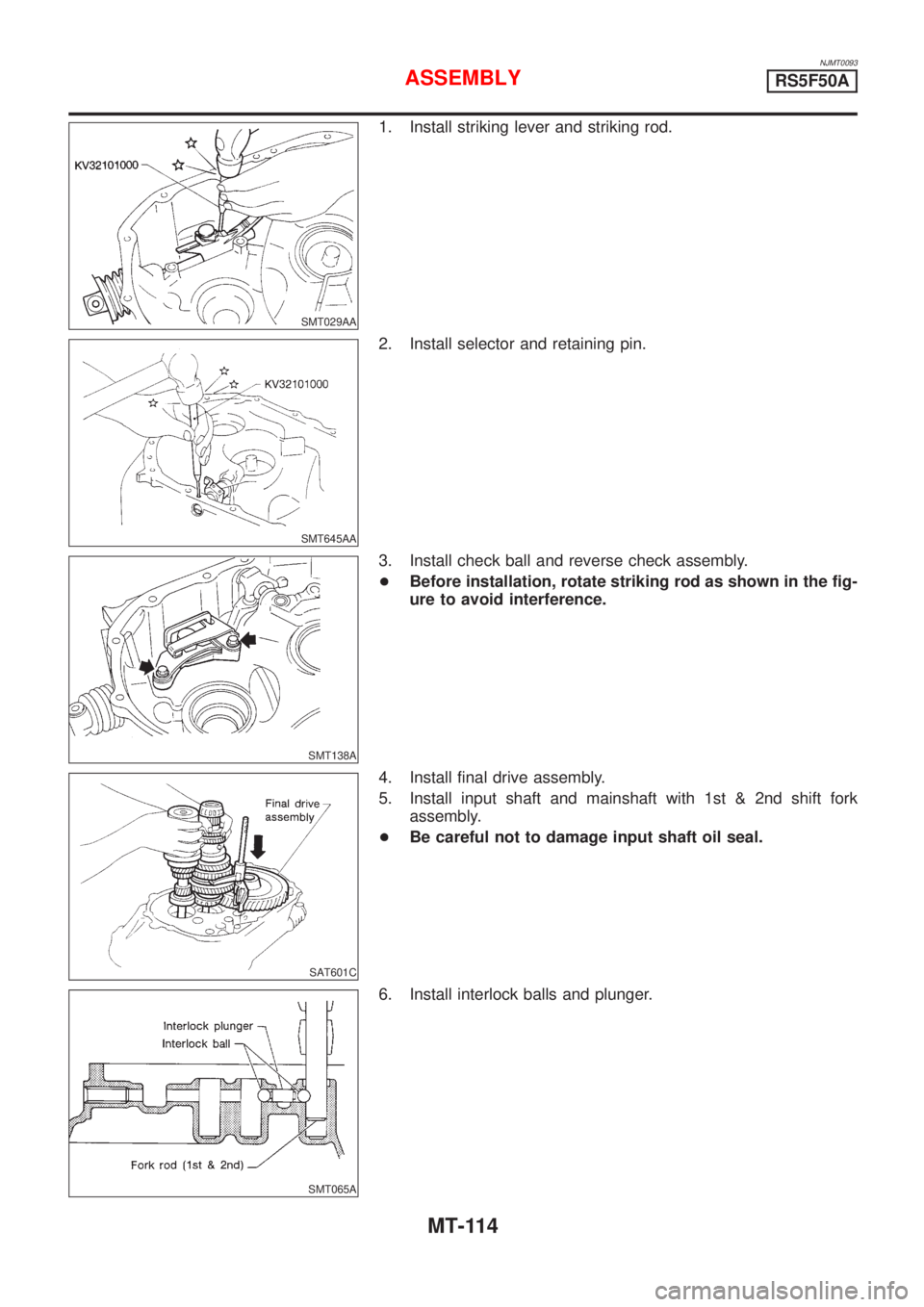

NISSAN ALMERA N16 2001  Electronic Repair Manual NJMT0093
SMT029AA
1. Install striking lever and striking rod.
SMT645AA
2. Install selector and retaining pin.
SMT138A
3. Install check ball and reverse check assembly.
+Before installation, rotate str

Page 1165 of 2493

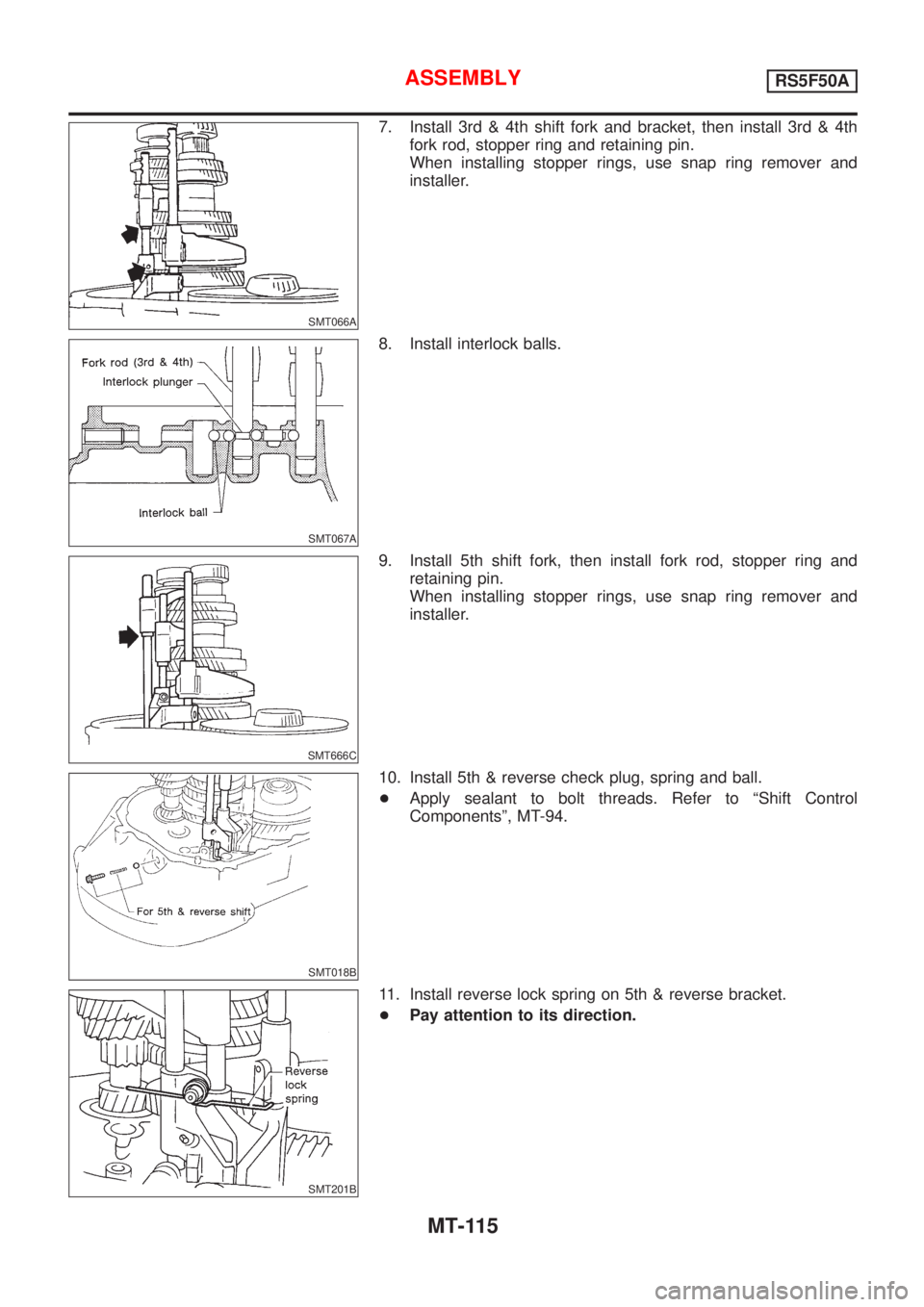

NISSAN ALMERA N16 2001  Electronic Repair Manual SMT066A
7. Install 3rd & 4th shift fork and bracket, then install 3rd & 4th
fork rod, stopper ring and retaining pin.
When installing stopper rings, use snap ring remover and
installer.
SMT067A
8. Ins

Page 1166 of 2493

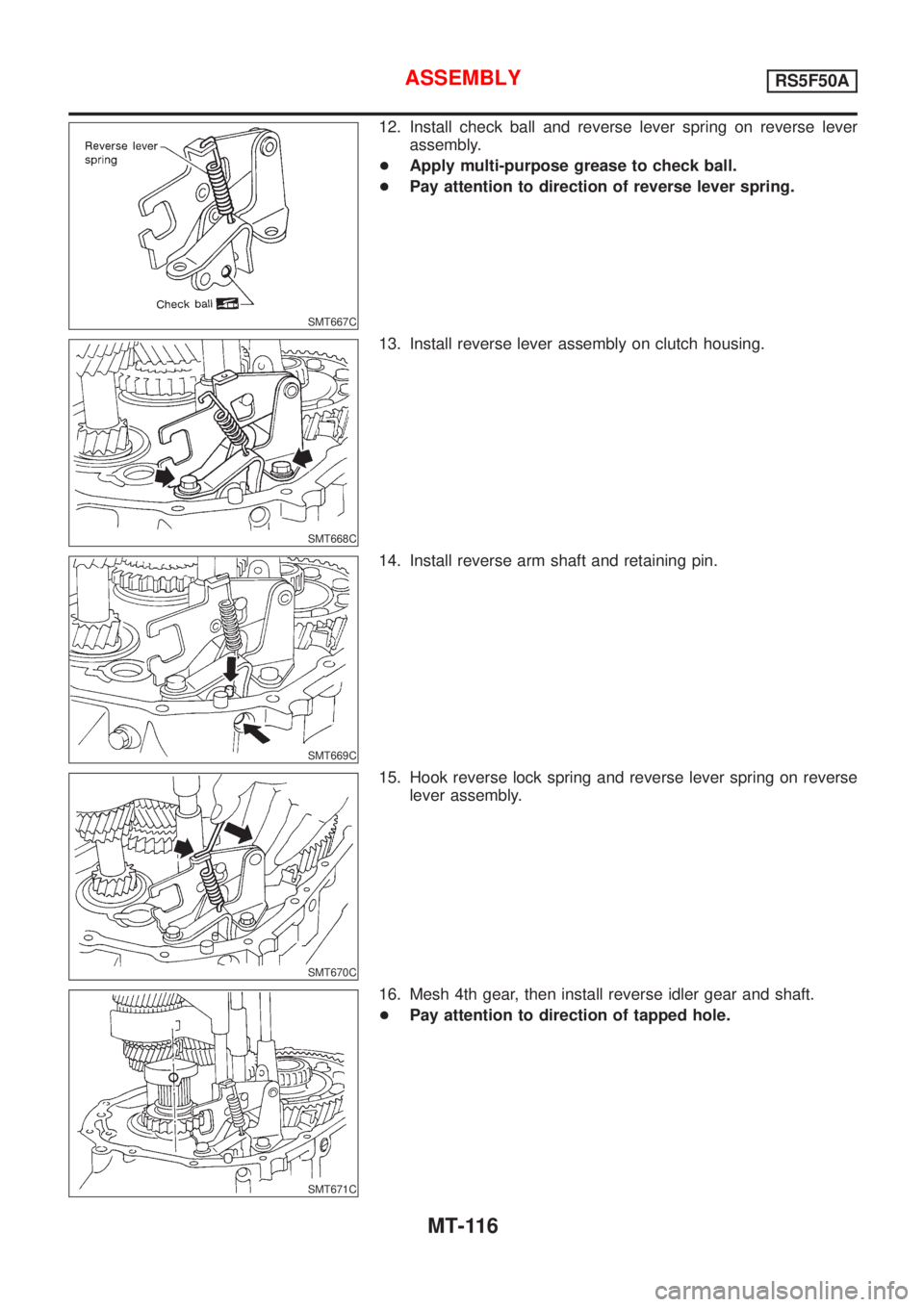

NISSAN ALMERA N16 2001  Electronic Repair Manual SMT667C
12. Install check ball and reverse lever spring on reverse lever
assembly.
+Apply multi-purpose grease to check ball.
+Pay attention to direction of reverse lever spring.
SMT668C
13. Install r

Page 1167 of 2493

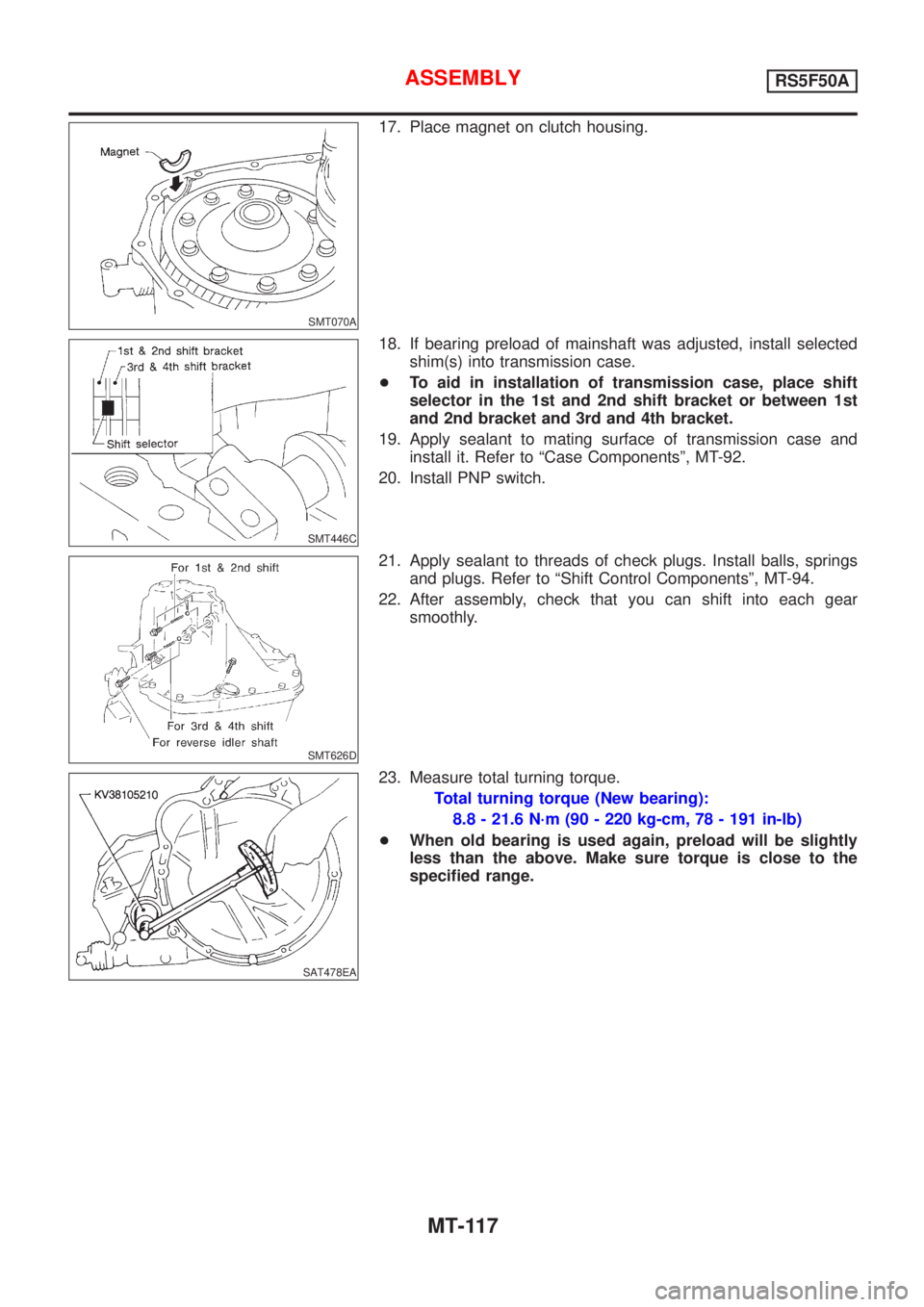

NISSAN ALMERA N16 2001  Electronic Repair Manual SMT070A
17. Place magnet on clutch housing.
SMT446C
18. If bearing preload of mainshaft was adjusted, install selected
shim(s) into transmission case.
+To aid in installation of transmission case, pla

Page 1168 of 2493

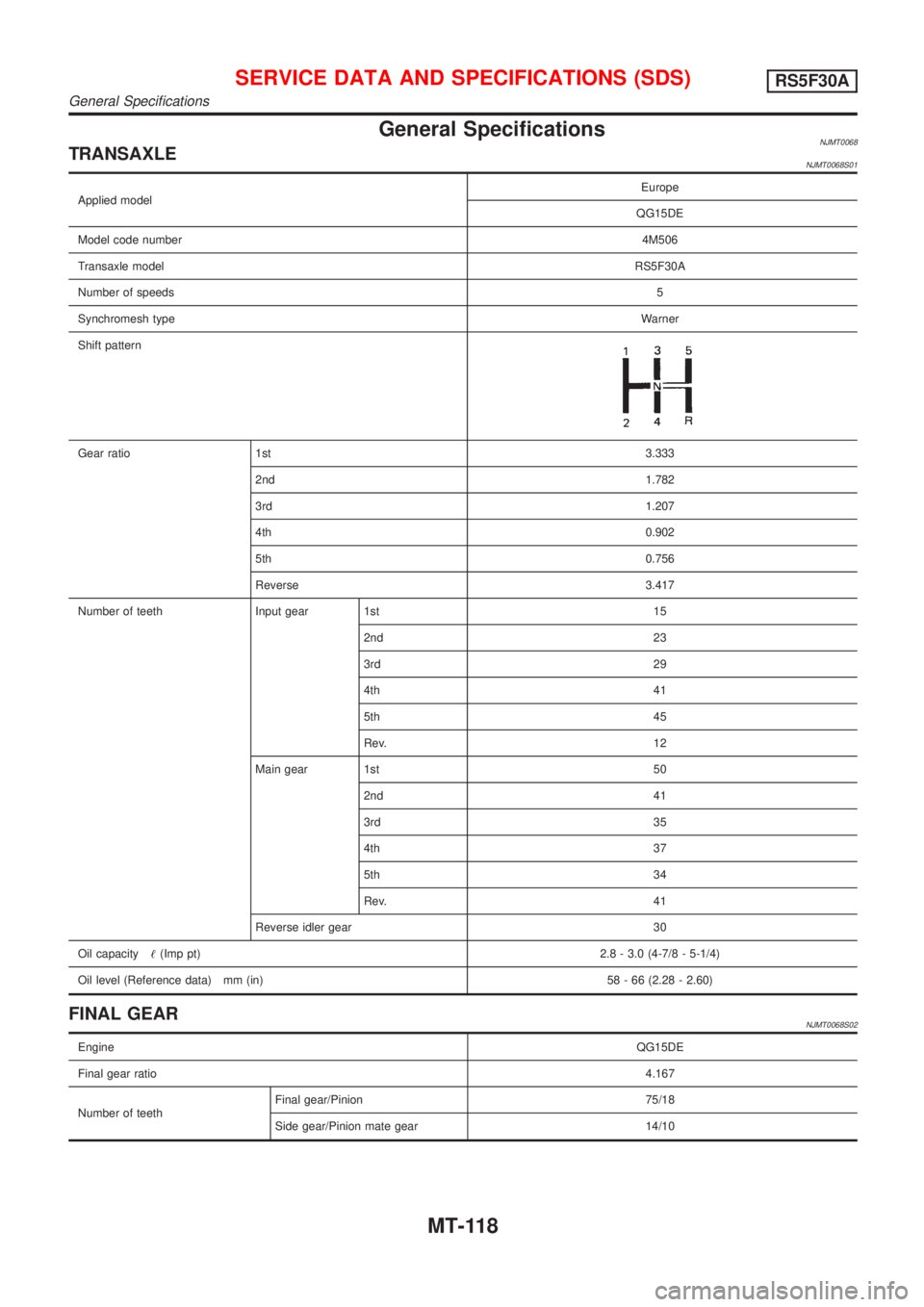

NISSAN ALMERA N16 2001  Electronic Repair Manual General SpecificationsNJMT0068TRANSAXLENJMT0068S01
Applied modelEurope
QG15DE
Model code number4M506
Transaxle modelRS5F30A
Number of speeds5
Synchromesh typeWarner
Shift pattern
Gear ratio 1st3.333
2
