Page 2041 of 2493

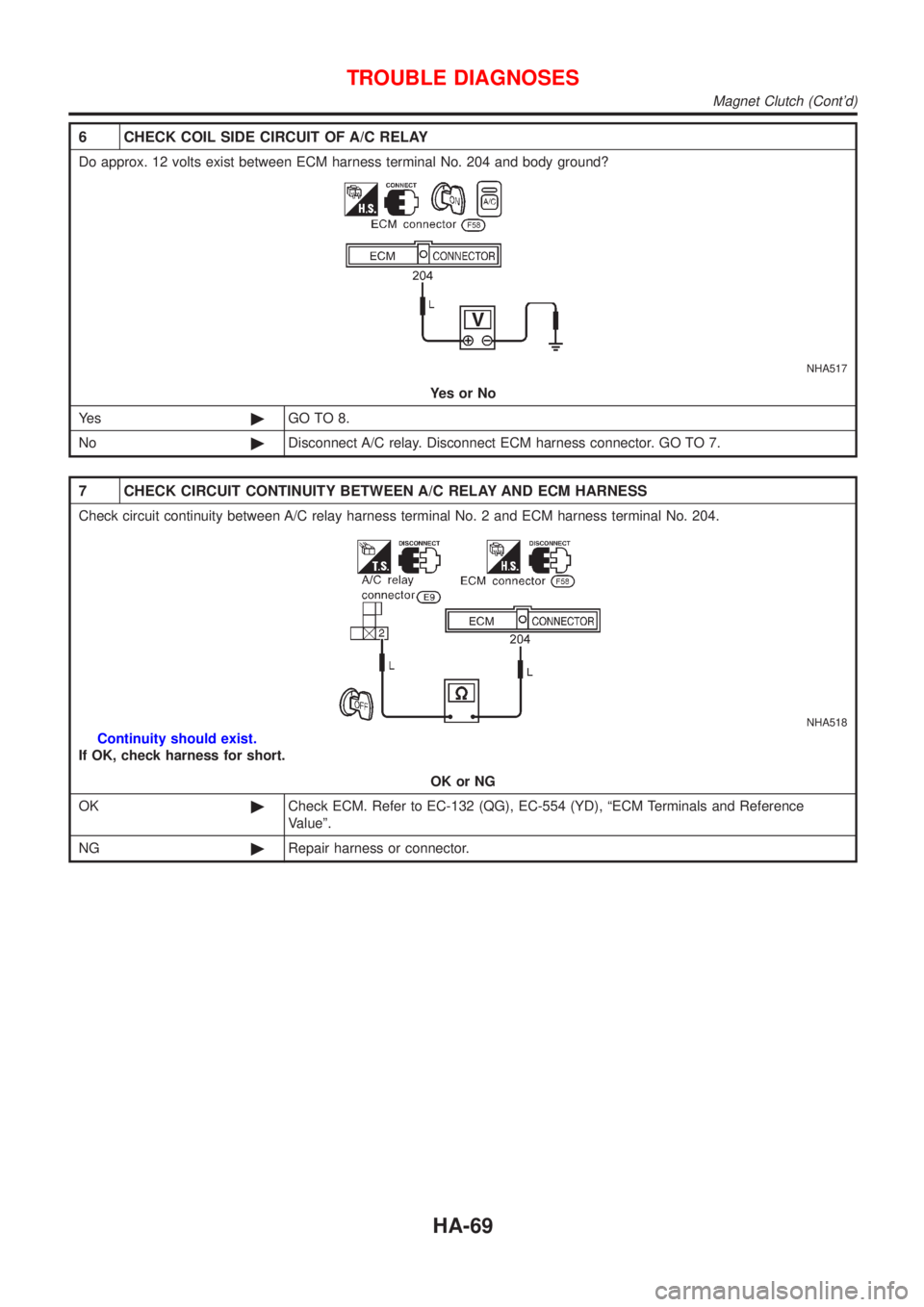

NISSAN ALMERA N16 2001 Electronic Repair Manual 6 CHECK COIL SIDE CIRCUIT OF A/C RELAY Do approx. 12 volts exist between ECM harness terminal No. 204 and body ground? NHA517 YesorNo Ye s©GO TO 8. No©Disconnect A/C relay. Disconnect ECM harness co

Page 2042 of 2493

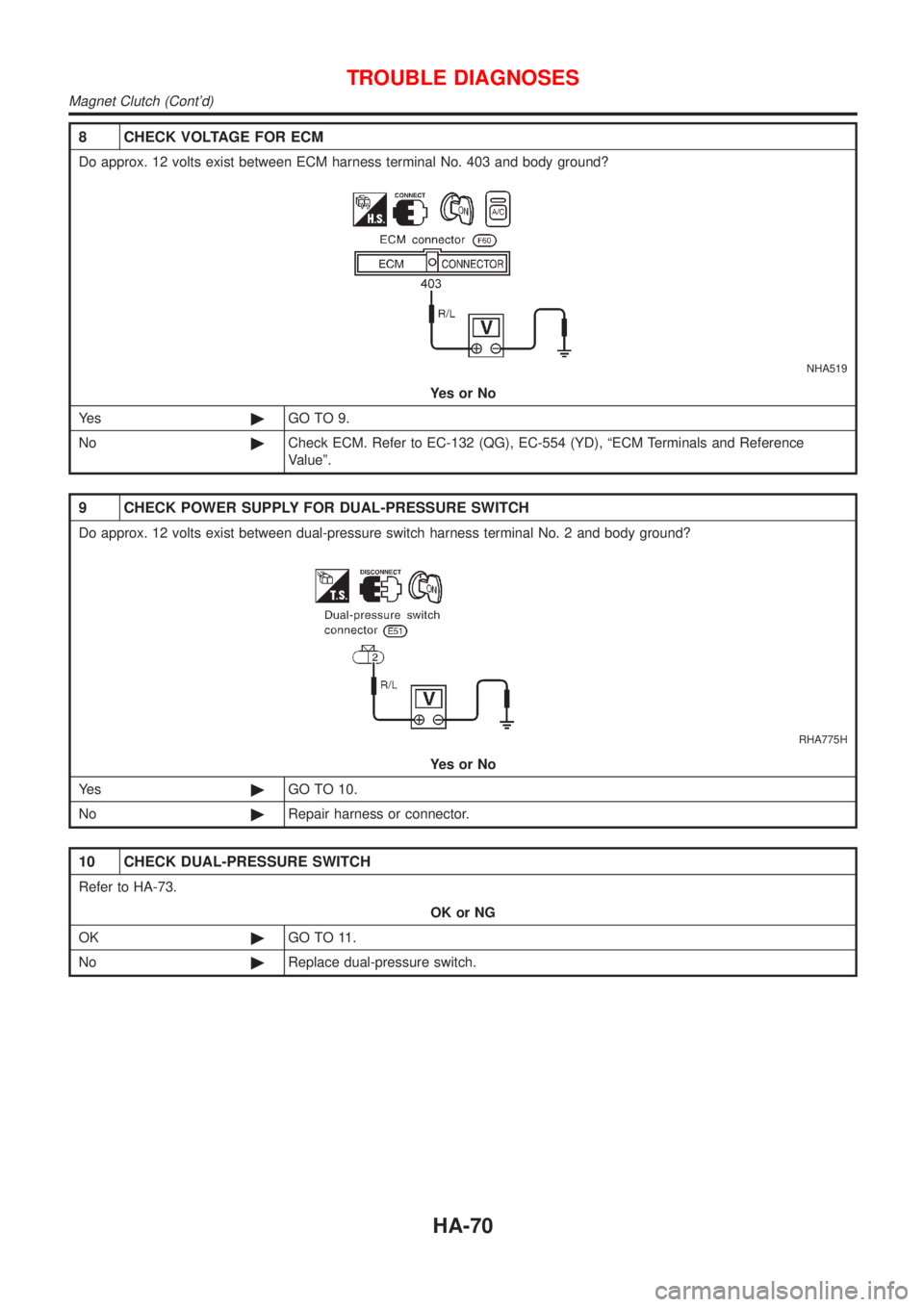

NISSAN ALMERA N16 2001 Electronic Repair Manual 8 CHECK VOLTAGE FOR ECM Do approx. 12 volts exist between ECM harness terminal No. 403 and body ground? NHA519 YesorNo Ye s©GO TO 9. No©Check ECM. Refer to EC-132 (QG), EC-554 (YD), ªECM Terminals

Page 2043 of 2493

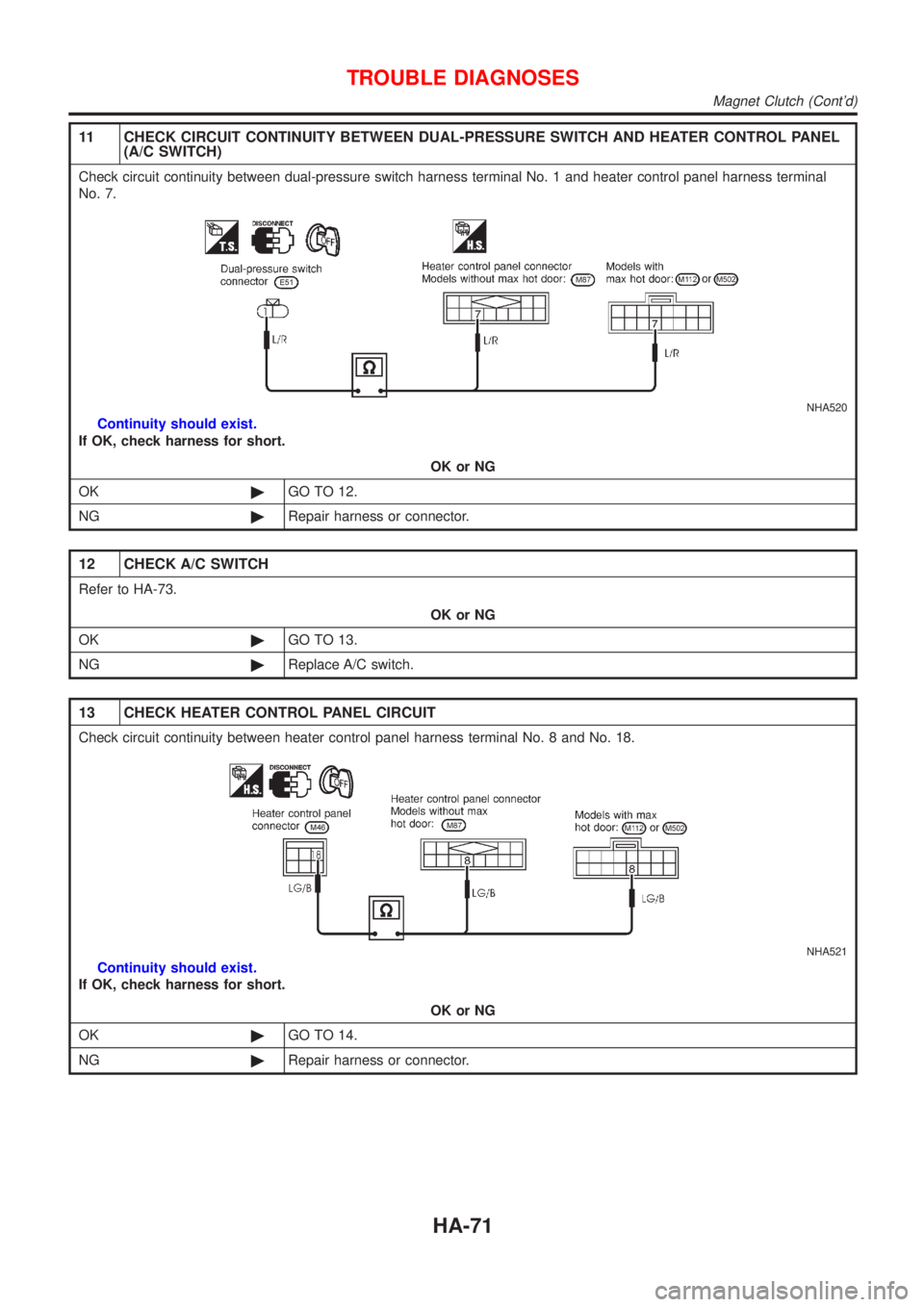

NISSAN ALMERA N16 2001 Electronic Repair Manual 11 CHECK CIRCUIT CONTINUITY BETWEEN DUAL-PRESSURE SWITCH AND HEATER CONTROL PANEL (A/C SWITCH) Check circuit continuity between dual-pressure switch harness terminal No. 1 and heater control panel har

Page 2044 of 2493

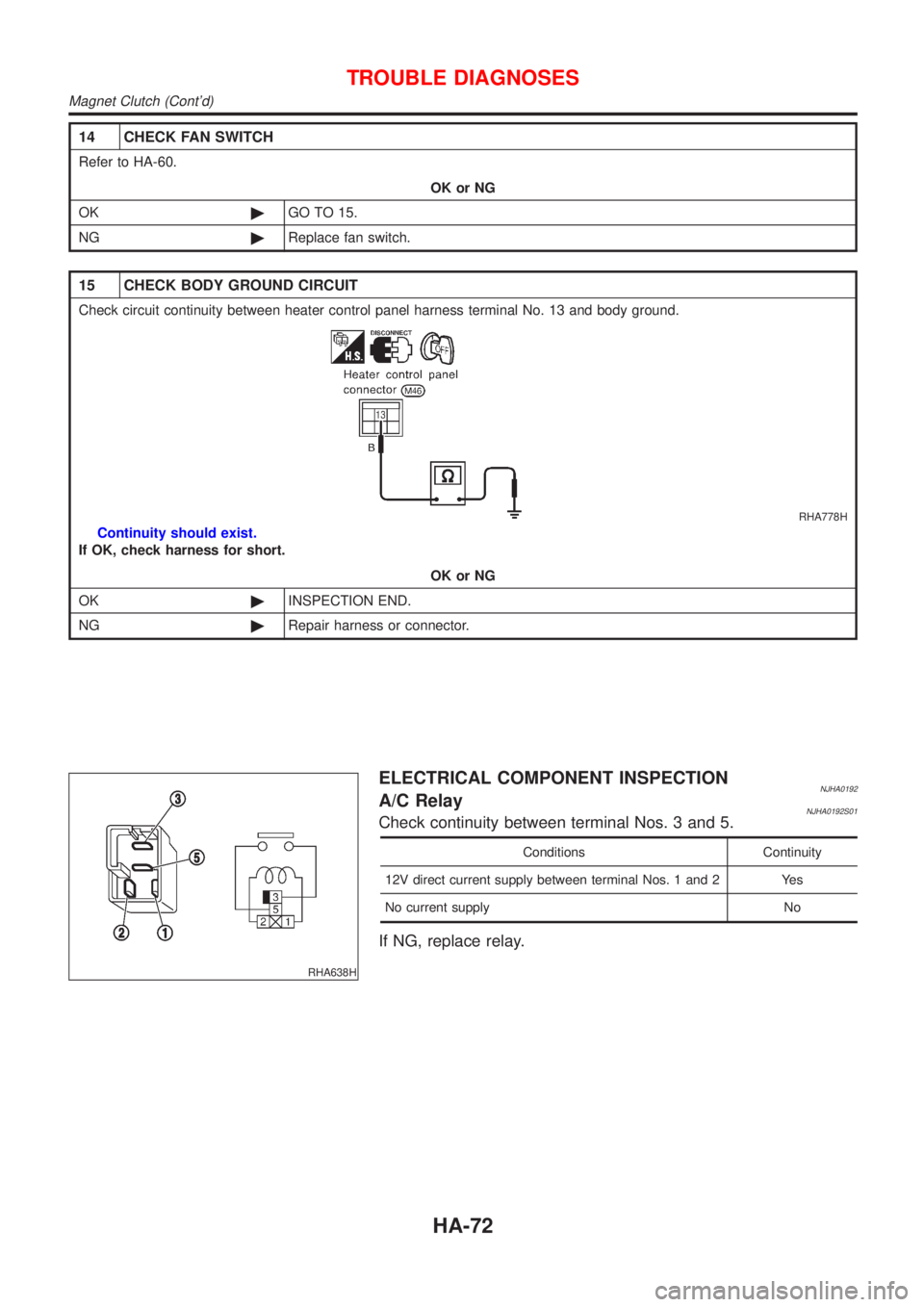

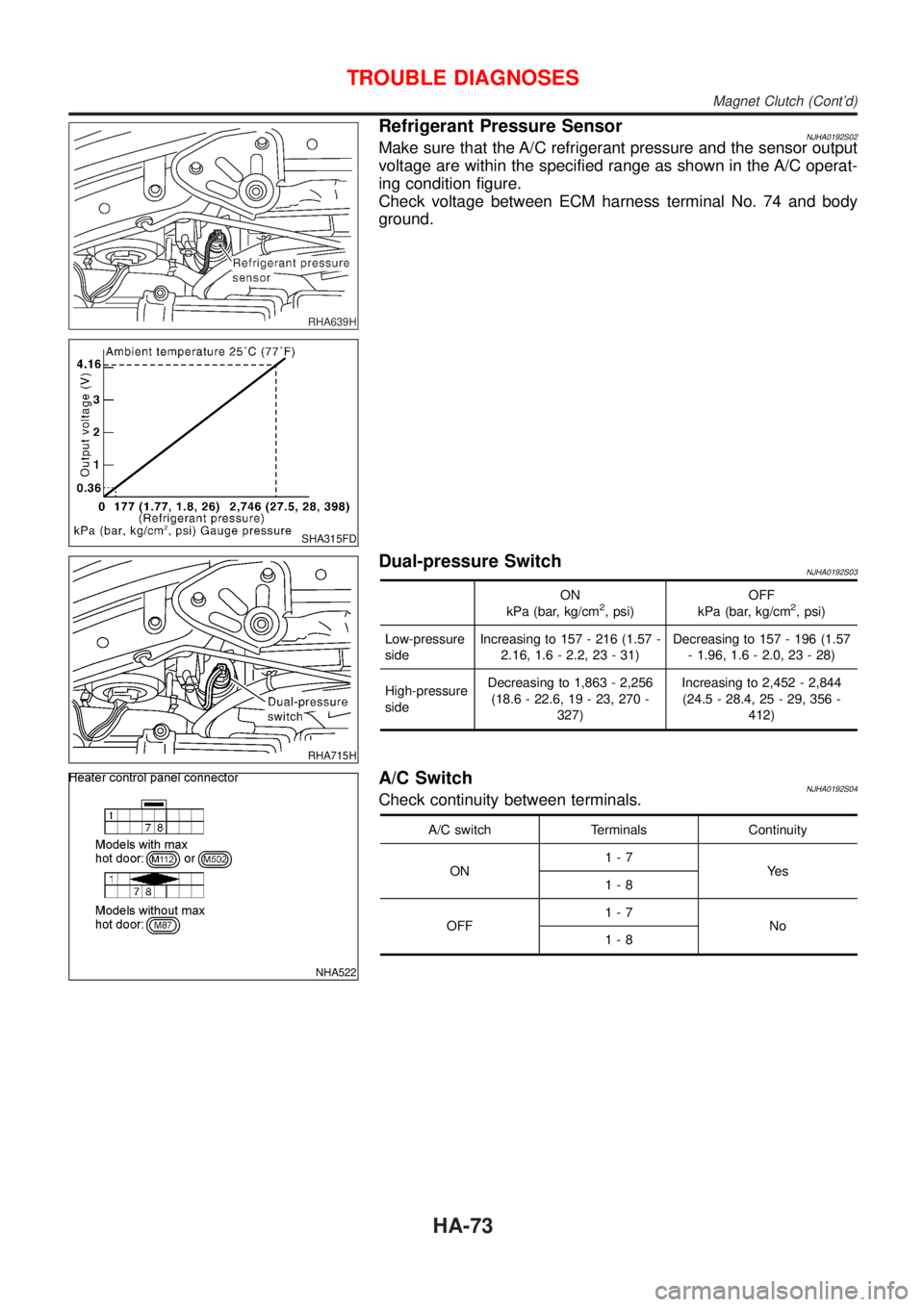

NISSAN ALMERA N16 2001 Electronic Repair Manual 14 CHECK FAN SWITCH Refer to HA-60. OK or NG OK©GO TO 15. NG©Replace fan switch. 15 CHECK BODY GROUND CIRCUIT Check circuit continuity between heater control panel harness terminal No. 13 and body g

Page 2045 of 2493

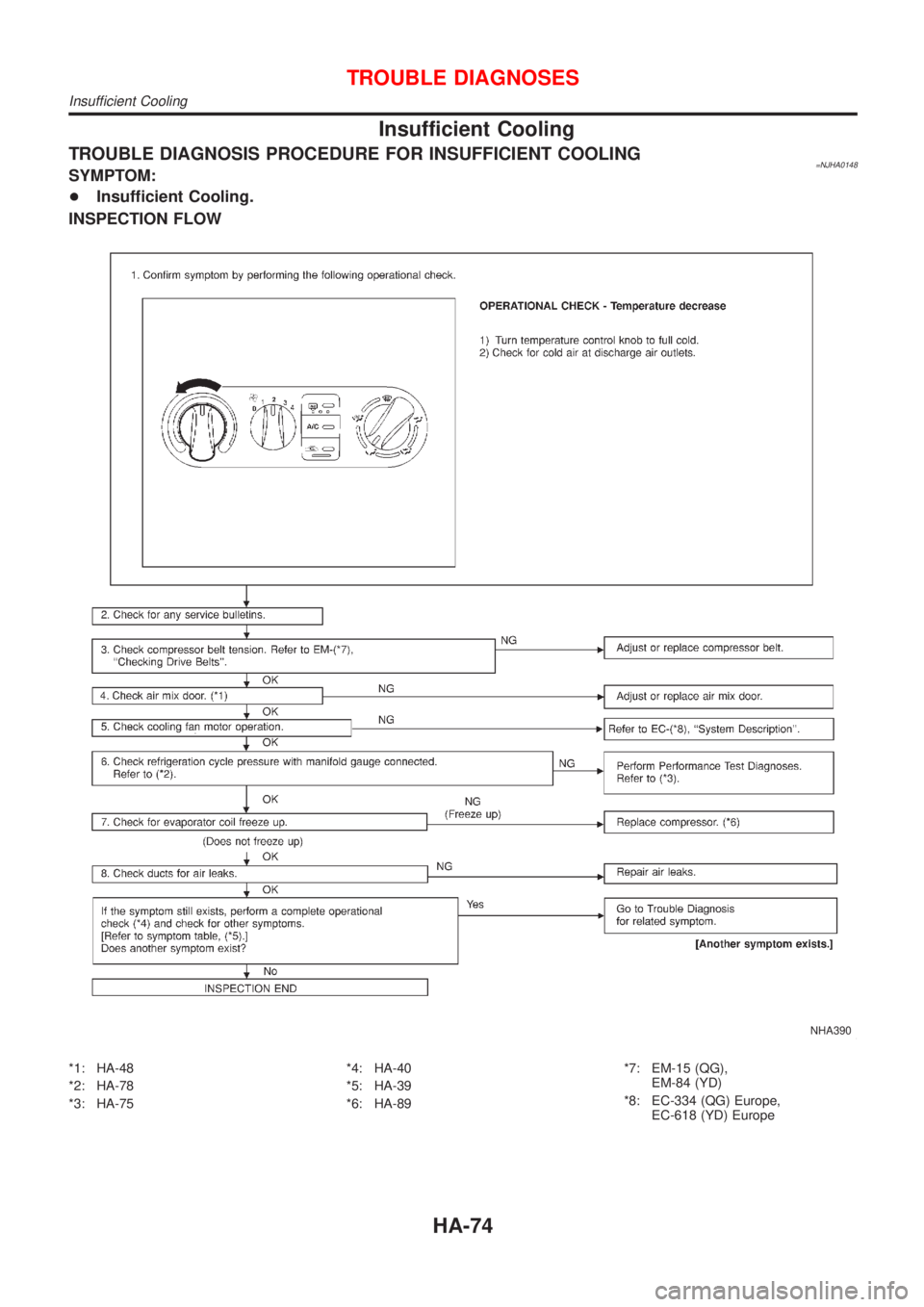

NISSAN ALMERA N16 2001 Electronic Repair Manual RHA639H SHA315FD Refrigerant Pressure SensorNJHA0192S02Make sure that the A/C refrigerant pressure and the sensor output voltage are within the specified range as shown in the A/C operat- ing conditio

Page 2046 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Insufficient Cooling TROUBLE DIAGNOSIS PROCEDURE FOR INSUFFICIENT COOLING=NJHA0148SYMPTOM: +Insufficient Cooling. INSPECTION FLOW NHA390 *1: HA-48 *2: HA-78 *3: HA-75*4: HA-40 *5: HA-39 *6: HA-89*7: E

Page 2047 of 2493

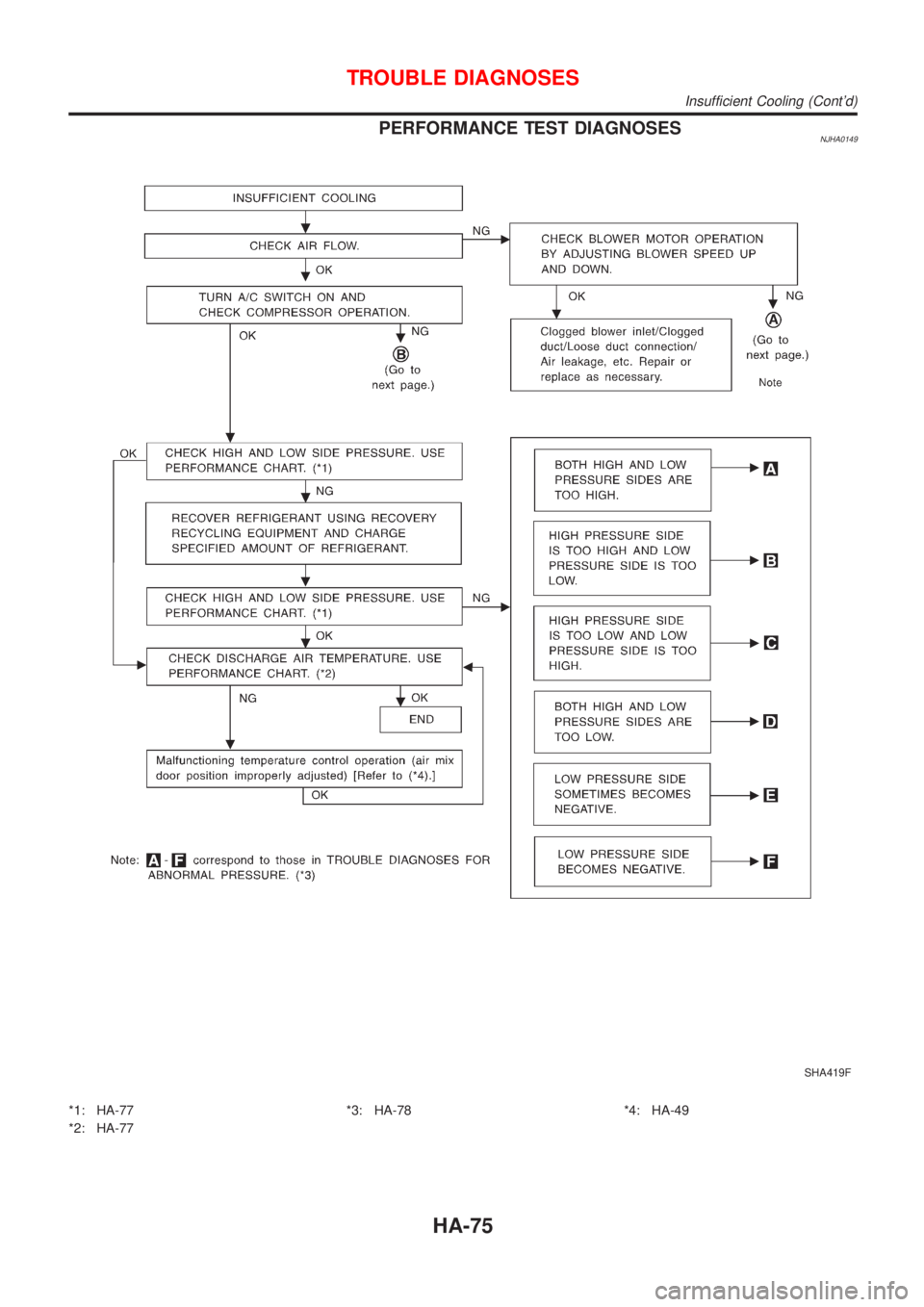

NISSAN ALMERA N16 2001 Electronic Repair Manual PERFORMANCE TEST DIAGNOSESNJHA0149 SHA419F *1: HA-77 *2: HA-77*3: HA-78 *4: HA-49 TROUBLE DIAGNOSES Insufficient Cooling (Contd) HA-75

Page 2048 of 2493

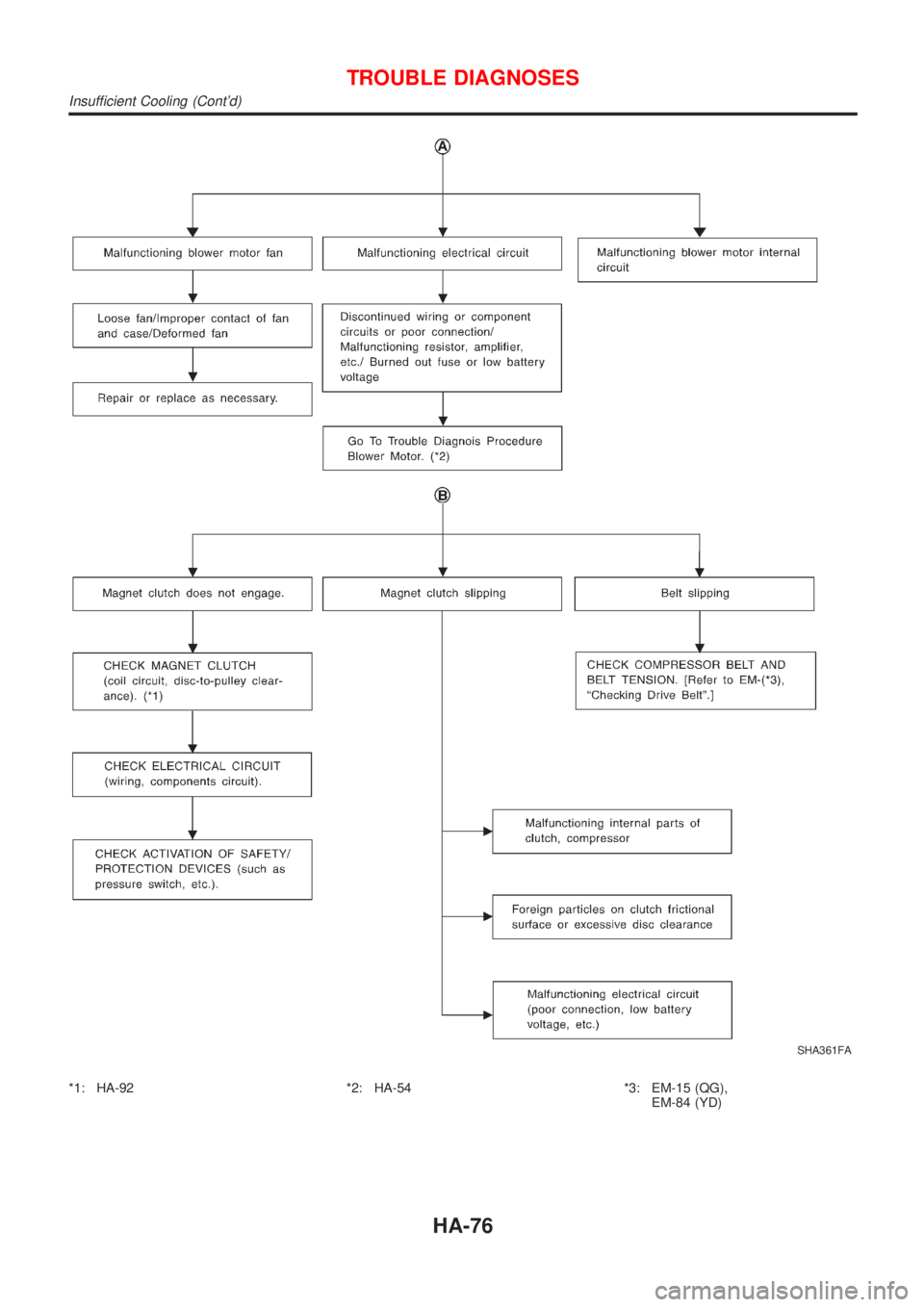

NISSAN ALMERA N16 2001 Electronic Repair Manual SHA361FA *1: HA-92 *2: HA-54 *3: EM-15 (QG), EM-84 (YD) TROUBLE DIAGNOSES Insufficient Cooling (Contd) HA-76
