Page 105 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM886F InstallationNJEM01071. Install crankshaft sprocket on crankshaft. +Make sure mating marks on crankshaft sprocket face front of engine. SEM890F 2. Position crankshaft so that No. 1 piston is at

Page 106 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM519G 6. Install camshaft sprocket bolts and tighten them to correct torque. +Apply new engine oil to bolt threads and seat surface. SEM520G 7. Install chain tensioner. +Before installing chain tens

Page 107 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM896F 12. Install front cover. Bolt No. Tightening torque N´m (kg-m, in-lb) ª!º mm (in) a. 6.9 - 9.5 (0.70 - 0.97, 61 - 84) 20 (0.79) b. 6.9 - 9.5 (0.70 - 0.97, 61 - 84) 40 (1.57) c. 17 - 24 (1.7

Page 108 of 2493

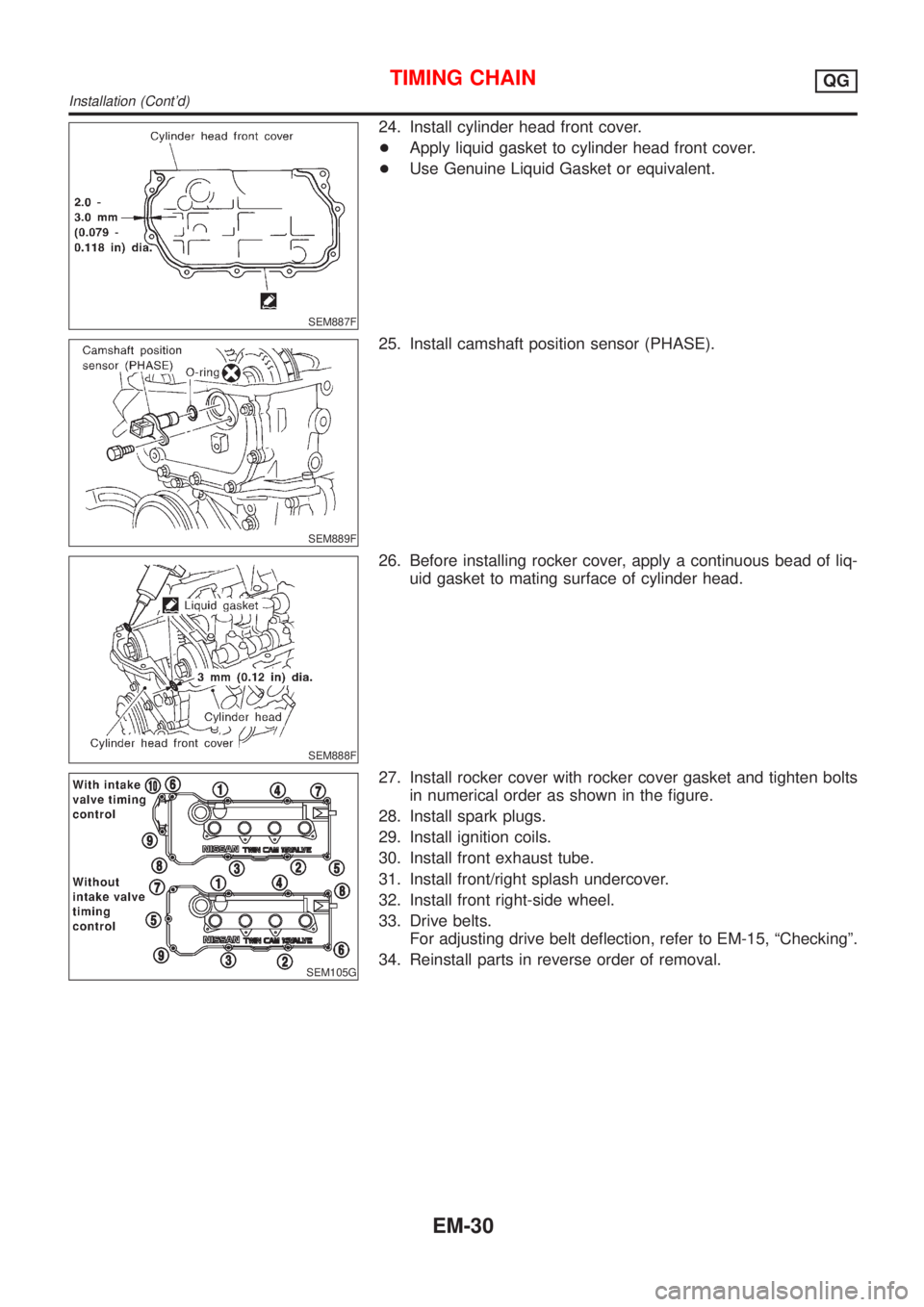

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM887F 24. Install cylinder head front cover. +Apply liquid gasket to cylinder head front cover. +Use Genuine Liquid Gasket or equivalent. SEM889F 25. Install camshaft position sensor (PHASE). SEM888

Page 109 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM909F ReplacementNJEM0015VALVE OIL SEALNJEM0015S011. Remove rocker cover. 2. Remove camshaft. 3. Remove valve spring. Refer to EM-36. 4. Remove valve oil seal with Tool. Piston concerned should be s

Page 110 of 2493

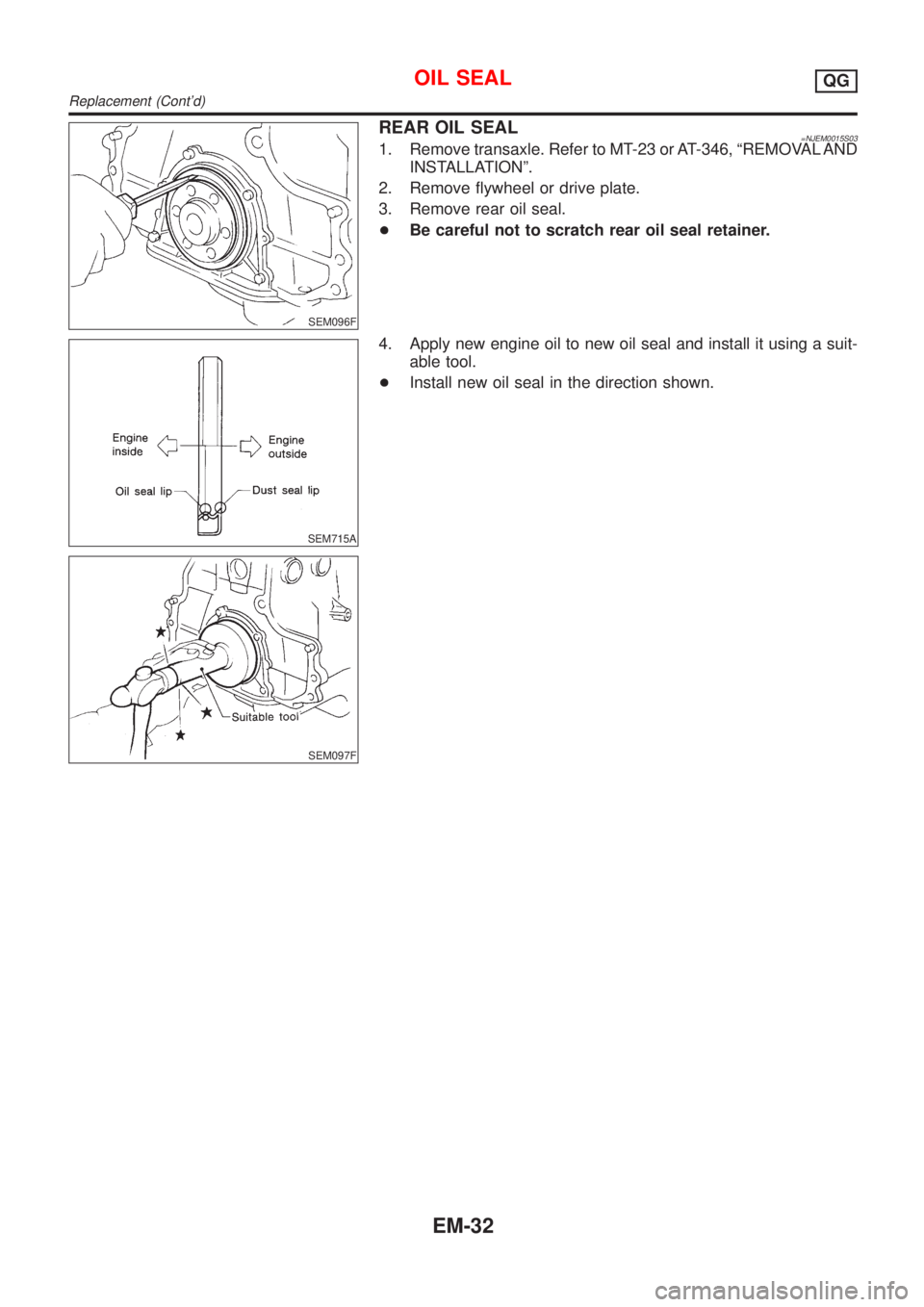

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM096F REAR OIL SEAL=NJEM0015S031. Remove transaxle. Refer to MT-23 or AT-346, ªREMOVAL AND INSTALLATIONº. 2. Remove flywheel or drive plate. 3. Remove rear oil seal. +Be careful not to scratch rea

Page 111 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual ComponentsNJEM0108 SEM106G 1. Oil filler cap 2. Rocker cover 3. Rocker cover gasket 4. Intake valve timing control sole- noid (Models with intake valve tim- ing control) 5. Camshaft bracket 6. Intake

Page 112 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual CAUTION: +When installing camshaft and oil seal, lubricate contacting surfaces with new engine oil. +When tightening cylinder head bolts, camshaft sprocket bolts and camshaft bracket bolts, lubricate
