Diagnostic ProcedureNJAT0065
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 2 and ground.
Resistance:
20-30W
SAT900JA
OK or NG
OK©GO TO 2.
NG©1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Shift solenoid valve A
Refer to ªComponent Inspectionº, AT-145.
+Harness of terminal cord assembly for short or open
SHIFT SOLENOID VALVE AEXCEPT FOR EURO-OBD
Diagnostic Procedure
AT-143
Page 1330 of 2493
2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 2 and TCM harness connector terminal 11.
Continuity should exist.
SAT901JB
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT-141.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
SHIFT SOLENOID VALVE AEXCEPT FOR EURO-OBD
Diagnostic Procedure (Cont'd)
AT-144
Page 1331 of 2493
SAT021K
Component InspectionNJAT0066SHIFT SOLENOID VALVE ANJAT0066S01+For removal, refer to AT-343.
Resistance CheckNJAT0066S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve A2 Ground 20 - 30W
SAT022K
Operation CheckNJAT0066S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
SHIFT SOLENOID VALVE AEXCEPT FOR EURO-OBD
Component Inspection
AT-145
Page 1332 of 2493

SAT322GC
DescriptionNJAT0067Shift solenoid valves A and B are turned ªONº or ªOFFº by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0067S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
12 L/YShift solenoid
valve B
When shift solenoid valve B oper-
ates.
(When driving in ªD
1ºorªD2º.)Battery voltage
When shift solenoid valve B does
not operate.
(When driving in ªD
3ºorªD4º.)1V or less
ON BOARD DIAGNOSIS LOGICNJAT0067S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: SHIFT SOLENOID/VB TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+Shift solenoid valve B
: 5th judgement flicker
SHIFT SOLENOID VALVE BEXCEPT FOR EURO-OBD
Description
AT-146
Page 1333 of 2493
SAT580J
SAT812H
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENJAT0067S04After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-IINJAT0067S04011) Start engine.
2) Select ªSELF-DIAG RESULTSº mode for A/T with CONSULT-
II.
3) Drive vehicle in D
1®D2®D3position.
Without CONSULT-IINJAT0067S04021) Start engine.
2) Drive vehicle in D
1®D2®D3position.
3) Perform self-diagnosis.
Refer to ªSELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-42.
SHIFT SOLENOID VALVE BEXCEPT FOR EURO-OBD
Description (Cont'd)
AT-147
Page 1334 of 2493

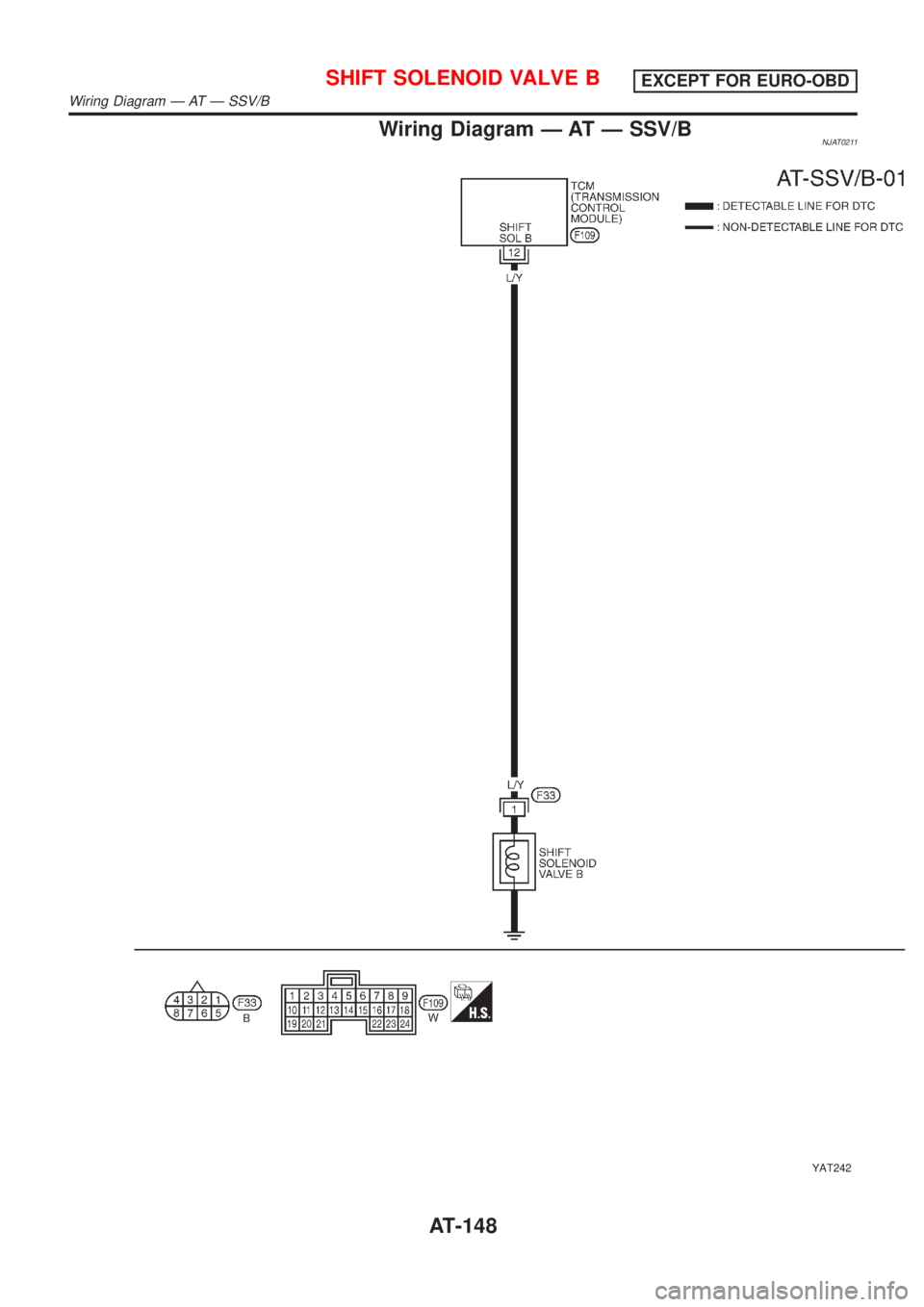

Wiring Diagram Ð AT Ð SSV/BNJAT0211
YAT242
SHIFT SOLENOID VALVE BEXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð SSV/B
AT-148
Page 1335 of 2493
Diagnostic ProcedureNJAT0068
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 1 and ground.
Resistance:
5-20W
SAT904JA
OK or NG
OK©GO TO 2.
NG©1. Remove control valve assembly. Refer to AT-343.
2. Check the following items:
+Shift solenoid valve B
Refer to ªComponent Inspectionº, AT-151.
+Harness of terminal cord assembly for short or open
SHIFT SOLENOID VALVE BEXCEPT FOR EURO-OBD
Diagnostic Procedure
AT-149
Page 1336 of 2493
2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 12 and TCM harness connector terminal 1.
Continuity should exist.
SAT905JA
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT-147.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
SHIFT SOLENOID VALVE BEXCEPT FOR EURO-OBD
Diagnostic Procedure (Cont'd)
AT-150
