Page 1265 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT513G 3. Set parking brake and block wheels. 4. Install a tachometer where it can be seen by driver during test. +It is good practice to mark the point of specified engine rpm on indicator. SAT514G

Page 1266 of 2493

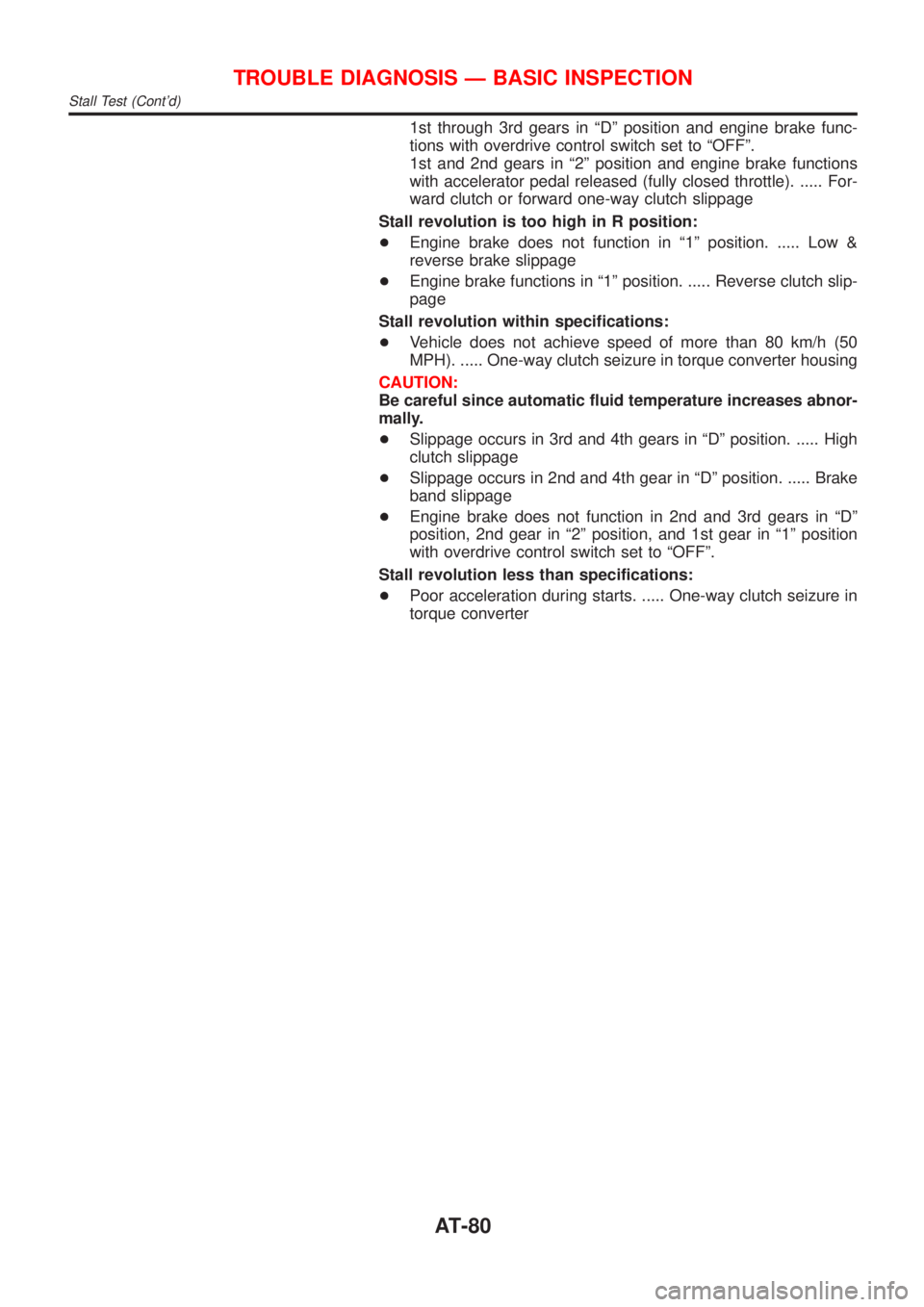

NISSAN ALMERA N16 2001 Electronic Repair Manual 1st through 3rd gears in ªDº position and engine brake func- tions with overdrive control switch set to ªOFFº. 1st and 2nd gears in ª2º position and engine brake functions with accelerator pedal

Page 1267 of 2493

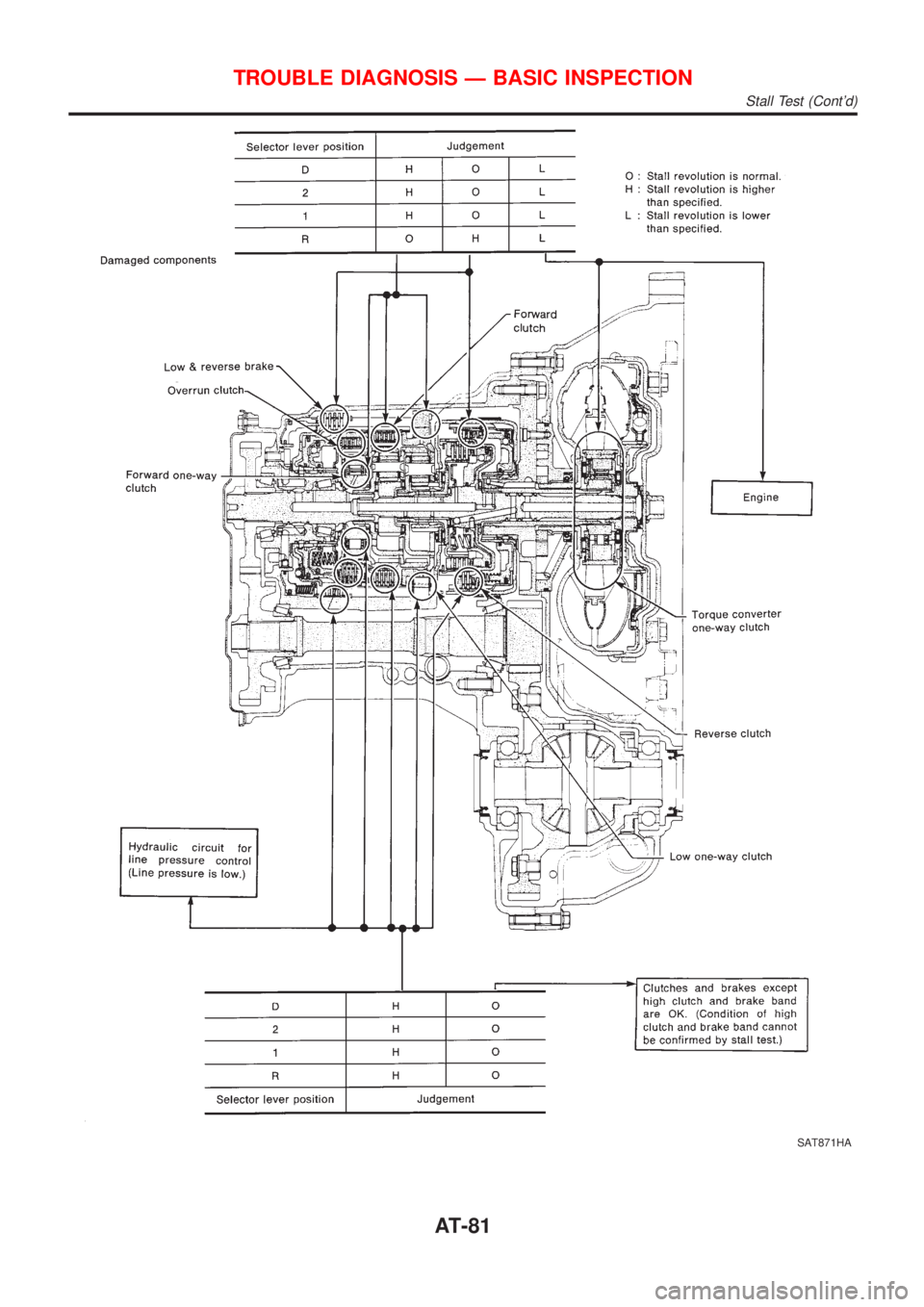

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT871HA TROUBLE DIAGNOSIS Ð BASIC INSPECTION Stall Test (Contd) AT-81

Page 1268 of 2493

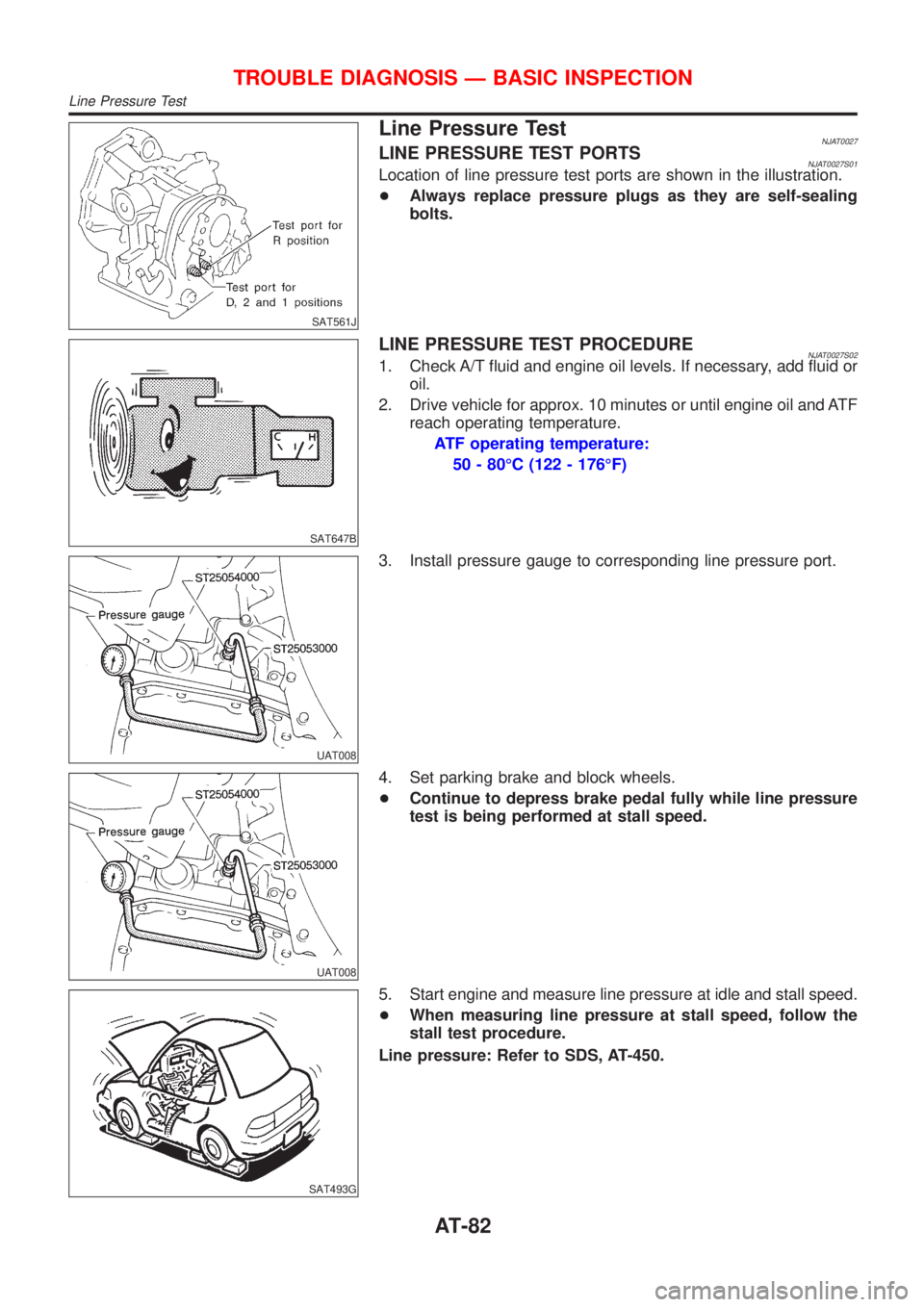

NISSAN ALMERA N16 2001 Electronic Repair Manual SAT561J Line Pressure TestNJAT0027LINE PRESSURE TEST PORTSNJAT0027S01Location of line pressure test ports are shown in the illustration. +Always replace pressure plugs as they are self-sealing bolts.

Page 1269 of 2493

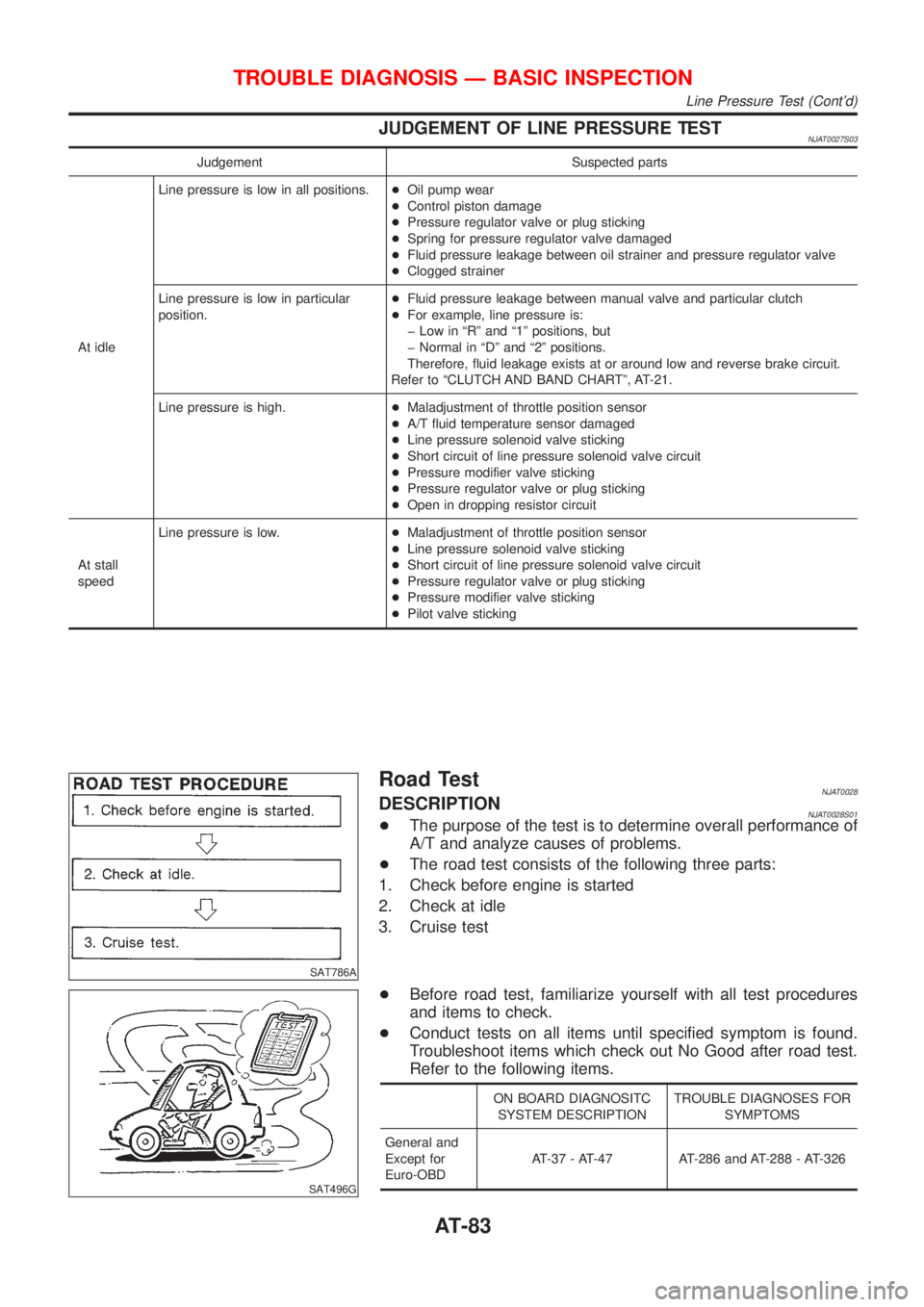

NISSAN ALMERA N16 2001 Electronic Repair Manual JUDGEMENT OF LINE PRESSURE TESTNJAT0027S03 Judgement Suspected parts At idleLine pressure is low in all positions.+Oil pump wear +Control piston damage +Pressure regulator valve or plug sticking +Spri

Page 1270 of 2493

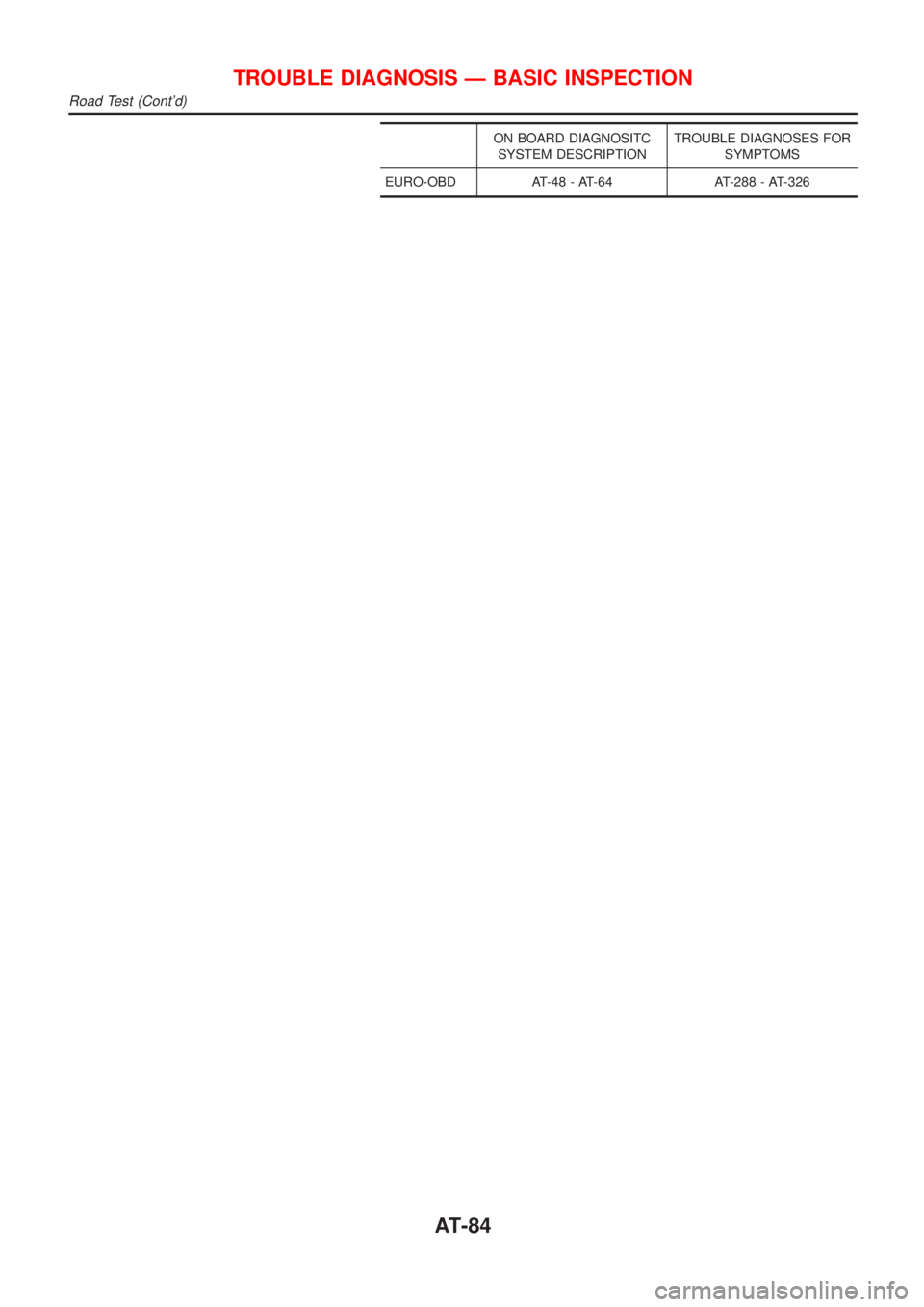

NISSAN ALMERA N16 2001 Electronic Repair Manual ON BOARD DIAGNOSITC SYSTEM DESCRIPTIONTROUBLE DIAGNOSES FOR SYMPTOMS EURO-OBD AT-48 - AT-64 AT-288 - AT-326 TROUBLE DIAGNOSIS Ð BASIC INSPECTION Road Test (Contd) AT-84

Page 1271 of 2493

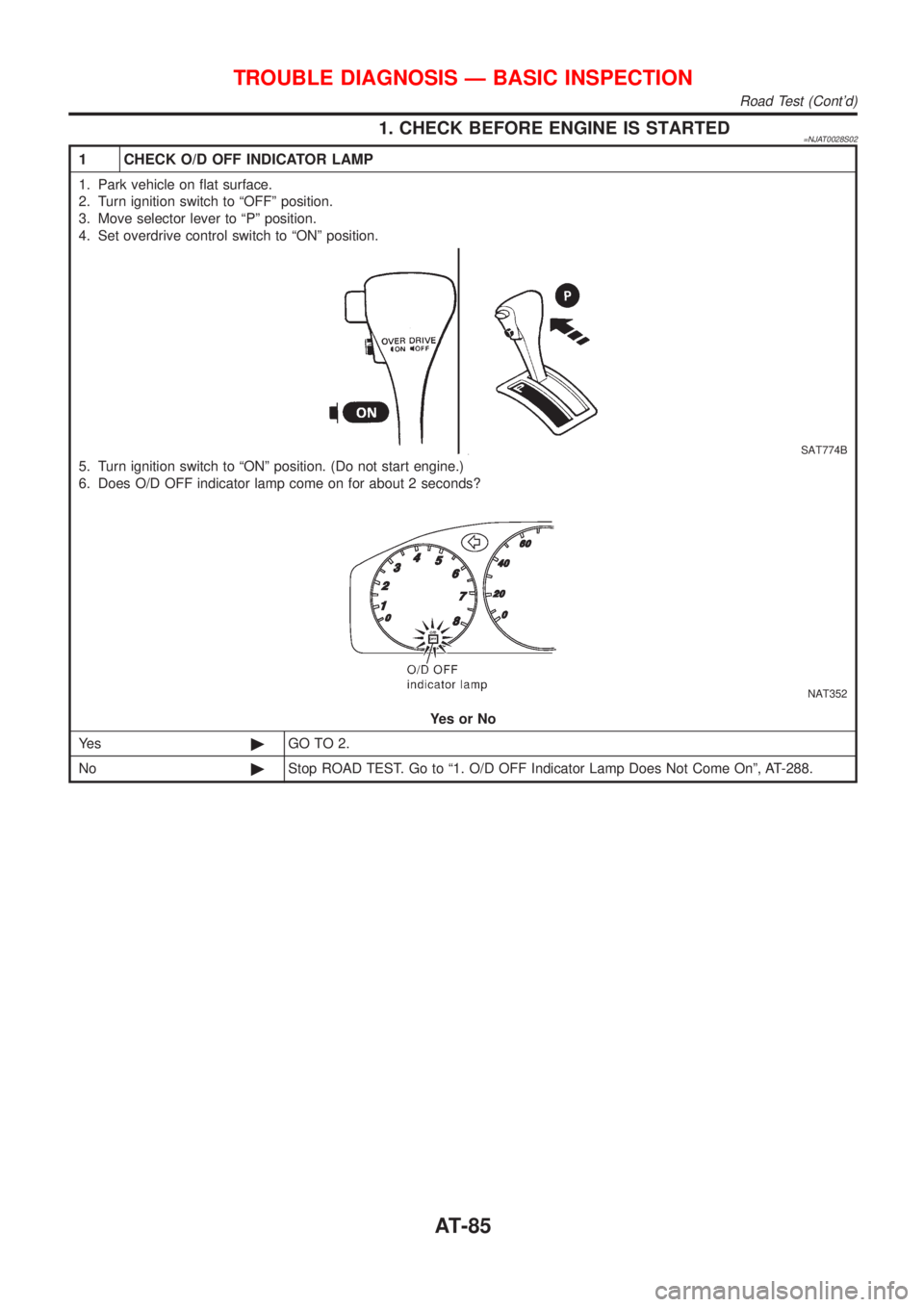

NISSAN ALMERA N16 2001 Electronic Repair Manual 1. CHECK BEFORE ENGINE IS STARTED=NJAT0028S02 1 CHECK O/D OFF INDICATOR LAMP 1. Park vehicle on flat surface. 2. Turn ignition switch to ªOFFº position. 3. Move selector lever to ªPº position. 4.

Page 1272 of 2493

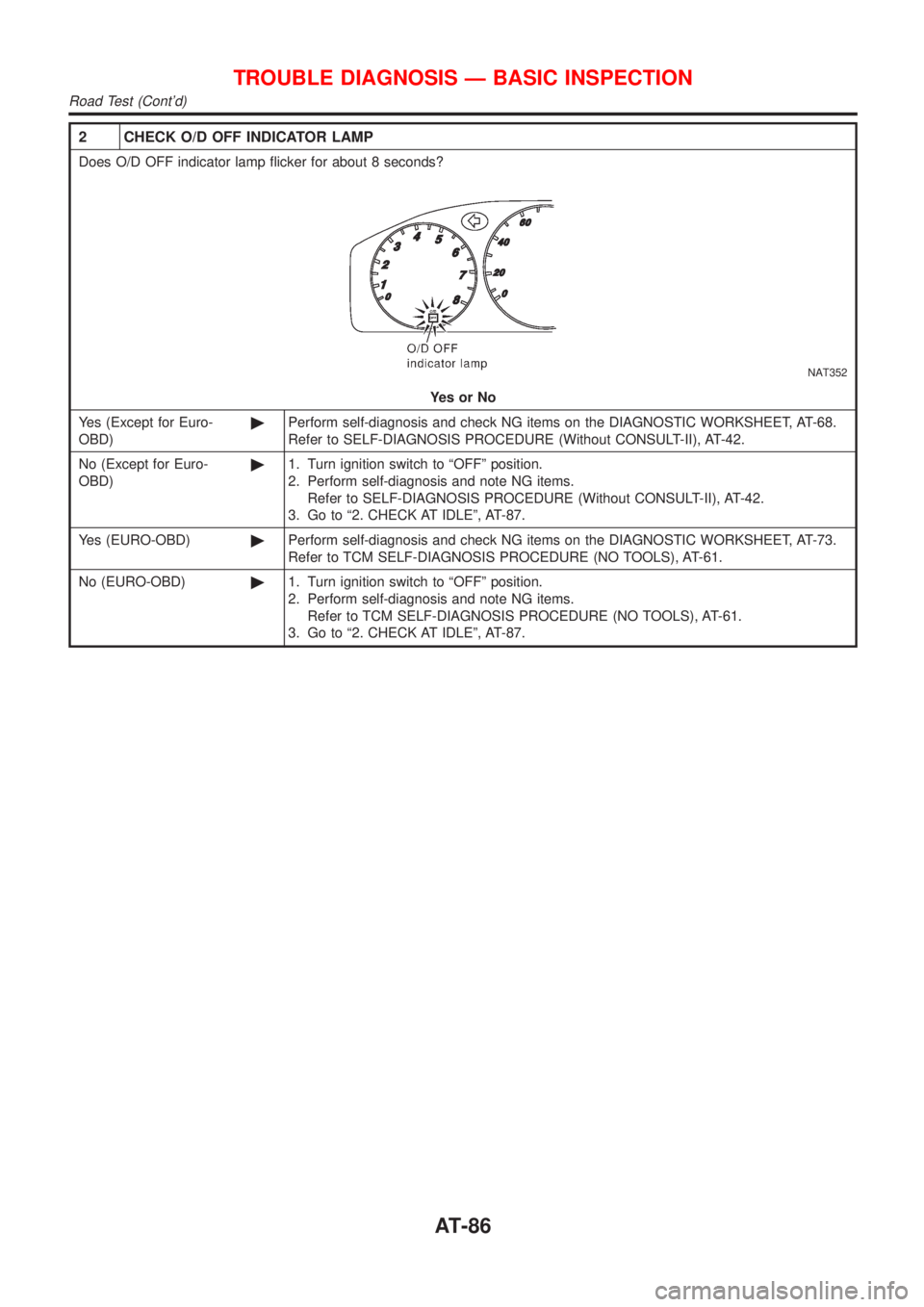

NISSAN ALMERA N16 2001 Electronic Repair Manual 2 CHECK O/D OFF INDICATOR LAMP Does O/D OFF indicator lamp flicker for about 8 seconds? NAT352 YesorNo Yes (Except for Euro- OBD)©Perform self-diagnosis and check NG items on the DIAGNOSTIC WORKSHEET
